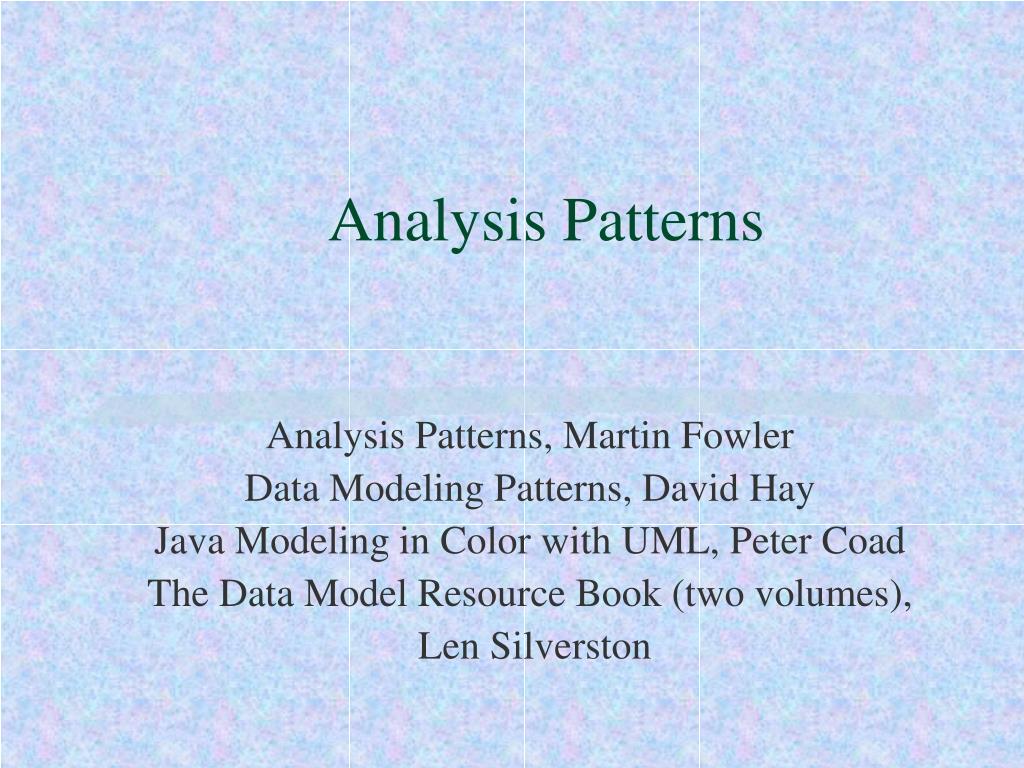

  1. Analysis Patterns Analysis Patterns, Martin Fowler Data Modeling Patterns, David Hay Java Modeling in Color with UML, Peter Coad The Data Model Resource Book (two volumes), Len Silverston

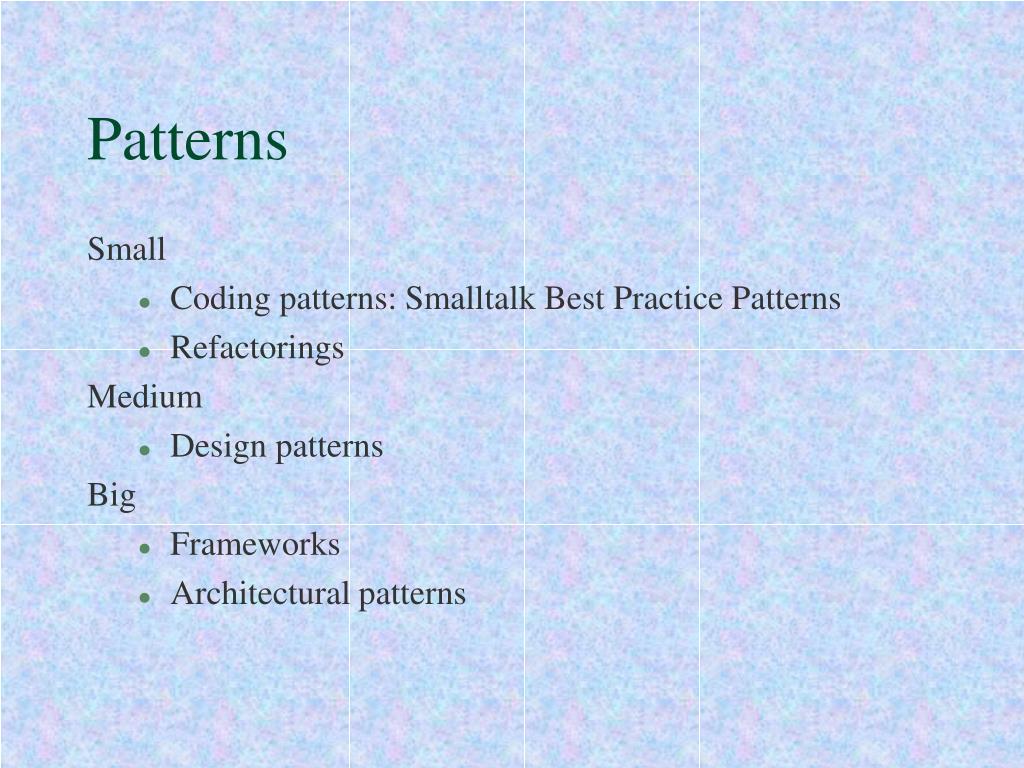

  2. Patterns • Small • Coding patterns: Smalltalk Best Practice Patterns • Refactorings • Medium • Design patterns • Big • Frameworks • Architectural patterns

  3. Patterns • Reusable solution to a problem in a context. • Knowledge of experts. • Balance of forces.

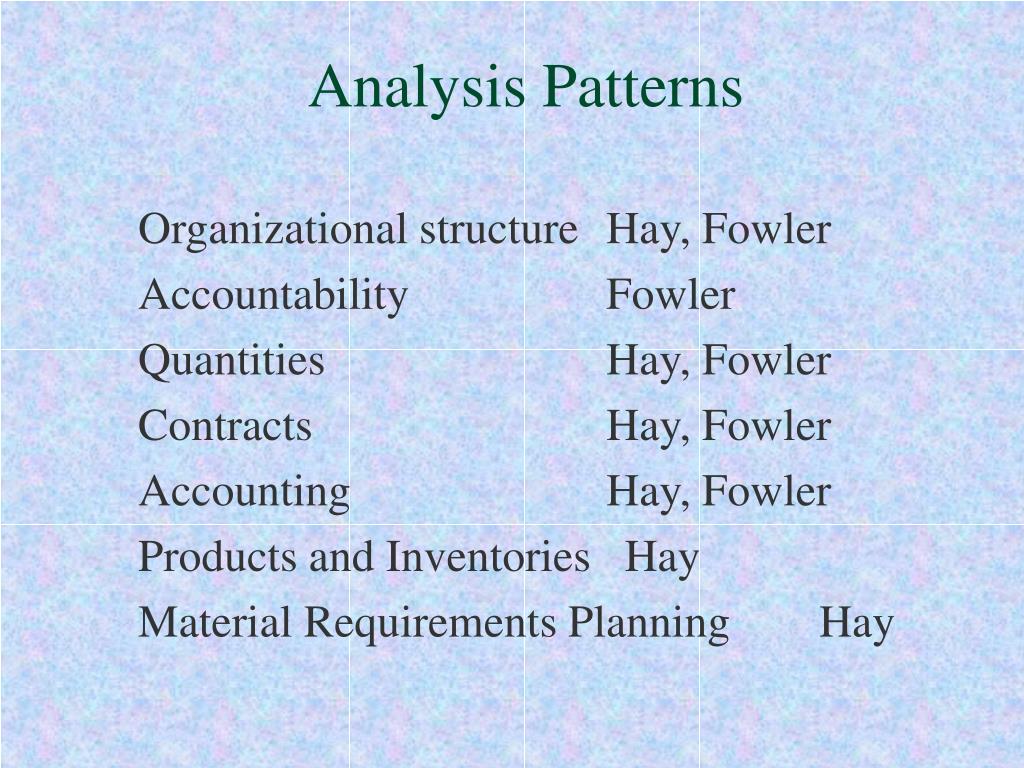

  4. Analysis Patterns • Organizational structure Hay, Fowler • Accountability Fowler • Quantities Hay, Fowler • Contracts Hay, Fowler • Accounting Hay, Fowler • Products and Inventories Hay • Material Requirements Planning Hay

  5. Transactions Transactions can effect many accounts. * * Entry amount Account Transaction date

  6. Party • Many roles that are usually played by people are sometimes played by organizational units, too. Party Address Person Organization

  7. Organizational Hierarchies • Organizations usually have a hierarchical structure. Party Address parent Organization Person subsidiary Division Region Sales Office Operating Unit

  8. Organizational Structure • Problem: An organization can be in several hierarchies, and the structure can change over time. OrganizationStructureType OrganizationStructure time interval parent * Organization * subsidiary Division Region Sales Office Operating Unit

  9. Quantity Quantity amount: Number units: Unit +, -, *, /

  10. Conversion Ratio * Conversion Ratio ratio: Number Unit *

  11. Measurement weight Quantity Person height

  12. Measurement Phenomenon Type * * * Person Measurement Quantity

  13. Observation Phenomenon Type * Person Observation * Measurement CategoryObs. * Quantity Category

  14. Action Action time * Party * Location

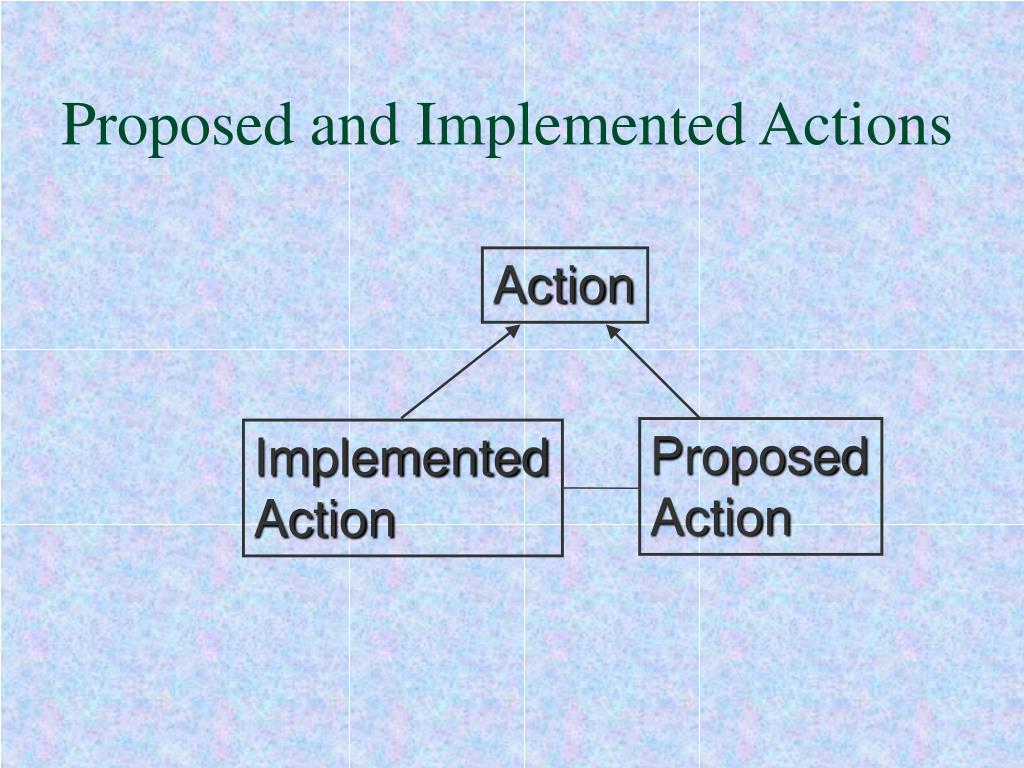

  15. Proposed and Implemented Actions Action Proposed Action Implemented Action

  16. Completed, Abandoned, Suspended Actions Status * Action Completed Abandoned Suspended Time Period *

  17. Plan dependent Proposed Action * * consequences Plan

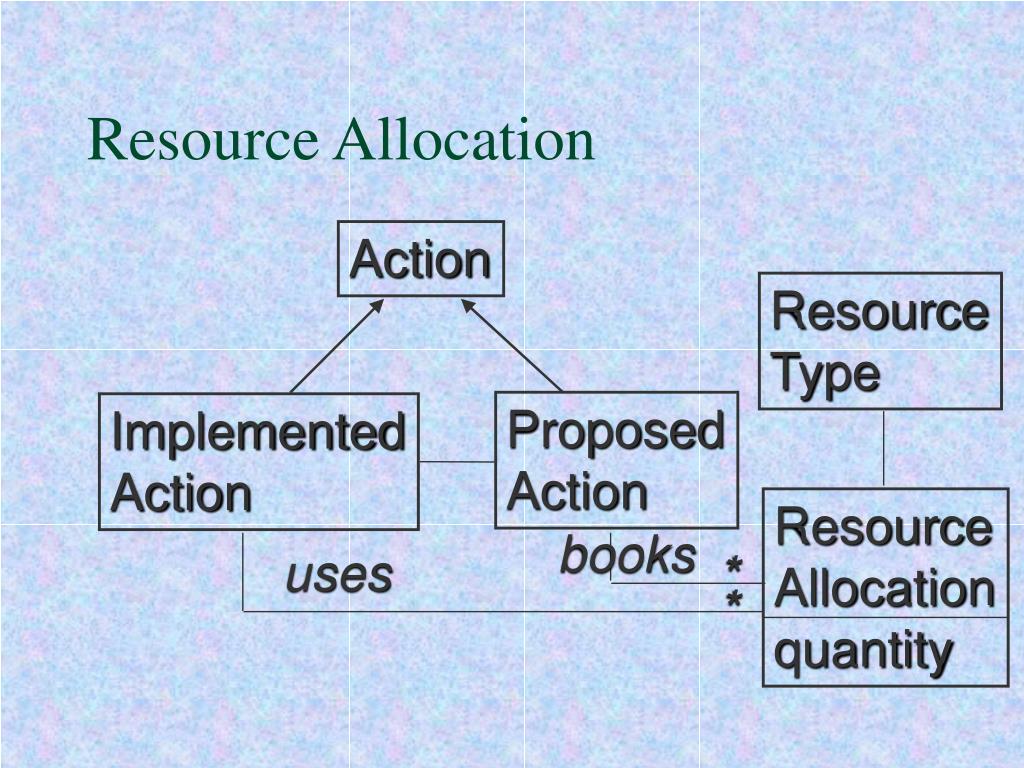

  18. Resource Allocation Action Resource Type Proposed Action Implemented Action Resource Allocation quantity books uses * *

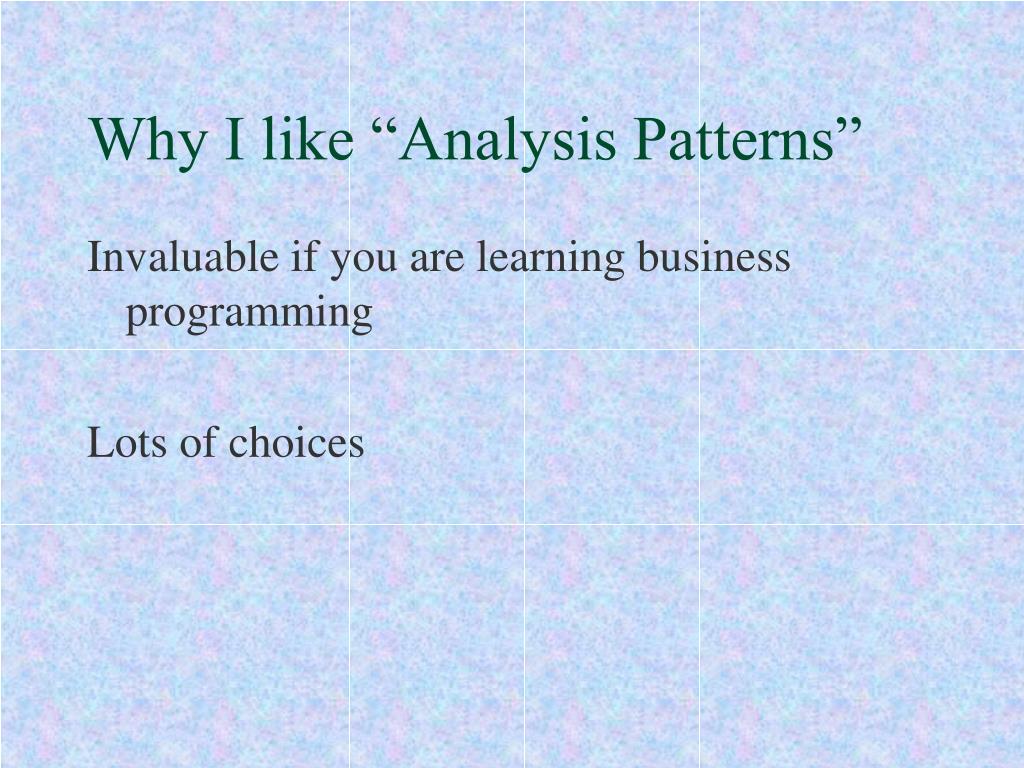

  19. Why I like “Analysis Patterns” • Invaluable if you are learning business programming • Lots of choices

  20. Summary • Lots of different kinds of patterns. • Patterns in problem domain, as well as solution domain. • Analysis patterns are as important as design patterns.
