Making CMP’s

This outline summarizes key concepts from Chapter 16 of "Elements of 3D Seismology" by Chris Liner, focusing on Normal Moveout (NMO). It covers definitions, the importance of correct velocity selection, and the implications of overcorrected and undercorrected NMO. Additionally, it explains the effects of NMO stretching on seismic data, including linear strain calculations and the role of stacking in enhancing signal-to-noise ratios through Semblance Analysis. This material provides crucial insights for interpreting seismic data effectively.

nadine
Télécharger la présentation

Making CMP’s

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Making CMP’s From chapter 16 “Elements of 3D Seismology” by Chris Liner

  2. Outline • Normal Moveout • Stacking

  3. Normal Moveout Hyperbola: x T

  4. Normal Moveout x T “Overcorrected” Normal Moveout is too large Chosenvelocity for NMO is too (a) large (b) small

  5. Normal Moveout x T “Overcorrected” Normal Moveout is too large Chosenvelocity for NMO is too (a)large (b) small

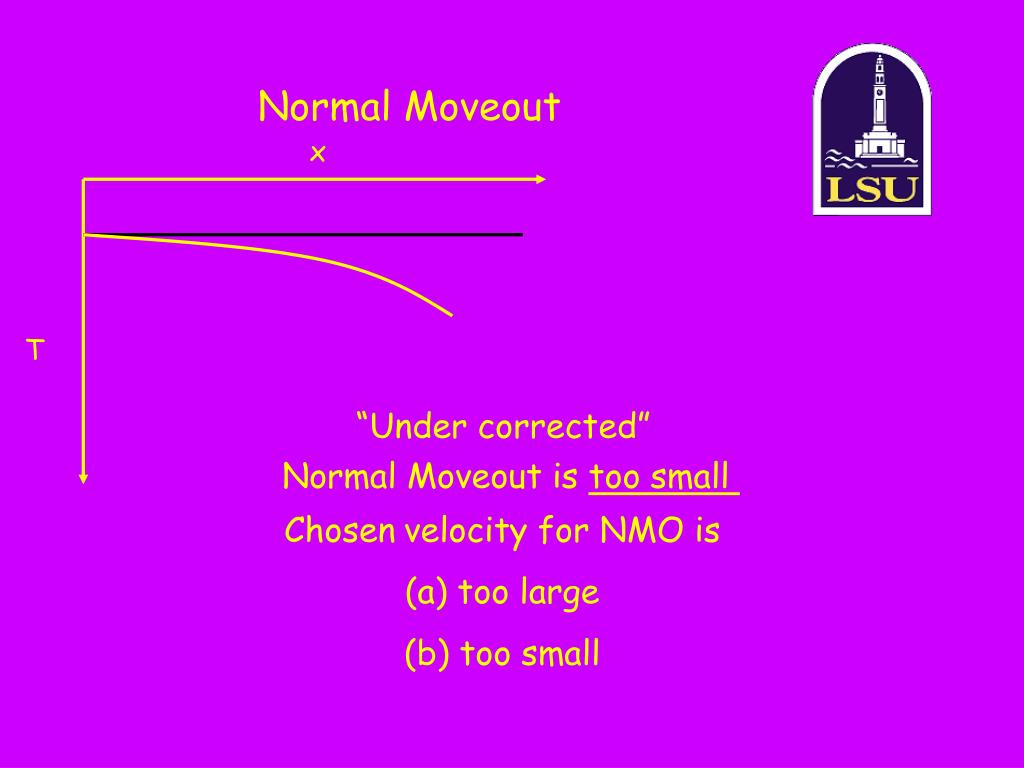

  6. Normal Moveout x T “Under corrected” Normal Moveout is too small Chosenvelocity for NMO is (a) too large (b) too small

  7. Normal Moveout x T “Under corrected” Normal Moveout is too small Chosenvelocity for NMO is (a) too large (b) too small

  8. Vinterval from Vrms Dix, 1955

  9. Vrms V1 V2 Vrms < Vinterval V3

  10. Vinterval from Vrms

  11. Primary seismic events x T

  12. Primary seismic events x T

  13. Primary seismic events x T

  14. Primary seismic events x T

  15. Multiples and Primaries x M1 T M2

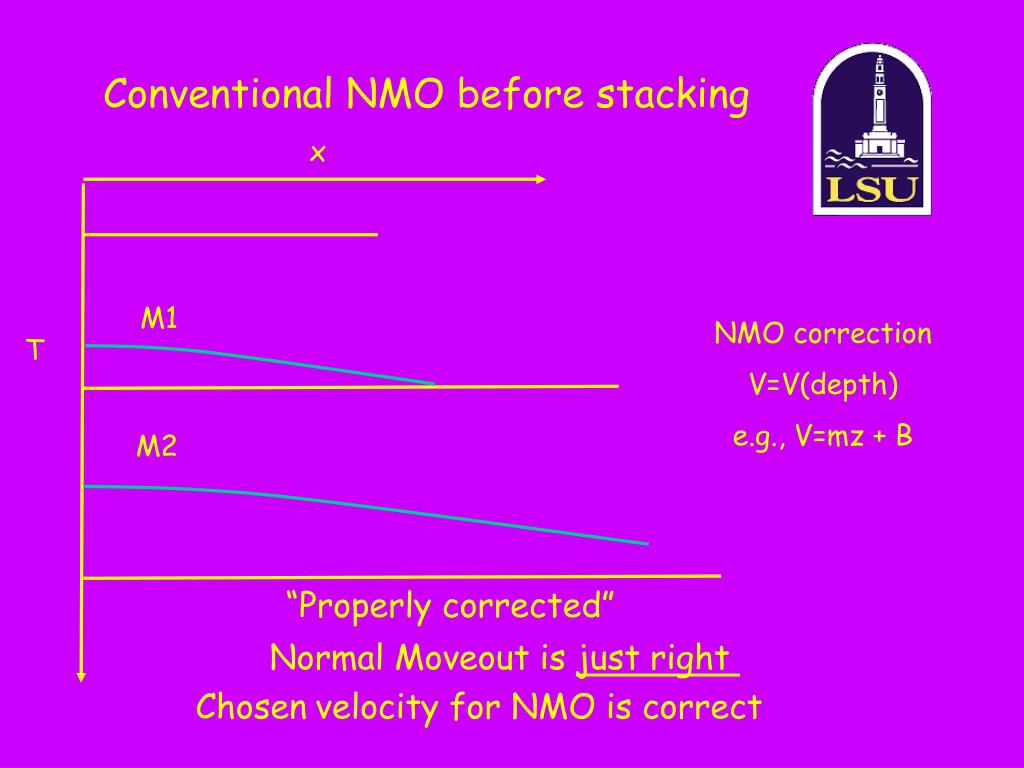

  16. Conventional NMO before stacking x M1 NMO correction V=V(depth) e.g., V=mz + B T M2 “Properly corrected” Normal Moveout is just right Chosenvelocity for NMO is correct

  17. Over-correction (e.g. 80% Vnmo) x x M1 M1 NMO correction V=V(depth) e.g., V=0.8(mz + B) T T M2 M2

  18. f-k filtering before stacking (Ryu) x x M1 NMO correction V=V(depth) e.g., V=0.8(mz + B) T T M2 M2

  19. Correct back to 100% NMO x x M1 M1 NMO correction V=V(depth) e.g., V=(mz + B) T T M2 M2

  20. Outline • Convolution and Deconvolution • Normal Moveout • Stacking

  21. NMO stretching T0 V1 V2 “NMO Stretching”

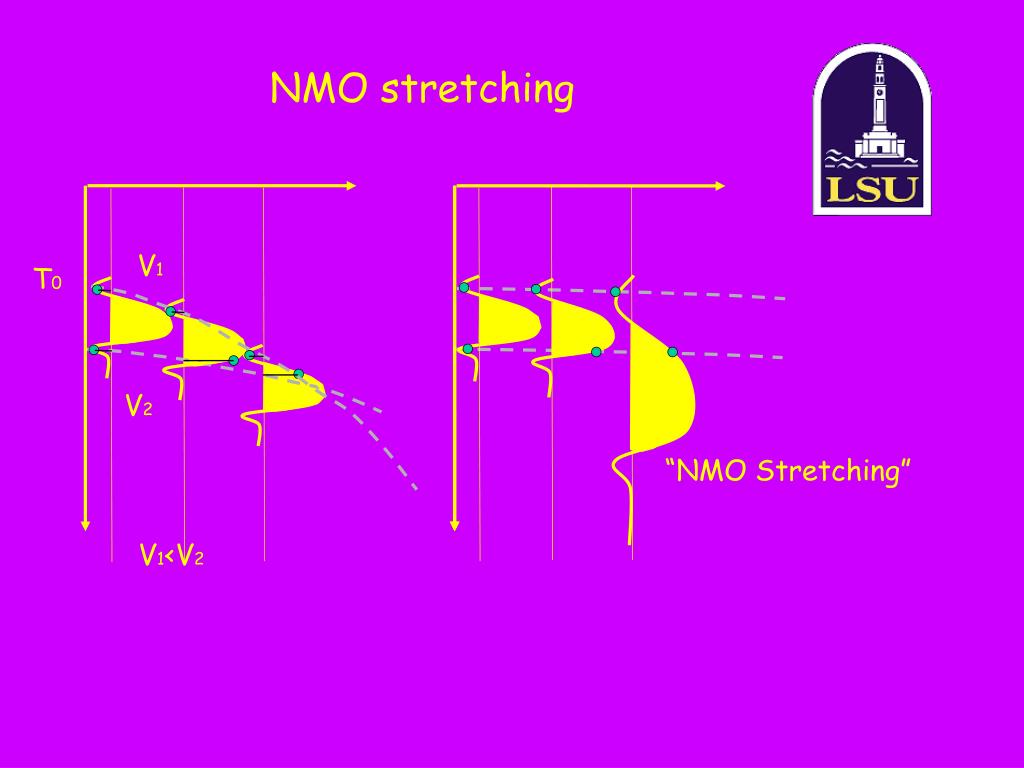

  22. NMO stretching V1 T0 V2 “NMO Stretching” V1<V2

  23. NMO stretching V1 V1<V2 NMO “stretch” = “linear strain” V2 Linear strain (%) = final length-original length original length X 100 (%)

  24. NMO stretching original length = final length = V1 V1<V2 V2 X 100 (%) NMO “stretch” = X 100 (%)

  25. stretching for T=2s,V1=V2=1500 m/s Green line assumes V1=V2 Blue line is for general case, where V1, V2 can be different and delT0=0.1s (this case: V1=V2) Matlab code X 100 (%)

  26. Stacking + + =

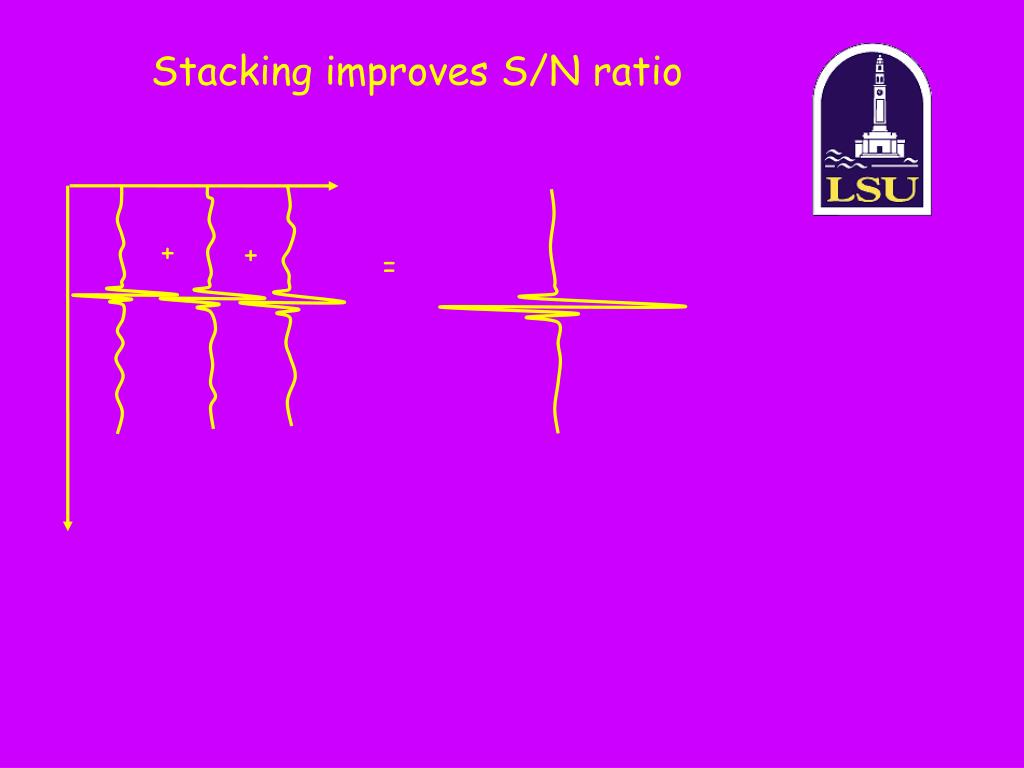

  27. Stacking improves S/N ratio + + =

  28. Semblance Analysis X + + = Twtt (s) “Semblance”

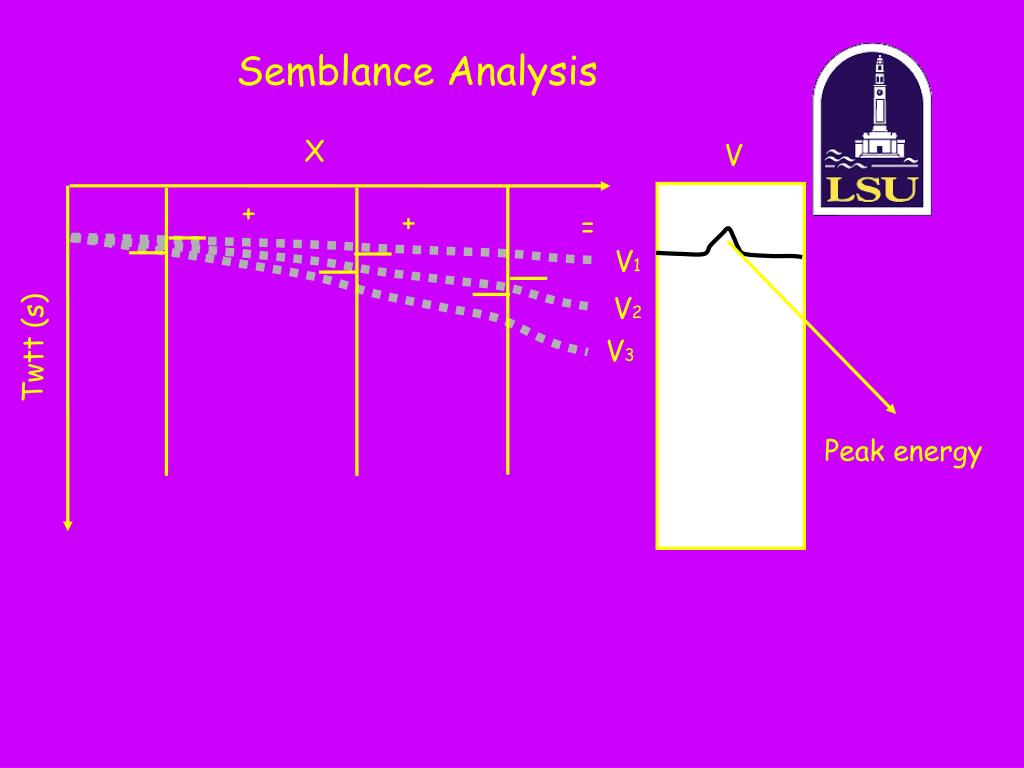

  29. Semblance Analysis X V + + = V1 V2 Twtt (s) V3 Peak energy
