  1. XML and DatabasesExercise Session 3(courtesy of Ghislain Fourny/ETH)

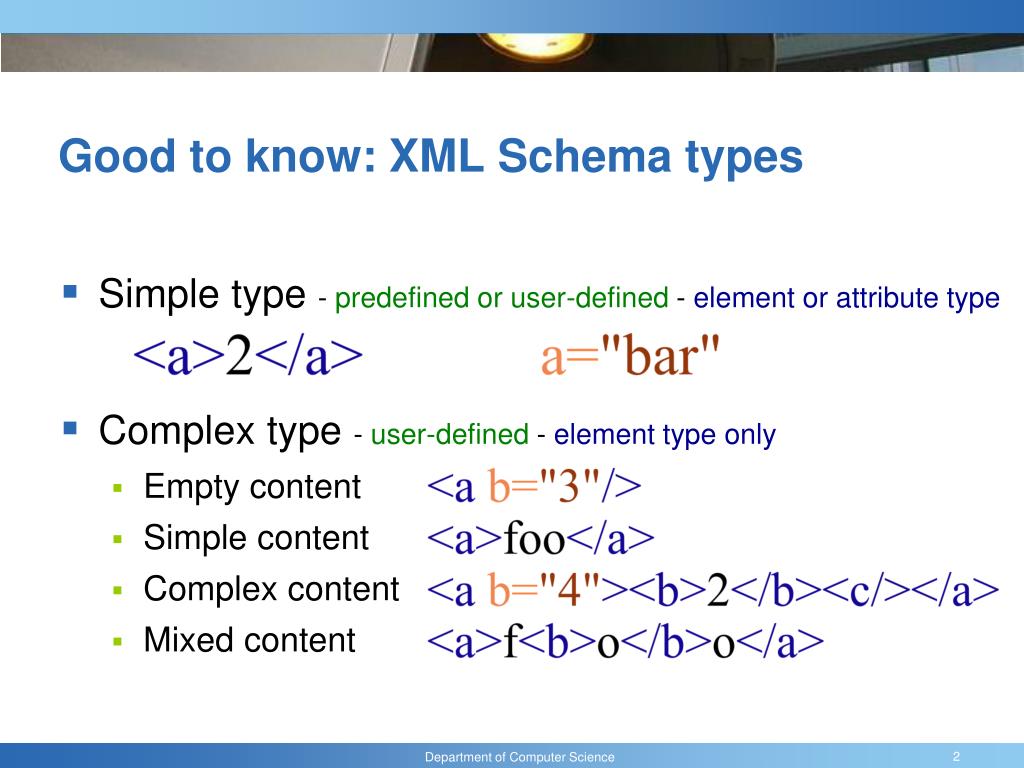

  2. Good to know: XML Schema types • Simple type - predefined or user-defined - element or attribute type • Complex type - user-defined - element type only • Empty content • Simple content • Complex content • Mixed content

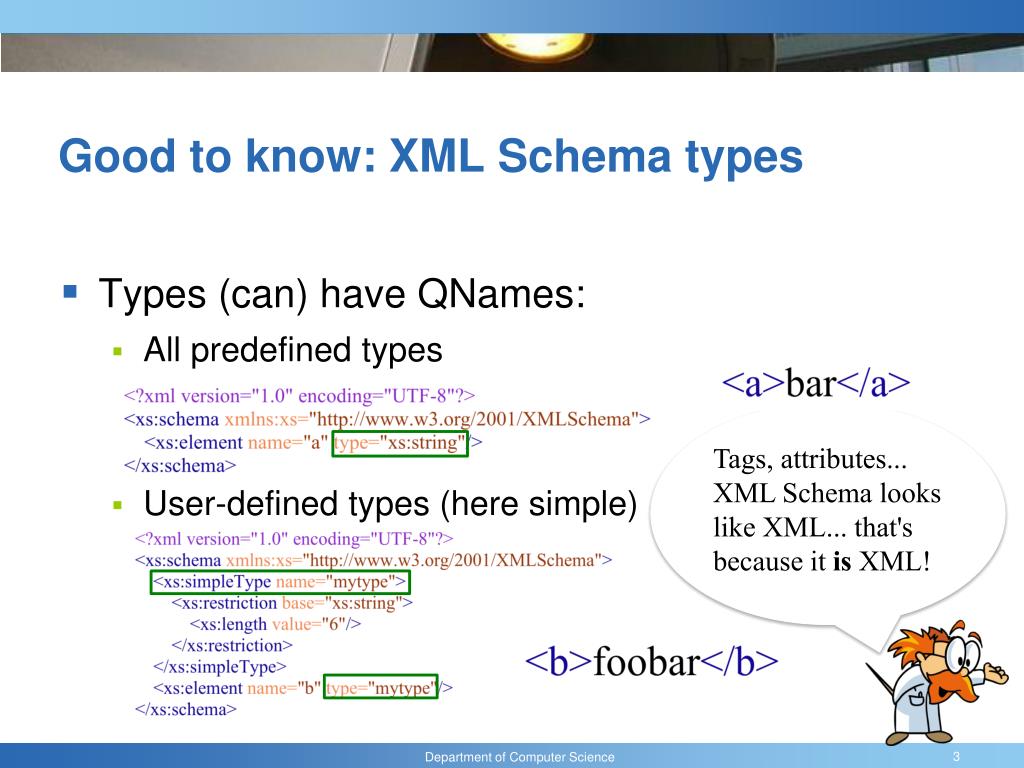

  3. Good to know: XML Schema types • Types (can) have QNames: • All predefined types • User-defined types (here simple) Tags, attributes... XML Schema looks like XML... that's because it is XML!

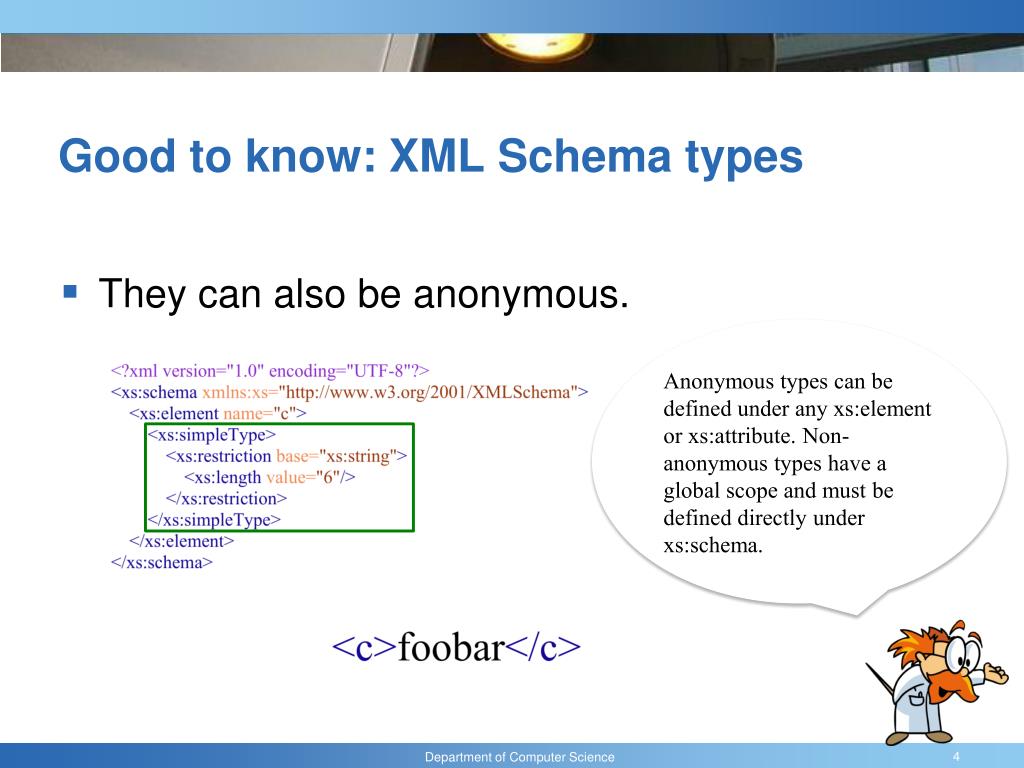

  4. Good to know: XML Schema types • They can also be anonymous. Anonymous types can be defined under any xs:element or xs:attribute. Non-anonymous types have a global scope and must be defined directly under xs:schema.

  5. Complex types in XML Schema • Complex type, complex content

  6. Complex types in XML Schema • Simple content (here anonymous)

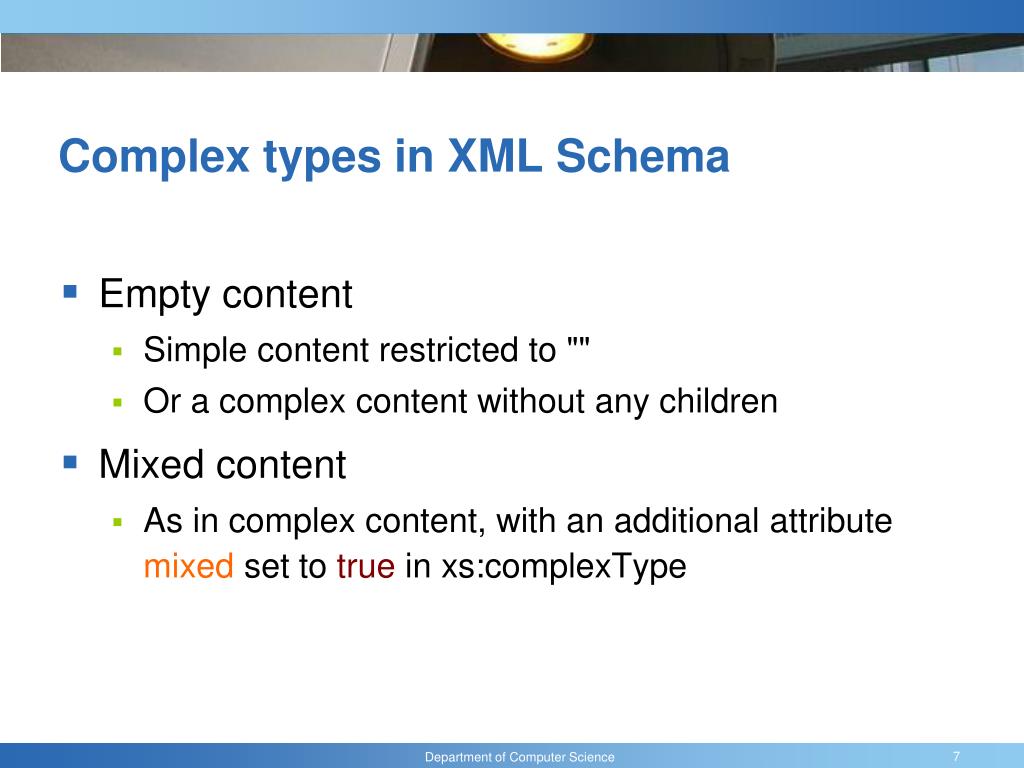

  7. Complex types in XML Schema • Empty content • Simple content restricted to "" • Or a complex content without any children • Mixed content • As in complex content, with an additional attribute mixed set to true in xs:complexType

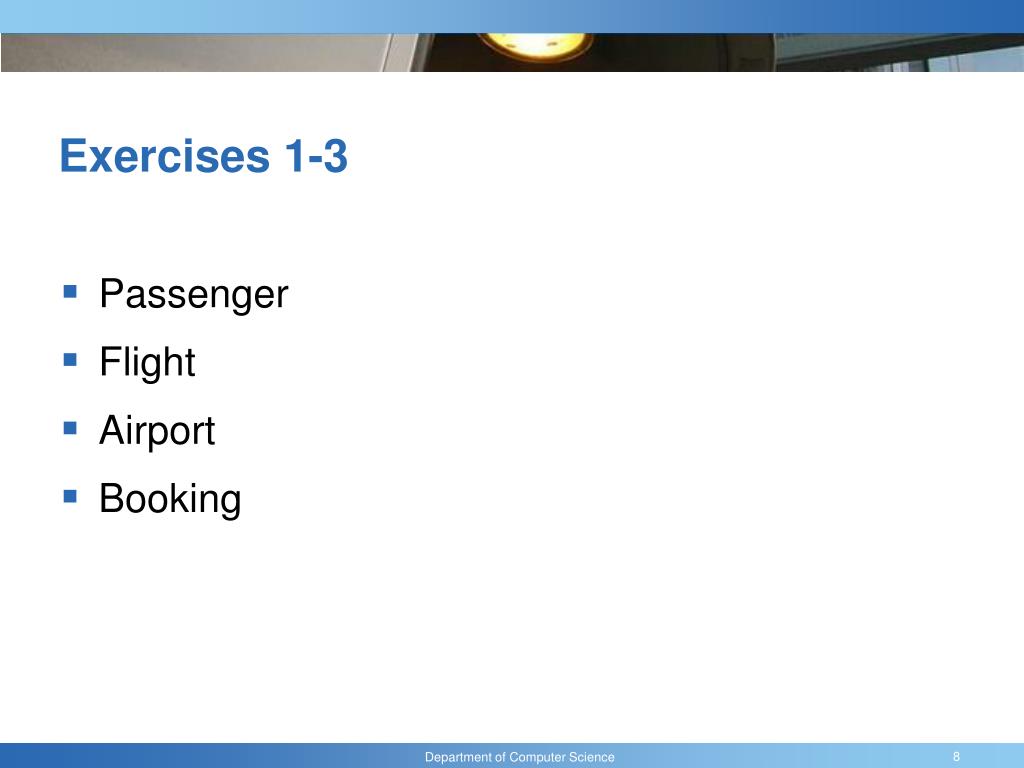

  8. Exercises 1-3 • Passenger • Flight • Airport • Booking

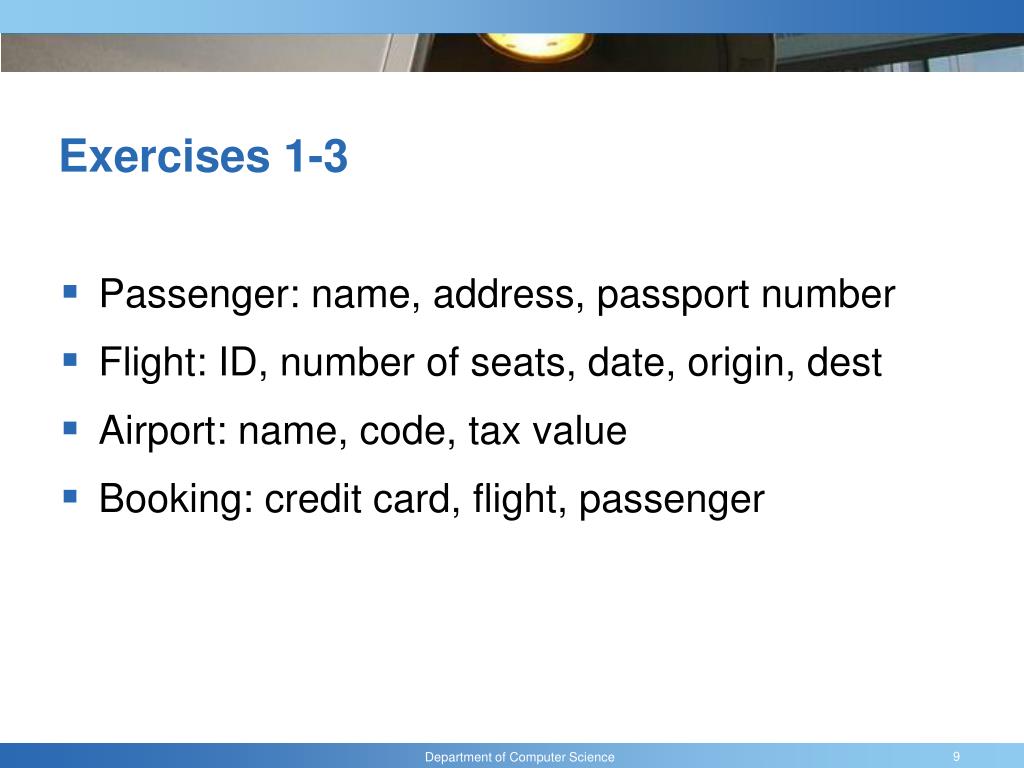

  9. Exercises 1-3 • Passenger: name, address, passport number • Flight: ID, number of seats, date, origin, dest • Airport: name, code, tax value • Booking: credit card, flight, passenger

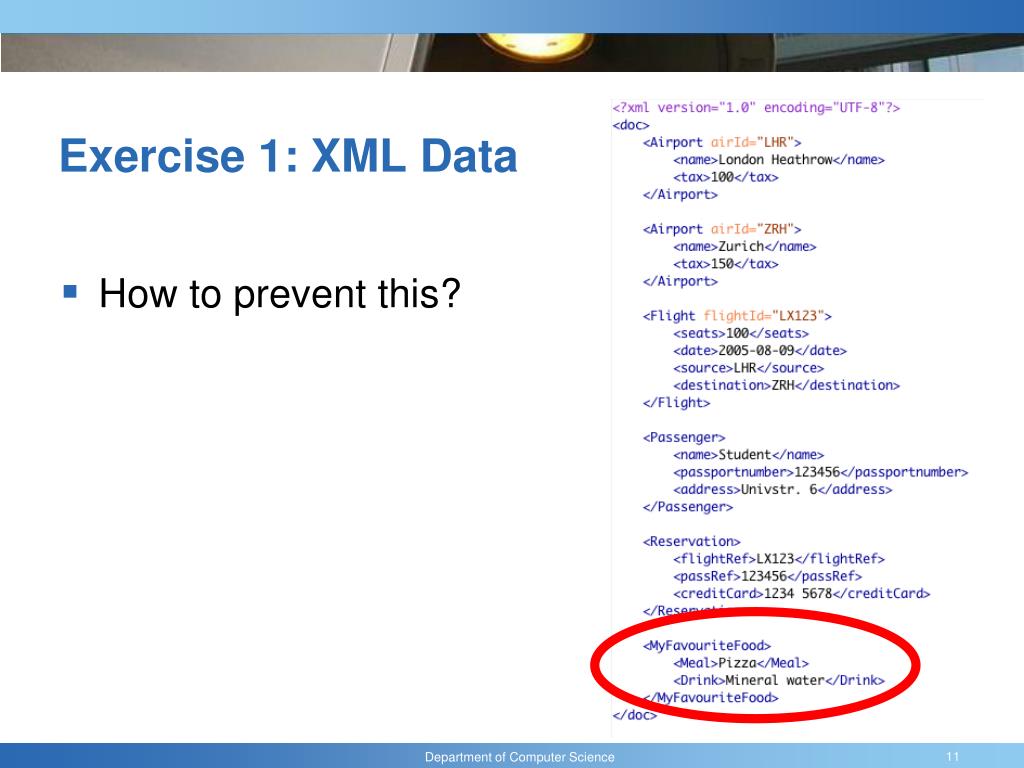

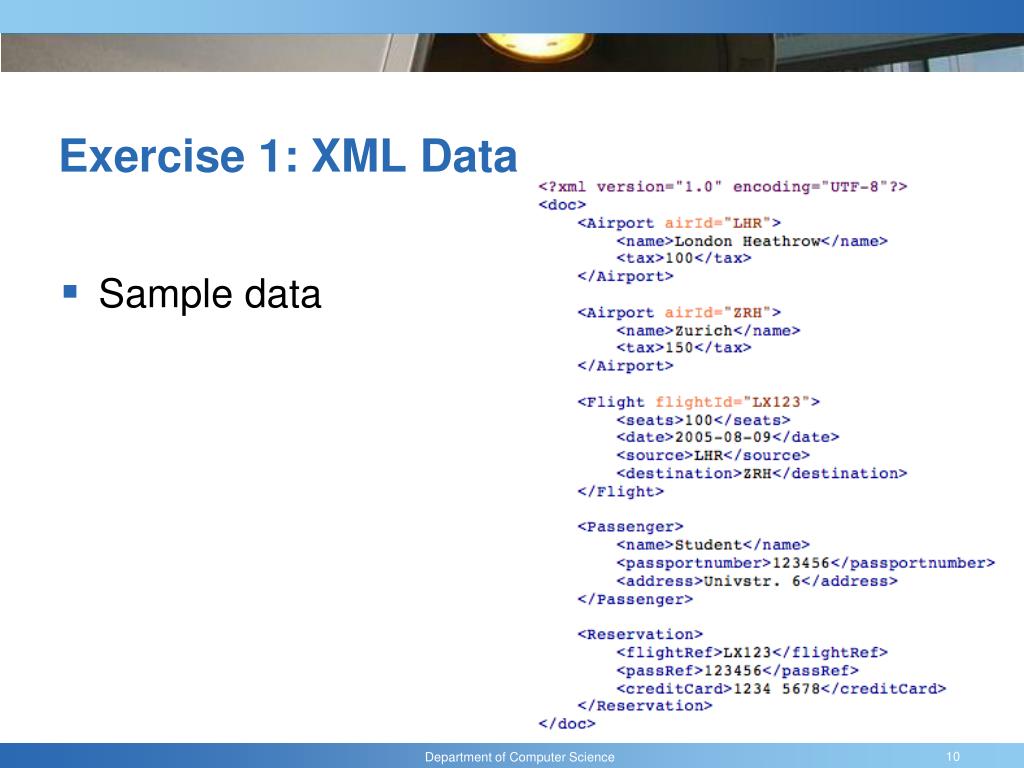

  10. Exercise 1: XML Data • Sample data

  11. Exercise 1: XML Data • How to prevent this?

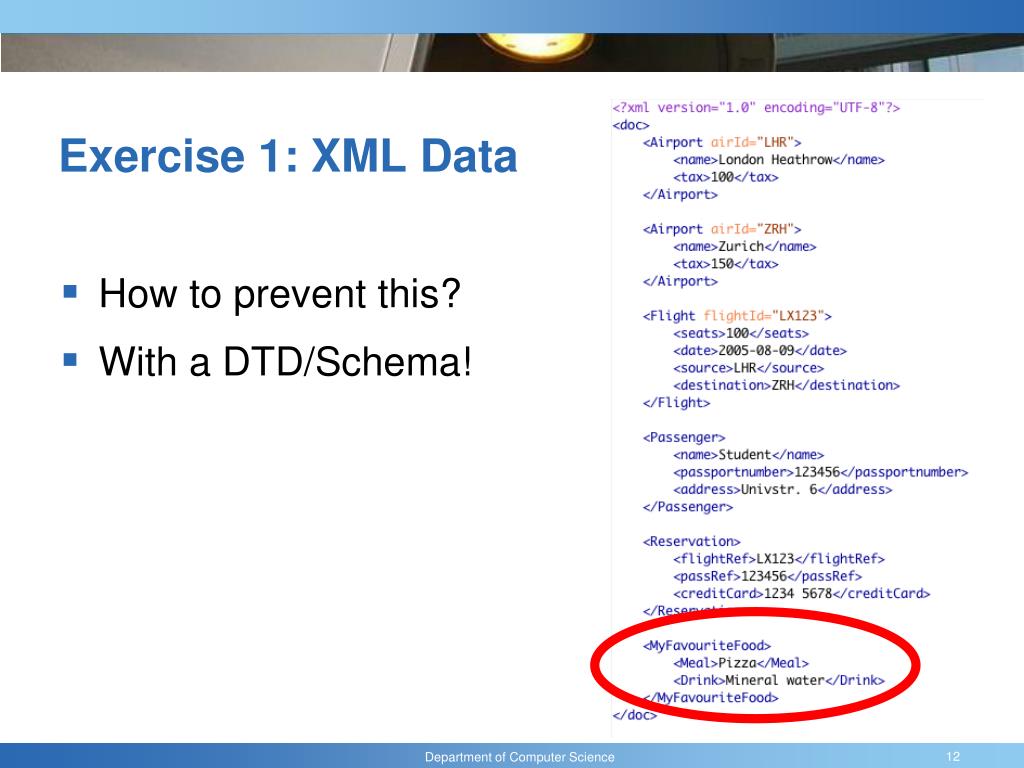

  12. Exercise 1: XML Data • How to prevent this? • With a DTD/Schema!

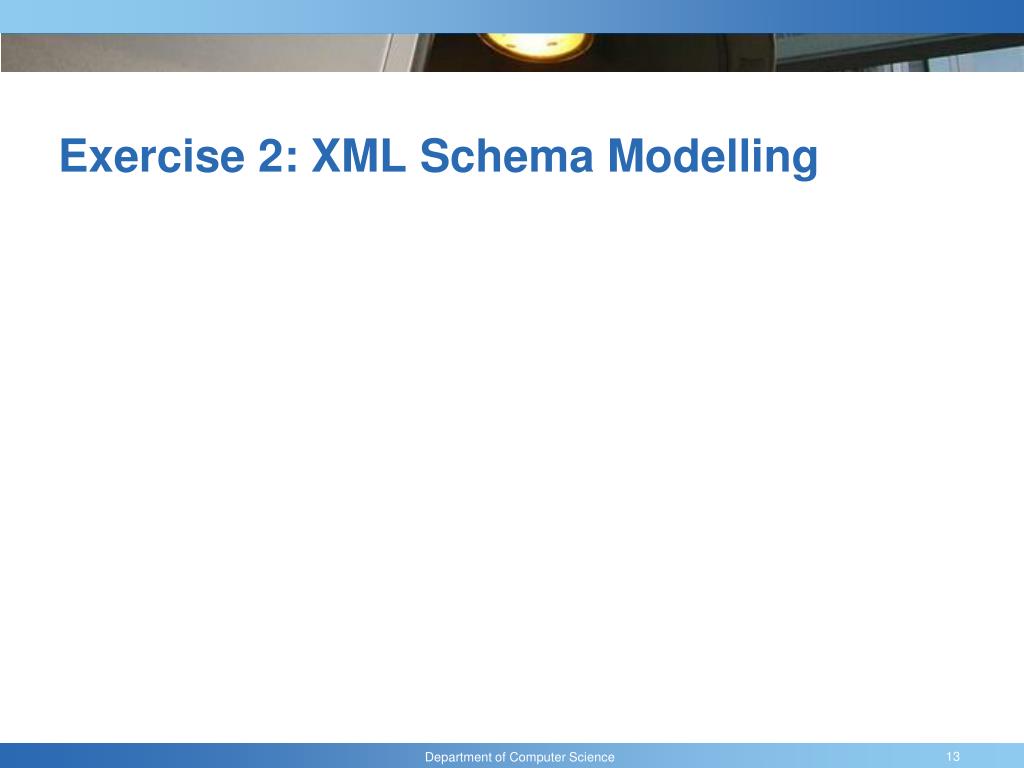

  13. Exercise 2: XML Schema Modelling

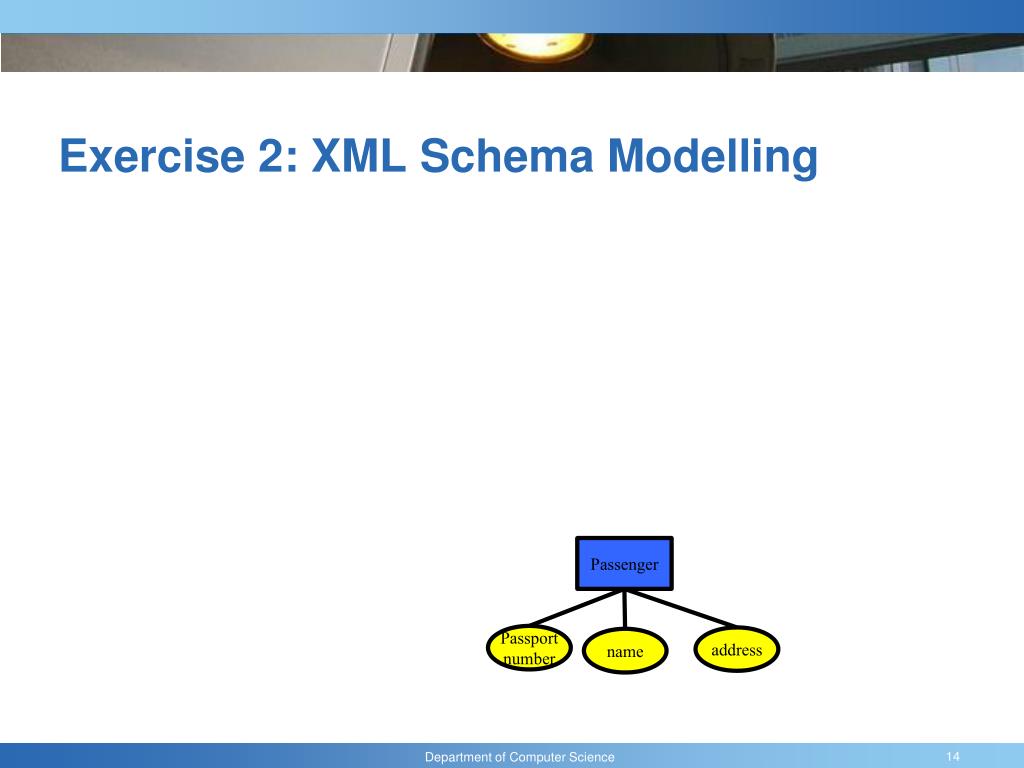

  14. Exercise 2: XML Schema Modelling Passenger Passport number address name

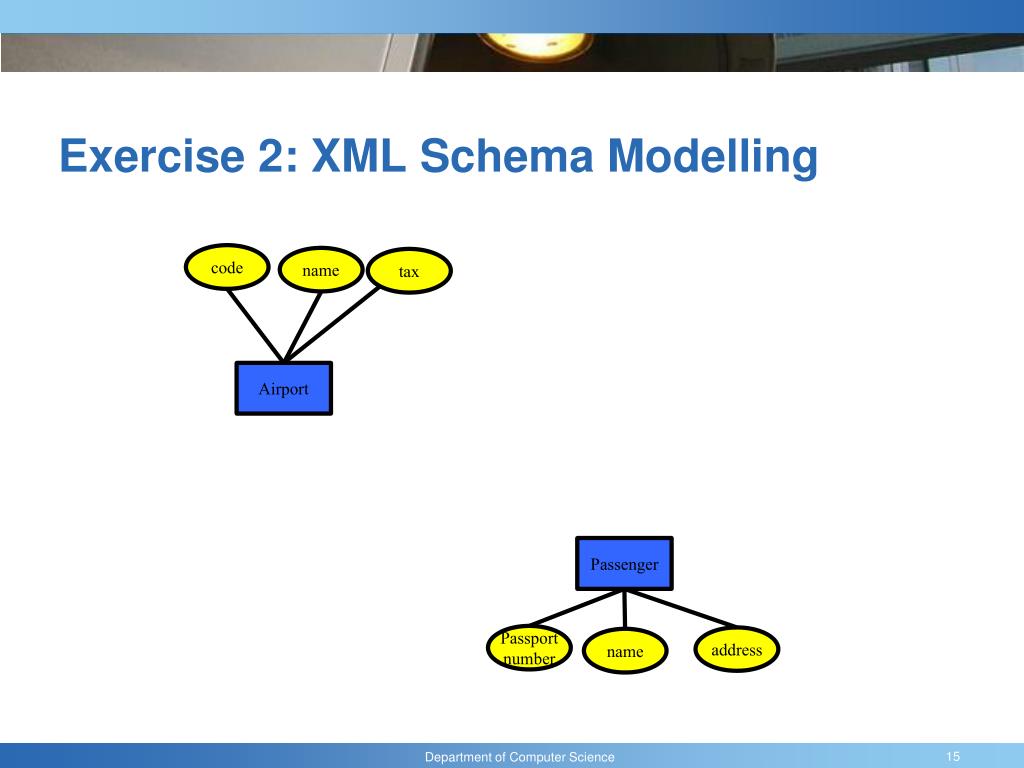

  15. Exercise 2: XML Schema Modelling code name tax Airport Passenger Passport number address name

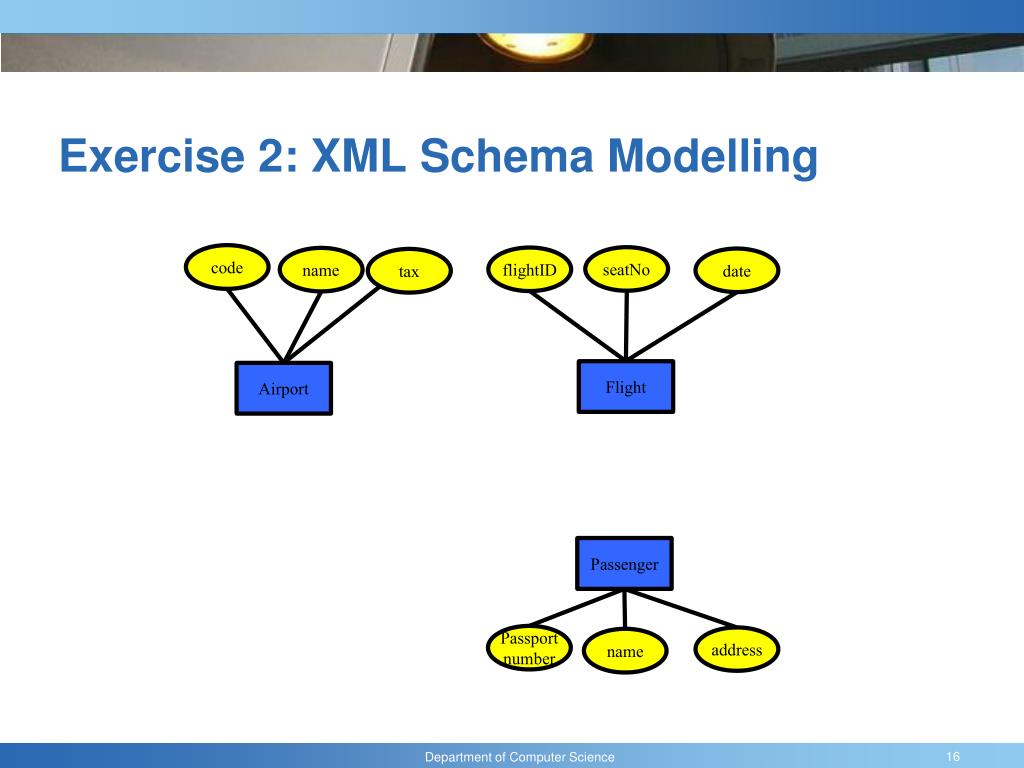

  16. Exercise 2: XML Schema Modelling code seatNo flightID name date tax Flight Airport Passenger Passport number address name

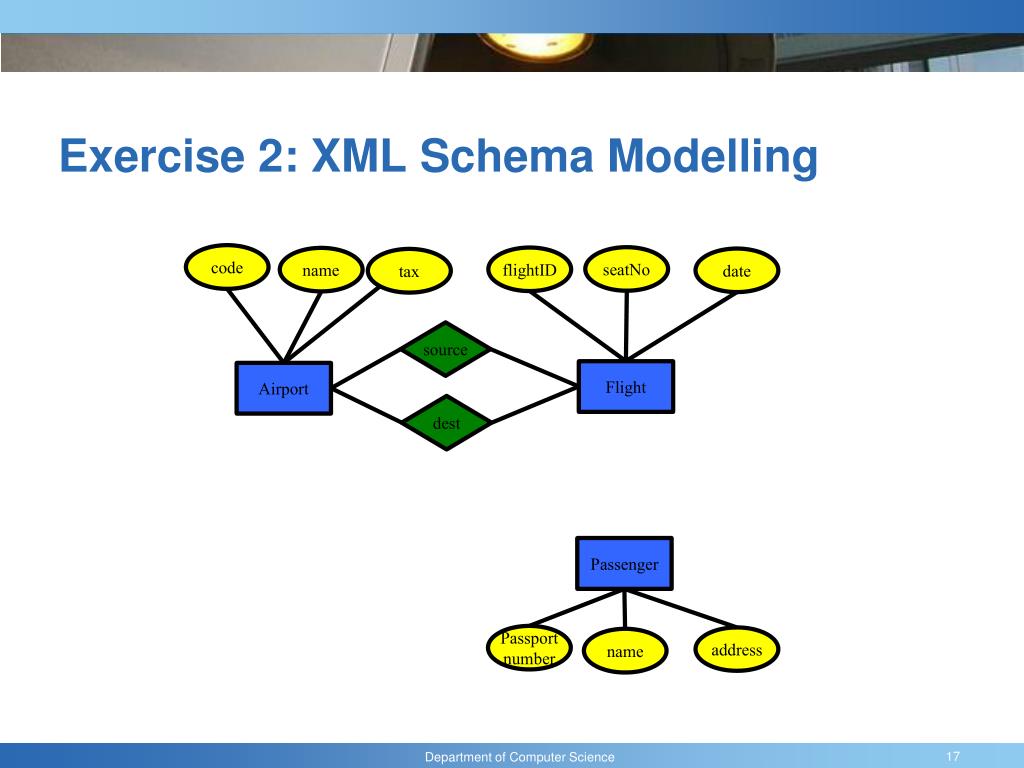

  17. Exercise 2: XML Schema Modelling code seatNo flightID name date tax source Flight Airport dest Passenger Passport number address name

  18. Exercise 2: XML Schema Modelling code seatNo flightID name date tax source Flight Airport dest book credit card Passenger Passport number address name

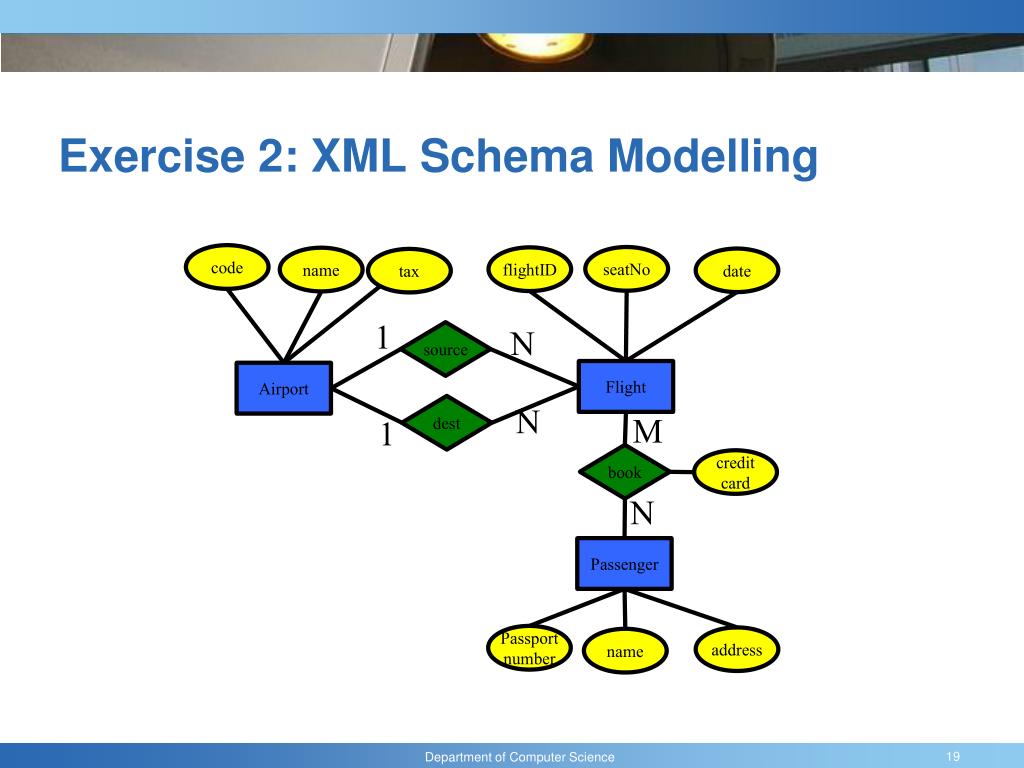

  19. Exercise 2: XML Schema Modelling code seatNo flightID name date tax 1 N source Flight Airport N dest M 1 book credit card N Passenger Passport number address name

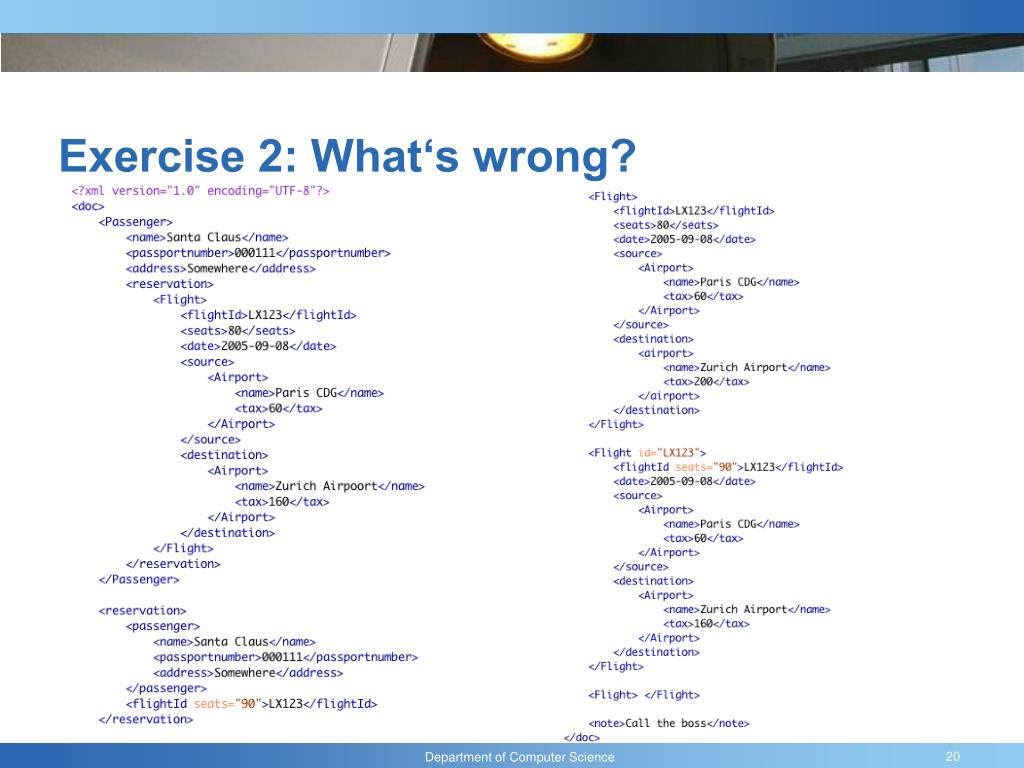

  20. Exercise 2: What‘s wrong?

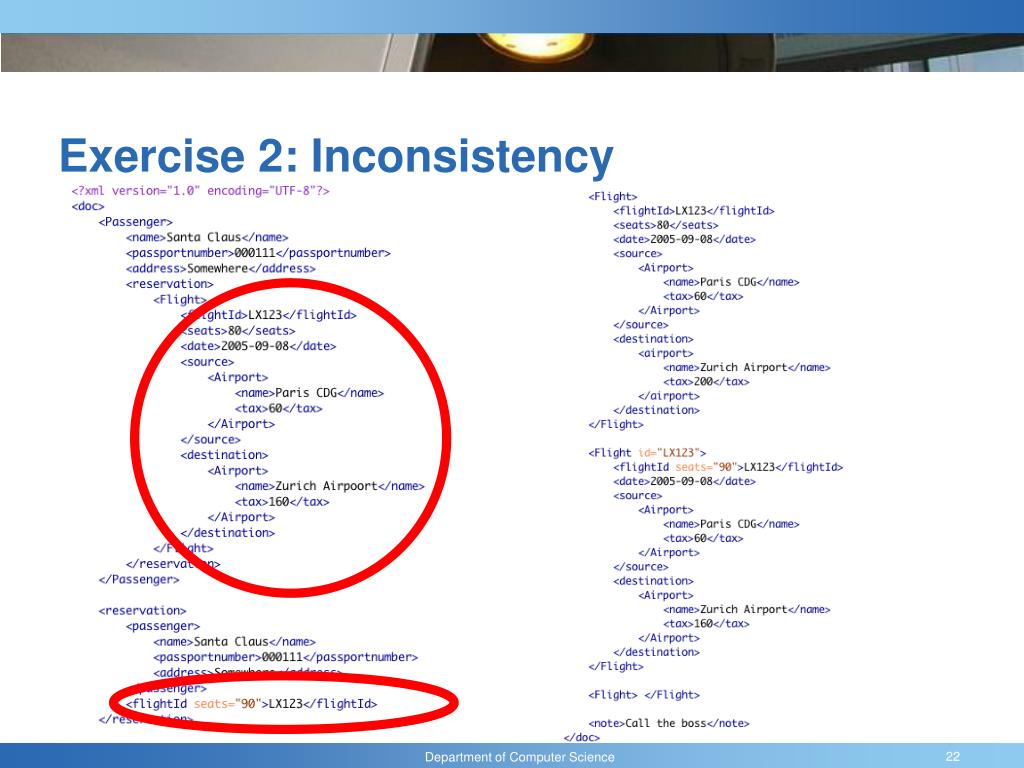

  21. Exercise 2: Inconsistency

  22. Exercise 2: Inconsistency

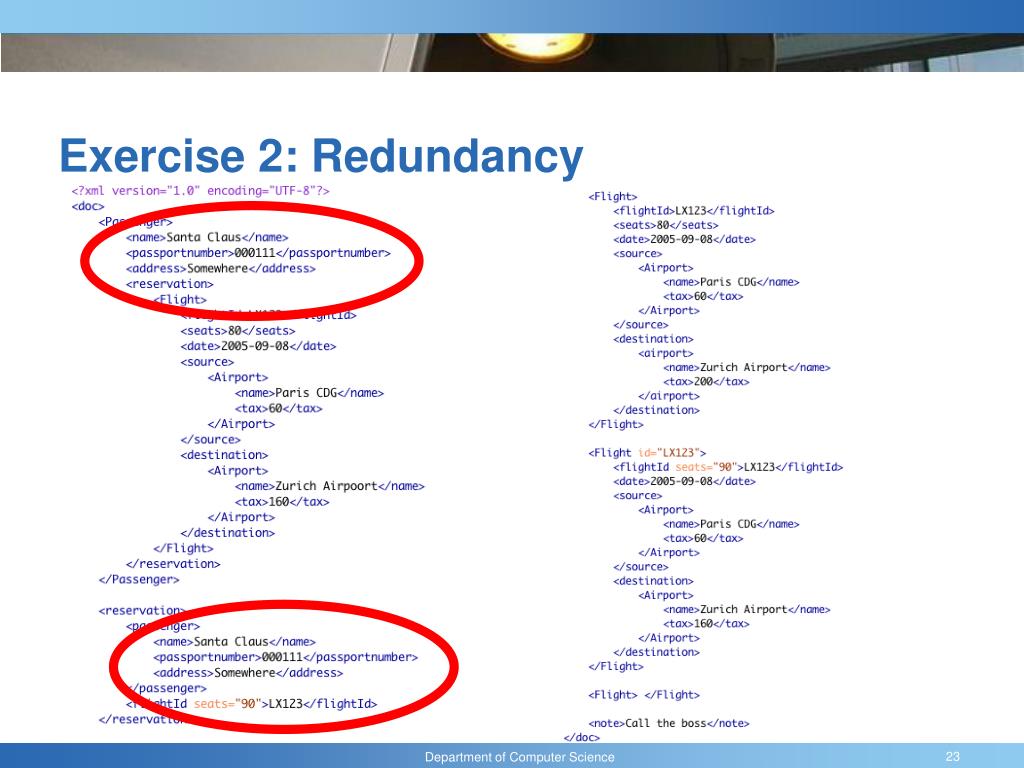

  23. Exercise 2: Redundancy

  24. Exercise 2: Redundancy

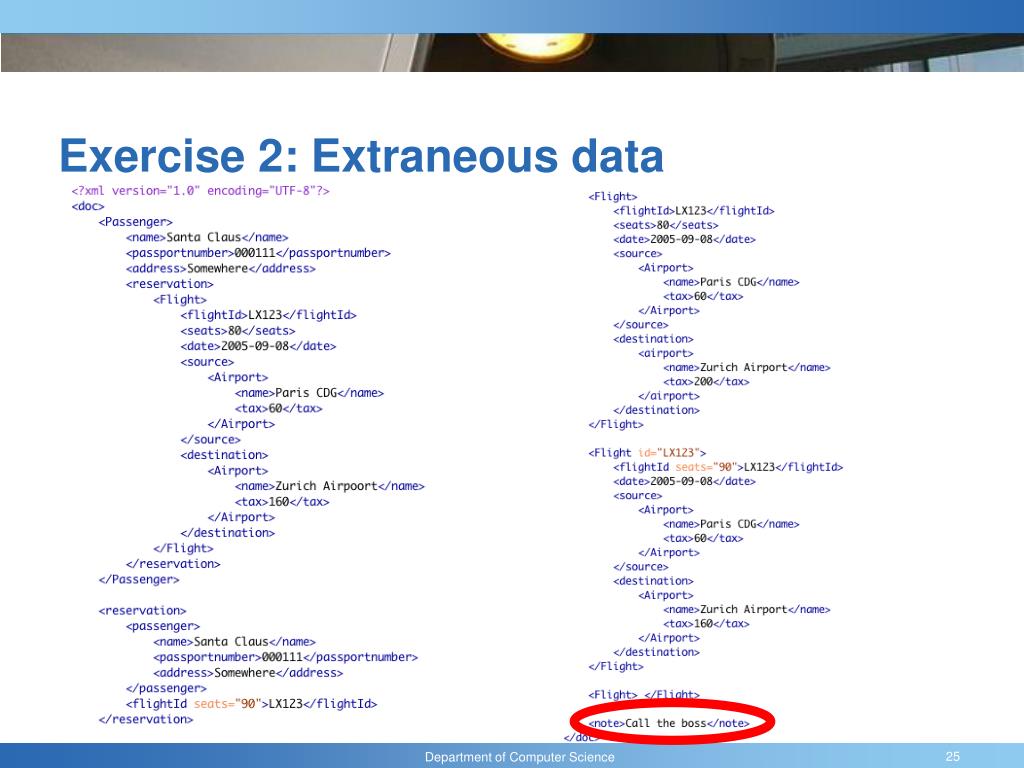

  25. Exercise 2: Extraneous data

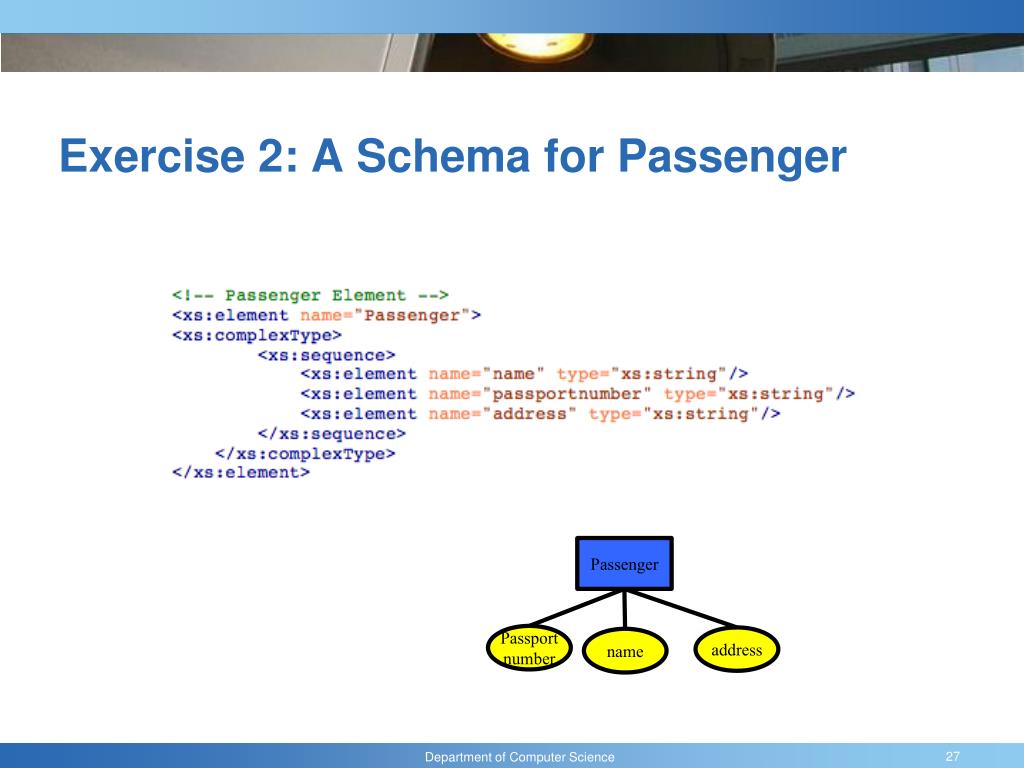

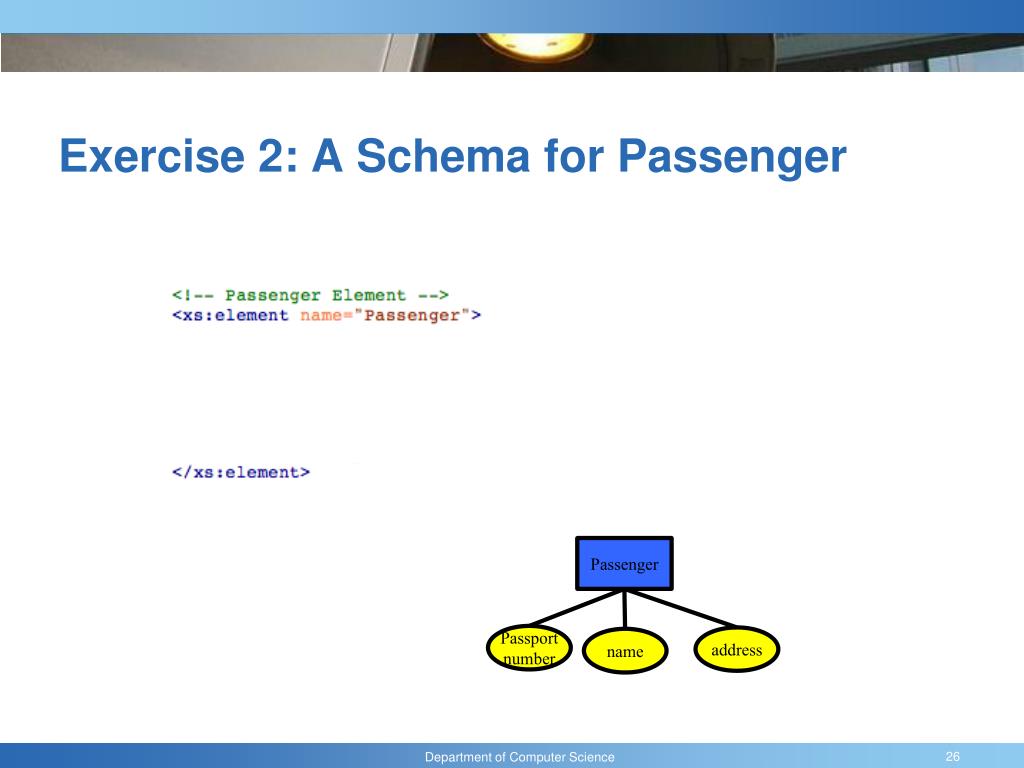

  26. Exercise 2: A Schema for Passenger Passenger Passport number address name

  27. Exercise 2: A Schema for Passenger Passenger Passport number address name

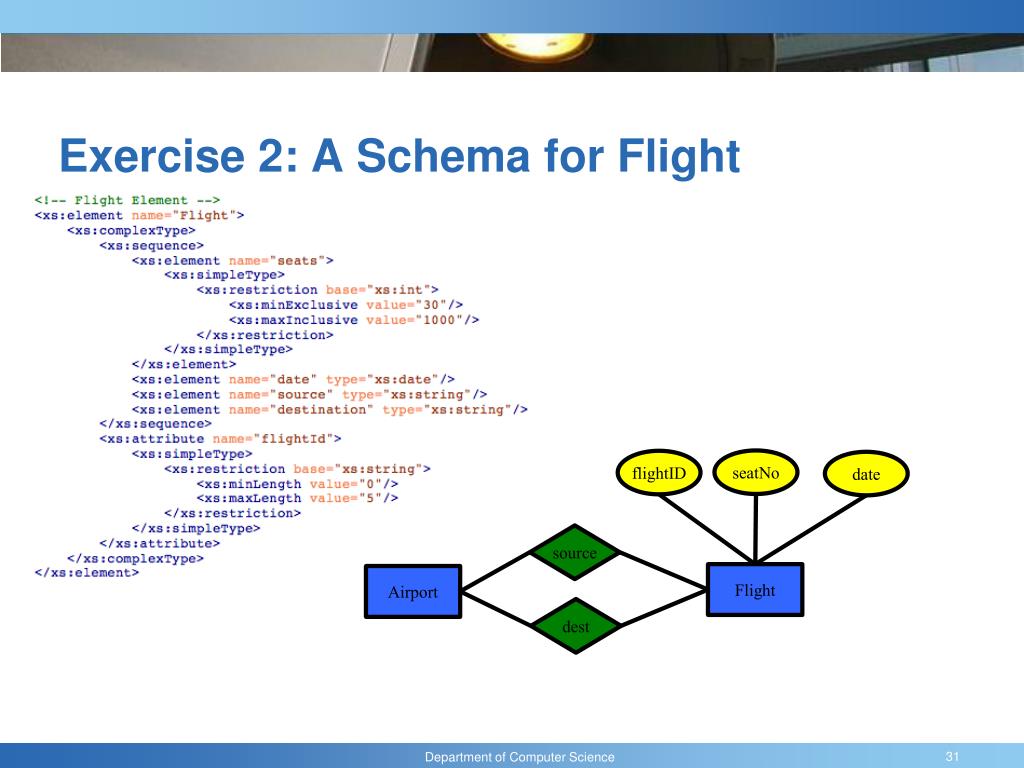

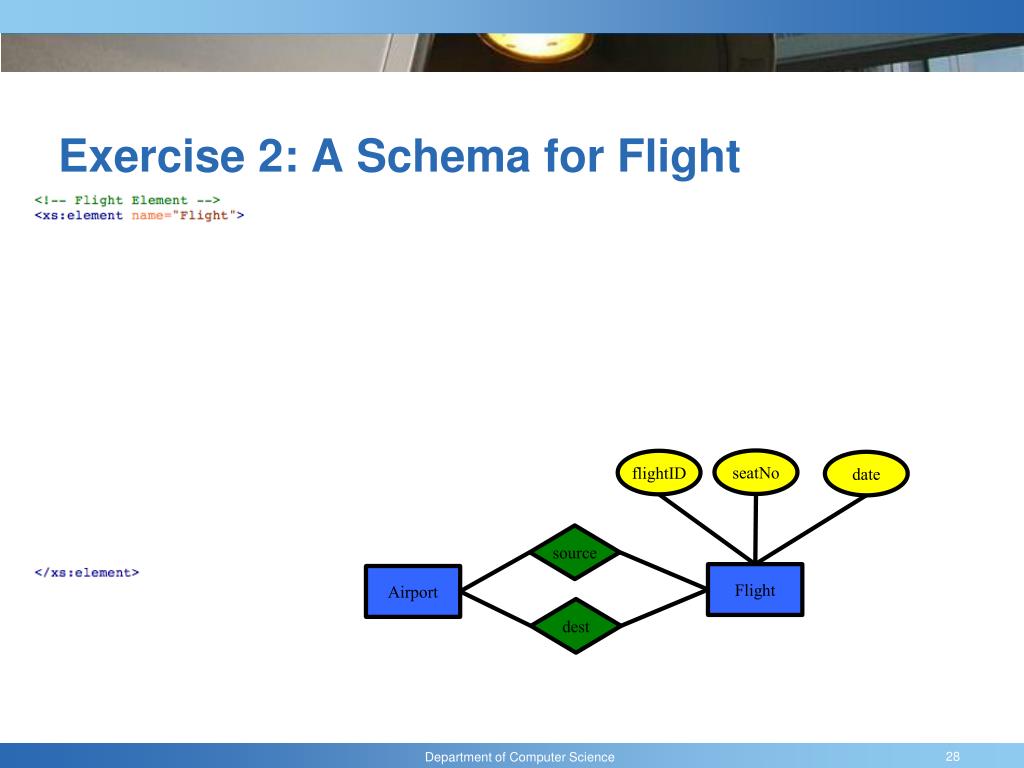

  28. Exercise 2: A Schema for Flight seatNo flightID date source Flight Airport dest

  29. Exercise 2: A Schema for Flight seatNo flightID date source Flight Airport dest

  30. Exercise 2: A Schema for Flight seatNo flightID date source Flight Airport dest

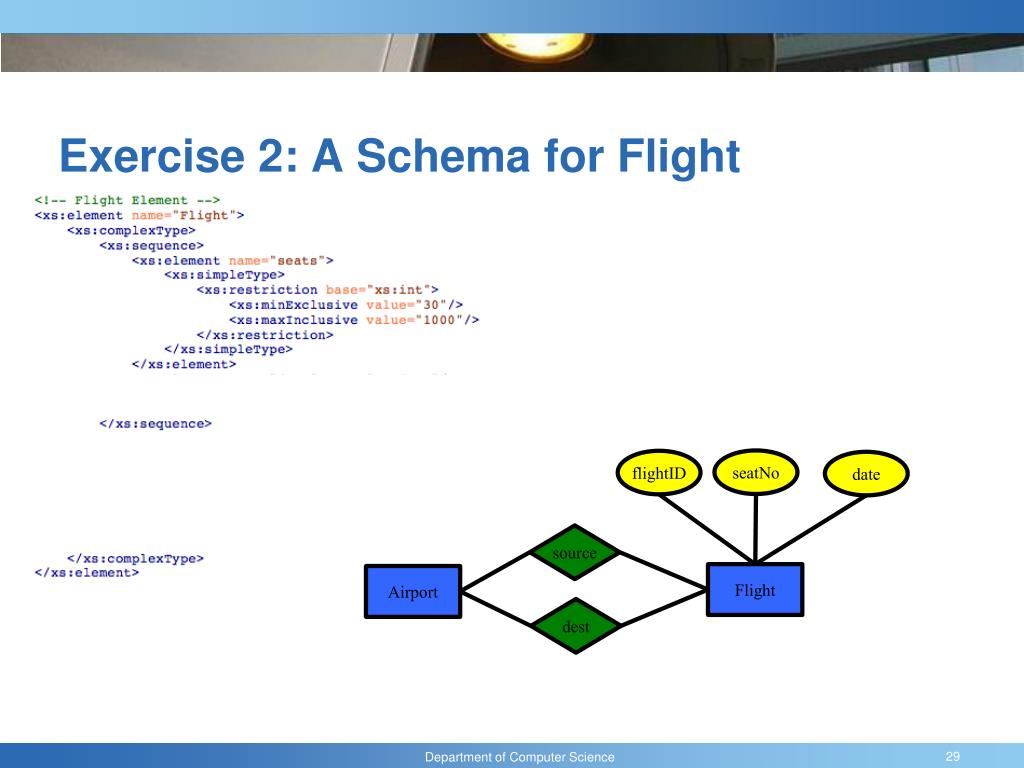

  31. Exercise 2: A Schema for Flight seatNo flightID date source Flight Airport dest

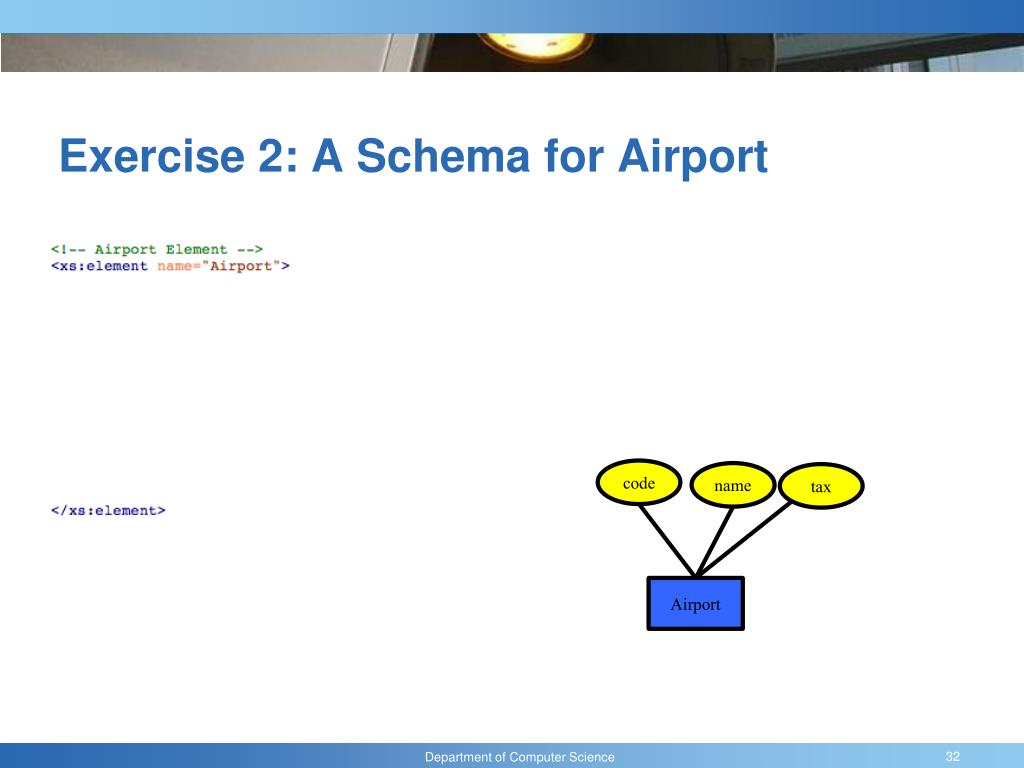

  32. Exercise 2: A Schema for Airport code name tax Airport

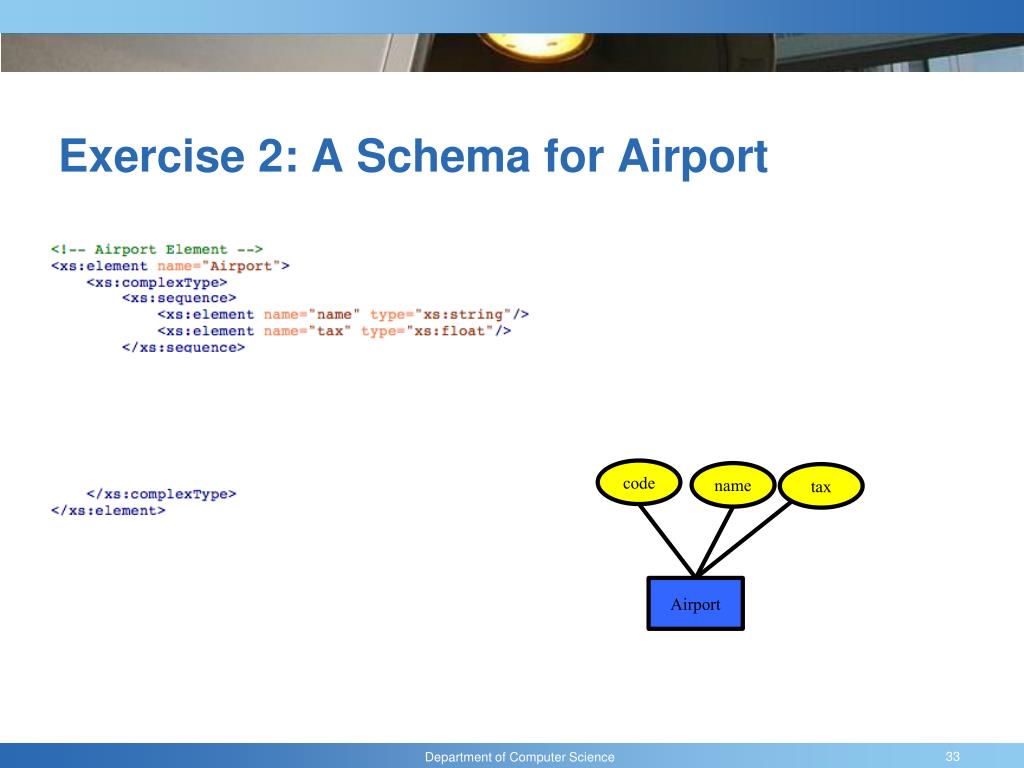

  33. Exercise 2: A Schema for Airport code name tax Airport

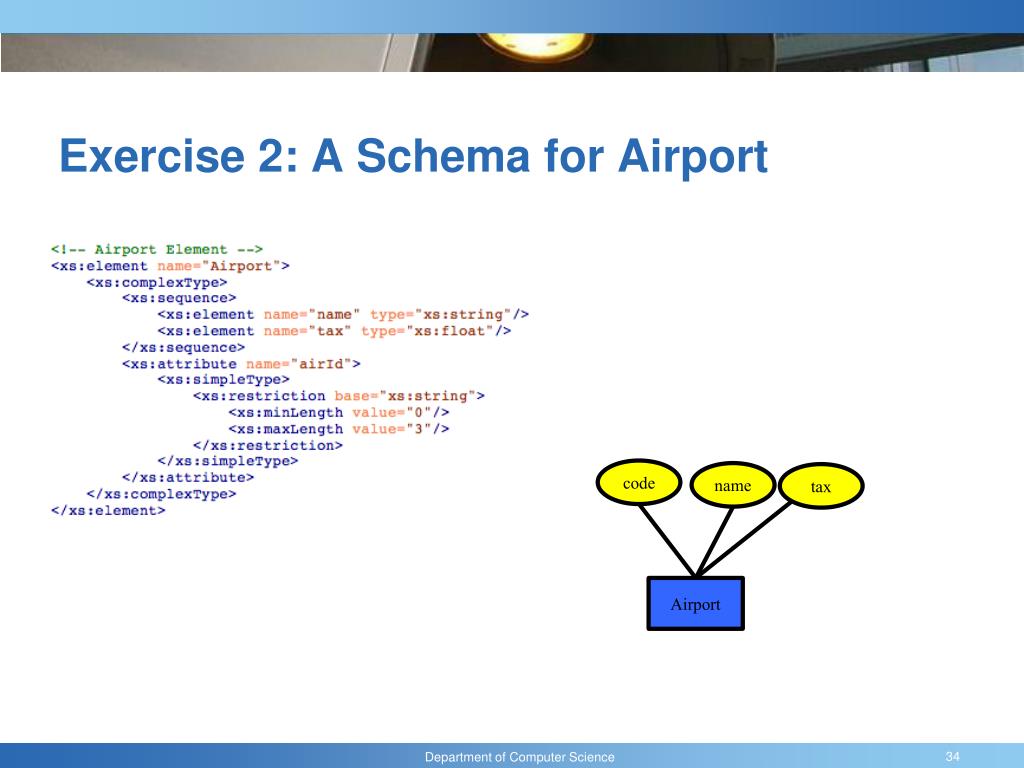

  34. Exercise 2: A Schema for Airport code name tax Airport

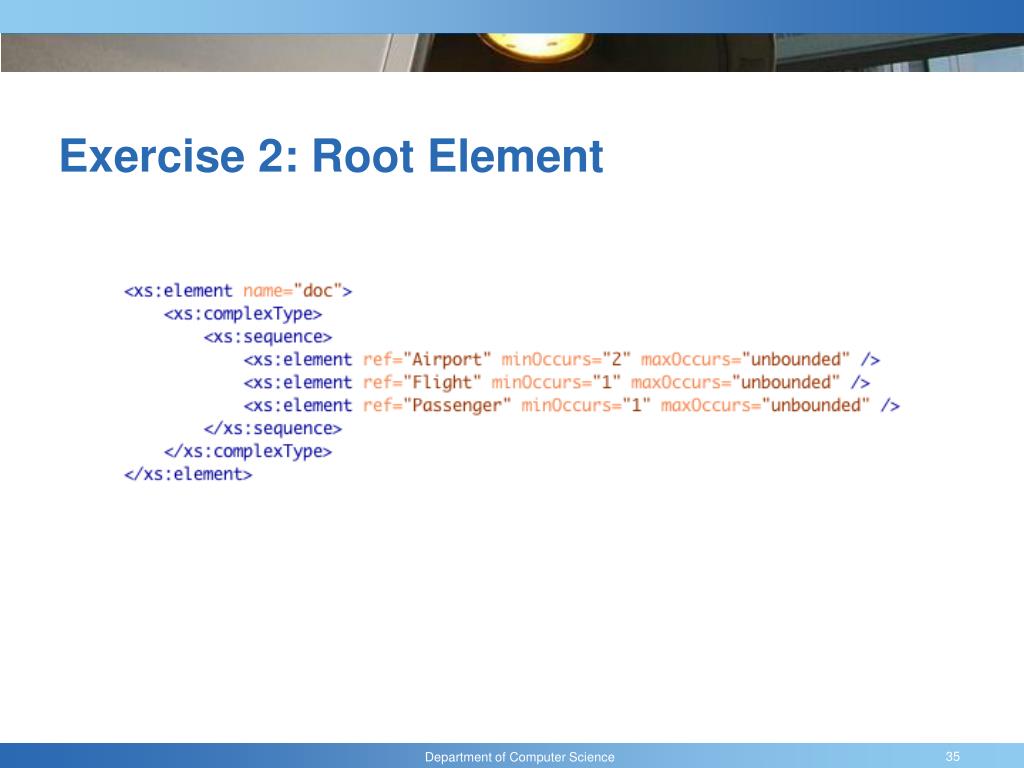

  35. Exercise 2: Root Element

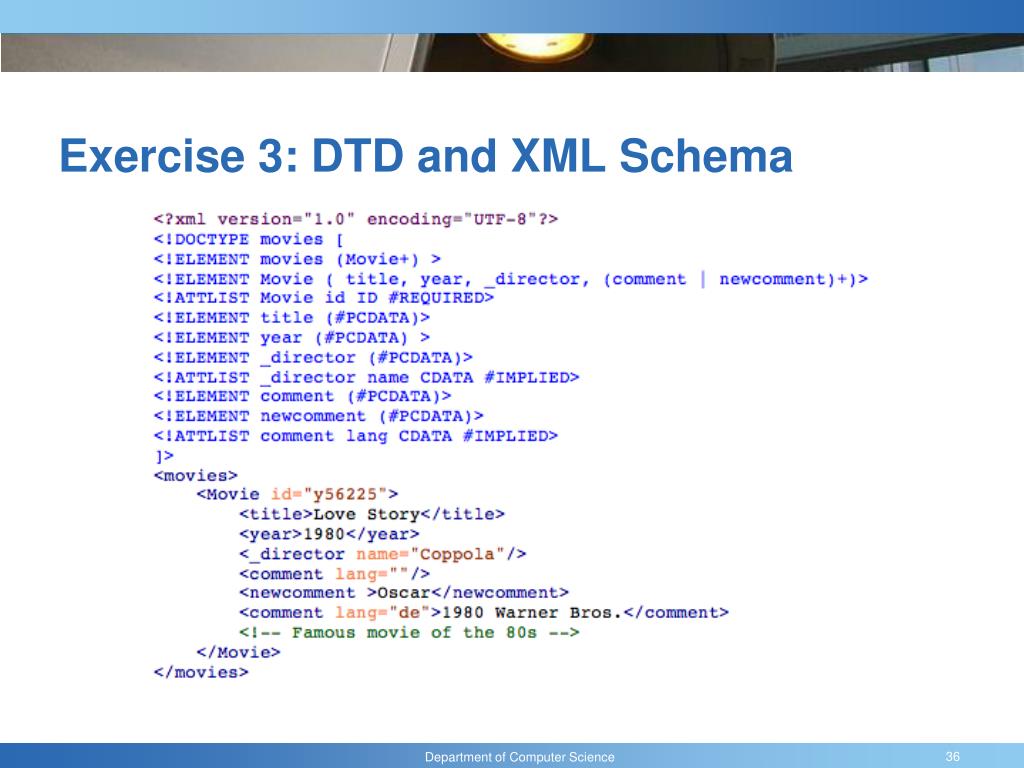

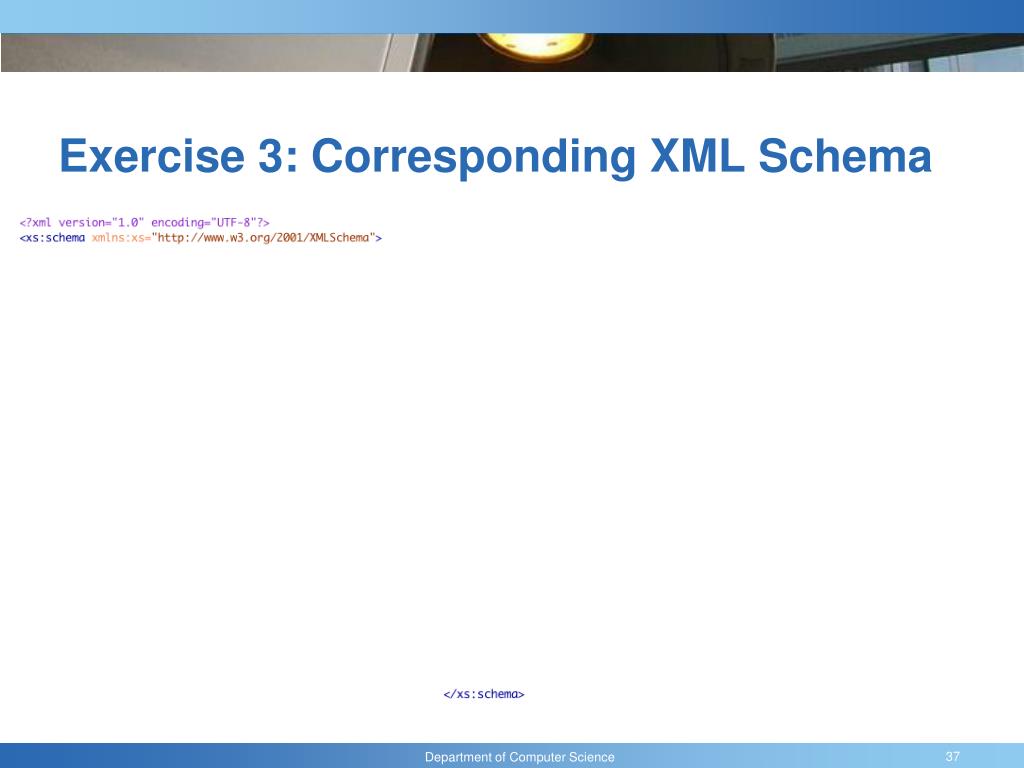

  36. Exercise 3: DTD and XML Schema

  37. Exercise 3: Corresponding XML Schema

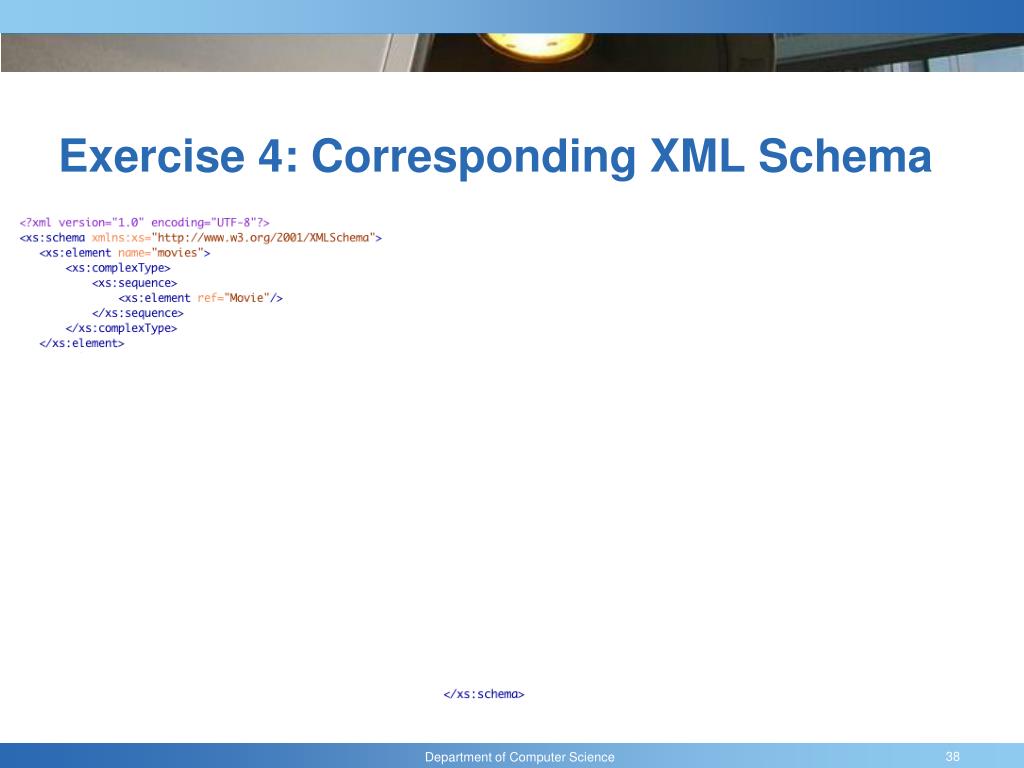

  38. Exercise 4: Corresponding XML Schema

  39. Exercise 3: Corresponding XML Schema

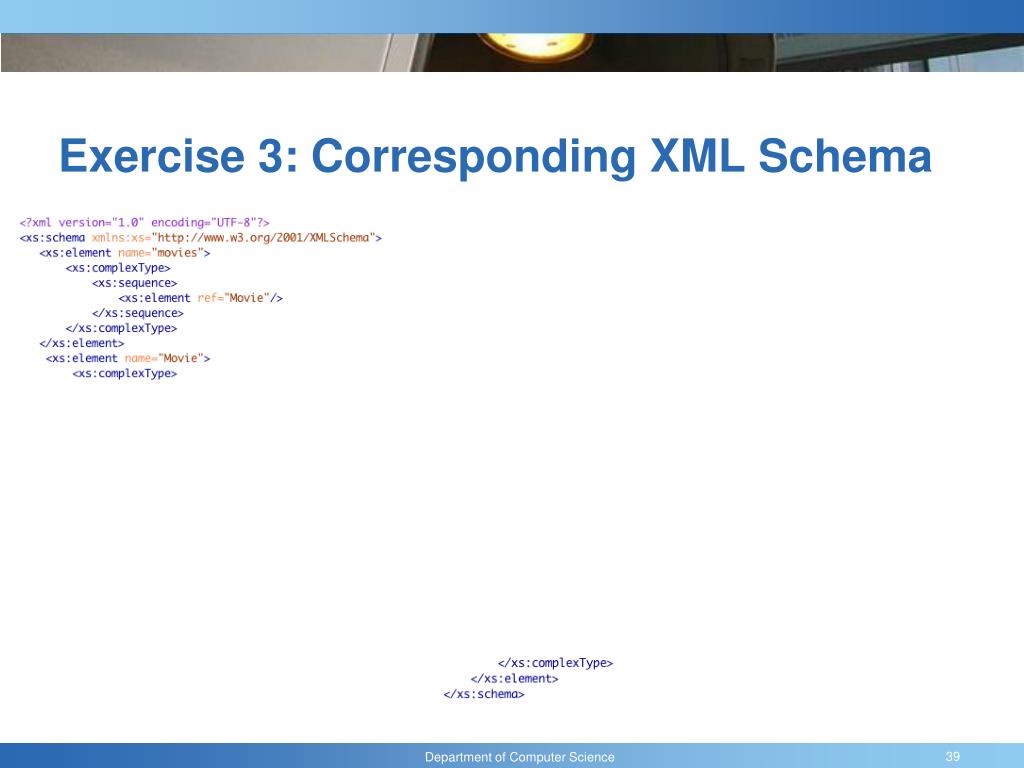

  40. Exercise 3: Corresponding XML Schema

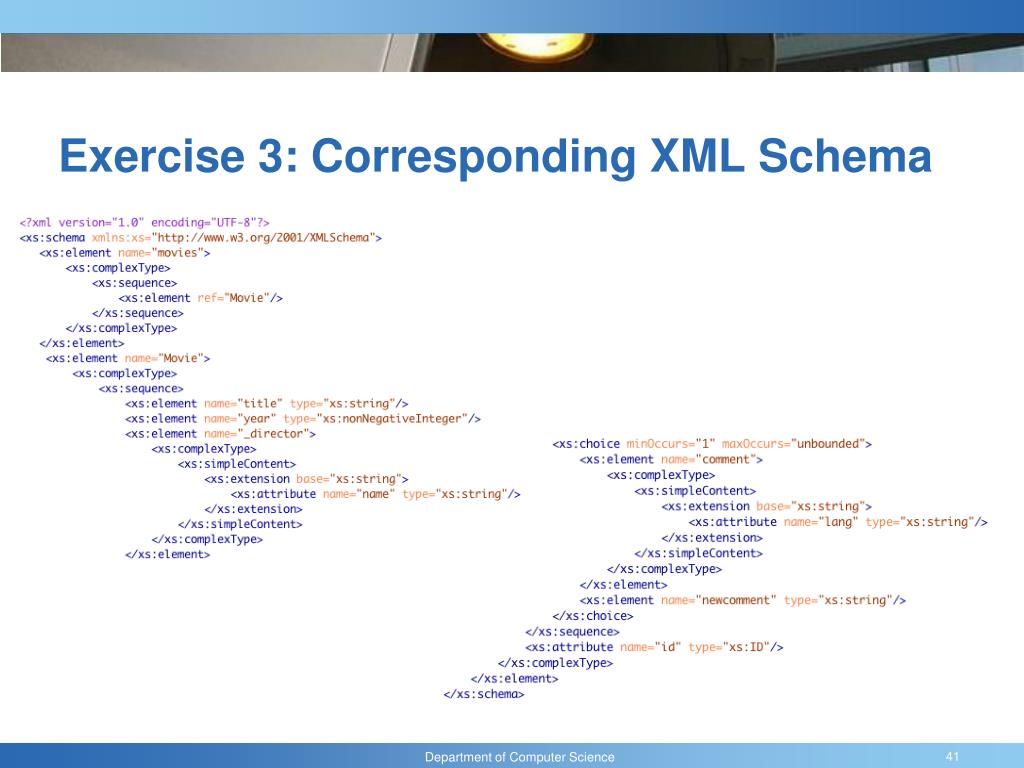

  41. Exercise 3: Corresponding XML Schema

  42. Hope to see you next week!
