Predicate Abstraction

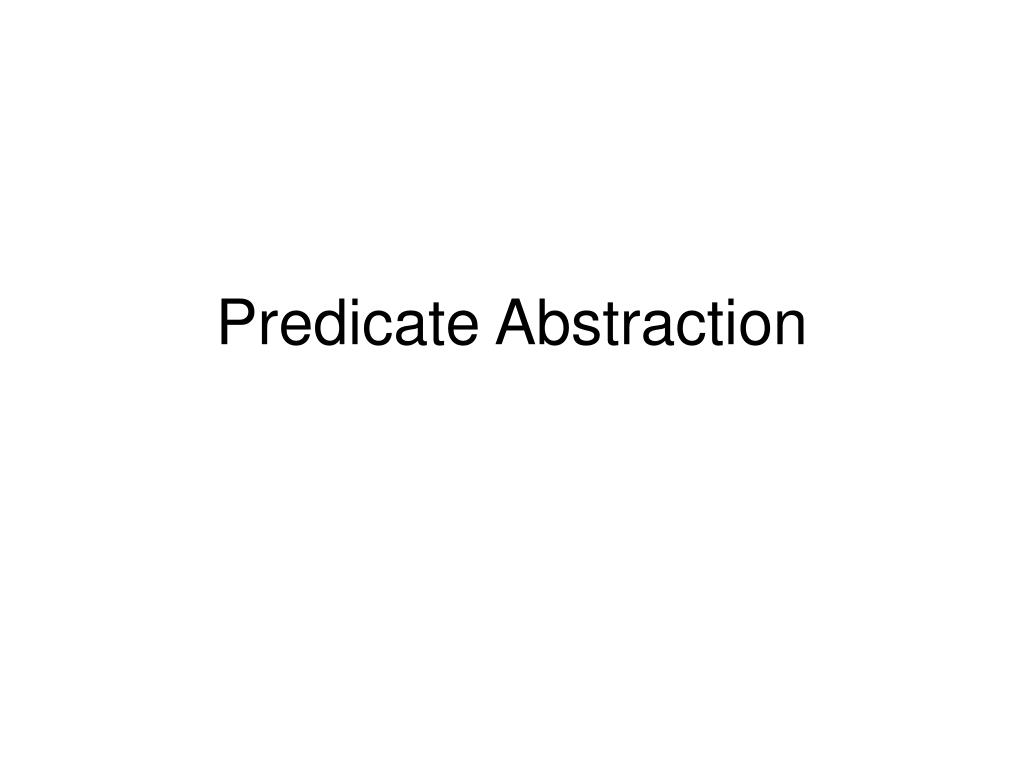

1. Predicate Abstraction

2. Abstract state space exploration • Method: (1) start in the abstract initial state (2) use to compute reachable states (invariants)

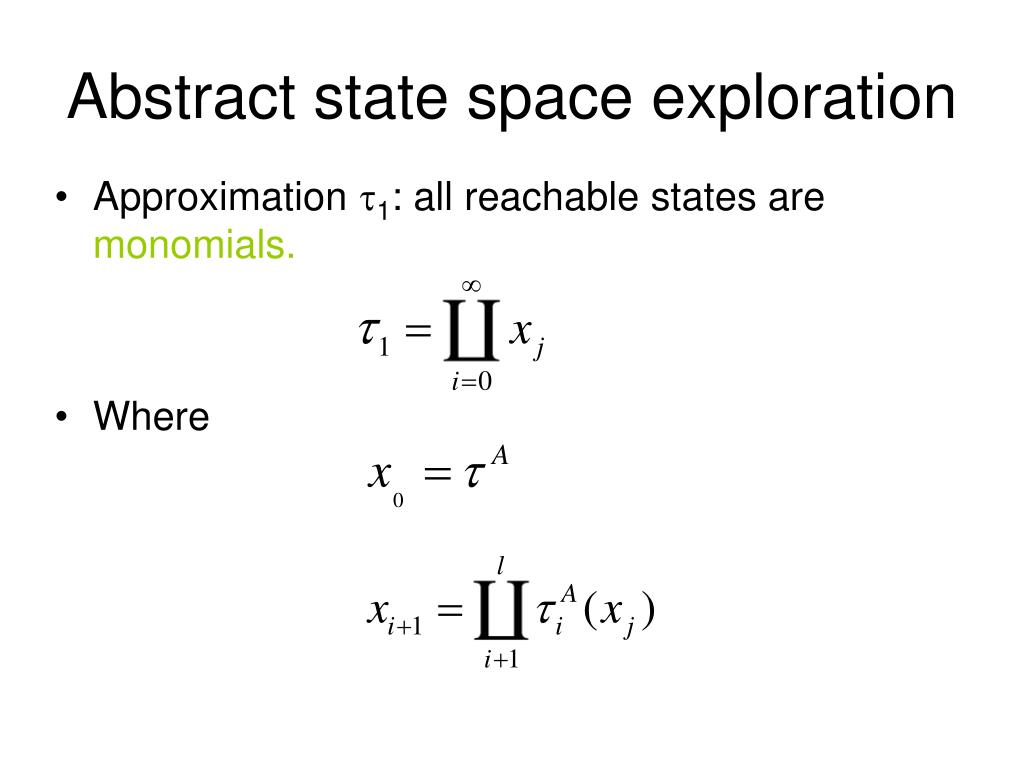

3. Abstract state space exploration • Approximation 1: all reachable states are monomials. • Where

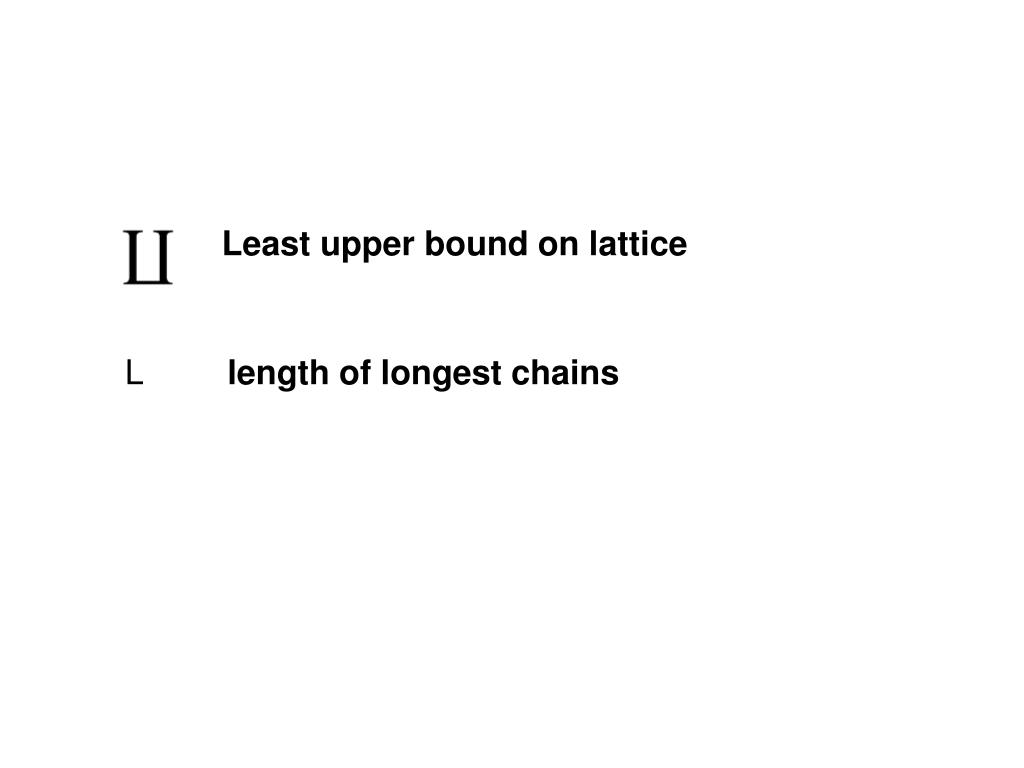

4. Least upper bound on lattice L length of longest chains

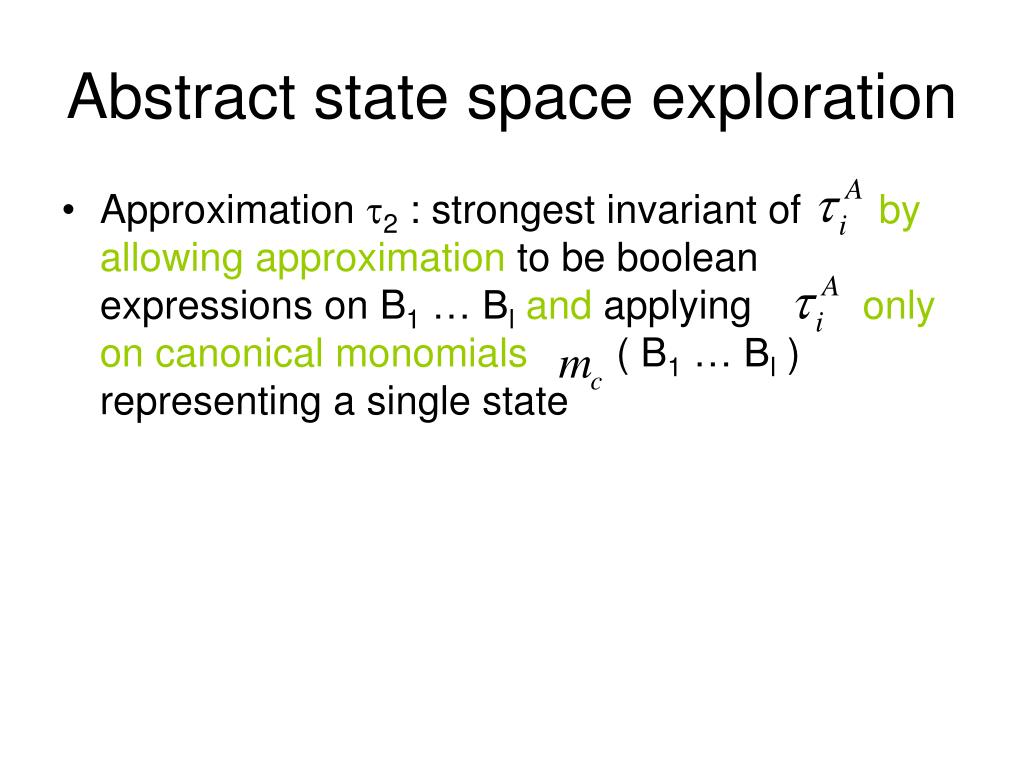

5. Abstract state space exploration • Approximation 2 : strongest invariant of by allowing approximation to be boolean expressions on B1 … Bland applying only on canonical monomials ( B1 … Bl ) representing a single state

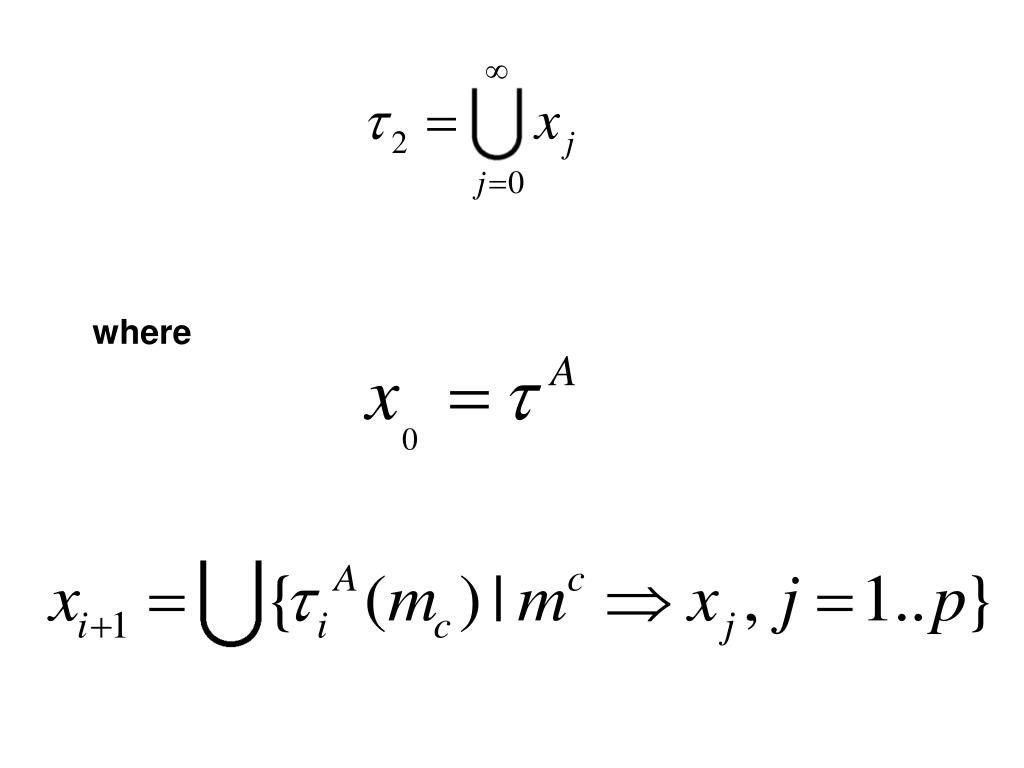

6. where

7. Abstract state space exploration • Canonical monomial : the set ofatoms of M0 ---- the set 2lover B1 … Bl • Note: • Boolean expressions on B1 … Bl = arbitrary elements of Qk

8. Complexity of 1 and 2 • Complexity of computation: • The number of necessary proofs • Successor of expA  K=2*p*l*1 • 2: B.1 – B.2 • P: number of transitions • L: number of predicates • 1: enabledness

9. Complexity of 1 and 2 • Computation of 1 : • Needs maximally l*k proofs • Computation of 2: • Worst case 2l * k proofs (all successors computed)

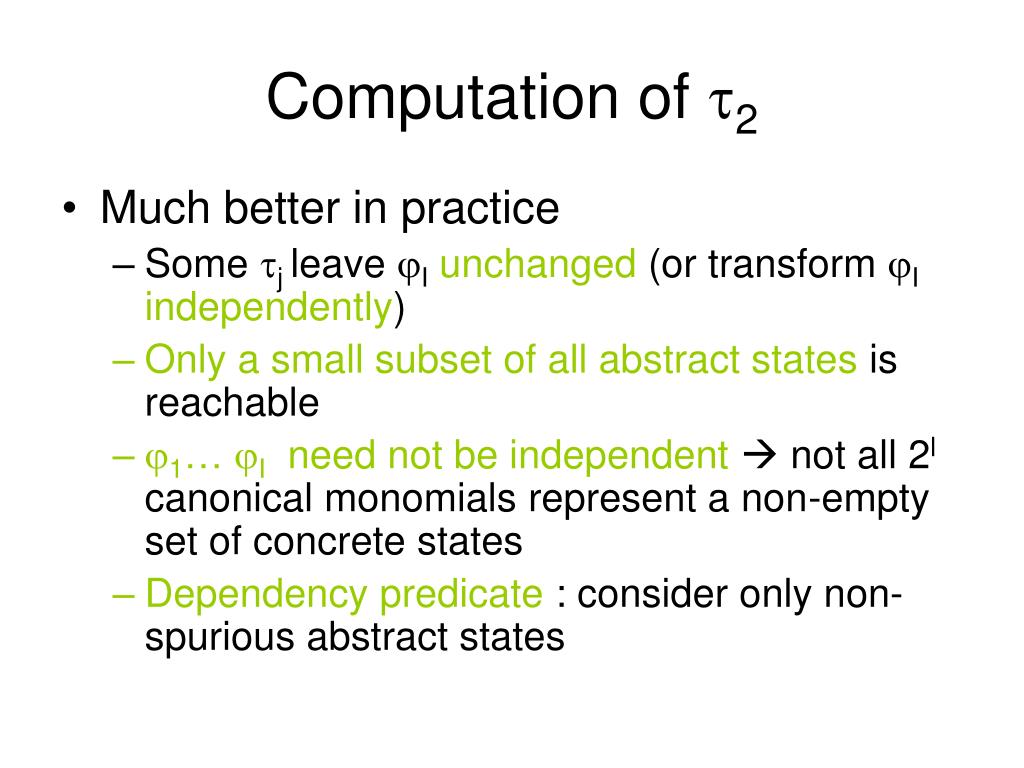

10. Computation of 2 • Much better in practice • Some j leave Iunchanged (or transform Iindependently) • Only a small subset of all abstract states is reachable • 1… I need not be independent not all 2l canonical monomials represent a non-empty set of concrete states • Dependency predicate : consider only non-spurious abstract states

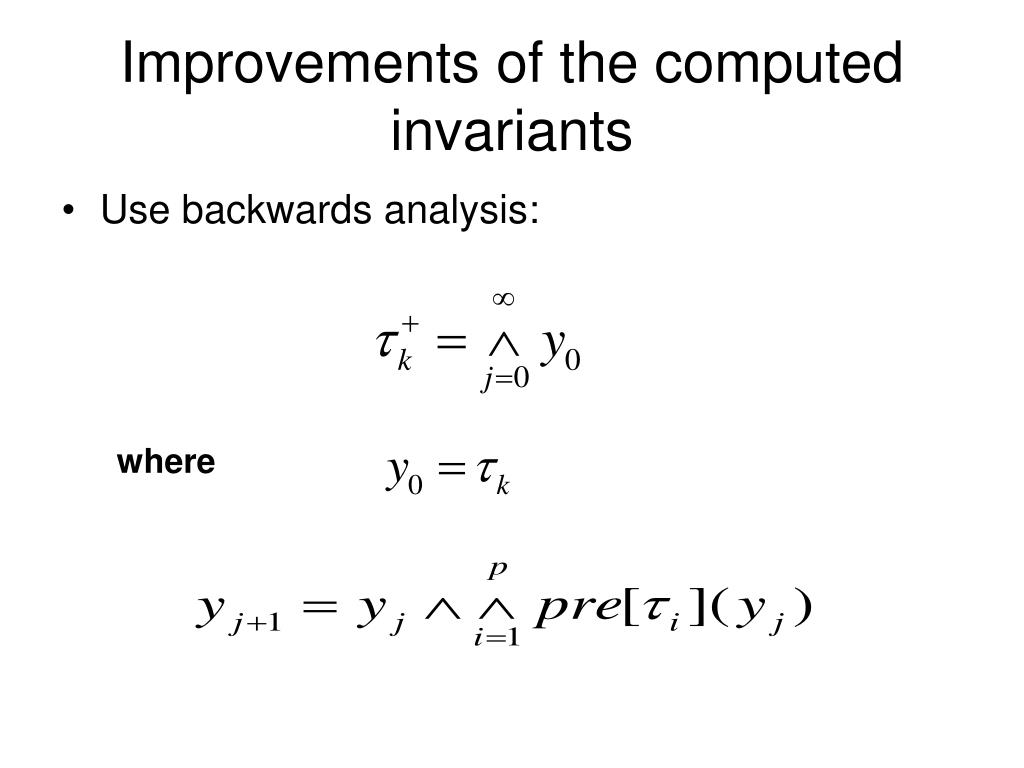

11. Improvements of the computed invariants • Use backwards analysis: where

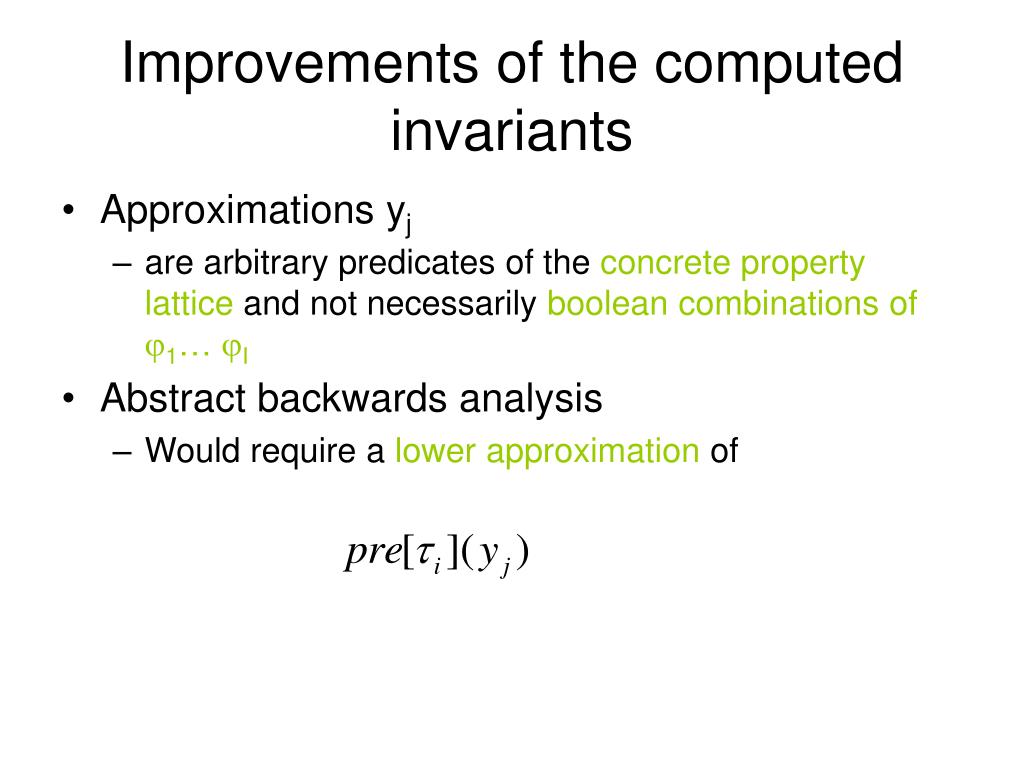

12. Improvements of the computed invariants • Approximations yj • are arbitrary predicates of the concrete property lattice and not necessarily boolean combinations of 1… I • Abstract backwards analysis • Would require a lower approximation of

13. Construction of the abstract state graph • Computation of a successor: require several proofs • Only a small abstract state (few thousand) can be explored • Additional cost of storing transitions is almost negligible

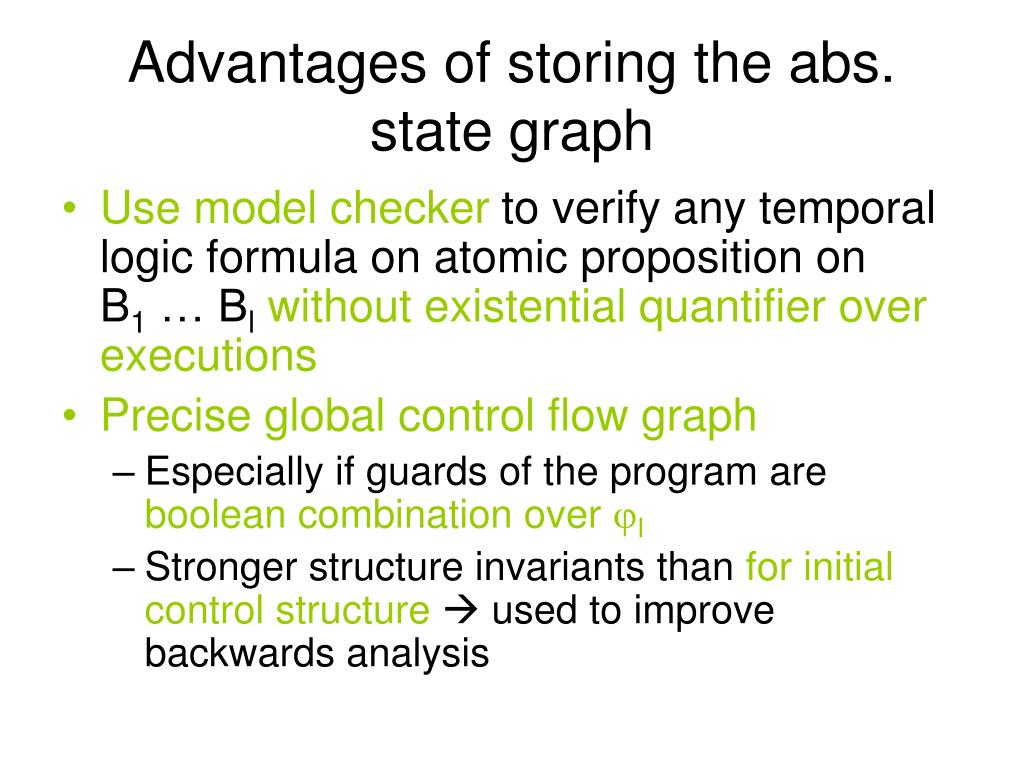

14. Advantages of storing the abs. state graph • Use model checker to verify any temporal logic formula on atomic proposition on B1 … Blwithout existential quantifier over executions • Precise global control flow graph • Especially if guards of the program are boolean combination over I • Stronger structure invariants than for initial control structure used to improve backwards analysis

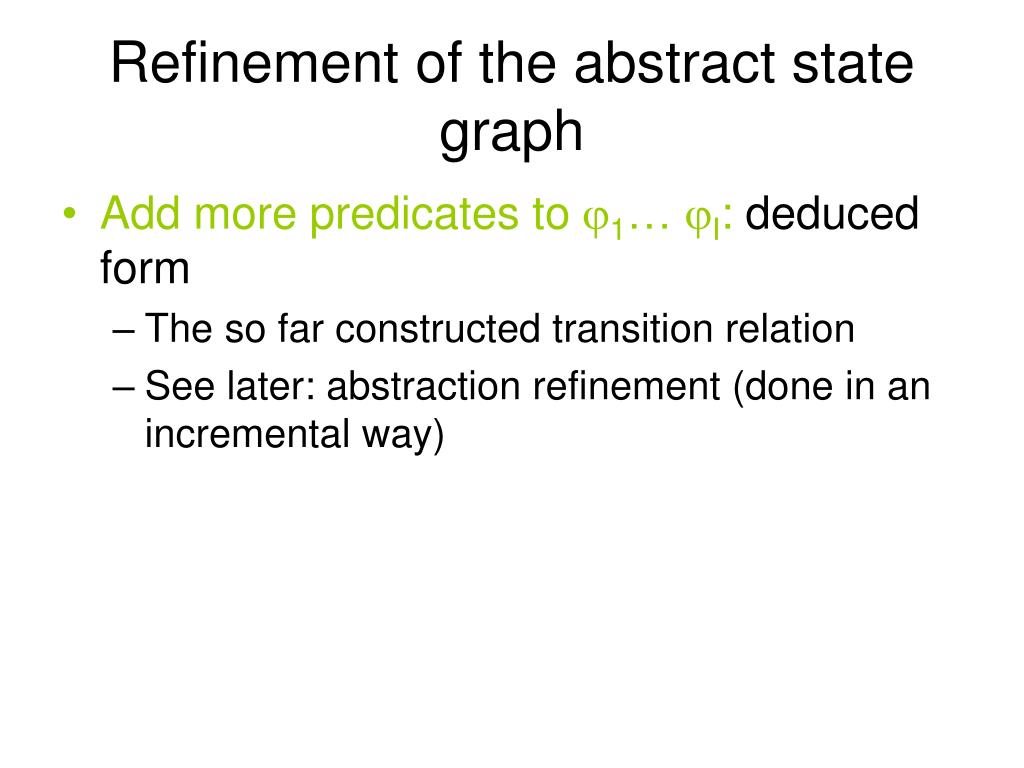

15. Refinement of the abstract state graph • Add more predicates to 1… I: deduced form • The so far constructed transition relation • See later: abstraction refinement (done in an incremental way)

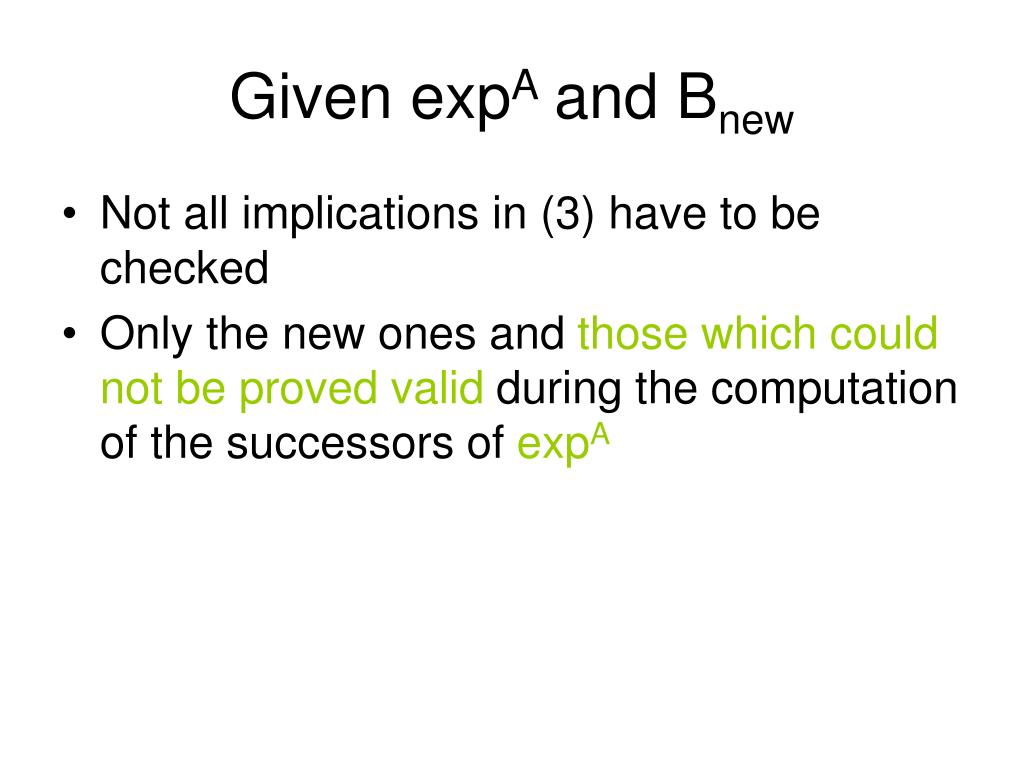

16. Given expA and Bnew • Not all implications in (3) have to be checked • Only the new ones and those which could not be proved valid during the computation of the successors of expA

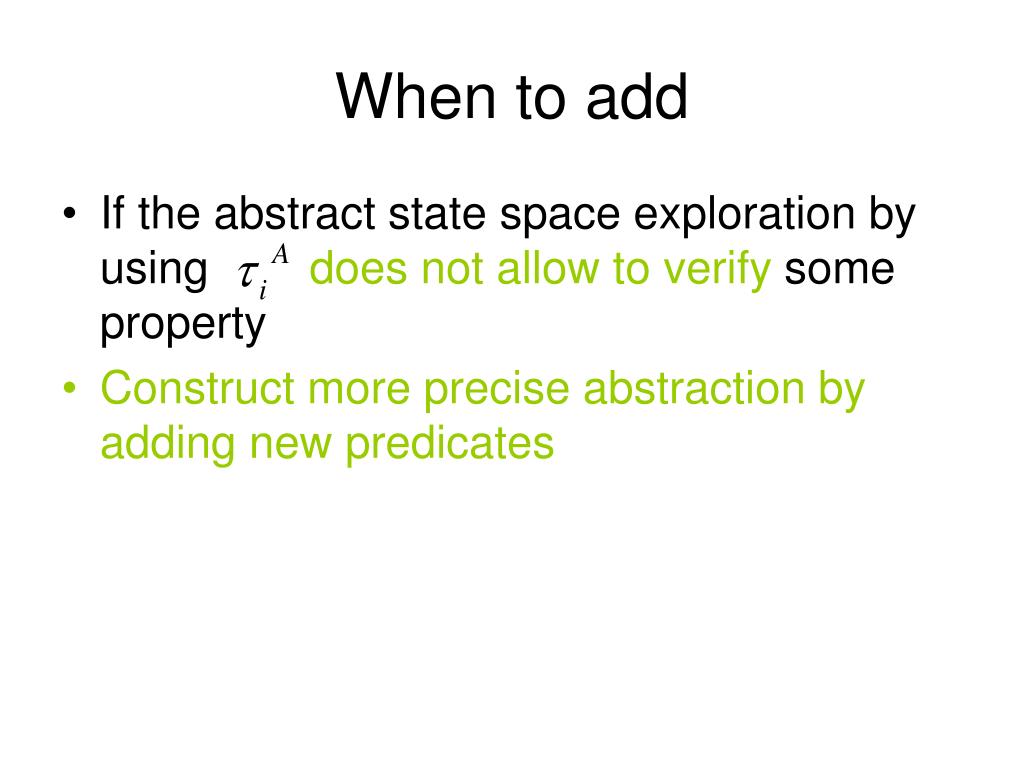

17. When to add • If the abstract state space exploration by using does not allow to verify some property • Construct more precise abstraction by adding new predicates

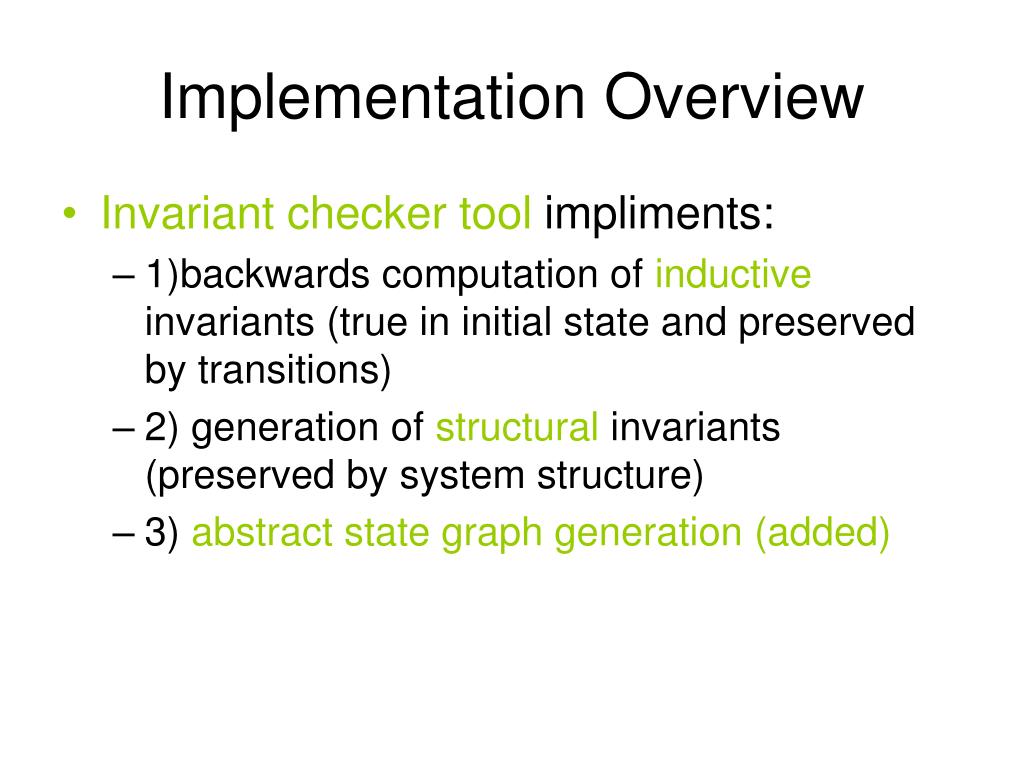

18. Implementation Overview • Invariant checker tool impliments: • 1)backwards computation of inductive invariants (true in initial state and preserved by transitions) • 2) generation of structural invariants (preserved by system structure) • 3) abstract state graph generation (added)

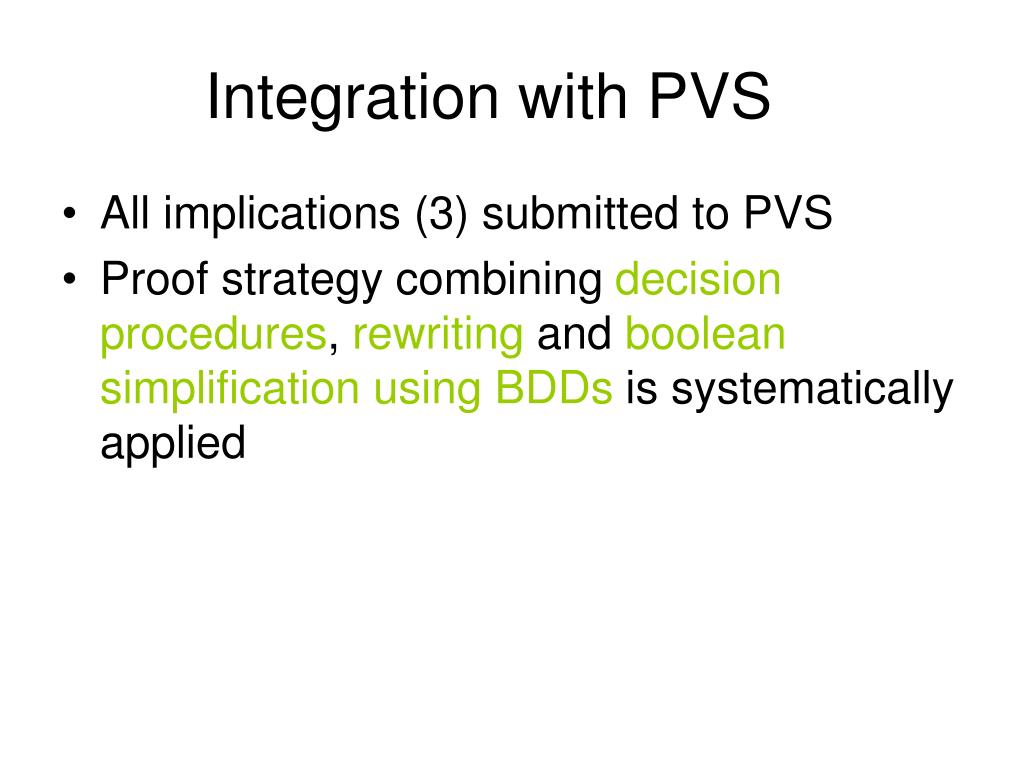

19. Integration with PVS • All implications (3) submitted to PVS • Proof strategy combining decision procedures, rewriting and boolean simplification using BDDs is systematically applied

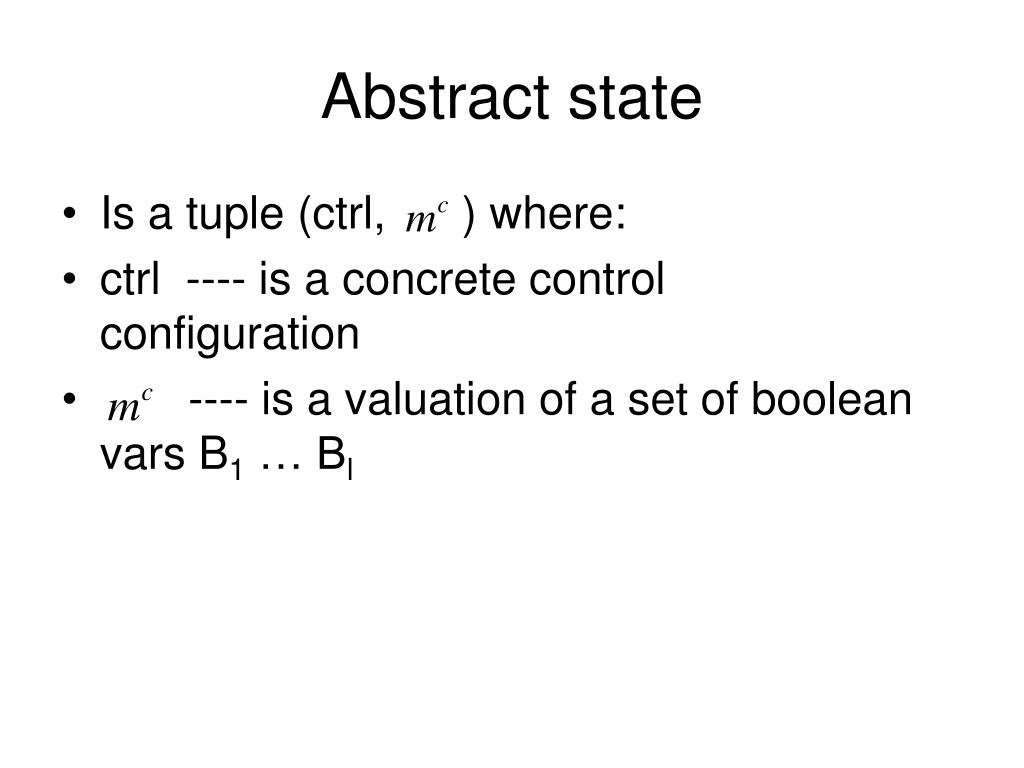

20. Abstract state • Is a tuple (ctrl, ) where: • ctrl ---- is a concrete control configuration • ---- is a valuation of a set of boolean vars B1 … Bl

21. Dependency predicate • Given {1… I} an upper approximation of a dependency predicate is computed and used to generate successors • Exact computation if {1… I} can be divided using syntactical independency into a set of small sets of potentially dependent predicates

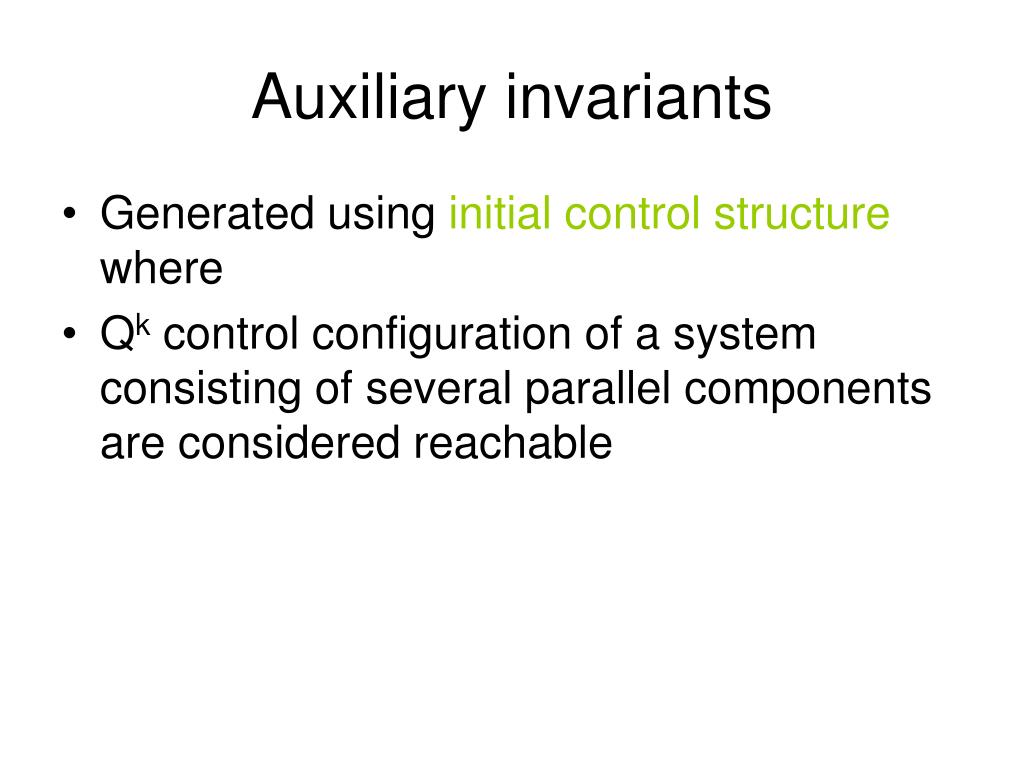

22. Auxiliary invariants • Generated using initial control structure where • Qk control configuration of a system consisting of several parallel components are considered reachable

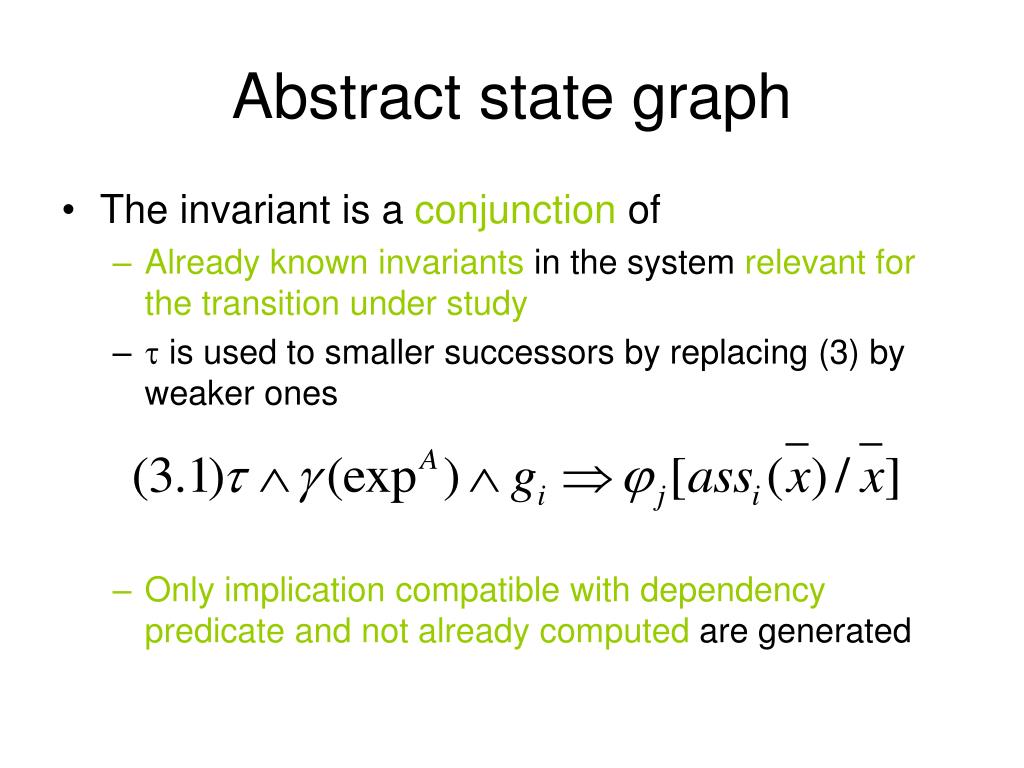

23. Abstract state graph • The invariant is a conjunction of • Already known invariants in the system relevant for the transition under study •  is used to smaller successors by replacing (3) by weaker ones • Only implication compatible with dependency predicate and not already computed are generated

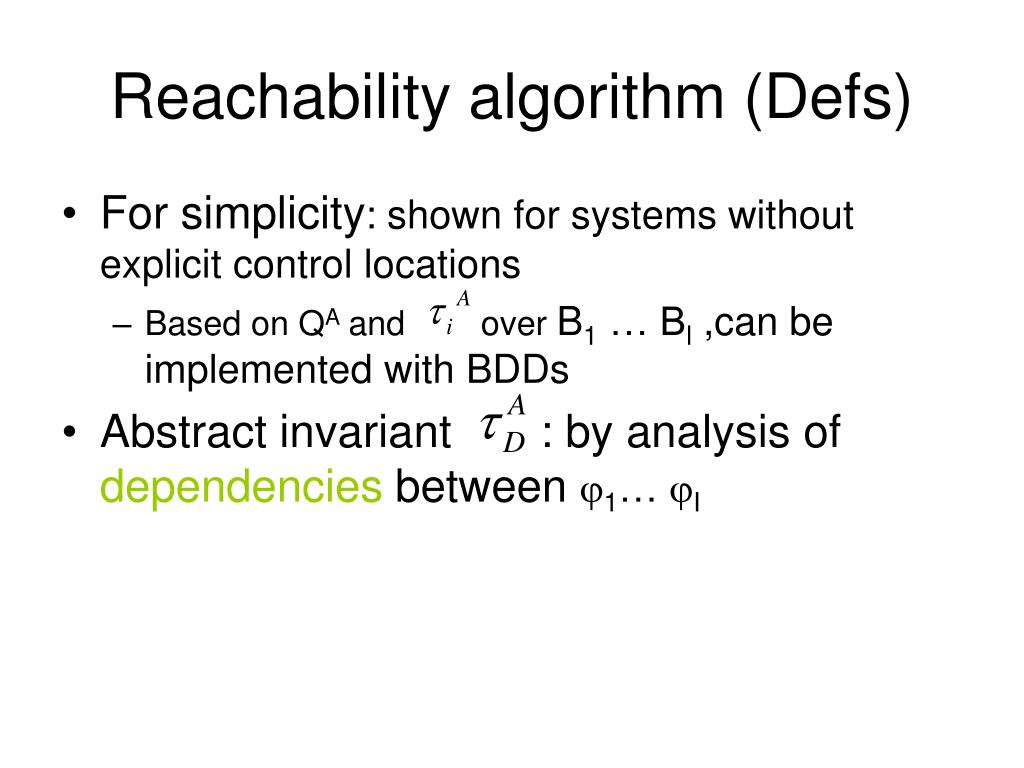

24. Reachability algorithm (Defs) • For simplicity: shown for systems without explicit control locations • Based on QA and over B1 … Bl ,can be implemented with BDDs • Abstract invariant : by analysis of dependencies between 1… I

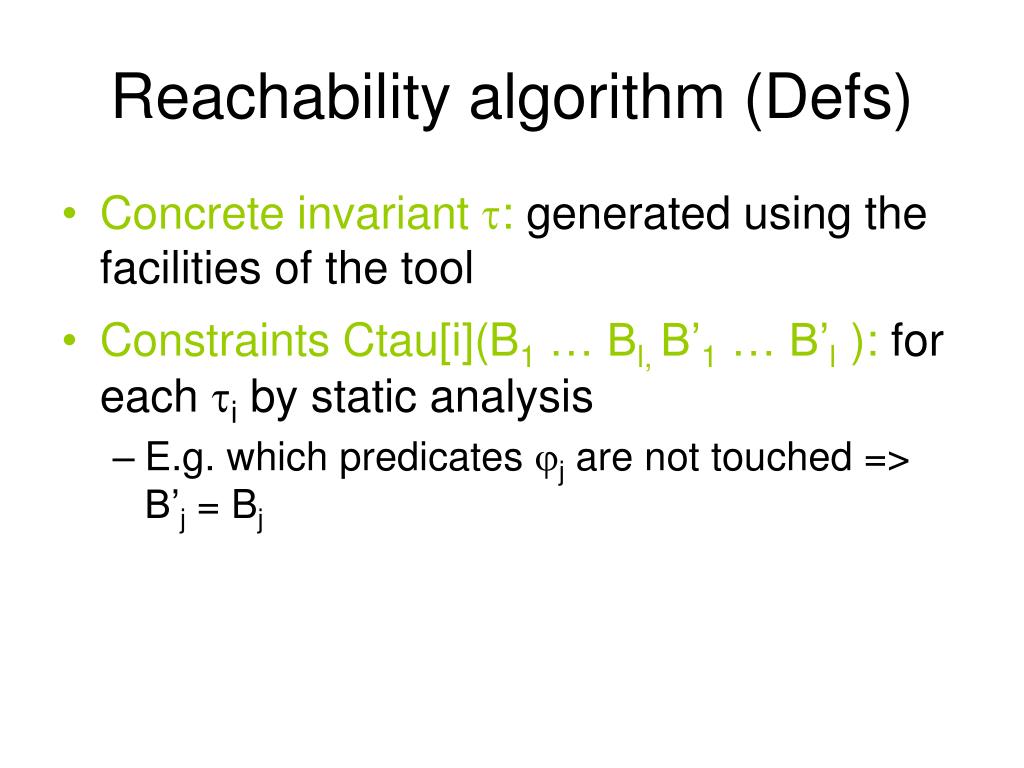

25. Reachability algorithm (Defs) • Concrete invariant : generated using the facilities of the tool • Constraints Ctau[i](B1 … Bl, B’1 … B’l): for each i by static analysis • E.g. which predicates j are not touched => B’j = Bj

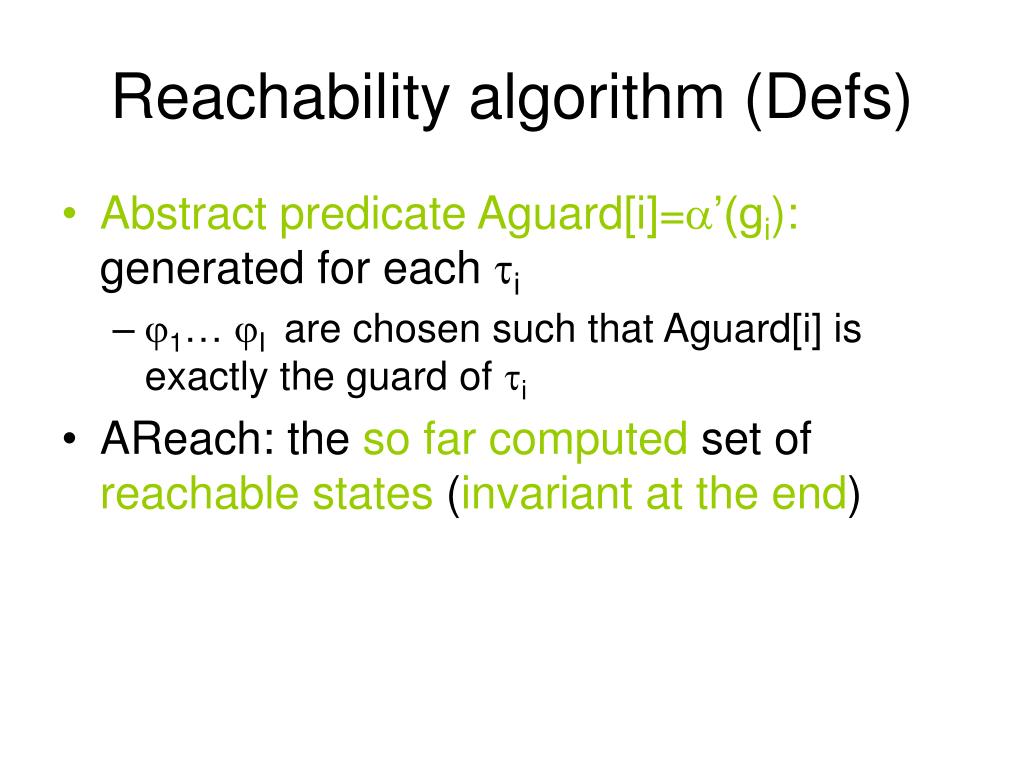

26. Reachability algorithm (Defs) • Abstract predicate Aguard[i]=’(gi): generated for each i • 1… I are chosen such that Aguard[i] is exactly the guard of i • AReach: the so far computed set of reachable states (invariant at the end)

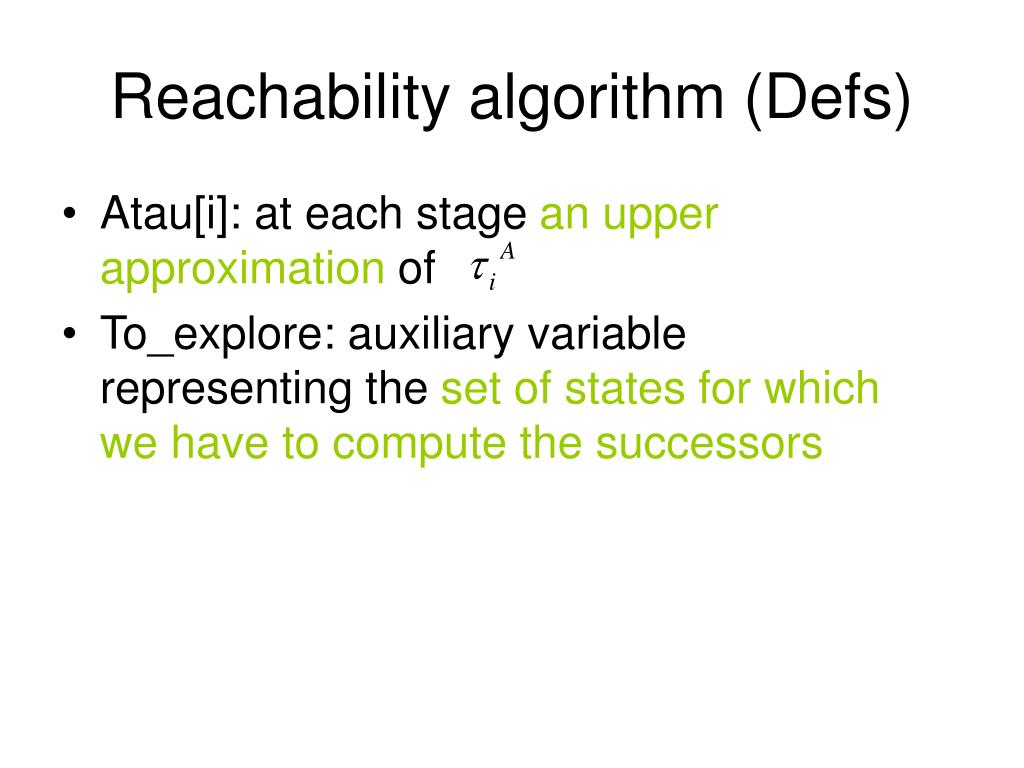

27. Reachability algorithm (Defs) • Atau[i]: at each stage an upper approximation of • To_explore: auxiliary variable representing the set of states for which we have to compute the successors

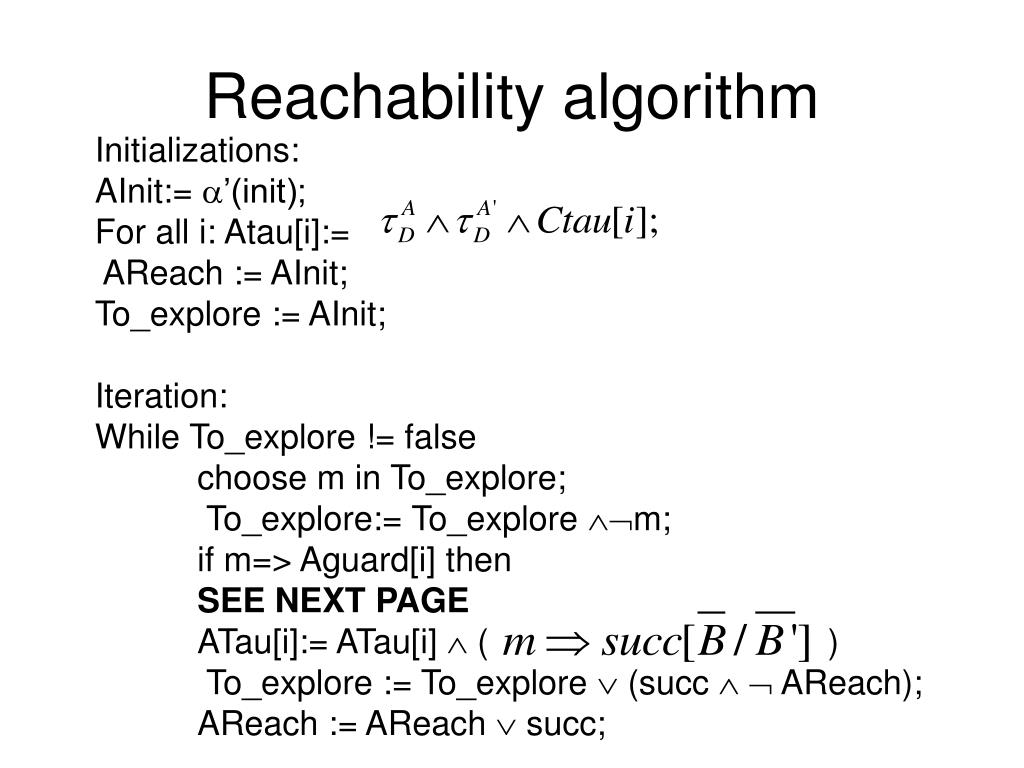

28. Reachability algorithm Initializations: AInit:= ’(init); For all i: Atau[i]:= AReach := AInit; To_explore := AInit; Iteration: While To_explore != false choose m in To_explore; To_explore:= To_explore m; if m=> Aguard[i] then SEE NEXT PAGE ATau[i]:= ATau[i]  ( ) To_explore := To_explore  (succ   AReach); AReach := AReach  succ;

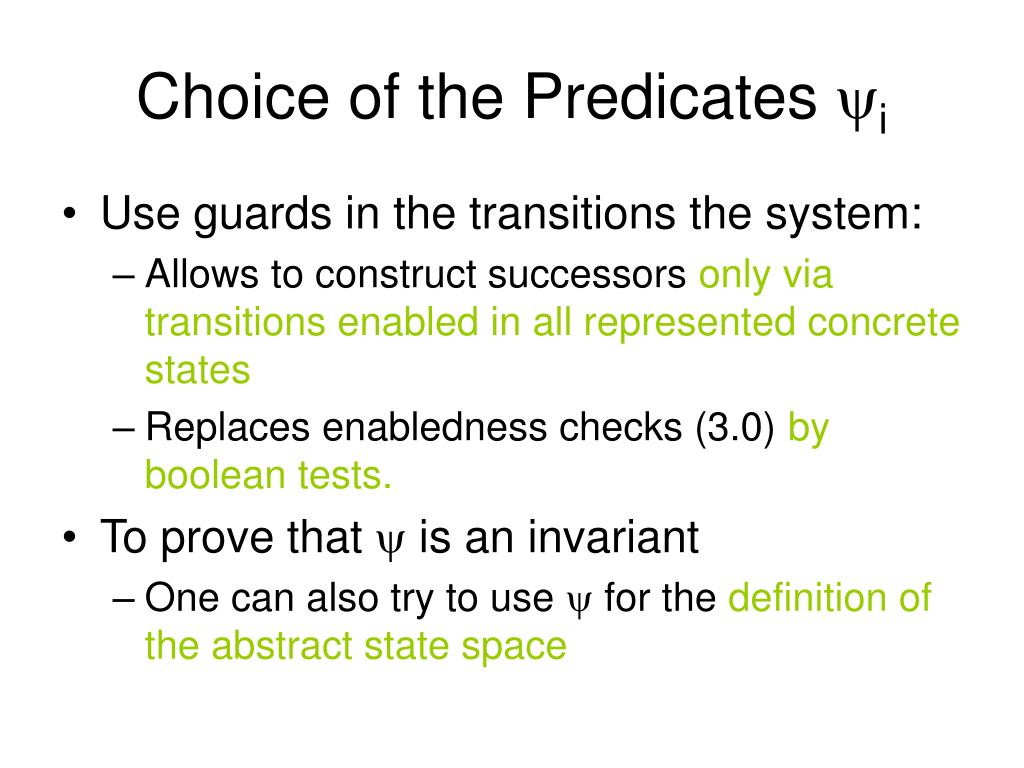

30. Choice of the Predicates i • Use guards in the transitions the system: • Allows to construct successors only via transitions enabled in all represented concrete states • Replaces enabledness checks (3.0) by boolean tests. • To prove that  is an invariant • One can also try to use  for the definition of the abstract state space

31. Choice of the Predicates i • Split each predicate into its set of literals (atomic pred.) • E.g. use 1 = (out =in) and Choice of the Predicates 2= (out= tail(in)) instead of 1 v 2 • Alternating bit protocol example: verified that:□(out =in V out= tail(in)) • List of already received messages Out is a prefix of the list of messages sent so far In

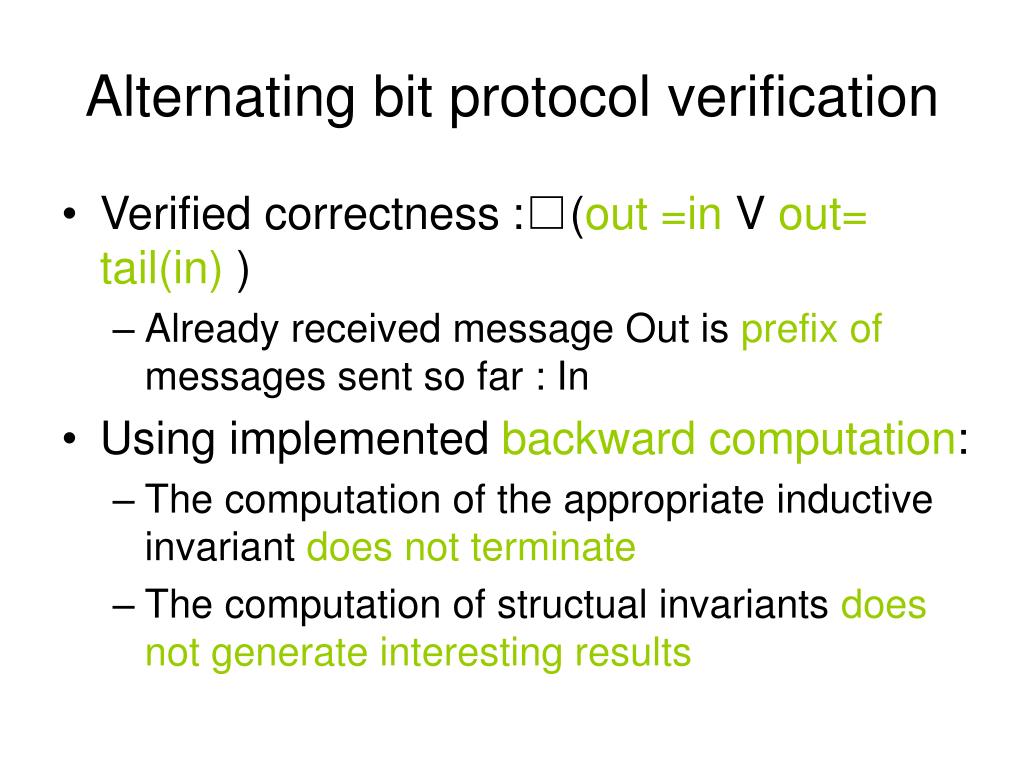

32. Alternating bit protocol verification • Verified correctness :□(out =in V out= tail(in)) • Already received message Out is prefix of messages sent so far : In • Using implemented backward computation: • The computation of the appropriate inductive invariant does not terminate • The computation of structual invariants does not generate interesting results

33. Alternating bit protocol verification • Using the two predicates as 1 and 2: • Deterministic graph is generated • 34 decidable implications • 5 abstract states • 68s

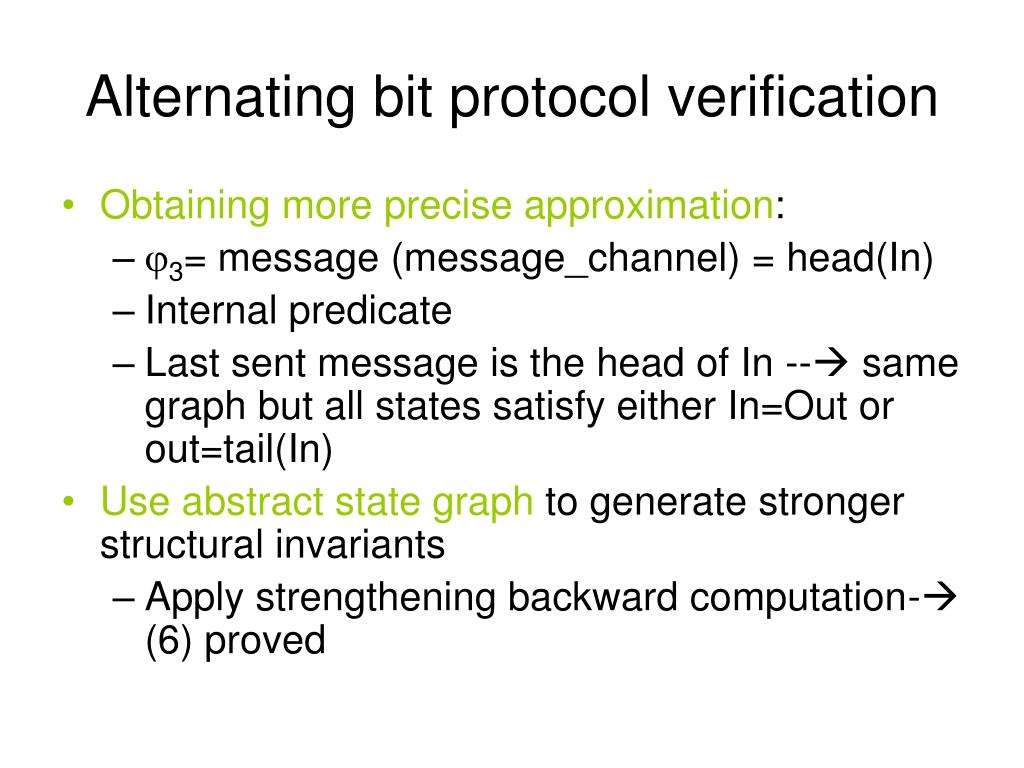

34. Alternating bit protocol verification • Obtaining more precise approximation: • 3= message (message_channel) = head(In) • Internal predicate • Last sent message is the head of In -- same graph but all states satisfy either In=Out or out=tail(In) • Use abstract state graph to generate stronger structural invariants • Apply strengthening backward computation- (6) proved

35. Bounded retransmission protocol • Extension of ABP: • Message pockets are sent, retransmitted bounded by max per message. • Full parameterized version of BRP: • Pockets can be of any size • Max can be any positive number • Proven so far by hand • Large amount of user interaction

36. Protocol description mess receiver Receiving client Sending client sender ack

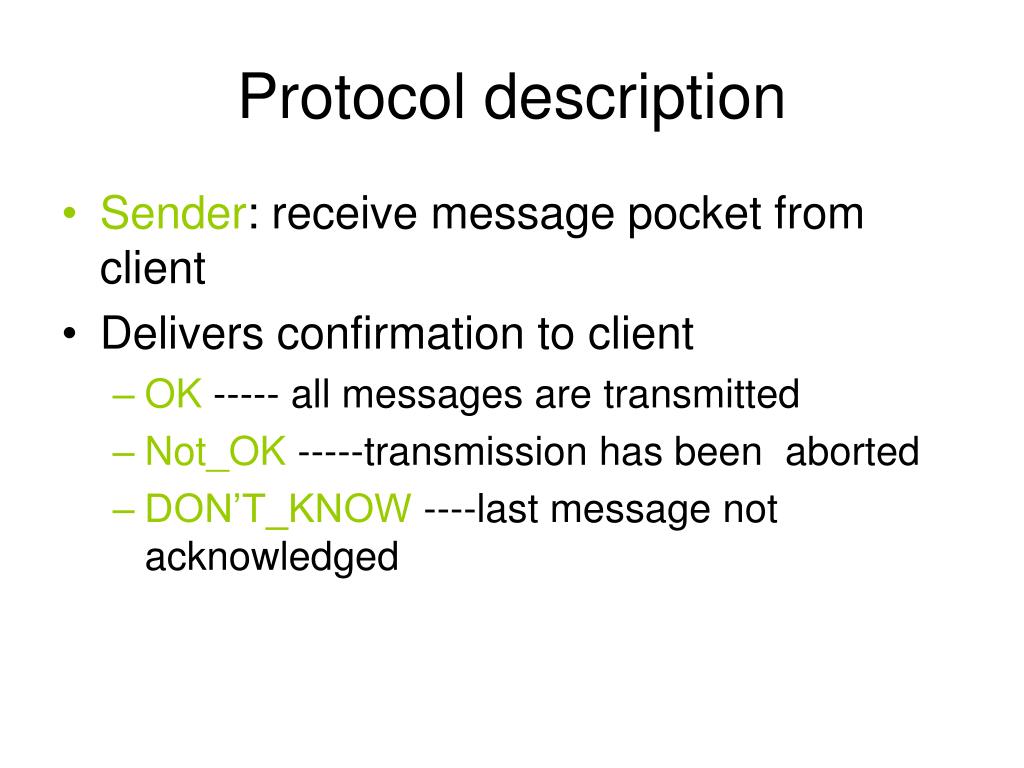

37. Protocol description • Sender: receive message pocket from client • Delivers confirmation to client • OK ----- all messages are transmitted • Not_OK -----transmission has been aborted • DON’T_KNOW ----last message not acknowledged

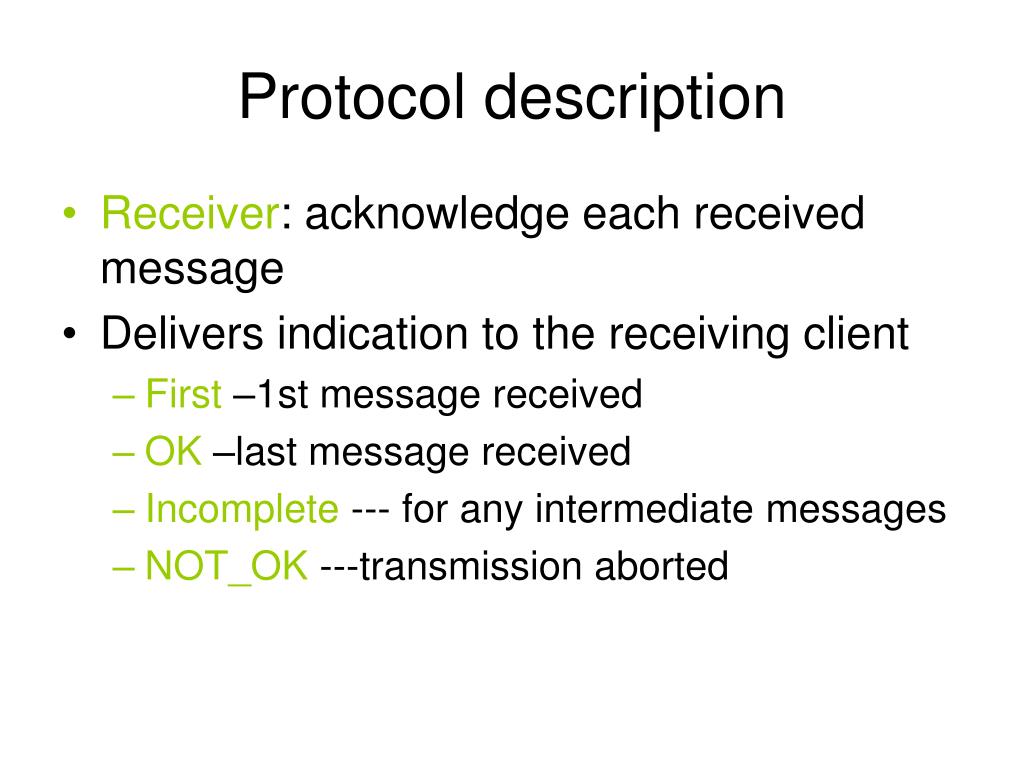

38. Protocol description • Receiver: acknowledge each received message • Delivers indication to the receiving client • First –1st message received • OK –last message received • Incomplete --- for any intermediate messages • NOT_OK ---transmission aborted

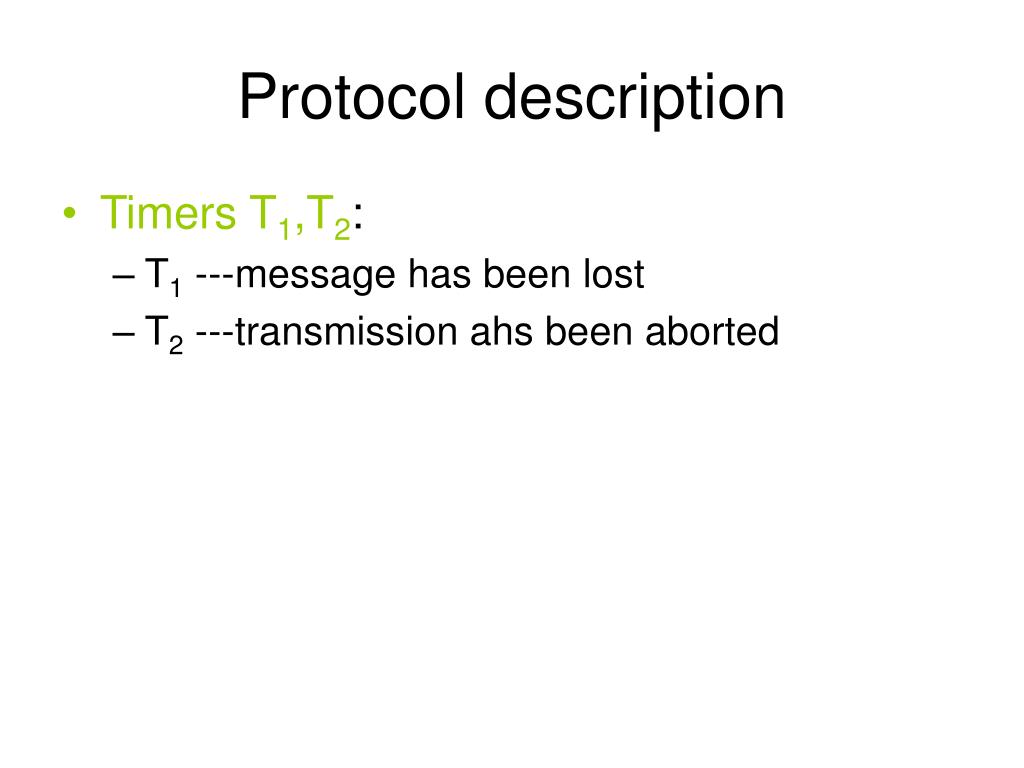

39. Protocol description • Timers T1,T2: • T1 ---message has been lost • T2 ---transmission ahs been aborted

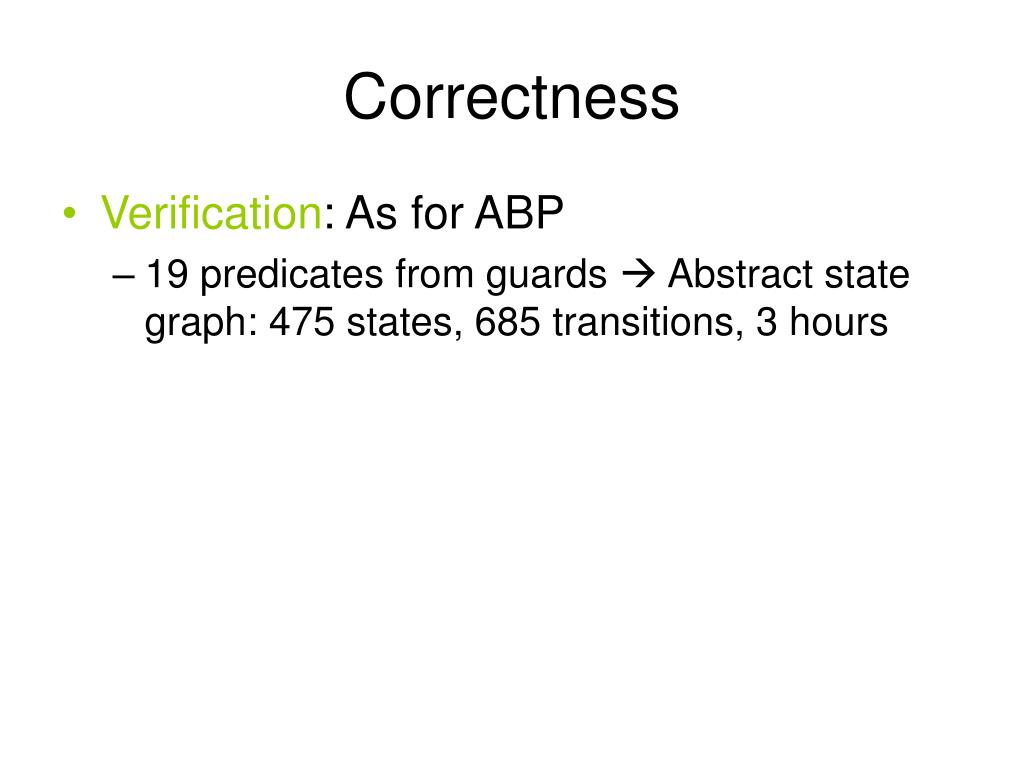

40. Correctness • Verification: As for ABP • 19 predicates from guards  Abstract state graph: 475 states, 685 transitions, 3 hours
