Controlling IP Spoofing via Inter-Domain Packet Filters

1. Controlling IP Spoofing via Inter-Domain Packet Filters Zhenhai Duan Department of Computer Science Florida State University

2. c s s d d d IP Spoofing • What is IP spoofing? • Act to fake source IP address • Used by many DDoS attacks • High-profile DDoS attack on root DNS servers in early February 2006 • Why it remains popular? • Hard to isolate attack traffic from legitimate one • Hard to pinpoint the true attacker • Many attacks rely on IP spoofing • Man-in-the-middle attacks such as TCP hijacking/DNS poisoning • Reflector-based attacks c d b a s

3. s s d d Route-Based Packet Filters [PL01] • Based on observation • Attackers can spoof source address, • But they cannot control route packets takes • How it works • Packets only allowed on best path from source to destination • Requirement • Filters need to know global topology info • Not available in path-vector based Internet routing system • Our Objectives • Is it possible to construct packet filters without global topology information? • If it is possible, what is the performance? c d b a s

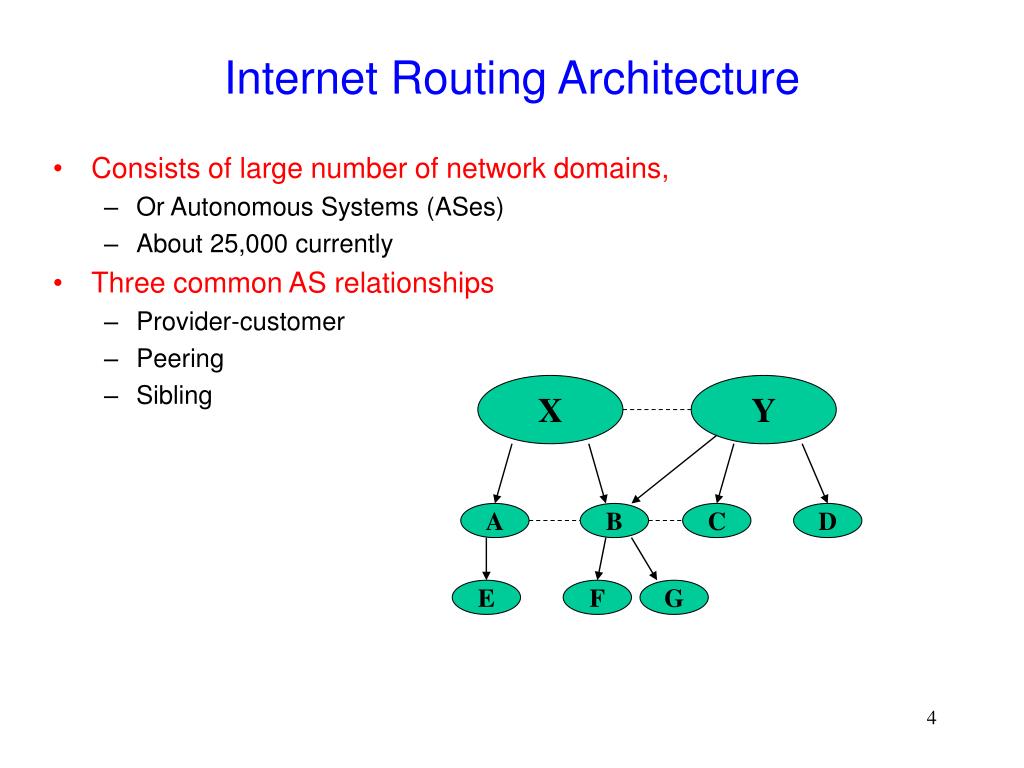

4. Internet Routing Architecture • Consists of large number of network domains, • Or Autonomous Systems (ASes) • About 25,000 currently • Three common AS relationships • Provider-customer • Peering • Sibling X Y A B C D E F G

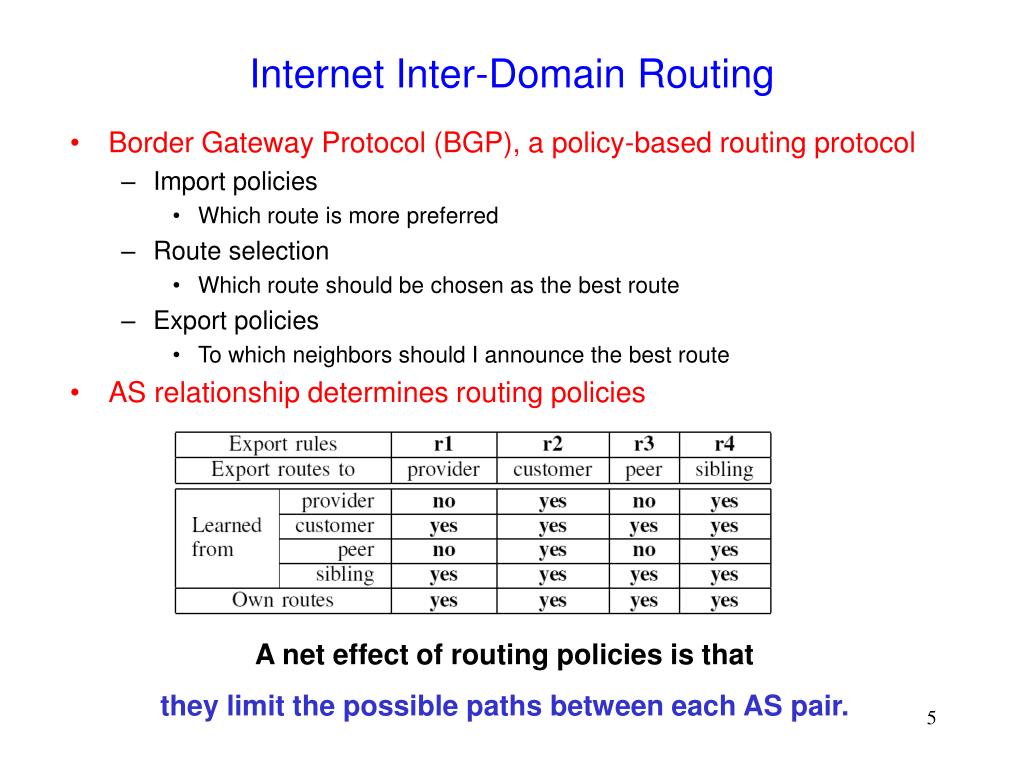

5. Internet Inter-Domain Routing • Border Gateway Protocol (BGP), a policy-based routing protocol • Import policies • Which route is more preferred • Route selection • Which route should be chosen as the best route • Export policies • To which neighbors should I announce the best route • AS relationship determines routing policies A net effect of routing policies is that they limit the possible paths between each AS pair.

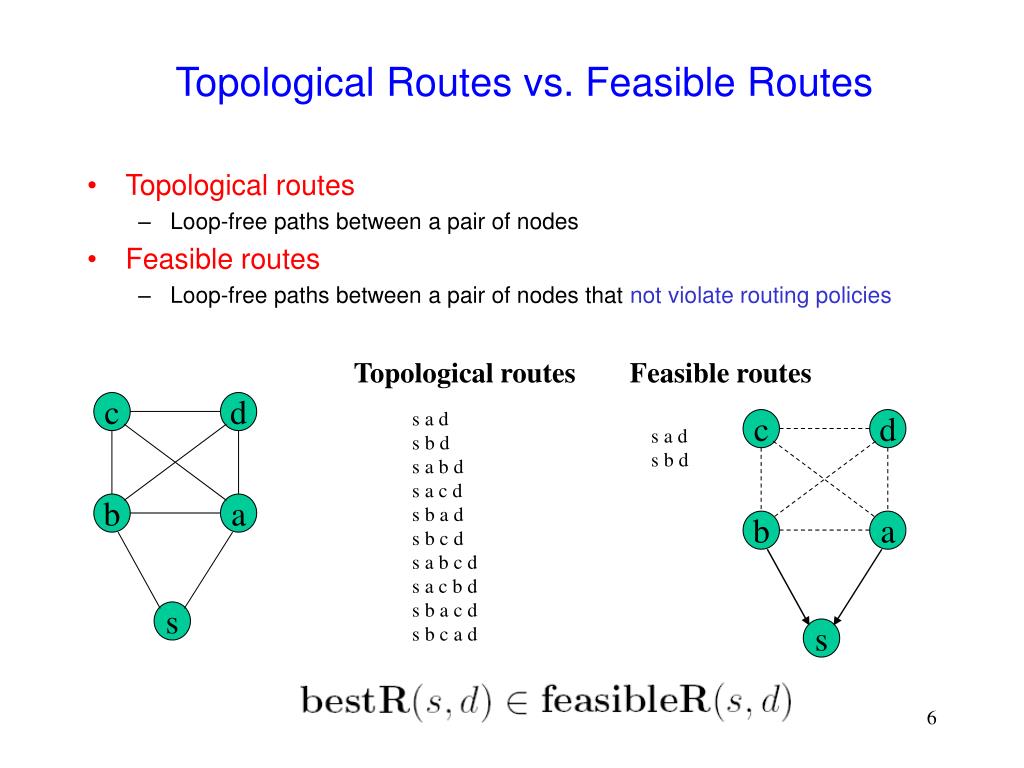

6. c d b a s Topological Routes vs. Feasible Routes • Topological routes • Loop-free paths between a pair of nodes • Feasible routes • Loop-free paths between a pair of nodes that not violate routing policies Topological routes Feasible routes s a d s b d s a b d s a c d s b a d s b c d s a b c d s a c b d s b a c d s b c a d c d s a d s b d b a s

7. Assumptions on Import/Export Policies • Import policies • Export policies • These policies commonly used on current Internet

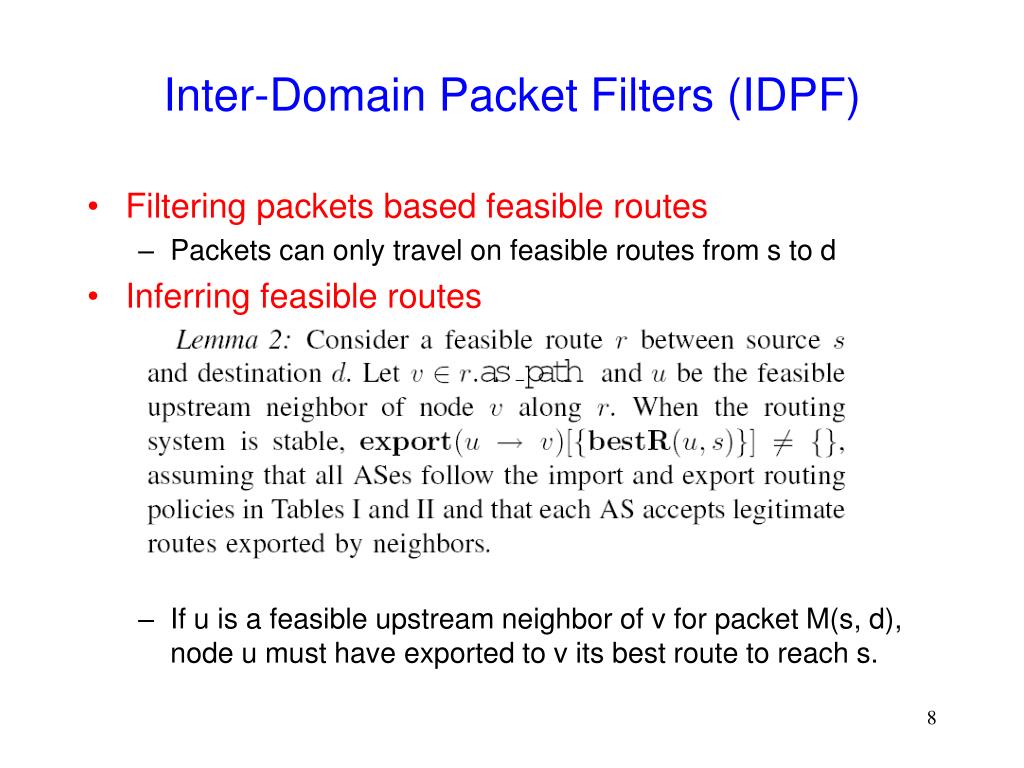

8. Inter-Domain Packet Filters (IDPF) • Filtering packets based feasible routes • Packets can only travel on feasible routes from s to d • Inferring feasible routes • If u is a feasible upstream neighbor of v for packet M(s, d), node u must have exported to v its best route to reach s.

9. Constructing IDPF • Node v accepts packet M(s, d) forwarded by node u if and only if • IDPFs allow traffic to go through any feasible route • Correct in that they do not drop valid packets • May affect the performance compared to route-based filtering

10. Performance • IDPF has two effects • Reducing the number of prefixes that can be spoofed • Localizing the true source of spoofed packets • IDPF finds a set of feasible paths instead of one best route, its performance will not be as good as the ideal route-based packet filters [PL01]

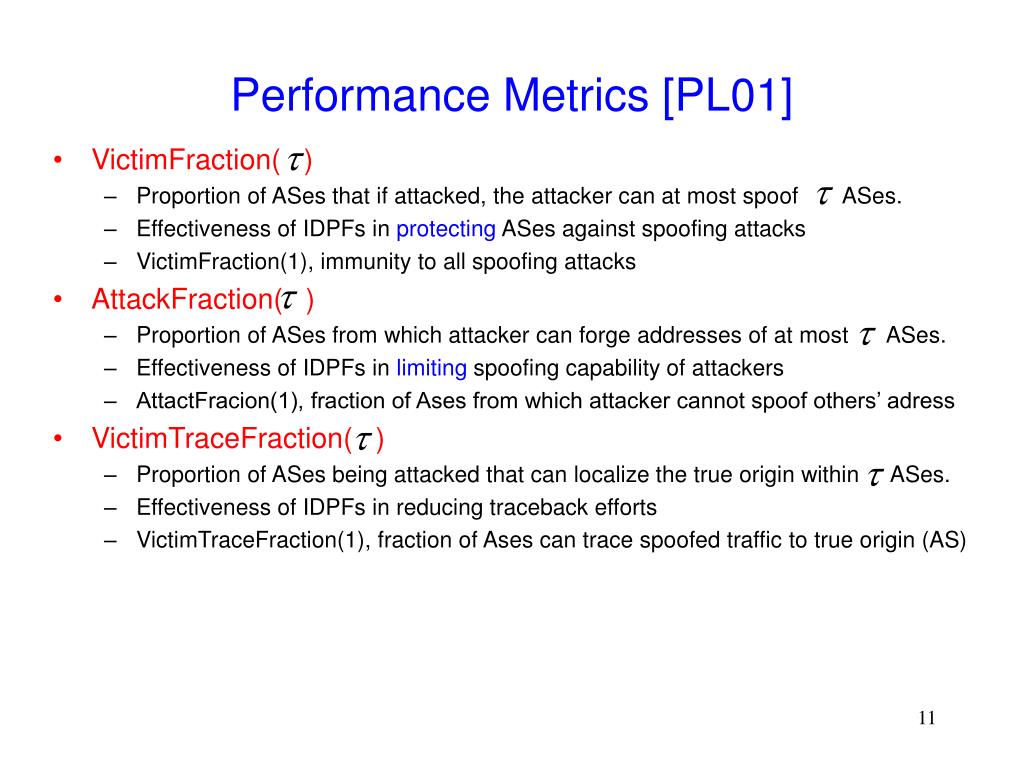

11. Performance Metrics [PL01] • VictimFraction( ) • Proportion of ASes that if attacked, the attacker can at most spoof ASes. • Effectiveness of IDPFs in protecting ASes against spoofing attacks • VictimFraction(1), immunity to all spoofing attacks • AttackFraction( ) • Proportion of ASes from which attacker can forge addresses of at most ASes. • Effectiveness of IDPFs in limiting spoofing capability of attackers • AttactFracion(1), fraction of Ases from which attacker cannot spoof others’ adress • VictimTraceFraction( ) • Proportion of ASes being attacked that can localize the true origin within ASes. • Effectiveness of IDPFs in reducing traceback efforts • VictimTraceFraction(1), fraction of Ases can trace spoofed traffic to true origin (AS)

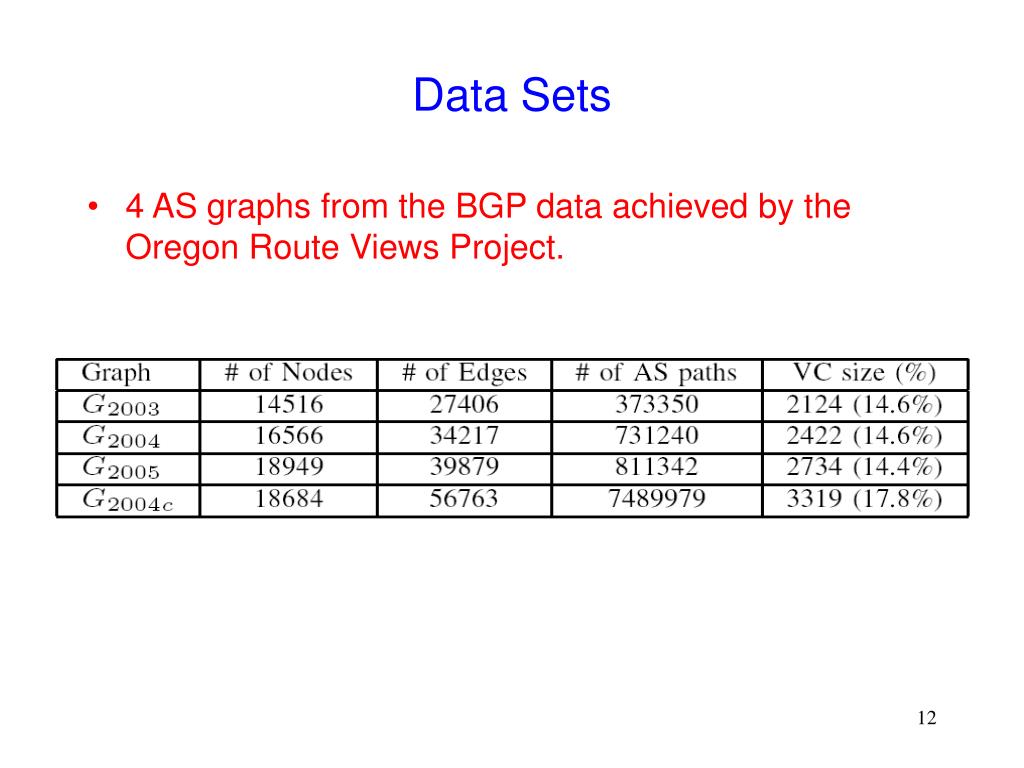

12. Data Sets • 4 AS graphs from the BGP data achieved by the Oregon Route Views Project.

13. Experimental Settings • Determine the feasible paths based on update logs. • Use shortest path as the route (add if the shortest path is not a feasible path) • Selecting nodes that deploy IDPF • Random (rnd30/rnd50) • Vertex cover • If not mentioned specifically, IDPF nodes also have network ingress filtering.

14. VictimFraction (G2004c) • Effectiveness of IDPFs in protecting ASes from spoofing attacks • VictimFraction(1) is zero unless all nodes support IDPFs • It is very hard to protect ASes from all spoofing attacks

15. AttackFraction (G2004c) • Effectiveness of IDPFs in limiting spoofing capability of attackers • AttackFraction(1) = 80.8%, 59.2%, and 36.2%, respectively • IDPFs very effective in limiting spoofing capability

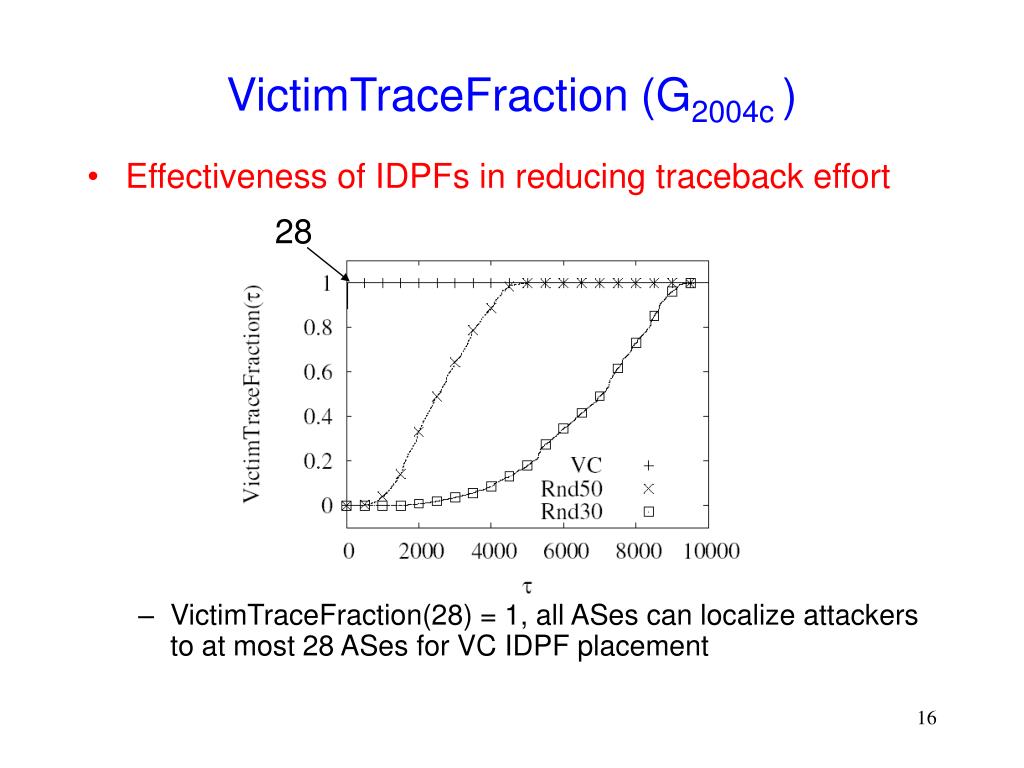

16. VictimTraceFraction (G2004c ) • Effectiveness of IDPFs in reducing traceback effort • VictimTraceFraction(28) = 1, all ASes can localize attackers to at most 28 ASes for VC IDPF placement 28

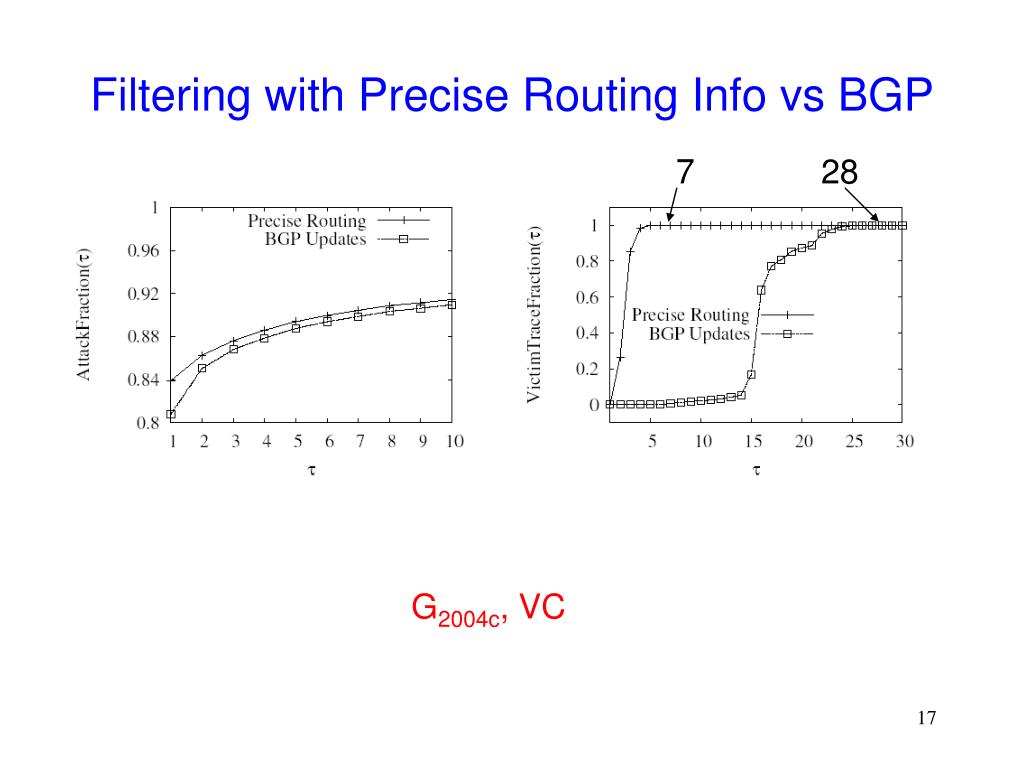

17. Filtering with Precise Routing Info vs BGP 7 28 G2004c, VC

18. IDPFs with/without Network Ingress Filtering 87 28 G2004c, VC

19. Related Work • Route-Based Packet Filters [SIGCOMM01] • Unicast reverse packet forwarding [RFC1812] • Unicast reverse packet forwarding loose mode [CISCO] • Hop-Count Filtering [CCS03] • Path Identification/StackPi [SSP03]/[JSAC06] • Source Address Validation Enforcement (SAVE) [INFOCOM02] • Spoofing Prevention Method [INFOCOM05] • Network Ingress Filtering [RFC2267] • Gogon Route Server Project [Cymru]

20. Summary • We proposed an Inter-Domain Packet Filters architecture (IDPF) and studied it performance. • IDPF can effectively limit the spoofing capability of attackers even when partially deployed and improves the accuracy of IP traceback. • Moreover performance studies in • “Constructing Inter-Domain Packet Filters to Control IP Spoofing Based on BGP Updates”, INFOCOM 2006 • And its TR version

21. Routing Policy Complications • Some ASes do not follow the import/export policies assumed in IDPFs • Requiring restricted traffic forwarding to work with IDPFs

22. Impact of Routing Dynamics • IDPFs works well with dynamics caused by network failure events • IDPFs may drop valid packets during routing dynamics caused by new network announcement (or recovery from fail-down network event), IDPFs may also fail to detect spoofed packets • However, reachability information propagated much faster than failure information
