  1. Radio Works R. F. Consulting&A new venture coming soonPresent A New Signal Hunting ToolTHE AIR MAST WITH PTZ ANTENNA & CAMERAA 30 foot and 54 foot tall Eye To The Sky CLICK TO ADVANCE SLIDES

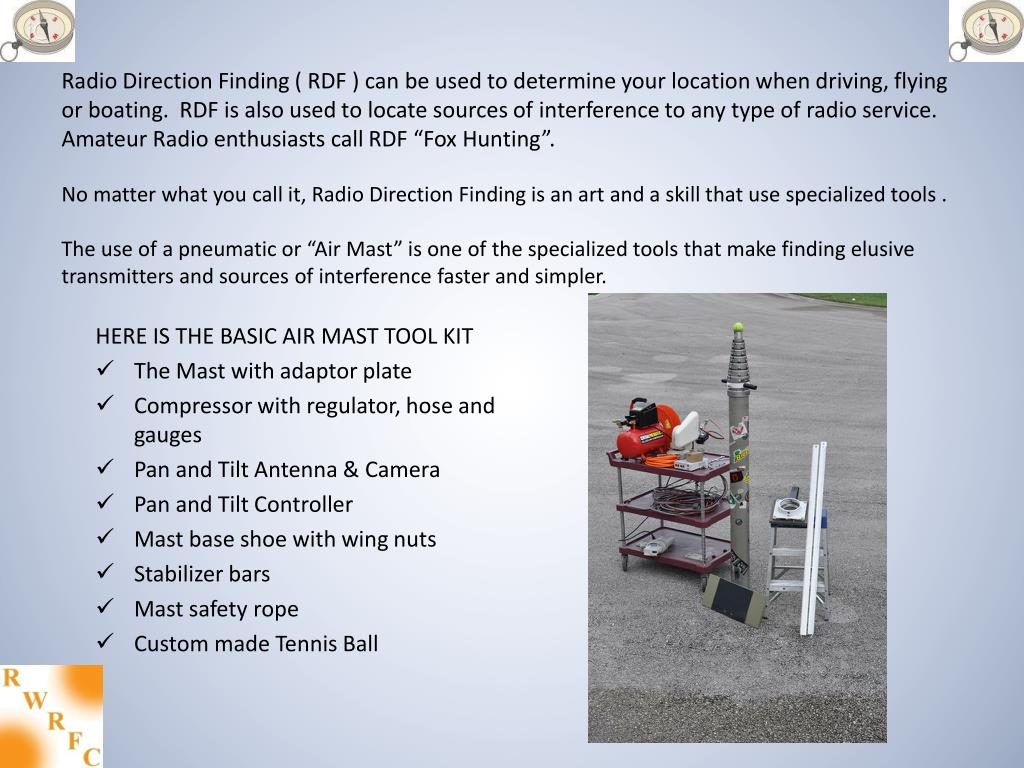

  2. Radio Direction Finding ( RDF ) can be used to determine your location when driving, flying or boating. RDF is also used to locate sources of interference to any type of radio service. Amateur Radio enthusiasts call RDF “Fox Hunting”. No matter what you call it, Radio Direction Finding is an art and a skill that use specialized tools .The use of a pneumatic or “Air Mast” is one of the specialized tools that make finding elusive transmitters and sources of interference faster and simpler. HERE IS THE BASIC AIR MAST TOOL KIT • The Mast with adaptor plate • Compressor with regulator, hose and gauges • Pan and Tilt Antenna & Camera • Pan and Tilt Controller • Mast base shoe with wing nuts • Stabilizer bars • Mast safety rope • Custom made Tennis Ball

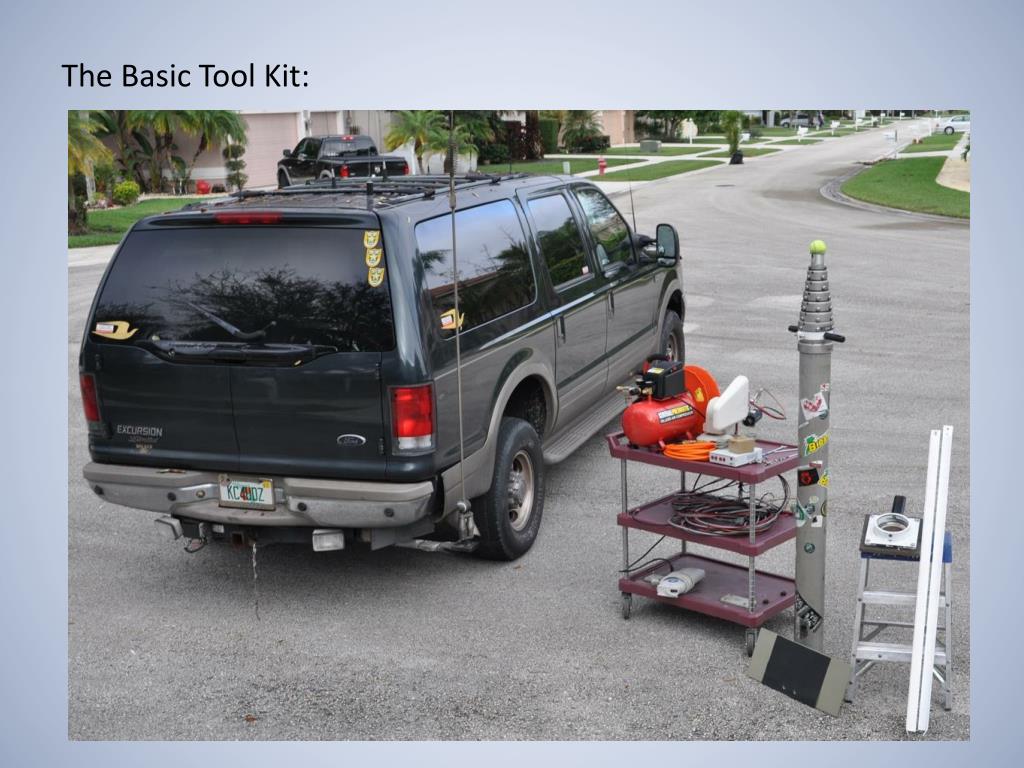

  3. The Basic Tool Kit:

  4. Let’s have a closer look at some of the components: • Air hose and bleed valve • Base shoe / hitch assembly • Wing nuts • Luggage rail custom milled “T” inserts • The PTZ and camera • The Tennis ball

  5. Now let’s look at the assembly procedure: • Install base shoe and insert hitch safety pin • Place mast on shoe • Install locking wing nuts • Install “V” bracing to mast • Secure “V” braces to luggage rail fixtures

  6. Let’s keep going. We are almost done: • Remove the Tennis ball • Install the top plate and safety pin • Attach the pull rope and square up the mat • Place the PTZ on the plate • Plug in the air hose and bleeder assembly • Admire your work

  7. The last steps. Here it goes! • Going,,, going… • Going to 30 feet • OR 54 feet,,, wow

  8. The benefits of an air mast: • Rapid deployment and strike • Let’s you see over many buildings • Pan and tilt gives extra flexibility • Camera lets you sees objects in the distance • Tower crew typically is not required to azimuths to interference or target • You get invited to all the Ham Fests

  9. The logistics: • On board 120VAC inverter powers compressor, PTZ and Camera • NTSC to USB video converter lets you see video on the laptop in the vehicle • Proprietary software allows you to monitor Spectrum Analyzer on laptop in the vehicle • Day and Night operation with quality camera • Ability to mount FLIR and visible lights on mast • System is adaptable to many vehicles • We have in house FLIR systems

  10. Radio Works R. F. Consulting&A new venture coming soonPresent A New Signal Hunting ToolTHE AIR MAST WITH PTZ ANTENNA & CAMERAA 30 foot tall eye to the skyAnd a 54 foot model too Radio Works R.F. Consulting 7225 Catalina Isle Drive Lake Worth, Florida 33467 (561) 969-9245 A new venture coming soon
