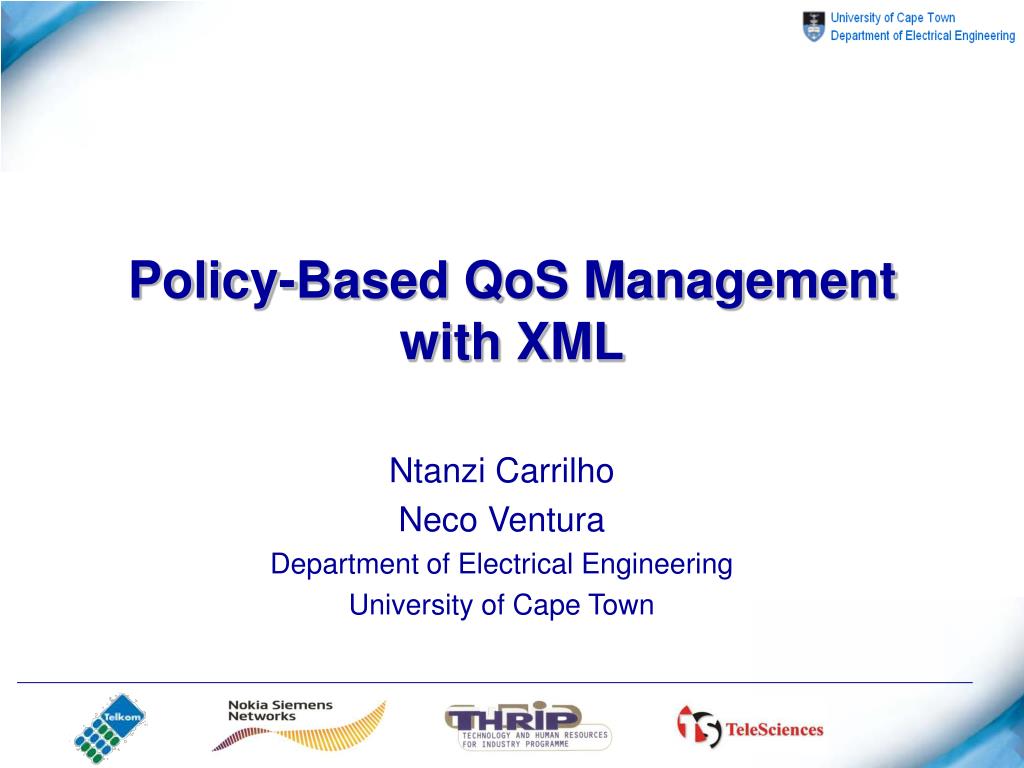

  1. Policy-Based QoS Management with XML Ntanzi Carrilho Neco Ventura Department of Electrical Engineering University of Cape Town

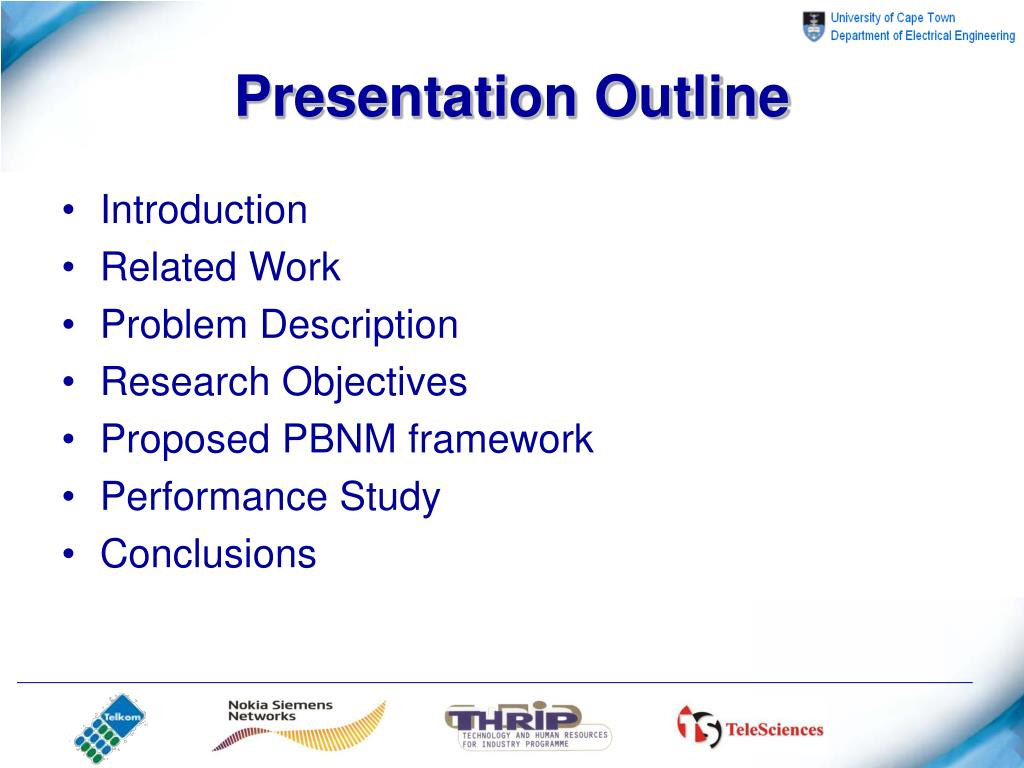

  2. Presentation Outline • Introduction • Related Work • Problem Description • Research Objectives • Proposed PBNM framework • Performance Study • Conclusions

  3. Introduction • What is Policy-based QoS Management? • Rules governing the state of network • Automates execution of management objectives • Simplifies administration • Decentralises network management • Enable seamless QoS management

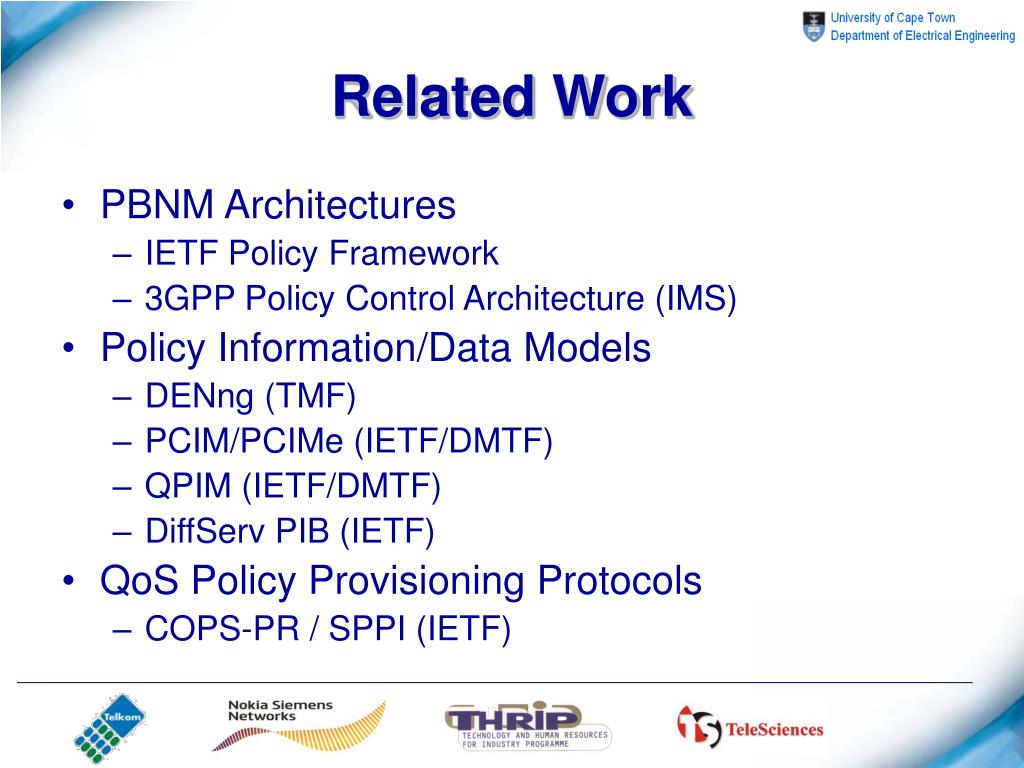

  4. Related Work • PBNM Architectures • IETF Policy Framework • 3GPP Policy Control Architecture (IMS) • Policy Information/Data Models • DENng (TMF) • PCIM/PCIMe (IETF/DMTF) • QPIM (IETF/DMTF) • DiffServ PIB (IETF) • QoS Policy Provisioning Protocols • COPS-PR / SPPI (IETF)

  5. Problem Description • Wide range of policy representation formats involved in current PBNM solutions • Unnecessary complexity to the structure of systems • Manageability of PBNM systems • Traditional standards and protocols are complex but inefficient (COPS-PR and SPPI) • SPPI complex but not flexible • COPS-PR messages are not human readable • Limited availability of parsers capable of processing them • Increased development and maintenance costs

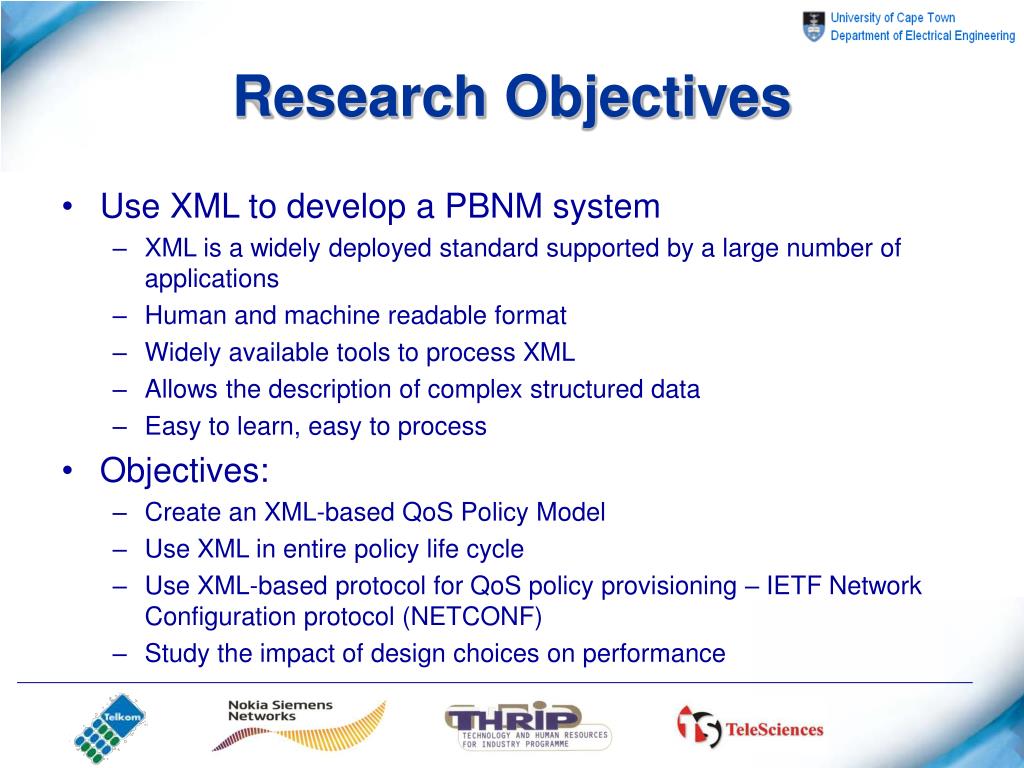

  6. Research Objectives • Use XML to develop a PBNM system • XML is a widely deployed standard supported by a large number of applications • Human and machine readable format • Widely available tools to process XML • Allows the description of complex structured data • Easy to learn, easy to process • Objectives: • Create an XML-based QoS Policy Model • Use XML in entire policy life cycle • Use XML-based protocol for QoS policy provisioning – IETF Network Configuration protocol (NETCONF) • Study the impact of design choices on performance

  7. Proposed QoS Policy Model • Independent of any specific device • Independent of QoS mechanisms • Independent of device technology • Dependent of QoS mechanisms • Dependent of device technology • Dependent of QoS mechanisms

  8. Proposed QoS Policy Model “User Ntanzi receives high QoS for internet traffic” If (IP = 10.128.1.91) and (port = 80) then (high QoS actions)

  9. Proposed QoS Policy Model • Network-Level Policy example <PolicyGroup Name="edge-policiesGroup" PolicyRoles="edge"> <PolicyRule Name="EFedge-policyRule"> <PolicyCondition> ... </Policycondition> <CompoundPolicyAction Name="EFedge-actions"> <PolicyActionInPolicyAction> <xi:include href="/db/QoSPolicies/ReusablePolicies/ QoSPolicyPoliceAction.xml#xpointer(//QoSPolicyPoliceAction[ @Name='EFedge- policer'])"/> </PolicyActionInPolicyAction> <...> ... </...><!-- Other PolicyActions --> </CompoundPolicyAction> </PolicyRule> <...> ... </...><!-- Other PolicyRules --> </PolicyGroup>

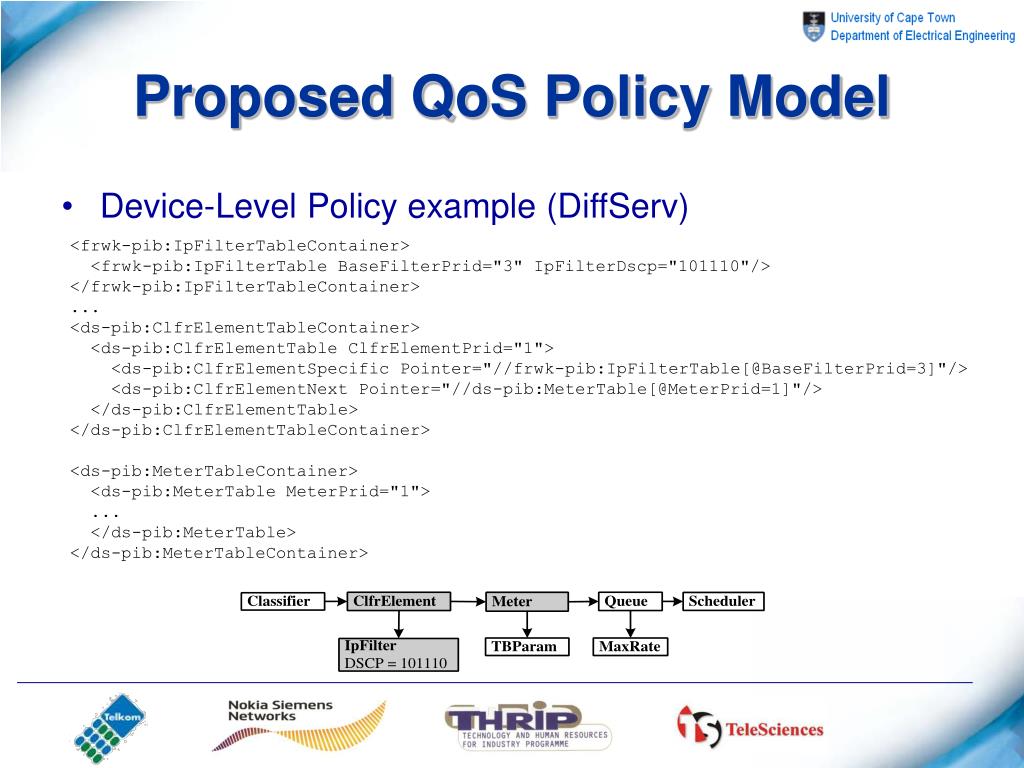

  10. Proposed QoS Policy Model • Device-Level Policy example (DiffServ) <frwk-pib:IpFilterTableContainer> <frwk-pib:IpFilterTable BaseFilterPrid="3" IpFilterDscp="101110"/> </frwk-pib:IpFilterTableContainer> ... <ds-pib:ClfrElementTableContainer> <ds-pib:ClfrElementTable ClfrElementPrid="1"> <ds-pib:ClfrElementSpecific Pointer="//frwk-pib:IpFilterTable[@BaseFilterPrid=3]"/> <ds-pib:ClfrElementNext Pointer="//ds-pib:MeterTable[@MeterPrid=1]"/> </ds-pib:ClfrElementTable> </ds-pib:ClfrElementTableContainer> <ds-pib:MeterTableContainer> <ds-pib:MeterTable MeterPrid="1"> ... </ds-pib:MeterTable> </ds-pib:MeterTableContainer>

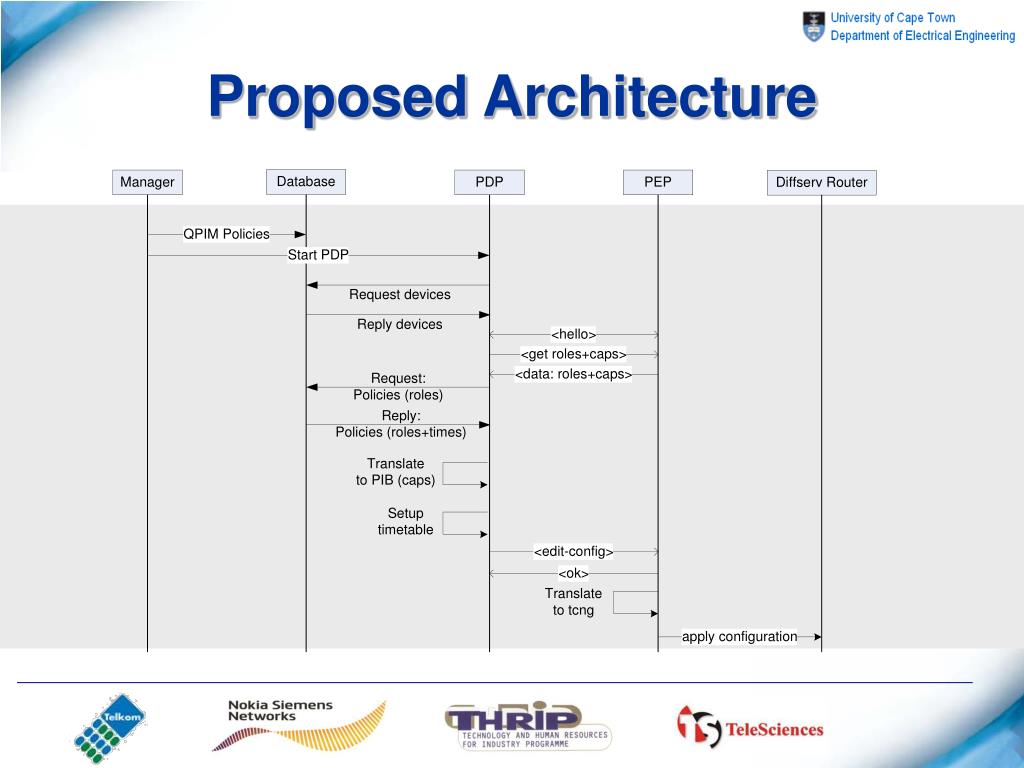

  11. Proposed Architecture

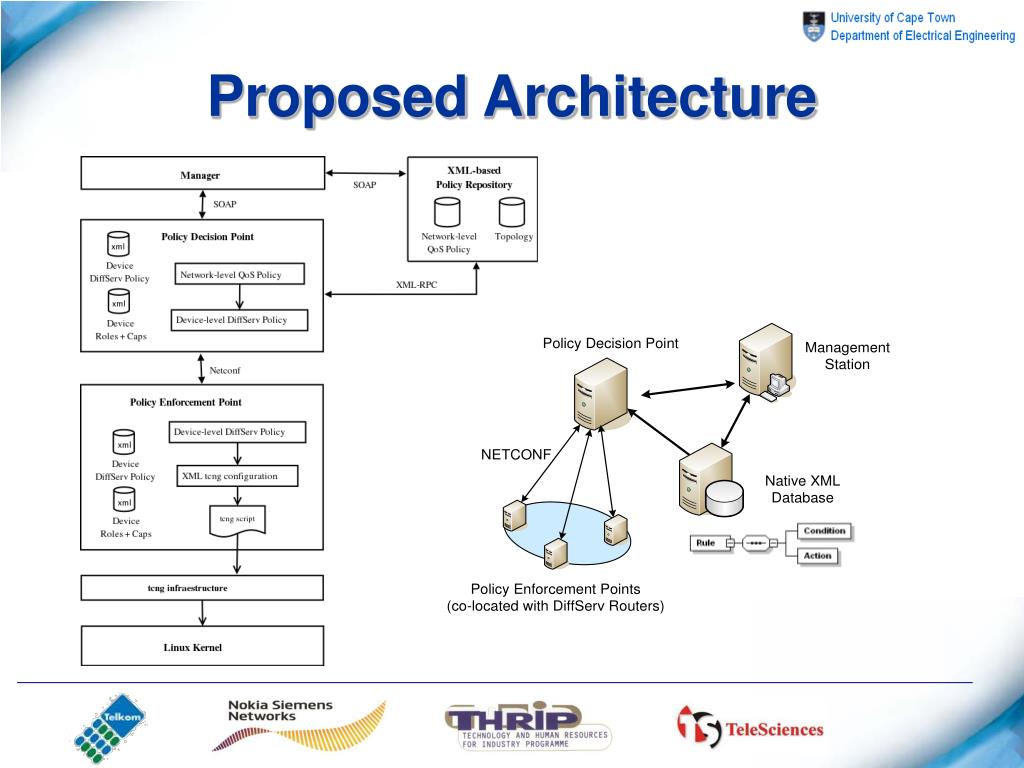

  12. Proposed Architecture

  13. Performance Evaluation Setup • Performance parameters • Network usage • Impact of compression • System resource usage • Processing delays • Memory consumed

  14. Performance Results • Network usage

  15. Performance Results • System resource usage at PEP Processing delays

  16. Performance Results • System resource usage at PEP Dynamic memory

  17. Conclusions • Benefits brought by the use of XML • Reduced development costs • Simplify the structure of Policy models • Added flexibility • Open up possibilities of integration • Proposed system was successfully implemented and validated • Performance results are satisfactory

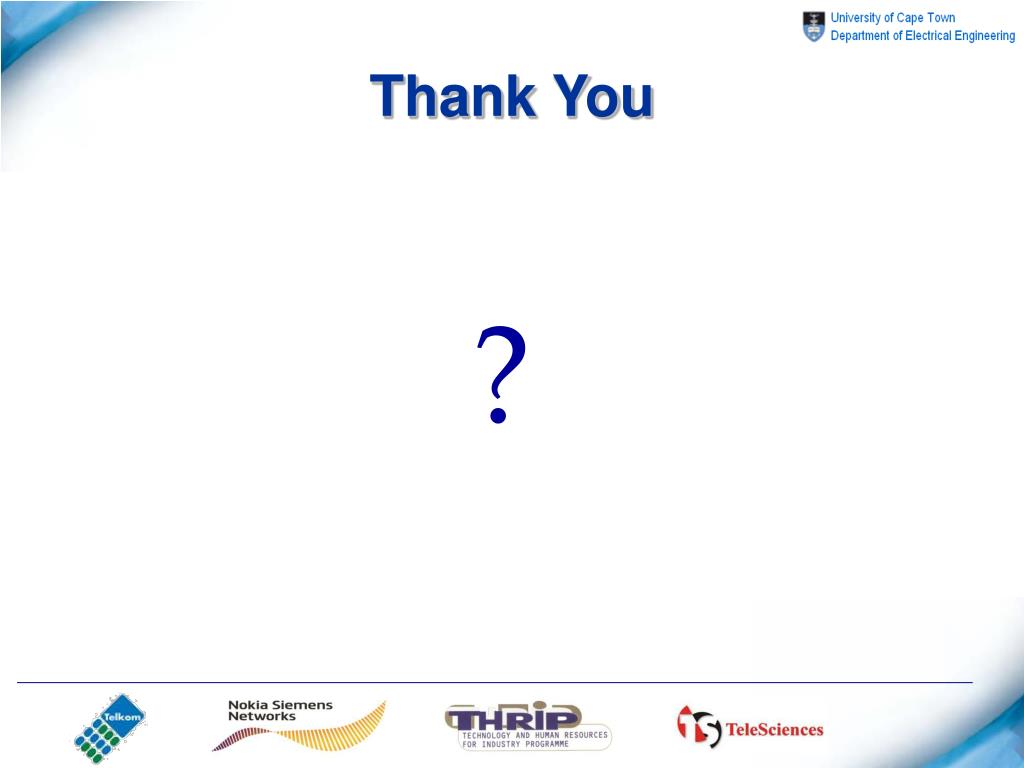

  18. Thank You ?
