  1. The Osmosis of Compound Reporting In WebFOCUS WebFOCUS Release 7 Striving For Excellence Innovation And Automation Renaming Temporary Bits And Bytes Generated From Stand Alone Procedures Reveals New Root For Creating Excel Templates MAIN(rename) Compound Reporting

  2. Information Technology The excel sheets are great, can you consolidate those reports into one workbook and incorporate the product pictures along with sending me the report via email? Information Technology Product Manager

  3. The Osmosis Of Compound Reporting In WebFOCUS Product Manager Case Study Seeing The Ins & Outs Of (A Product Case Study) Product Manager would like to see these reports listed below in one excel workbook. Ideally the process should be automatic and performed once a month. Current workbook process consist of a manual retrieve for each worksheet using the Essbase Add-In Function in Excel. A Plus if the report is sent through standard email system.

  4. The Osmosis Of Compound Reporting In WebFOCUS Osmosis Process Seeing The Ins & Outs Of (Osmosis) In layman’s terms, Osmosis is absorption of one thing by another through the outer layers.

  5. The Osmosis Of Compound Reporting In WebFOCUS The Excel Compound Osmosis Seeing The Ins & Outs Of (Excel Template Compound Reporting Structure) How Many Sheets Sheet Names Static Data Template Excel Workbook Temporary Files Procedure Processing Rename WebFOCUS Corporate Data Multiple Excel Sheets Single Web Page

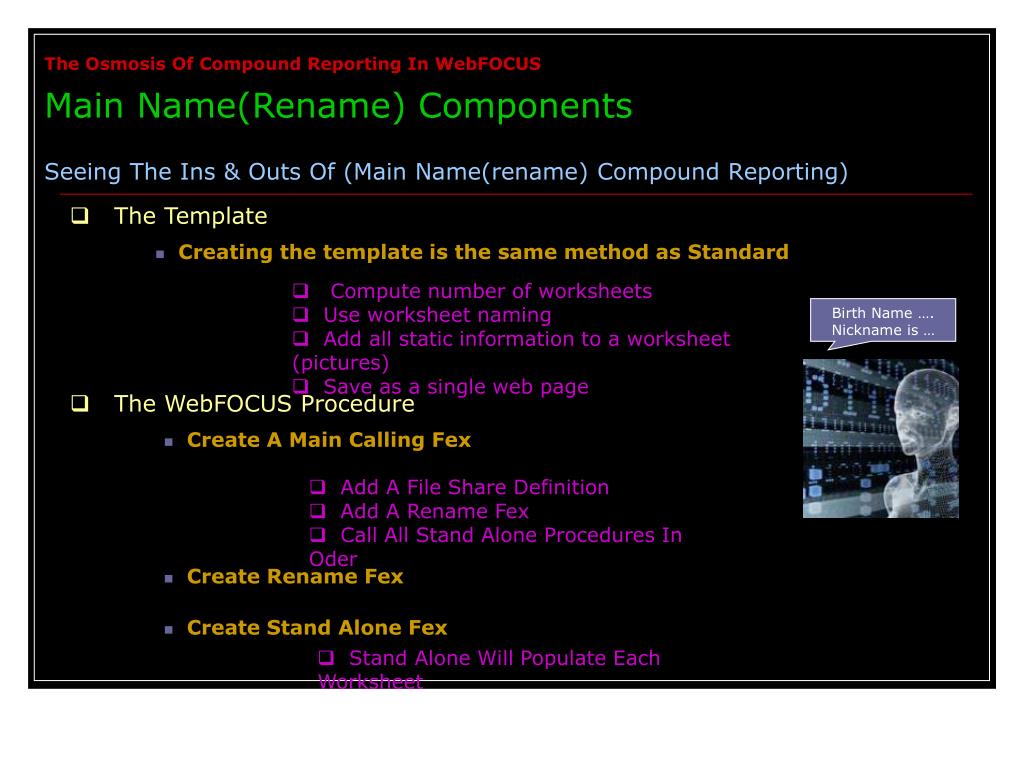

  6. The Osmosis Of Compound Reporting In WebFOCUS Seeing The Ins & Outs Of (Main Name(rename) Compound Reporting) Main Name(Rename) Components • The Template • Creating the template is the same method as Standard • Compute number of worksheets • Use worksheet naming • Add all static information to a worksheet (pictures) • Save as a single web page Birth Name …. Nickname is … • The WebFOCUS Procedure • Create A Main Calling Fex • Add A File Share Definition • Add A Rename Fex • Call All Stand Alone Procedures In Oder • Create Rename Fex • Create Stand Alone Fex • Stand Alone Will Populate Each Worksheet

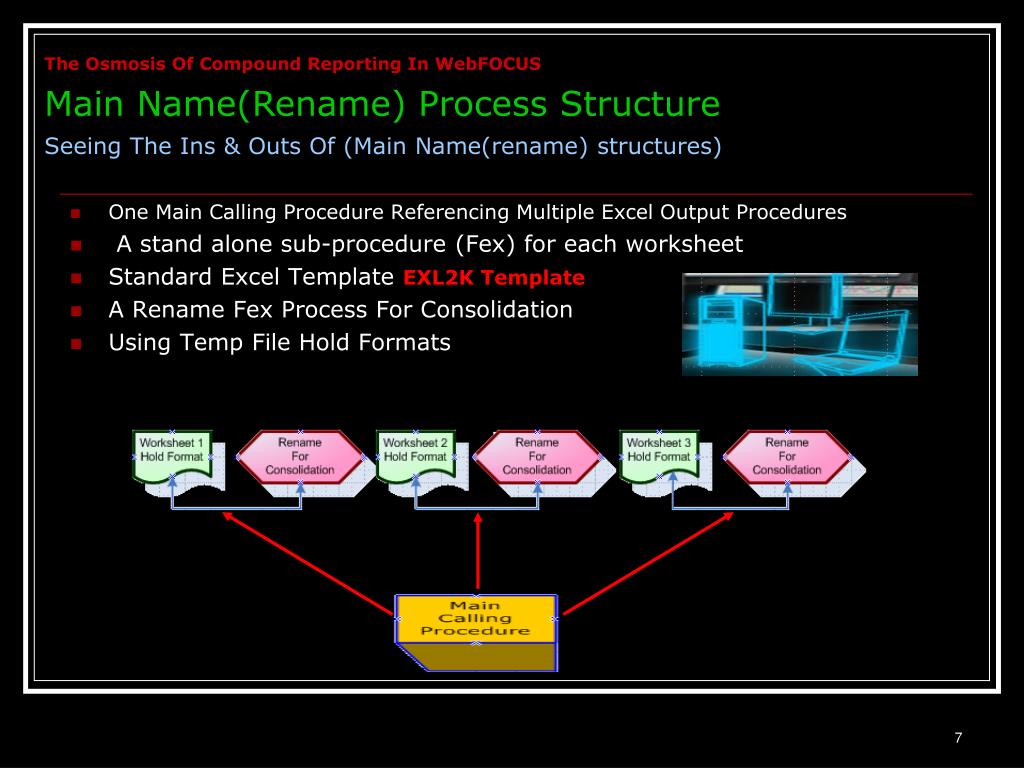

  7. The Osmosis Of Compound Reporting In WebFOCUS Main Name(Rename) Process Structure Seeing The Ins & Outs Of (Main Name(rename) structures) • One Main Calling Procedure Referencing Multiple Excel Output Procedures • A stand alone sub-procedure (Fex) for each worksheet • Standard Excel Template EXL2K Template • A Rename Fex Process For Consolidation • Using Temp File Hold Formats

  8. The Osmosis Of Compound Reporting In WebFOCUS Seeing The Ins & Outs Of (Main Name(rename) Template Details) Main Name(Rename) Template Processing Template Steps • Start with an original workbook • Make a copy of the original workbook • Compute the number of worksheets • Insert each static worksheet into the workbook • Provide sheet name titles • Save the workbook as a single web page • Copy the single web page workbook into the application directory Template Preparation

  9. The Osmosis Of Compound Reporting In WebFOCUS Main Name(Rename) Workbook Step 1 Seeing The Ins & Outs Of (Main(Rename) Workbook Processing) • Compute Number Of Worksheets • Insert Worksheets Into Workbook • Re-Order Existing Static Worksheets

  10. The Osmosis Of Compound Reporting In WebFOCUS Main Name(Rename) Workbook Step 2 Seeing The Ins & Outs Of (Main(Rename) Workbook Processing) • Worksheet Names - Example For Titles: Report Names

  11. The Osmosis Of Compound Reporting In WebFOCUS Main Name(Rename) Fex Step 1 Seeing The Ins & Outs Of (Main(Rename) Procedure Process) • Design Main Calling Procedure Stand alone Rename

  12. The Osmosis Of Compound Reporting In WebFOCUS Main Name(Rename) Fex Step 1 Detail Structure Seeing The Ins & Outs Of (Main(Rename) Procedure Process) • Number of Fex’s is determined by each report required • Call Each Procedure In Proper Order • Fex 1 • Rename Fex • Fex 2 • Rename Fex • Clean Up Fex • Final Process Fex Main Calling Procedure Parts

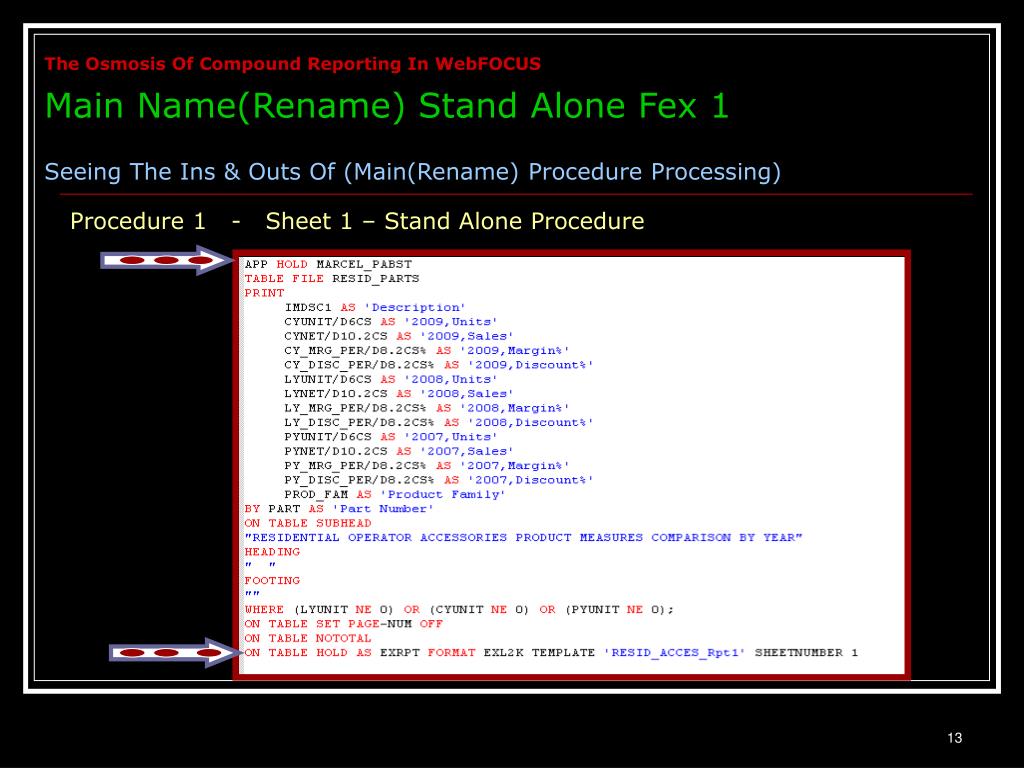

  13. The Osmosis Of Compound Reporting In WebFOCUS Procedure 1 - Sheet 1 – Stand Alone Procedure Main Name(Rename) Stand Alone Fex 1 Seeing The Ins & Outs Of (Main(Rename) Procedure Processing)

  14. The Osmosis Of Compound Reporting In WebFOCUS Fex 1 Processing Phases Main Name(Rename) Fex 1 Processing Details Seeing The Ins & Outs Of (Main(Rename) Procedure Processing) Sheet 1 Unchanged Temporary Files Extension XHT Processing Message Sheet 1 Updated With Corporate Data

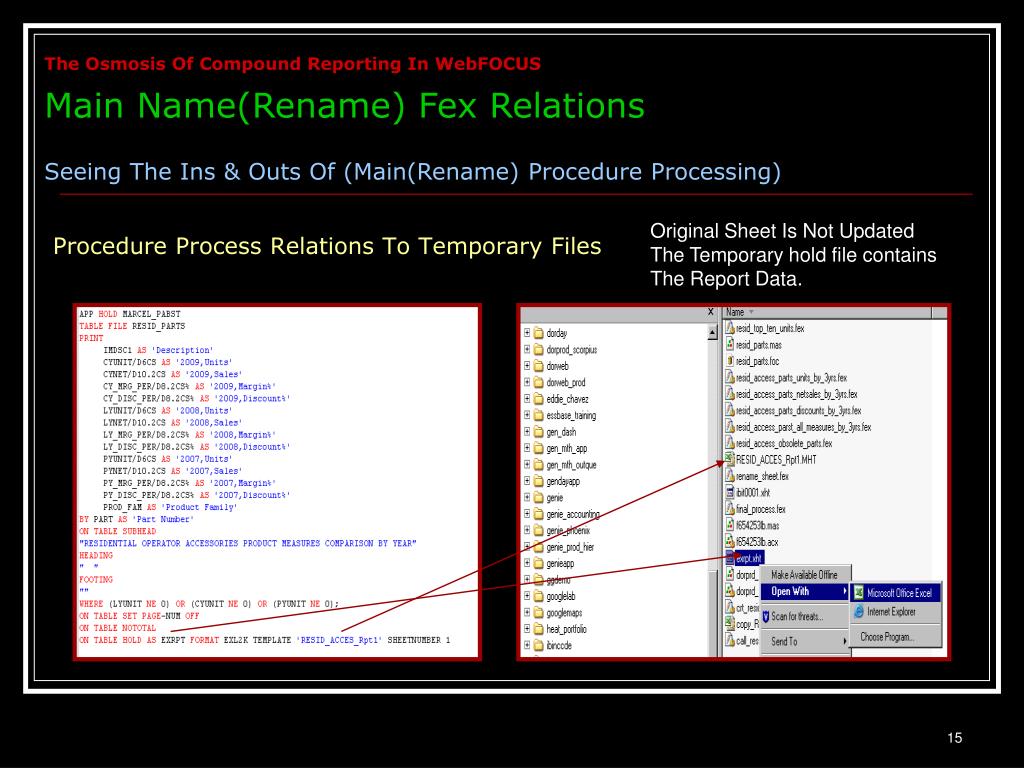

  15. The Osmosis Of Compound Reporting In WebFOCUS Procedure Process Relations To Temporary Files Main Name(Rename) Fex Relations Seeing The Ins & Outs Of (Main(Rename) Procedure Processing) Original Sheet Is Not Updated The Temporary hold file contains The Report Data.

  16. The Osmosis Of Compound Reporting In WebFOCUS Main Name(Rename) Fex 1 Processed Results Seeing The Ins & Outs Of (Main(Rename) Procedure Processing) Sheet 1 Created After Fex 1 Processed Temporary File Contains Report Data

  17. The Osmosis Of Compound Reporting In WebFOCUS Main Name(Rename) Rename Fex Details Seeing The Ins & Outs Of (Main(Rename) Procedure Processing) A File Share Must Be Set Up Prior

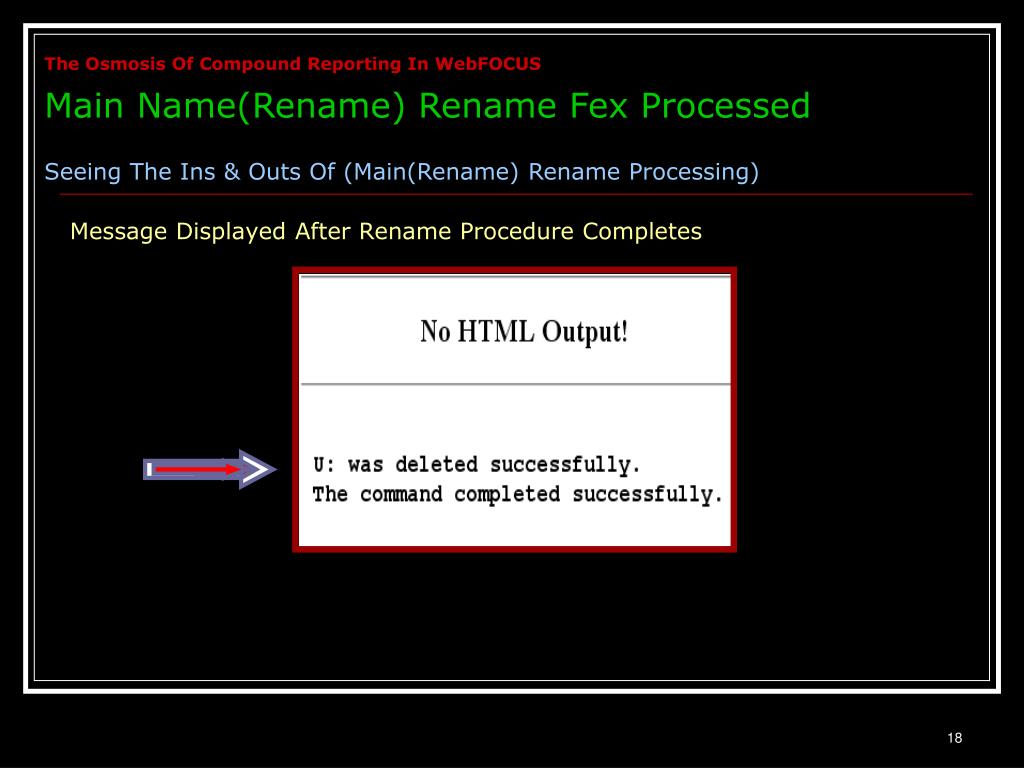

  18. The Osmosis Of Compound Reporting In WebFOCUS Message Displayed After Rename Procedure Completes Main Name(Rename) Rename Fex Processed Seeing The Ins & Outs Of (Main(Rename) Rename Processing)

  19. The Osmosis Of Compound Reporting In WebFOCUS Procedure 2 - Sheet 2 – Stand Alone Procedure Main Name(Rename) Stand Alone Fex 2 Seeing The Ins & Outs Of (Main(Rename) Procedure Processing)

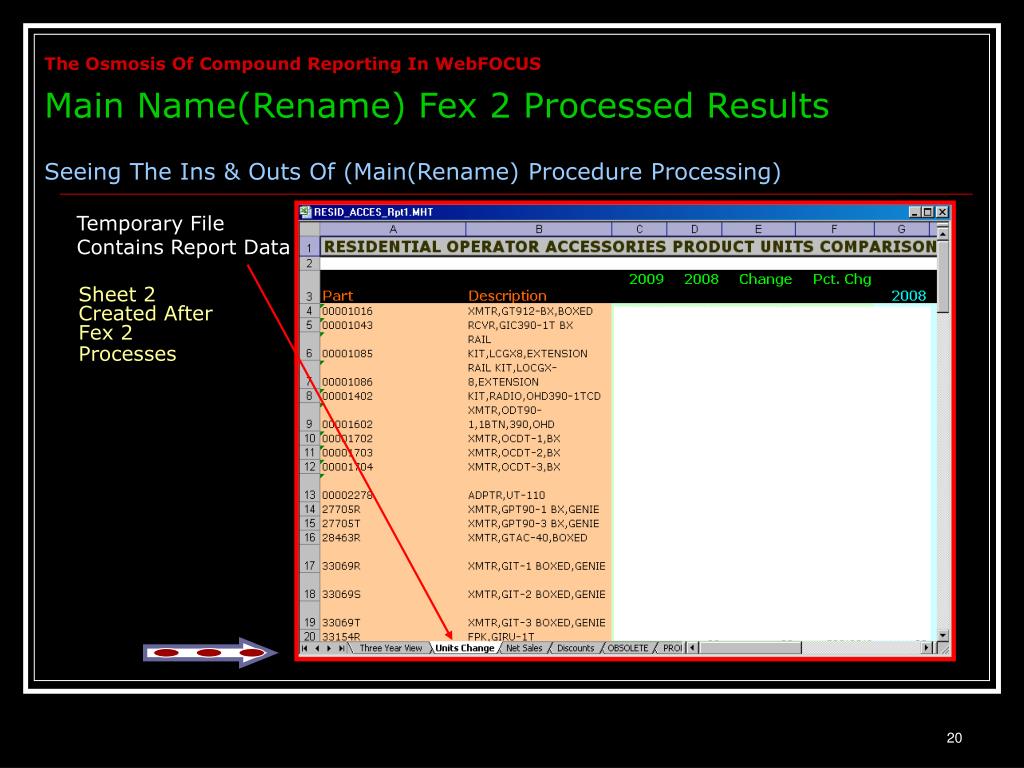

  20. The Osmosis Of Compound Reporting In WebFOCUS Sheet 2 Created After Fex 2 Processes Main Name(Rename) Fex 2 Processed Results Seeing The Ins & Outs Of (Main(Rename) Procedure Processing) Temporary File Contains Report Data

  21. The Osmosis Of Compound Reporting In WebFOCUS Main Name(Rename) Fex 2 Processing Seeing The Ins & Outs Of (Main(Rename) Procedure Processing) Sheet 1 Unchanged Temporary Files Extension XHT Use Windows Explorer To View Data Sheet 2 Updated With Corporate Data

  22. The Osmosis Of Compound Reporting In WebFOCUS Rename FexProcesses Dos Command Line Processing.The File Share Must Be Set Up Prior To Processing Fex. Main Name(Rename) Rename How It Works Seeing The Ins & Outs Of (Main(Rename) Rename Details)

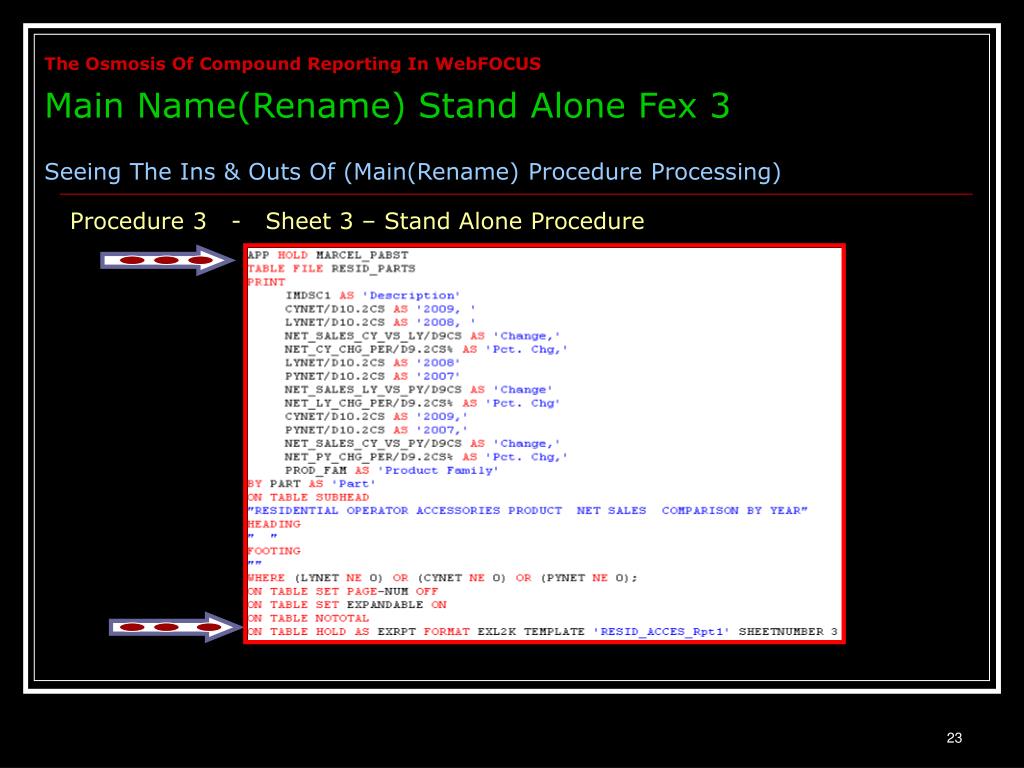

  23. The Osmosis Of Compound Reporting In WebFOCUS Procedure 3 - Sheet 3 – Stand Alone Procedure Main Name(Rename) Stand Alone Fex 3 Seeing The Ins & Outs Of (Main(Rename) Procedure Processing)

  24. The Osmosis Of Compound Reporting In WebFOCUS Main Name(Rename) Fex 3 Processed Results Seeing The Ins & Outs Of (Main(Rename) Procedure Processing) Sheet 3 Created After Fex 3Processes Temporary File Contains Report Data

  25. The Osmosis Of Compound Reporting In WebFOCUS Fex 3 Processing Phases Main Name(Rename) Fex 3 Processing Seeing The Ins & Outs Of (Main(Rename) Procedure Processing) Sheet 1 & 2 Unchanged Temporary Files Extension XHT Use Windows Explorer To View Data Sheet 3 Updated With Corporate Data

  26. The Osmosis Of Compound Reporting In WebFOCUS Main Name(Rename) Rename Seeing The Ins & Outs Of (Main(Rename) Procedure Processing) A File Share Must Be Set Up Prior

  27. The Osmosis Of Compound Reporting In WebFOCUS Procedure 4 - Sheet 4 – Stand Alone Procedure Main Name(Rename) Fex 4 Processed Results Seeing The Ins & Outs Of (Main(Rename) Procedure Processing)

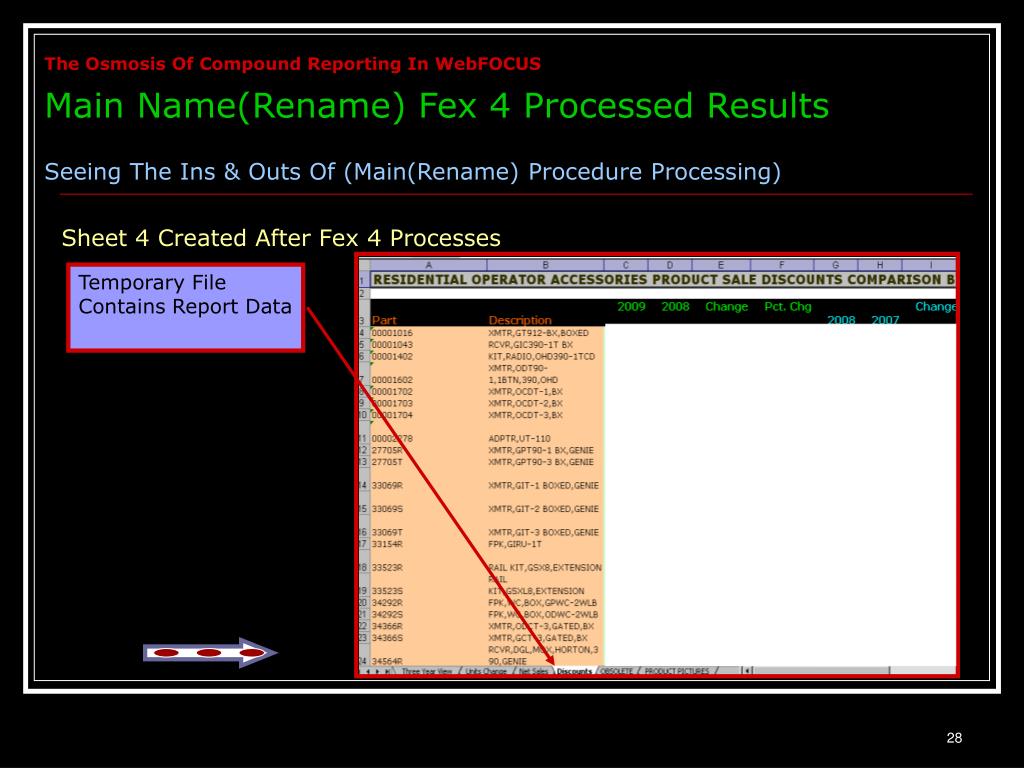

  28. The Osmosis Of Compound Reporting In WebFOCUS Sheet 4 Created After Fex 4 Processes Main Name(Rename) Fex 4 Processed Results Seeing The Ins & Outs Of (Main(Rename) Procedure Processing) Temporary File Contains Report Data

  29. The Osmosis Of Compound Reporting In WebFOCUS Fex 4 Processing Phases Main Name(Rename) Fex 4 Processed Results Seeing The Ins & Outs Of (Main(Rename) Procedure Processing) Sheets 1, 2, & 3 Unchanged Temporary File XHT Use Explorer To View Data Sheet 4 Updated With Corp Data

  30. The Osmosis Of Compound Reporting In WebFOCUS Main Name(Rename) Rename Fex Details Seeing The Ins & Outs Of (Main(Rename) Procedure Processing) A File Share Must Be Set Up Prior

  31. The Osmosis Of Compound Reporting In WebFOCUS Main Name(Rename) Rename Fex Details Seeing The Ins & Outs Of (Main(Rename) Procedure Processing) One Time Set Up Required Prior To Program Process • Use The APP HOLD In All Stand Alone Procedures • Code The Same Hold File Name In Each Procedure • Prepare The RENAME Procedure using the HOLD File Name • Create the SHARE drive with proper read/write access • Prepare the WORKSHEET before you save as a single web page template as the sheet numbers and names used in the Fex are only for ordering purposes during the write process.

  32. The Osmosis Of Compound Reporting In WebFOCUS Main Name(Rename) Rename Fex Details Seeing The Ins & Outs Of (Main(Rename) Procedure Processing)

  33. The Osmosis Of Compound Reporting In WebFOCUS Main Name(Rename) Rename Fex Details Seeing The Ins & Outs Of (Main(Rename) Procedure Processing) Main Calling Fex Completion Message

  34. One Time Security Set Up For Application Directory • Create a share for the application directory to enable the rename process The name of the share will be referenced in the rename process. • Set Permissions On App Directory to Read/Write for user Id processing

  35. Winar email

  36. Email batch file Cd c:\dell\blat\ blat c:\dell\blat\emailbody.txt -from SV-OHIS-004 -subject "Monthly Commercial Accessories Part List" -to laura_goldsmith@overheaddoor.com –attach D:\DAILY_SALES_ARCHIVE\mth_comm_access_rpt1_echavez.zip pause

  37. Both Equal Batch Job Save As Fex Write Data Rename Diffusion ExcelTemplate Updated Worksheet Unequal Hypotonic Hypertonic Isotomic Hypotonic
