Presentation Transcript

  1. AN INNOVATIVE UNDERDROUND POWER SHEME Numerical Modeling Bruno Correia Luis Leal L. Ribeiro e Sousa University of Porto, Portugal

  2. This presentation is related to an UPHS innovative hydroelectric scheme in a small island, Portugal. Also presents numerical analyses performed considering FEM models developed at University of Porto.

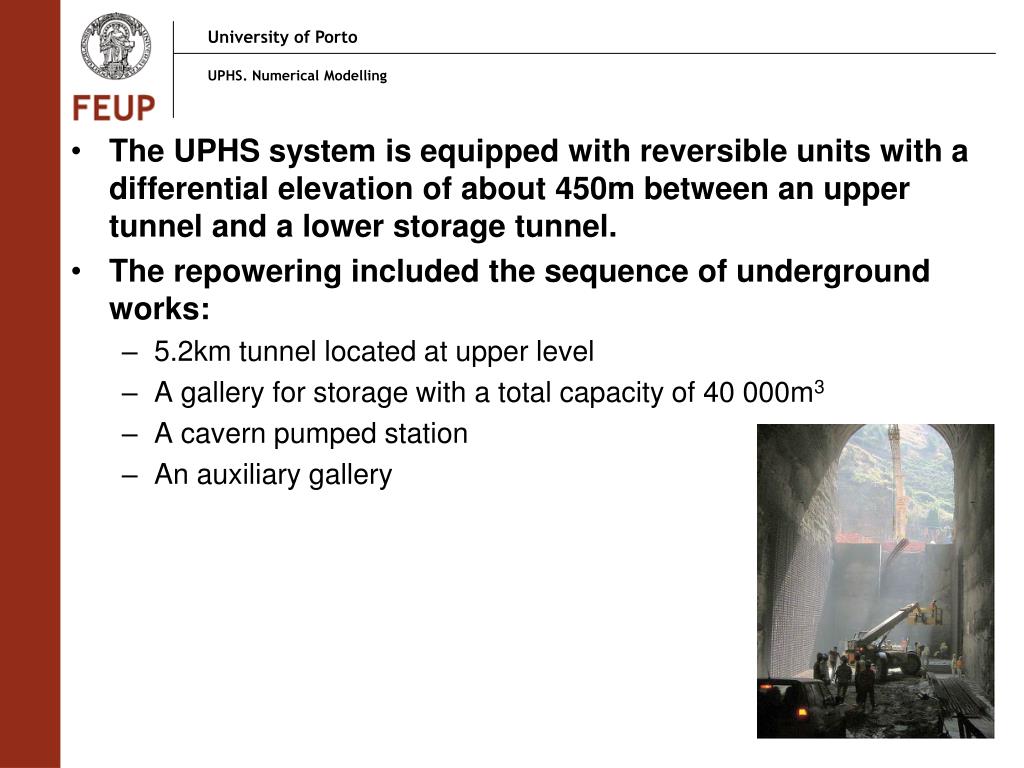

  3. The UPHS system is equipped with reversible units with a differential elevation of about 450m between an upper tunnel and a lower storage tunnel. • The repowering included the sequence of underground works: • 5.2km tunnel located at upper level • A gallery for storage with a total capacity of 40 000m3 • A cavern pumped station • An auxiliary gallery

  4. UPHS Scheme

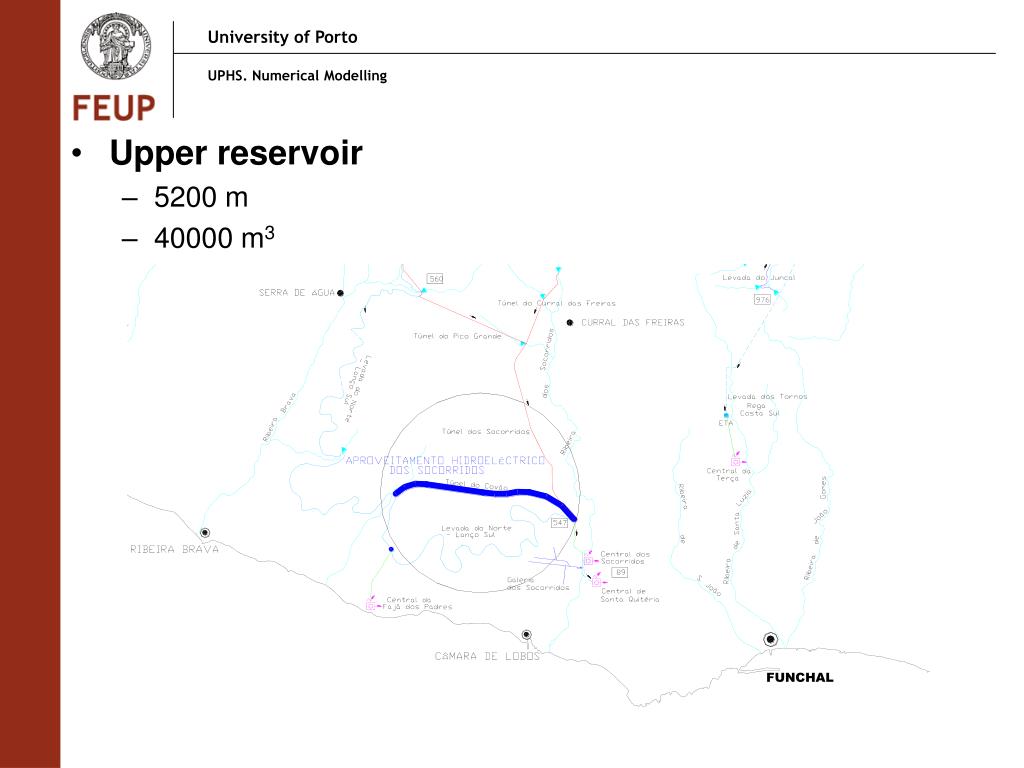

  5. Upper reservoir • 5200 m • 40000 m3

  6. Lower reservoir • 1200 m • 40000 m3

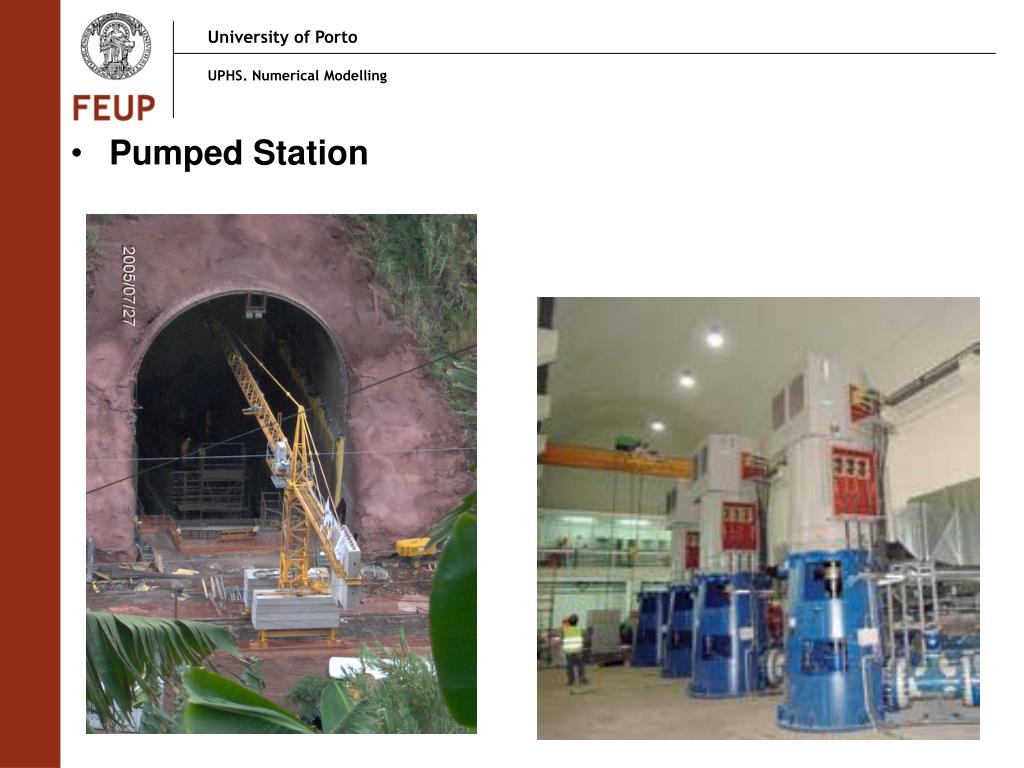

  7. Pumped Station

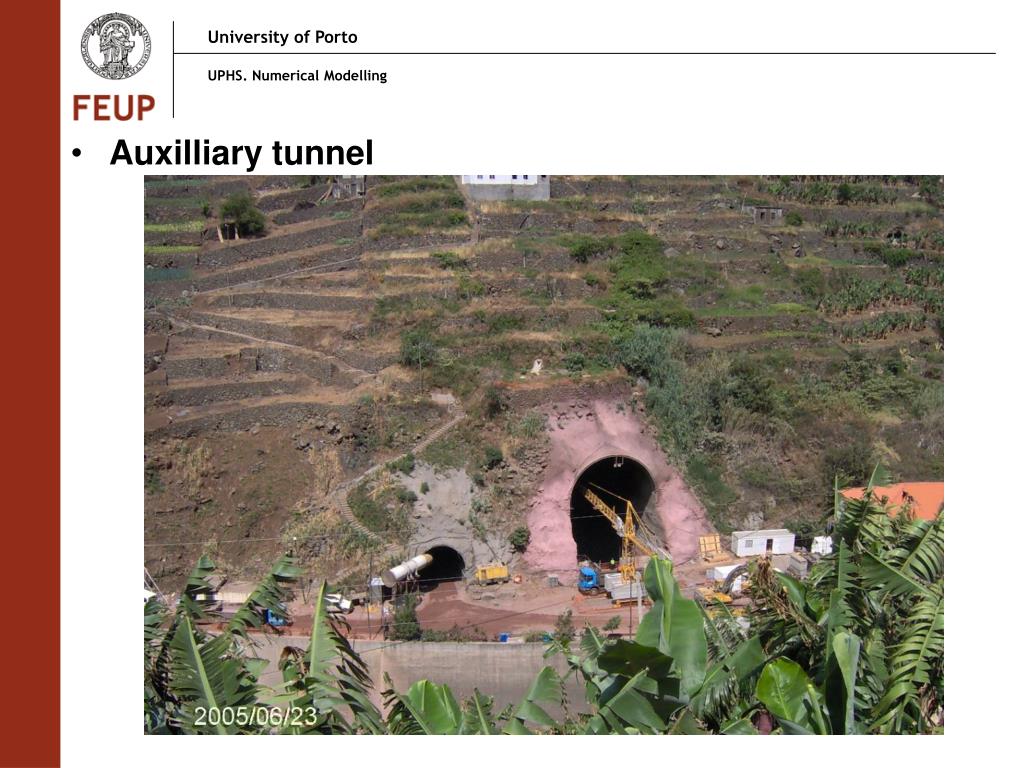

  8. Auxilliary tunnel

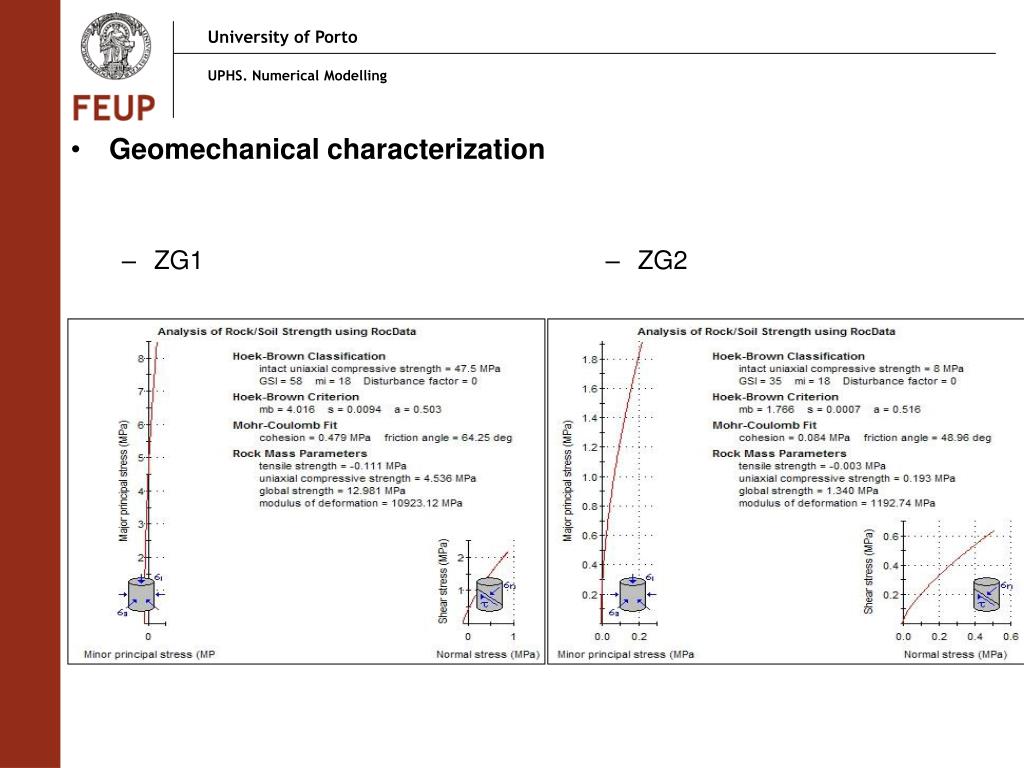

  9. Geomechanical characterization • ZG1 • ZG2

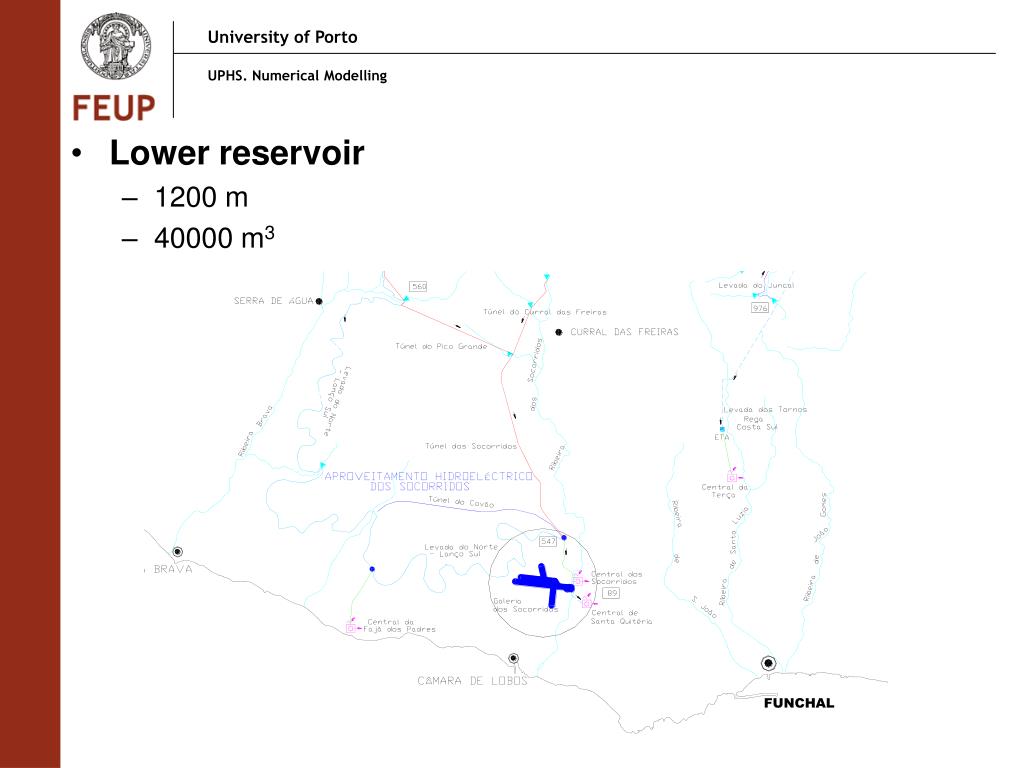

  10. Lower reservoir

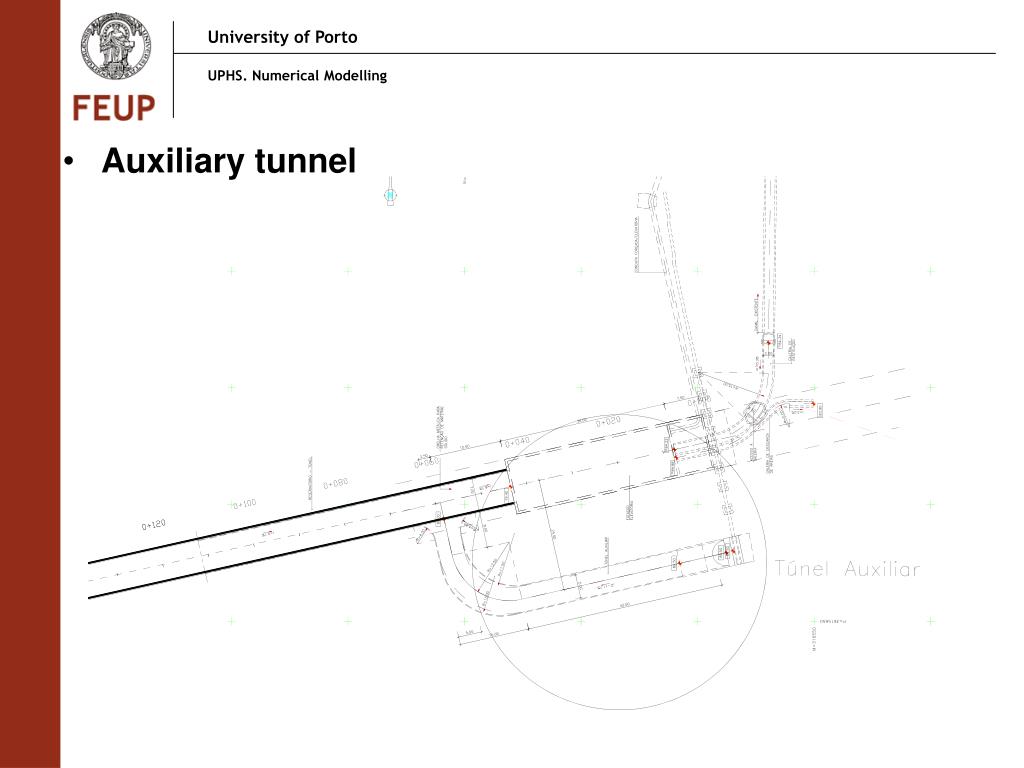

  11. Auxiliary tunnel

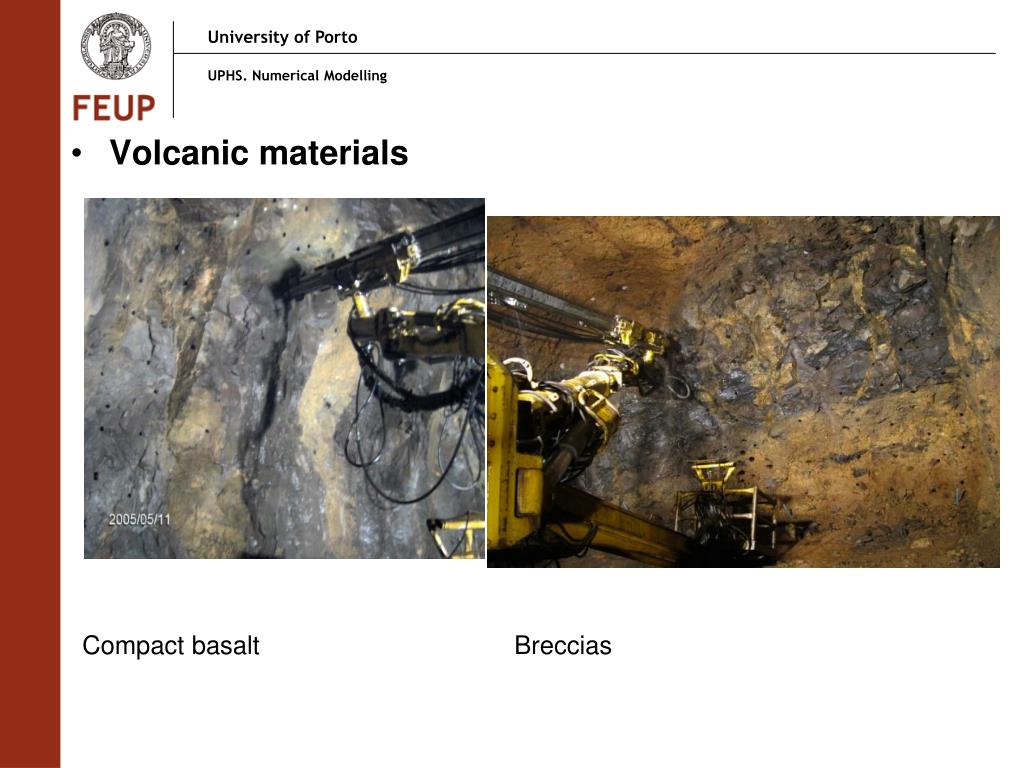

  12. Compact basalt Breccias Volcanic materials

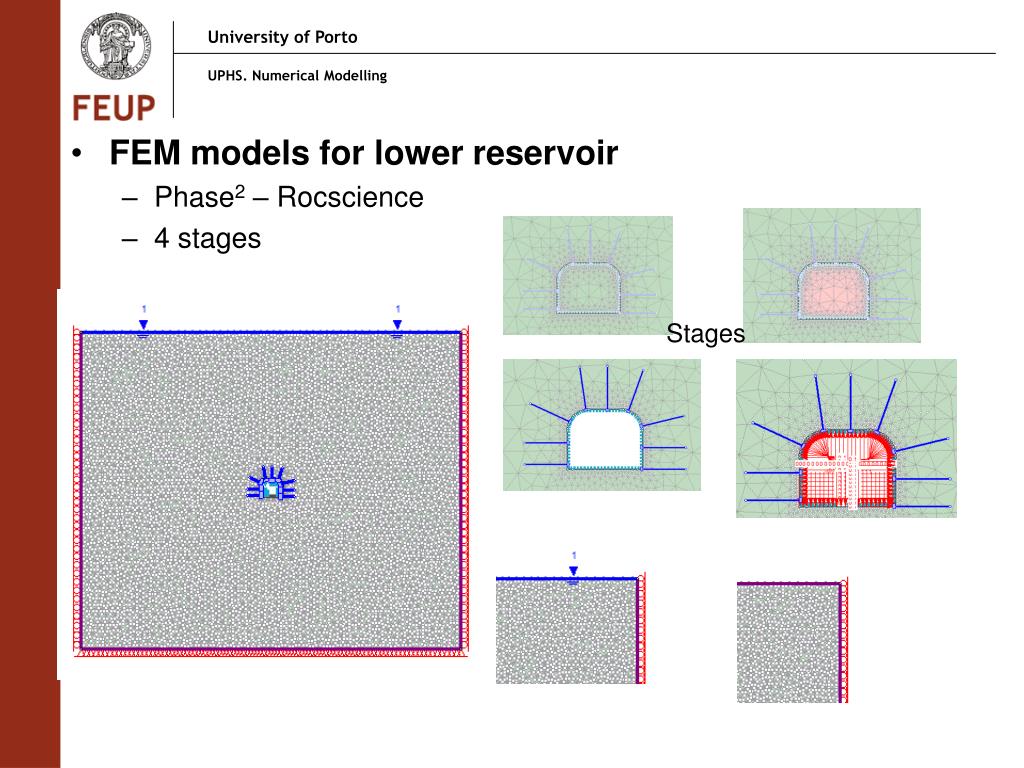

  13. Stages • FEM models for lower reservoir • Phase2 – Rocscience • 4 stages

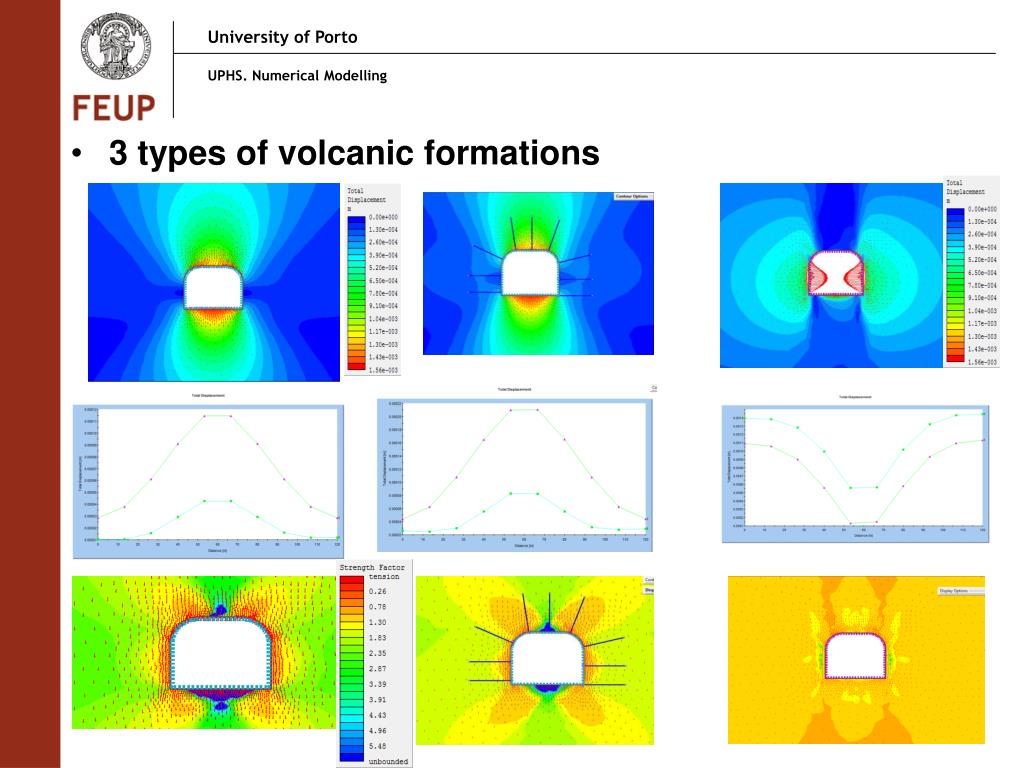

  14. 3 types of volcanic formations

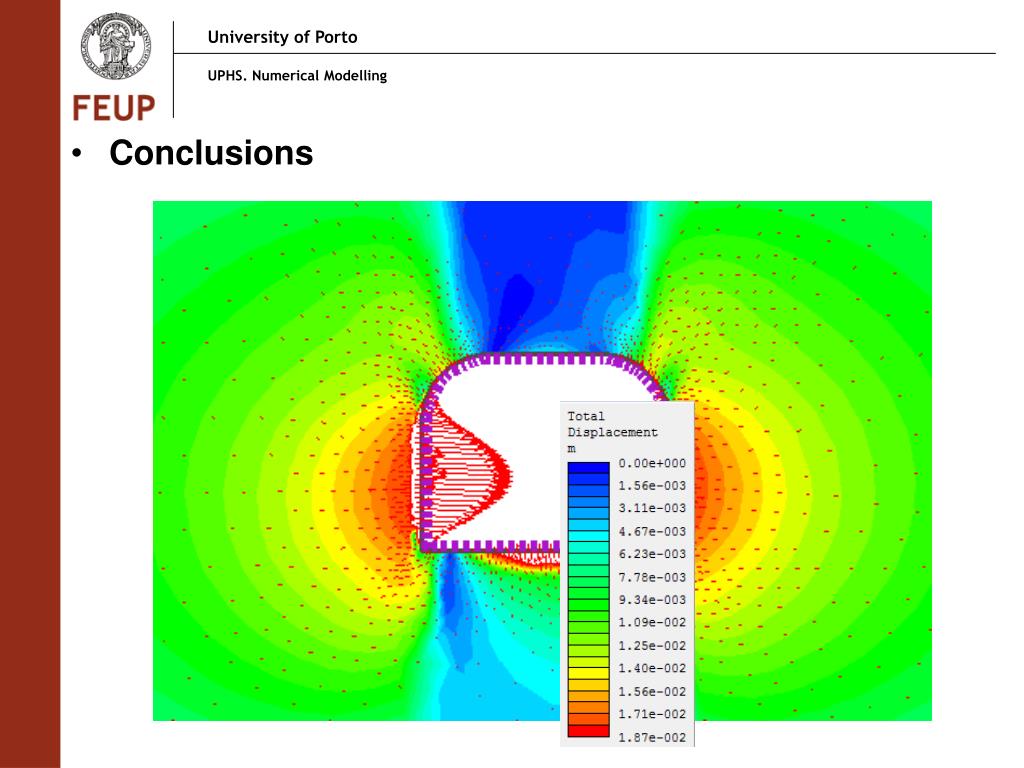

  15. Conclusions

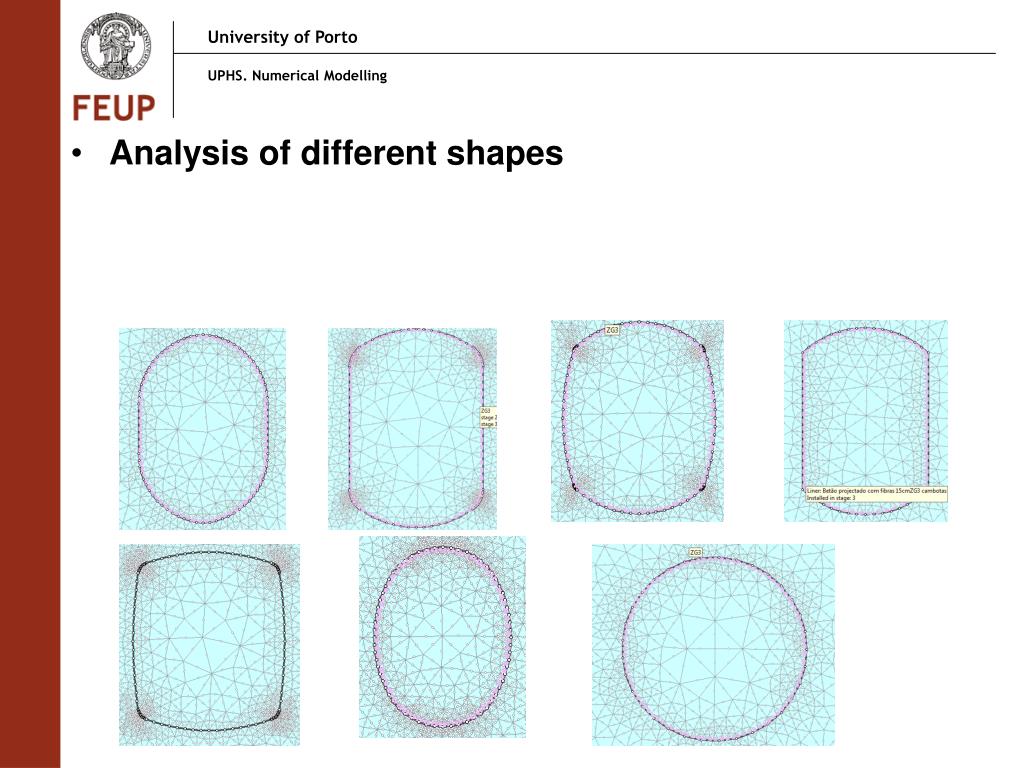

  16. Analysis of different shapes

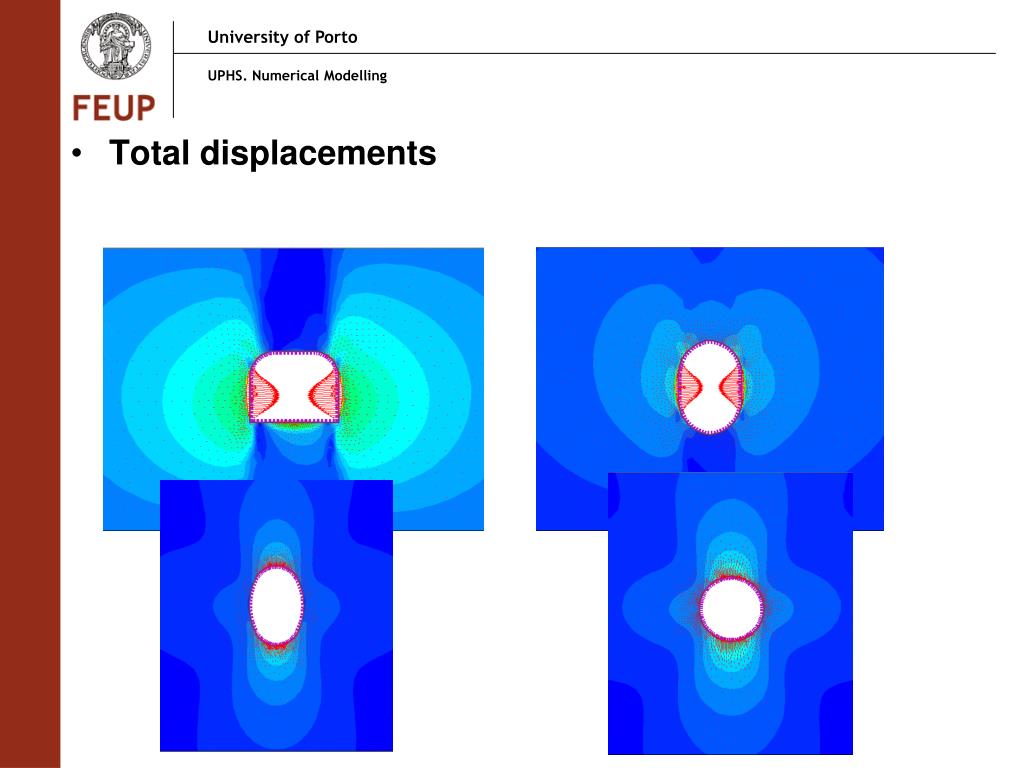

  17. Total displacements

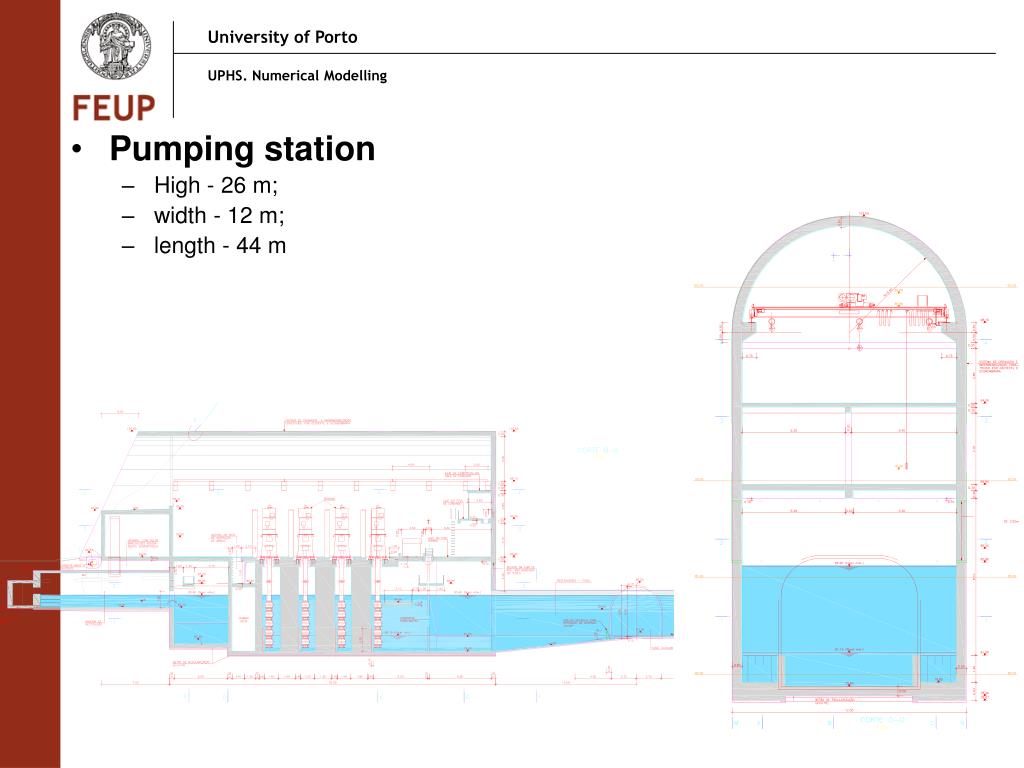

  18. Pumping station • High - 26 m; • width - 12 m; • length - 44 m

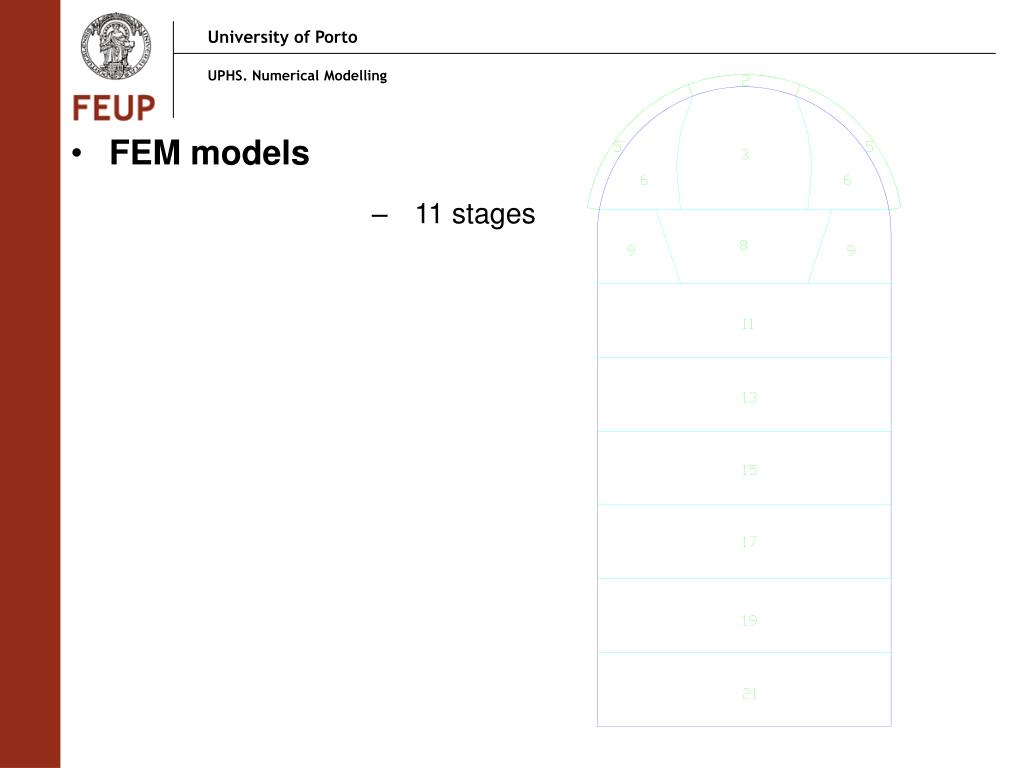

  19. FEM models • 11 stages

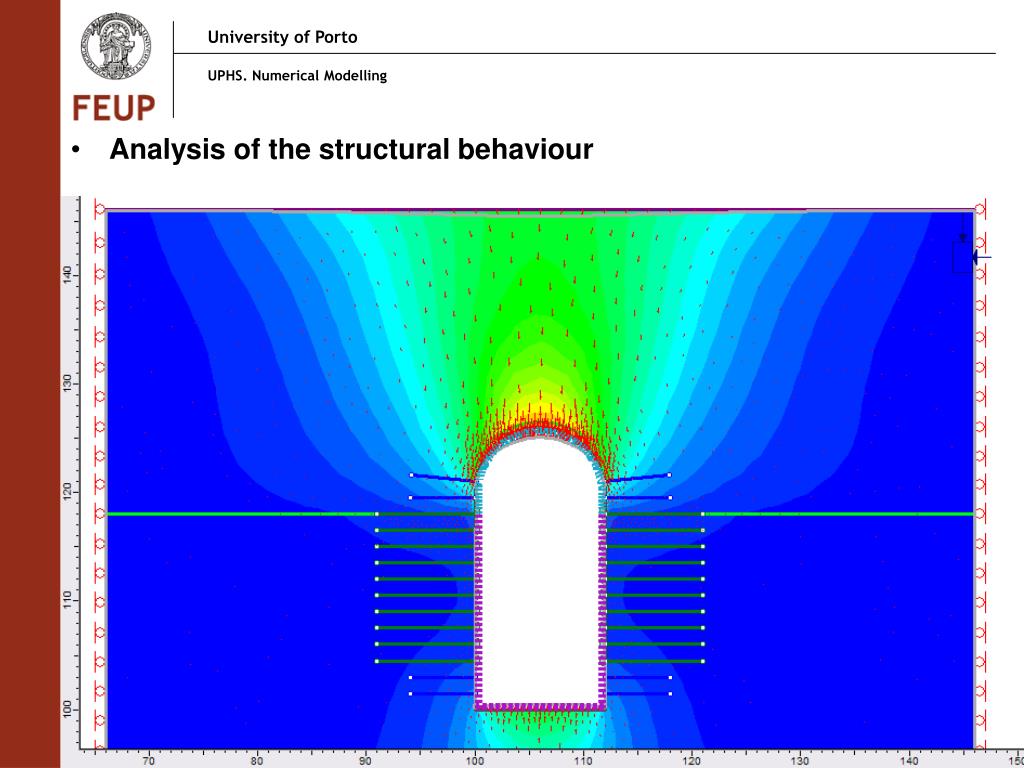

  20. Analysis of the structural behaviour

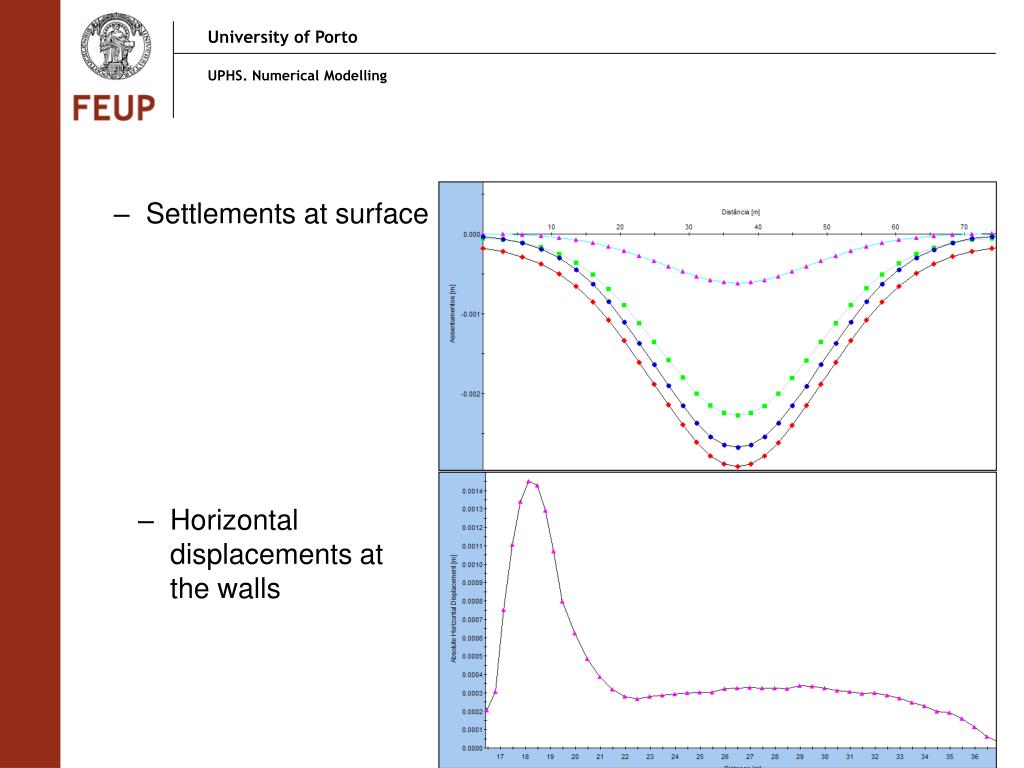

  21. Settlements at surface • Horizontal displacements at the walls

  22. Safety factor

  23. Generalized forces • a) N; b) T; c) M

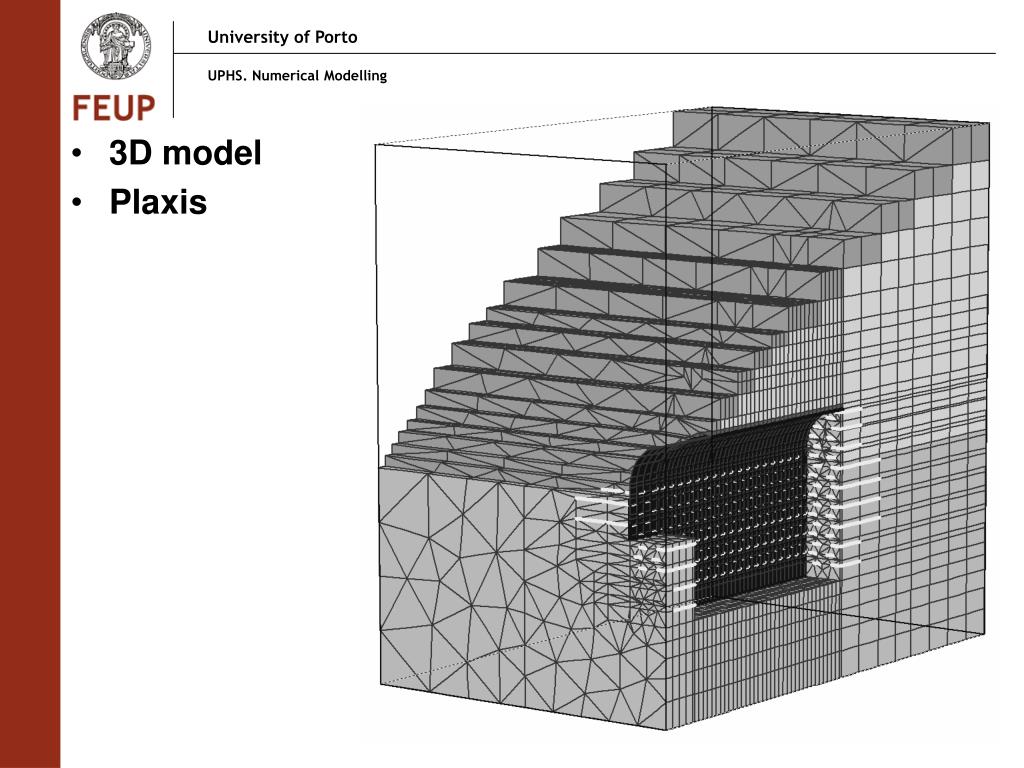

  24. 3D model • Plaxis

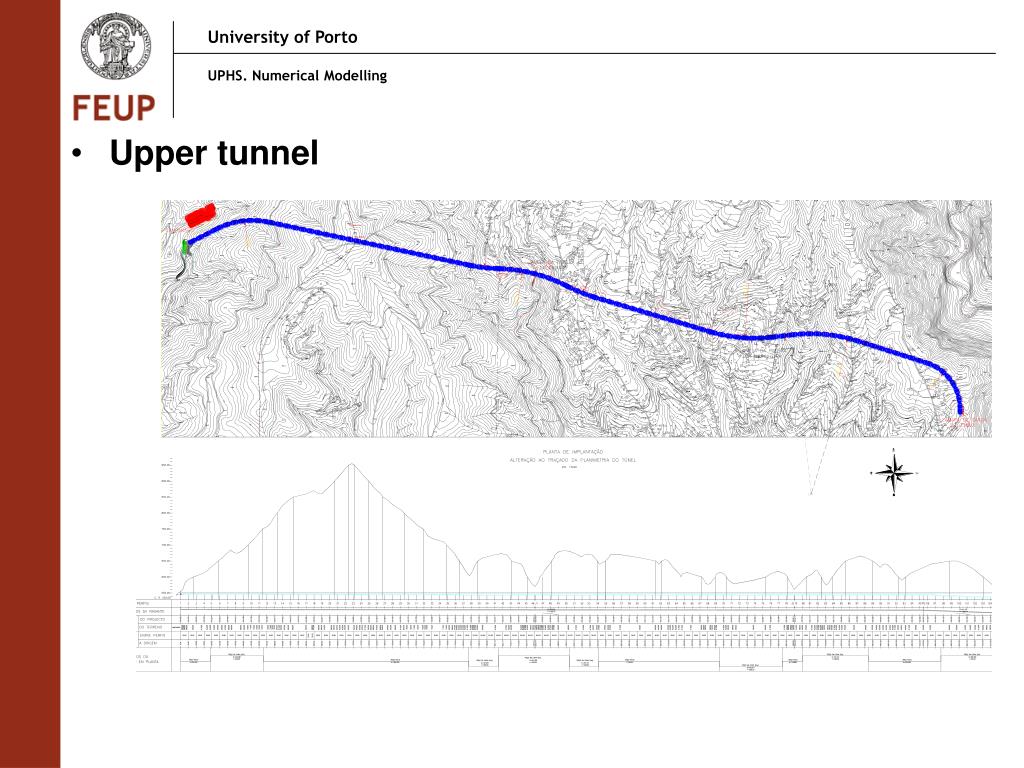

  25. Upper tunnel

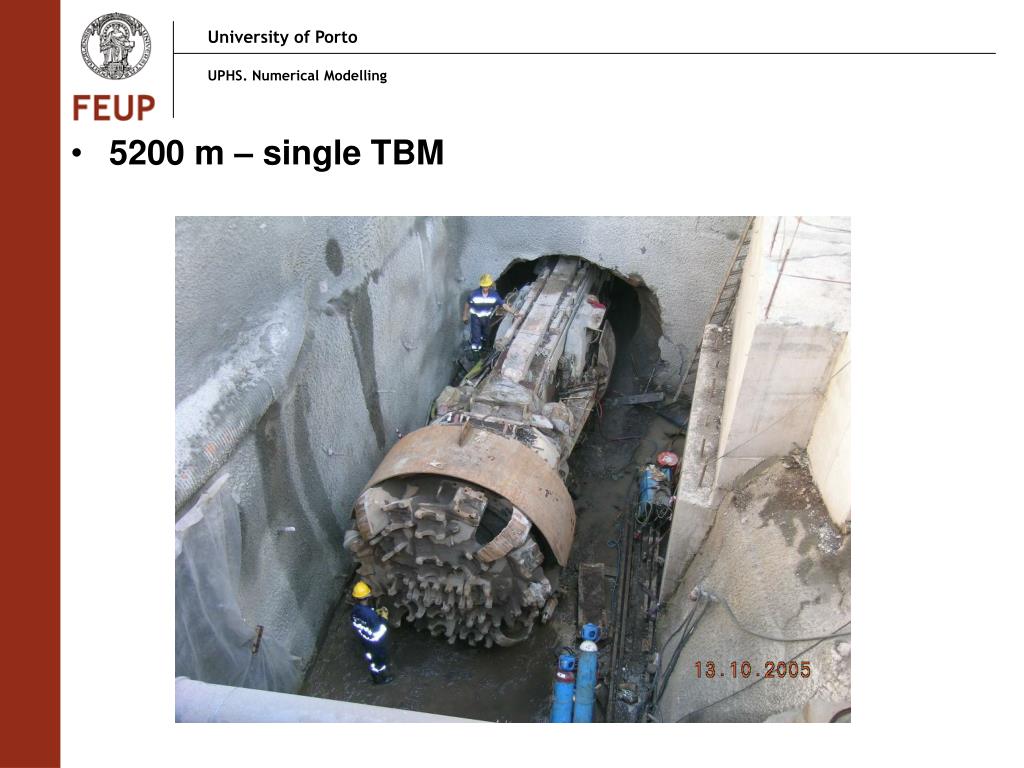

  26. 5200 m – single TBM

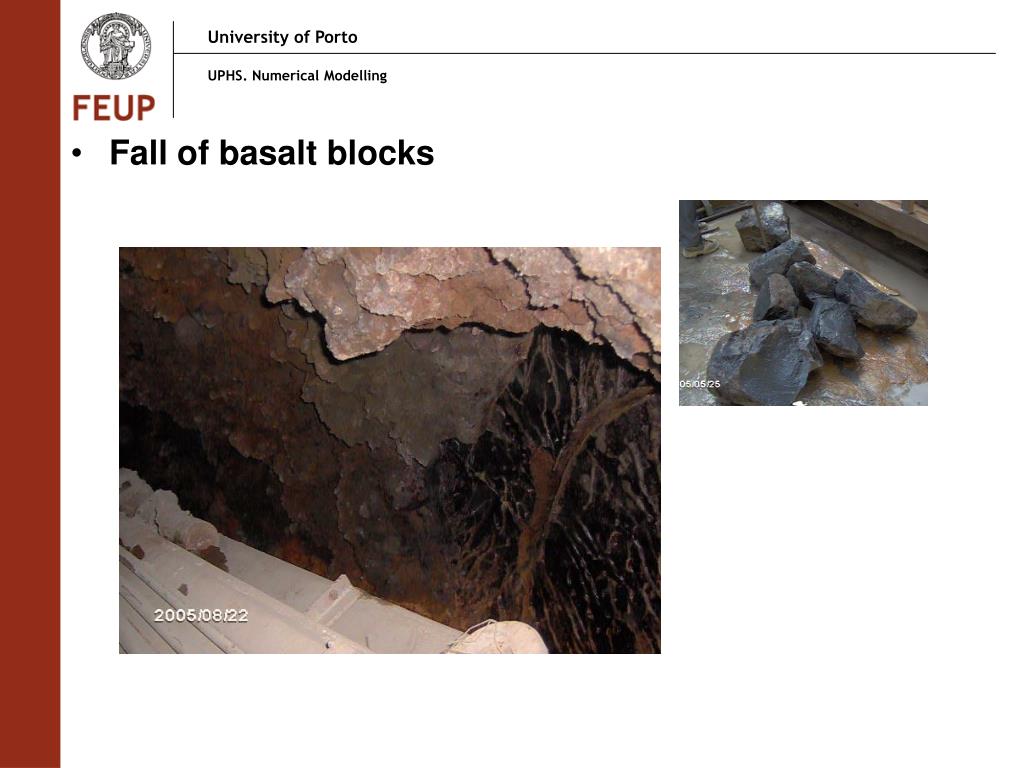

  27. Fall of basalt blocks

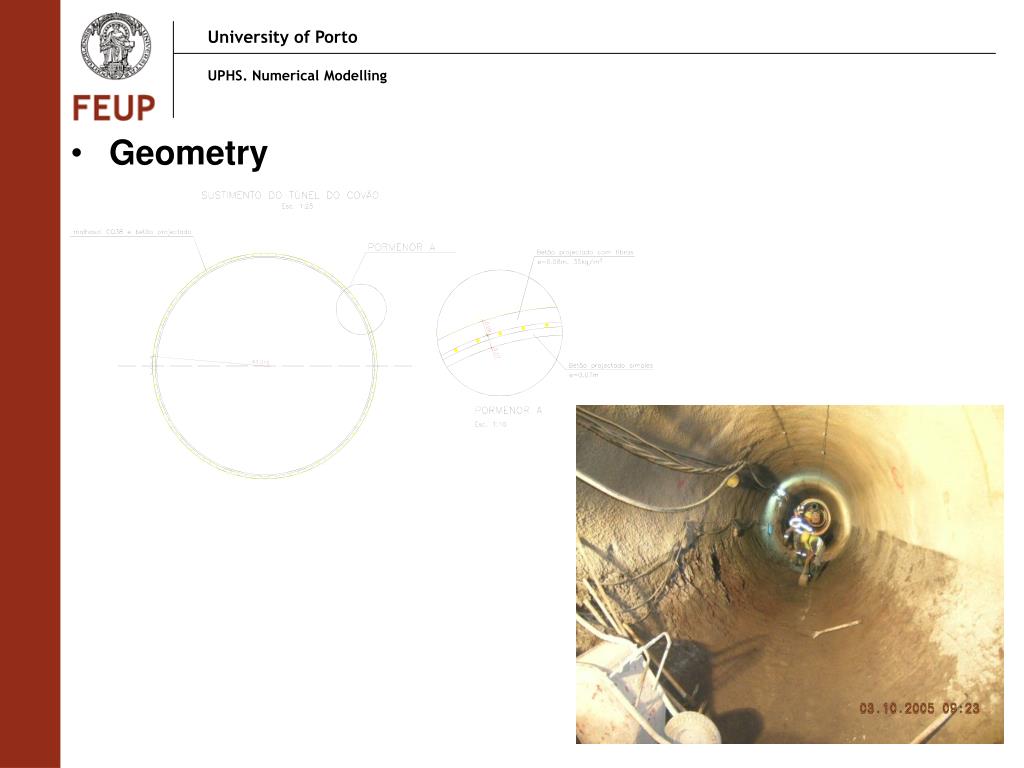

  28. Geometry

  29. Thank You
