Presentation Transcript


  1. Scalars and vectors

  2. Which of the following is the odd one out? Mass Speed Force Temperature Distance Elephant

  3. Which of the following is the odd one out? Mass Speed Force Temperature Distance Elephant

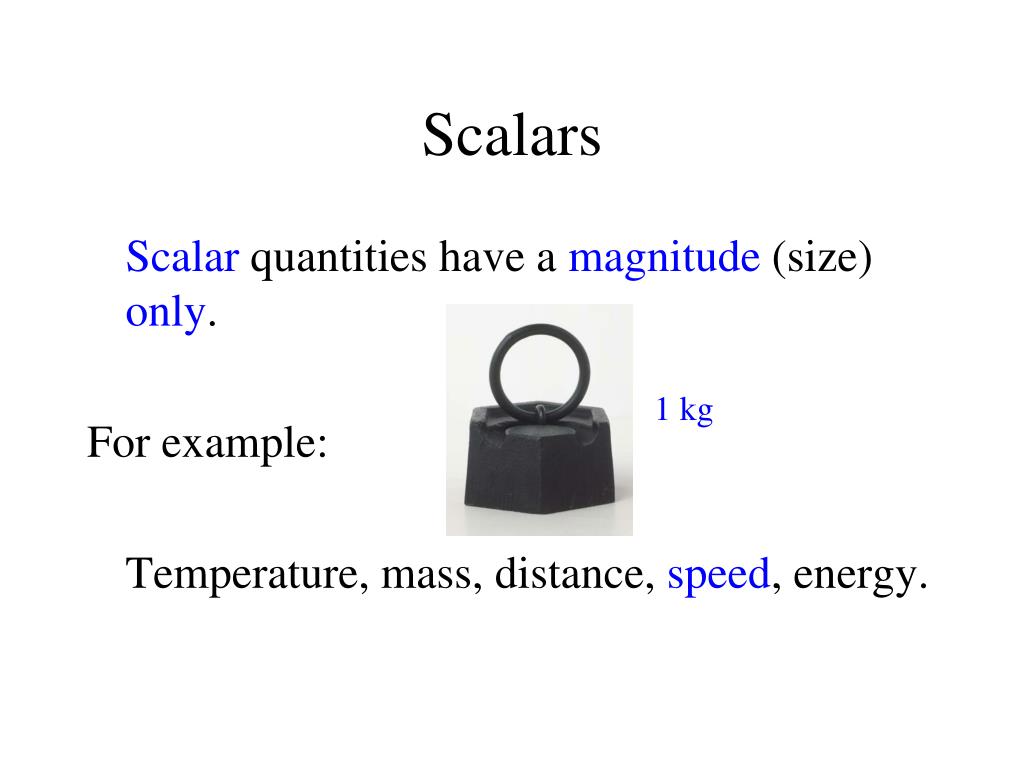

  4. Scalars Scalar quantities have a magnitude (size) only. For example: Temperature, mass, distance, speed, energy. 1 kg

  5. Vectors Vector quantities have a magnitude (size) and direction. For example: Force, acceleration, displacement, velocity, momentum. 10 N

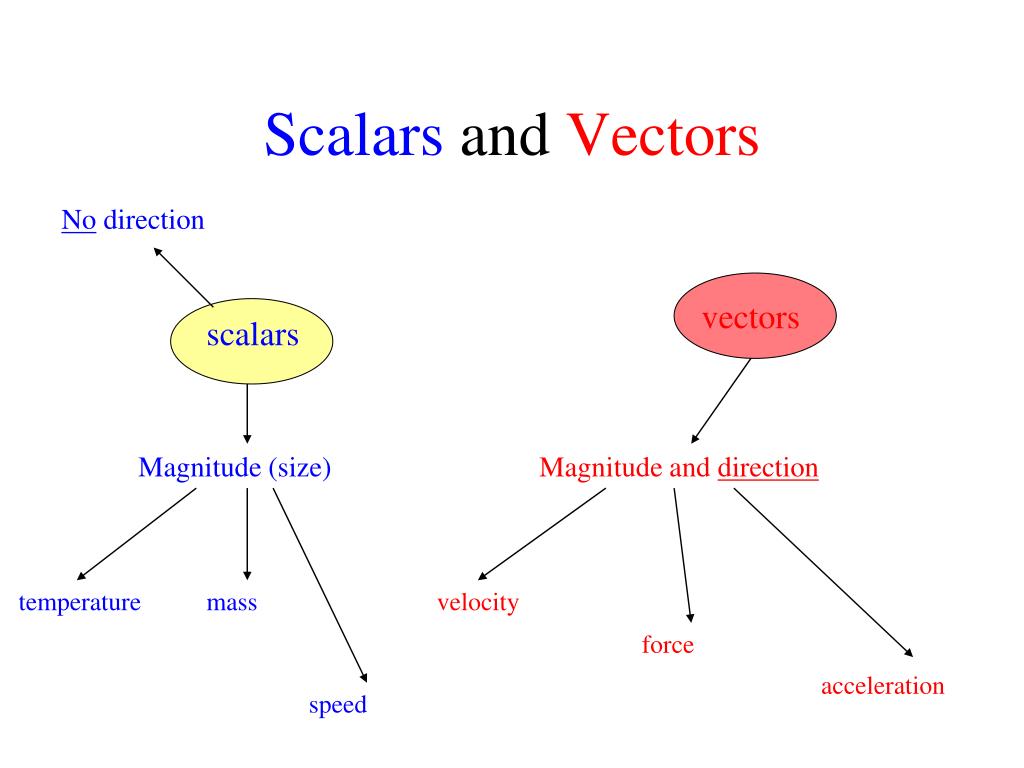

  6. Scalars and Vectors No direction vectors scalars Magnitude (size) Magnitude and direction temperature mass velocity force acceleration speed

  7. Scalars and Vectors No direction vectors scalars Magnitude (size) Magnitude and direction temperature mass velocity force acceleration speed

  8. Representing vectors Vectors can be represented by arrows. The length of the arrow indicates the magnitude, and the direction the direction!

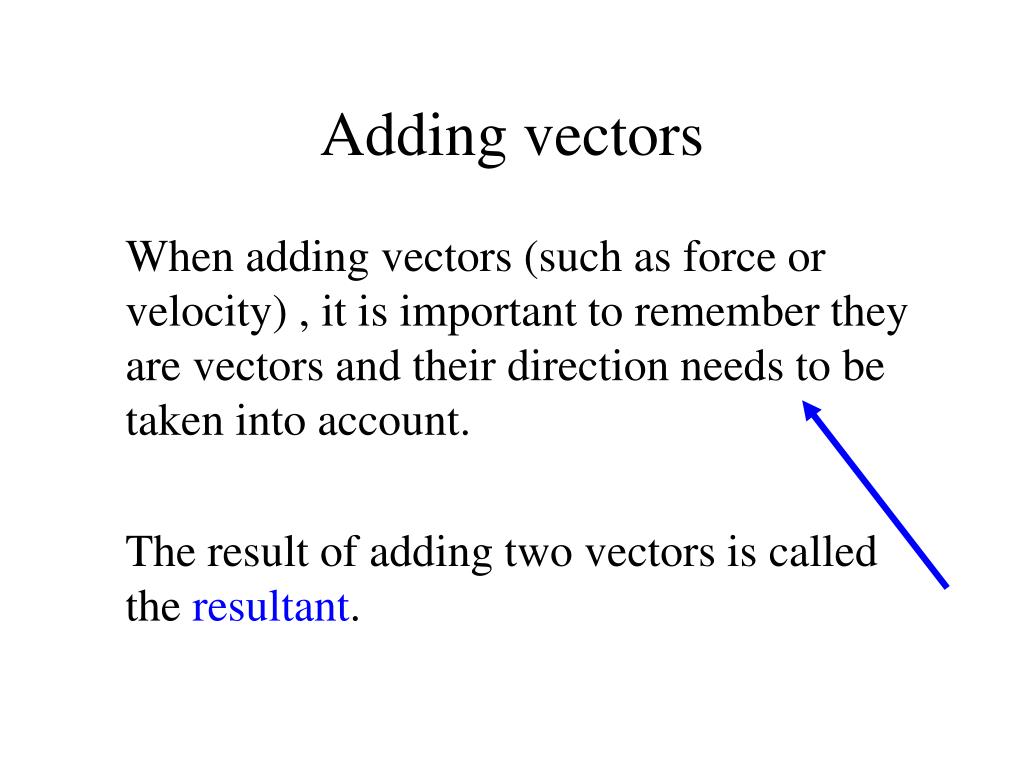

  9. Adding vectors When adding vectors (such as force or velocity) , it is important to remember they are vectors and their direction needs to be taken into account. The result of adding two vectors is called the resultant.

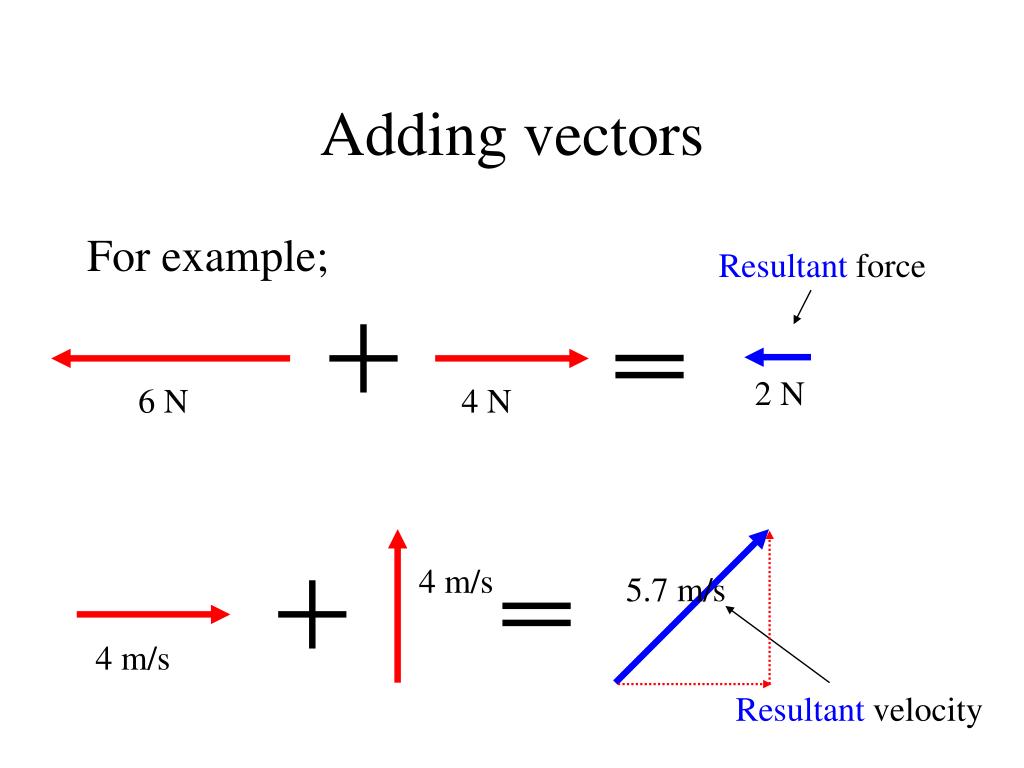

  10. Adding vectors For example; Resultant force 2 N 6 N 4 N 4 m/s 5.7 m/s 4 m/s Resultant velocity

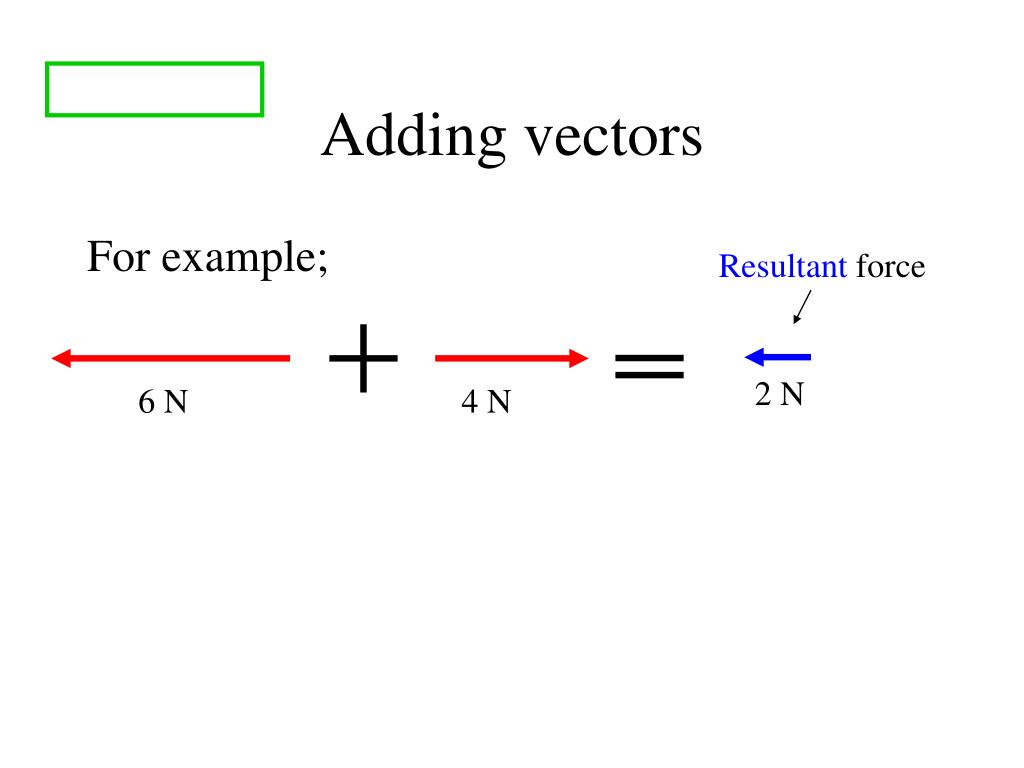

  11. Adding vectors For example; Resultant force 2 N 6 N 4 N

  12. An interesting example Think of a dog orbiting the earth with constant speed (in a circle).

  13. An interesting example At this point, what is its velocity? velocity?

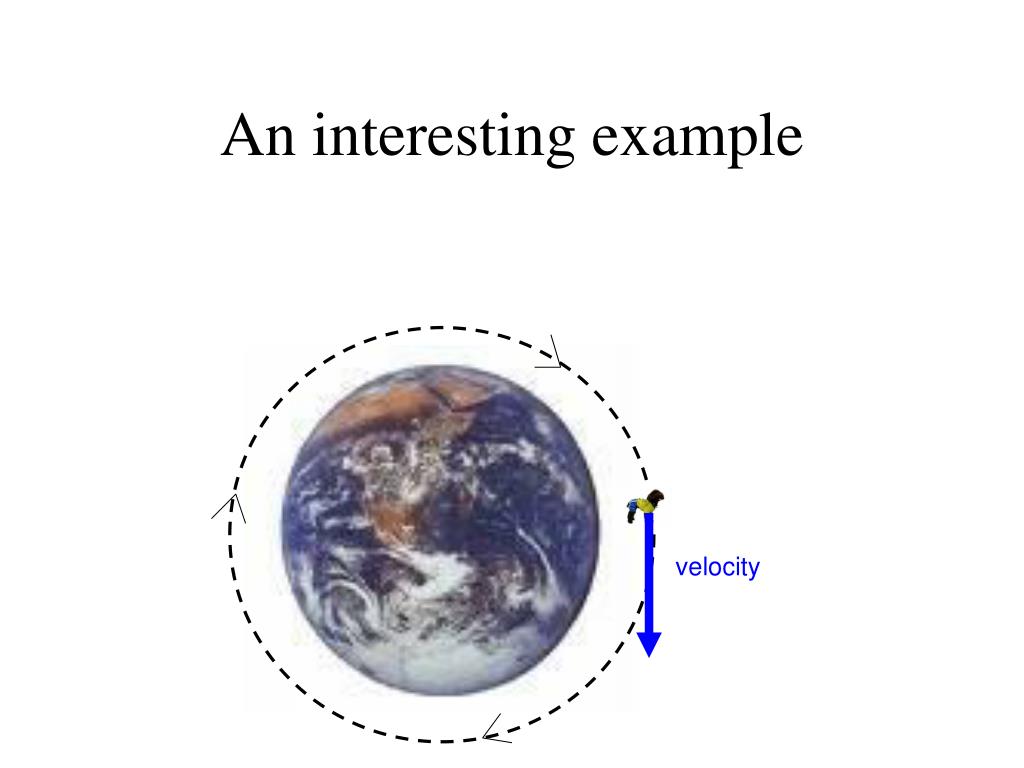

  14. An interesting example velocity

  15. An interesting example What is its velocity here? velocity?

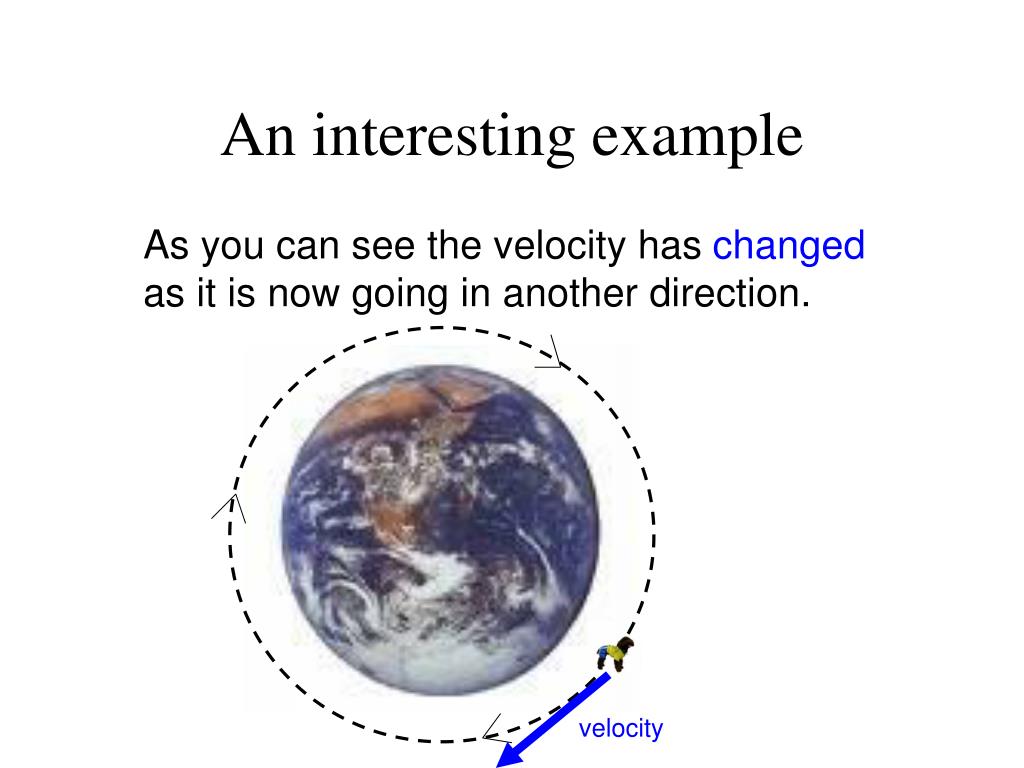

  16. An interesting example As you can see the velocity has changed as it is now going in another direction. velocity

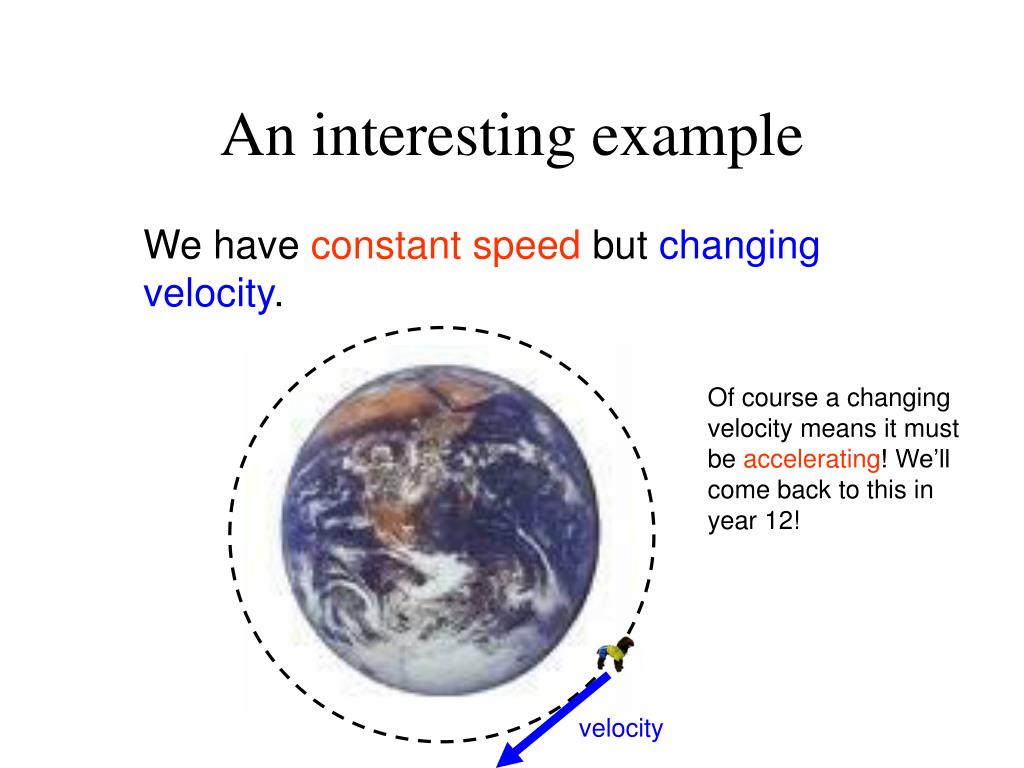

  17. An interesting example We have constant speed but changing velocity. Of course a changing velocity means it must be accelerating! We’ll come back to this in year 12! velocity

  18. Question • Suppose you lay 3 metre rulers on the floor end-to-end to represent 3 vectors of equal magnitude. How could you produce a final vector of • A) the largest magnitude • B) the smallest magnitude • C) a magnitude of the length of 1 ruler

  19. A) end to end = 3m • B) in a triangle = 0m • C) on top of each other, or 2 end to end with another on top

  20. Flying in a side wind • A bird flies at a steady speed of 3 m s–1 through the air. It is pointing in the direction due north. However, there is a wind blowing from west to east at a speed of 2 ms–1. • 1. What is the velocity of the bird relative to the ground? • 2. What is the displacement of the bird, relative to its starting point, after it has flown for20 seconds? • 3. In what direction should the bird point if it is to travel in a northerly direction?
