Presentation Transcript

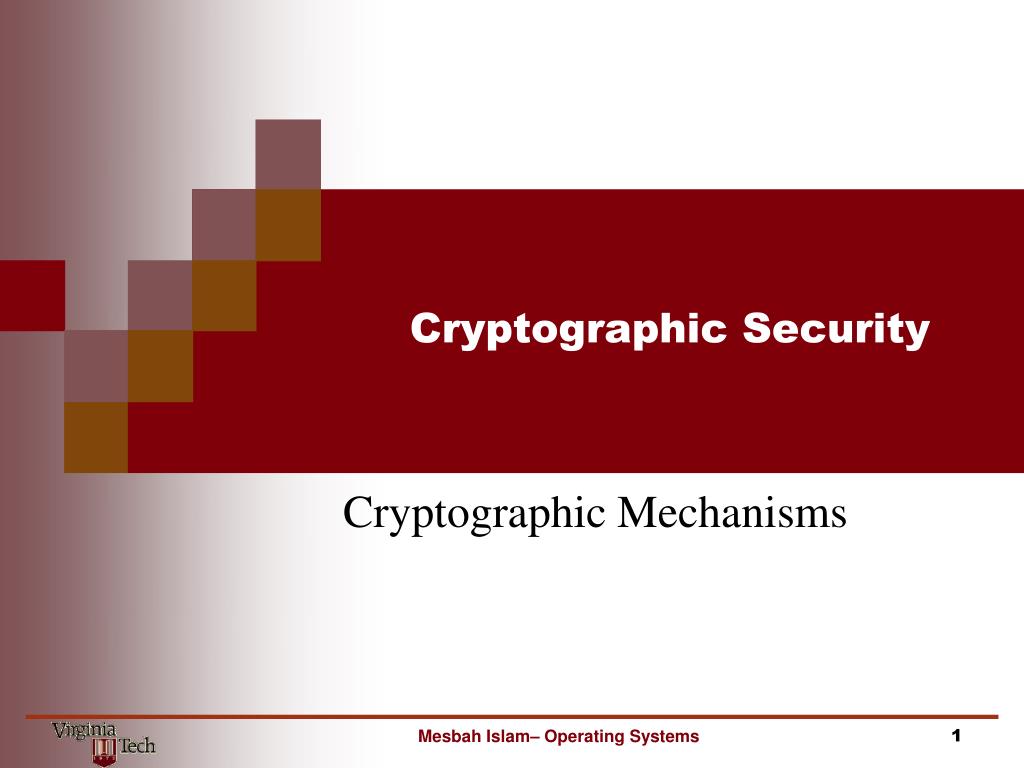

  1. Cryptographic Security Cryptographic Mechanisms Mesbah Islam– Operating Systems

  2. Presentation Outline Introduction Security goals Symmetric algorithm Asymmetric algorithm Hashing algorithm Digital signature Summary and conclusions Q/A? Mesbah Islam– Operating Systems

  3. Introduction Cryptography is a branch of applied mathematics concerned with transformations of data for security. In cryptography, a sender transforms unprotected information (plaintext) into coded text (ciphertext). A receiver uses cryptography to either (a) transform the ciphertext back into plaintext, (b) verify the sender’s identity, (c) verify the data’s integrity, or some combination. Mesbah Islam– Operating Systems

  4. Internet Security Issues • Eavesdropping. Information remains intact, but its privacy is compromised. • Tampering. Information in transit is changed or replaced and then sent on to the recipient. • Impersonation. Information passes to a person who poses as the intended recipient. Impersonation can take two forms: • Spoofing. A person can pretend to be someone else. • Misrepresentation. A person or organization can misrepresent itself. Mesbah Islam– CS5204 – Operating Systems

  5. Goals • Applicability of cryptography to support the basic security services • privacy/confidentiality -information not disclosed to unauthorized entities • integrity -information not altered deliberately or accidentally • authentication -validation of identity of source of information • non-repudiation -source of information can be objectively established Mesbah Islam– CS5204 – Operating Systems

  6. Symmetric Key Encryption for Confidentiality Ciphertext EA DB M A B 01011 M Sender Receiver Eavesdropper cannot read • Sender encrypts the plaintext using public key • Receiver decrypts the ciphertext using private key Mesbah Islam– CS5204 – Operating Systems

  7. Asymmetric Key Encryption Asymmetric (also called Public-key encryption) involves a pair of keys-a public key and a private key-associated with an entity that needs to authenticate its identity electronically or to sign or encrypt data. Each public key is published, and the corresponding private key is kept secret. The sender encrypts the data with the receiver’s public key, and the receiver decrypts the ciphertext message with its own private key. Mesbah Islam– CS5204 – Operating Systems

  8. Asymmetric Key Encryption (contd.) Ciphertext EB DB M A B 01011 M Sender Receiver Eavesdropper cannot read • Sender encrypts the plaintext using receiver’s public key • Receiver decrypts the ciphertext using receiver’s • private key Mesbah Islam– CS5204 – Operating Systems

  9. Asymmetric Key Encryption (contd.) Mesbah Islam– CS5204 – Operating Systems Compared with symmetric-key encryption, public-key encryption requires more computation and is therefore not always appropriate for large amounts of data. However, it's possible to use public-key encryption to send a symmetric key.

  10. Secure Hashing Algorithm The secure hash function takes a stream of data and reduces it to a fixed size through a one-way mathematical function. The result is called a message digest and can be thought of as a fingerprint of the data. The message digest can be reproduced by any party with the same stream of data, but it is virtually impossible to create a different stream of data that produces the same message digest. A message digest can be used to provide integrity. Mesbah Islam– CS5204 – Operating Systems

  11. Secure Hashing Algorithm (contd.) Mesbah Islam– CS5204 – Operating Systems

  12. Secure Hashing Algorithm (contd.) Mesbah Islam– CS5204 – Operating Systems

  13. Secure Hashing Algorithm (contd.) • Digests are • Fixed length • Irreversible • Unique Mesbah Islam– CS5204 – Operating Systems

  14. Digital Signature Digital signatures employ a type of asymmetric cryptography. For messages sent through a non-secure channel, a properly implemented digital signature gives the receiver reason to believe the message was sent by the claimed sender. Digital signatures are equivalent to traditional handwritten signatures in many respects; properly implemented digital signatures are more difficult to forge than the handwritten type. Digital signatures can also provide non-repudiating, meaning that the signer cannot successfully claim they did not sign a message, while also claiming their private key remains secret. Mesbah Islam– CS5204 – Operating Systems

  15. Digital Signature (contd.) Enc(Bpub(Apriv(M))) Dec(Apub(Bpriv(C))) M A B M Receiver Sender Mesbah Islam– CS5204 – Operating Systems

  16. Summary and Conclusions Mesbah Islam– CS5204 – Operating Systems

  17. ?? Mesbah Islam– CS5204 – Operating Systems
