Presentation Transcript

  1. Siding Profiles

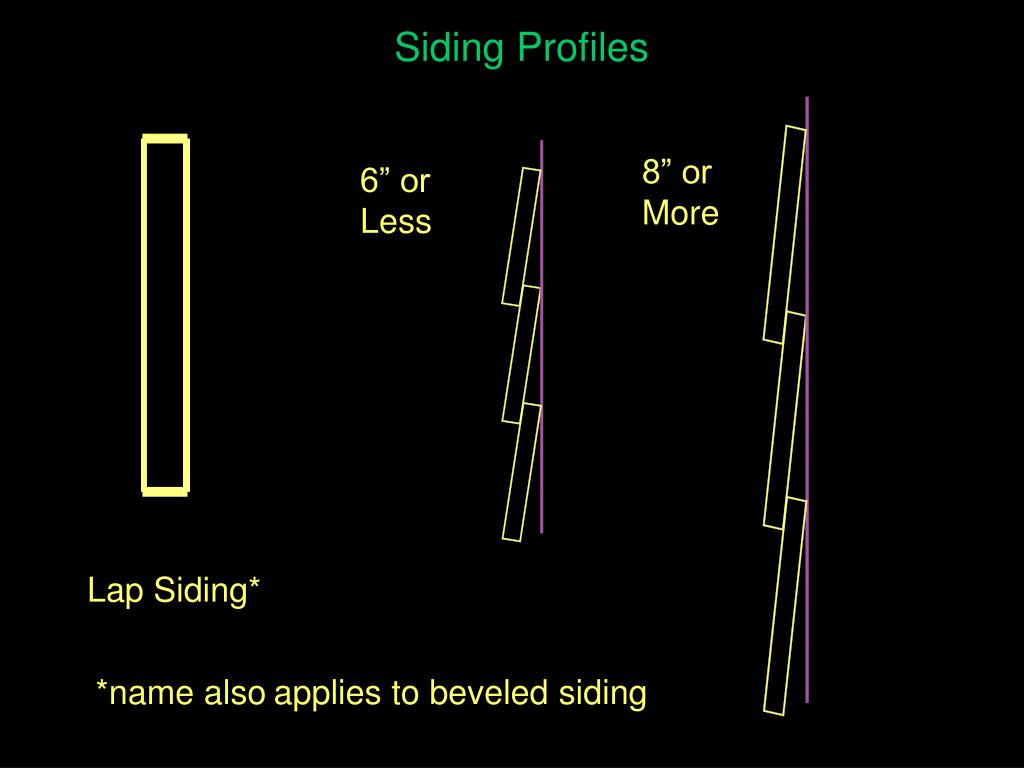

  2. Siding Profiles 8” or More 6” or Less Lap Siding* *name alsoapplies to beveled siding

  3. Siding Profiles 8” or More 6” or Less Lap Siding Nail Positions

  4. Siding Profiles 8” or More 6” or Less Plain Beveled Siding* *AKA Beveled Lap Siding, Clapboard Or Bungalow Siding

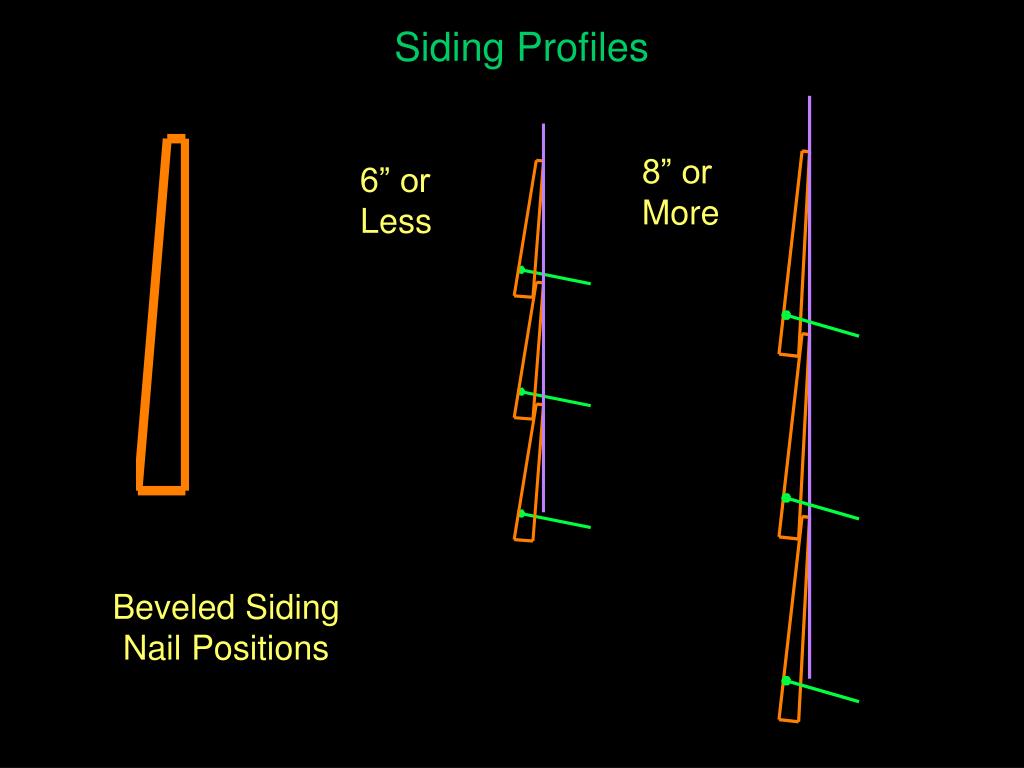

  5. Siding Profiles 8” or More 6” or Less Beveled Siding Nail Positions

  6. Siding Profiles 8” or More 6” or Less Dolly Varden

  7. Siding Profiles 8” or More 6” or Less Dolly Varden Nail Positions

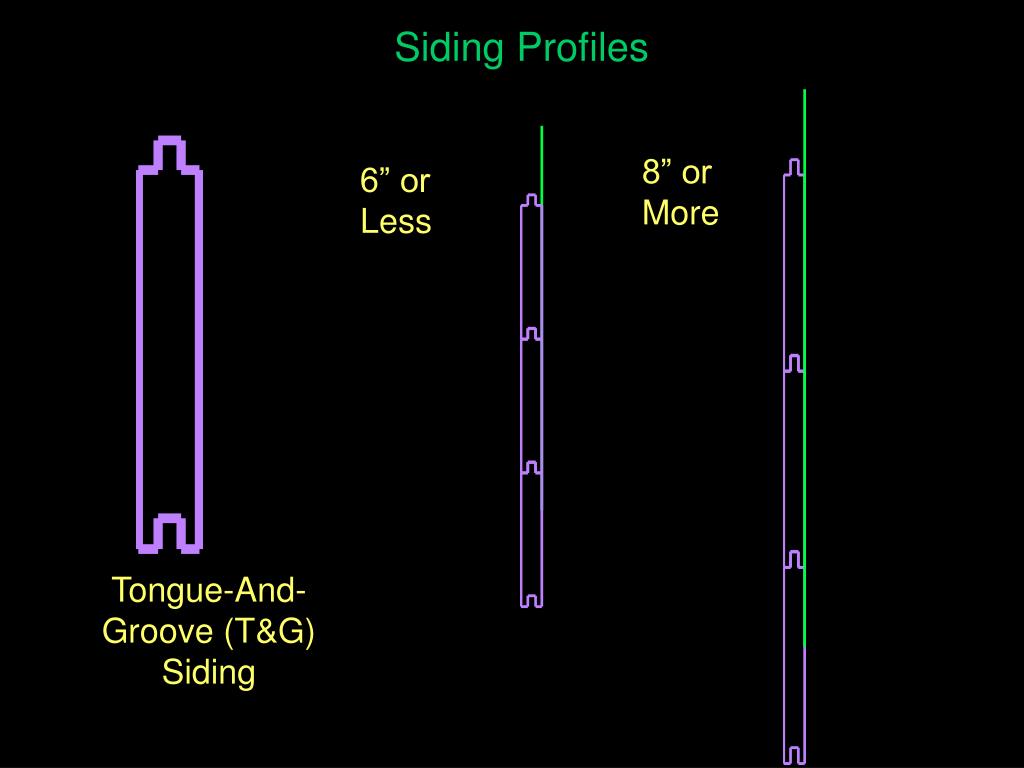

  8. Siding Profiles 8” or More 6” or Less Tongue-And-Groove (T&G) Siding

  9. Siding Profiles 8” or More 6” or Less Tongue-And-Groove Siding Nailing Positions

  10. Siding Profiles 8” or More 6” or Less Drop Siding

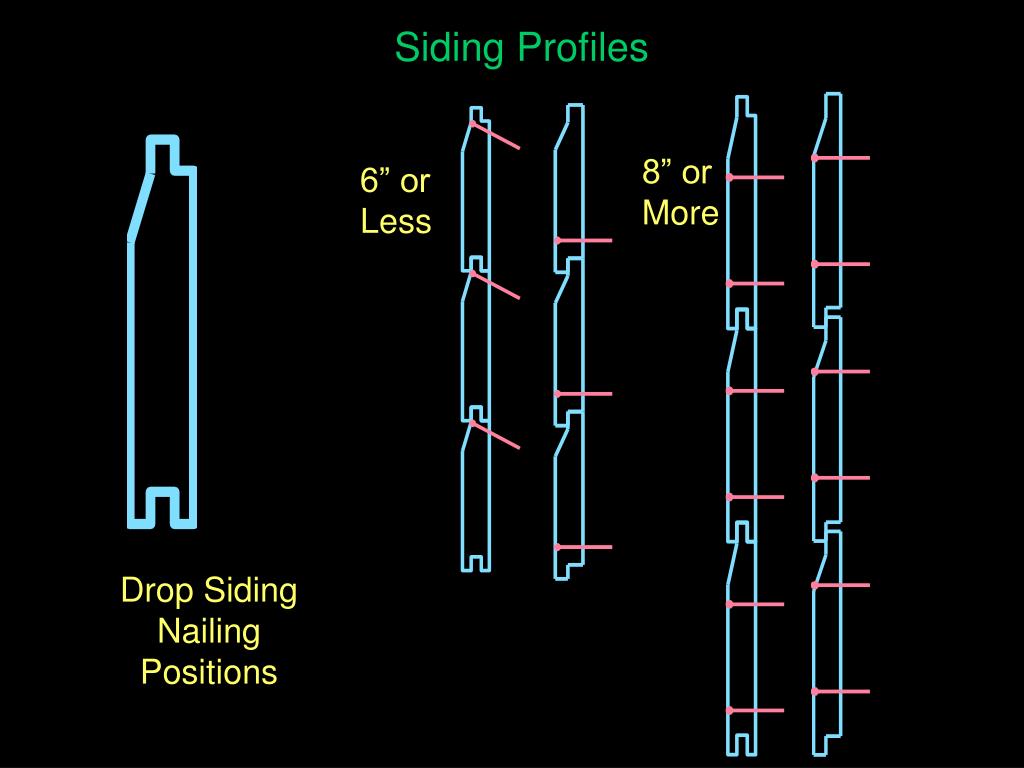

  11. Siding Profiles 8” or More 6” or Less Drop Siding Nailing Positions

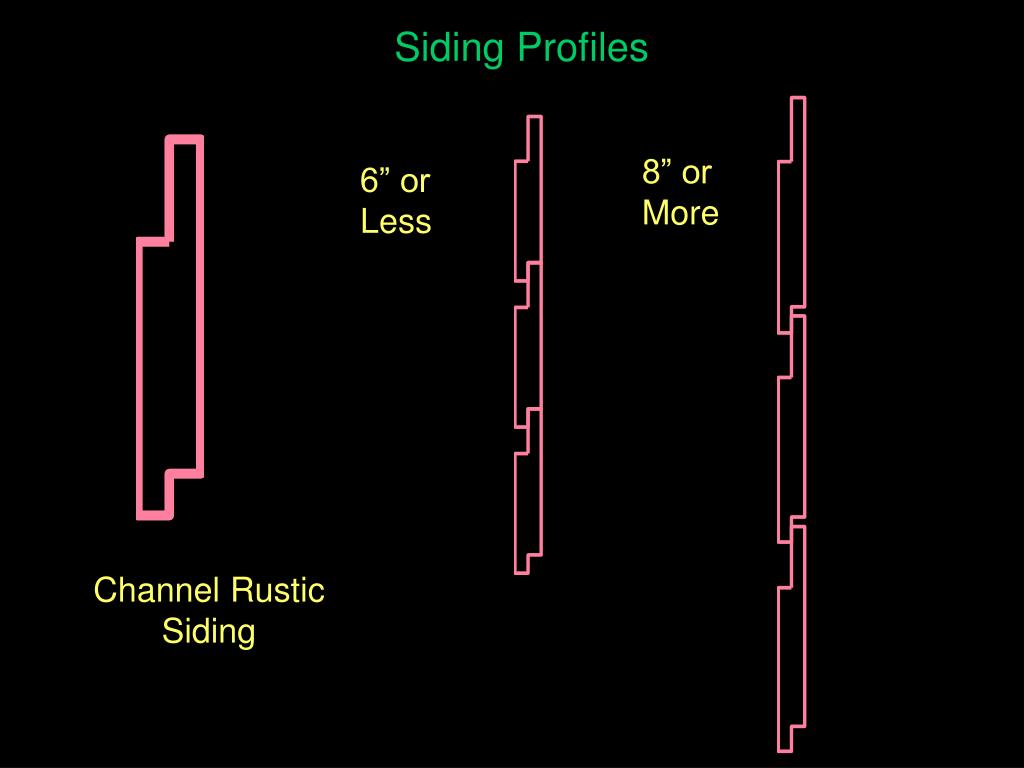

  12. Siding Profiles 8” or More 6” or Less Channel Rustic Siding

  13. Siding Profiles 8” or More 6” or Less Channel Rustic Siding Nailing Positions

  14. Siding Profiles 8” or More 6” or Less Log Cabin Siding

  15. Siding Profiles 8” or More 6” or Less Log Cabin Siding Nailing Positions

  16. 3 courses Vinyl or Metal Siding (Drop Style*) *AKA Dutch Lap

  17. 3 courses Vinyl or Metal Siding (Drop Style*)

  18. Siding Profiles End of Presentation
