  1. Rack & Crate Control Calo ECS/DCS Metting 28 April 2009 Beat Jost/Cern-PH

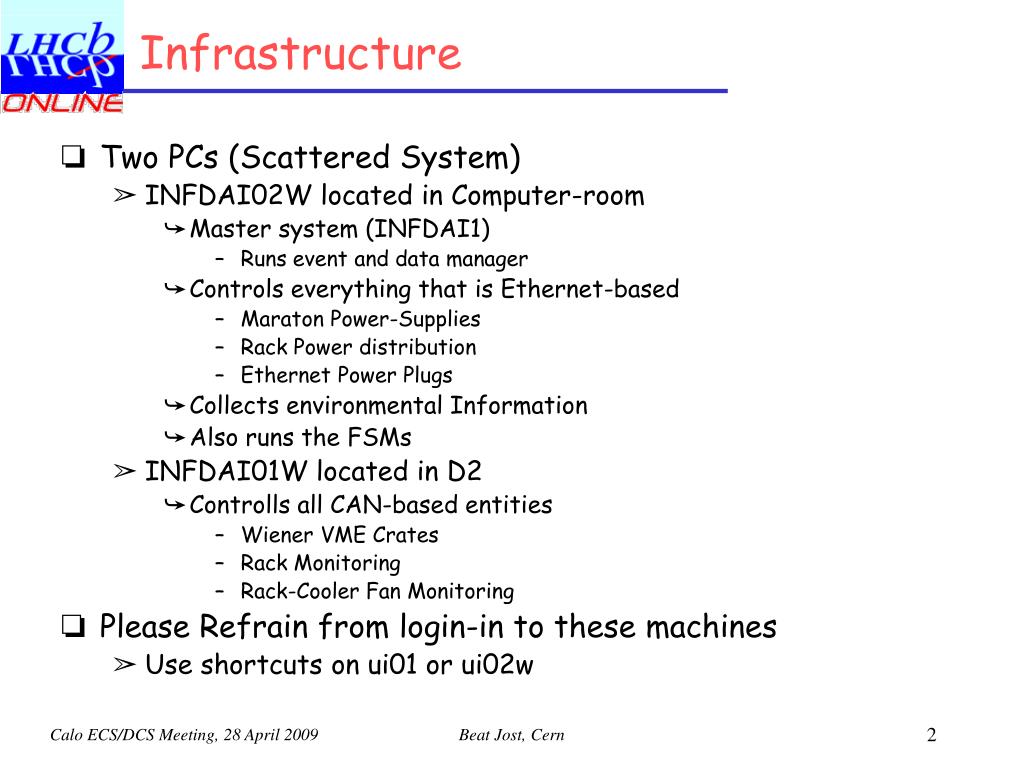

  2. Infrastructure • Two PCs (Scattered System) • INFDAI02W located in Computer-room • Master system (INFDAI1) • Runs event and data manager • Controls everything that is Ethernet-based • Maraton Power-Supplies • Rack Power distribution • Ethernet Power Plugs • Collects environmental Information • Also runs the FSMs • INFDAI01W located in D2 • Controlls all CAN-based entities • Wiener VME Crates • Rack Monitoring • Rack-Cooler Fan Monitoring • Please Refrain from login-in to these machines • Use shortcuts on ui01 or ui02w CaloECS/DCS Meeting, 28 April 2009

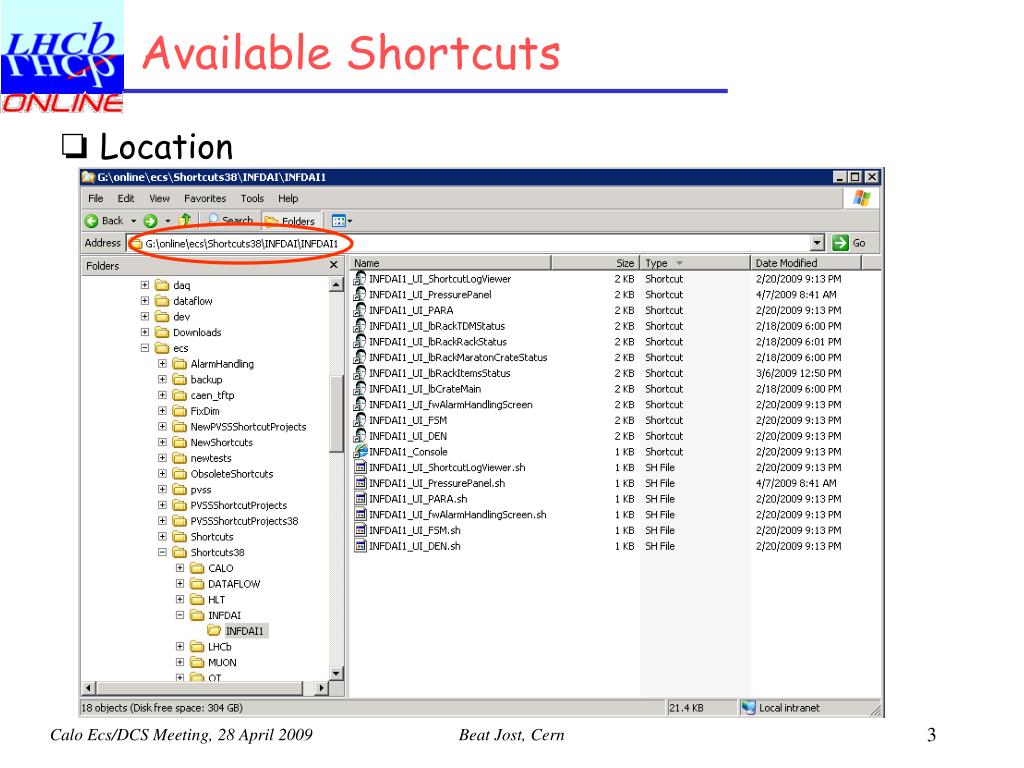

  3. Available Shortcuts Location Calo Ecs/DCS Meeting, 28 April 2009

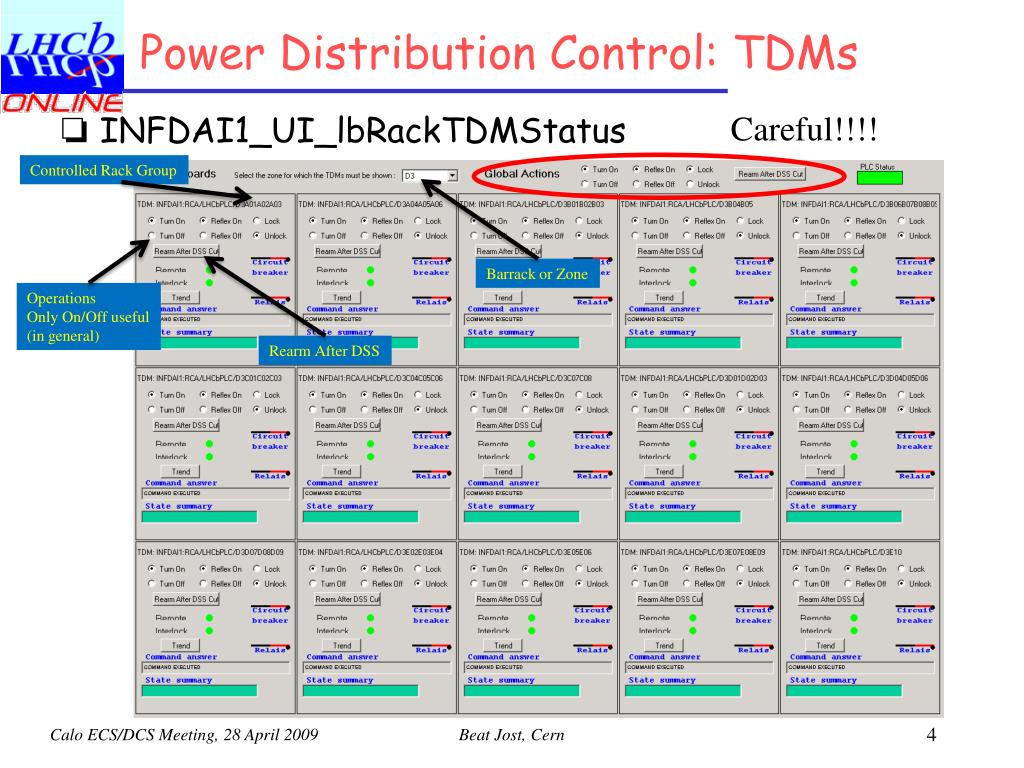

  4. Power Distribution Control: TDMs Careful!!!! Controlled Rack Group Operations Only On/Off useful (in general) Rearm After DSS Barrack or Zone INFDAI1_UI_lbRackTDMStatus Calo ECS/DCS Meeting, 28 April 2009

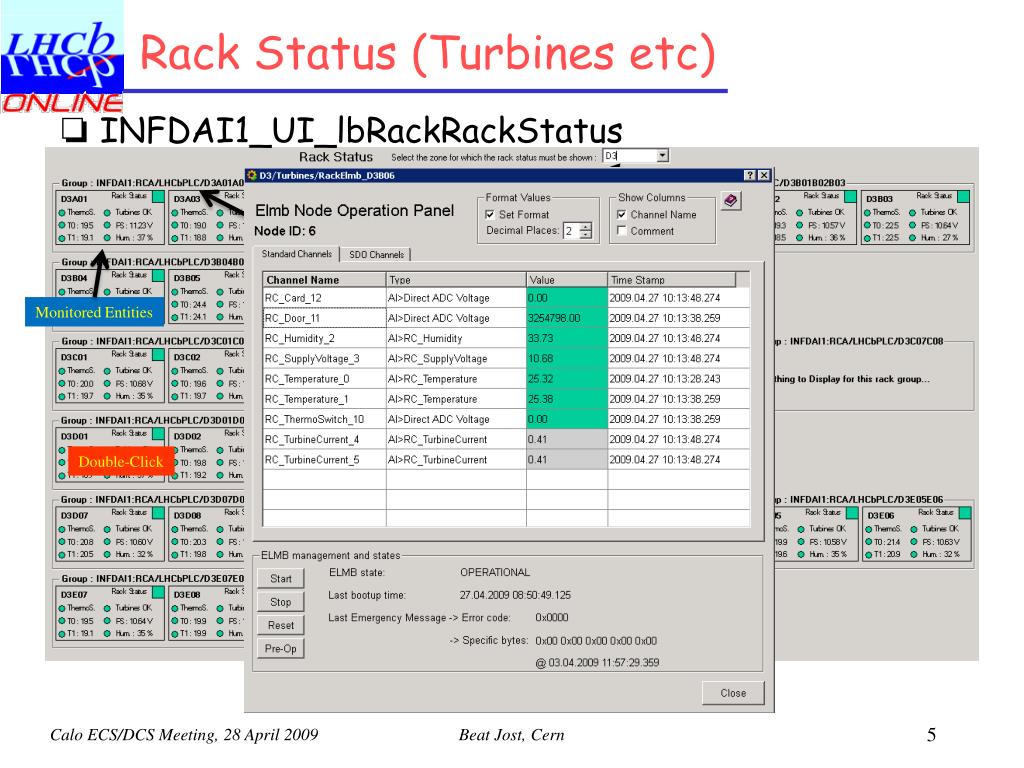

  5. Rack Status (Turbines etc) Monitored Entities Barrack or Zone Rack Group Double-Click INFDAI1_UI_lbRackRackStatus Calo ECS/DCS Meeting, 28 April 2009

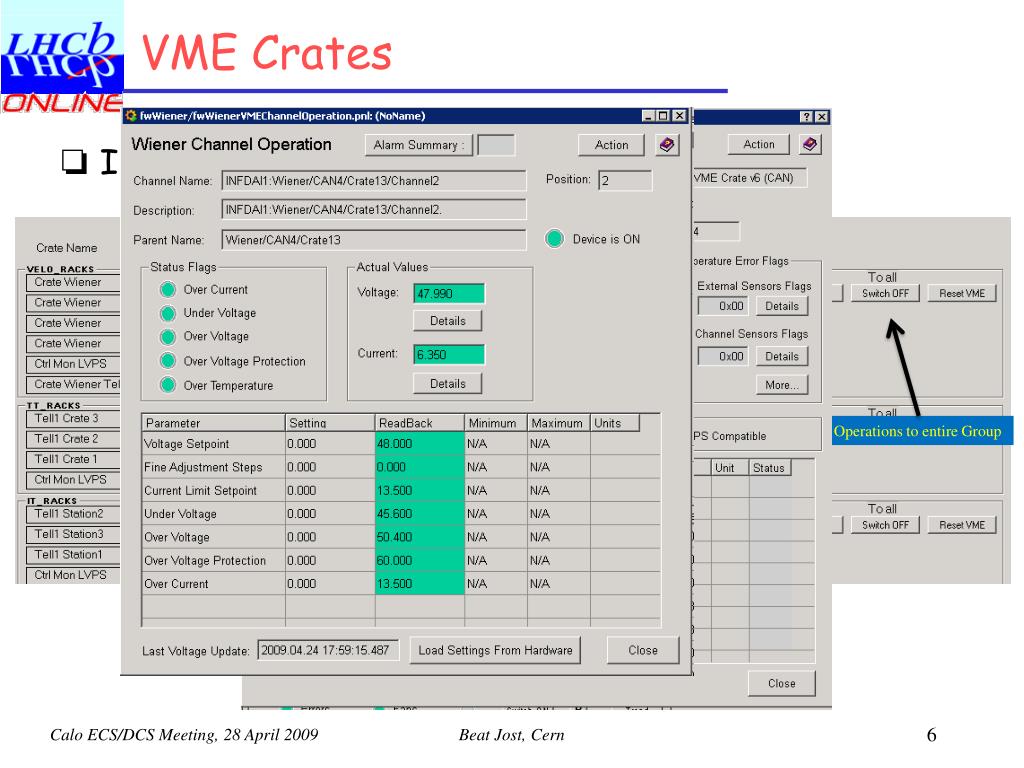

  6. VME Crates Careful!!!! Crate On/Off Crate VME ResetReboots CCPC in Crate Operations to entire Group … INFDAI1_UI_lbCrateMain Calo ECS/DCS Meeting, 28 April 2009

  7. Maraton Crates Crate On/Off Operations to entire Group INFDAI1_UI_lbRackMaratonCrateStatus Calo ECS/DCS Meeting, 28 April 2009
