Comprehensive Control Solutions for Bank Offices and Conference Rooms

DESCRIPTION

This document outlines advanced control solutions tailored for main bank offices and conference areas. It details systems for lighting control, HVAC, audio/video, and safety/security environments, utilizing S-Bus and other modules for efficient management of devices both indoors and outdoors. Features include touch-screen interfaces, dimming control, power outlets, automated curtains, and input from various detectors. Through these integrated solutions, banks enhance productivity and comfort while ensuring a secure environment.

1 / 17

Télécharger la présentation

Comprehensive Control Solutions for Bank Offices and Conference Rooms

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Ideas by:

  2. Teller Reception

  3. Main Office Reception

  4. Employees’ Entrance to Main Bank Offices

  5. Offices’ Main Receiving Area

  6. Offices’ Lobby Area

  7. Special Accounts Section

  8. Client Conference Sections

  9. Main Conference Room

  10. How Does Work for a ?

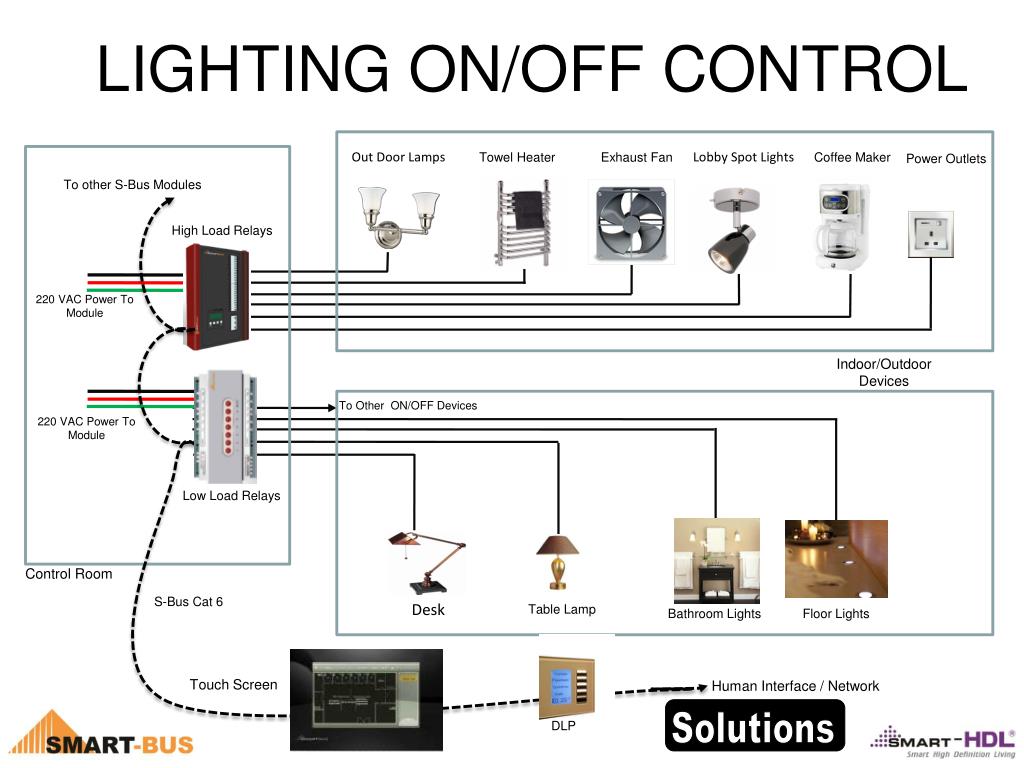

  11. LIGHTING ON/OFF CONTROL Solutions Out Door Lamps Lobby Spot Lights Towel Heater Exhaust Fan Coffee Maker Power Outlets To other S-Bus Modules High Load Relays 220 VAC Power To Module Desk Indoor/Outdoor Devices To Other ON/OFF Devices 220 VAC Power To Module Low Load Relays Control Room S-Bus Cat 6 Bathroom Lights Floor Lights Touch Screen Human Interface / Network Table Lamp DLP

  12. LIGHTING DIMMING CONTROL Solutions Chandler Outdoor Flower Power Outlets Spot Light To other S-Bus Modules High Load Dimmer 220 VAC Power To Module 220 VAC Power To Module Indoor/Outdoor Devices Garden S-Bus Cat 6 Wall LED Strip Fluorescent Table Touch Screen Control Room Human Interface / Network Street Low Load Dimmer DLP

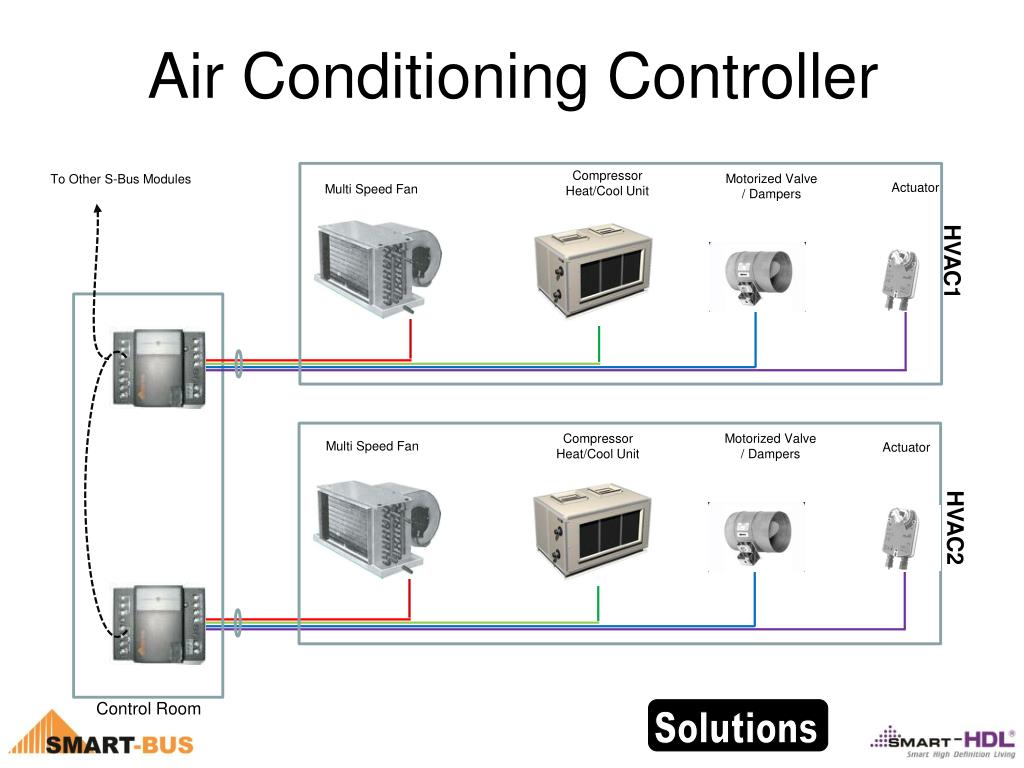

  13. Air Conditioning Controller Solutions Compressor Heat/Cool Unit To Other S-Bus Modules Multi Speed Fan HVAC1 Compressor Heat/Cool Unit Multi Speed Fan HVAC2 Control Room Motorized Valve / Dampers Motorized Valve / Dampers Actuator Actuator

  14. Motorized Curtain Control Solutions To Other S-Bus Modules Left Opening Centre Opening Right Opening To Other S-Bus Modules "Back-to-back": Drape over shears (each, one-way open) Corners Logic Module

  15. Media On Demand Solutions To Other S-Bus Modules RS-232/485 RS-232/485 S-Bus Cat 6 S-Bus Cat 6 S-Bus Cat 6 Media On Demand Video Server To Other S-Bus Modules TV/AV TV/AV TV Projector DVD Projector Screen I/O MODULE 6 in 1

  16. AUDIO CONTROL Solutions To Other S-Bus Modules Control Room Source 1 Source 2 Source 3 Source 4 Source 5 Source 6 Key Pad Joints Music Amplifier RS 232/485 Modules Rm.1 Rm. 5 Rm. 3 Rm. 2 Rm. 7 Rm.1 Rm. 8 Rm. 6 Rm. 4 Rm. 2 Expandable up to 16 Zones I Pod access I Pod access I Pod access Rm. 3 Rm. 5 Rm. 8 Rm. 7 Rm. 6 Rm. 4 Rm. 4 Rm. 3 Rm. 2 Rm.1

  17. Safety & Security CONTROL Solutions Input Devices Gas Det. Smoke Det. To Other S-Bus Modules Other Input Devices Other Output Devices From Other S-Bus Modules Control Room Output Devices PIR Ultrasonic Sensor Door / Window Mag Contact Siren Flasher Safe Lock I/O MODULE
