1. Resources for Teaching and Learning DICTION James F. Daugherty The University of Kansas

2. From a musical / artistic perspective: CHORAL MUSIC HAS TEXT

3. From a musical / artistic perspective: CHORAL MUSIC HAS TEXT Question: Why, then, are many philosophies of music education today based exclusively on models of absolute music, i.e., “music alone?”

4. From an acoustical / scientific perspective: CHORAL MUSIC HAS TEXT IS

5. Articulatory maneuvers produce UNITS OF SOUND: phonemes allophones vowels consonants words phrases

6. “If a song is sung with poor diction (faulty articulation of vowels and consonants), much more than the literary meaning is lost; the quality of the singing voice is also impaired, resulting in a musical loss” --Charles Lindsley, Fundamentals of Singing, p 62 “Good diction is the keystone in producing distinctive vocal and choral sound. Without good diction there is little prospect for other choral virtues such as blend of voices, sectional unity, variety in tone quality or color, proper use of resonation and even good intonation.” --Lloyd Pfautsch, English Diction for Singers (1971), p 3.

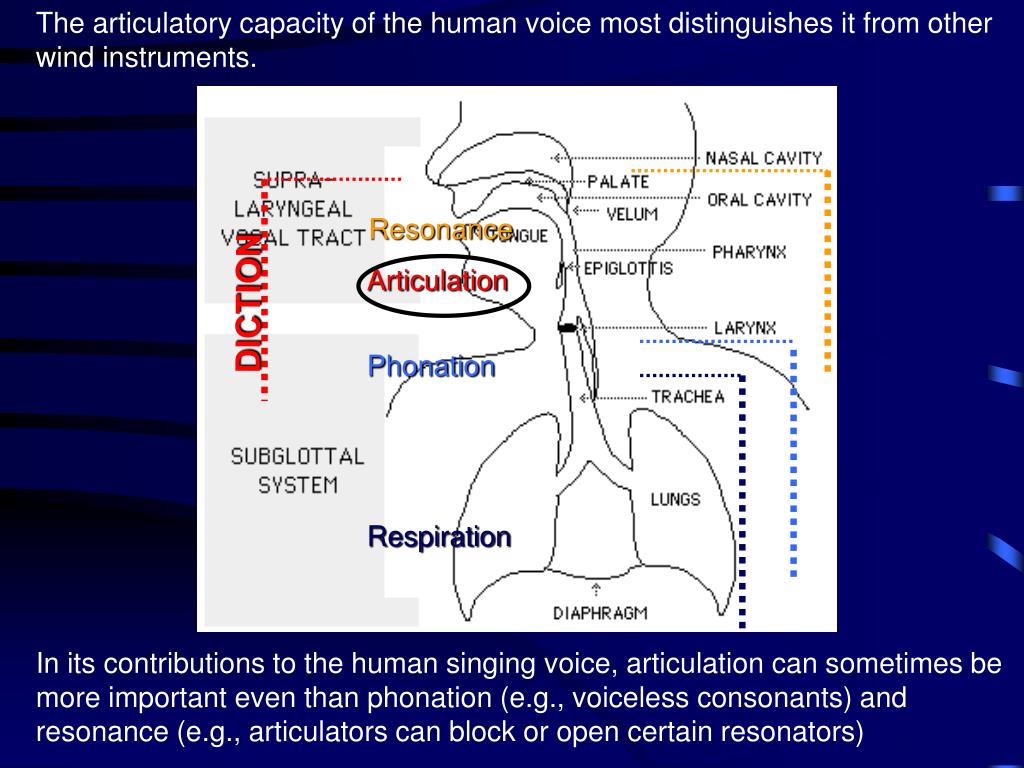

7. The articulatory capacity of the human voice most distinguishes it from other wind instruments. Resonance Articulation DICTION Phonation Respiration In its contributions to the human singing voice, articulation can sometimes be more important even than phonation (e.g., voiceless consonants) and resonance (e.g., articulators can block or open certain resonators)

8. Some intuitively define singing as prolonged speech Fred Waring:“Sing all the beauty of all of the sounds of all of the syllables of all of the words.” Robert Shaw:“Don’t sing words. Sing all of the sounds of the words.”

9. The final premise of our choral art…is that vocal (choral) music has words to communicate--as well as pitches, rhythms, and colors--and that it is possible most of the time to project them through and over instrumental collaboration. We do this by concentrating not upon the words themselves, but upon the irreducible, individual, and succession of sounds which form these words, and we try to allot to each of these sounds its precise moment of musical time. We may take our personal inspiration from the text, but when it comes to the transmission of that text, it’s work gloves, overalls, and sweat. Robert Shaw

10. FOOD FOR THOUGHT: Pence (1994) found that choral teachers surveyed were neither trained for, nor comfortable in, teaching diction. We spend a lot of time on pitches and rhythms, and we tend to believe that systematic sight-singing instruction is a means to musical literacy. Yet, we rarely consider systematically equipping our students with articulatory/phonetic tools for vocal literacy, despite the centrality of diction for choral sound and its demonstrated role in vocal/choral pitch and rhythm.

12. In choral singing, this essential role of diction or articulation becomes more complex because of the CHORUSING EFFECT: Many voices and their reflections create a quasi-random sound of such complexity that the normal mechanisms of auditory localization and fusion are disrupted. Instability of F0 produces flutter.

13. CHORAL SOUND: has properties of both complex tones and very narrow-band noise its sonic character is that of a sum of sounds that are similar, yet not phase coherent spectral beat (using LTAS) in the region of 500-700 Hz SPL of choral sound has large, random short-term variations due to beats

14. Scientific studies of human singing find that people phonate and articulate differently in choirs than they do as soloists, i.e., solo singing and choral singing are two distinct modes of vocal production. Beyond a certain point, one cannot work with an ensemble of voices as one would work with a single voice in a studio.

15. Simply put, choruses have to “chorus.” Matters such as perceived blend and balance become important. In chorusing, moreover, the whole is more than the sum of its parts.

16. Put another way, chorusing vowels and chorusing consonants play somewhat different roles than solo vowels and solo consonants. Most importantly in this respect, they have to be perceived as being in some sense “unified.” It is this complex, perceived “unity” that determines both choral tone quality and some aspects of choral intonation.

17. Intonation Issues Related to Diction

18. Vowels themselves have intrinsic pitch: for example, all else being equal, high front vowels are generally produced with a higher Fo than low vowels. front vowels (like “ee” and “ih”) tend to raise the pitch (Fo) the “ah” vowel tends to lower the pitch (Fo) “u” (oo) has a relatively low number of harmonics and is perceived to drop in pitch the louder it gets, and to sharp in the presence soft reference tones translation: even given the same frequency at phonation, the pitch of some vowels will naturally sound flatter or sharper than the pitch of some other vowels.

19. Certain combinations of vowels are particularly potent pitch/frequency benders: for example, “ee” to “eh” (as in Kyrie Eleison) can carry a change in Fo of almost 35 cents cent (a unit of frequency ratio that represents pitch deviation); one cent = 1/100 of a half step; 35 cents = about a fifth of step flat or sharp

20. Solo singers typically can check their vowel tuning by a stable reference, e.g., a piano or an orchestra. A cappella choral singers (and to some extent all choral singers) have as a reference only fellow singers, who are fighting against the same vowel intonation tendencies.

21. When, in a choral singer’s ear, the sound of the choir as a whole overbalances the feedback heard from one’s own voice (as in crowded spacing) a singer is much less able to modify intrinsic vowel pitch.

22. To complicate matters further: two differing versions of a vowel going on simultaneously in a choral ensemble can also alter the overtones of the fundamental pitch produced by vibrations of the vocal folds.

23. Translation: Choral singing “in tune” requires more than vocal folds phonating at on or around a certain frequency as indicated by notes in a score. It also requires articulation savvy.

24. YOUR TURN

25. So how do we teach the articulation necessary to sing this canon both beautifully and in tune?

26. Four Teaching/Learning Strategies: 1. Que sera, sera whatever will be, will be 2. Modeling/Rote Perhaps momentarily quicker, but questionable transfer potential; teacher-centered, students equipped only to mimic the teacher

27. Four Teaching/Learning Strategies: 3. English Phonetic Spelling similar to the Fred Waring tone syllable system For example: you--bee--lah--teh Can work more or less successfully for Latin. But not consistent or accurate for every language Shteal_lay Nahcht! Hi_lee_gay Nahcht! Often more than one symbol per sound, cannot always convey nuance. Still student-passive.

28. 4. Established 1886, Paris. Revised 1993. Updated 1996/2005. Major advantage over other systems: one sound, one symbol. Learn and teach any language. Empowers students with a useful tool. More useful over time. Major disadvantage: Need to learn the system first. (Not unlike solfegge in this respect).

29. Pan (1995), in a study of an intact eighth grade choir (N=62), found that: Both IPA and English Phonetic Spelling were superior to traditional rote instruction as measured by individual testing on the correct pronunciation of a Latin motet the choir had been rehearsing. Students receiving instruction in IPA performed with significantly greater accuracy than students receiving instruction by phonetic spelling in being able to pronounce previously unstudied Latin texts.

30. YOUR TURN

31. hænd ov| ∂oz b√t\ns ør ju m´lt !

32. Sung Ecclesiastical Latin is a good starting point for IPA Choral Diction: It has 5 vowel sounds and only 5 vowel sounds It has no diphthongs Repeat: It has (should have) NO diphthongs

34. Question:Given the absence of recording devices and the apparent presence of numerous dialects (Austro-German Latin, Venetian Latin, etc.), who determines how Ecclesiastical Latin should be sung? Answer: The Pope Papal Decree (1903), Pope Pius X required Roman pronunciation of Latin universally in the Roman Catholic Church This diction is codified in The Rev. Michael de Angelis, C.R.M., The Correct Pronunciation of Latin According to Roman Usage. Philadelphia: St. Gregory Guild. Rev. ed. 1937.

35. 5 Latin Vowels å ´ i ø u

36. 5 Latin Vowels å ah, as in father ´ eh, as in met i ee, as in seek ø aw, as in bought, saw u oo, as in soon

37. 2 Latin Glides a glide is an unstressed vowel that proceeds quickly and smoothly to a following vowel j i ju = unstressed w kwi u = unstressed

39. ju bi la t´ d´ ø - - l - - ju bi la t´ d´ ø - - - - a l´ lu ja - - -

40. In terms of developing choral sound, especially in younger or amateur ensembles: Start with u: Most bang for the buck

41. u is the most physically active of the Latin vowels • need to round the lips, open the pharynx, release tension • can incorporate kinesthetic elements in its teaching • teach distinction between “Pepto-Bismol” u and “free” u

43. Teach one at a time the 5 Latin vowels and the 2 Latin glides, along with their IPA symbols Can begin by incorporating them into daily warm ups

45. Some strategies: 1. Teach the Jubilate Deo canon; it has them all (except the w glide), plus it contains the ubiquitous “alleluia” 2. During warm up exercises: have the IPA symbol(s) already on the board or wall and point to them in turn, perhaps adding one each day: both visual and aural reinforcement u i å ´ ø

46. Strategies, continued: 3. focus on a particular vowel in already familiar exercises, e.g., “I love tu sing” anchor or modify with kinesthetic gestures 4. have on the board a “Pronounce That Word” or “Pronounce This Phrase” challenge (with the word or phrase written in IPA), similar to “Name That Tune” dIkß\n Iz f√n ßøn tßæst´:In raks !

47. Strategies, continued: 5. use various IPA symbols for sightsinging or rehearsing off text 6. download the IPA fonts and replace selected text with IPA symbols 7. occasional worksheets or online modules 8. gradually begin to use some IPA in memos and handouts

48. YOUR TURN

49. \ = neutral unaccented schwa U = open as in “put,” “book” åU = diphthong, as in “cow” I = open as in “it,” “him” hw= unvoiced glide, as in “what” √= neutral accented uh, “up” † = unvoiced th as in “think” æ = forward vowel, as in “cat” ˜ = voiced, nasal consonant, as in sing diphthong is dIf †ø˜ More IPA Symbols ∂ = voiced th as in “those”

50. nå:UIz ∂\ m√n† √v m´:I˜ hw´n m´ri lædz år pl´:I˜
