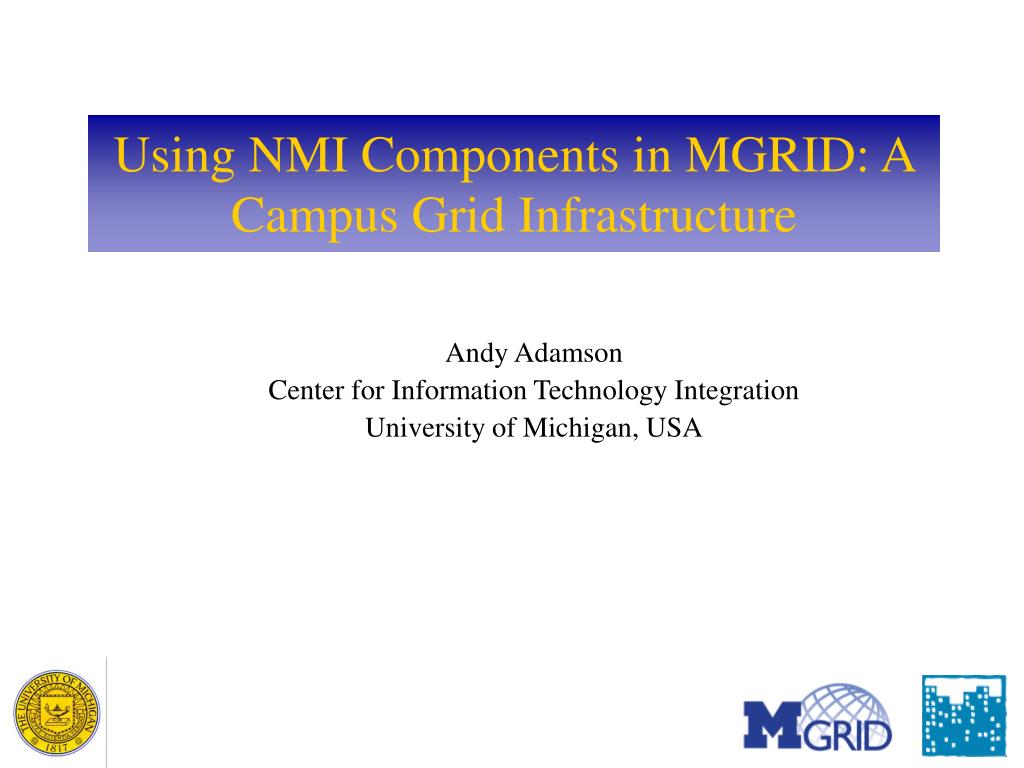

  1. Andy Adamson Center for Information Technology Integration University of Michigan, USA Using NMI Components in MGRID: A Campus Grid Infrastructure

  2. Outline • MGRID: Background and Motivation • MGRID Architecture • NTAP: A Grid Application • Distributed Authorization Issues • What's Next

  3. MGRID • Michigan Grid Research and Infrastructure Development is a collaborative effort of many parts of the University of Michigan focused on developing and deploying grid computing for the University of Michigan. • Characterize and optimize the UM network • Assist in the development of Grid security middleware • Determine the requirements for a production Grid site within the UM • Develop and test Grid Applications

  4. Why MGRID • Multiple Grid efforts at the U of M • Clusters • Automated network configuration and testing • Remote instrument operation • Middleware issues are difficult • Single solution • Leverage existing security services • Potentially large user base for Grid services

  5. U of M Security Services • Uniqname • Unique campus wide user name and UID • Kerberos V5 (multiple cells) • KX509 • Group Services • AFS PTS • LDAP (email groups)

  6. MGRID Architecture Web Server User Workstation Apache SSL – Client Certificate required mod ssl Browser 3 mod kct libpkcs11 Kerberos V5 4 KCT mod kx509 kx509 Kerberos 2 5 KCA kinit mod jk mod php Kerberos KDC 1 6 Tomcat GSI Grid Service LDAP CHEF 6 SASL Grid-Mapfile GateKeeper 7 Resource Mng Authorization Group Services Service 8

  7. MGRID Portal • Proxy KX509 credentials, keep the Globus client off workstations • Ease of use for U of M faculty, staff, and students • Kerberos + kx509 + browser = Grid access • Single point for PKI management • CA self-signed keys • CA policy files • Single entry point for MGRID services

  8. MGRID Portal • User workstation • KX509 to obtain user X509 credentials • KX509 Certificate available to browser • Additions to OpenSSL, required on Web Server • SSL handshake recorded • Web server SSL configured to require user X509 credentials

  9. MGRID Portal • SSL Handshake transcript • Contains all packets exchanged • Allows KCT to repeat user certificate verification • Handshake time stamp used • Apache module, mod_kct • Sends ssl handshake transcript to KCT service • Requests KCA Kerberos service ticket

  10. MGRID Portal • Apache module, mod_kx509 • Uses the KCA TGS • Obtains user proxy KX509 credentials • Places them in a ticket file • Apache module, mod_php • Creates RSL, uses KX509 credentials • CHEF runs in Tomcat • Communicates with Apache through mod_jk • Creates RSL, uses KX509 or MyProxy credentials

  11. MGRID Architecture Web Server User Workstation Apache SSL – Client Certificate required mod ssl Browser 3 mod kct libpkcs11 Kerberos V5 4 KCT mod kx509 kx509 Kerberos 2 5 KCA kinit mod jk mod php Kerberos KDC 1 6 Tomcat GSI Grid Service LDAP CHEF 6 SASL Grid-Mapfile GateKeeper 7 Resource Mng Authorization Group Services Service 8

  12. MGRID NTAP Project • NTAP: Network Testing and Performance • Globus Service to run network test and performance tools • Purpose: Help build and maintain a secure and functional network at UMICH • Runs on multi homed nodes placed in a VLANed network

  13. MGRID NTAP Architecture Host A Host B Router 1 Router 2 Router 3 Web Portal GSI GSI GSI NTAP 1 NTAP 2 NTAP 3 Group Services

  14. MGRID NTAP Project • Based on GARA: General-purpose Architecture for Reservation and Allocation • GARA bandwidth reservation • Adds and removes configuration stanza's in network hardware • Includes scheduler for future reservations • Security of communications and the ability to support roles is required

  15. MGRID NTAP Project • Added fine grained authorization • Added signed group membership RSL payload • Extended bandwidth reservation to be able to run arbitrary programs at a Grid service endpoint • Designed to easily add functionality • Network testing tools being run • Iperf, traceroute, ping, owamp, etc

  16. MGRID NTAP Architecture Host A Host B Local Domain Router 1 Router 2 Router 3 Web Portal GSI GSI GSI NTAP 1 NTAP 2 NTAP 3 Group Services

  17. Cross-domain Authorization • Implemented with Policy based software • Policy engine makes authorization decision • Input <attribute name, value> are matched against resource specific policy rules • Input attribute names are matched to policy attribute names by a string compare • Cross-domain attribute name space is therefore required

  18. Cross-domain Authorization • Attributes include • Group membership from group services • Resource request parameters: bandwidth, number of CPU's, etc from RSL • Environment parameters: time of day, CPU load, etc • Use of existing local group services is required • U of M has 100,000+ active uniqnames to manage • Avoid replicating data and management tasks

  19. Cross-domain Authorization • Our first design in use today uses a modular group membership call-out and the KeyNote Policy Engine • Group membership determined by • Secure RX call to AFS PTS • Fine-grained authorization expressed in KeyNote policy rules • Works across U of M campus

  20. MGRID Architecture Web Server User Workstation Apache SSL – Client Certificate required mod ssl Browser 3 mod kct libpkcs11 Kerberos V5 4 KCT mod kx509 kx509 Kerberos 2 5 KCA kinit mod jk mod php Kerberos KDC 1 6 Tomcat GSI Grid Service LDAP CHEF 6 SASL Grid-Mapfile GateKeeper 7 Resource Mng Authorization Group Services Service 8

  21. Authorization: Where? • Earlier is better • At the portal • RSL, group membership, and some environment attributes available • Can remove load from Grid Service • At the Grid Service • Needed when policy has components that can only be satisfied at end service • Both (divided policy)

  22. PERMIS • Similar functionality to KeyNote • Attributes and policy rules • Follows XACML standard • Signed policy stored in LDAP • Signed user attributes stored in LDAP • Current design requires new database of users

  23. MGRID: Whats Next? • Use XACML to exchange authorization data • XACML front end to existing UMICH group services • Replace grid-mapfile with LDAP call out • Central administration • Dynamic local cluster accounts • Investigate NFSv4 as a grid file system

  24. Summary • Kx509, CHEF, and PERMIS (XACML) NMI components are being integrated and tested by MGRID • We would like mod_kct and mod_kca to be considered for NMI-5 • Construction and management of a shared attribute name space is the largest problem facing cross-domain authorization

  25. Any Questions? http://mgrid.umich.edu
