  1. Lessons learned from my experience during the adoption, use and growth of MySQL at AOL Kevin Pettit Principle DBA Content Application Operations

  2. MySQL Origins for AOLSummer 2003 Internet Business Solutions, Partner Hosting, Acquisitions and the adoption of open source products gave rise to a new kid in our Database world: MySQL

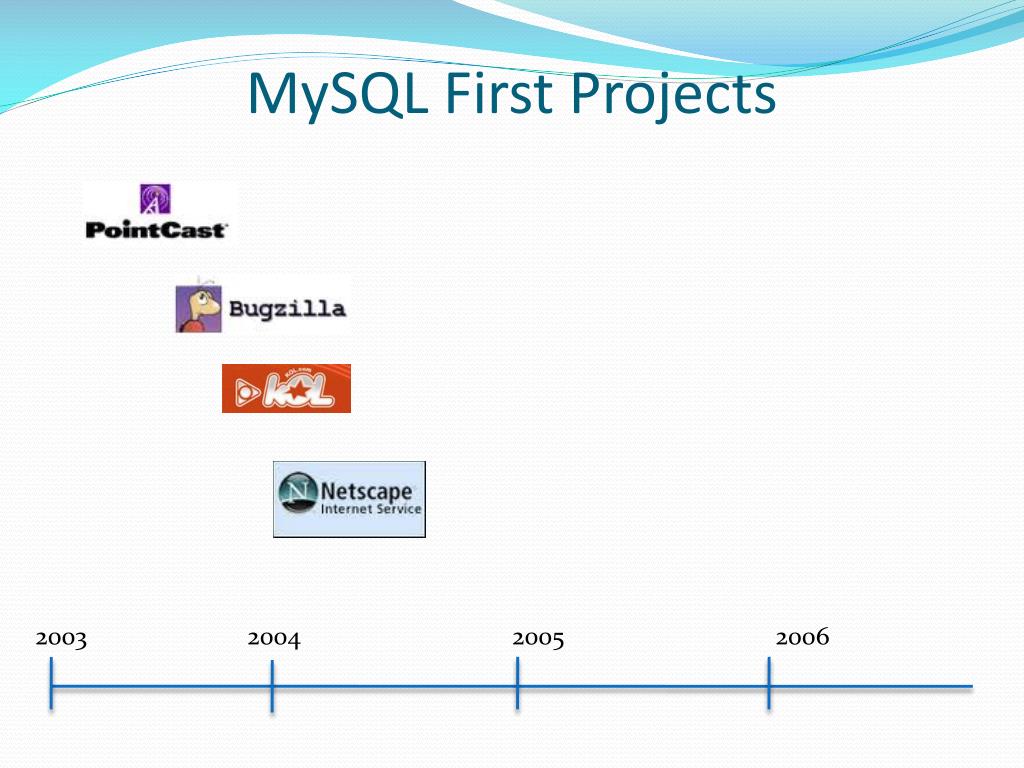

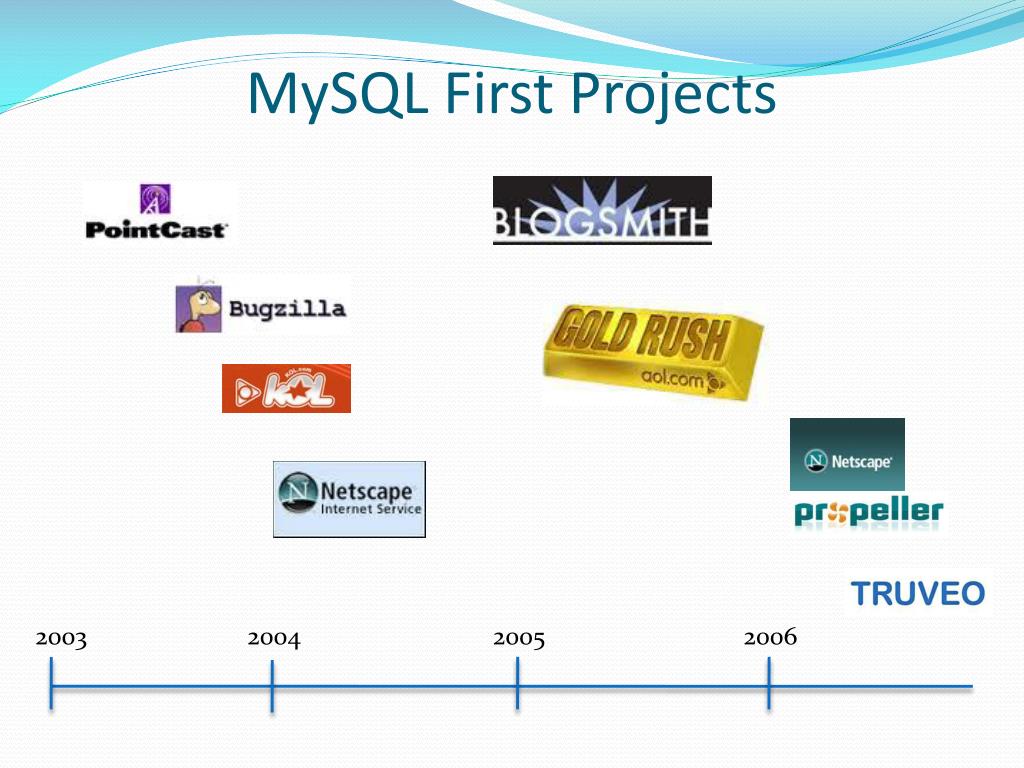

  3. MySQL First Projects 2003 2004 2005 2006

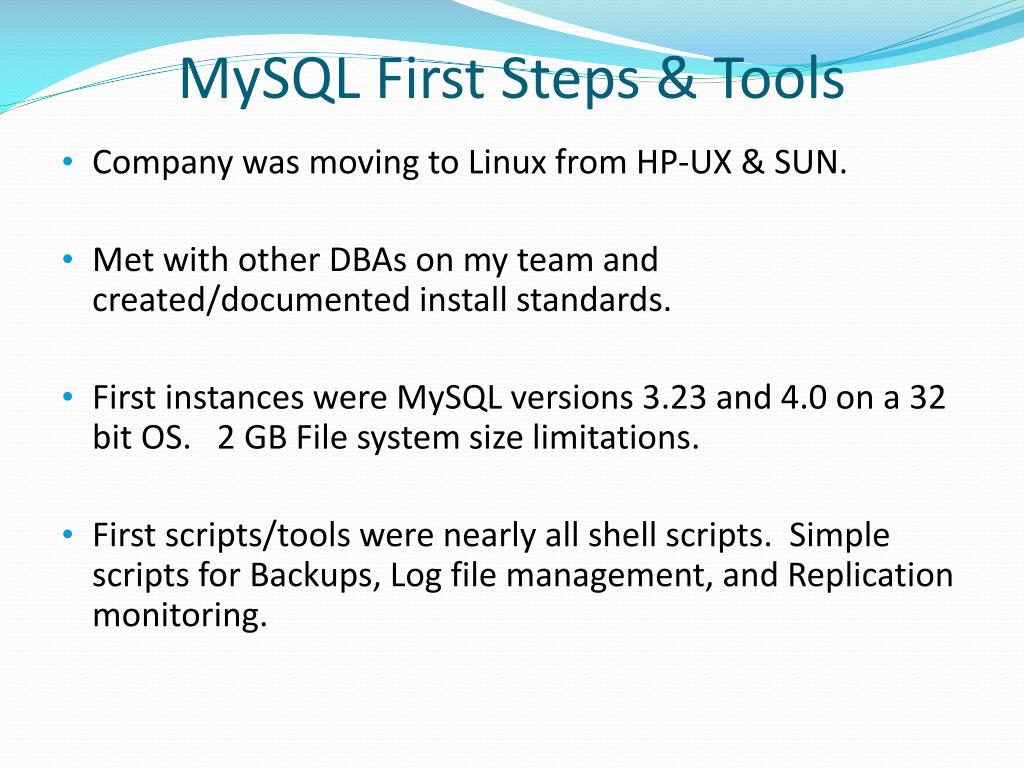

  4. MySQL First Steps & Tools • Company was moving to Linux from HP-UX & SUN. • Met with other DBAs on my team and created/documented install standards. • First instances were MySQL versions 3.23 and 4.0 on a 32 bit OS. 2 GB File system size limitations. • First scripts/tools were nearly all shell scripts. Simple scripts for Backups, Log file management, and Replication monitoring.

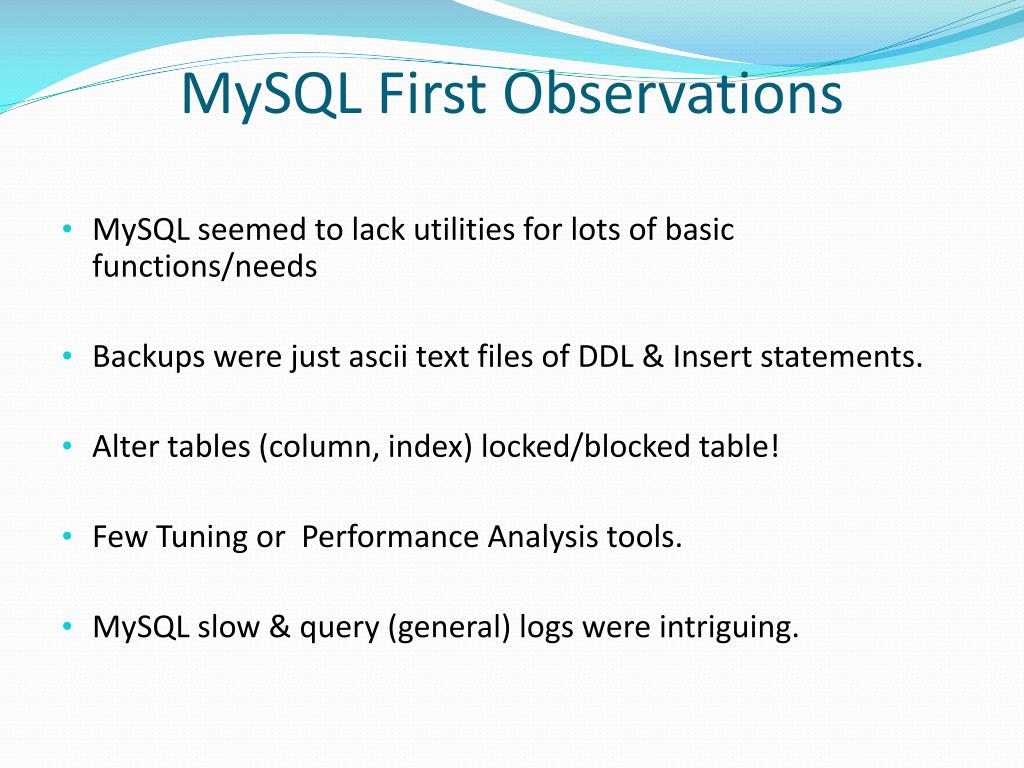

  5. MySQL First Observations • MySQL seemed to lack utilities for lots of basic functions/needs • Backups were just ascii text files of DDL & Insert statements. • Alter tables (column, index) locked/blocked table! • Few Tuning or Performance Analysis tools. • MySQL slow & query (general) logs were intriguing.

  6. David Axmark & Monty Widenius Jay Pipes Brian Aker Kaj Arno

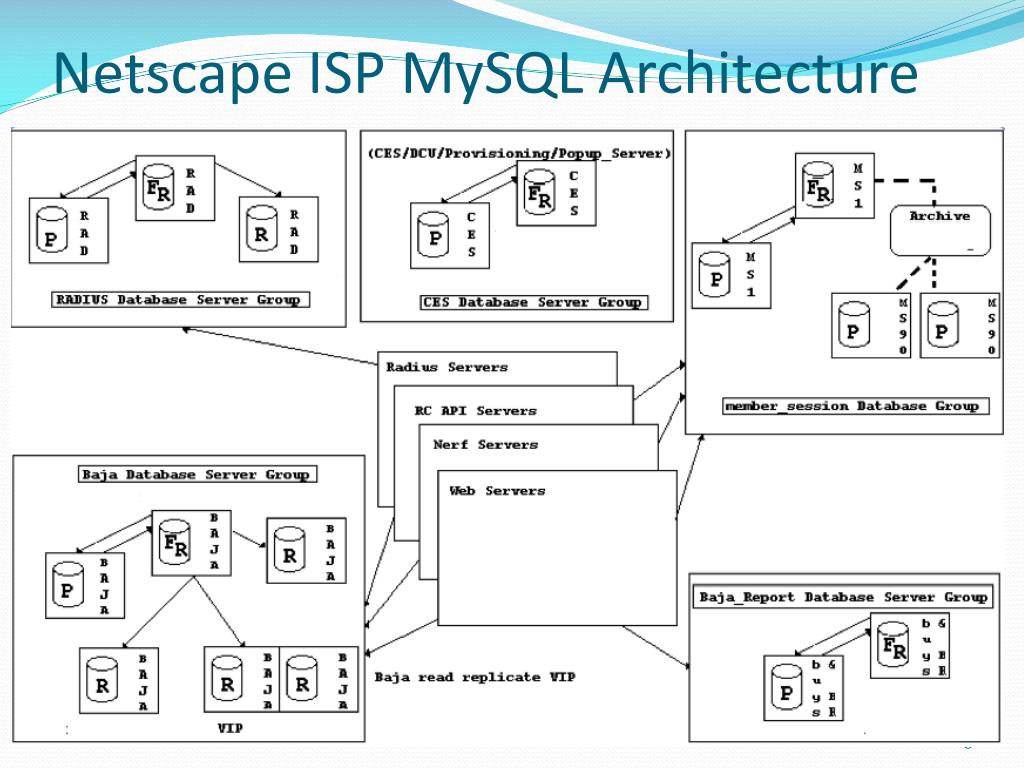

  7. Netscape ISP MySQL Architecture

  8. MySQL First Projects 2003 2004 2005 2006

  9. GoldRushDB Architecture

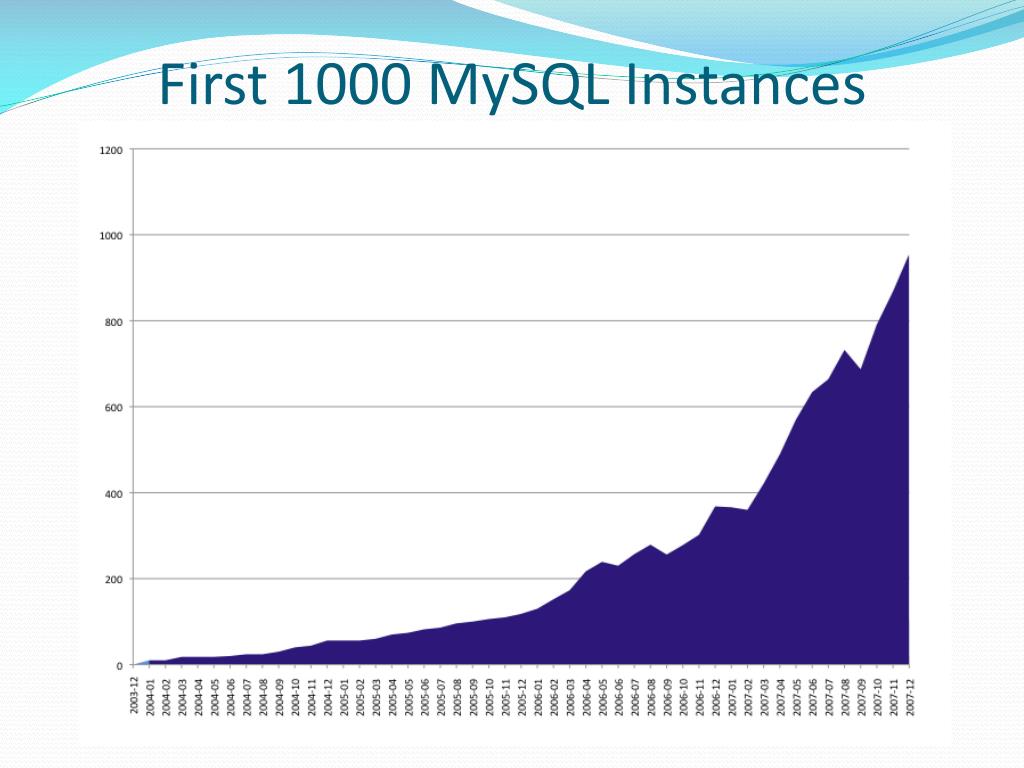

  10. First 1000 MySQL Instances

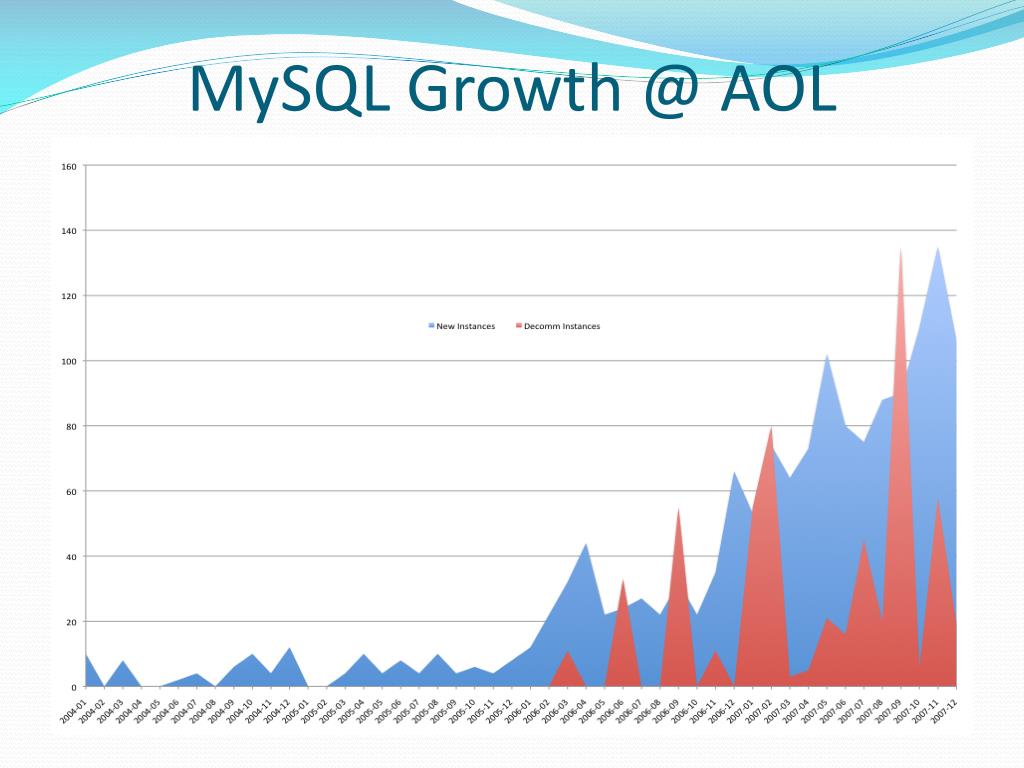

  11. MySQL Growth @ AOL

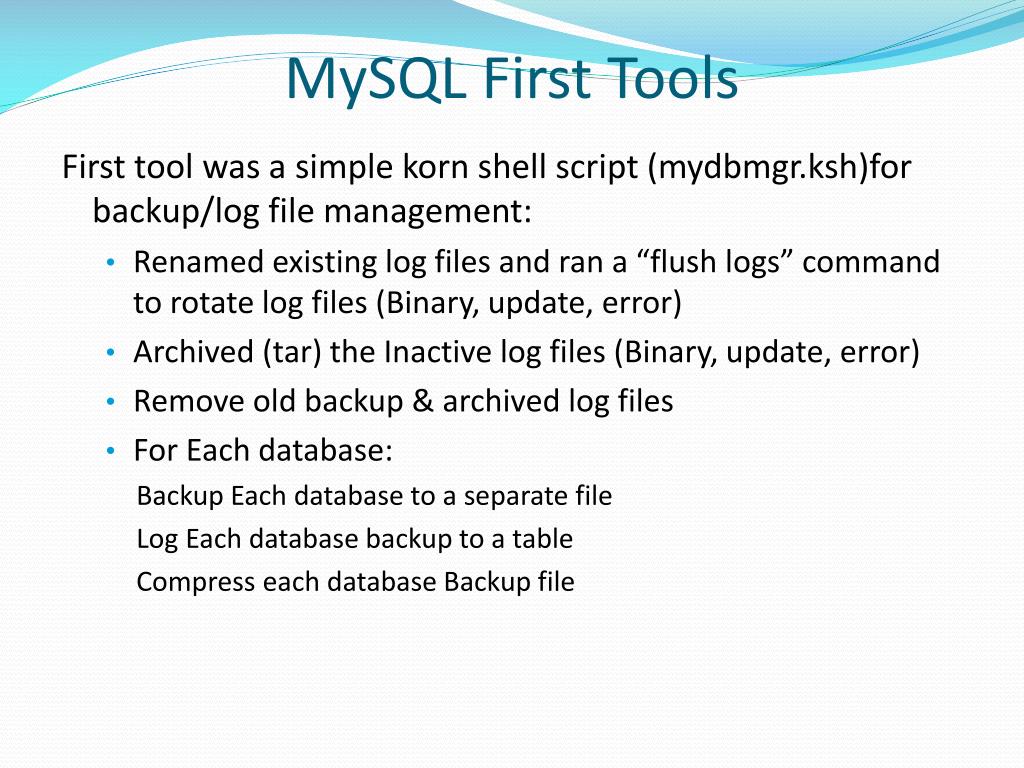

  12. MySQL First Tools First tool was a simple korn shell script (mydbmgr.ksh)for backup/log file management: • Renamed existing log files and ran a “flush logs” command to rotate log files (Binary, update, error) • Archived (tar) the Inactive log files (Binary, update, error) • Remove old backup & archived log files • For Each database: Backup Each database to a separate file Log Each database backup to a table Compress each database Backup file

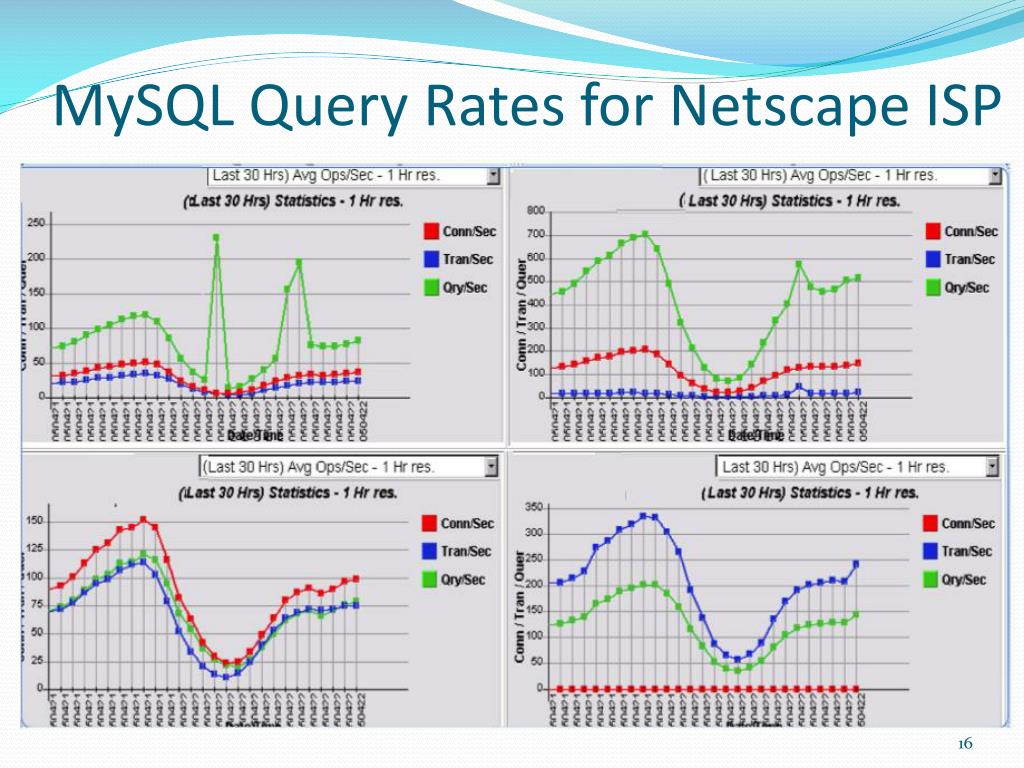

  13. MySQL Query Rates for Netscape ISP

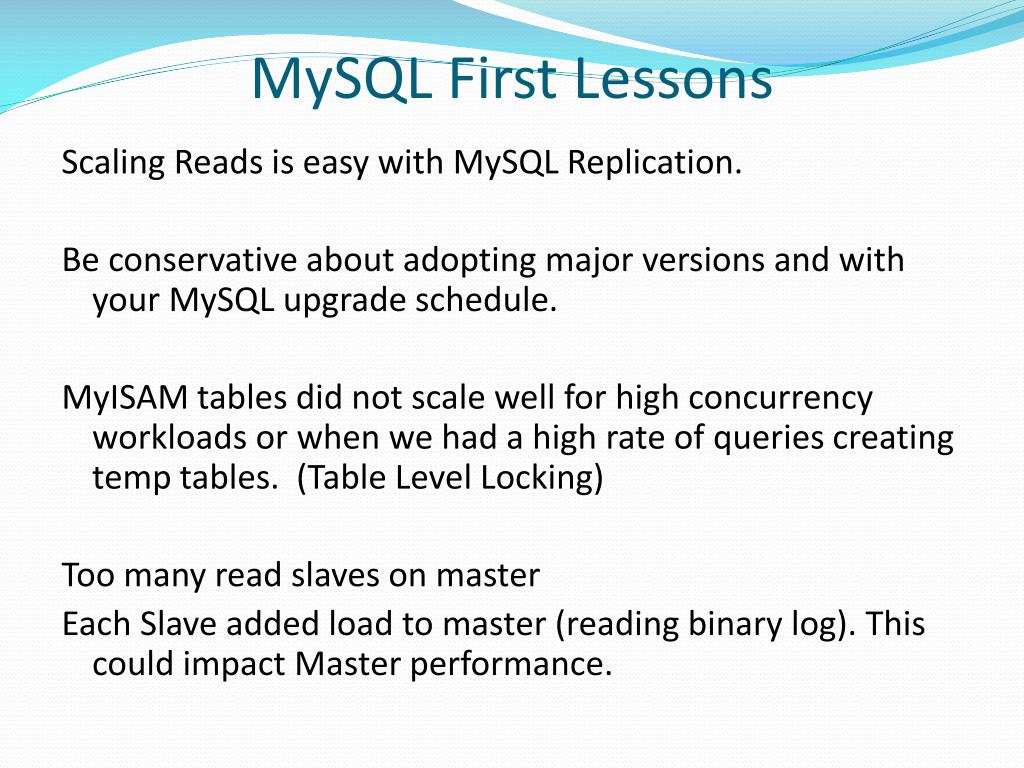

  14. MySQL First Lessons Scaling Reads is easy with MySQL Replication. Be conservative about adopting major versions and with your MySQL upgrade schedule. MyISAM tables did not scale well for high concurrency workloads or when we had a high rate of queries creating temp tables. (Table Level Locking) Too many read slaves on master Each Slave added load to master (reading binary log). This could impact Master performance.

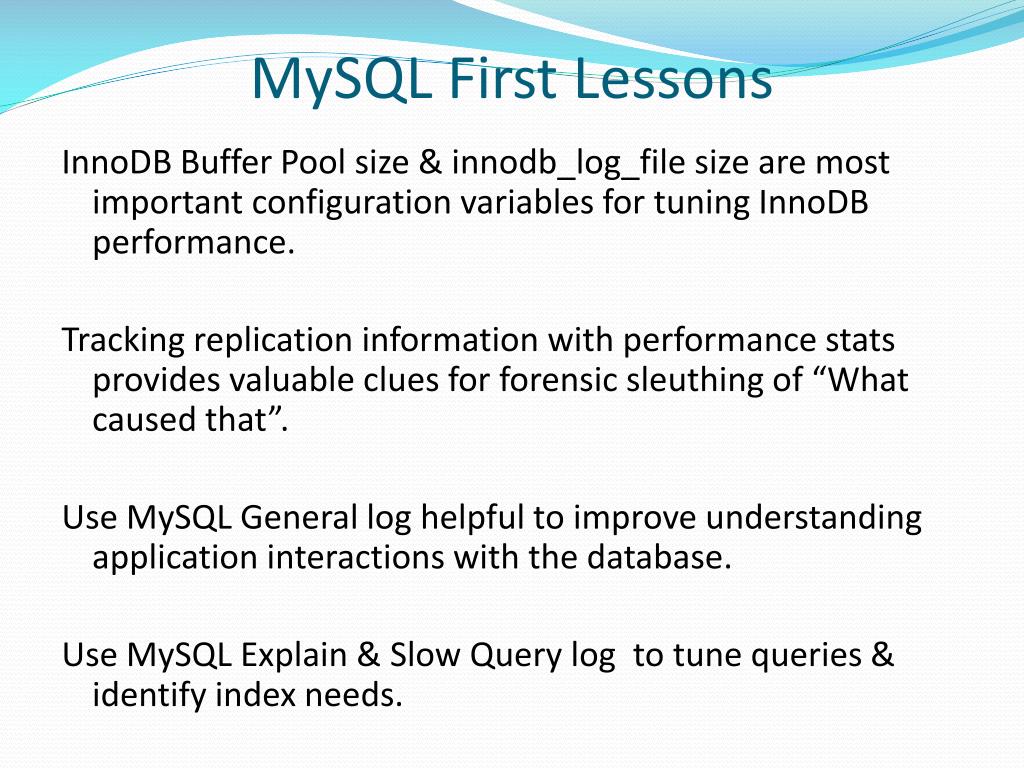

  15. MySQL First Lessons InnoDB Buffer Pool size & innodb_log_file size are most important configuration variables for tuning InnoDB performance. Tracking replication information with performance stats provides valuable clues for forensic sleuthing of “What caused that”. Use MySQL General log helpful to improve understanding application interactions with the database. Use MySQL Explain & Slow Query log to tune queries & identify index needs.

  16. Query Analysis Using the MySQL general log, an open source utility (mysqlreport http://hackmysql.com/mysqlreport), and a simple perl script (mysqlqa.pl), I created what I called a “Query Analysis”: Steps to do a Query Analysis: • Gather 1-n Hours of general log data. • Use mysqlreport to generate a plain SQL text file of queries from a MySQL general log. • Use mysqlqa.pl perl script to read the queries and create a generic version of the query. “EXPLAIN” is ran against the first occurrence of each new query.

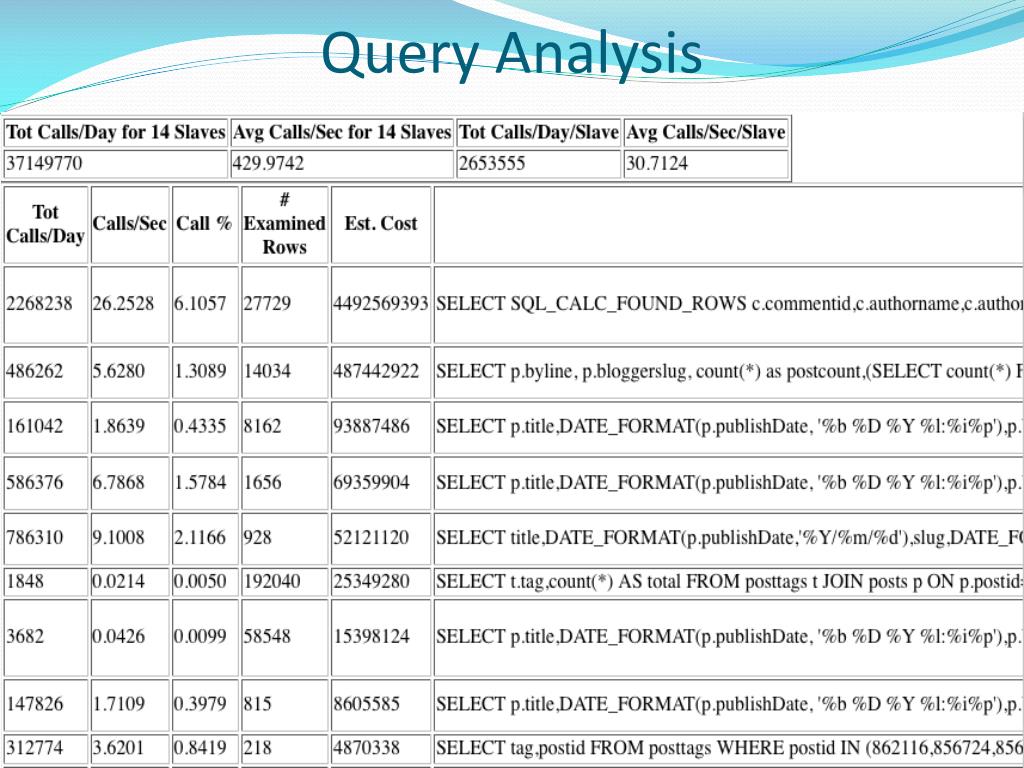

  17. Query Analysis

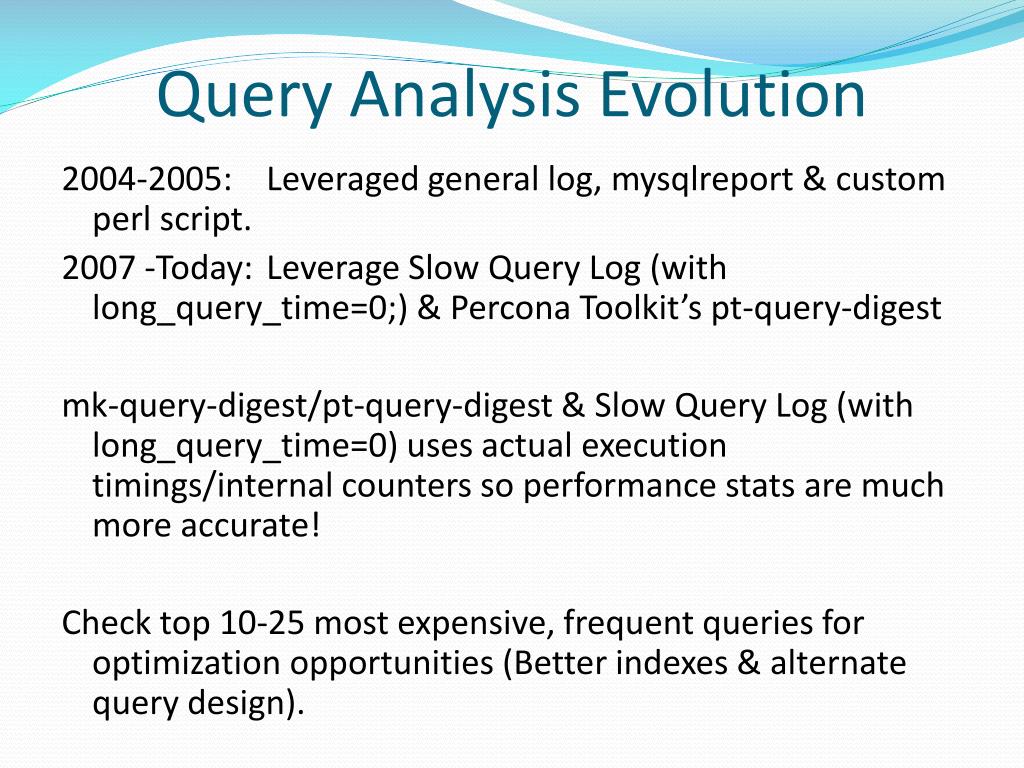

  18. Query Analysis Evolution 2004-2005: Leveraged general log, mysqlreport & custom perl script. 2007 -Today: Leverage Slow Query Log (with long_query_time=0;) & Percona Toolkit’s pt-query-digest mk-query-digest/pt-query-digest & Slow Query Log (with long_query_time=0) uses actual execution timings/internal counters so performance stats are much more accurate! Check top 10-25 most expensive, frequent queries for optimization opportunities (Better indexes & alternate query design).

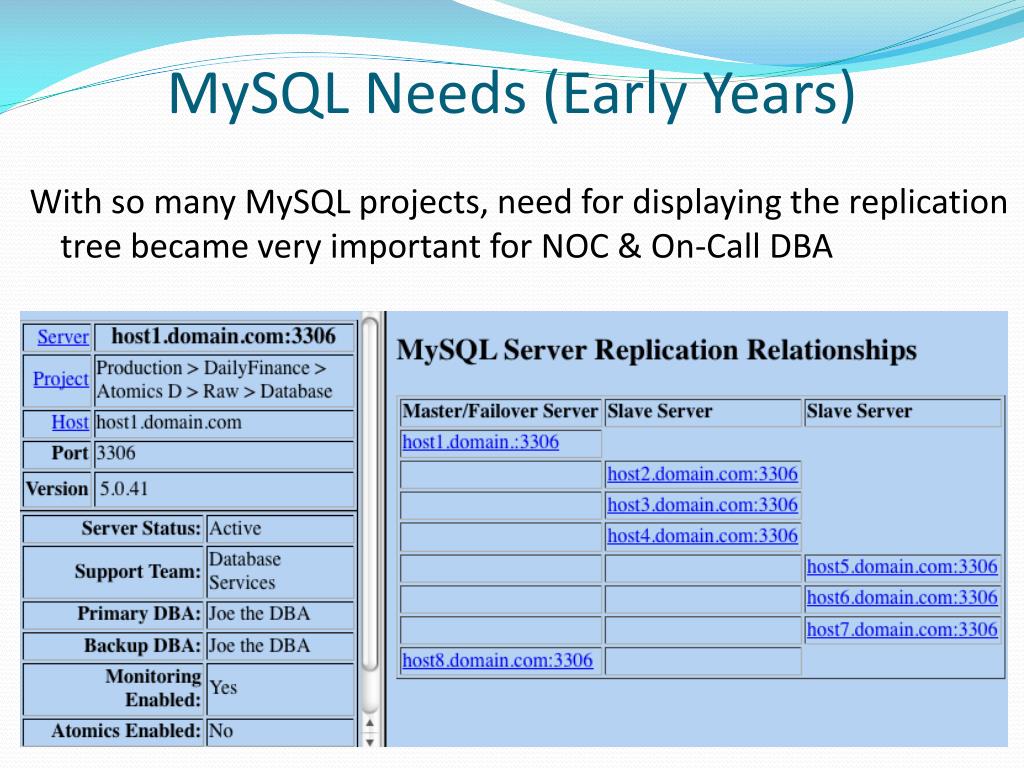

  19. MySQL Needs (Early Years) With so many MySQL projects, need for displaying the replication tree became very important for NOC & On-Call DBA

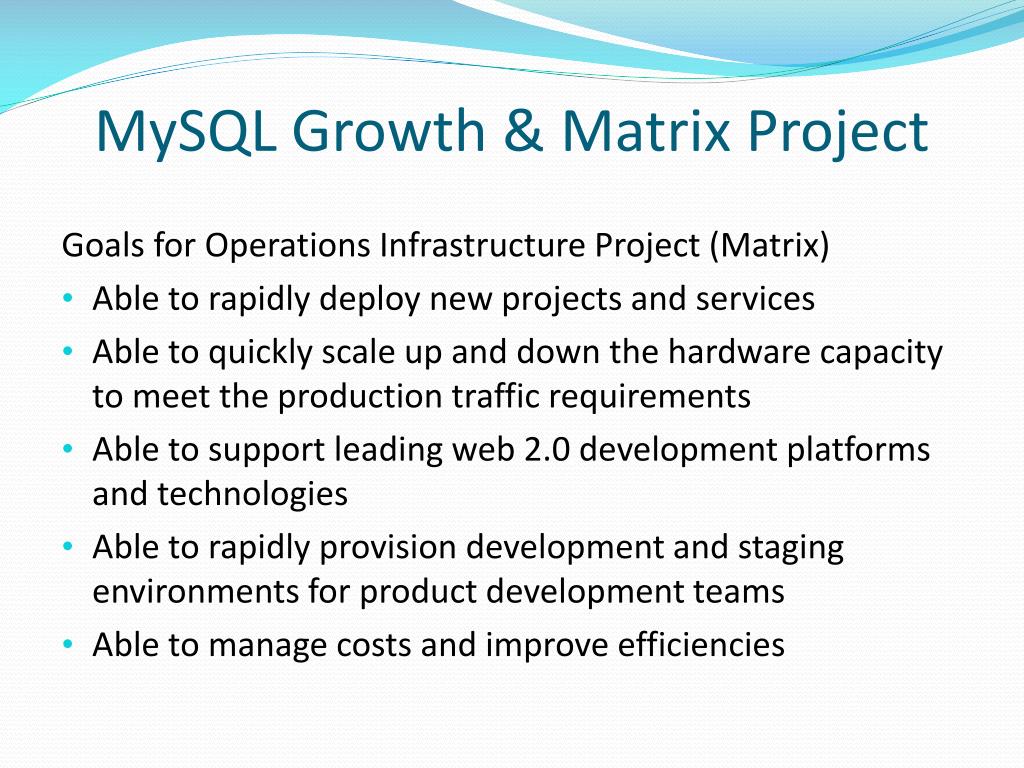

  20. MySQL Growth & Matrix Project Goals for Operations Infrastructure Project (Matrix) • Able to rapidly deploy new projects and services • Able to quickly scale up and down the hardware capacity to meet the production traffic requirements • Able to support leading web 2.0 development platforms and technologies • Able to rapidly provision development and staging environments for product development teams • Able to manage costs and improve efficiencies

  21. Project Matrix Solution A server farm, installed and pre-configured with all the leading web 2.0 platforms • LAMP Platform - Linux, Apache, MySQL, PHP • Standard Blogging Platform – Wordpress • Standard Content Mgmt Platform – Drupal Built in redundancy and scalability • 220 servers deployed in 2 Data Centers – Dulles and Manassas • Configured with Netscaler VIPs Rapid provisioning and scalability of projects at multiple tiers

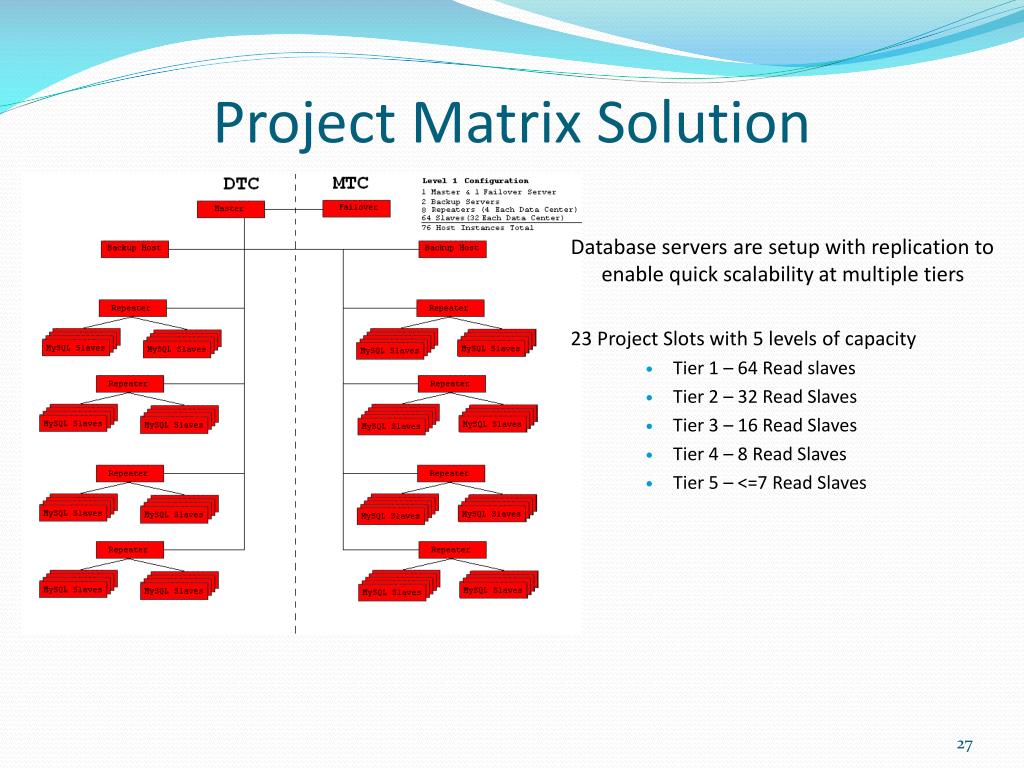

  22. Project Matrix Solution Database servers are setup with replication to enable quick scalability at multiple tiers 23 Project Slots with 5 levels of capacity • Tier 1 – 64 Read slaves • Tier 2 – 32 Read Slaves • Tier 3 – 16 Read Slaves • Tier 4 – 8 Read Slaves • Tier 5 – <=7 Read Slaves

  23. First 1000 MySQL Instances

  24. MySQL Growth @ AOL (2004-2011)

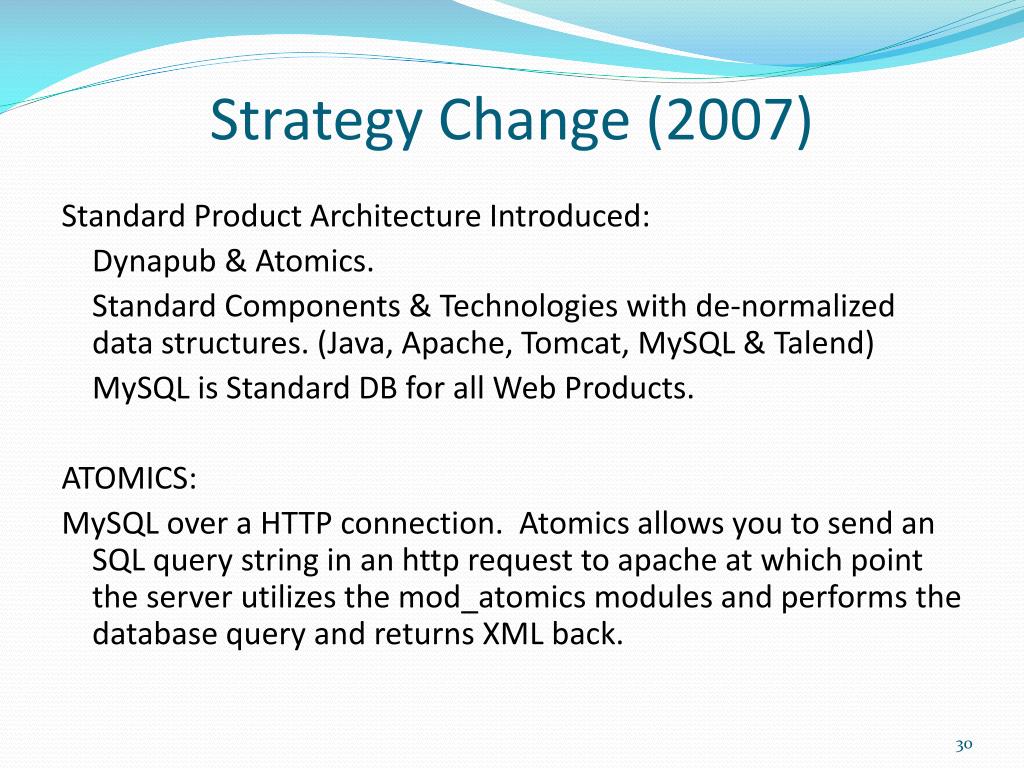

  25. Strategy Change (2007) Standard Product Architecture Introduced: Dynapub & Atomics. Standard Components & Technologies with de-normalized data structures. (Java, Apache, Tomcat, MySQL & Talend) MySQL is Standard DB for all Web Products. ATOMICS: MySQL over a HTTP connection. Atomics allows you to send an SQL query string in an http request to apache at which point the server utilizes the mod_atomics modules and performs the database query and returns XML back.

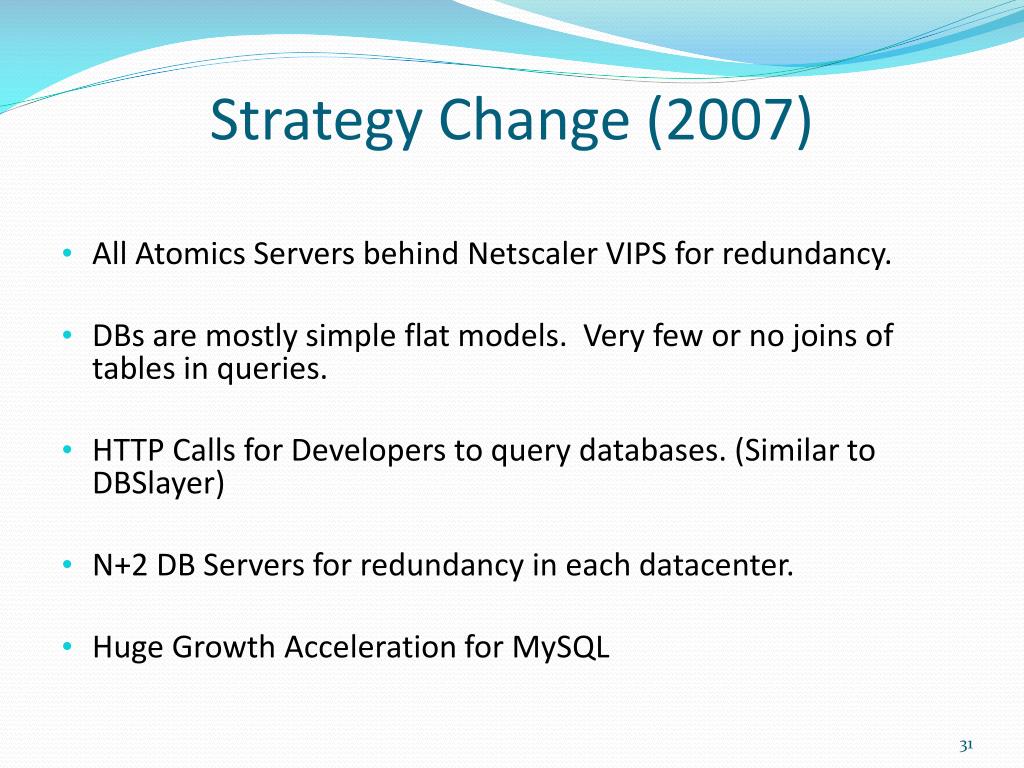

  26. Strategy Change (2007) • All Atomics Servers behind Netscaler VIPS for redundancy. • DBs are mostly simple flat models. Very few or no joins of tables in queries. • HTTP Calls for Developers to query databases. (Similar to DBSlayer) • N+2 DB Servers for redundancy in each datacenter. • Huge Growth Acceleration for MySQL

  27. MySQL Tools Evolution • More DBA groups supporting MySQL. • Monitoring tools and backup scripts now being written in Perl. • Installation scripts modified to work via remote SSH and are enhanced to setup replication. • Monitoring scripts integrated with enterprise data and scripts split by project_id to support concurrency. • Replication Topology Tool enhanced with cgi forms/buttons.

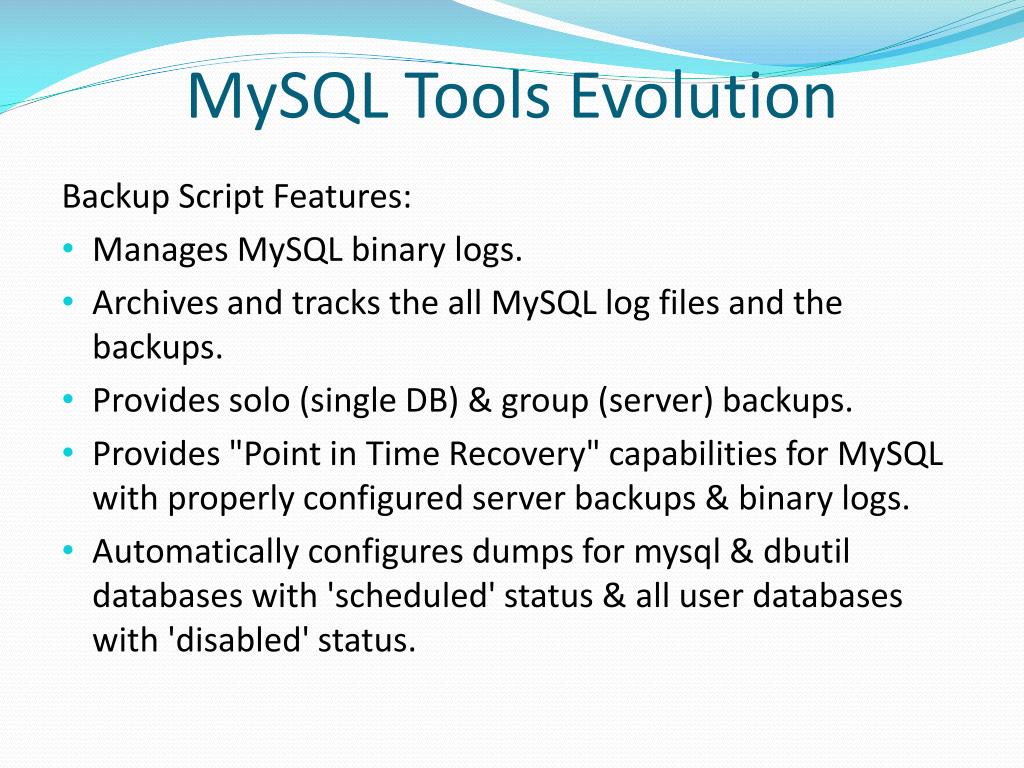

  28. MySQL Tools Evolution Backup Script Features: • Manages MySQL binary logs. • Archives and tracks the all MySQL log files and the backups. • Provides solo (single DB) & group (server) backups. • Provides "Point in Time Recovery" capabilities for MySQL with properly configured server backups & binary logs. • Automatically configures dumps for mysql & dbutil databases with 'scheduled' status & all user databases with 'disabled' status.

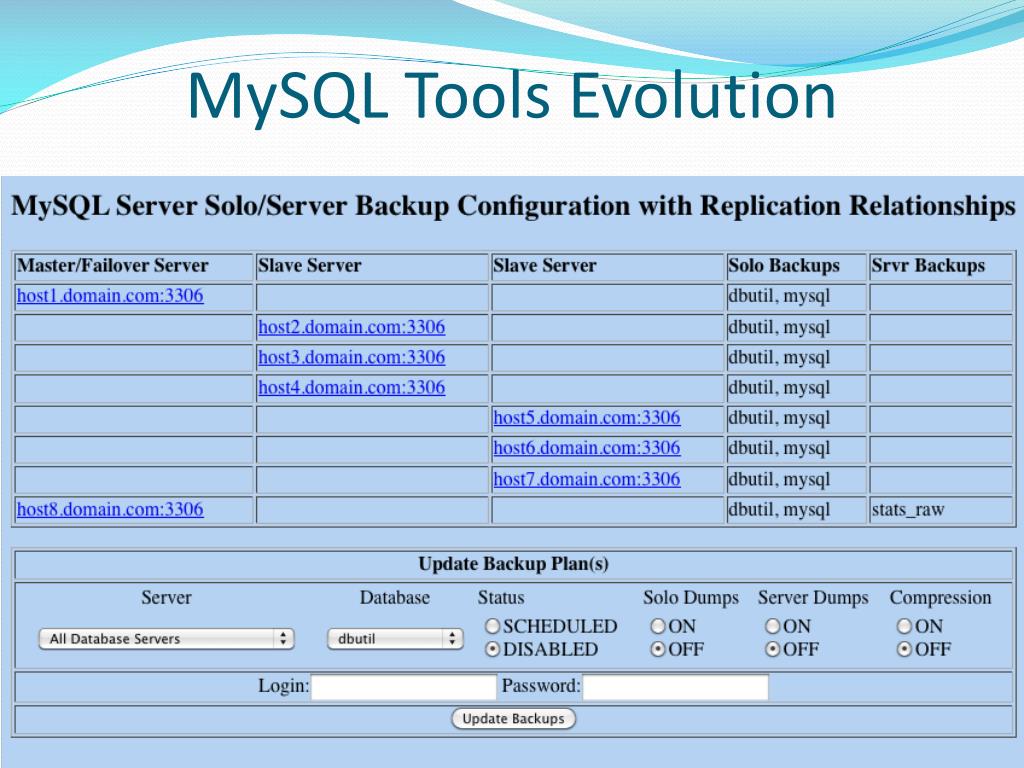

  29. MySQL Tools Evolution

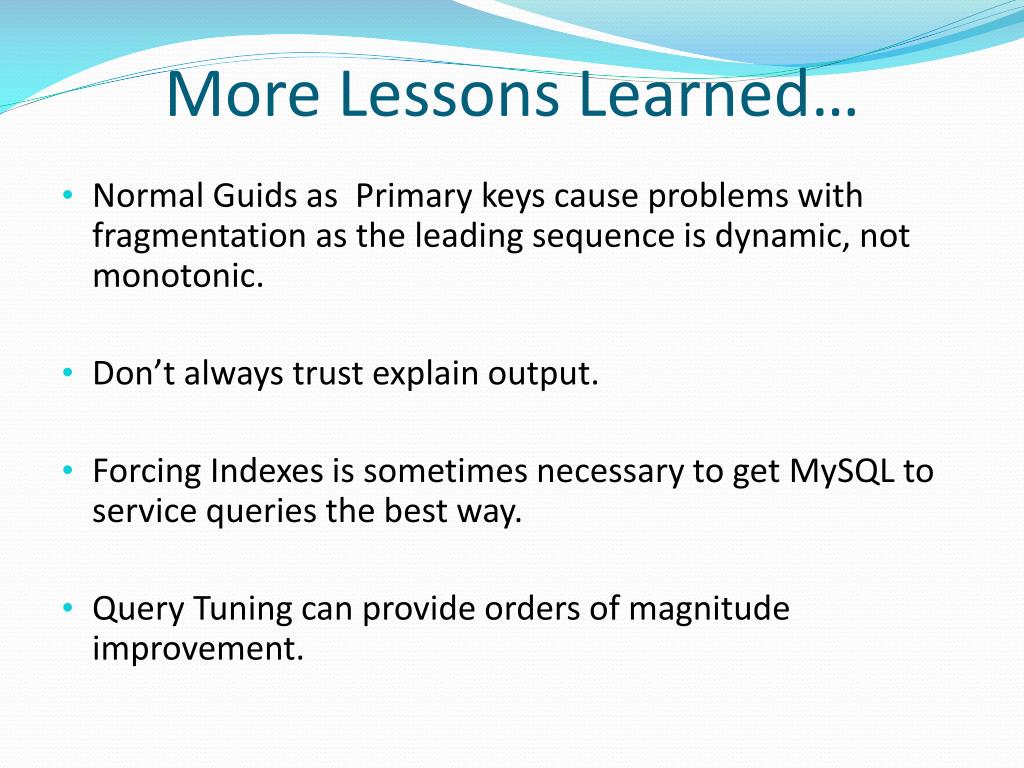

  30. More Lessons Learned… • Normal Guids as Primary keys cause problems with fragmentation as the leading sequence is dynamic, not monotonic. • Don’t always trust explain output. • Forcing Indexes is sometimes necessary to get MySQL to service queries the best way. • Query Tuning can provide orders of magnitude improvement.

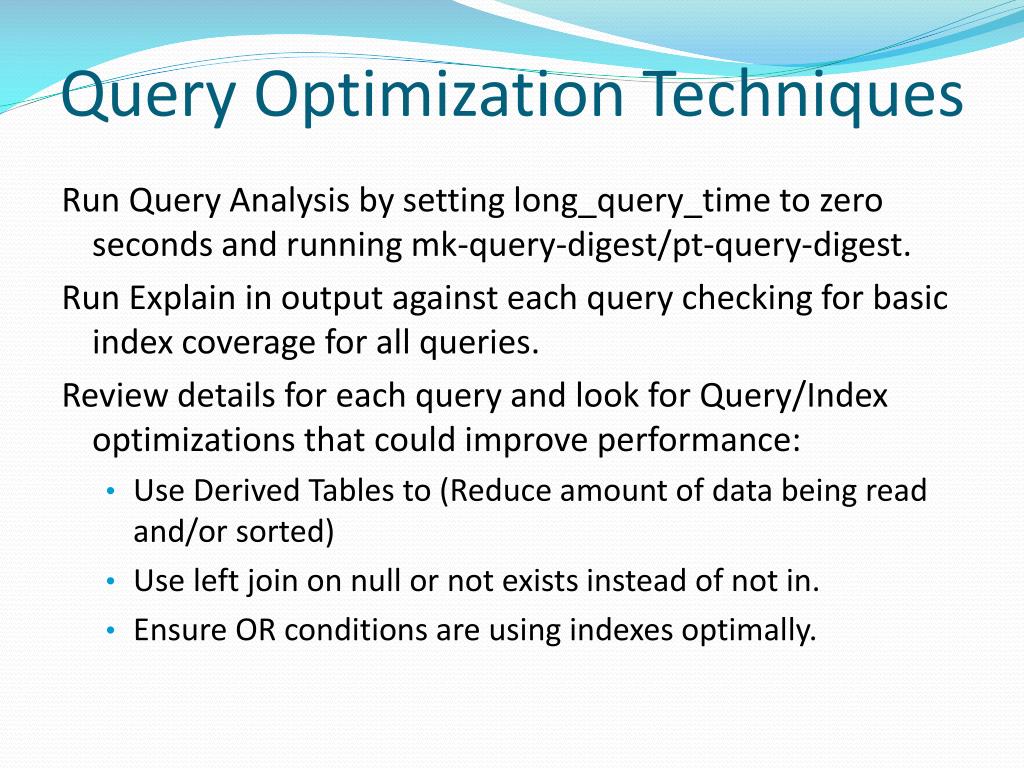

  31. Query Optimization Techniques Run Query Analysis by setting long_query_time to zero seconds and running mk-query-digest/pt-query-digest. Run Explain in output against each query checking for basic index coverage for all queries. Review details for each query and look for Query/Index optimizations that could improve performance: • Use Derived Tables to (Reduce amount of data being read and/or sorted) • Use left join on null or not exists instead of not in. • Ensure OR conditions are using indexes optimally.

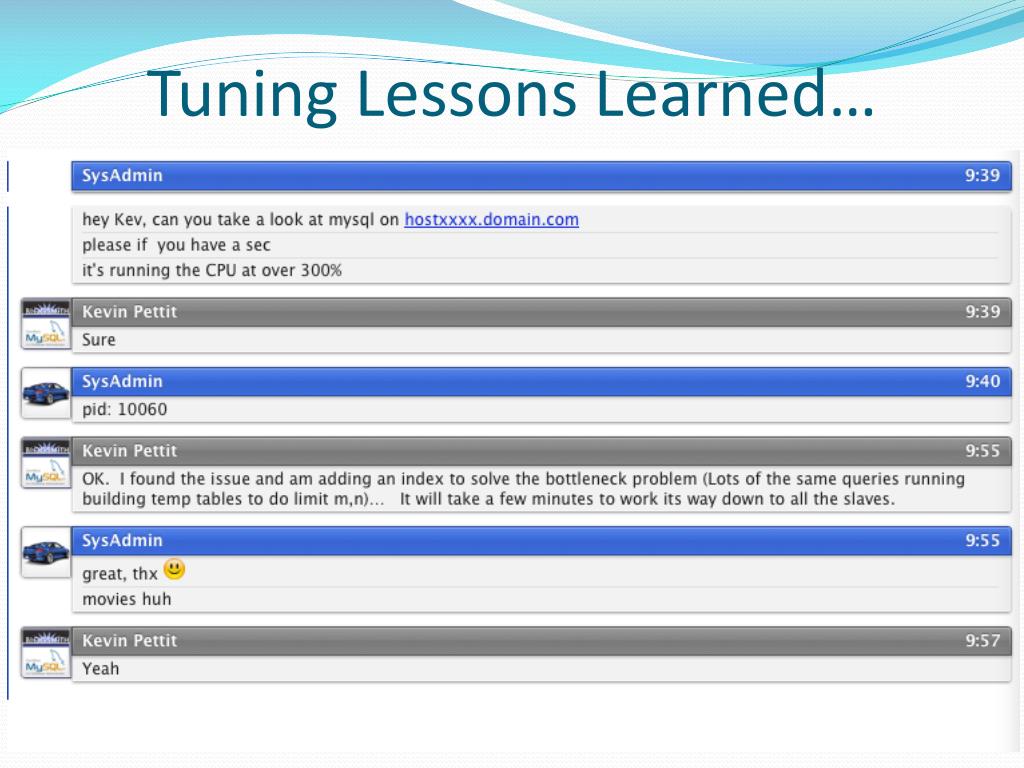

  32. Tuning Lessons Learned…

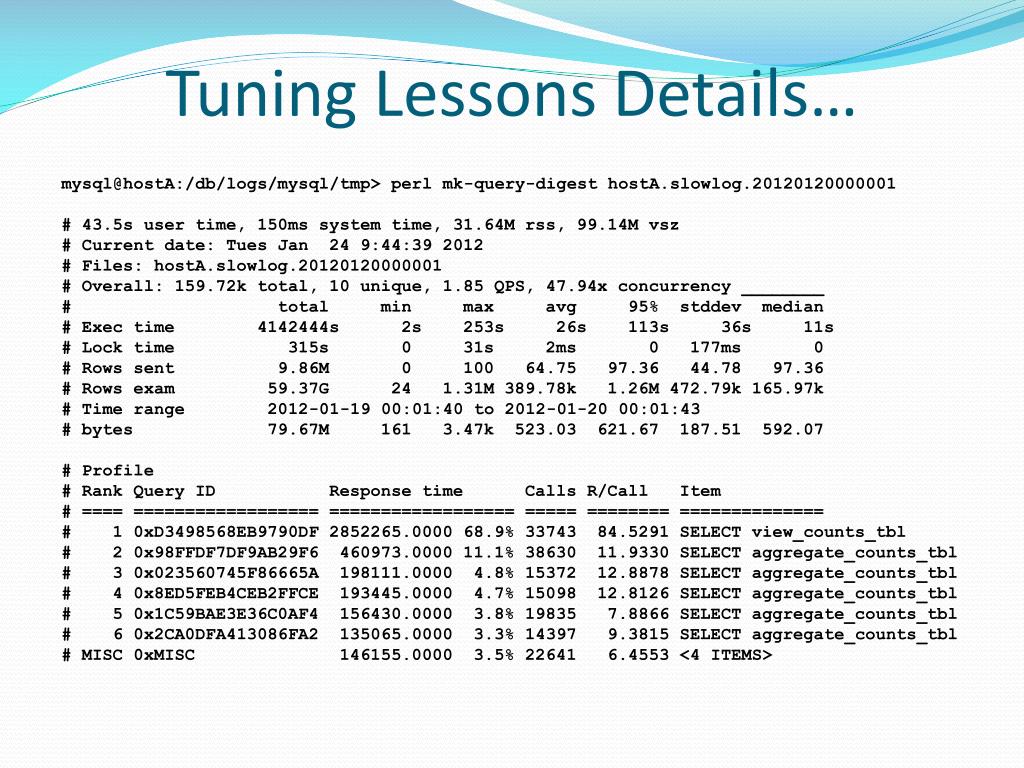

  33. Tuning Lessons Details… mysql@hostA:/db/logs/mysql/tmp> perl mk-query-digest hostA.slowlog.20120120000001 # 43.5s user time, 150ms system time, 31.64M rss, 99.14M vsz # Current date: Tues Jan 24 9:44:39 2012 # Files: hostA.slowlog.20120120000001 # Overall: 159.72k total, 10 unique, 1.85 QPS, 47.94x concurrency ________ # total min max avg 95% stddev median # Exec time 4142444s 2s 253s 26s 113s 36s 11s # Lock time 315s 0 31s 2ms 0 177ms 0 # Rows sent 9.86M 0 100 64.75 97.36 44.78 97.36 # Rows exam 59.37G 24 1.31M 389.78k 1.26M 472.79k 165.97k # Time range 2012-01-19 00:01:40 to 2012-01-20 00:01:43 # bytes 79.67M 161 3.47k 523.03 621.67 187.51 592.07 # Profile # Rank Query ID Response time Calls R/Call Item # ==== ================== ================== ===== ======== ============== # 1 0xD3498568EB9790DF 2852265.0000 68.9% 33743 84.5291 SELECT view_counts_tbl # 2 0x98FFDF7DF9AB29F6 460973.0000 11.1% 38630 11.9330 SELECT aggregate_counts_tbl # 3 0x023560745F86665A 198111.0000 4.8% 15372 12.8878 SELECT aggregate_counts_tbl # 4 0x8ED5FEB4CEB2FFCE 193445.0000 4.7% 15098 12.8126 SELECT aggregate_counts_tbl # 5 0x1C59BAE3E36C0AF4 156430.0000 3.8% 19835 7.8866 SELECT aggregate_counts_tbl # 6 0x2CA0DFA413086FA2 135065.0000 3.3% 14397 9.3815 SELECT aggregate_counts_tbl # MISC 0xMISC 146155.0000 3.5% 22641 6.4553 <4 ITEMS>

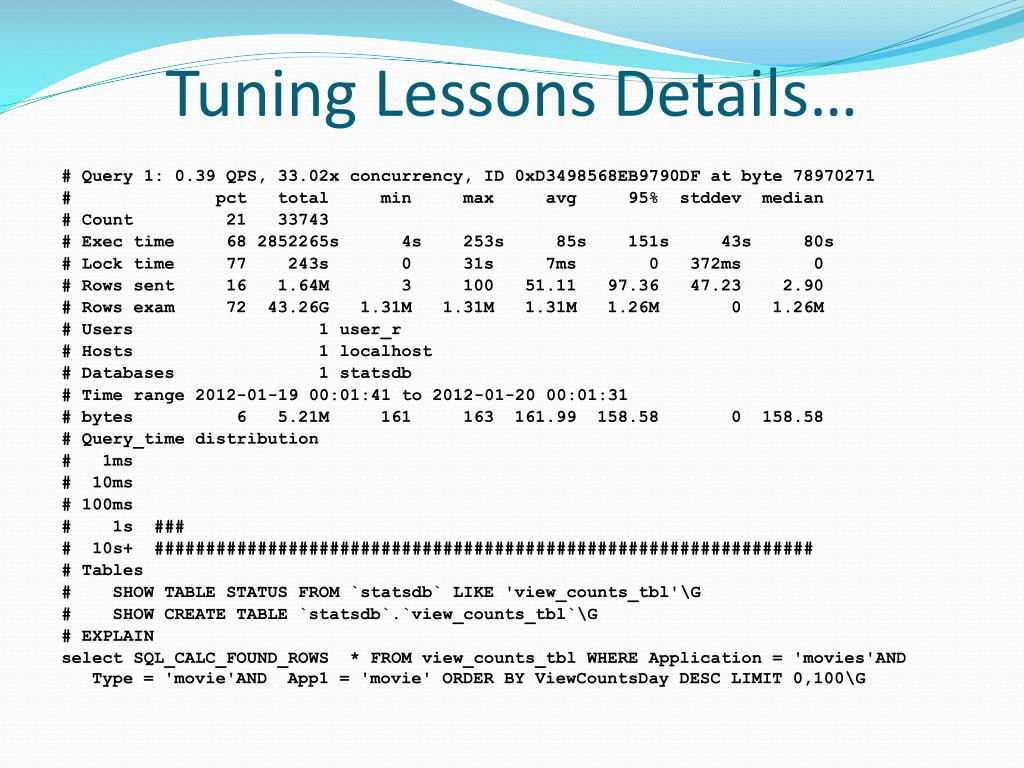

  34. Tuning Lessons Details… # Query 1: 0.39 QPS, 33.02x concurrency, ID 0xD3498568EB9790DF at byte 78970271 # pct total min max avg 95% stddev median # Count 21 33743 # Exec time 68 2852265s 4s 253s 85s 151s 43s 80s # Lock time 77 243s 0 31s 7ms 0 372ms 0 # Rows sent 16 1.64M 3 100 51.11 97.36 47.23 2.90 # Rows exam 72 43.26G 1.31M 1.31M 1.31M 1.26M 0 1.26M # Users 1 user_r # Hosts 1 localhost # Databases 1 statsdb # Time range 2012-01-19 00:01:41 to 2012-01-20 00:01:31 # bytes 6 5.21M 161 163 161.99 158.58 0 158.58 # Query_time distribution # 1ms # 10ms # 100ms # 1s ### # 10s+ ################################################################ # Tables # SHOW TABLE STATUS FROM `statsdb` LIKE 'view_counts_tbl'\G # SHOW CREATE TABLE `statsdb`.`view_counts_tbl`\G # EXPLAIN select SQL_CALC_FOUND_ROWS * FROM view_counts_tbl WHERE Application = 'movies'AND Type = 'movie'AND App1 = 'movie' ORDER BY ViewCountsDay DESC LIMIT 0,100\G

  35. Tuning Lessons Details… CREATE TABLE `view_counts_tbl` ( `AggregateViewID` int(10) unsigned NOT NULL AUTO_INCREMENT, `AssetURI` varchar(255) NOT NULL, `Application` varchar(30) NOT NULL DEFAULT '', `Category` varchar(25) DEFAULT '', `Type` varchar(25) DEFAULT '', `App1` varchar(64) DEFAULT '', `App2` varchar(64) DEFAULT '', `App3` varchar(64) DEFAULT '', `UpdateDate` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP, `ViewCountsDay` int(10) unsigned DEFAULT '0', `ViewCountsWeek` int(10) unsigned DEFAULT '0', `ViewCountsMonth` int(10) unsigned DEFAULT '0', `ViewCountsAll` int(10) unsigned DEFAULT '0', PRIMARY KEY (`AggregateViewID`), UNIQUE KEY `index` (`AssetURI`,`Application`), KEY `view_idx1` (`ViewCountsDay`), ) ENGINE=InnoDB DEFAULT CHARSET=utf8; select SQL_CALC_FOUND_ROWS * FROM view_counts_tbl WHERE Application = 'movies’ AND Type = 'movie’ AND App1 = 'movie' ORDER BY ViewCountsDay DESC LIMIT 0,100\G

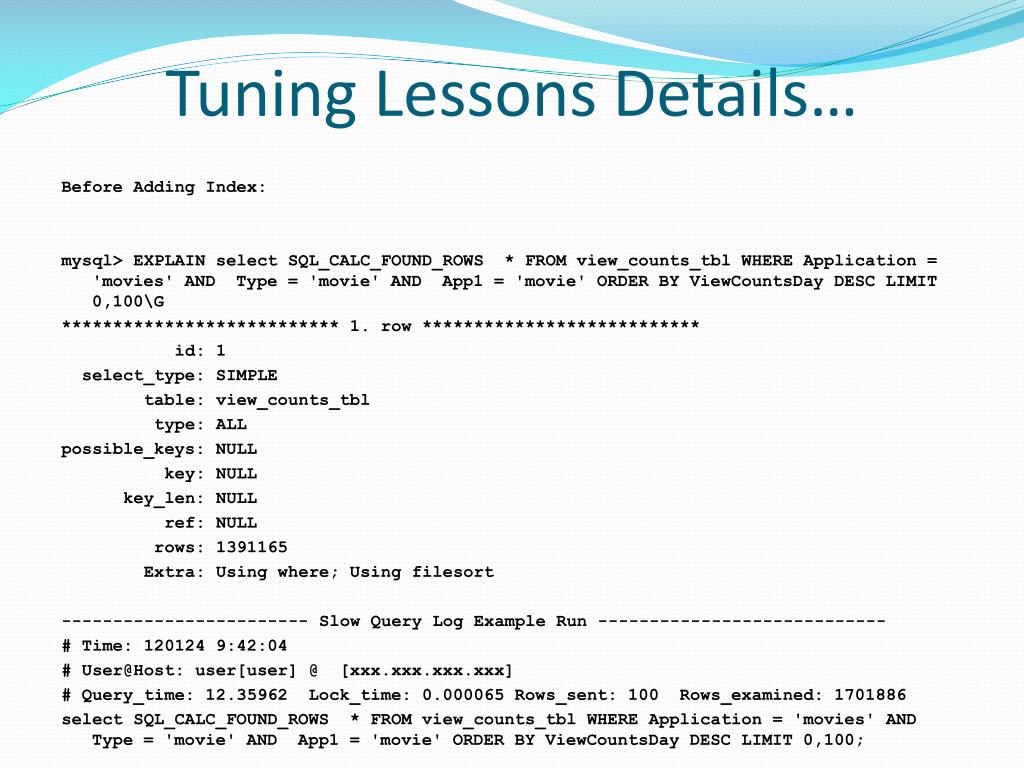

  36. Tuning Lessons Details… Before Adding Index: mysql> EXPLAIN select SQL_CALC_FOUND_ROWS * FROM view_counts_tbl WHERE Application = 'movies' AND Type = 'movie' AND App1 = 'movie' ORDER BY ViewCountsDay DESC LIMIT 0,100\G *************************** 1. row *************************** id: 1 select_type: SIMPLE table: view_counts_tbl type: ALL possible_keys: NULL key: NULL key_len: NULL ref: NULL rows: 1391165 Extra: Using where; Using filesort ------------------------ Slow Query Log Example Run ---------------------------- # Time: 120124 9:42:04 # User@Host: user[user] @ [xxx.xxx.xxx.xxx] # Query_time: 12.35962 Lock_time: 0.000065 Rows_sent: 100 Rows_examined: 1701886 select SQL_CALC_FOUND_ROWS * FROM view_counts_tbl WHERE Application = 'movies' AND Type = 'movie' AND App1 = 'movie' ORDER BY ViewCountsDay DESC LIMIT 0,100;

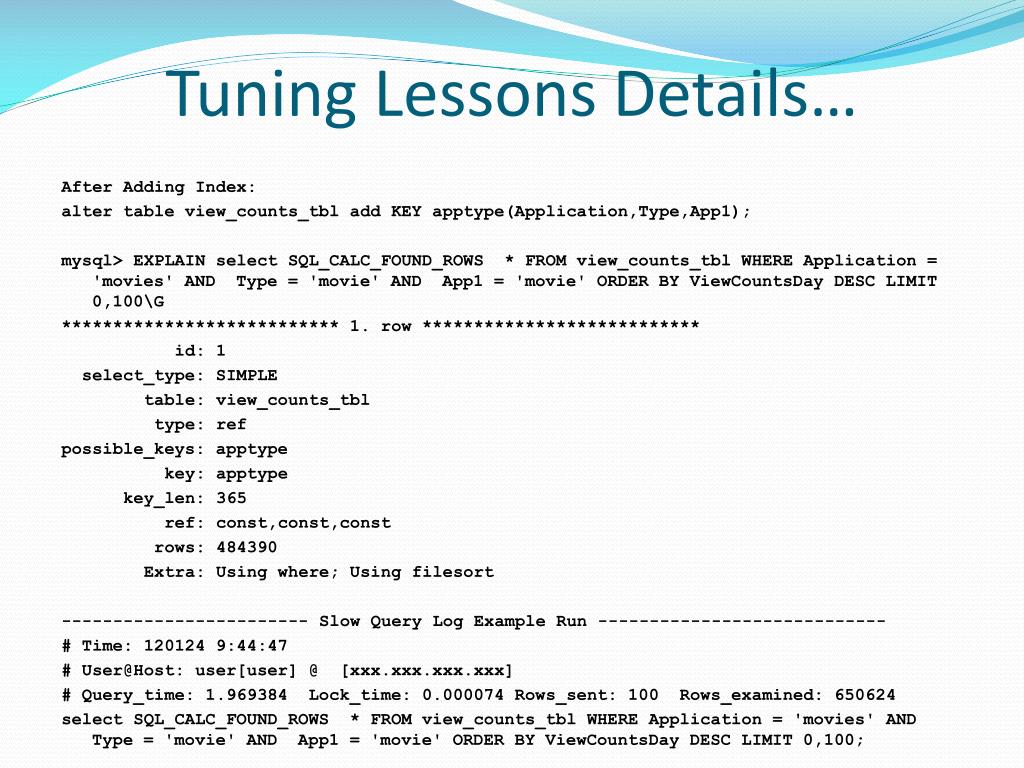

  37. Tuning Lessons Details… After Adding Index: alter table view_counts_tbl add KEY apptype(Application,Type,App1); mysql> EXPLAIN select SQL_CALC_FOUND_ROWS * FROM view_counts_tbl WHERE Application = 'movies' AND Type = 'movie' AND App1 = 'movie' ORDER BY ViewCountsDay DESC LIMIT 0,100\G *************************** 1. row *************************** id: 1 select_type: SIMPLE table: view_counts_tbl type: ref possible_keys: apptype key: apptype key_len: 365 ref: const,const,const rows: 484390 Extra: Using where; Using filesort ------------------------ Slow Query Log Example Run ---------------------------- # Time: 120124 9:44:47 # User@Host: user[user] @ [xxx.xxx.xxx.xxx] # Query_time: 1.969384 Lock_time: 0.000074 Rows_sent: 100 Rows_examined: 650624 select SQL_CALC_FOUND_ROWS * FROM view_counts_tbl WHERE Application = 'movies' AND Type = 'movie' AND App1 = 'movie' ORDER BY ViewCountsDay DESC LIMIT 0,100;

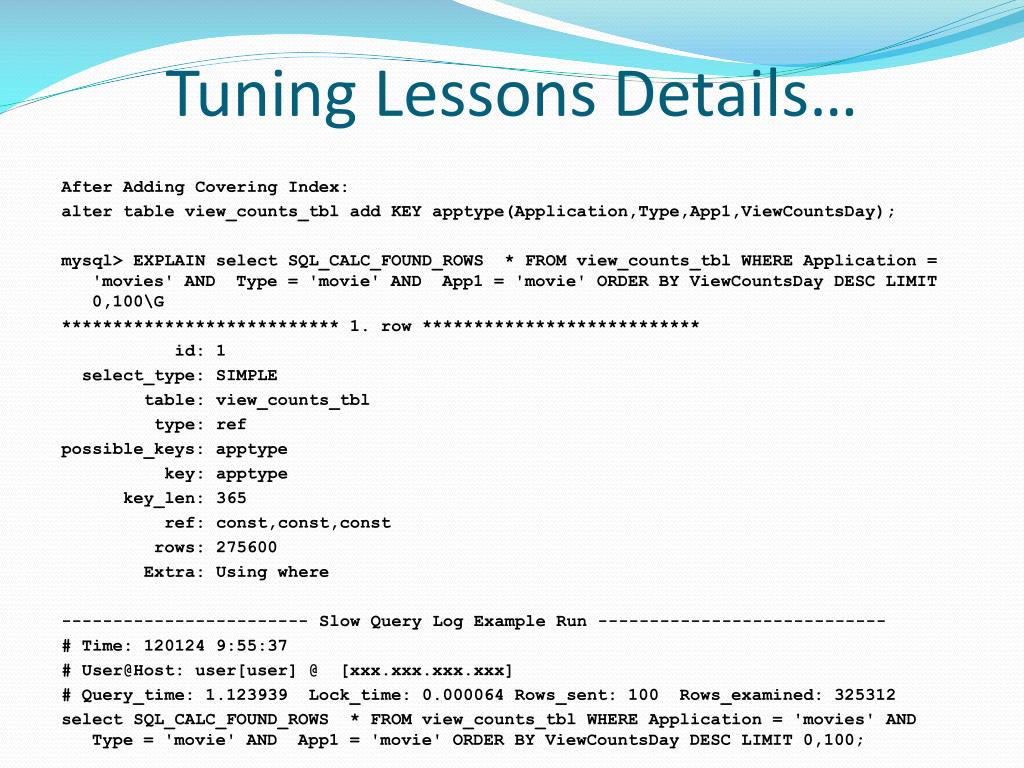

  38. Tuning Lessons Details… After Adding Covering Index: alter table view_counts_tbl add KEY apptype(Application,Type,App1,ViewCountsDay); mysql> EXPLAIN select SQL_CALC_FOUND_ROWS * FROM view_counts_tbl WHERE Application = 'movies' AND Type = 'movie' AND App1 = 'movie' ORDER BY ViewCountsDay DESC LIMIT 0,100\G *************************** 1. row *************************** id: 1 select_type: SIMPLE table: view_counts_tbl type: ref possible_keys: apptype key: apptype key_len: 365 ref: const,const,const rows: 275600 Extra: Using where ------------------------ Slow Query Log Example Run ---------------------------- # Time: 120124 9:55:37 # User@Host: user[user] @ [xxx.xxx.xxx.xxx] # Query_time: 1.123939 Lock_time: 0.000064 Rows_sent: 100 Rows_examined: 325312 select SQL_CALC_FOUND_ROWS * FROM view_counts_tbl WHERE Application = 'movies' AND Type = 'movie' AND App1 = 'movie' ORDER BY ViewCountsDay DESC LIMIT 0,100;

  39. Tuning Lessons Details… After Removing SQL_CALC_FOUND_ROWS from the query: mysql> EXPLAIN select * FROM view_counts_tbl WHERE Application = 'movies' AND Type = 'movie' AND App1 = 'movie' ORDER BY ViewCountsDay DESC LIMIT 0,100\G *************************** 1. row *************************** id: 1 select_type: SIMPLE table: view_counts_tbl type: ref possible_keys: apptype key: apptype key_len: 365 ref: const,const,const rows: 275600 Extra: Using where ------------------------ Slow Query Log Example Run ---------------------------- # Time: 120124 12:55:37 # User@Host: user[user] @ [xxx.xxx.xxx.xxx] # Query_time: 0.001075 Lock_time: 0.000056 Rows_sent: 100 Rows_examined: 100 select * FROM view_counts_tbl WHERE Application = 'movies' AND Type = 'movie' AND App1 = 'movie' ORDER BY ViewCountsDay DESC LIMIT 0,100;

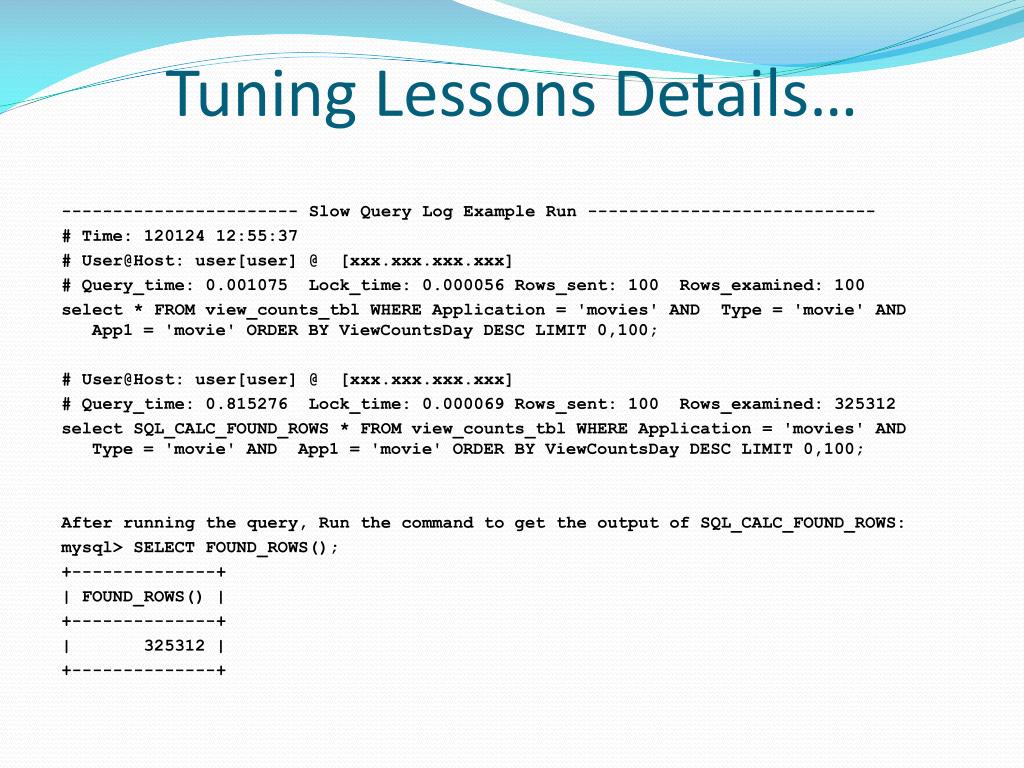

  40. Tuning Lessons Details… ----------------------- Slow Query Log Example Run ---------------------------- # Time: 120124 12:55:37 # User@Host: user[user] @ [xxx.xxx.xxx.xxx] # Query_time: 0.001075 Lock_time: 0.000056 Rows_sent: 100 Rows_examined: 100 select * FROM view_counts_tbl WHERE Application = 'movies' AND Type = 'movie' AND App1 = 'movie' ORDER BY ViewCountsDay DESC LIMIT 0,100; # User@Host: user[user] @ [xxx.xxx.xxx.xxx] # Query_time: 0.815276 Lock_time: 0.000069 Rows_sent: 100 Rows_examined: 325312 select SQL_CALC_FOUND_ROWS * FROM view_counts_tbl WHERE Application = 'movies' AND Type = 'movie' AND App1 = 'movie' ORDER BY ViewCountsDay DESC LIMIT 0,100; After running the query, Run the command to get the output of SQL_CALC_FOUND_ROWS: mysql> SELECT FOUND_ROWS(); +--------------+ | FOUND_ROWS() | +--------------+ | 325312 | +--------------+

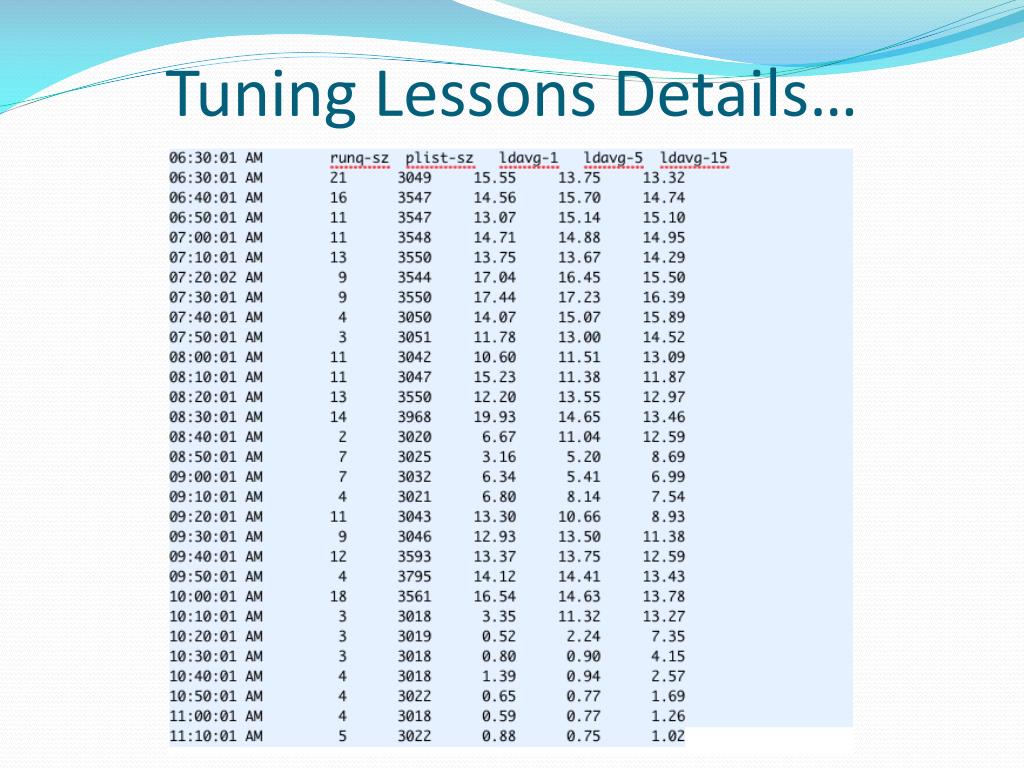

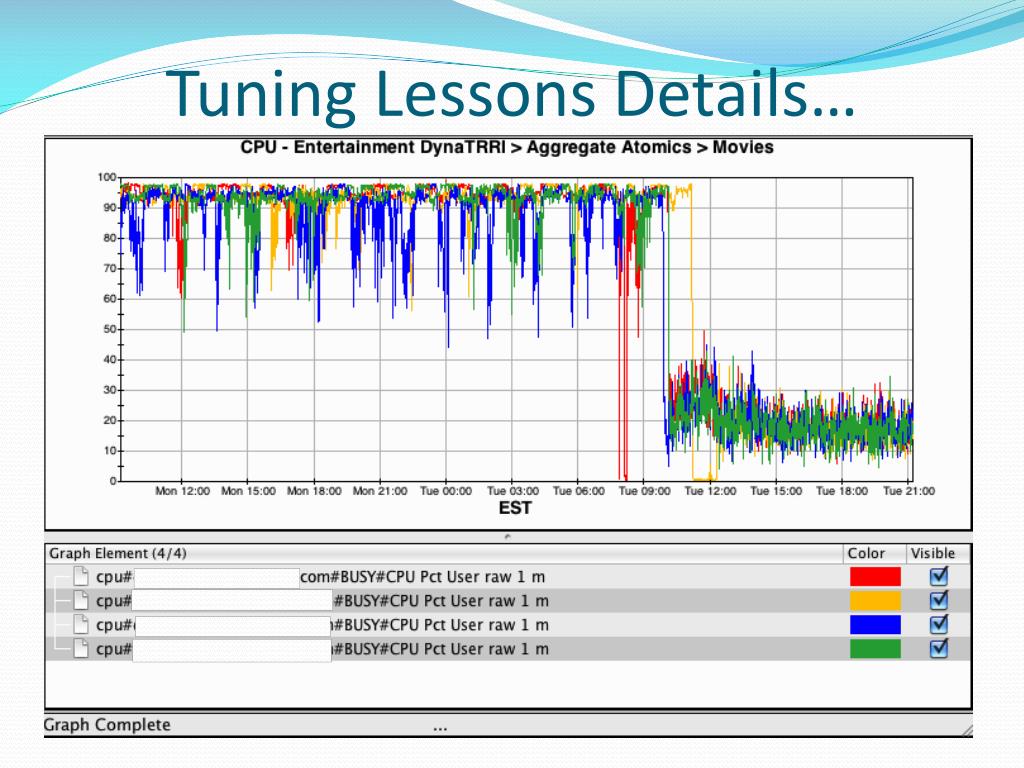

  41. Tuning Lessons Details…

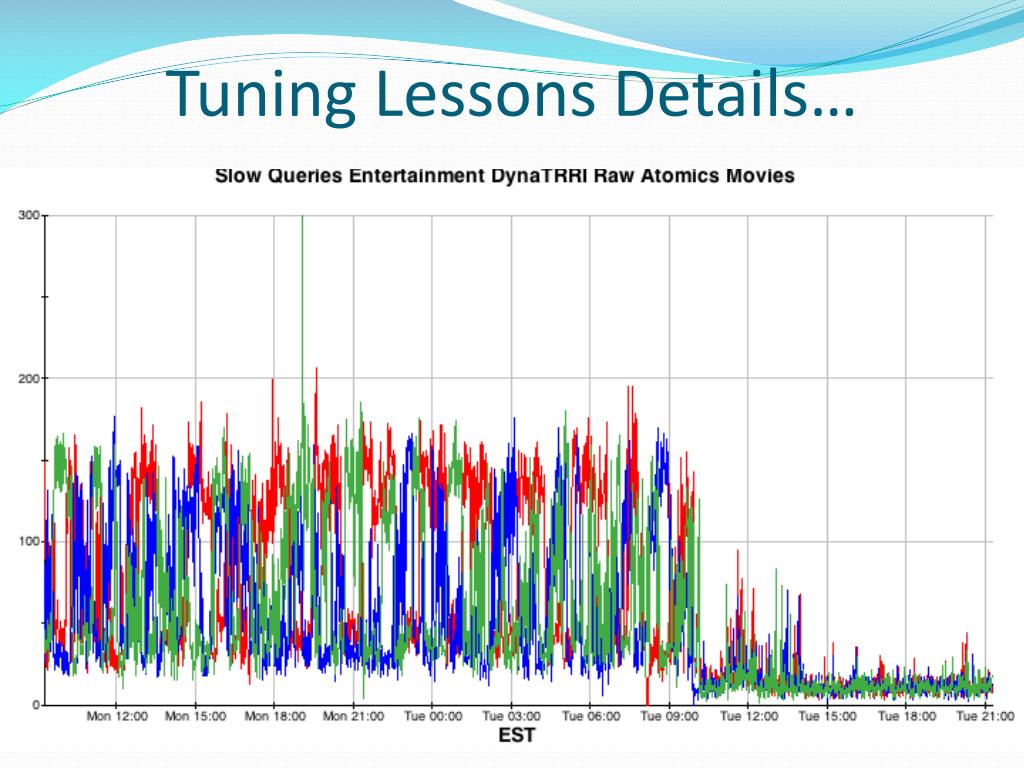

  42. Tuning Lessons Details…

  43. Tuning Lessons Details…

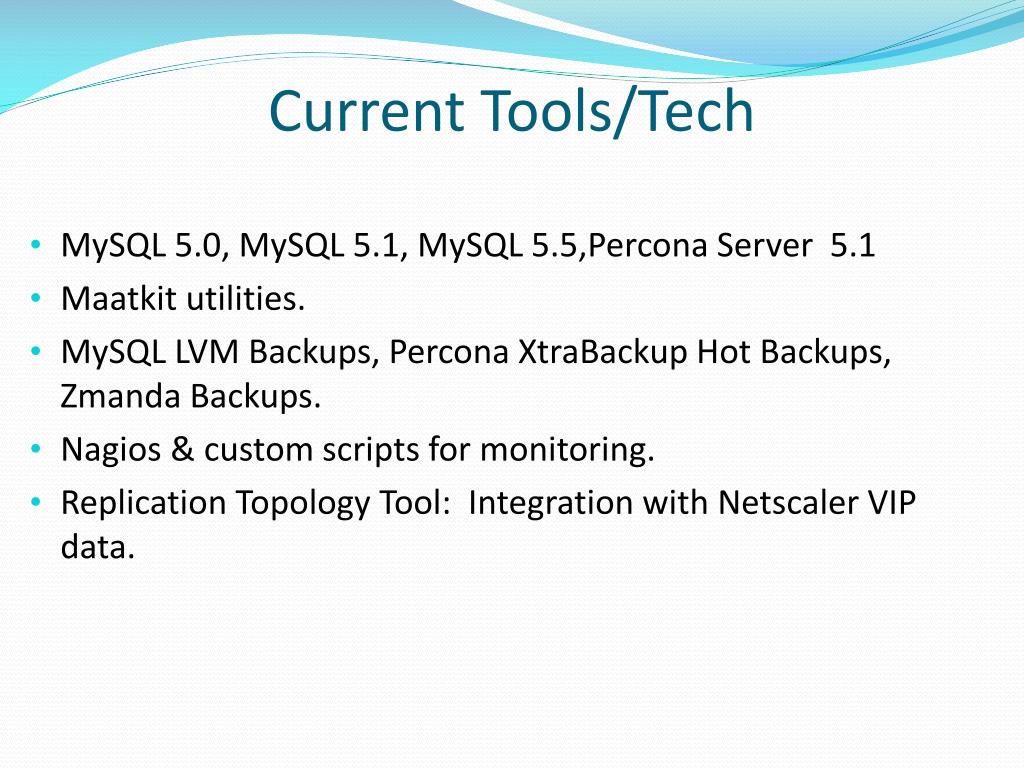

  44. Current Tools/Tech • MySQL 5.0, MySQL 5.1, MySQL 5.5,Percona Server 5.1 • Maatkit utilities. • MySQL LVM Backups, Percona XtraBackup Hot Backups, Zmanda Backups. • Nagios & custom scripts for monitoring. • Replication Topology Tool: Integration with Netscaler VIP data.

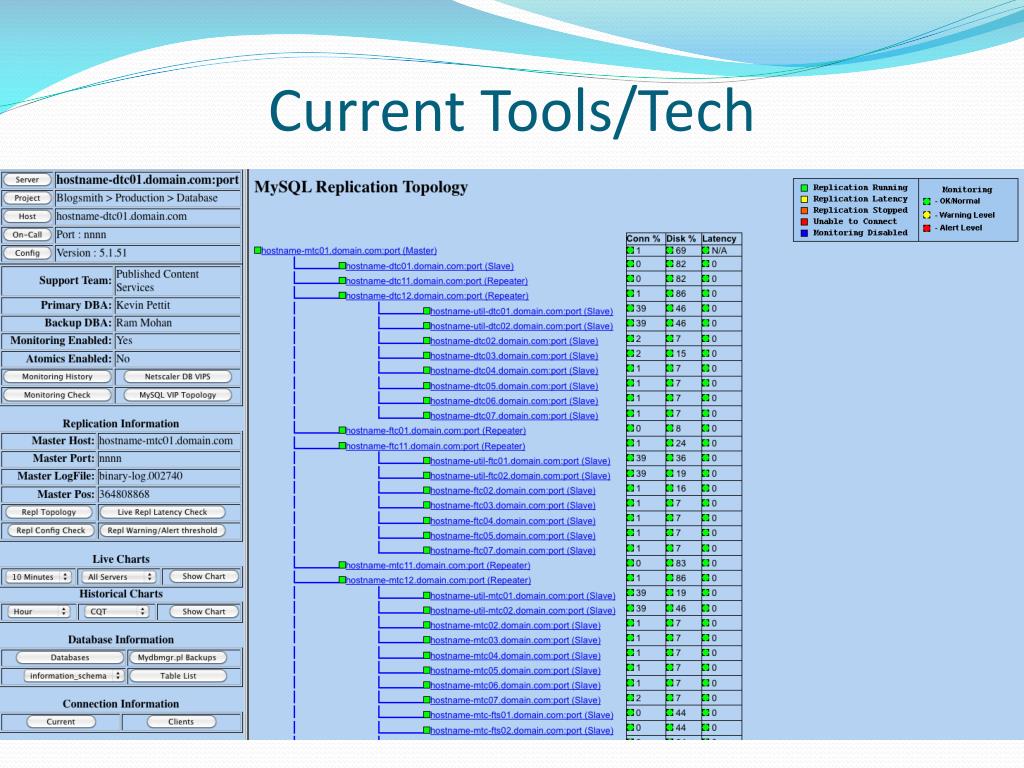

  45. Current Tools/Tech
