Presentation Transcript

  1. Module 13 Wireless ips Enhanced Wireless Protection

  2. Objectives • Identify the basic aspects of WIPS • Describe the advanced functionality of WIPS • Identify the key considerations of WIPS

  3. Introduction

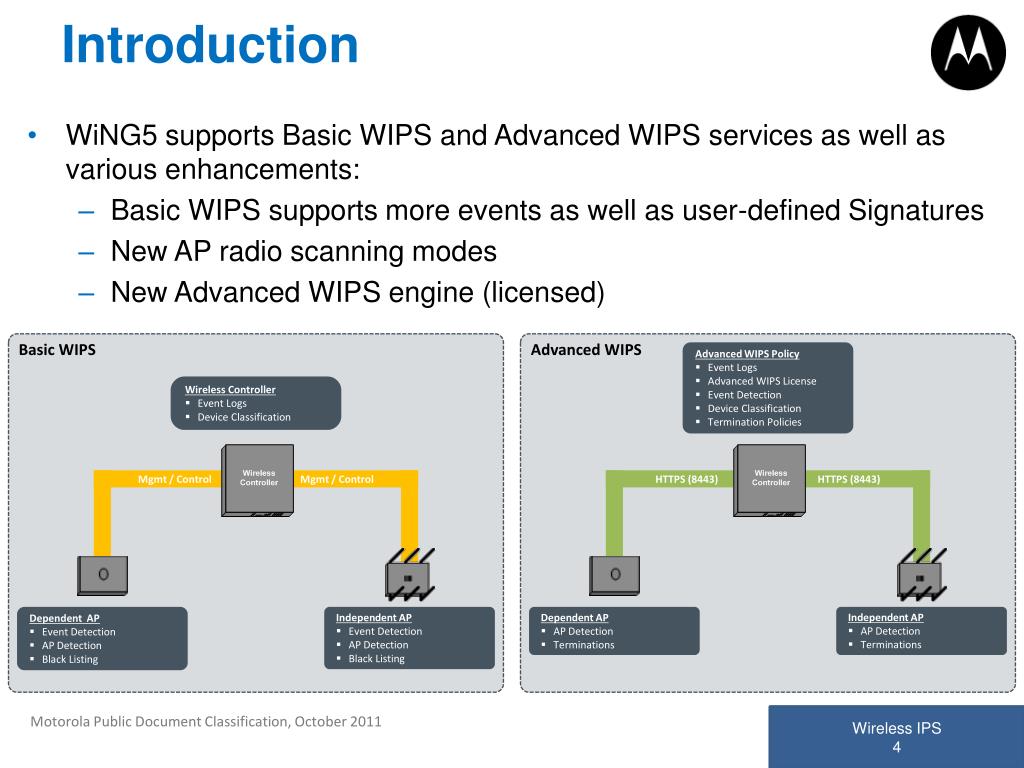

  4. Introduction • WiNG5 supports Basic WIPS and Advanced WIPS services as well as various enhancements: • Basic WIPS supports more events as well as user-defined Signatures • New AP radio scanning modes • New Advanced WIPS engine (licensed) Basic WIPS Advanced WIPS • Advanced WIPS Policy • Event Logs • Advanced WIPS License • Event Detection • Device Classification • Termination Policies • Wireless Controller • Event Logs • Device Classification Mgmt / Control Mgmt / Control HTTPS (8443) HTTPS (8443) • Dependent AP • Event Detection • AP Detection • Black Listing • Independent AP • Event Detection • AP Detection • Black Listing • Dependent AP • AP Detection • Terminations • Independent AP • AP Detection • Terminations

  5. Basic WIPS

  6. Introduction Device • Enabled through WIPS Policies that are assigned via • RF Domains: groups of Access Points • Overrides: individual Access Points • Each WIPS policy supports 37 events categorized as: • Excessive: Events are triggered from DoS type attacks • AP Anomaly: Events are triggered when neighboring Access Points send suspicious frames • Wireless Client: Events are triggered when a Wireless Client performs suspicious activities • Each WING5 WIPS policy supports customizable signatures • Supports basic AP detection and classification RF Domain WIPS Policy Events Customized Signatures

  7. Detected Events • Each WIPS event can be individually enabled or disabled in the WIPS policy • When a WIPS event is detected by an Access Point, a log entry will be generated on the Access Point where the attack was detected

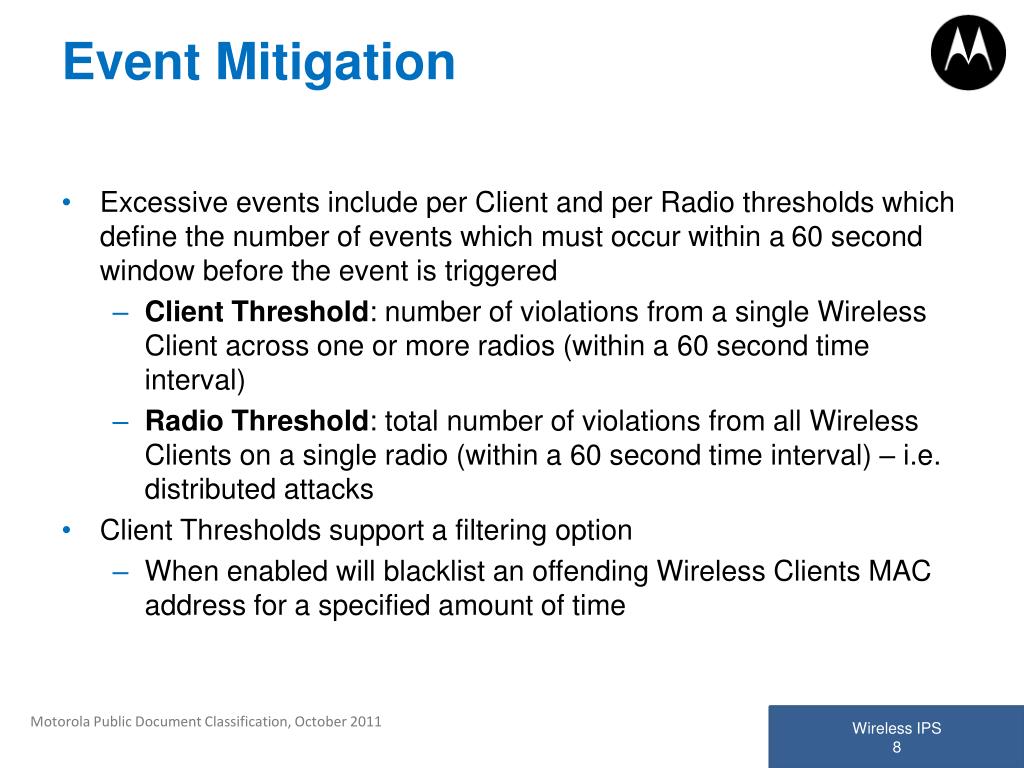

  8. Event Mitigation • Excessive events include per Client and per Radio thresholds which define the number of events which must occur within a 60 second window before the event is triggered • Client Threshold: number of violations from a single Wireless Client across one or more radios (within a 60 second time interval) • Radio Threshold: total number of violations from all Wireless Clients on a single radio (within a 60 second time interval) – i.e. distributed attacks • Client Thresholds support a filtering option • When enabled will blacklist an offending Wireless Clients MAC address for a specified amount of time

  9. Signatures • WiNG5 adds new support for customized signatures which can identify frames based specified match conditions and payload content: • Source MAC Address – XX:XX:XX:XX:XX:XX • Destination MAC Address – XX:XX:XX:XX:XX:XX • 802.11 Frame-Type – All, Association, Auth, Beacon, Data, De-Auth, Disassociate, Management, Probe Request, Probe Response & Re-Associate • BSSID MAC Address – XX:XX:XX:XX:XX:XX • SSID Name – String • SSID Length – 1 – 32 Characters • Payload – Three entries using HEX or String • Each signature supports configurable Wireless Client and Radio thresholds that can trigger mitigation when exceeded

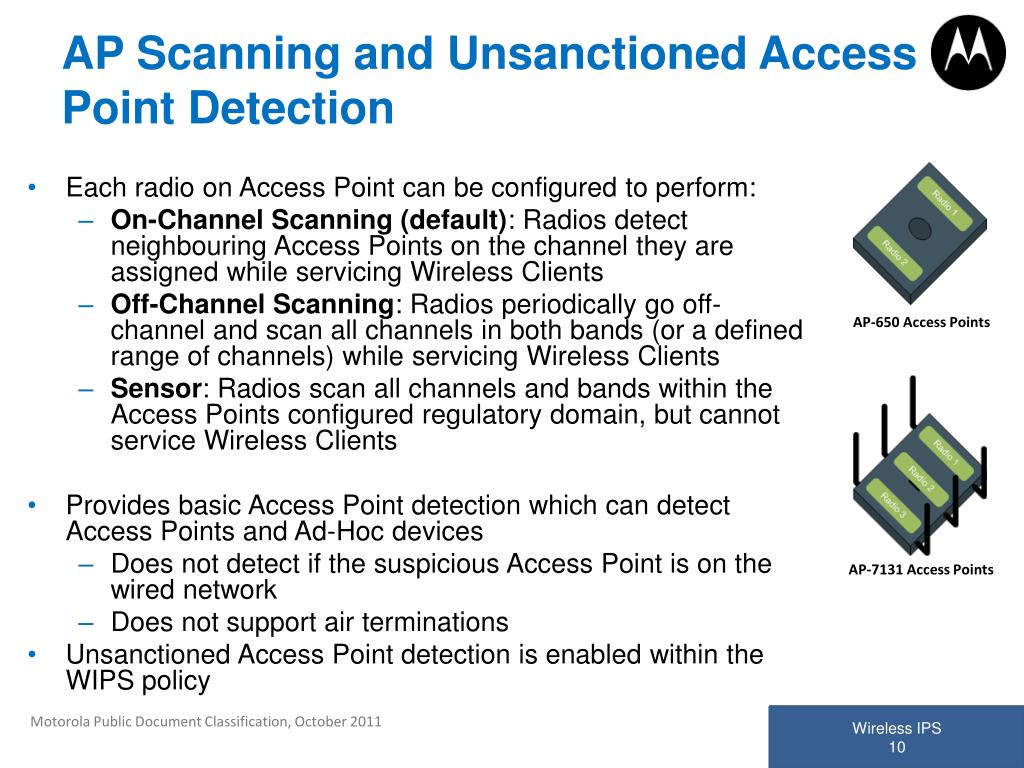

  10. AP Scanning and Unsanctioned Access Point Detection • Each radio on Access Point can be configured to perform: • On-Channel Scanning (default): Radios detect neighbouring Access Points on the channel they are assigned while servicing Wireless Clients • Off-Channel Scanning: Radios periodically go off-channel and scan all channels in both bands (or a defined range of channels) while servicing Wireless Clients • Sensor: Radios scan all channels and bands within the Access Points configured regulatory domain, but cannot service Wireless Clients • Provides basic Access Point detection which can detect Access Points and Ad-Hoc devices • Does not detect if the suspicious Access Point is on the wired network • Does not support air terminations • Unsanctioned Access Point detection is enabled within the WIPS policy AP-650 Access Points AP-7131 Access Points

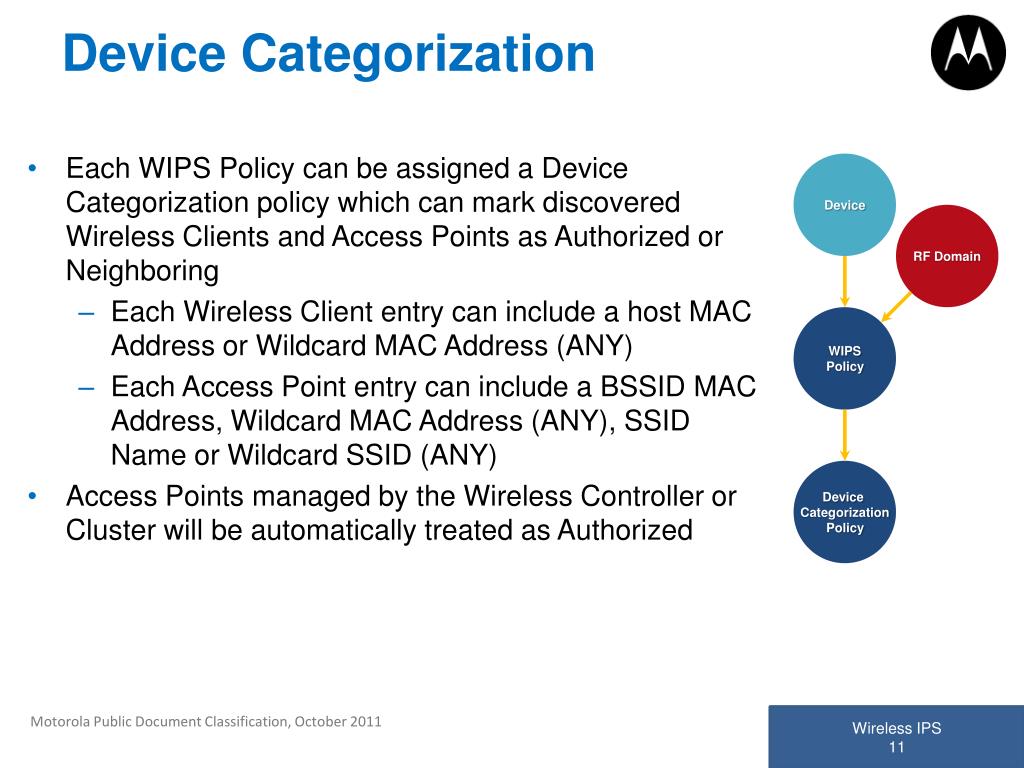

  11. Device Categorization Device • Each WIPS Policy can be assigned a Device Categorization policy which can mark discovered Wireless Clients and Access Points as Authorized or Neighboring • Each Wireless Client entry can include a host MAC Address or Wildcard MAC Address (ANY) • Each Access Point entry can include a BSSID MAC Address, Wildcard MAC Address (ANY), SSID Name or Wildcard SSID (ANY) • Access Points managed by the Wireless Controller or Cluster will be automatically treated as Authorized RF Domain WIPS Policy Device Categorization Policy

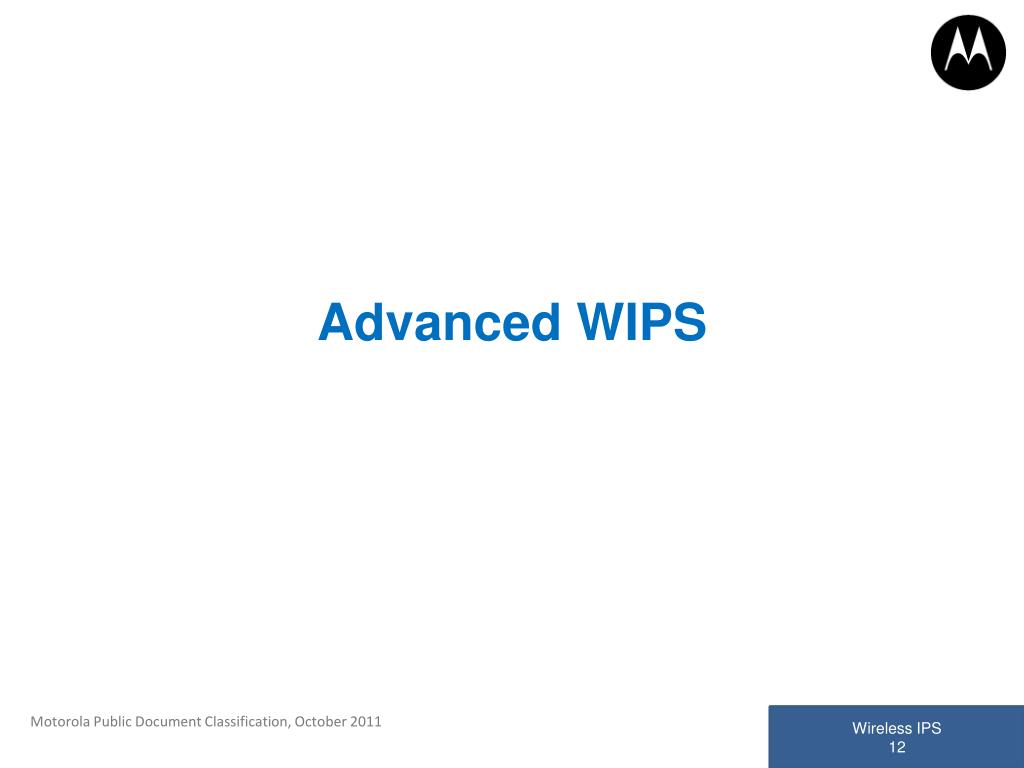

  12. Advanced WIPS

  13. Introduction Device Profile • Advanced WIPS operates similar to AirDefense • AP radios operate as dual-band sensors and communicate to Wireless Controllers with Advanced WIPS license • Configured through Advanced WIPS policies • Assigned to Wireless Controllers as device overrides or using Profiles • Each supports 35 additional events which can be individually triggered against: • Authorized devices • Unauthorized devices • Neighboring devices • Leverages Device Categorization Policy to flag known Wireless Clients and Access Points • known Wireless Clients and Access Points Advanced WIPS Policy Events Termination List

  14. Detected Events • 35 additional WIPS events with various threshold and mitigation options:

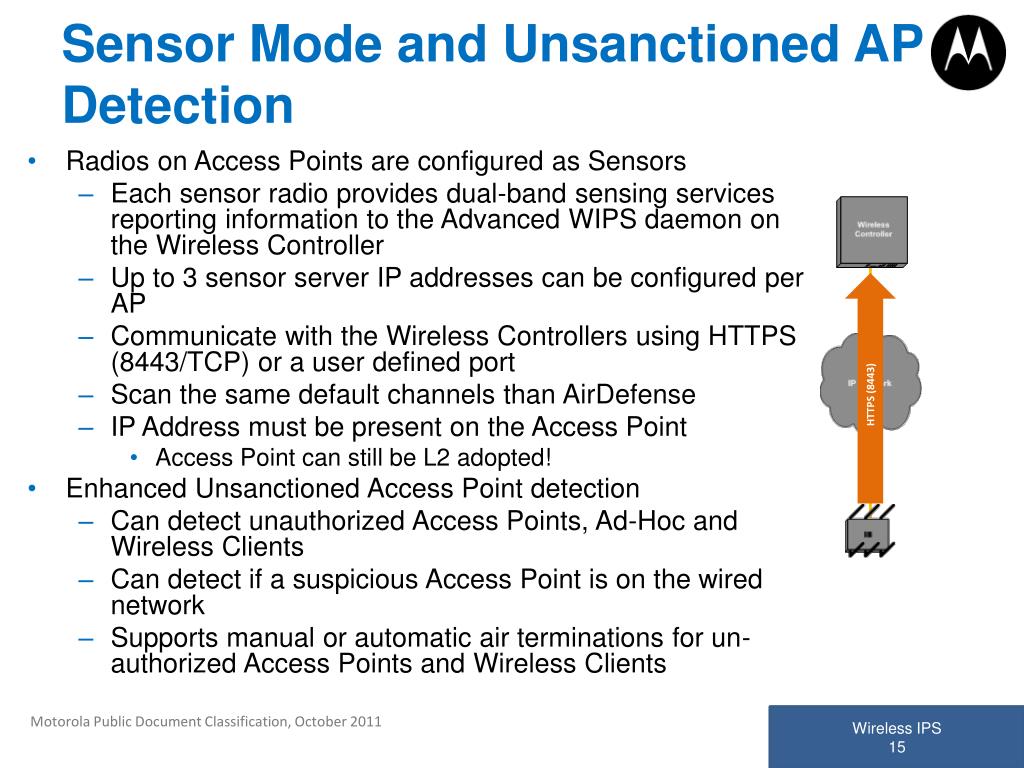

  15. Sensor Mode and Unsanctioned AP Detection • Radios on Access Points are configured as Sensors • Each sensor radio provides dual-band sensing services reporting information to the Advanced WIPS daemon on the Wireless Controller • Up to 3 sensor server IP addresses can be configured per AP • Communicate with the Wireless Controllers using HTTPS (8443/TCP) or a user defined port • Scan the same default channels than AirDefense • IP Address must be present on the Access Point • Access Point can still be L2 adopted! • Enhanced Unsanctioned Access Point detection • Can detect unauthorized Access Points, Ad-Hoc and Wireless Clients • Can detect if a suspicious Access Point is on the wired network • Supports manual or automatic air terminations for un-authorized Access Points and Wireless Clients HTTPS (8443)

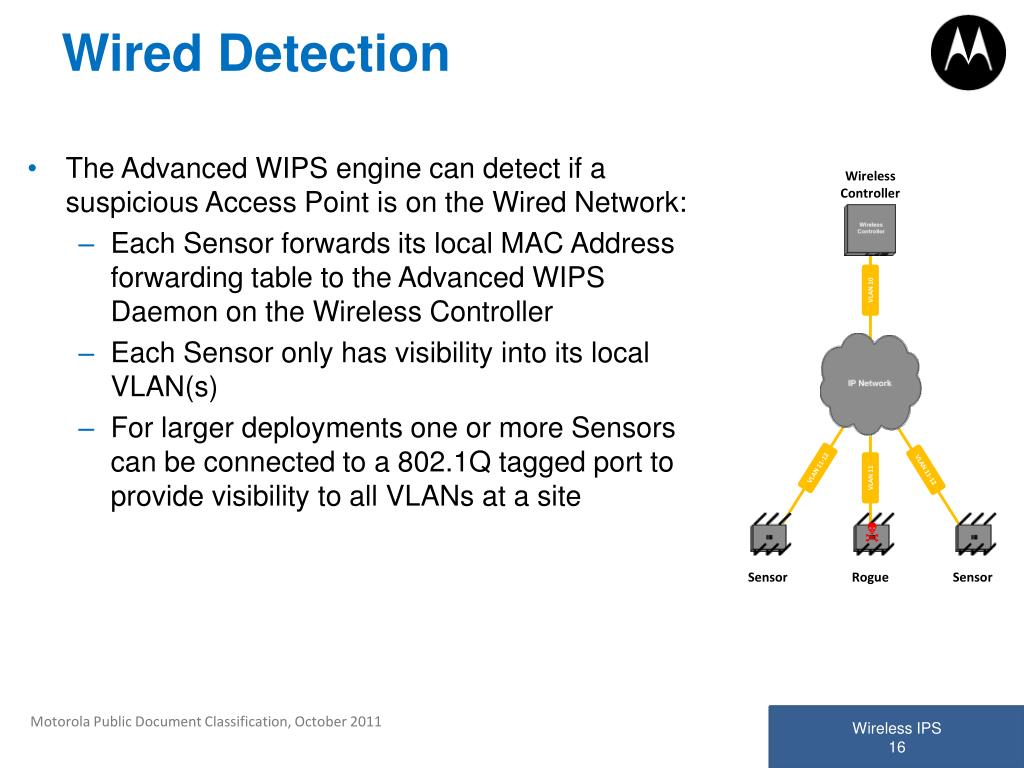

  16. Wired Detection Wireless Controller • The Advanced WIPS engine can detect if a suspicious Access Point is on the Wired Network: • Each Sensor forwards its local MAC Address forwarding table to the Advanced WIPS Daemon on the Wireless Controller • Each Sensor only has visibility into its local VLAN(s) • For larger deployments one or more Sensors can be connected to a 802.1Q tagged port to provide visibility to all VLANs at a site VLAN 10 VLAN 11-12 VLAN 11-12 VLAN 11  Sensor Rogue Sensor

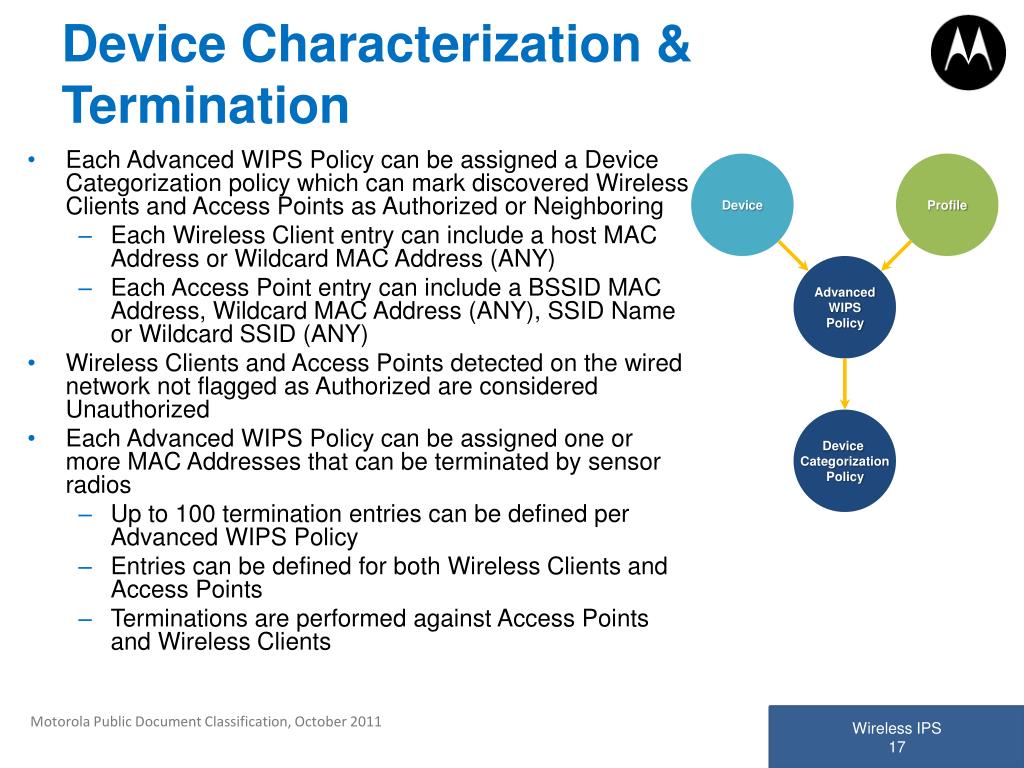

  17. Device Characterization & Termination Device Profile • Each Advanced WIPS Policy can be assigned a Device Categorization policy which can mark discovered Wireless Clients and Access Points as Authorized or Neighboring • Each Wireless Client entry can include a host MAC Address or Wildcard MAC Address (ANY) • Each Access Point entry can include a BSSID MAC Address, Wildcard MAC Address (ANY), SSID Name or Wildcard SSID (ANY) • Wireless Clients and Access Points detected on the wired network not flagged as Authorized are considered Unauthorized • Each Advanced WIPS Policy can be assigned one or more MAC Addresses that can be terminated by sensor radios • Up to 100 termination entries can be defined per Advanced WIPS Policy • Entries can be defined for both Wireless Clients and Access Points • Terminations are performed against Access Points and Wireless Clients Advanced WIPS Policy Device Categorization Policy

  18. WIPS Comparison

  19. Considerations 1 Basic WIPS is provided with WiNG5 at no additional cost! All AP Radios are configured to perform on-channel scanning by default but can support off-channel scanning as well as operate as dedicated dual-band sensors 2 Advanced WIPS requires one or more AP Radios to be configured as sensors forwarding traffic to a Wireless Controller with an Advanced WIPS license 3 Advanced WIPS requires and Advanced WIPS license to be installed on each Wireless Controller managing sensor radios 4 Air terminations require an Advanced WIPS license Access Point classifications for neighboring and known Access Points and/or Wireless Clients require Device Categorization Policies Advanced WIPS sensors require a IP address to communicate with the Advanced WIPS engine on the Wireless Controller 5 6 7

  20. LAB: Wireless ips LAB 09 IPS Features of the Wireless Firewall Basic WIPS Advanced WIPS

  21. Identify the basic aspects of WIPS • Describe the advanced functionality of WIPS • Identify the key considerations of WIPS • Module Summary
