Controller Modems. Controller Vs. Controllerless Modems. 3 Generic Types of Modems Controller Controllerless Soft Controller Modems All processing done by the modem, including mo dulation/ dem odulation functions, data compression, and AT commands Highest processing power and performance
E N D

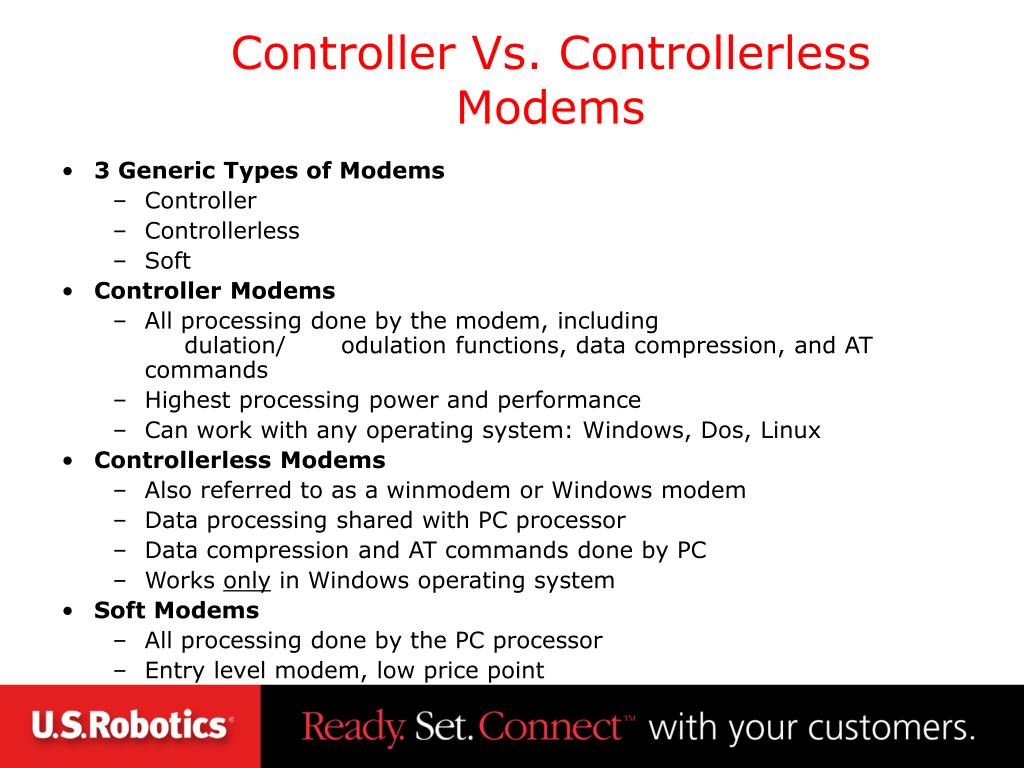

Controller Vs. Controllerless Modems • 3 Generic Types of Modems • Controller • Controllerless • Soft • Controller Modems • All processing done by the modem, including modulation/demodulation functions, data compression, and AT commands • Highest processing power and performance • Can work with any operating system: Windows, Dos, Linux • Controllerless Modems • Also referred to as a winmodem or Windows modem • Data processing shared with PC processor • Data compression and AT commands done by PC • Works only in Windows operating system • Soft Modems • All processing done by the PC processor • Entry level modem, low price point

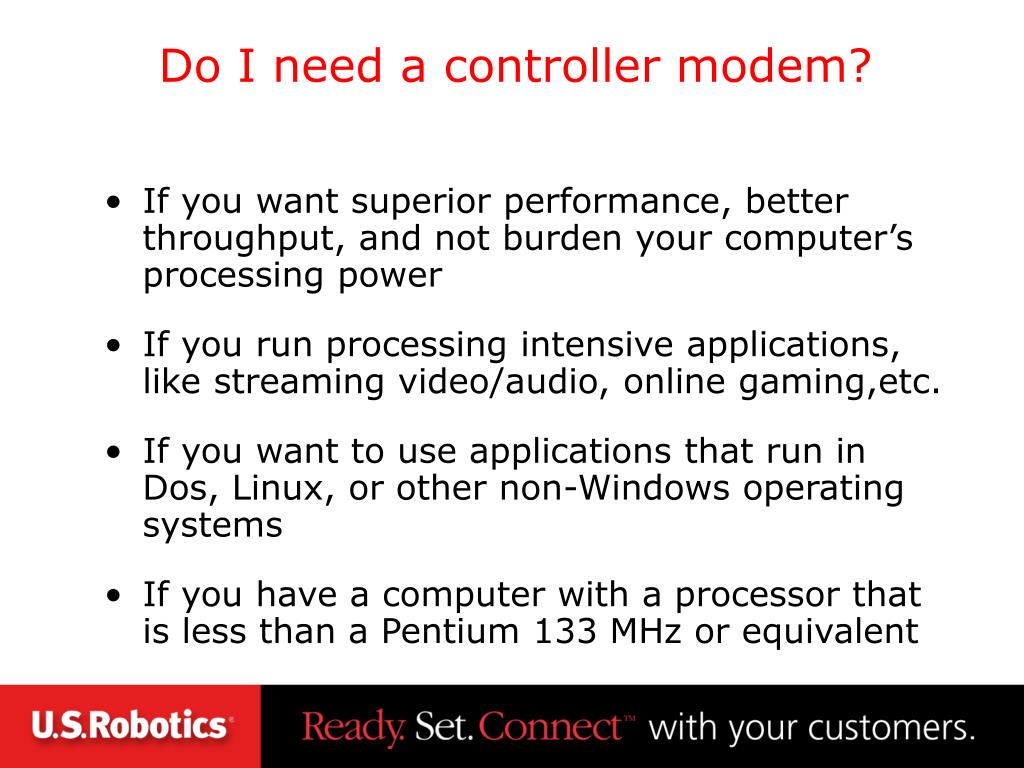

Do I need a controller modem? • If you want superior performance, better throughput, and not burden your computer’s processing power • If you run processing intensive applications, like streaming video/audio, online gaming,etc. • If you want to use applications that run in Dos, Linux, or other non-Windows operating systems • If you have a computer with a processor that is less than a Pentium 133 MHz or equivalent
Examples of Controllerless Modems • Our competitiondoes not indicate whether their modems are winmodems • Modems priced under £50 are typically either winmodems or soft modems • U.S Robotics has 3 Controller Modems in it’s range.
Data and Fax Operation RS232 V92, V.90, x2, V.34 33,600, V.32bis, V.32, V.22bis, V.22, V.23 and V.21 ITU standards Class 1 and 2.0 Group III V.17/V.29 Fax V.80 (Video-Conference Ready) Caller ID Flash Memory (Feature Upgrades) Controller Modem 56K V92 FaxModem (USRxx5630B)
Data, Fax and Voice Operation Stores Voice and Fax Messages, Remote Voice Retrieval ,Fax Forwarding When PC is Off RS232 V.92 V.90, x2, V.34 33,600, V.32bis, V.32, V.22bis, V.22, V.23 and V.21 ITU standards Class 1 and 2.0 Group III V.17/V.29 Fax V.80 (Video-Conference Ready) Caller ID Flash Memory (Feature Upgrades) Controller Modem Comes with headset & microphone for voice operation. 56K Message Modem (xx5668-01)
Class 1 and 2.0 Group III V.17/V.29 Fax Remote Access - Dialback Security - Carrier Loss Redial Synchronous Operation - Leased Line Enhanced V.42bis Data Compression Voice/Data Button Flash Memory (Instant Update Software) Controller Modem V.92 Data and Fax Operation RS232 (230Kbps) V.Everything & V.Anywhere (Global DAA) Caller ID & Distinctive Ring 56K Courier V.Everything
V.92Enhancements and Features* V.92 enhancements reduce your time to connect, take advantage of phone company services, and enable fast upstream connections. New features include: • Quick Connect — bypass portions of the training sequence to get online faster • Modem on Hold† — take incoming voice calls without dropping your Internet connection • V.PCM Upstream — customize your upstream and downstream speeds based on how you use the Internet * Requires V.92 capable Internet Service Provider † Requires Call Waiting service
Data, Voice, Fax Operation Internal Controllerless PCI V.92, V.90, V.34 33,600, V.32bis, V.32, V.22bis, V.22, V.23 and V.21 ITU standards Class 1 and 2.0 Group III V.17/V.29 Fax Win 95, 98, 2000, XP and NT 4.0 Support V.80 (Video-Conference Ready) Software Upgradeable (Feature Updates) Winmodem Auto-configuration for improved plug & play functionality. 56K Voice Internal PCI (xx2884B)
Data, Fax Operation Internal Controllerless PCI V.92, V.90, V.34 33,600, V.32bis, V.32, V.22bis, V.22, V.23 and V.21 ITU standards Class 1 and 2.0 Group III V.17/V.29 Fax Win 2000 and XP Support V.80 (Video-Conference Ready) Software Upgradeable (Feature Updates) Softmodem Auto-configuration for improved plug & play functionality. 56K Internal PCI (xx5661A)
Features · Compatible with both V.92† and V.90 standards · Designed for Windows 98, Me, 2000, and XP operating systems ·ControlCenter for optimum modem performance ·Delayed and broadcast faxing capability · Includes the best of V.92: Quick Connect‡, Modem on Hold, and V.PCM Upstream USB Faxmodem USRxx5633 • Benefits • · Install with the Plug and Play convenience of USB – hot swappable and no additional power supply unit is required for operation • · Take incoming calls while online without losing your Internet connection • · Send faxes from any Windows application • · Customize the user interface to suit your preferences • · Send faxes and e-mails, surf the Web, even take incoming calls, all with your 56K Faxmodem
