Protein Primary Sequence

Protein Primary Sequence. Protein analysis road map: Bioassay design Isolation/purification Analysis Sequencing. Bioassay: Tracking a Target Protein. A unique protein property for rapid, reproducible, sensitive and inexpensive identification

neil
Télécharger la présentation

Protein Primary Sequence

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

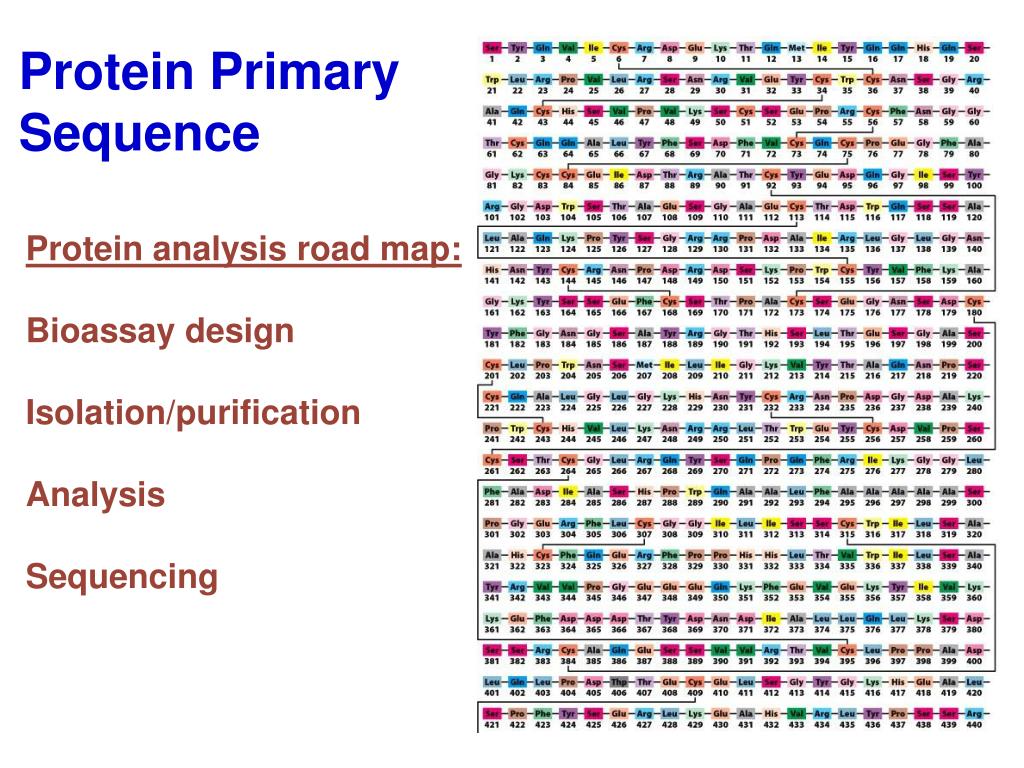

  1. Protein Primary Sequence Protein analysis road map: Bioassay design Isolation/purification Analysis Sequencing

  2. Bioassay: Tracking a Target Protein A unique protein property for rapid, reproducible, sensitive and inexpensive identification Examples include: spectrophotometric detection of substrate/product, radioisotopic labeling for product detection, enzyme-linked immunosorbent assay (ELISA)

  3. Differential Centrifuga- tion for Organelle Separation Marker enzymes confirm fractional cuts

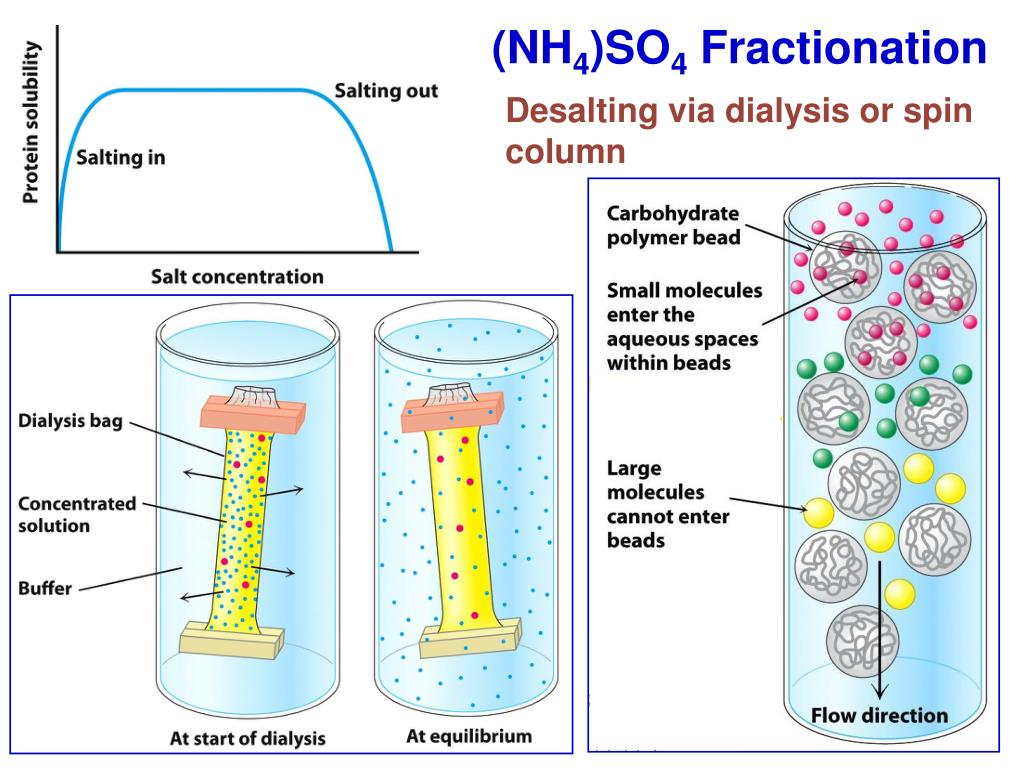

  4. (NH4)SO4 Fractionation Desalting via dialysis or spin column

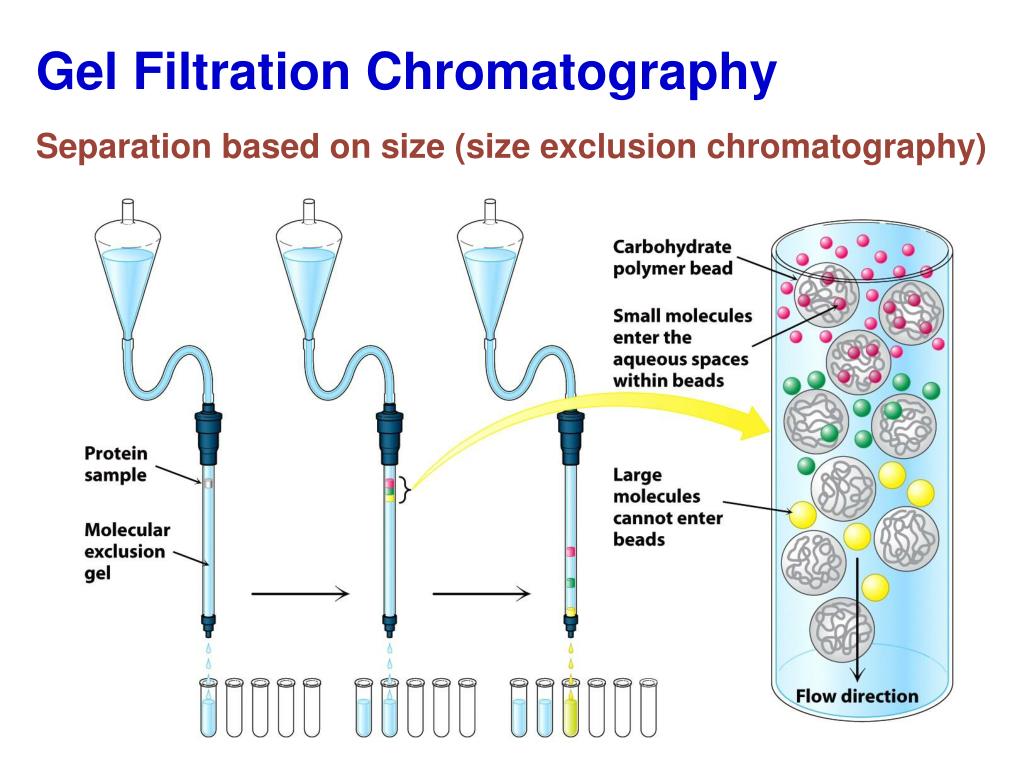

  5. Gel Filtration Chromatography Separation based on size (size exclusion chromatography)

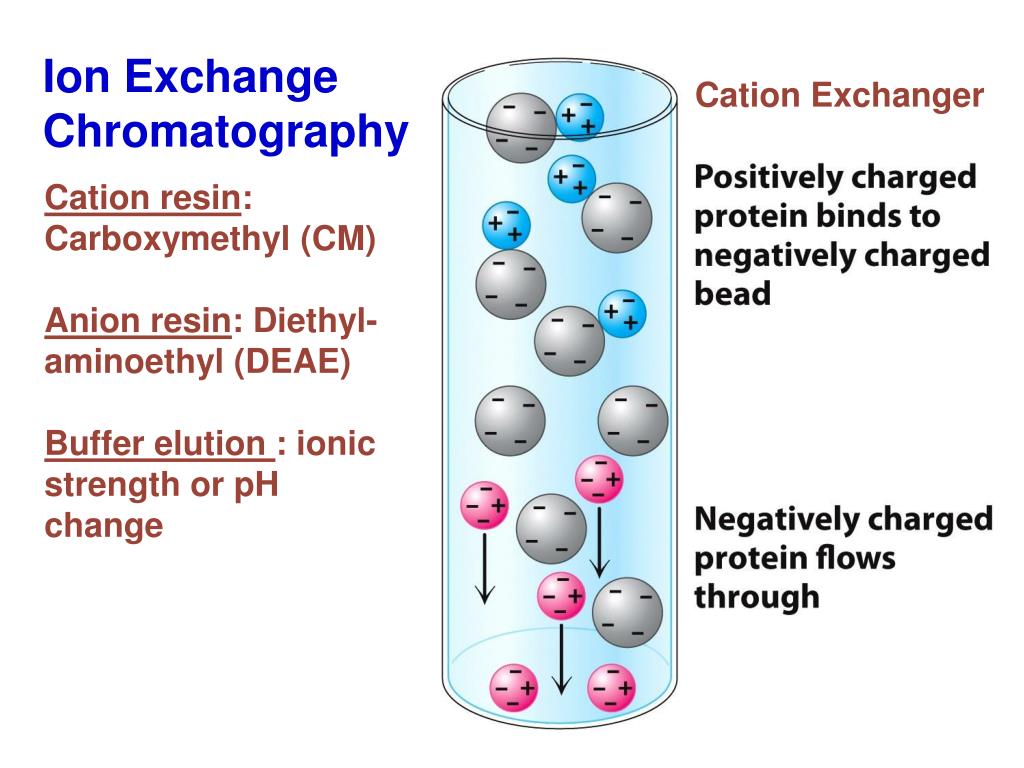

  6. Ion Exchange Chromatography Cation Exchanger Cation resin: Carboxymethyl (CM) Anion resin: Diethyl- aminoethyl (DEAE) Buffer elution : ionic strength or pH change

  7. Affinity Chromatography Purification of the glucose binding protein concanavalin A by passing through a glucose-coated resin Antibody purification by passing through an antigen-coated resin Buffer elution via increasing ionic strength or ligand displacement

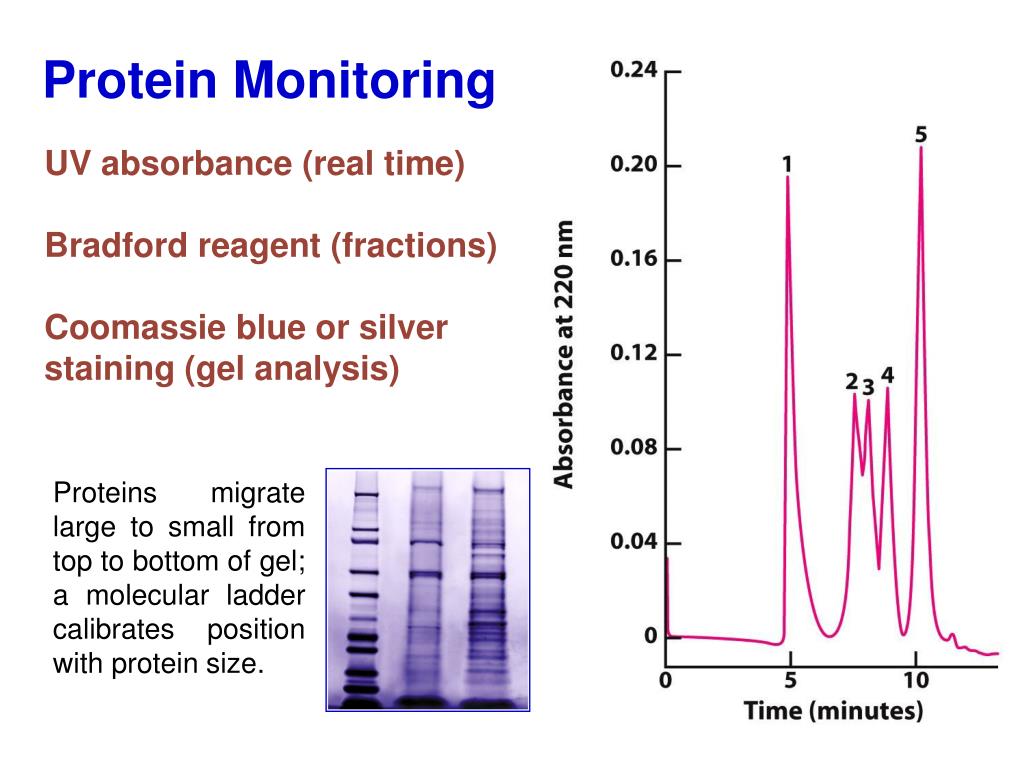

  8. Protein Monitoring UV absorbance (real time) Bradford reagent (fractions) Coomassie blue or silver staining (gel analysis) Proteins migrate large to small from top to bottom of gel; a molecular ladder calibrates position with protein size.

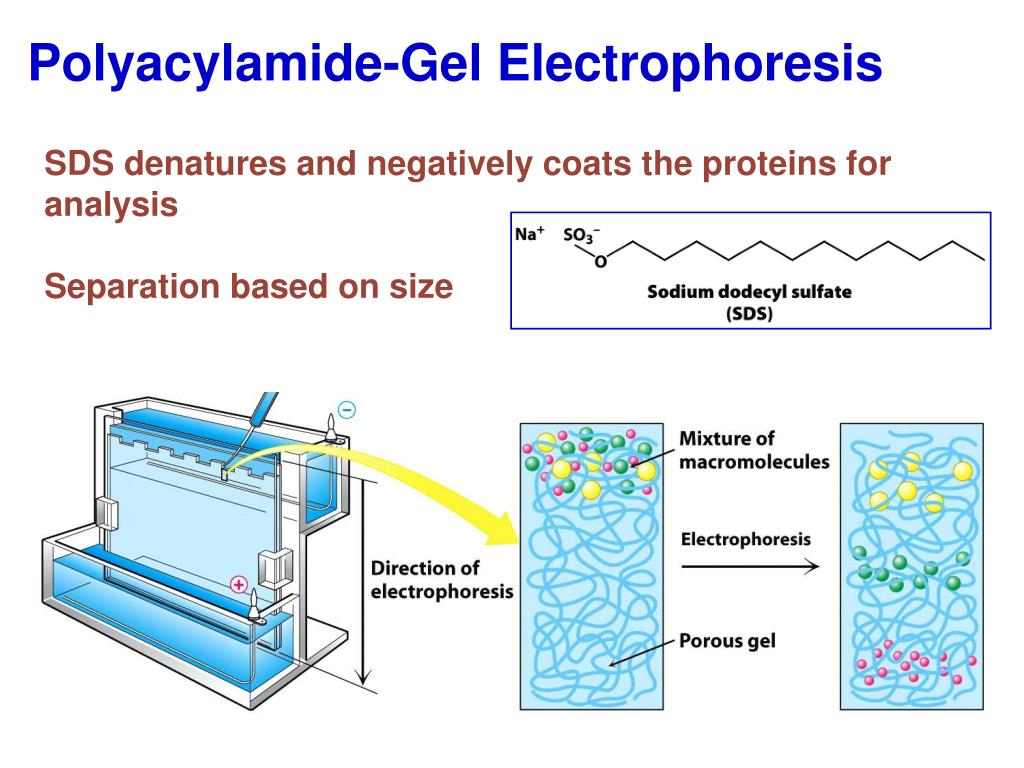

  9. Polyacylamide-Gel Electrophoresis SDS denatures and negatively coats the proteins for analysis Separation based on size

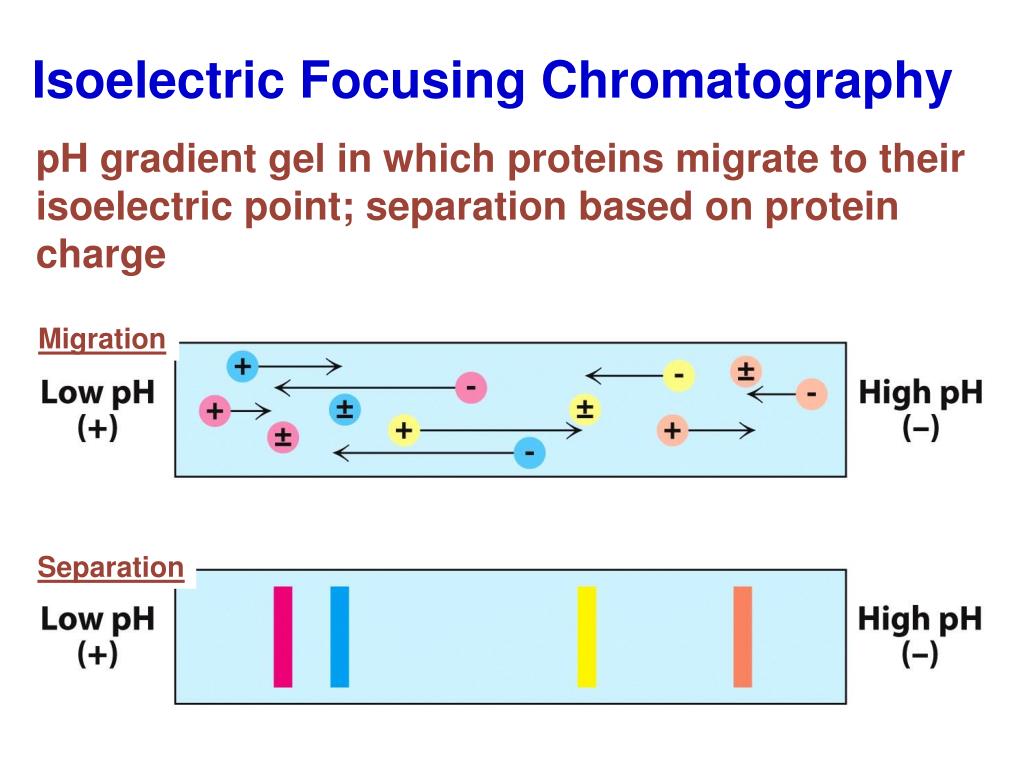

  10. Isoelectric Focusing Chromatography pH gradient gel in which proteins migrate to their isoelectric point; separation based on protein charge Migration Separation

  11. Two-Dimensional Gel Electrophoresis Resolution initially by charge (isoelectric focusing) and then attached to SDS-PAGE for molecular weight separation. Over 1,000 different proteins can be resolved from a single experiment.

  12. Quantification of Purification Protocol

  13. Protein Purification Electrophoretic Analysis Total protein loaded in each lane is constant

  14. Protein Primary Sequence Protein analysis road map: Bioassay design Isolation/purification Analysis Sequencing

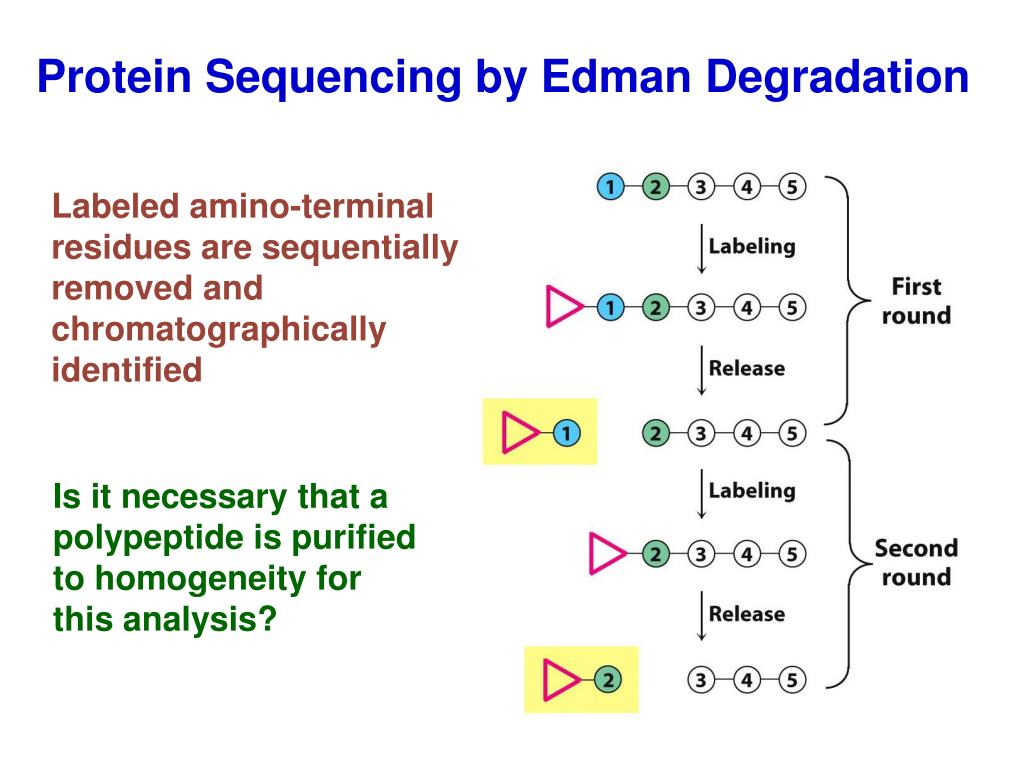

  15. Protein Sequencing by Edman Degradation Labeled amino-terminal residues are sequentially removed and chromatographically identified Is it necessary that a polypeptide is purified to homogeneity for this analysis?

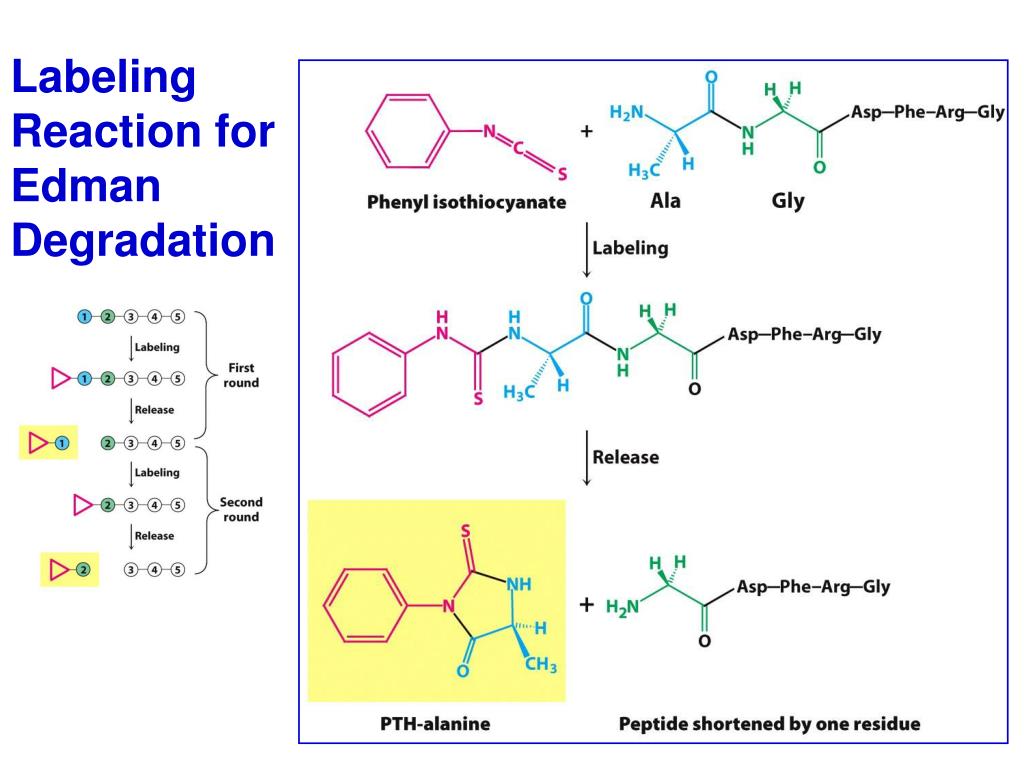

  16. Labeling Reaction for Edman Degradation

  17. Amino Acid Identification by Retention Time Standardization PTH-Gly Why is there a limit on the number of cycles that can be performed?

  18. Sequenced Polypeptide Fragments are Connected by Aligning Overlapping Sections

  19. Polypeptide Site-Specific Cleavage Tools

  20. Secondary Structure Predictions by Computer Modeling

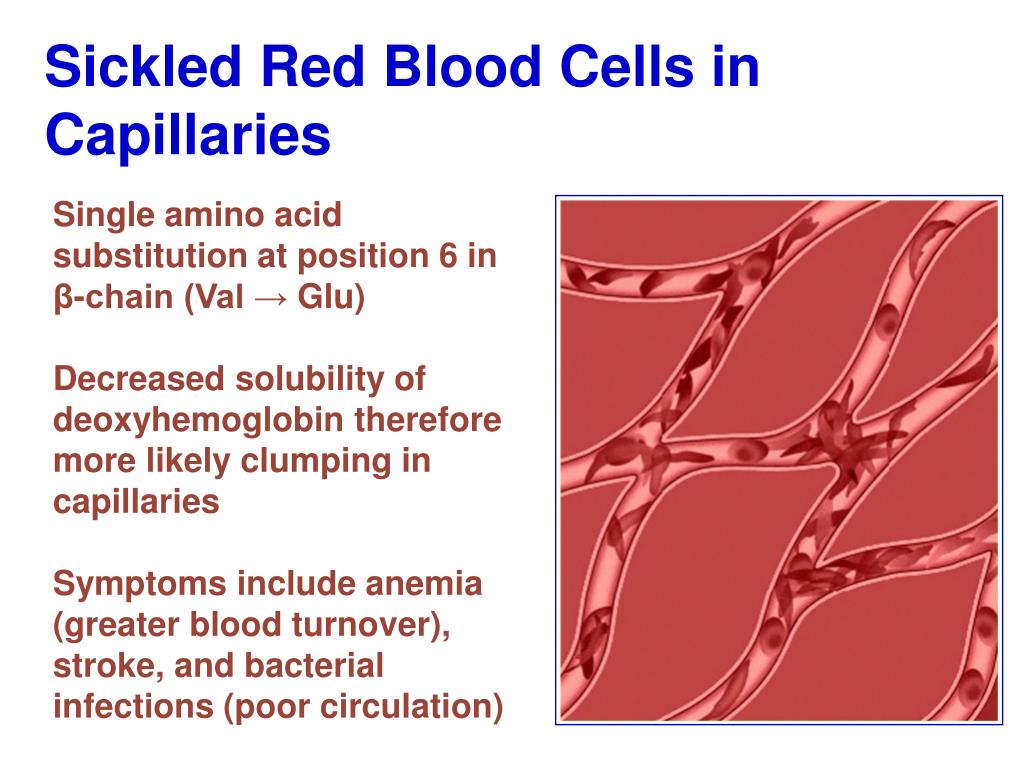

  21. Sickled Red Blood Cells in Capillaries Single amino acid substitution at position 6 in β-chain (Val → Glu) Decreased solubility of deoxyhemoglobin therefore more likely clumping in capillaries Symptoms include anemia (greater blood turnover), stroke, and bacterial infections (poor circulation)
