  1. Levels of Assurance and Reauthentication in Federated Environments Manuel Sánchez ÓscarCánovas Gabriel López Antonio F. GómezSkarmeta University of Murcia

  2. Agenda • Introduction • Level of Assurance • eduGAIN • Use Case • Infrastructure for re-authentication • Support for different Levels of Assurance • Related work • Conclusions

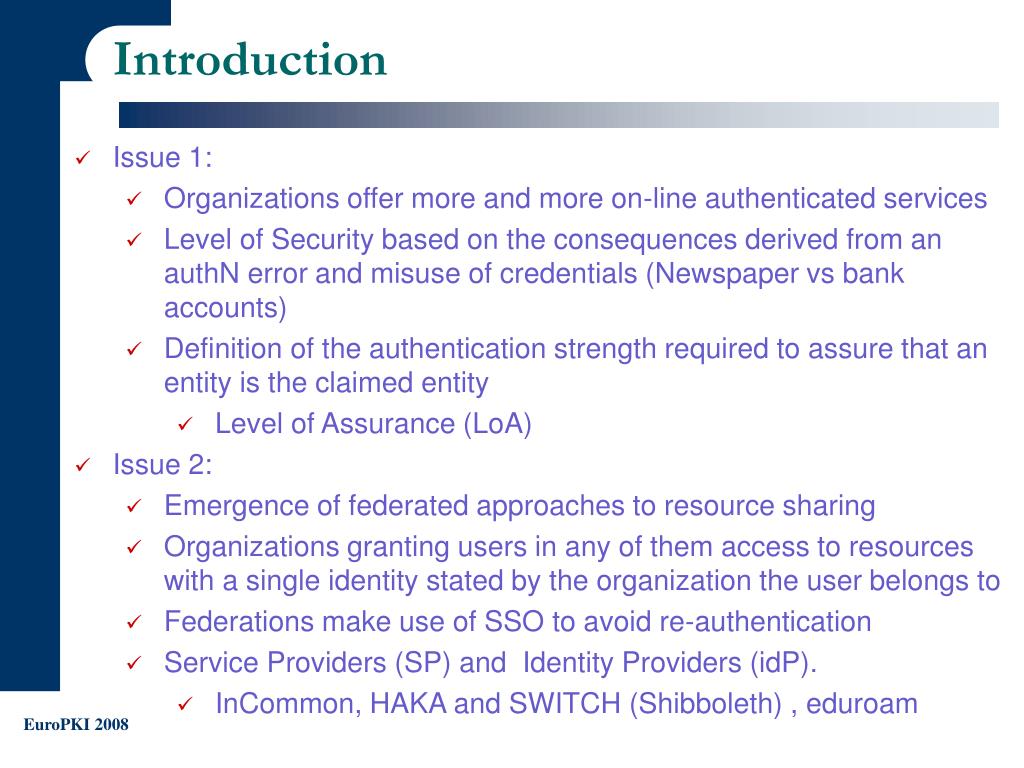

  3. Introduction • Issue 1: • Organizations offer more and more on-line authenticated services • Level of Security based on the consequences derived from an authN error and misuse of credentials (Newspaper vs bank accounts) • Definition of the authentication strength required to assure that an entity is the claimed entity • Level of Assurance (LoA) • Issue 2: • Emergence of federated approaches to resource sharing • Organizations granting users in any of them access to resources with a single identity stated by the organization the user belongs to • Federations make use of SSO to avoid re-authentication • Service Providers (SP) and Identity Providers (idP). • InCommon, HAKA and SWITCH (Shibboleth) , eduroam

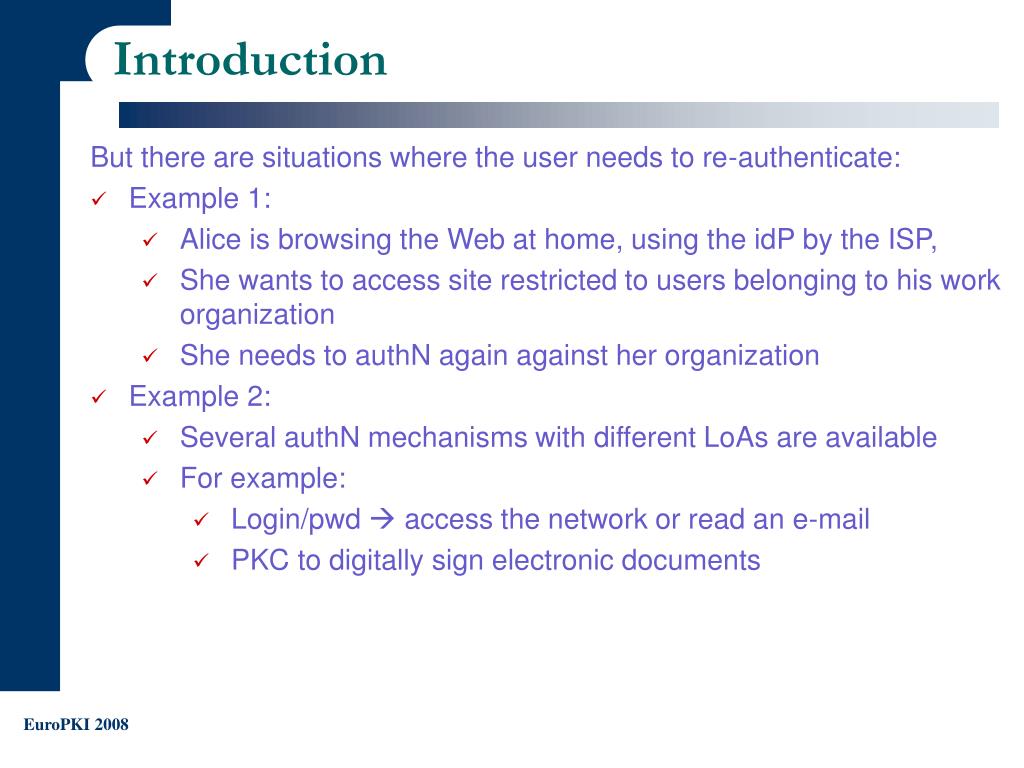

  4. Introduction • But there are situations where the user needs to re-authenticate: • Example 1: • Alice is browsing the Web at home, using the idP by the ISP, • She wants to access site restricted to users belonging to his work organization • She needs to authN again against her organization • Example 2: • Several authN mechanisms with different LoAs are available • For example: • Login/pwd  access the network or read an e-mail • PKC to digitally sign electronic documents

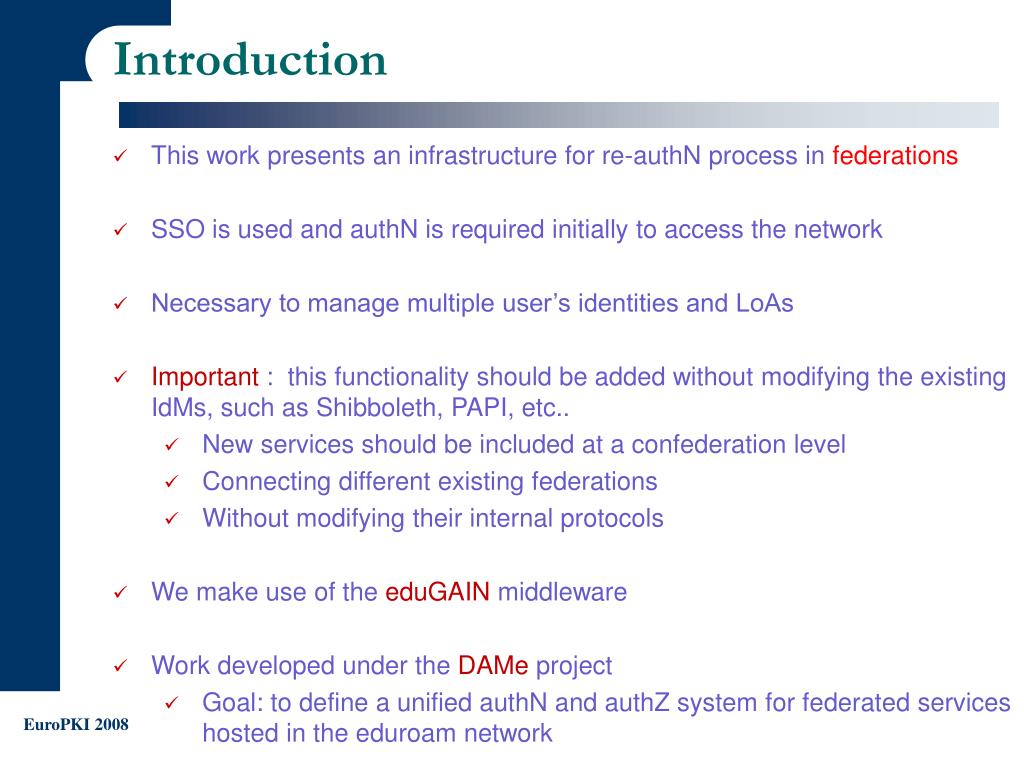

  5. Introduction • This work presents an infrastructure for re-authN process in federations • SSO is used and authN is required initially to access the network • Necessary to manage multiple user’s identities and LoAs • Important : this functionality should be added without modifying the existing IdMs, such as Shibboleth, PAPI, etc.. • New services should be included at a confederation level • Connecting different existing federations • Without modifying their internal protocols • We make use of the eduGAIN middleware • Work developed under the DAMe project • Goal: to define a unified authN and authZ system for federated services hosted in the eduroam network

  6. Agenda • Introduction • Level of Assurance • eduGAIN • Use Case • Infrastructure for re-authentication • Support for different Levels of Assurance • Related work • Conclusions

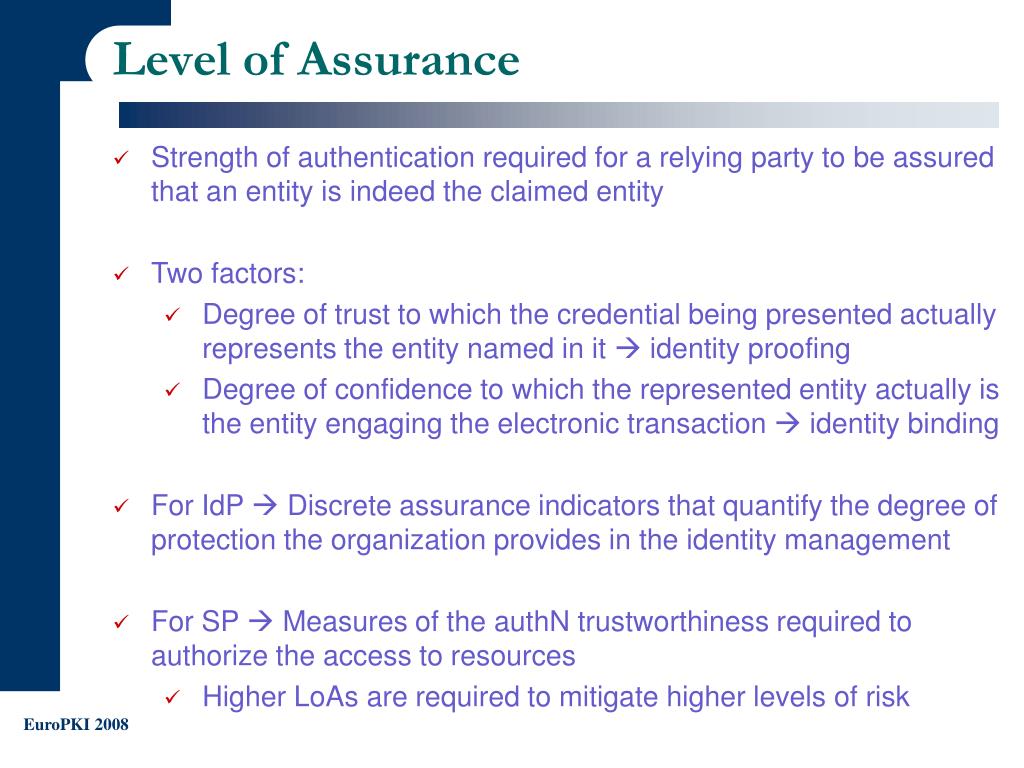

  7. Level of Assurance • Strength of authentication required for a relying party to be assured that an entity is indeed the claimed entity • Two factors: • Degree of trust to which the credential being presented actually represents the entity named in it  identity proofing • Degree of confidence to which the represented entity actually is the entity engaging the electronic transaction  identity binding • For IdP  Discrete assurance indicators that quantify the degree of protection the organization provides in the identity management • For SP  Measures of the authN trustworthiness required to authorize the access to resources • Higher LoAs are required to mitigate higher levels of risk

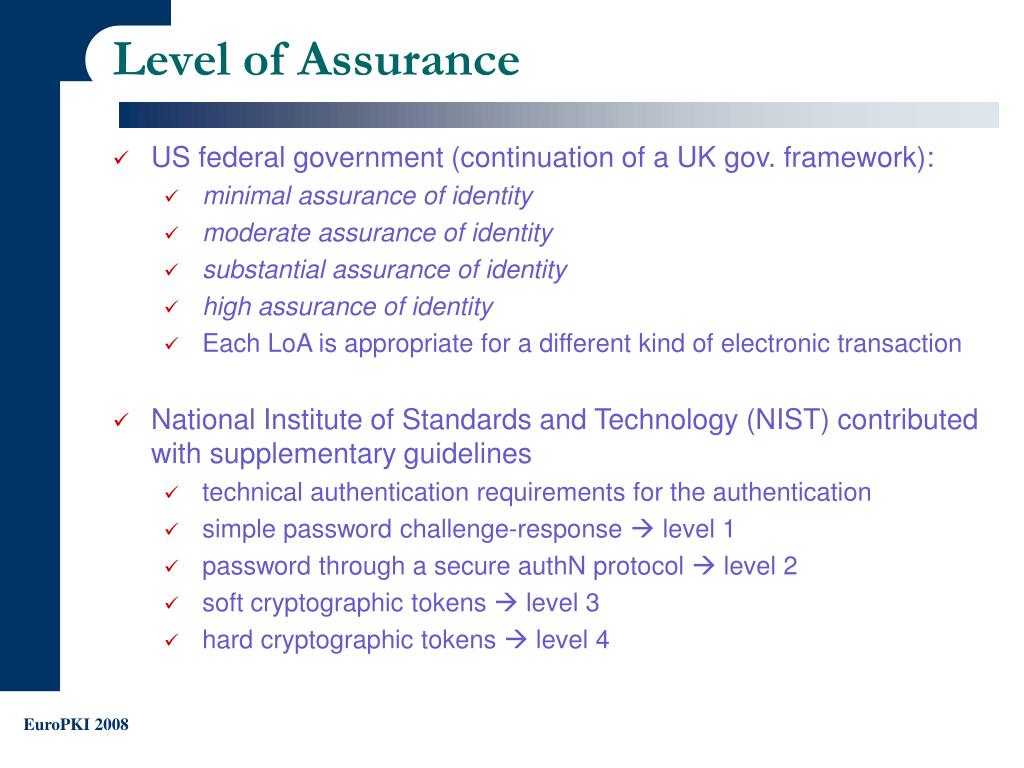

  8. Level of Assurance • US federal government (continuation of a UK gov. framework): • minimal assurance of identity • moderate assurance of identity • substantial assurance of identity • high assurance of identity • Each LoA is appropriate for a different kind of electronic transaction • National Institute of Standards and Technology (NIST) contributed with supplementary guidelines • technical authentication requirements for the authentication • simple password challenge-response  level 1 • password through a secure authN protocol  level 2 • soft cryptographic tokens  level 3 • hard cryptographic tokens  level 4

  9. Agenda • Introduction • Level of Assurance • eduGAIN • Use Case • Infrastructure for re-authentication • Support for different Levels of Assurance • Related work • Conclusions

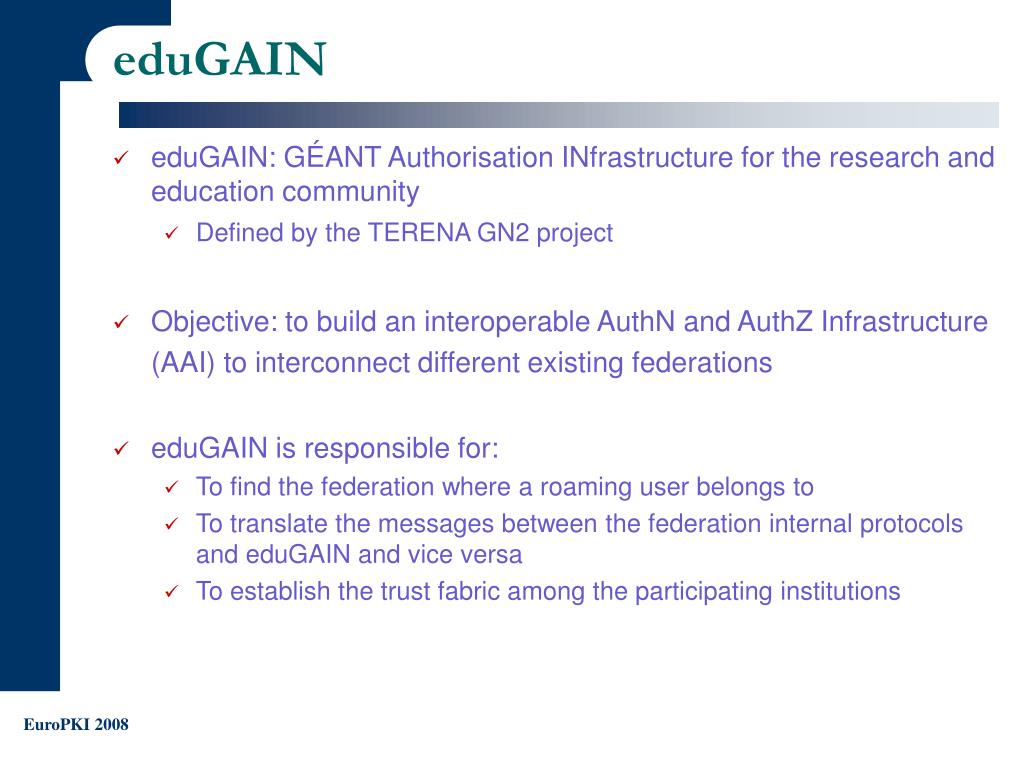

  10. eduGAIN • eduGAIN: GÉANT Authorisation INfrastructure for the research and education community • Defined by the TERENA GN2 project • Objective: to build an interoperable AuthN and AuthZ Infrastructure (AAI) to interconnect different existing federations • eduGAIN is responsible for: • To find the federation where a roaming user belongs to • To translate the messages between the federation internal protocols and eduGAIN and vice versa • To establish the trust fabric among the participating institutions

  11. eduGAIN • Architecture overview

  12. Agenda • Introduction • Level of Assurance • eduGAIN • Use Case • Infrastructure for re-authentication • Support for different Levels of Assurance • Related work • Conclusions

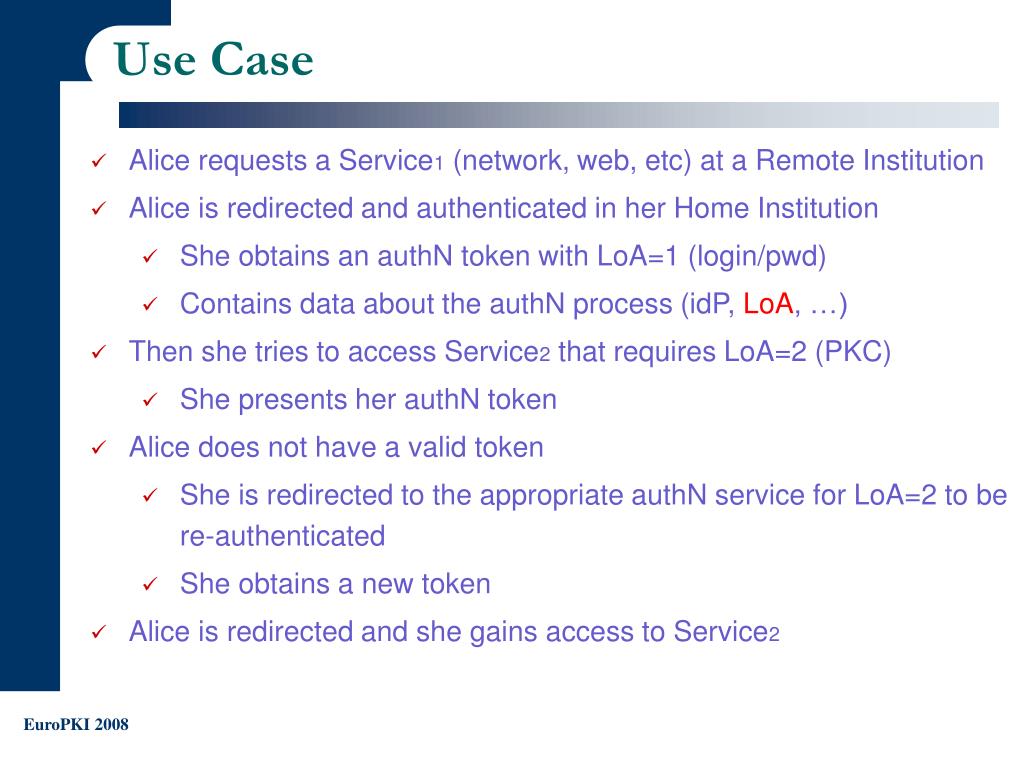

  13. Use Case • Alice requests a Service1 (network, web, etc) at a Remote Institution • Alice is redirected and authenticated in her Home Institution • She obtains an authN token with LoA=1 (login/pwd) • Contains data about the authN process (idP, LoA, …) • Then she tries to access Service2 that requires LoA=2 (PKC) • She presents her authN token • Alice does not have a valid token • She is redirected to the appropriate authN service for LoA=2 to be re-authenticated • She obtains a new token • Alice is redirected and she gains access to Service2

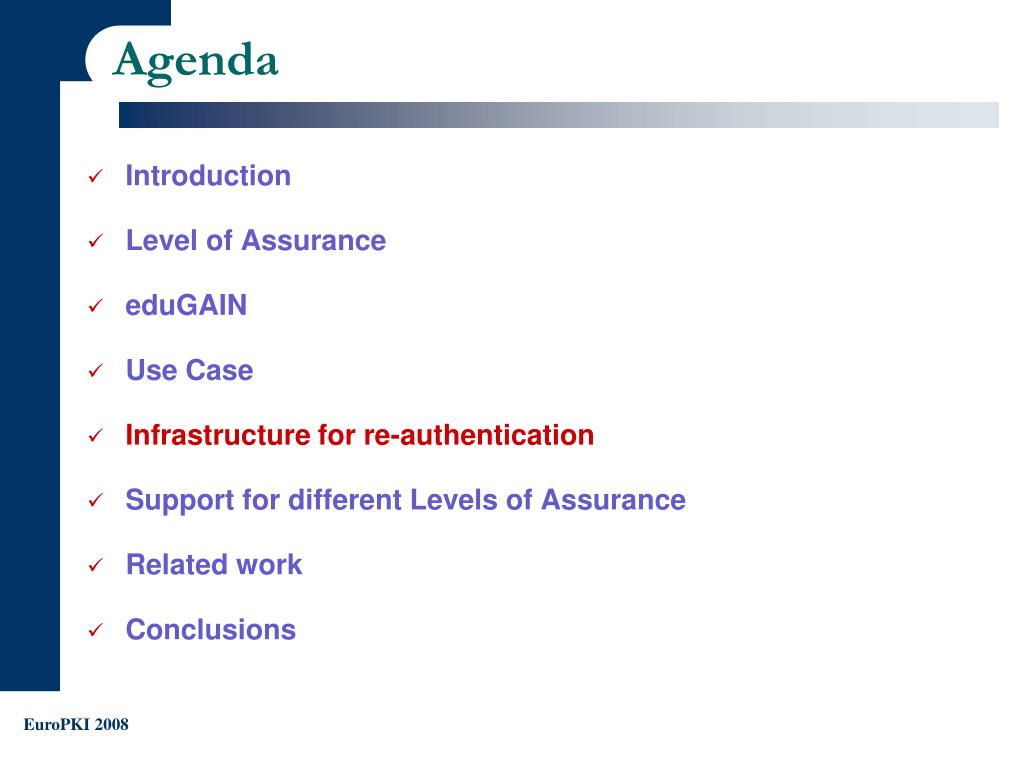

  14. Agenda • Introduction • Level of Assurance • eduGAIN • Use Case • Infrastructure for re-authentication • Support for different Levels of Assurance • Related work • Conclusions

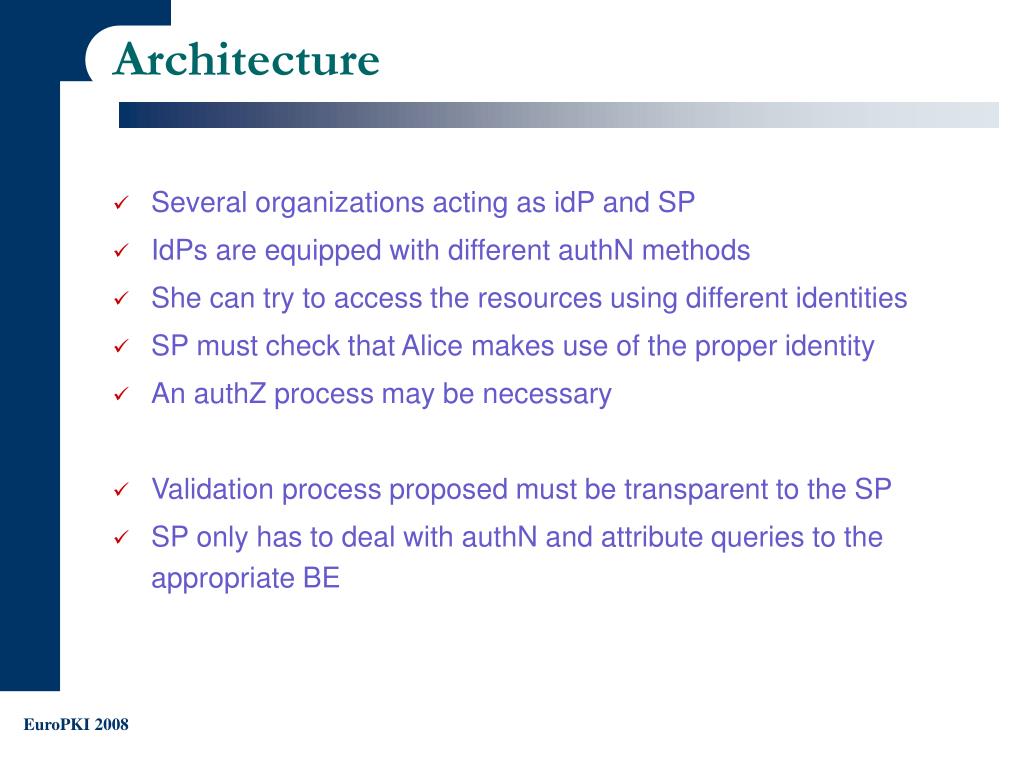

  15. Architecture • Several organizations acting as idP and SP • IdPs are equipped with different authN methods • She can try to access the resources using different identities • SP must check that Alice makes use of the proper identity • An authZ process may be necessary • Validation process proposed must be transparent to the SP • SP only has to deal with authN and attribute queries to the appropriate BE

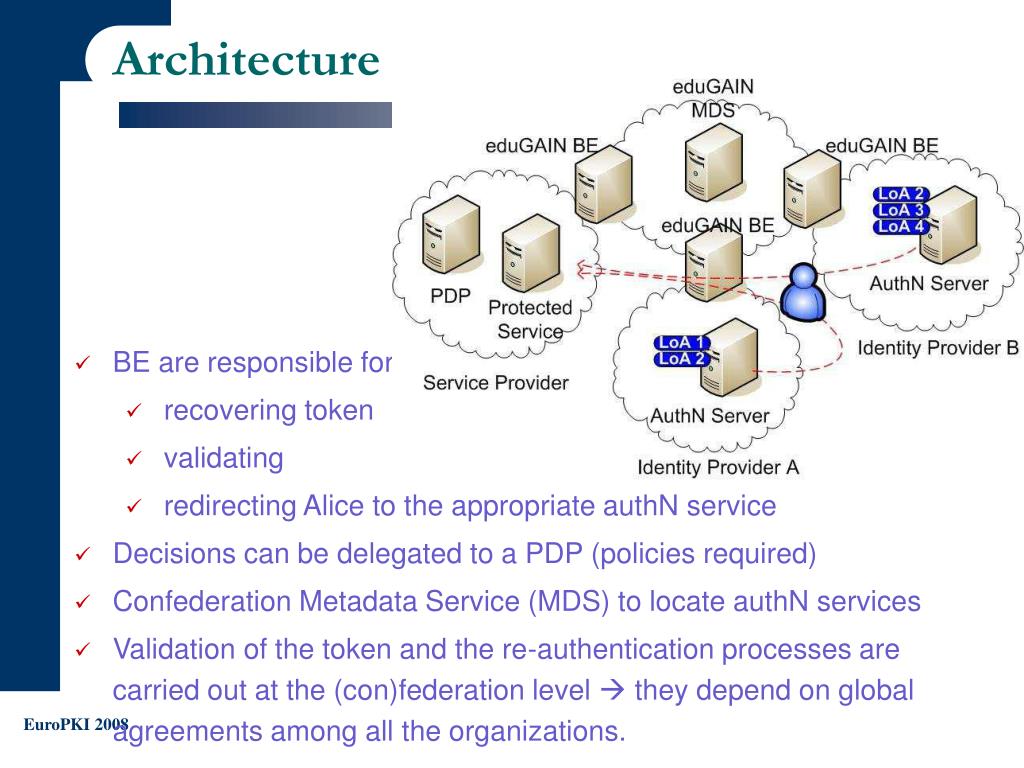

  16. Architecture • BE are responsible for: • recovering token • validating • redirecting Alice to the appropriate authN service • Decisions can be delegated to a PDP (policies required) • Confederation Metadata Service (MDS) to locate authN services • Validation of the token and the re-authentication processes are carried out at the (con)federation level  they depend on global agreements among all the organizations.

  17. Communication profile • Initial network authentication and token delivery (eduroam-based) 1. AuthNrequest 3. UserisauthN 2. Forwardedtothe home institution (AAA) 4. AuthNtoken generatedby BE (transparentto service) 5. Token (LoA) issent back to the user

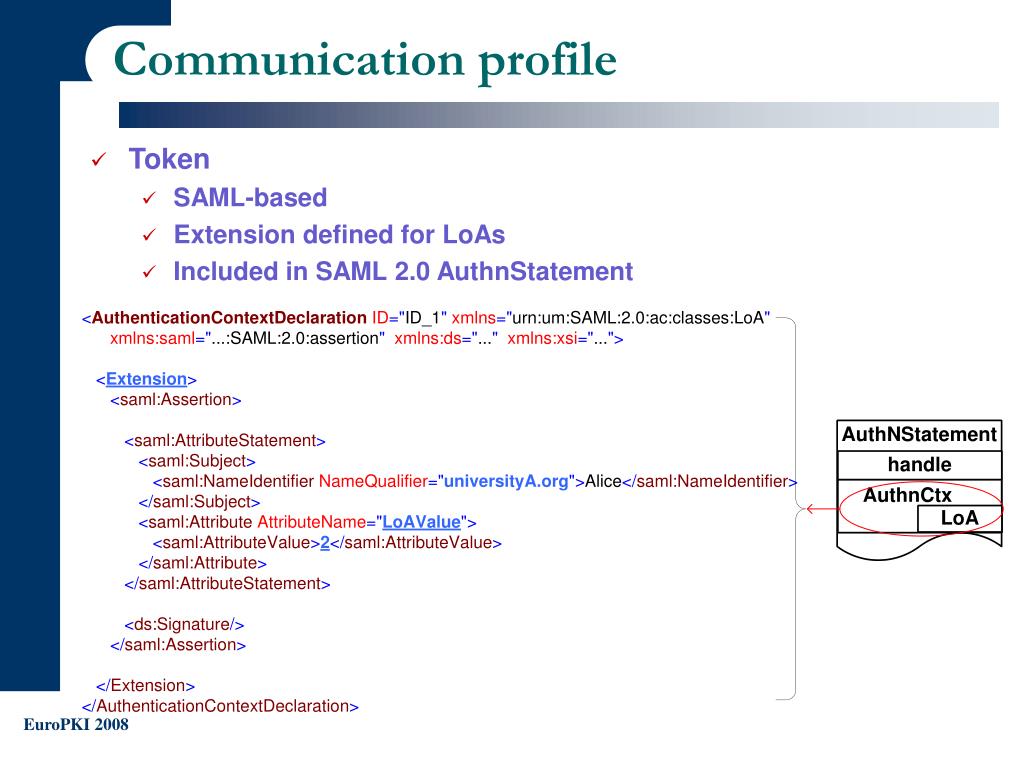

  18. Communication profile • Token • SAML-based • Extension defined for LoAs • Included in SAML 2.0 AuthnStatement

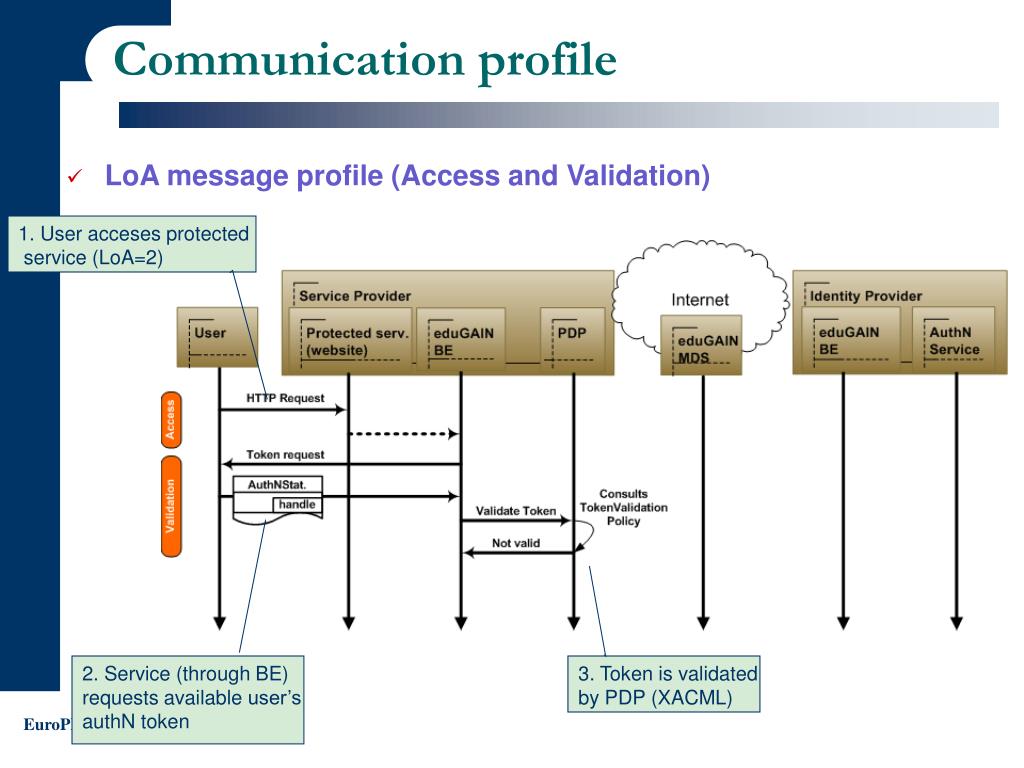

  19. Communication profile • LoAmessageprofile (Access and Validation) 1. Useraccesesprotected service (LoA=2) 2. Service (through BE) requestsavailableuser’s authNtoken 3. Tokenisvalidated by PDP (XACML)

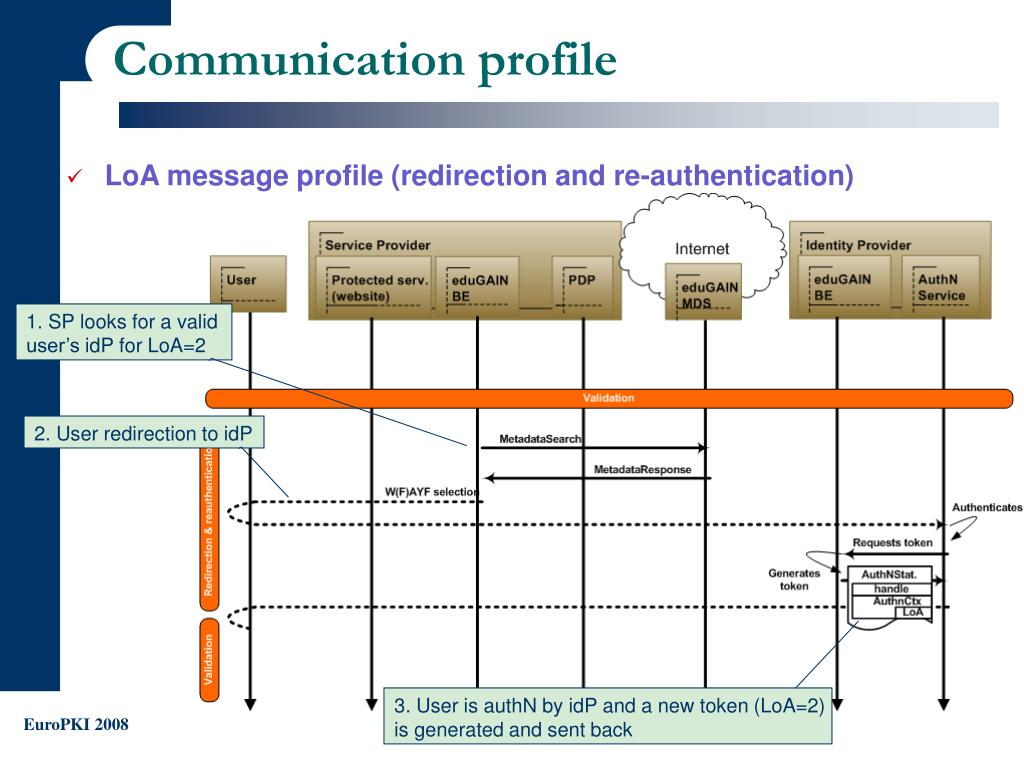

  20. Communication profile • LoAmessageprofile (redirection and re-authentication) 1. SP looks for a valid user’sidPforLoA=2 2. UserredirectiontoidP 3. UserisauthNbyidP and a new token (LoA=2) is generated and sent back

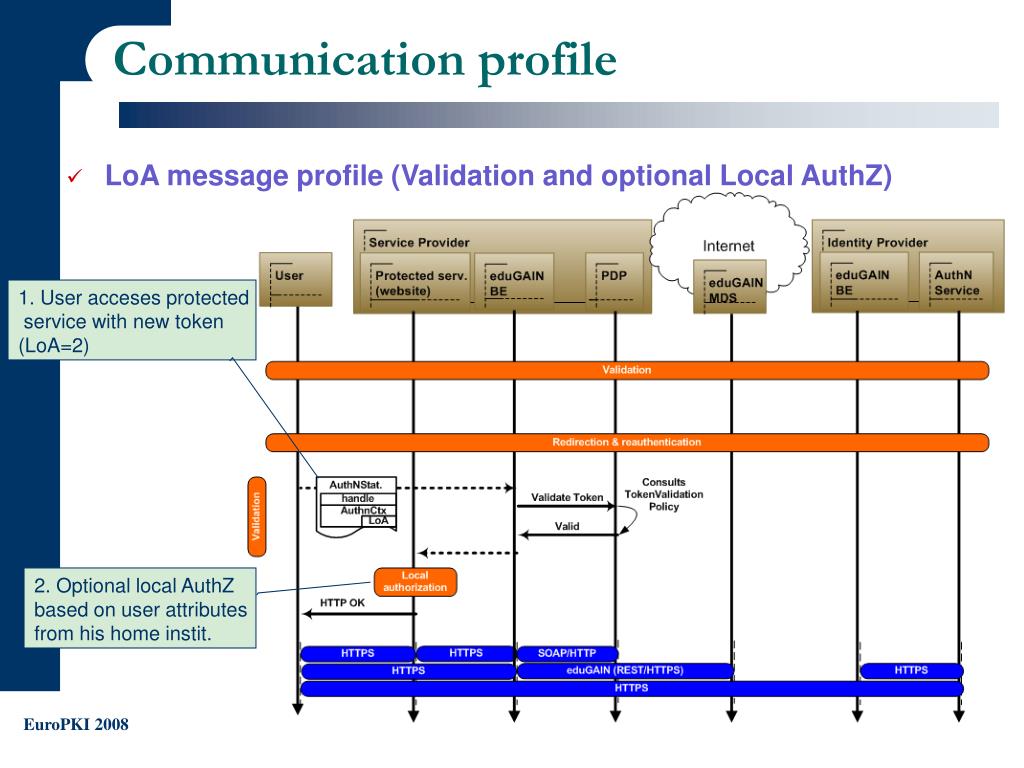

  21. Communication profile • LoAmessageprofile (Validation and optional Local AuthZ) 1. Useraccesesprotected servicewith new token (LoA=2) 2. Optional local AuthZ based on user attributes from his home instit.

  22. Agenda • Introduction • Level of Assurance • eduGAIN • Use Case • Infrastructure for re-authentication • Support for different Levels of Assurance • Related work • Conclusions

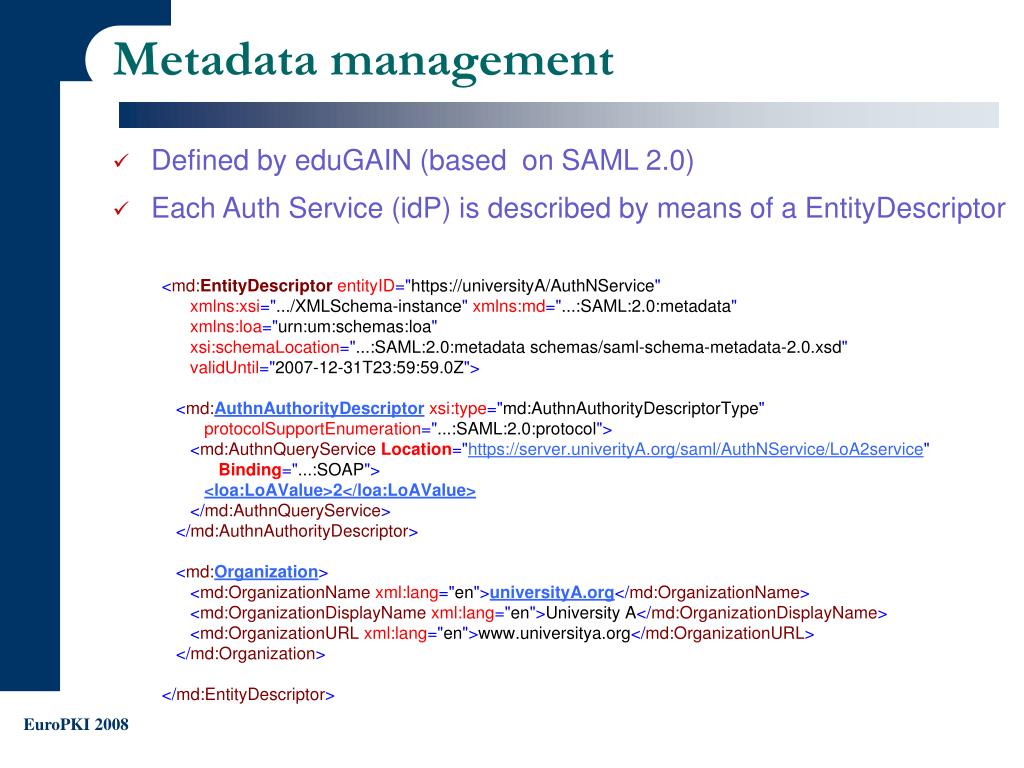

  23. Metadata management • Defined by eduGAIN (based on SAML 2.0) • Each Auth Service (idP) is described by means of a EntityDescriptor

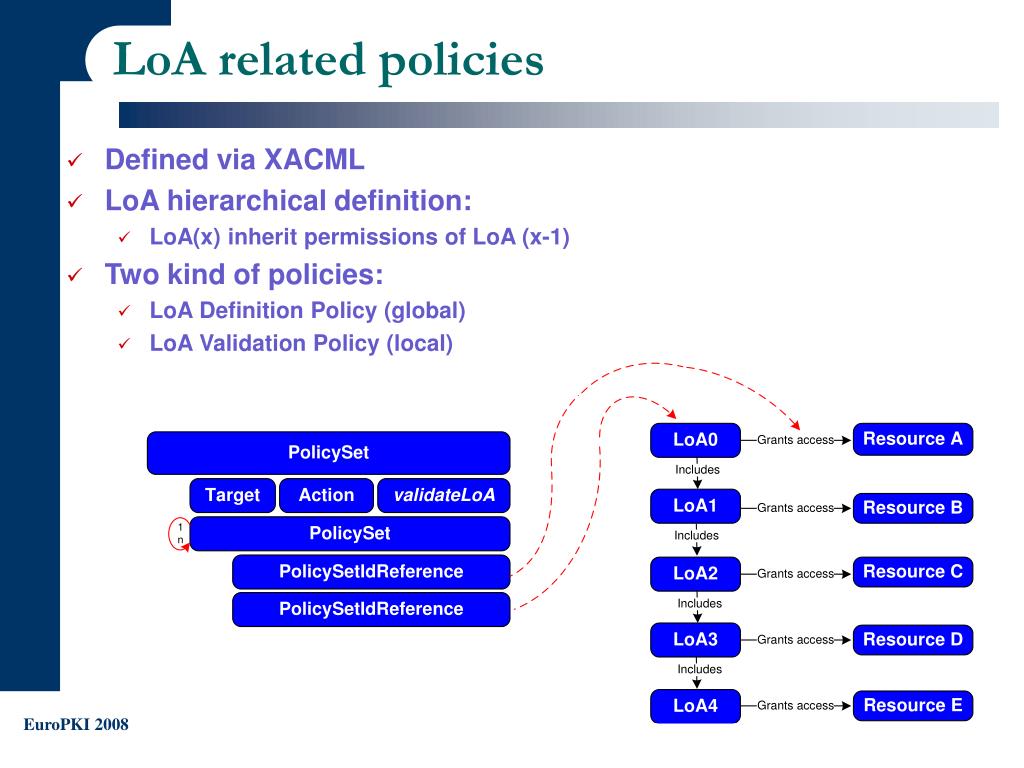

  24. LoA related policies • Defined via XACML • LoA hierarchical definition: • LoA(x) inherit permissions of LoA (x-1) • Two kind of policies: • LoA Definition Policy (global) • LoA Validation Policy (local)

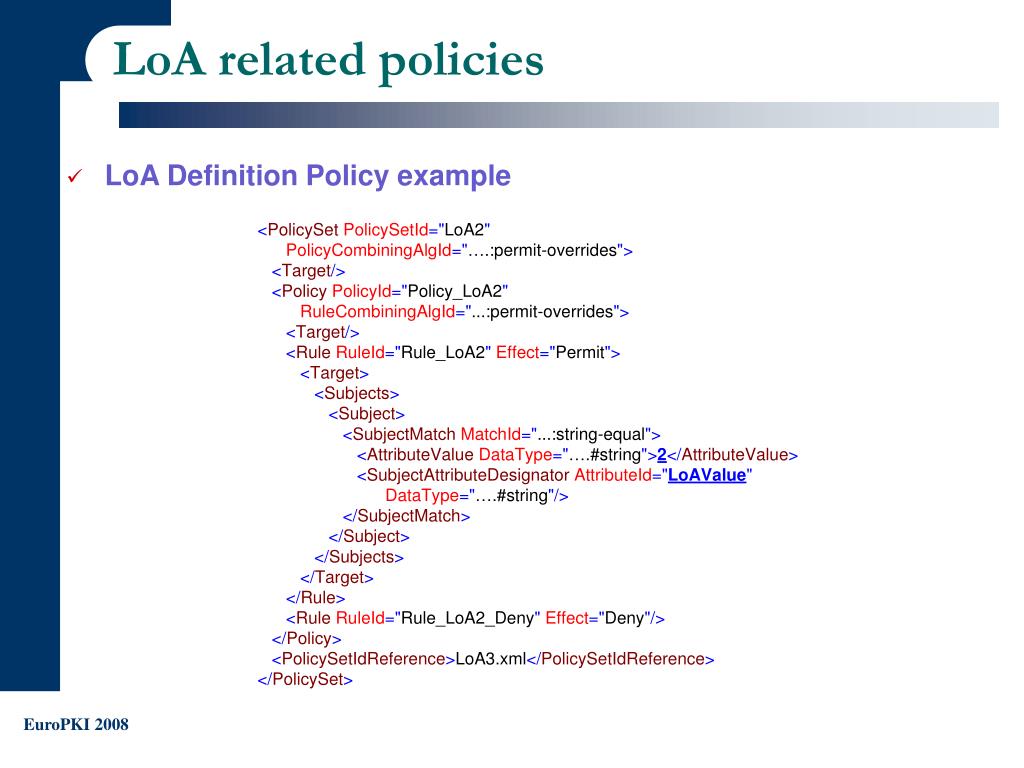

  25. LoA related policies • LoADefinitionPolicyexample

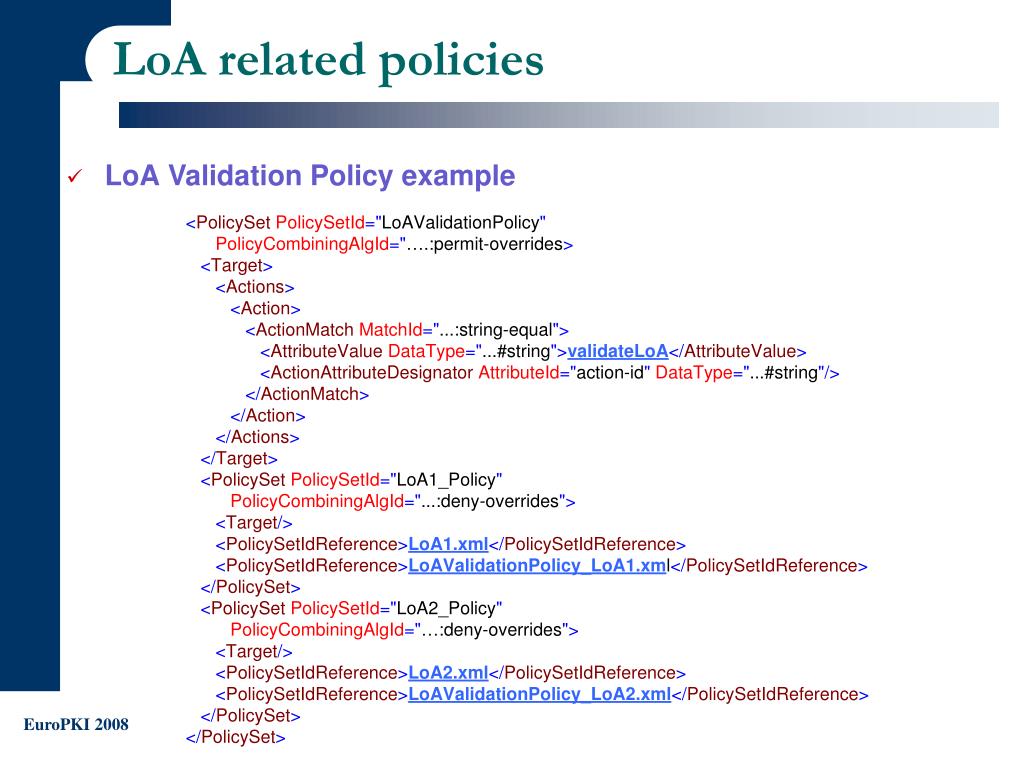

  26. LoA related policies • LoAValidationPolicyexample

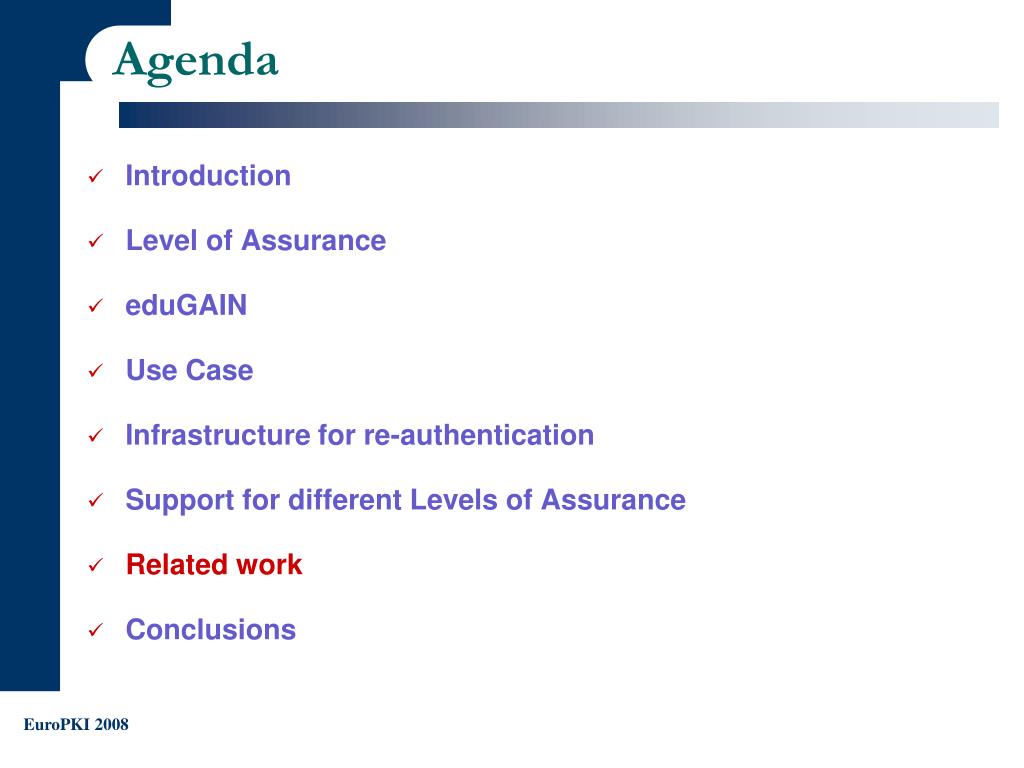

  27. Agenda • Introduction • Level of Assurance • eduGAIN • Use Case • Infrastructure for re-authentication • Support for different Levels of Assurance • Related work • Conclusions

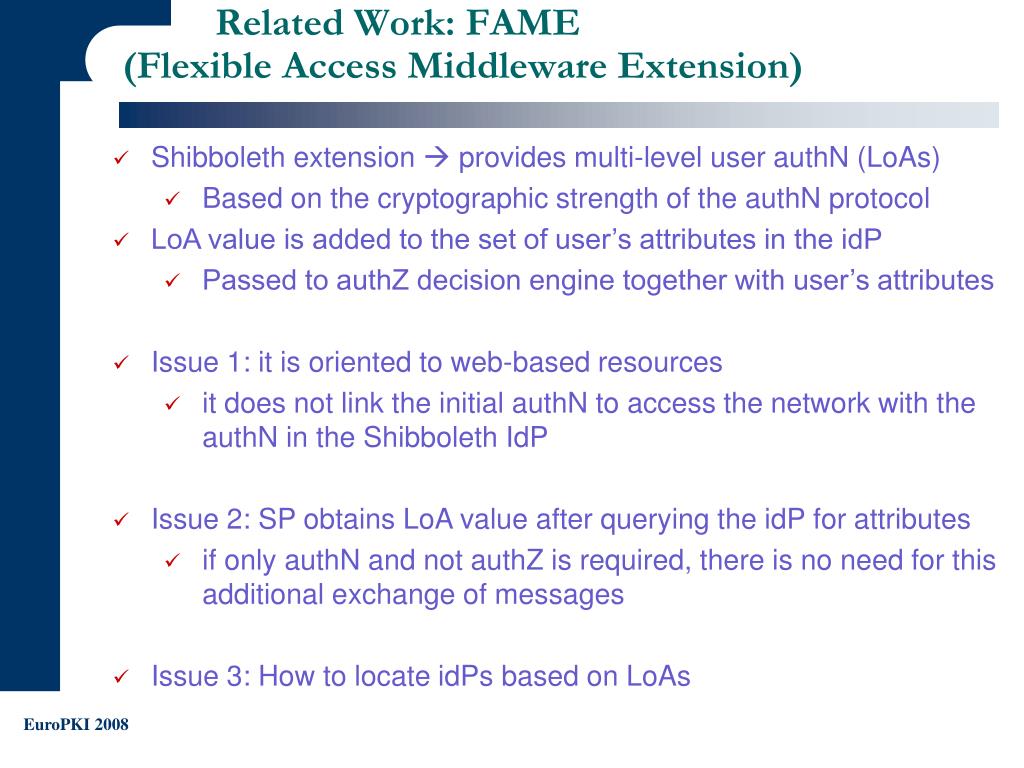

  28. Related Work: FAME (Flexible Access Middleware Extension) • Shibboleth extension  provides multi-level user authN (LoAs) • Based on the cryptographic strength of the authN protocol • LoA value is added to the set of user’s attributes in the idP • Passed to authZ decision engine together with user’s attributes • Issue 1: it is oriented to web-based resources • it does not link the initial authN to access the network with the authN in the Shibboleth IdP • Issue 2: SP obtains LoA value after querying the idP for attributes • if only authN and not authZ is required, there is no need for this additional exchange of messages • Issue 3: How to locate idPs based on LoAs

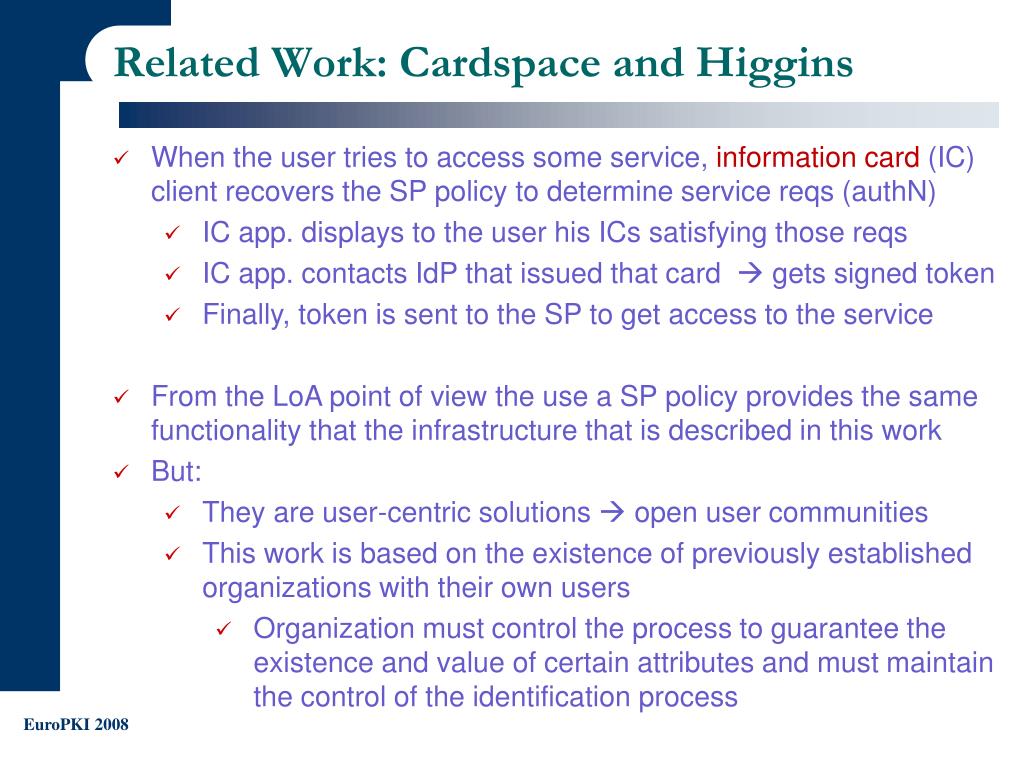

  29. Related Work: Cardspace and Higgins • When the user tries to access some service, information card (IC) client recovers the SP policy to determine service reqs (authN) • IC app. displays to the user his ICs satisfying those reqs • IC app. contacts IdP that issued that card  gets signed token • Finally, token is sent to the SP to get access to the service • From the LoA point of view the use a SP policy provides the same functionality that the infrastructure that is described in this work • But: • They are user-centric solutions  open user communities • This work is based on the existence of previously established organizations with their own users • Organization must control the process to guarantee the existence and value of certain attributes and must maintain the control of the identification process

  30. Agenda • Introduction • Level of Assurance • eduGAIN • Use Case • Infrastructure for re-authentication • Support for different Levels of Assurance • Related work • Conclusions

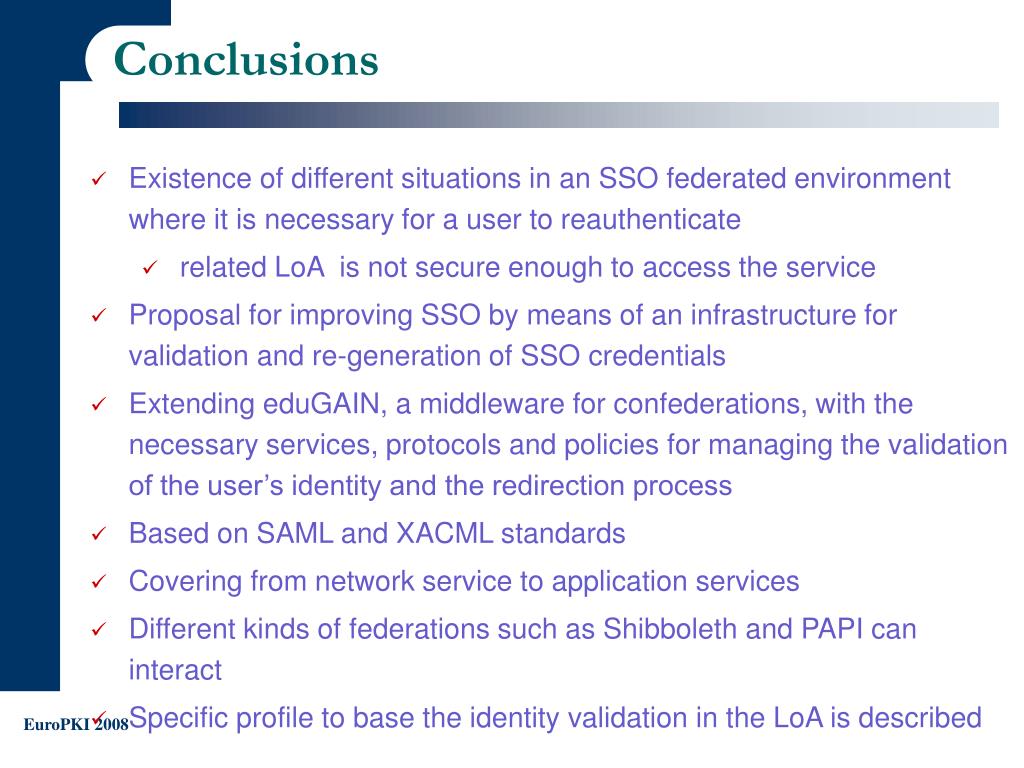

  31. Conclusions • Existence of different situations in an SSO federated environment where it is necessary for a user to reauthenticate • related LoA is not secure enough to access the service • Proposal for improving SSO by means of an infrastructure for validation and re-generation of SSO credentials • Extending eduGAIN, a middleware for confederations, with the necessary services, protocols and policies for managing the validation of the user’s identity and the redirection process • Based on SAML and XACML standards • Covering from network service to application services • Different kinds of federations such as Shibboleth and PAPI can interact • Specific profile to base the identity validation in the LoA is described

  32. Levels of Assurance and Reauthentication in Federated Environments Questions? gabilm@um.es

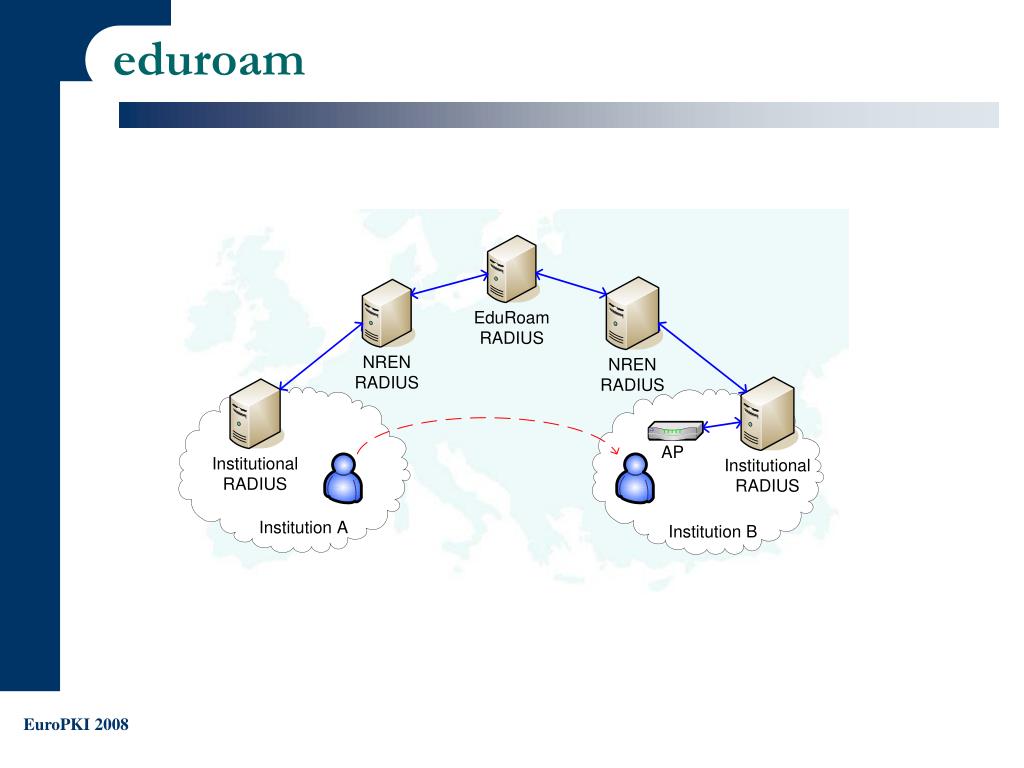

  33. eduroam

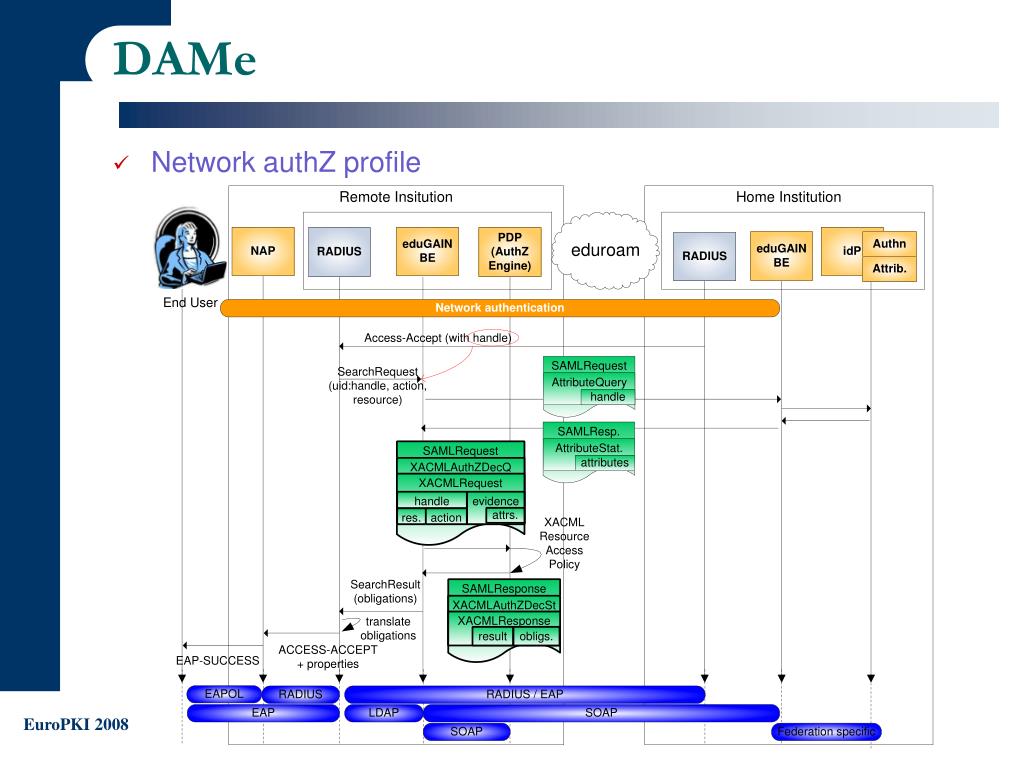

  34. DAMe • Network authZ profile

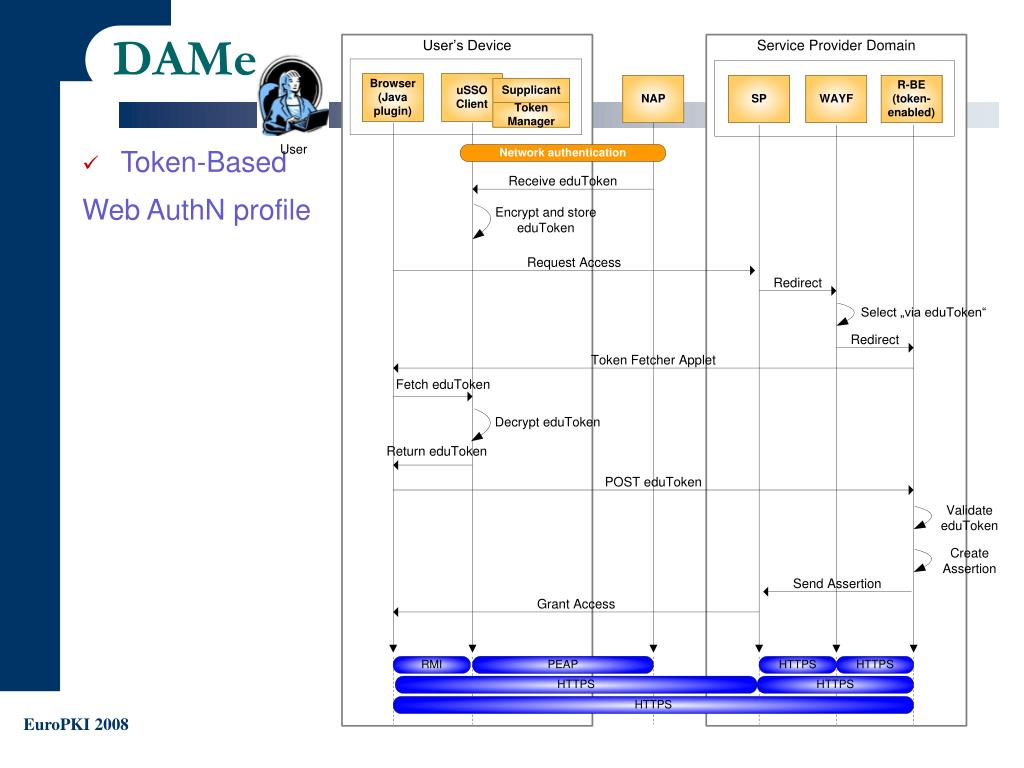

  35. DAMe • Token-Based • Web AuthN profile
