1. Nat Type Change Speed Touch and Thomson Modems

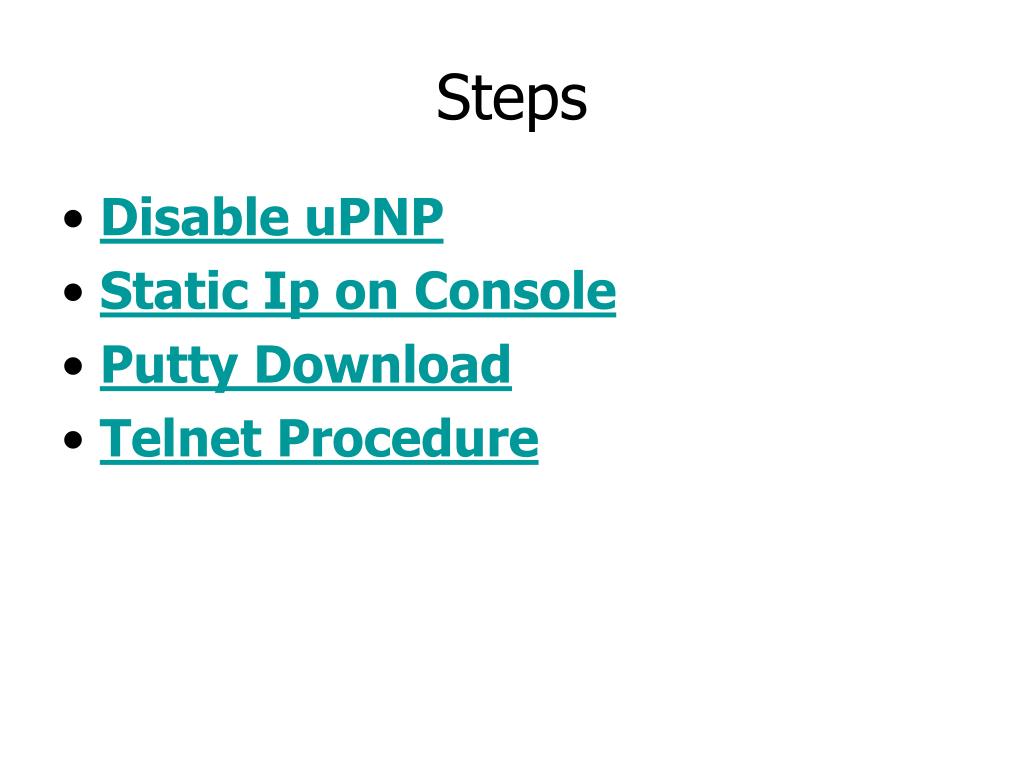

2. Steps • Disable uPNP • Static Ip on Console • Putty Download • Telnet Procedure

3. Disable uPNP • Type 192.168.10.254 on browser • Go to Toolbox and then to Game and Application Sharing • Click Configure • Uncheck uPNP and click apply Screenshots

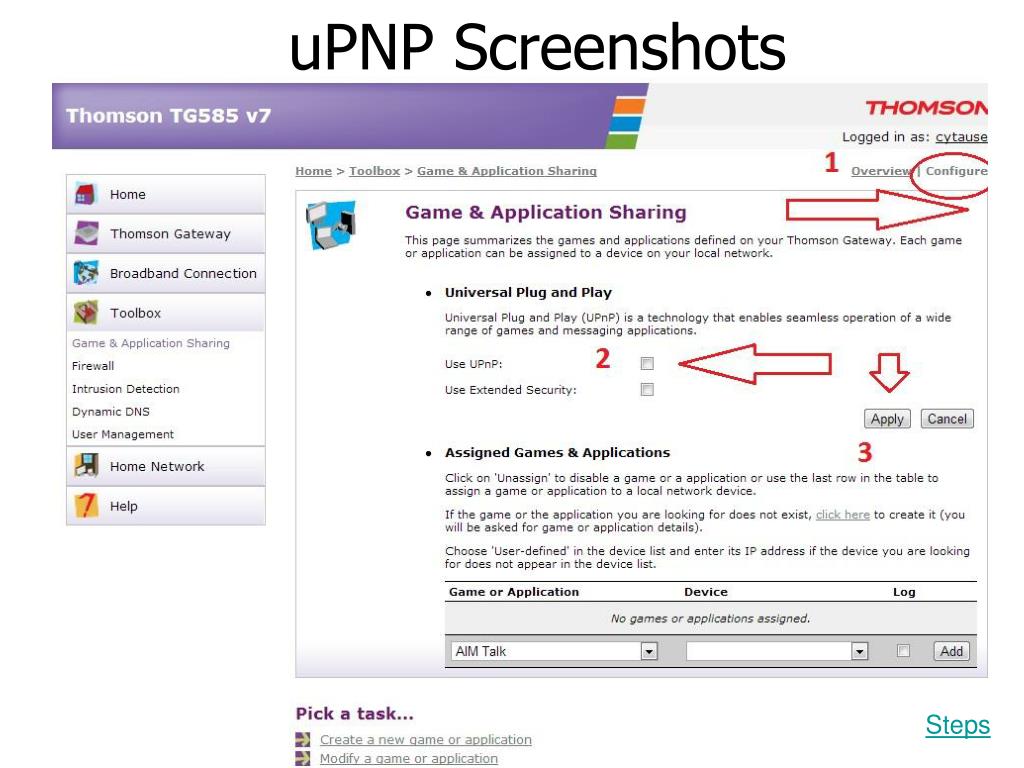

4. uPNP Screenshots Steps

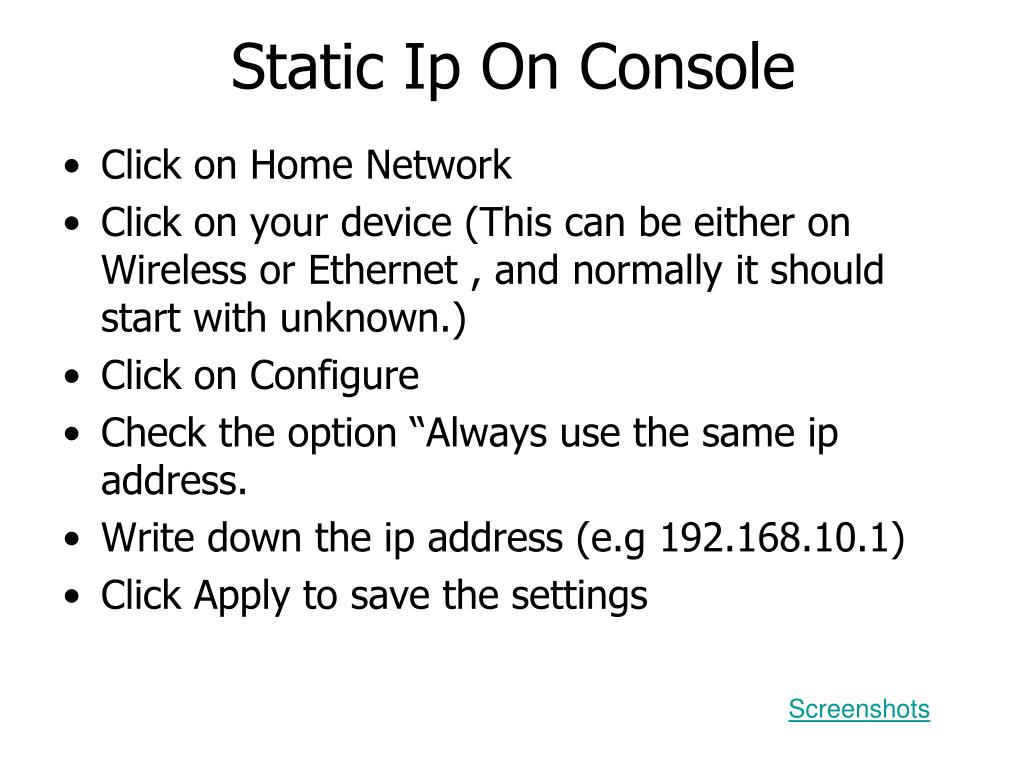

5. Static Ip On Console • Click on Home Network • Click on your device (This can be either on Wireless or Ethernet , and normally it should start with unknown.) • Click on Configure • Check the option “Always use the same ip address. • Write down the ip address (e.g 192.168.10.1) • Click Apply to save the settings Screenshots

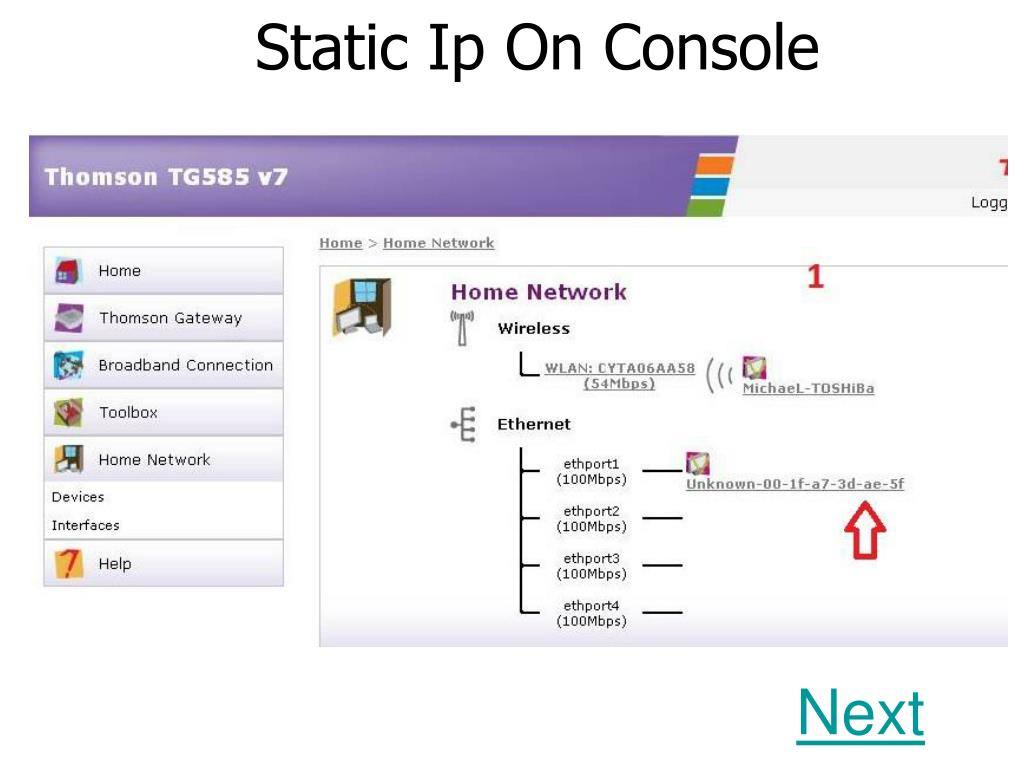

6. Static Ip On Console Next

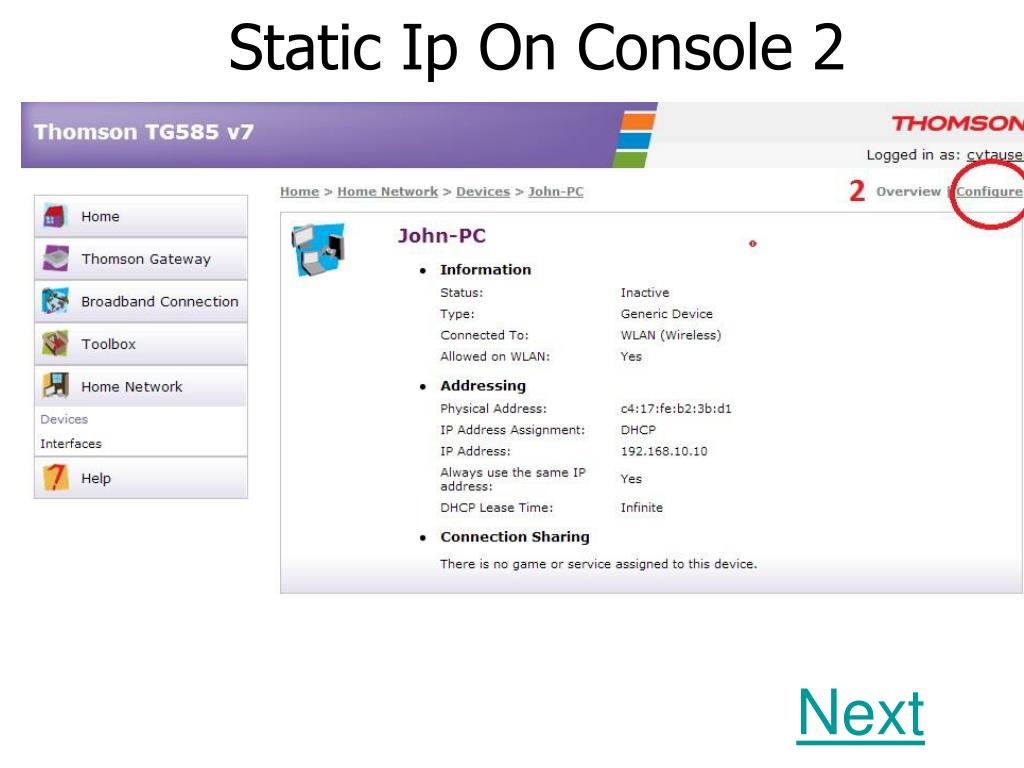

7. Static Ip On Console 2 Next

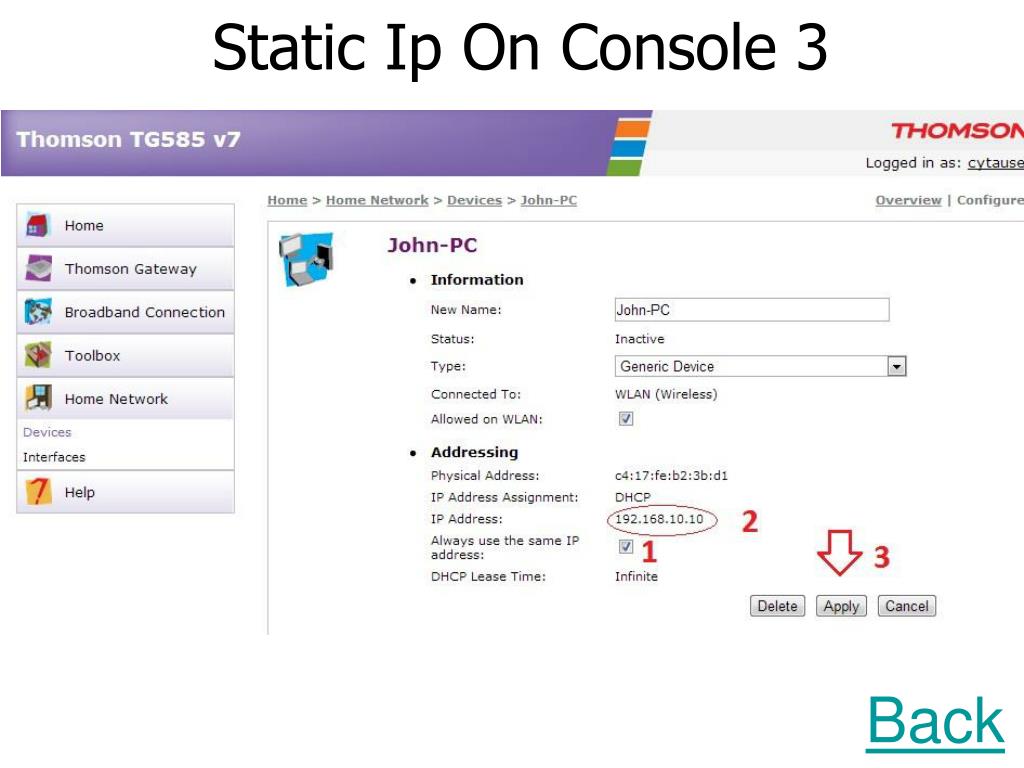

8. Static Ip On Console 3 Back

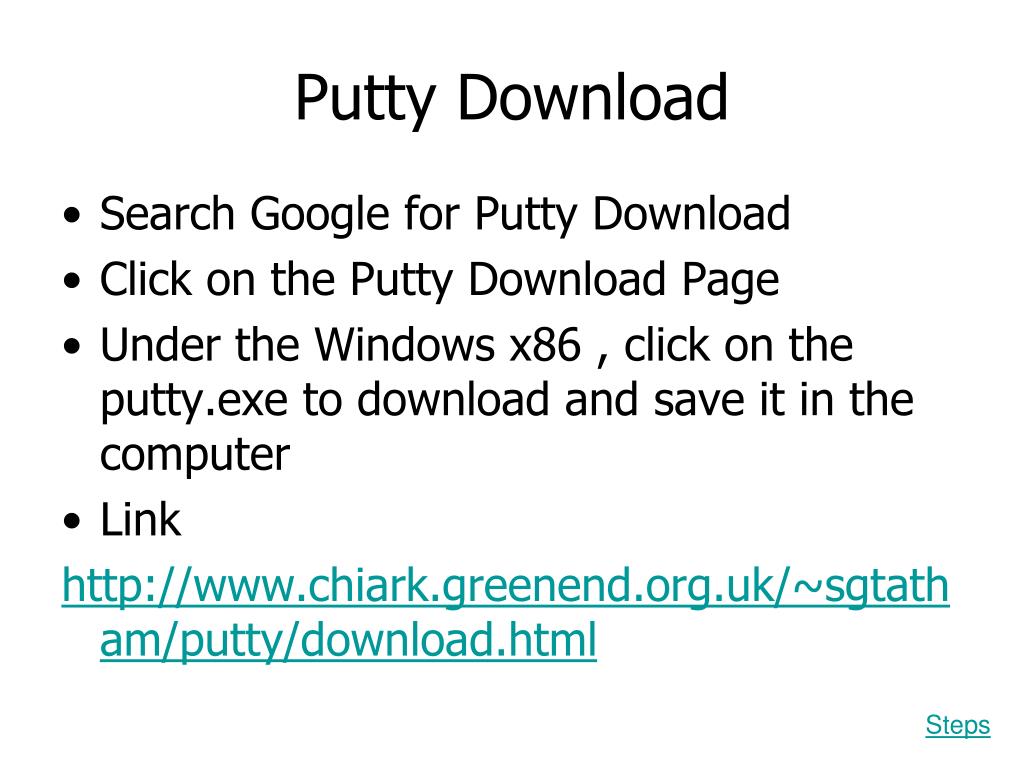

9. Putty Download • Search Google for Putty Download • Click on the Putty Download Page • Under the Windows x86 , click on the putty.exe to download and save it in the computer • Link http://www.chiark.greenend.org.uk/~sgtatham/putty/download.html Steps

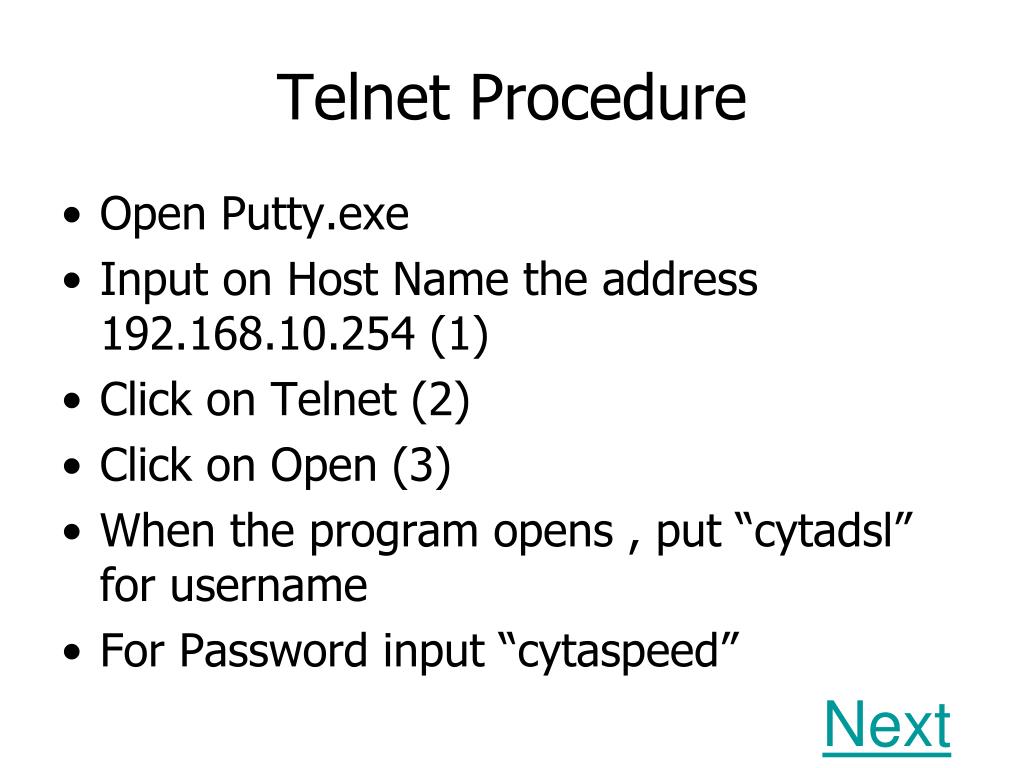

10. Telnet Procedure • Open Putty.exe • Input on Host Name the address 192.168.10.254 (1) • Click on Telnet (2) • Click on Open (3) • When the program opens , put “cytadsl” for username • For Password input “cytaspeed” Next

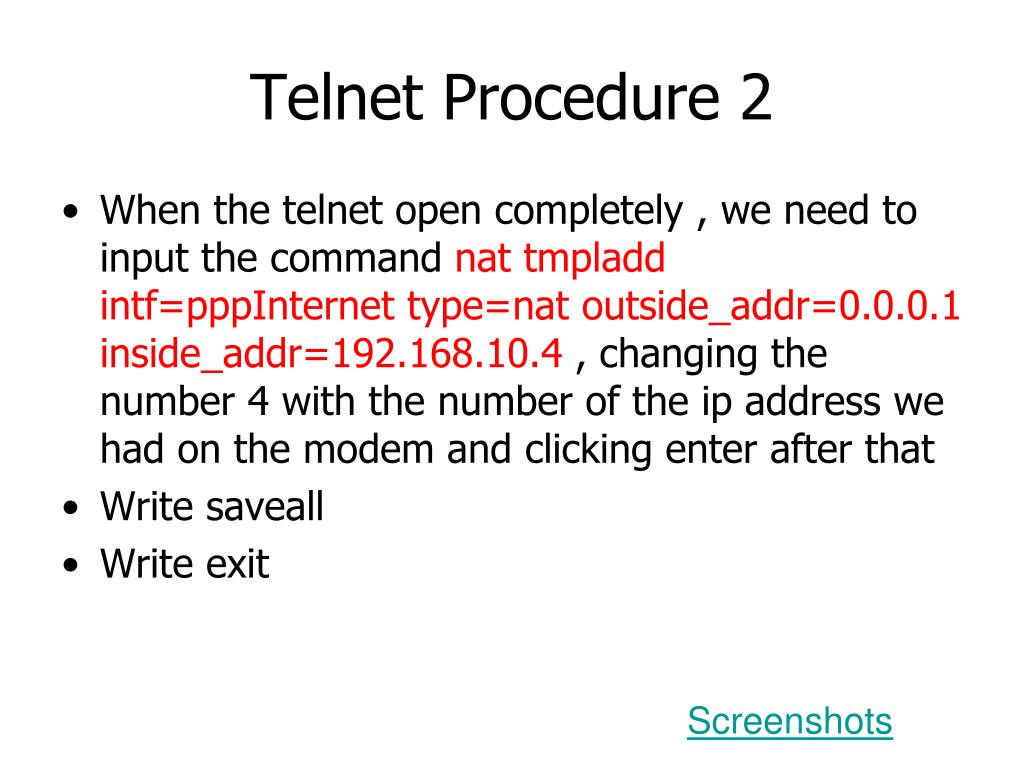

11. Telnet Procedure 2 • When the telnet open completely , we need to input the command nat tmpladd intf=pppInternet type=nat outside_addr=0.0.0.1 inside_addr=192.168.10.4, changing the number 4 with the number of the ip address we had on the modem and clicking enter after that • Write saveall • Write exit Screenshots

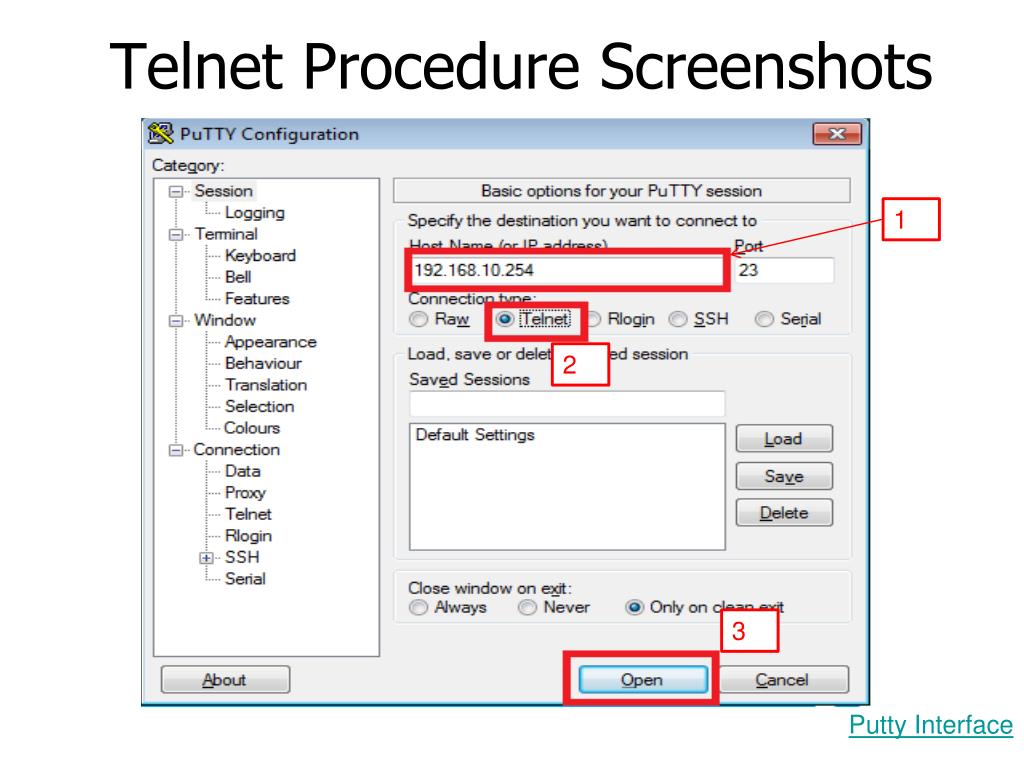

12. Telnet Procedure Screenshots 1 2 3 Putty Interface

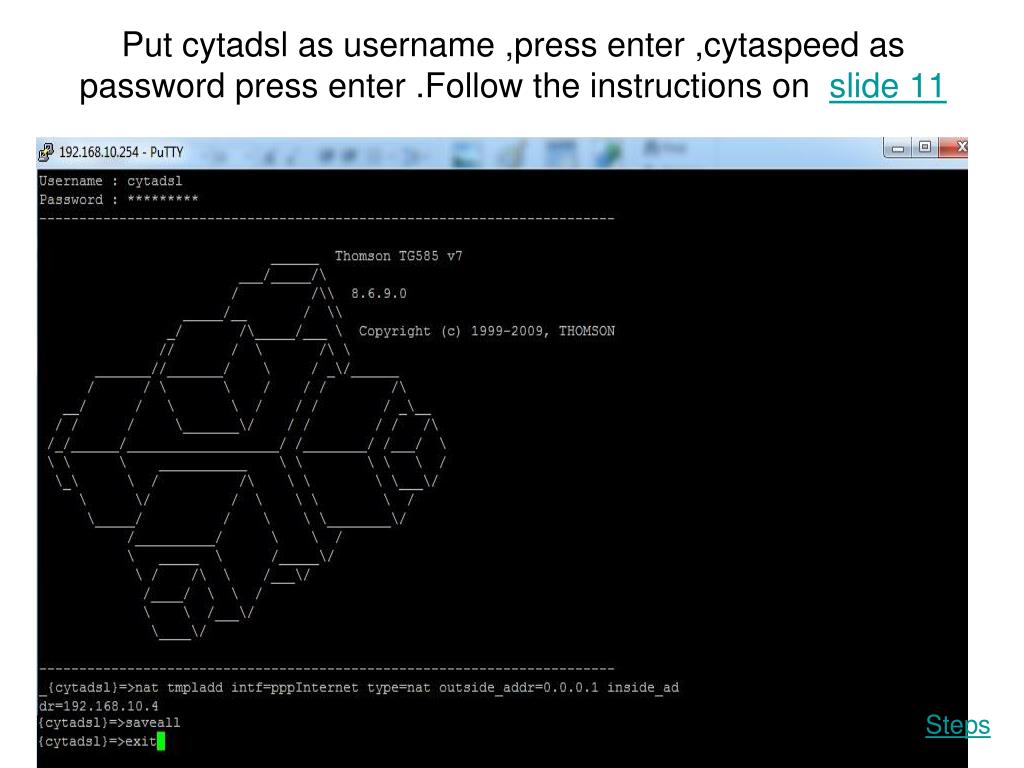

13. Put cytadsl as username ,press enter ,cytaspeed as password press enter .Follow the instructions on slide 11 Steps
