作业解析 3

N i 次. 次. MPa. 作业解析 3. 某种零件受规则变化的变幅对称交变应力，已知零件的疲劳极限为 19MPa ， N T = 115091 次 ,  a i 、 n T i 、 N i 均列于下表中。 试用迈因纳准则确定零件的寿命。. 350 11 5.6×10 4. 332 80 7.4×10 4.

nell
Télécharger la présentation

作业解析 3

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

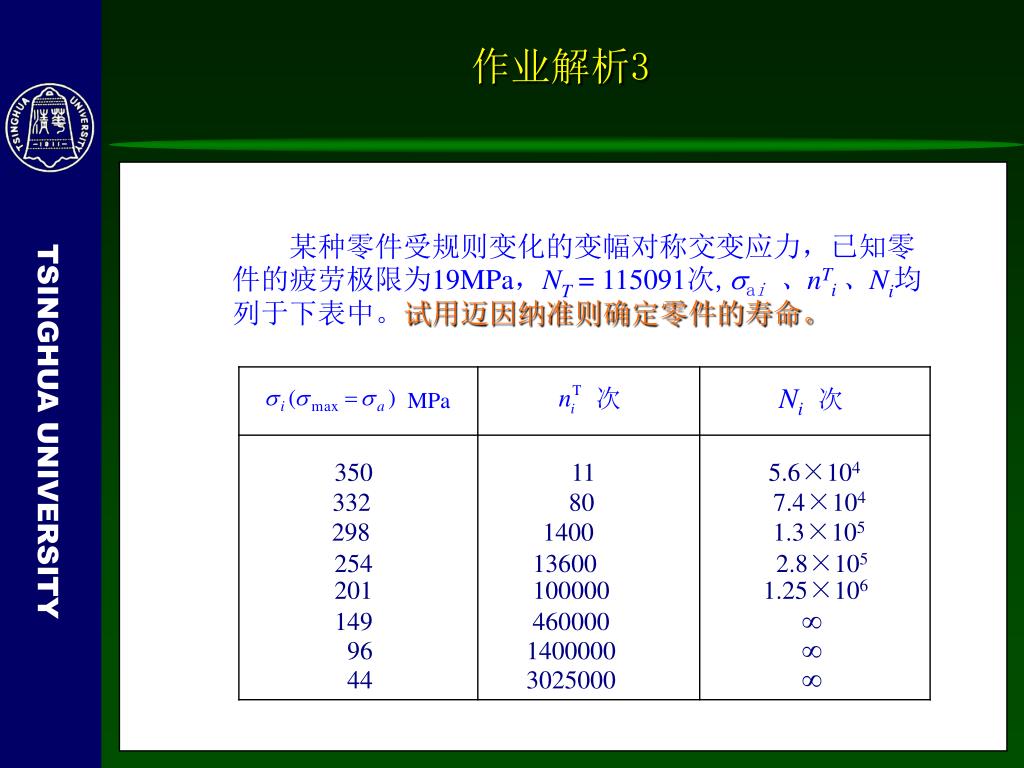

  1. Ni 次 次 MPa 作业解析3 某种零件受规则变化的变幅对称交变应力，已知零件的疲劳极限为19MPa，NT = 115091次,ai、nTi 、Ni均列于下表中。试用迈因纳准则确定零件的寿命。 350 11 5.6×104 332 80 7.4×104 298 1400 1.3×105 254 13600 2.8×105 201 100000 1.25×106 149 460000 ∞ 96 1400000 ∞ 44 3025000 ∞

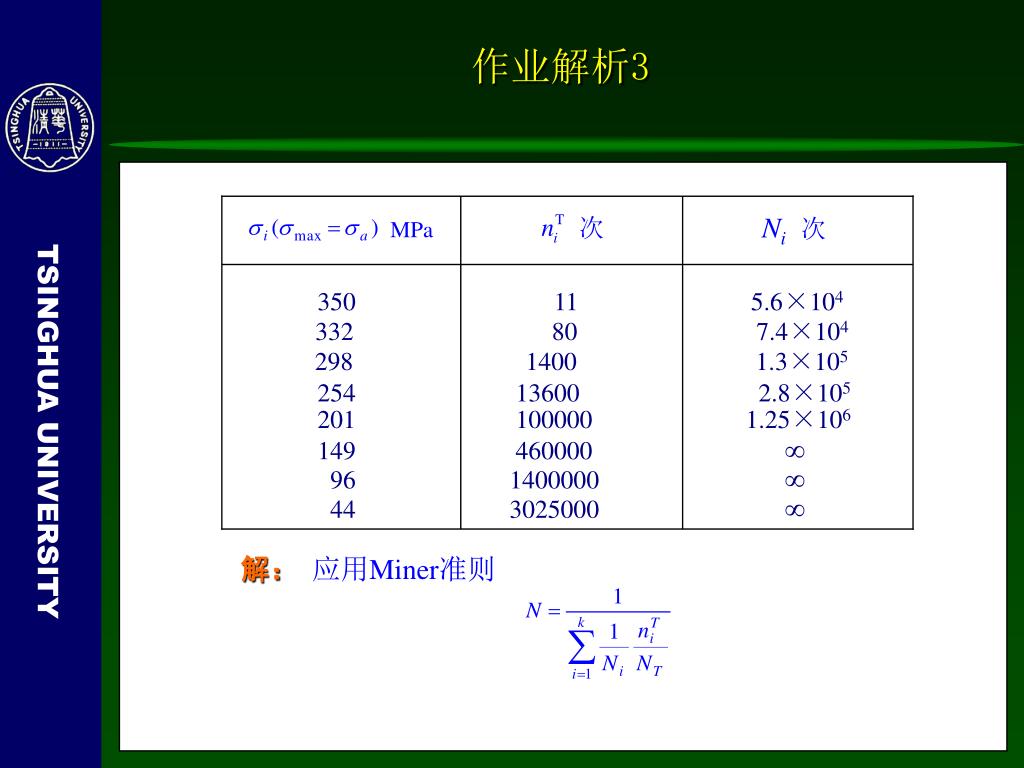

  2. Ni 次 MPa 350 11 5.6×104 332 80 7.4×104 298 1400 1.3×105 次 254 13600 2.8×105 201 100000 1.25×106 149 460000 ∞ 96 1400000 ∞ 44 3025000 ∞ 作业解析3 解： 应用Miner准则

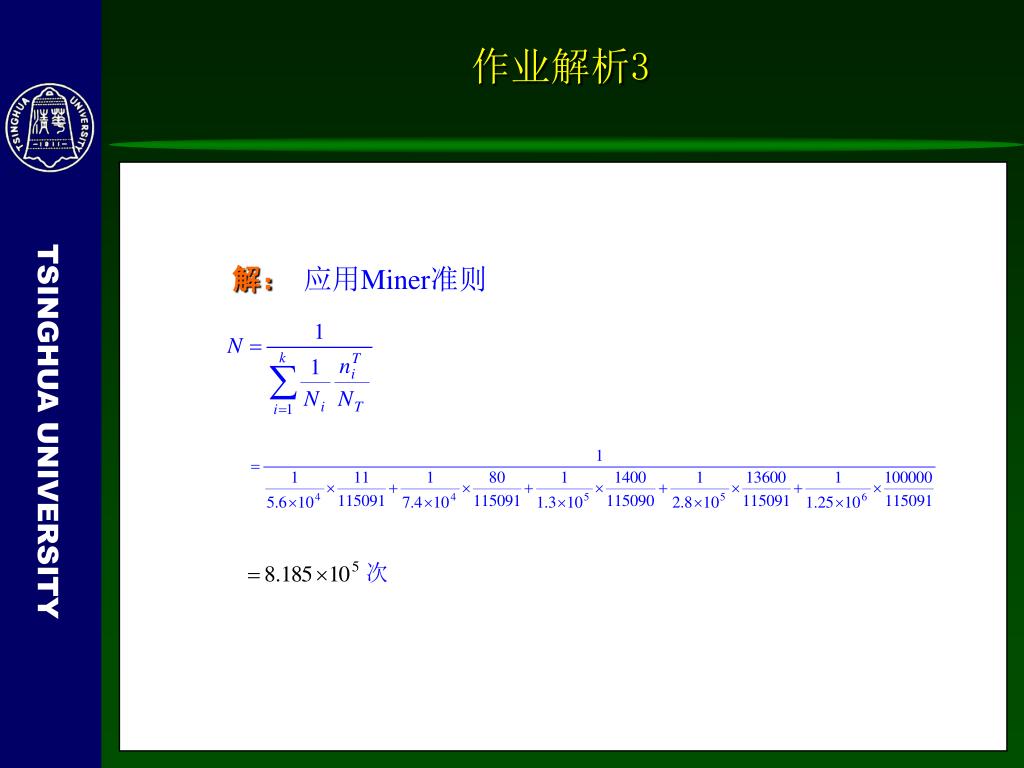

  3. 次 作业解析3 解： 应用Miner准则
