  1. NetWorker Management Console:Device Configuration Product Overview August 2005

  2. Email alias: devgui Keith LoPresto Lai Fong Ho Minh Chau Mu Chai Pallapotu Ramesh Device Configuration Development Team

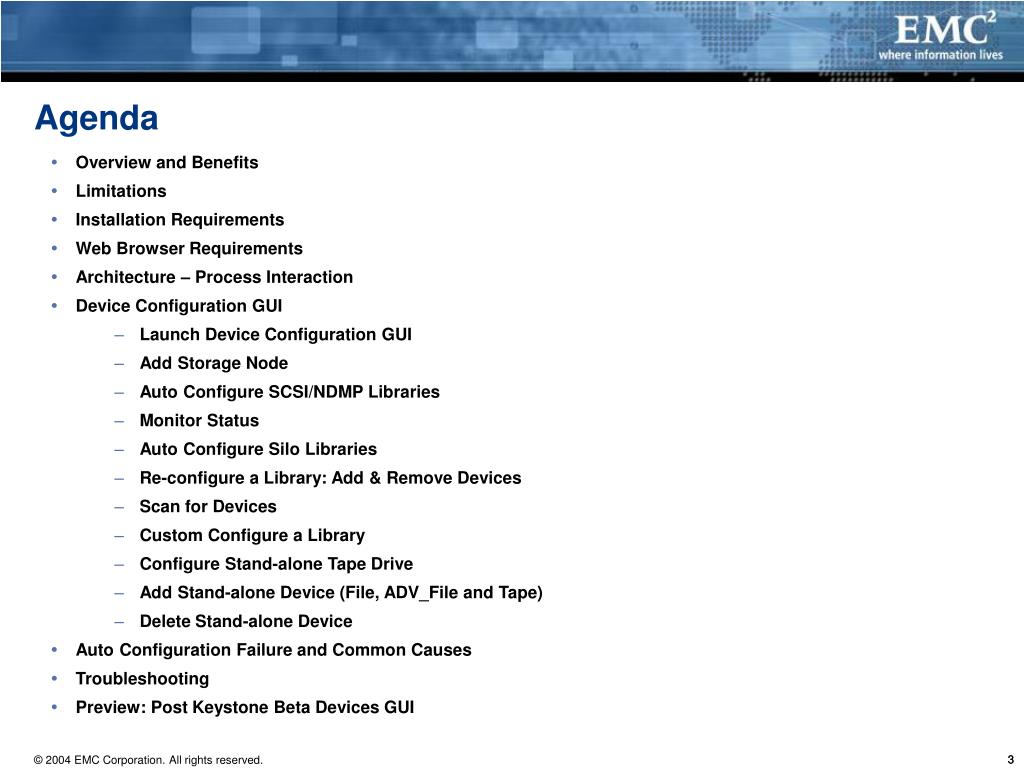

  3. Agenda • Overview and Benefits • Limitations • Installation Requirements • Web Browser Requirements • Architecture – Process Interaction • Device Configuration GUI • Launch Device Configuration GUI • Add Storage Node • Auto Configure SCSI/NDMP Libraries • Monitor Status • Auto Configure Silo Libraries • Re-configure a Library: Add & Remove Devices • Scan for Devices • Custom Configure a Library • Configure Stand-alone Tape Drive • Add Stand-alone Device (File, ADV_File and Tape) • Delete Stand-alone Device • Auto Configuration Failure and Common Causes • Troubleshooting • Preview: Post Keystone Beta Devices GUI

  4. Overview and Benefits • Problem • No Graphical User Interface (GUI) for configuring and re-configuring devices to NetWorker • This feature solves the problem by: • Providing a GUI for auto configuring libraries within NetWorker • Providing a GUI for re-configuring NetWorker libraries

  5. Limitations • Only support auto configuring SCSI, NDMP and STL Silo library types • Does not support auto configuring RSM and AlphaStor library types - use jbconfig CLI to configure RSM and AlphaStor libraries • Does not support auto configuring library which does not return its devices’ serial number - use “sn –a b.t.l” CLI to verify that the library does not return its devices’ serial number - use jbconfig CLI to configure libraries which do not return serial numbers • Does not support auto configuring NDMP library on NDMP Tape Server running at NDMP Protocol version 2. - use jbconfig CLI to configure NDMP libraries on NDMP Tape Server running at NDMP Protocol version 2.

  6. NetWorker 7.3 Management Console Server NetWorker 7.3 Server NetWorker 7.3 Storage Node Installation Requirements

  7. AIX Mozilla 1.8 Netscape 4.7.2 HP/UX Mozilla 1.6 Linux Mozilla 1.4 Solaris 8 & 9 Netscape 6.2.3 Solaris 10 Mozilla 1.7 Windows2003 Enterprise or Datacenter Edition IE 6.x Windows XP, 2000, or 2003 (32-bit) IE 5.5 or 6.x Netscape 4.7.6 or 7.x Web Browser Requirements

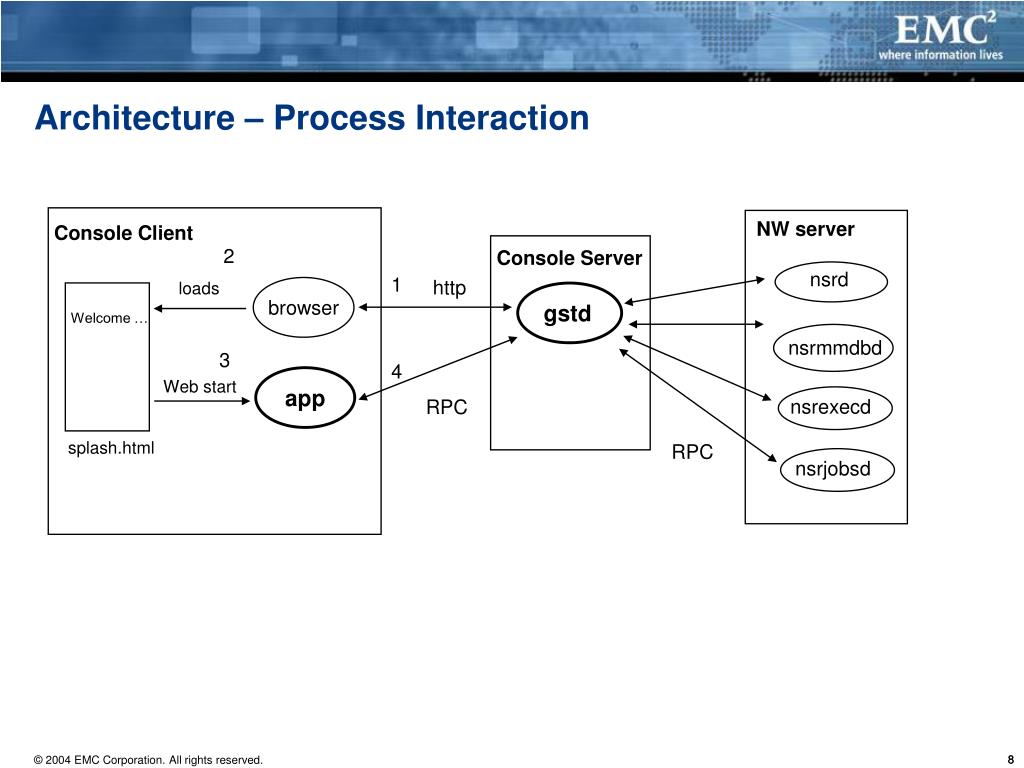

  8. 2 1 http loads Welcome … 3 4 app Web start RPC nsrjobsd splash.html RPC Architecture – Process Interaction NW server Console Client Console Server nsrd browser gstd nsrmmdbd nsrexecd

  9. Architecture – Process Interaction NW Storage Node NW Server Console Server dvdetect Console Client nsrd RPC App RPC NW Storage Node gstd Device Config GUI ddmgr dvdetect … RAP DB ddmgr Device Detection Manager Device Detection process dvdetect Communication between processes Spawn process Communication

  10. Launch Device Configuration GUI Link to your NMC server Click to Login

  11. Launch Device Configuration GUI

  12. Launch Device Configuration GUI Launch db5’s NetWorker Administrator

  13. Click on the “Devices” icon Launch Device Configuration GUI

  14. Launch Device Configuration GUI

  15. Launch Device Configuration GUI Pull down the list and select “Device Configuration”

  16. Device Configuration GUI Storage nodes folder NW server Storage nodes

  17. Device Configuration GUI Libraries folder Stand-alone Devices folder

  18. Add Storage Node • Auto configuration performs on storage nodes • Add storage node as needed

  19. Enter storage node name Add Storage Node

  20. server default maximal sharing no sharing Add Storage Node Device SCSI addresses that will be excluded from the scan and auto configuration

  21. Add Storage Node Will be used by scan and auto configuring NDMP libraries

  22. Add Storage Node Click to create storage node

  23. Add Storage Node

  24. Auto Configure SCSI/NDMP Libraries

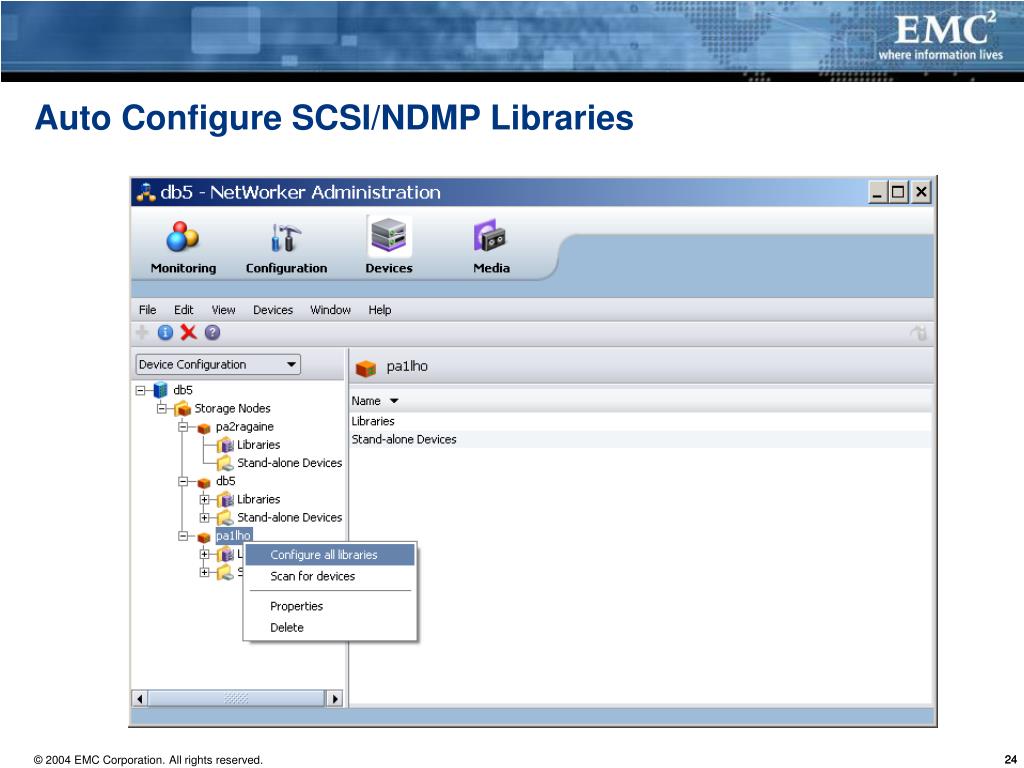

  25. Auto Configure SCSI/NDMP Libraries maximal sharing no sharing Check SCSI/NDMP Library type

  26. Auto Configure SCSI/NDMP Libraries server default maximal sharing no sharing Select the library type to be configured Click to Start auto configuration

  27. Configure all Libraries Wizard Click to exit wizard

  28. Monitor Status Click to switch to “Monitoring” pane

  29. Monitor Status Click to switch to Device Configuration pane

  30. Auto configured library Device Configuration GUI

  31. Auto Configure Silo Library

  32. Auto Configure Silo Library

  33. ACSLS Silo (Storage Tek) DAS Silo(ADIC/EMASS/Grau) 3494 Silo (IBM) Auto Configure Silo Library Click to test the Silo controller connectivity Note: “DAS Client Name” is required only for the “DAS Silo” type Controller

  34. Auto Configure Silo Library

  35. Auto Configure Silo Library Click to start configuration

  36. Auto Configure Silo Library Click to exit wizard

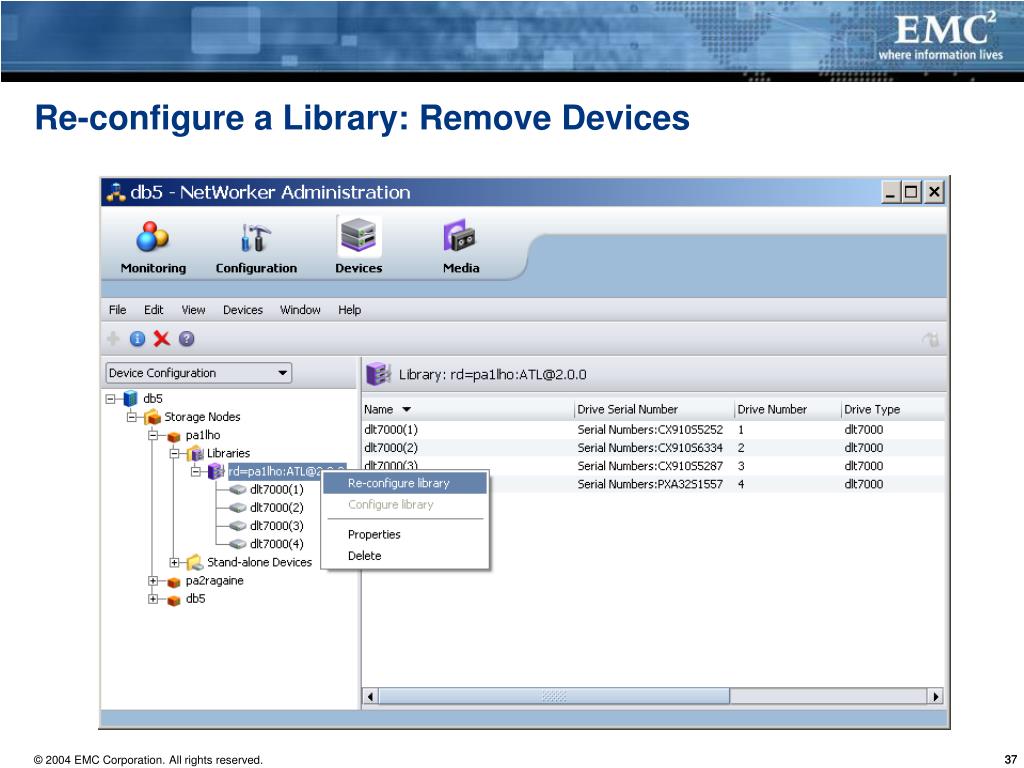

  37. Re-configure a Library: Remove Devices

  38. Re-configure a Library: Remove Devices

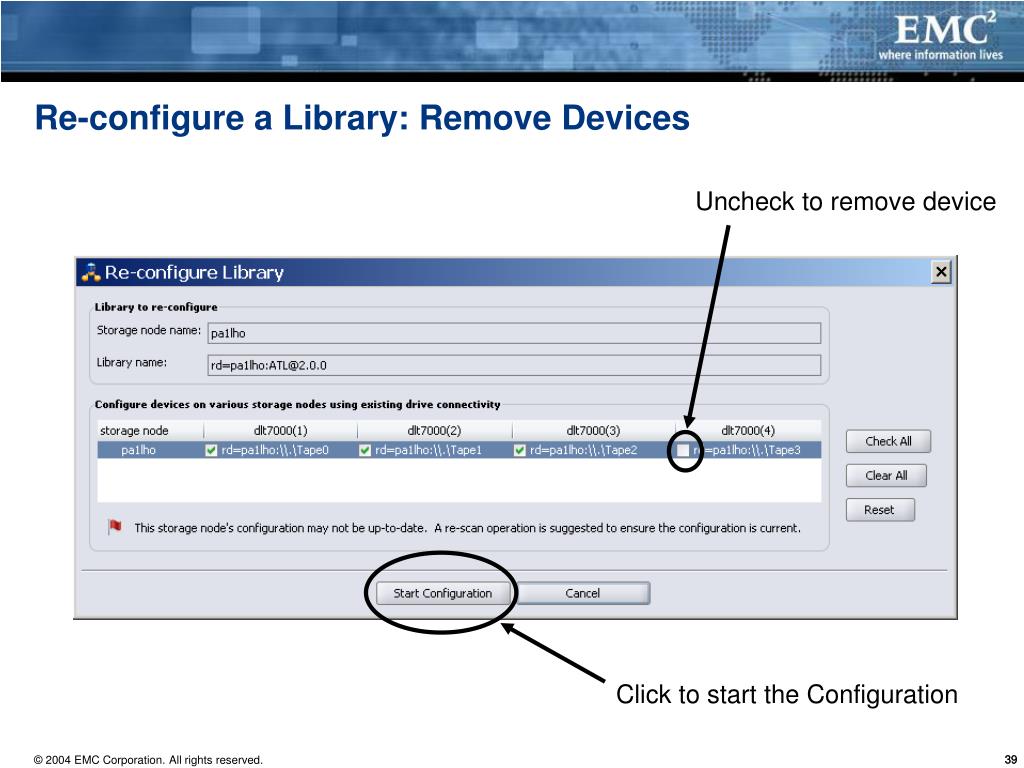

  39. Re-configure a Library: Remove Devices Uncheck to remove device Click to start the Configuration

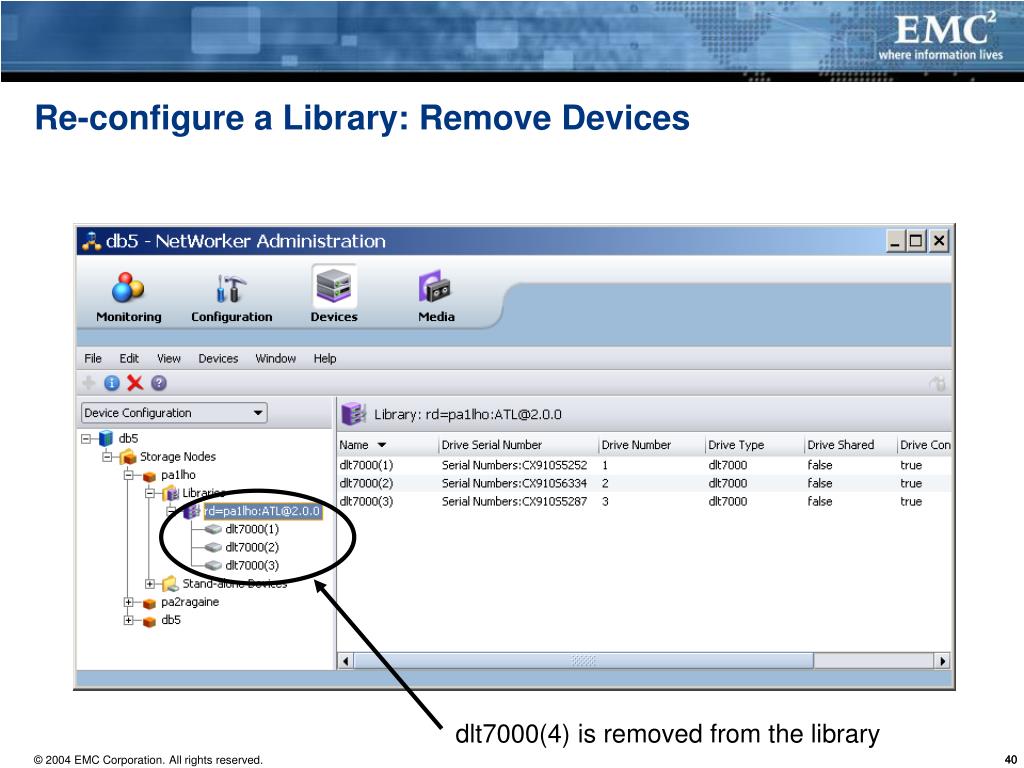

  40. Re-configure a Library: Remove Devices dlt7000(4) is removed from the library

  41. Scan for Devices • Run “Scan for Devices” to discover removed devices

  42. Scan for Devices Select Device type to be scanned Click to start Scan

  43. Scan for Devices Un-configured device is found in the library

  44. Re-configure a Library: Add Devices

  45. Re-configure a Library: Add Devices

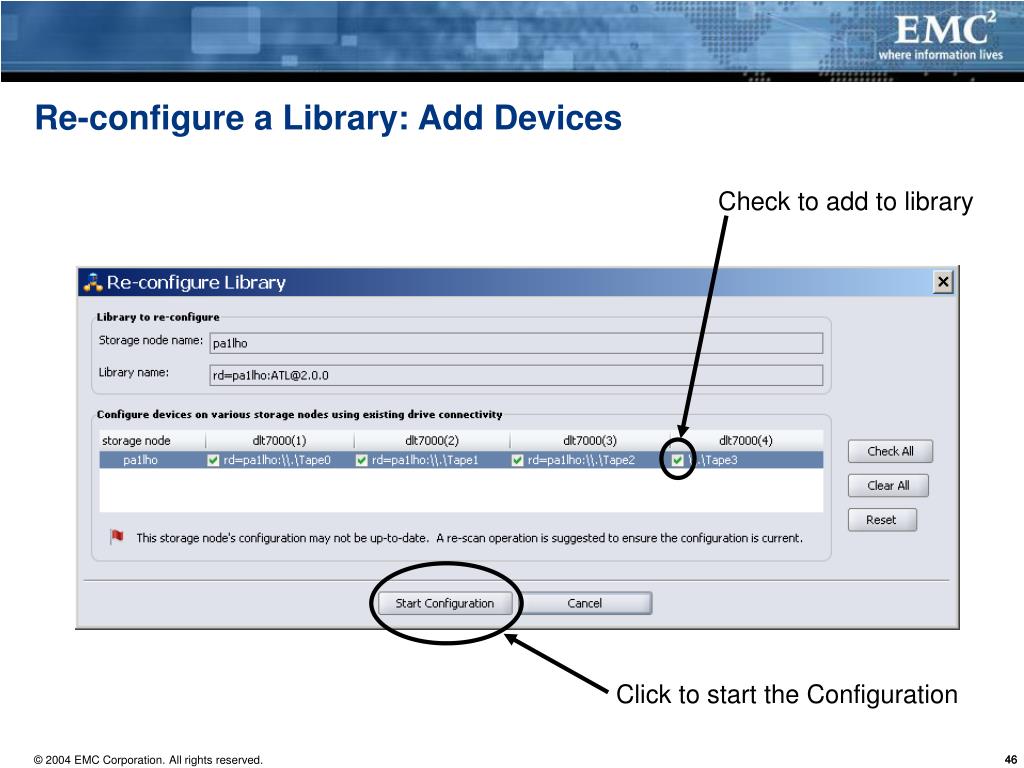

  46. Re-configure a Library: Add Devices Check to add to library Click to start the Configuration

  47. Re-configure a Library: Add Devices dlt7000(4) is added to the library

  48. Custom Configure a Library • Run “Scan for Devices” to discover new devices

  49. Custom Configure a Library

  50. Configure to the library Custom Configure a Library Not configure to the library Click to start configuration
