d. TRIM. Definisi: adalah perbedaan antara sarat depan (haluan) dan sarat belakang (buritan). W. W. w. W. Next. W. Trimming moment. W. Kapal duduk rata (even keel) Beban ‘w’ bergeser ke w 1 dengan jarak d Memen yang timbul adalah w x d Titik berat baji berpindah dari g ke g’

nelly
Télécharger la présentation

TRIM

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. d TRIM • Definisi: adalah perbedaan antara sarat depan (haluan) dan sarat belakang (buritan) W W w W Next W Created by: Capt. Hadi Supriyono, Sp.1, MM Dedicated to: PIP Makassar

  2. Trimming moment W • Kapal duduk rata (even keel) • Beban ‘w’ bergeser ke w1 dengan jarak d • Memen yang timbul adalah w x d • Titik berat baji berpindah dari g ke g’ • Sedangakan GG1 x W = w x d • Maka GG1 = (w x d)/W ML d G1 G g’ g F B B1 w w Next Created by: Capt. Hadi Supriyono, Sp.1, MM Dedicated to: PIP Makassar W

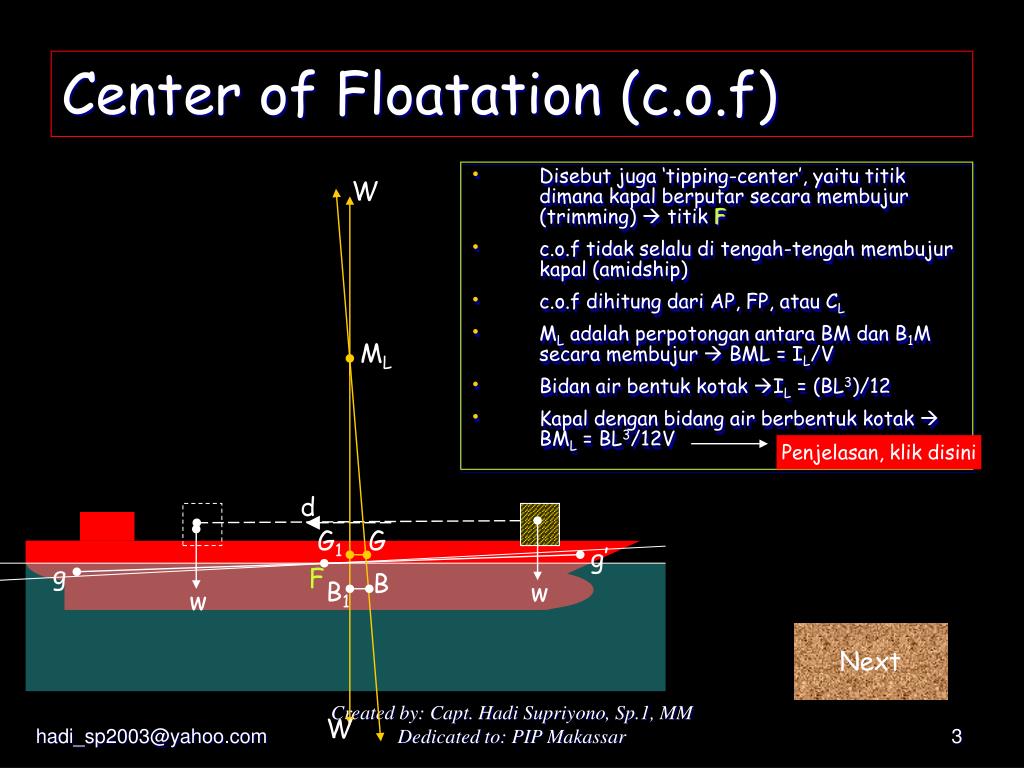

  3. Center of Floatation (c.o.f) W • Disebut juga ‘tipping-center’, yaitu titik dimana kapal berputar secara membujur (trimming)  titik F • c.o.f tidak selalu di tengah-tengah membujur kapal (amidship) • c.o.f dihitung dari AP, FP, atau CL • ML adalah perpotongan antara BM dan B1M secara membujur  BML = IL/V • Bidan air bentuk kotak IL = (BL3)/12 • Kapal dengan bidang air berbentuk kotak  BML = BL3/12V ML Penjelasan, klik disini d G1 G g’ g F B B1 w w Next Created by: Capt. Hadi Supriyono, Sp.1, MM Dedicated to: PIP Makassar W

  4. Penjelasan tentang BML • Kapal bentuk kotak: BML = IL/V = (BL3)/(12V) = (BL3)/(12 x L x B x d) = L2/12d • Kapal bentuk prisma: BML = IL/V = (BL3)/(12x1/2xLxBxd) = L2/6d • Pada stabilitas membujur BG terlalu kecil dibandingkan dengan BML atau GML. Oleh karena itu dalam menghitung MCTC, BML dapat diganti dengan GML Return Created by: Capt. Hadi Supriyono, Sp.1, MM Dedicated to: PIP Makassar

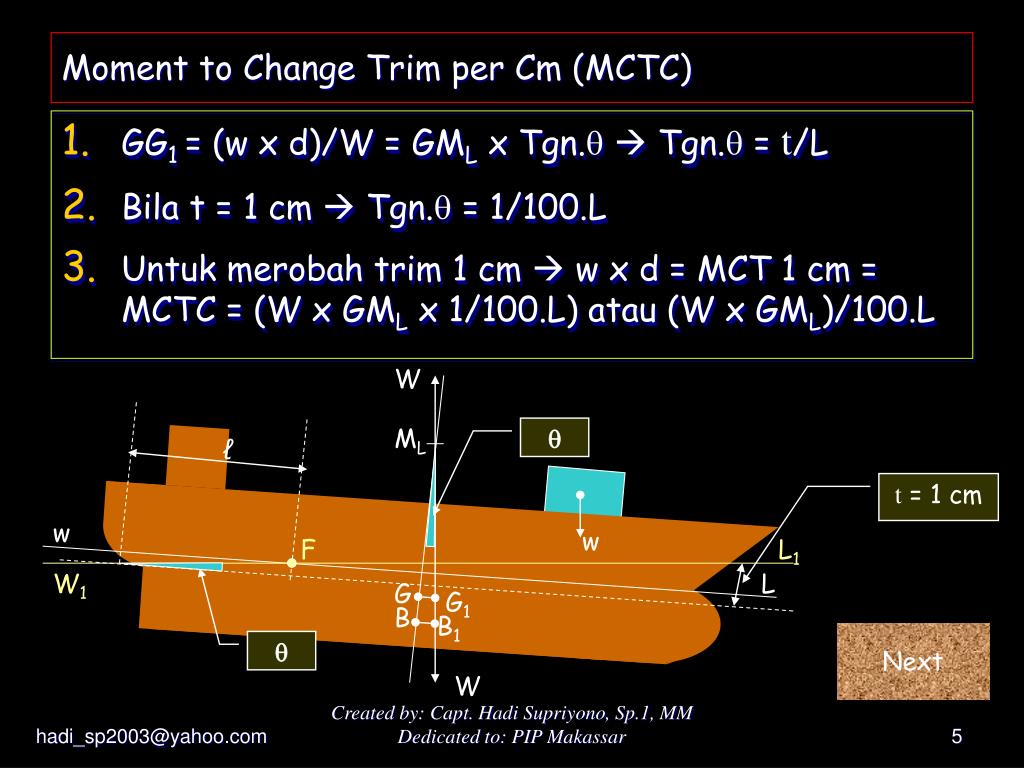

  5. Moment to Change Trim per Cm (MCTC) • GG1 = (w x d)/W = GML x Tgn.  Tgn. = t/L • Bila t = 1 cm  Tgn. = 1/100.L • Untuk merobah trim 1 cm  w x d = MCT 1 cm = MCTC = (W x GML x 1/100.L) atau (W x GML)/100.L W ML  ℓ t = 1 cm w w F L1 W1 L G G1 B B1 Next  W Created by: Capt. Hadi Supriyono, Sp.1, MM Dedicated to: PIP Makassar
