The Metric System and Units of Measurement

The Metric System and Units of Measurement. Units. After measuring a value, you MUST assign proper units!! “Walk five in that direction” means nothing until you provide a unit... meters, feet, etc. In science, we will use the Metric System or the SI system . The SI System of Measurement.

neva
Télécharger la présentation

The Metric System and Units of Measurement

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

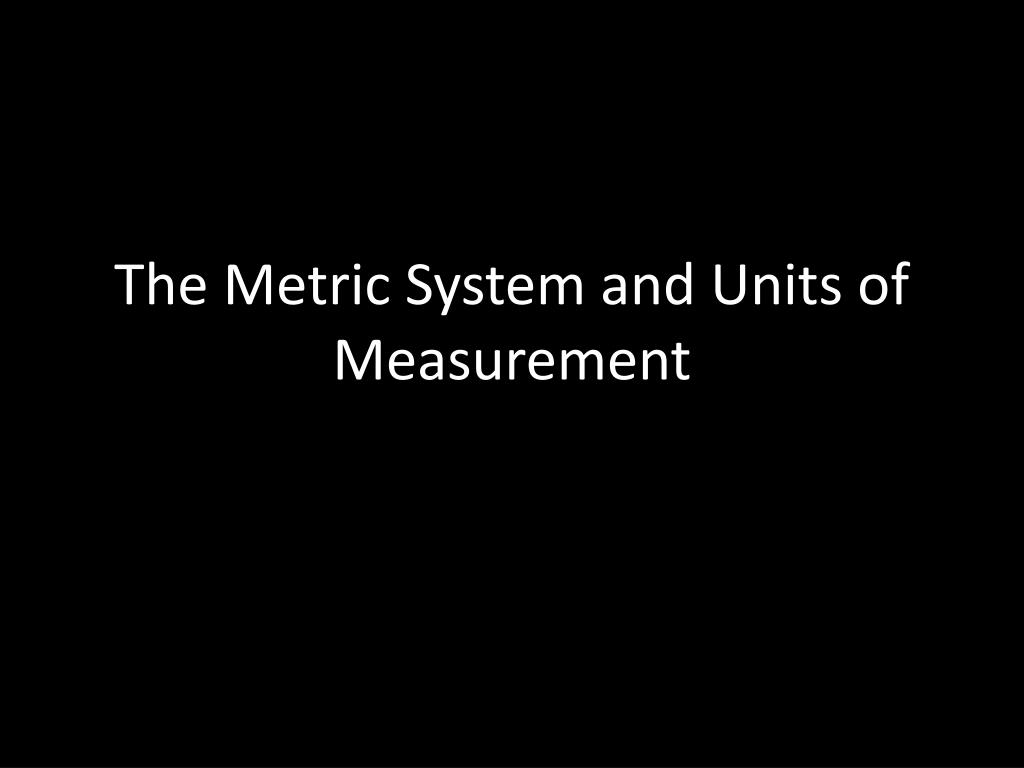

  1. The Metric System and Units of Measurement

  2. Units • After measuring a value, you MUST assign proper units!! • “Walk five in that direction” means nothing until you provide a unit... meters, feet, etc. • In science, we will use the Metric System or the SI system

  3. The SI System of Measurement • The SI System uses many prefixes to increase or decrease the size of the values • A KILOmeter is greater than a meter which is greater than a MILLImeter • The prefixes allow us to work with very large numbers or very small numbers while still working with manageable sized values.

  4. Units of Mass / Weight • Mass is NOT weight • Review: What is mass? What is weight?? • Mass uses units of grams, whiles weight is usually measured in pounds

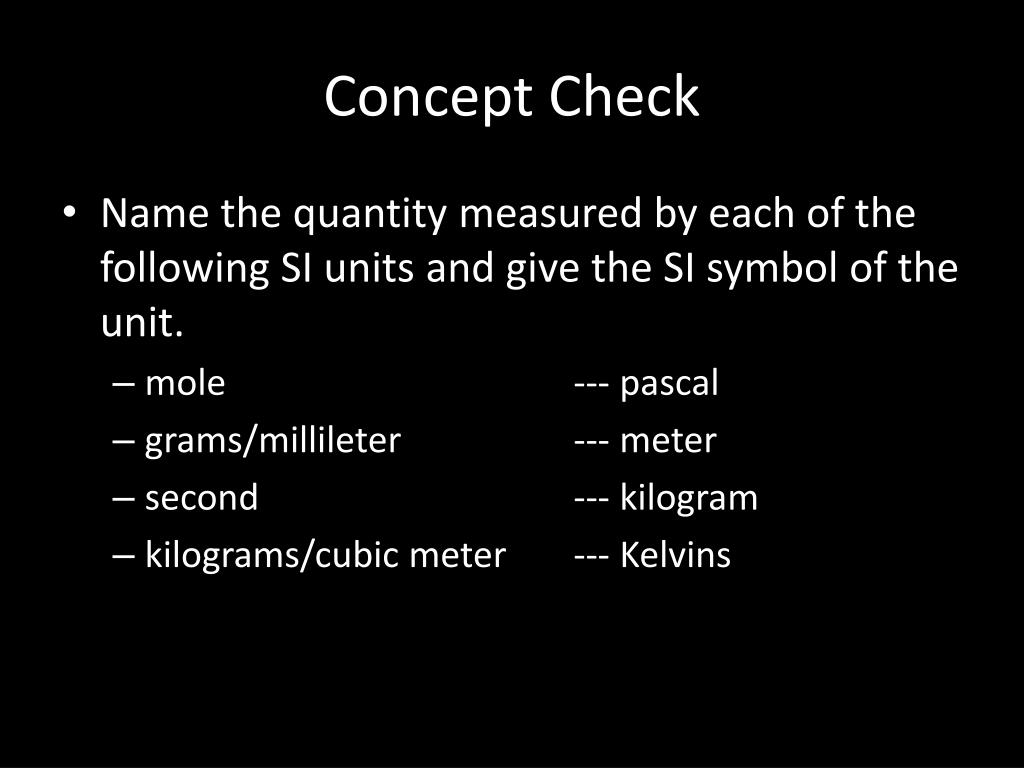

  5. Concept Check • Name the quantity measured by each of the following SI units and give the SI symbol of the unit. • mole --- pascal • grams/millileter --- meter • second --- kilogram • kilograms/cubic meter --- Kelvins

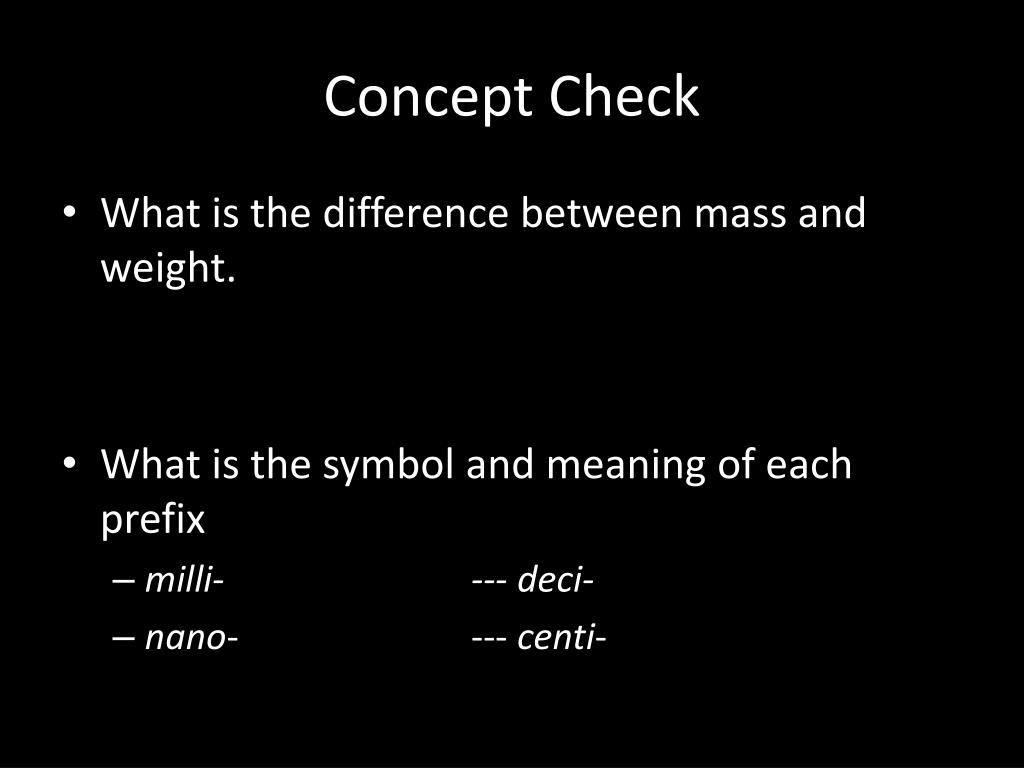

  6. Concept Check • What is the difference between mass and weight. • What is the symbol and meaning of each prefix • milli- --- deci- • nano- --- centi-

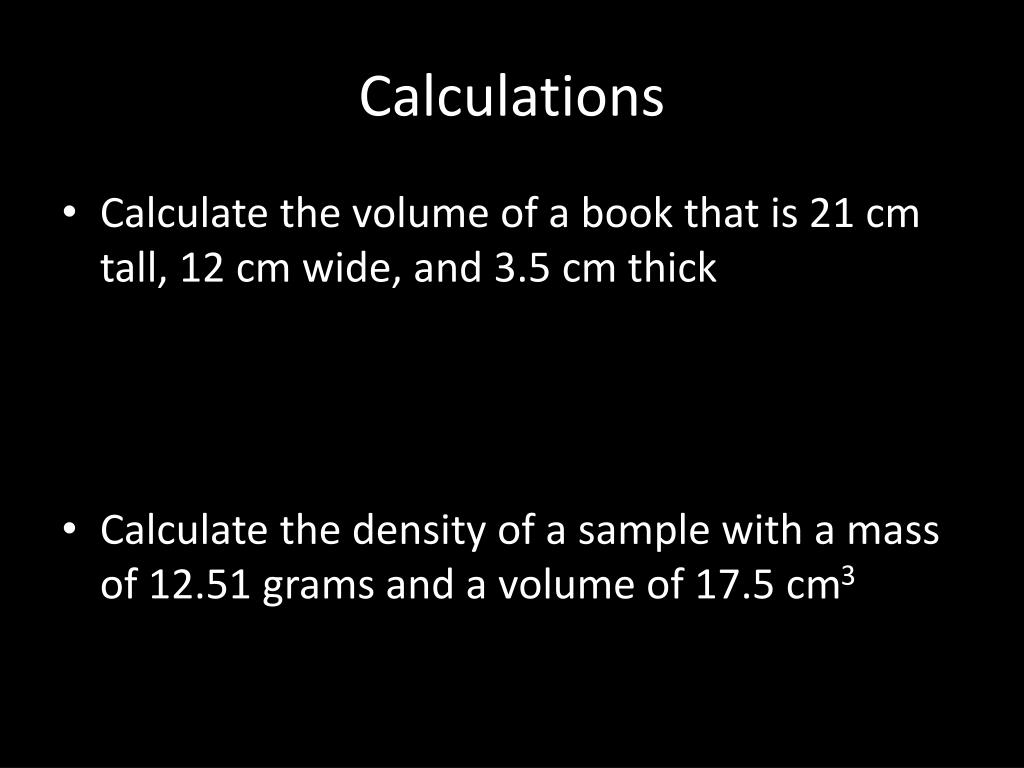

  7. Calculations • Calculate the volume of a book that is 21 cm tall, 12 cm wide, and 3.5 cm thick • Calculate the density of a sample with a mass of 12.51 grams and a volume of 17.5 cm3

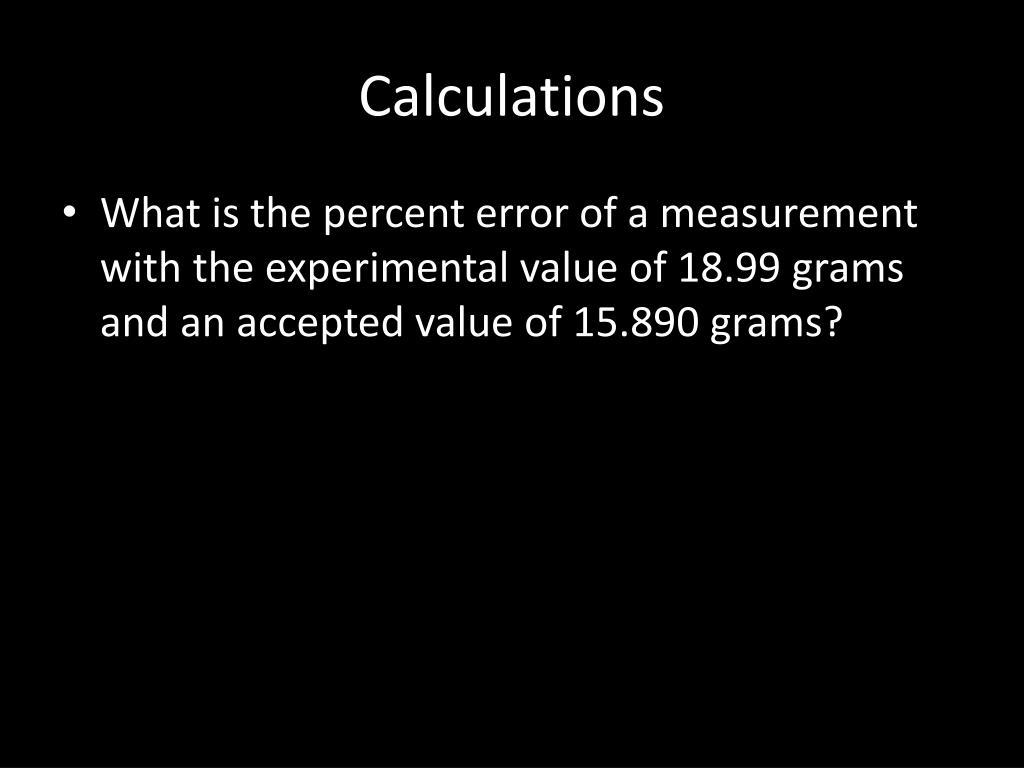

  8. Calculations • What is the percent error of a measurement with the experimental value of 18.99 grams and an accepted value of 15.890 grams?

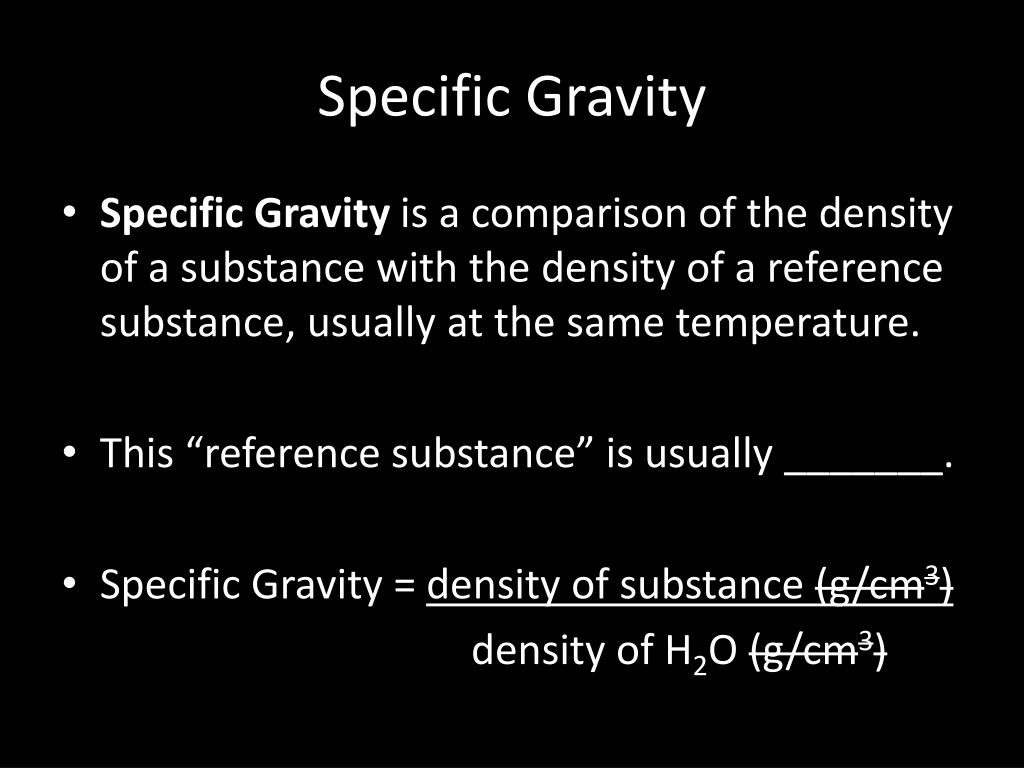

  9. Specific Gravity • Specific Gravity is a comparison of the density of a substance with the density of a reference substance, usually at the same temperature. • This “reference substance” is usually _______. • Specific Gravity = density of substance (g/cm3) density of H2O (g/cm3)

  10. Specific Gravity • Specific Gravity = density of substance (g/cm3) density of H2O (g/cm3) • The specific gravity of a liquid can be measured using a device called a hydrometer • The density of H2O is 1.00g/cm3 (at room temp), making a substances’ specific gravity equal to its own density at room temp.

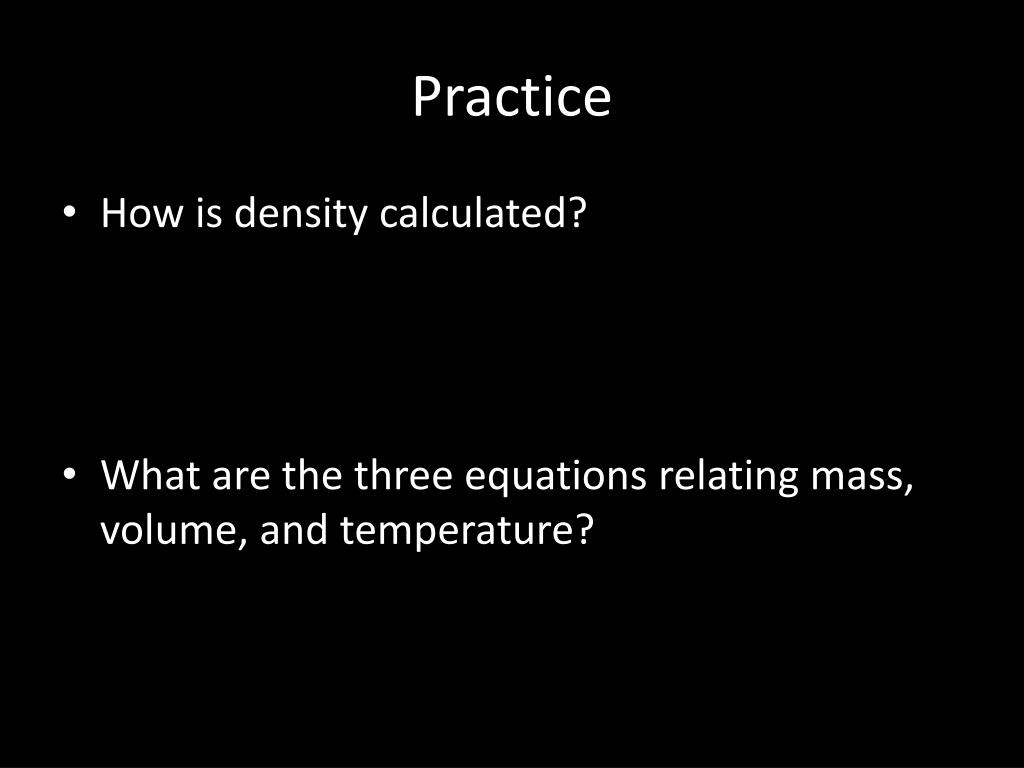

  11. Practice • How is density calculated? • What are the three equations relating mass, volume, and temperature?

  12. Practice • A weather balloon is inflated to a volume of 2.2x103 L with 37.4 grams of He. What is the density of the helium in g/L? • A plastic ball with a volume of 19.7cm3 has a mass of 15.8 g. What is the density? Would this ball sink or float in a container of gasoline (d=0.66g/cm3)

  13. Temperature Scales • The Temperature of an object determines the direction of heat transfer • Heat travels from ________ to ________. • All substances (except water) expand when heated and condense when cooled. What happens to the pressure??

  14. HEAT THEM UP, SPEED THEM UP!!!

  15. Temperature Scales • Fahrenheit • Celsius • Kelvin

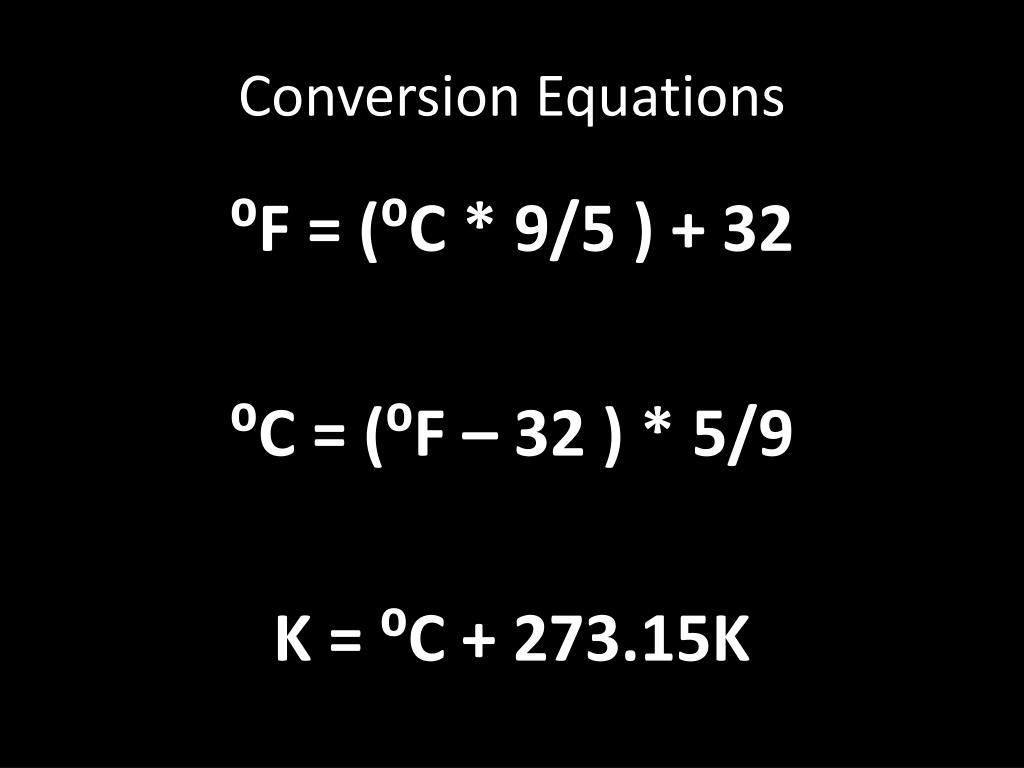

  16. Conversion Equations ⁰F = (⁰C * 9/5 ) + 32 ⁰C = (⁰F – 32 ) * 5/9 K = ⁰C + 273.15K
