Estimating mantle temperature and composition from seismic models (and other data)

This study investigates the mantle's temperature and composition using seismic models and other geophysical data. By analyzing various seismic velocities, ridge segments, and oceanic crust characteristics, we assess how factors such as melting and composition affect mantle behavior. Key findings include the impact of temperature on MORB composition and oceanic crust thickness, as well as insights into transition zone thickness. The research builds on past studies, contributing to our understanding of tectonic settings and providing a basis for ongoing geological investigations.

nevina
Télécharger la présentation

Estimating mantle temperature and composition from seismic models (and other data)

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Estimating mantle temperature and composition from seismic models (and other data) Colleen Dalton, Boston University with Allie Gale, Charlie Langmuir, Uli Faul, Mollie Celnick, and others

  2. Seismological Models S362ANI 300 km Kustowski et al. (2008) S40RTS 300 km Ritsema et al. (2010) QRFSI12 300 km Dalton et al. (2008) Transition Zone Thickness Lawrence & Shearer (2008)

  3. MORB Composition • Hotter mantle: • melting initiates deeper • larger extent of melting • lower Na in MORB • higher Fe in MORB • thicker oceanic crust • shallow ridge depths modified from Langmuir & Forsyth 2007

  4. 540 segments without “8 values” Definition of Ridge Segments

  5. Humler et al. (1993) This study MORB Composition

  6. Ridge Depth vs. S-Velocity

  7. Calculation of Water Depth: Isostasy P = Dwwg+Dccg+Drrg+Dmmg

  8. 1250oC 1370oC Calculation of Water Depth and Seismic Velocity

  9. Comparison of Na8 and Seismic Velocity

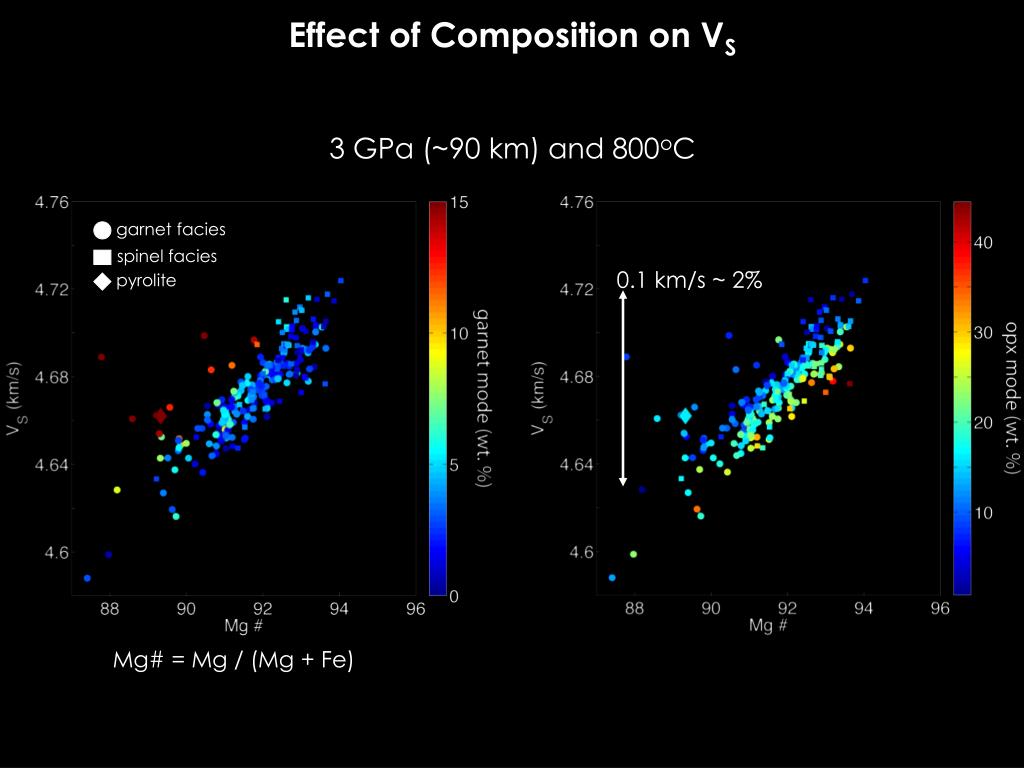

  10. garnet facies spinel facies 0.1 km/s ~ 2% pyrolite Effect of Composition on VS 3 GPa (~90 km) and 800oC Mg# = Mg / (Mg + Fe)

  11. Cratonic Temperature & Composition 150 km Lee et al. (2010)

  12. CIDER 1. Possible themes: tectonic settings: cratons; ridges; transform faults; hotspots no theme? research projects based on who is there 2. Other things to consider: more time for research: start research projects right away some research lectures in addition to overview lectures opportunity to make progress with collaborators support for meetings in person after summer crucial

  13. Seismological Models Transition zone thickness

  14. Previous Studies Wiens et al. (2006) Zhang et al. (1994)

  15. Na8.0 Velocity variation (%) Previous Studies Courtier et al. (2007) Humler et al. (1993)

  16. median = -3246 m Definition of Ridge Segments

  17. MAR SEIR EPR Resolution of Seismic Models

  18. Resolution of Seismic Models

  19. SWIR SEIR MAR longitude longitude latitude
