Peer-to-Peer Services

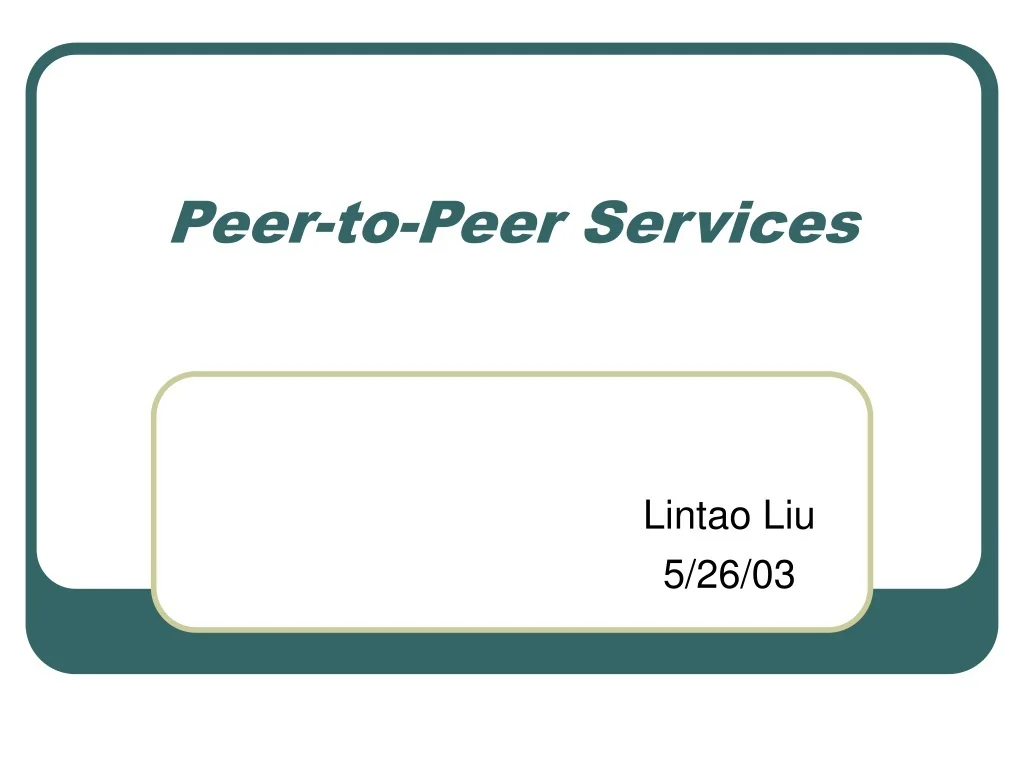

1. Peer-to-Peer Services Lintao Liu 5/26/03

2. Papers • YAPPERS: A Peer-to-Peer Lookup Service over Arbitrary Topology • Stanford University • Associative Search in Peer-to-Peer Network: Harnessing Latent Semantics • AT&T Research Lab & Tel Aviv Univ. • Cooperative Peer Groups in NICE • Univ. of Maryland

3. YAPPERS: A P2P Lookup Service over Arbitrary Topology • Motivation: • Gnutella-style Systems • work on arbitrary topology, flood for query • Robust but inefficient • Support for partial query, good for popular resources • DHT-based Systems • Efficient lookup but expensive maintenance • By nature, no support for partial query • Solution: Hybrid System • Operate on arbitrary topology • Provide DHT-like search efficiency

4. Design Goals • Impose no constraints on topology • No underlying structure for the overlay network • Optimize for partial lookups for popular keys • Observation: Many users are satisfied with partial lookup • Contact only nodes that can contribute to the search results • no blind flooding • Minimize the effect of topology changes • Maintenance overhead is independent of system size

5. Query Model: • <key, value> pair • TotalLookup(N, k): • Return all values associated with k • Query initiates from Node N • PartialLookup(N, k, n): • Return n values associated with k • If total available < n, return all available

6. Basic Idea: • Keyspace is partitioned into a small number of buckets. Each bucket corresponds to a color. • Each node is assigned a color. • # of buckets = # of colors • Each node sends the <key, value> pairs to the node with the same color as the key within its Immediate Neighborhood. • IN(N): All nodes within h hops from Node N.

7. One simple example: 2 colors

8. Immediate Neighborhood • Different node has different IN set. • Two problems: • Consistency: same node should get the same color in different IN set. • Stability: same node is always assigned with the same color even it leaves/joins. • Solution: • Hashing the IP address => color

9. More… • When node X is inserting <key, value> • Multiple nodes in IN(X) have the same color? • No node in IN(X) has the same color as key k? • Solution: • P1: randomly select one • P2: Backup scheme: Node with next color • Primary color (unique) & Secondary color (zero or more) • Problems coming with this solution: • No longer consistent and stable • The effect is isolated within the Immediate neighborhood

10. Extended Neighborhood • IN(A): Immediate Neighborhood • F(A): Frontier of Node A • All nodes that are directly connected to IN(A), but not in IN(A) • EN(A): Extended Neighborhood • The union of IN(v) where v is in F(A) • Actually EN(A) includes all nodes within 2h + 1 hops • Each node needs to maintain these three set of nodes for query.

11. The network state information for node A (h = 2)

12. Searching with Extended Neighborhood • Node A wants to look up a key k of color C(k), it picks a node B with C(k) in IN(A) • If multiple nodes, randomly pick one • If none, pick the backup node • B, using its EN(B), sends the request to all nodes which are in color C(k). • The other nodes do the same thing as B. • Duplicate Message problem: • Each node caches the unique query identifier.

13. More on Extended Neighborhood • All <key, value> pairs are stored among IN(X). (h hops from node X) • Why each node needs to keep an EN(X)? • Advantage: • The forwarding node is chosen based on local knowledge • Completeness: a query (C(k)) message can reach all nodes in C(k) without touching any nodes in other colors (Not including backup node)

14. Maintaining Topology • Edge Deletion: X-Y • Deletion message needs to be propagated to all nodes that have X and Y in their EN set • Necessary Adjustment: • Change IN, F, EN sets • Move <key, value> pairs if X/Y is in IN(A) • Edge Insertion: • Insertion message needs to include the neighbor info • So other nodes can update their IN and EN sets

15. Maintaining Topology • Node Departure: • a node X with w edges is leaving • Just like w edge deletion • Neighbors of X initiates the propagation • Node Arrival: X joins the network • Ask its new neighbors for their current topology view • Build its own extended neighborhood • Insert w edges.

16. Problems with basic design • Fringe node: • Those low connectivity node allocates a large number of secondary colors to its high-connectivity neighbors. • Large fan-out: • The forwarding fan-out degree at A is proportional to the size of F(A) • This is desirable for partial lookup, but not good for full lookup

17. A is overloaded by secondary colors from B, C, D, E

18. Solutions: • Prune Fringe Nodes: • If the degree of a node is too small, find a proxy node. • Biased Backup Node Assignment: • X assigns a secondary color to y only when a * |IN(x)| > |IN(y)| • Reducing Forward Fan-out: • Basic idea: • try backup node, • try common nodes

19. Experiment: • H = 2 (1 too small, >2 EN too large) • Topology: Gnutella snapshot • Exp1: Search Efficiency

20. Distribution of colors per node

21. Fan-out:

22. Num of colors: effect on Search

23. Num of colors: effect on Fan-out

24. Conclusion and discussion • Each search only disturbs a small fraction of the nodes in the overlay. • No restructure the overlay • Each node has only local knowledge • scalable • Discussion: • Hybrid (unstructured and local DHT) system • …

25. Associative Search in P2P networks: Harnessing Latent Semantics • Motivation: • Similar with the previous paper • Avoid a blind search on unstructured P2P • Not sensitive to node join/failure • Proposed system: Associative Overlays • Based on unstructured architecture • Improve the efficiency of locating rare items by “orders of magnitude”.

26. Basic Idea: • Exploit association inherent in human selections • Steer the search process to peers that are more likely to answer a query • Guide Rule: • A set of peers that satisfy some predicate • A search message is only flooding inside one specific Guile Rule.

27. Guide Rule

28. More on Guile Rule: • Peers in one Guile Rule • Contain data items that are semantically similar. • E.g. Contain documents on philosophy, songs… • Choose a Guile Rule for query message: • “Networking” aspect (connectivity properties…) • “data mining” aspects: • Tules distill common interests • Maintenance: • Maintain a small list of other peers • Possession Rules • Automatically extracted guide rules from the shared items

29. Algorithms • RAPIER Algorithm: • Random Possession Rule • If a node is interested in A, B, C, etc, just randomly choose one and perform a blind search amongst that rule • More efficient than blink search • GAS Algorithm: • Greedy Guide Rule • Deciding the order to try different rules • Each node invokes a query in rules that have been more effective on its past queries.

30. Conclusion and Discussion • It offers orders of magnitude improvement in the scalability of locating infrequent items • Discussion: • the advantage is generated by classifying unstructured peers into some loose so-called “Guile Rules”. • Didn’t understand how they clearly defined these Rules and maintain it. • A lot of mathematics and data mining stuff

31. Cooperative Peer Groups in NICE • Trust management in P2P environment • Design: • Reputation information is stored in a completely decentralized manner. • Efficient identify non-cooperative nodes • Basic operation: • After a transaction between A and B • A will sign a cookie and send it to B, • B does the same thing • Cookies can be dropped as A/B likes.

32. Trust Graph • Vertex: Nodes • If A has a cookie issued by B, we draw an edge from B to A. The weight of the edge is the value given by B in the cookie (1/0 in this paper) • A can calculate how much A should believe B • Two different ways proposed

33. Distributed Trust Reference: • A wants to do a transaction with B: • A needs to present some cookies to B that A is “good” • If A has a cookie assigned by B, A just sends it to B. • If A doesn’t have a cookie from B, so A should collect some related cookies to make B believes that it is “good”.

34. Distributed Trust Inference: • Detailed Procedures: • A initiates a search for B’s cookies • Recursively search its neighbors • This will generate a trust graph starting from B and ending at A. • A presents all the cookies to B • B will decide whether A is “good” or not • It is A who collects the cookies to • Avoid DoS attack.

35. Refinements • Efficient searching • Each node caches the cookies of its neighbors • When A searches for B’s cookies, A checks whether its neighbors have. • If no, randomly choose neighbors to forward • This is like flooding: if a neighbor fails, try next • This random walk is limited to predefined steps.

36. Refinement: • Negative Cookies: • If A has present B enough cookies to make sure A is a “good” peer, B can search for “Negative cookies” of A to make sure. • Search follows the high trust edges out of B • Preference Lists: • Nodes that are highly probably to be “good” • A will try to do transaction with those nodes.

37. Conclusion and discussion: • Scalable • Resistant to some attack. • But many aspects still don’t look very nice yet. • Discussion??
