Proving Equivalence and Congruence in Geometry: A Two-Column Proofs Guide

This document presents a series of geometric proofs using the two-column proof format. It covers multiple scenarios including manipulating algebraic equations to demonstrate solutions, segment addition, and proving angle congruence. Each proof is structured with statements and corresponding reasons, highlighting properties such as the Distributive Property, Substitution, and the Segment Addition Postulate. The proofs aim to establish congruences and equality between geometric figures and angles, clarifying fundamental concepts in geometry.

nibal
Télécharger la présentation

Proving Equivalence and Congruence in Geometry: A Two-Column Proofs Guide

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

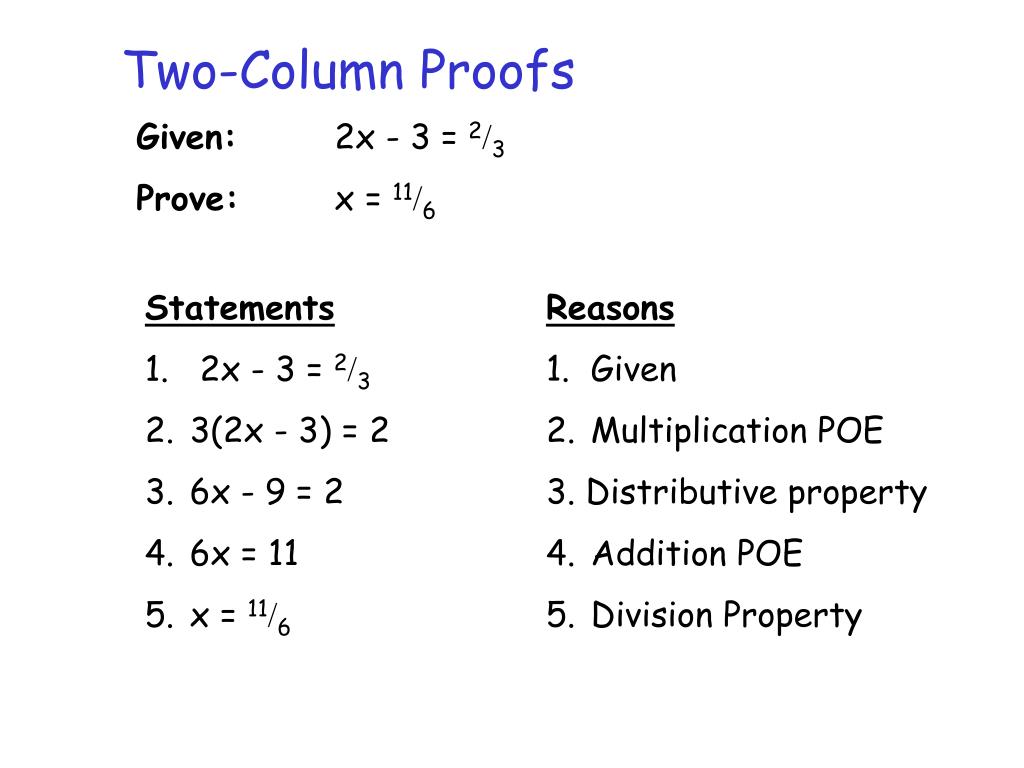

  1. Two-Column Proofs Given: 2x - 3 = 23 Prove: x = 116 Statements 1. 2x - 3 = 23 2. 3(2x - 3) = 2 3. 6x - 9 = 2 4. 6x = 11 5. x = 116 Reasons 1. Given 2. Multiplication POE 3. Distributive property 4. Addition POE 5. Division Property

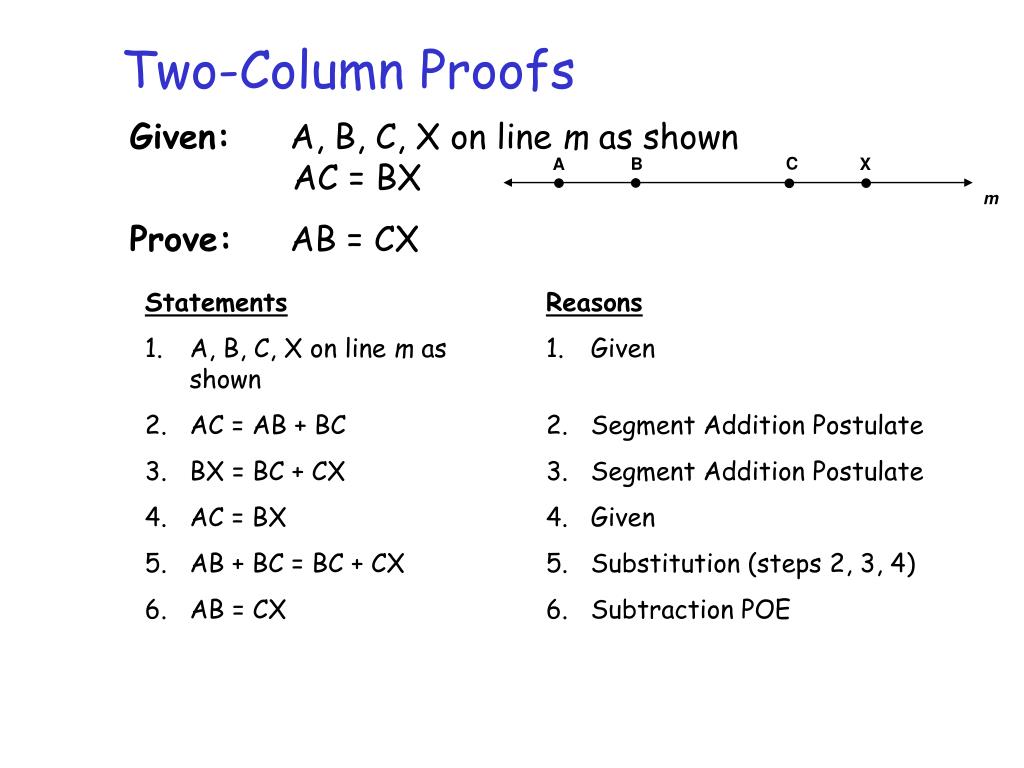

  2. C B A X m Two-Column Proofs Given: A, B, C, X on line m as shownAC = BX Prove: AB = CX Statements 1. A, B, C, X on line m as shown 2. AC = AB + BC 3. BX = BC + CX 4. AC = BX 5. AB + BC = BC + CX 6. AB = CX Reasons 1. Given 2. Segment Addition Postulate 3. Segment Addition Postulate 4. Given 5. Substitution (steps 2, 3, 4) 6. Subtraction POE

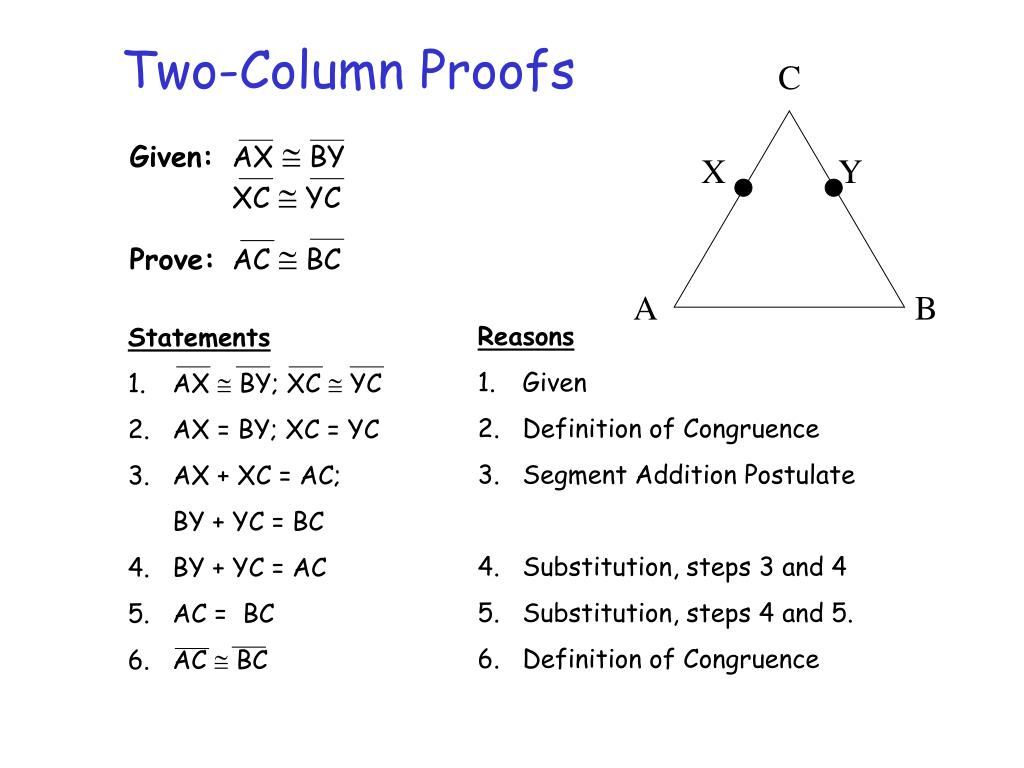

  3. C X Y A B Two-Column Proofs Given: AX  BY XC  YC Prove: AC  BC • Reasons • 1. Given • 2. Definition of Congruence • 3. Segment Addition Postulate • 4. Substitution, steps 3 and 4 • 5. Substitution, steps 4 and 5. • 6. Definition of Congruence Statements 1. AX  BY; XC  YC 2. AX = BY; XC = YC 3. AX + XC = AC; BY + YC = BC 4. BY + YC = AC 5. AC = BC 6. AC  BC

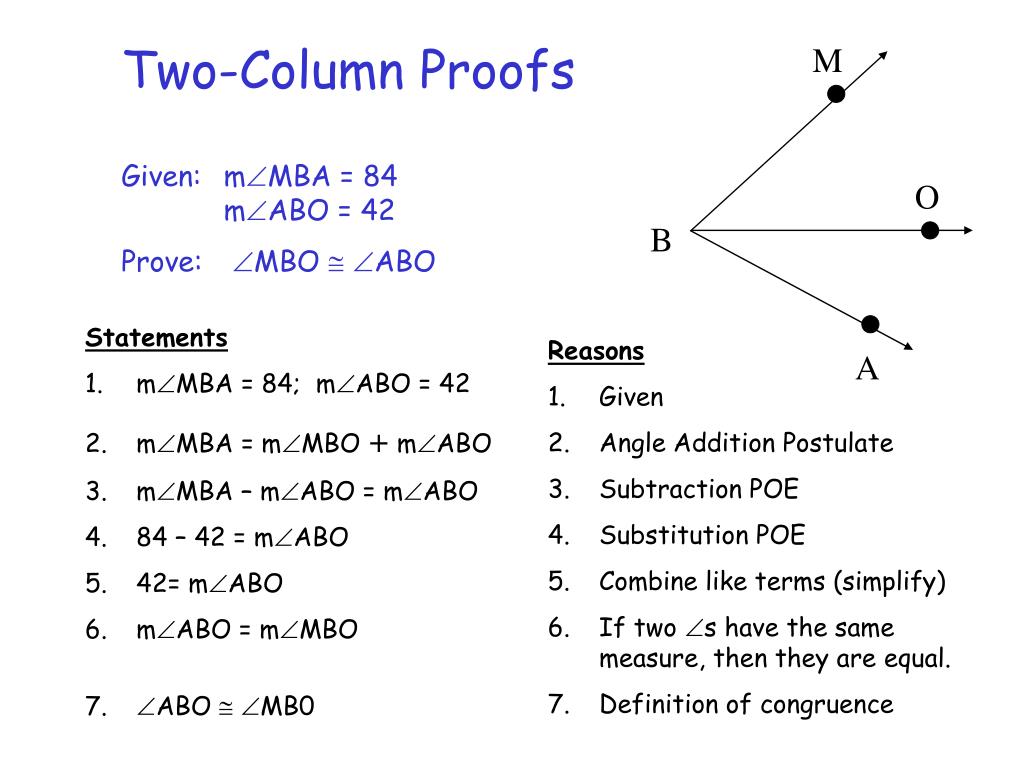

  4. Two-Column Proofs M Given: mMBA = 84 mABO = 42 Prove: MBO  ABO O B • Statements • mMBA = 84; mABO = 42 • mMBA = mMBO + mABO • mMBA – mABO = mABO • 84 – 42 = mABO • 42= mABO • mABO = mMBO • ABO  MB0 • Reasons • 1. Given • 2. Angle Addition Postulate • Subtraction POE • Substitution POE • Combine like terms (simplify) • If two s have the same measure, then they are equal. • Definition of congruence A

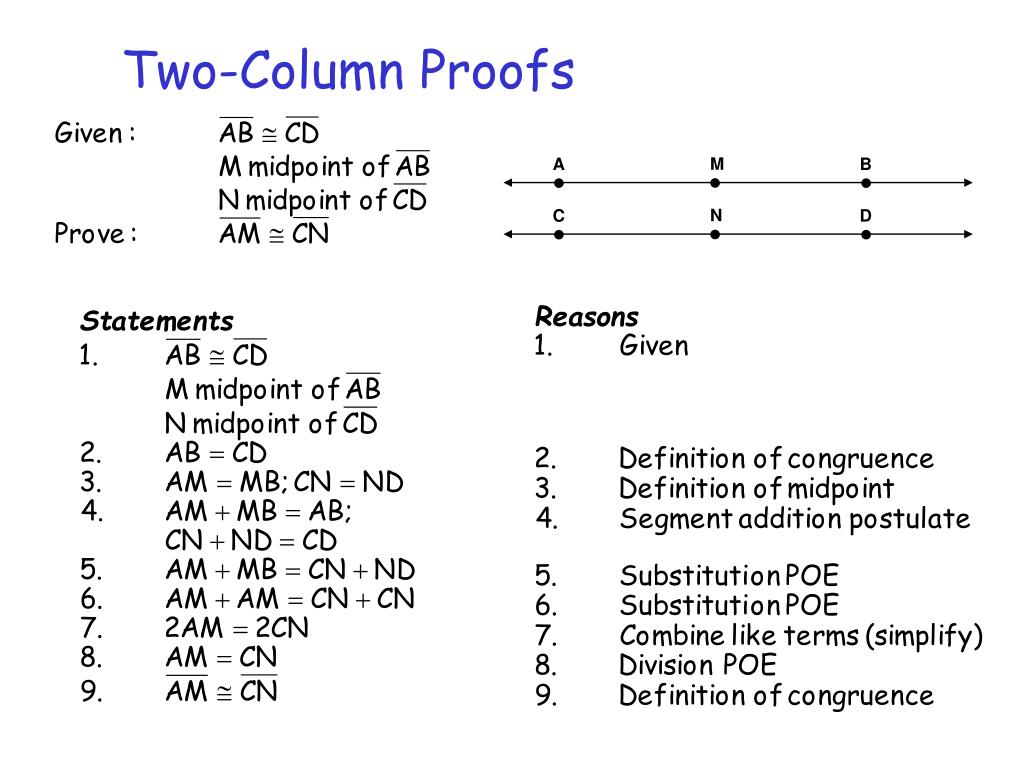

  5. Two-Column Proofs M A B N C D
