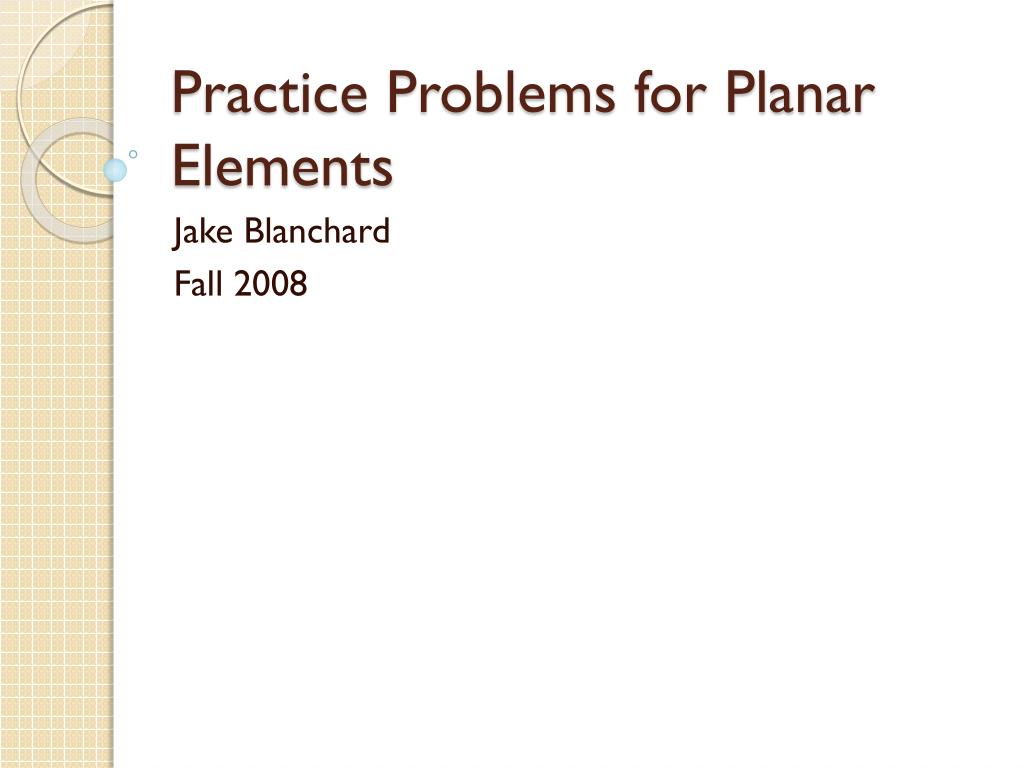

  1. Practice Problems for Planar Elements Jake Blanchard Fall 2008

  2. E=200 GPa • =0.3 • Plane stress • Find deflections and stresses • Add areas 1 m 2 m 1 m p 2 m

  3. E=200 GPa • =0.3 • Plane stress • Find deflections and stresses • Add line fillet with radius of 10 cm 1 m 2 m 1 m p 2 m

  4. 1 m • E=200 GPa • =0.3 • Plane stress • Find deflections and stresses • Now “glue” areas E=100 GPa 1 m 2 m E=200 GPa p 2 m
