Topological Sort ( topological order )

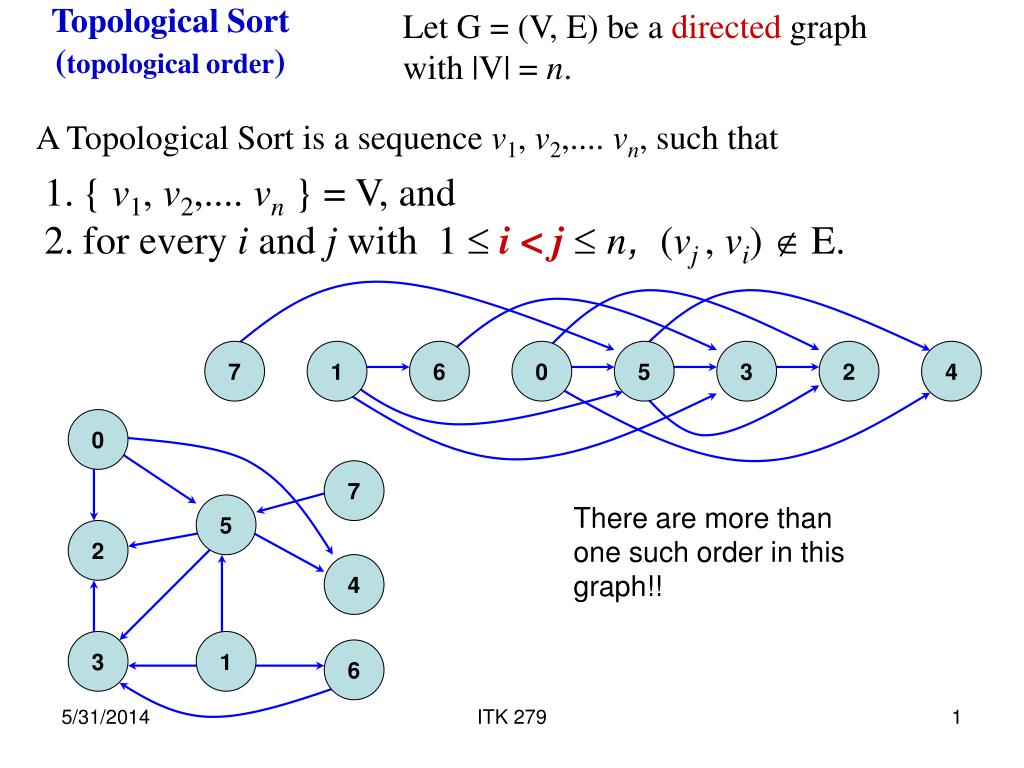

Let G = (V, E) be a directed graph with |V| = n. Topological Sort (topological order) A Topological Sort is a sequence v1, v2,....vn, such that • { v1, v2,....vn } = V, and • for every i and j with 1  i < j n, (vj , vi)  E. 7 1 6 0 5 3 2 4 0 7 5 There are more than one such order in this graph!! 2 4 3 1 6 ITK 279

If the graph is not acyclic, then there is no topological sort for the graph. 0 Not an acyclic Graph 2 4 7 9 1 3 5 8 No way to arrange vertices in this cycle without pointing backwards 6 ITK 279

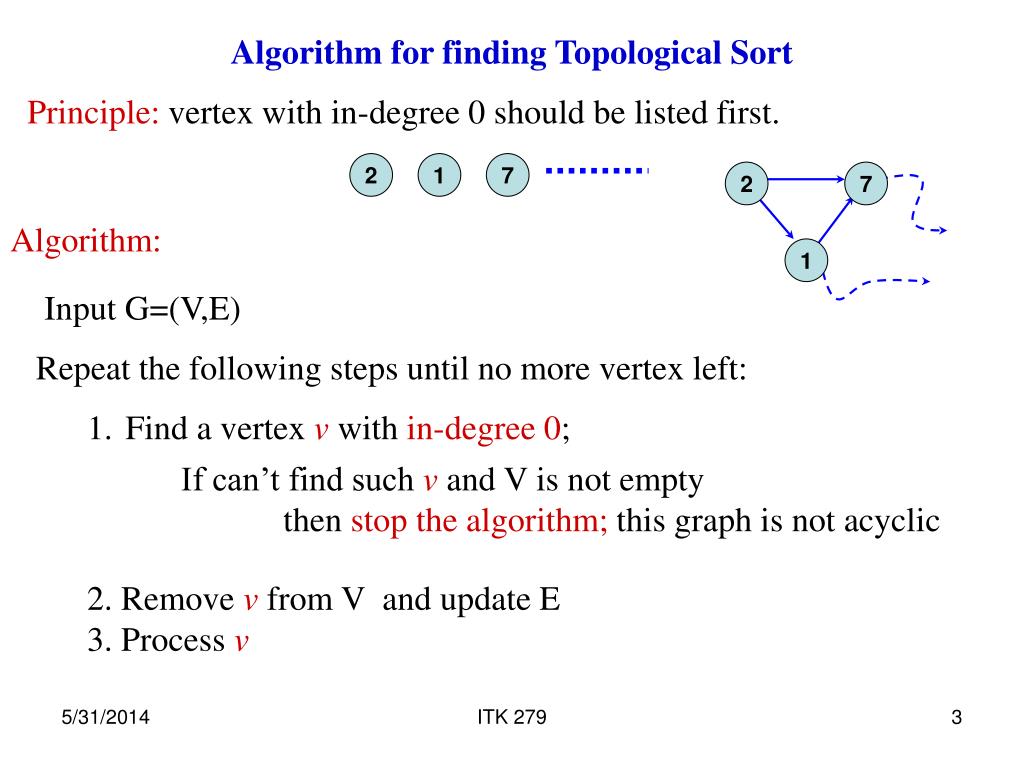

Algorithm for finding Topological Sort Principle: vertex with in-degree 0 should be listed first. 2 1 7 2 7 Algorithm: 1 Input G=(V,E) Repeat the following steps until no more vertex left: • Find a vertex vwith in-degree 0; If can’t find such vand V is not empty then stop the algorithm; this graph is not acyclic 2. Remove vfrom V and update E 3. Process v ITK 279

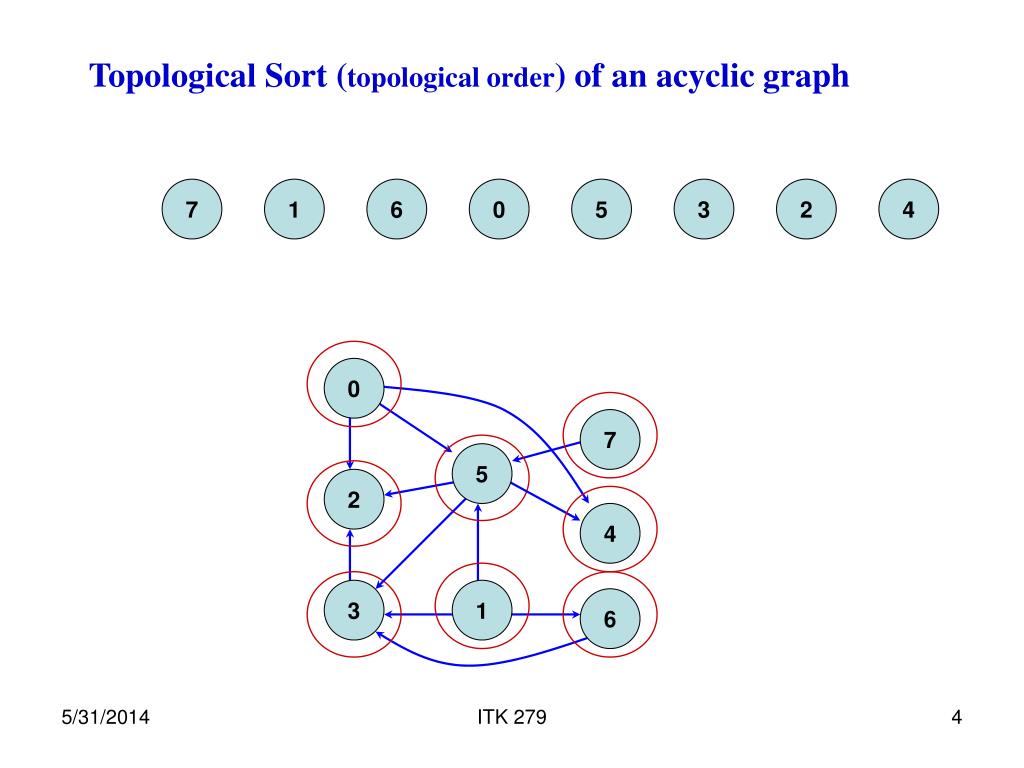

Topological Sort (topological order) of an acyclic graph 7 1 6 0 5 3 2 4 0 7 5 2 4 3 1 6 ITK 279

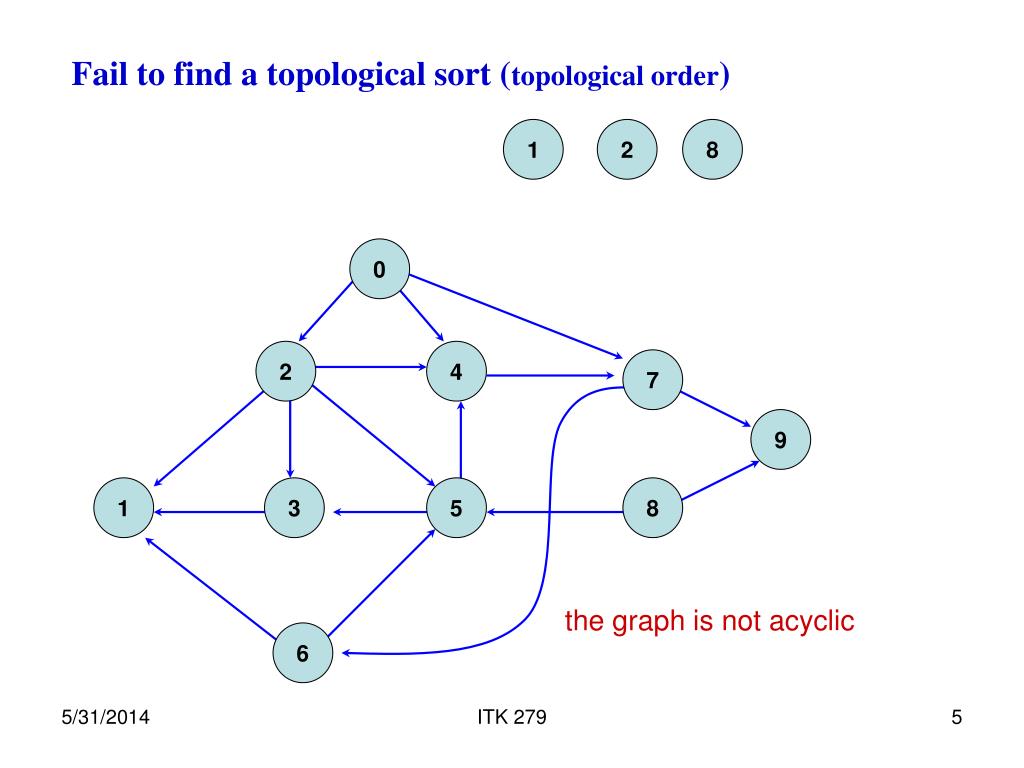

Fail to find a topological sort (topological order) 1 2 8 0 2 4 7 9 1 3 5 8 the graph is not acyclic 6 ITK 279

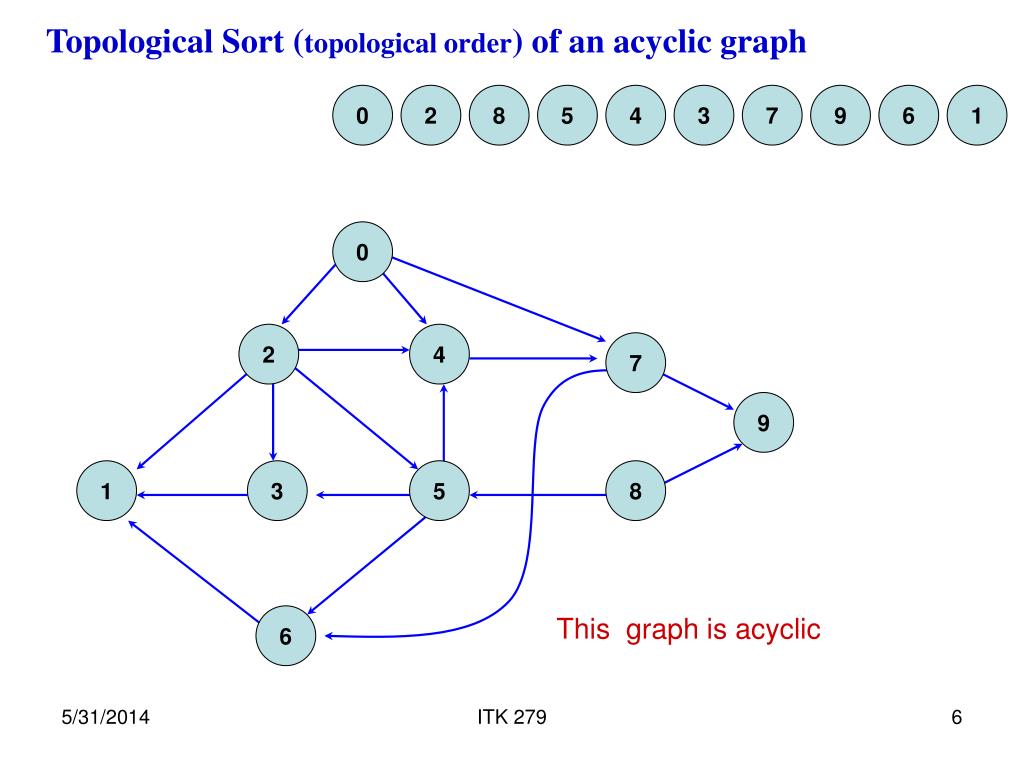

Topological Sort (topological order) of an acyclic graph 0 2 8 5 4 3 7 9 6 1 0 2 4 7 9 1 3 5 8 6 This graph is acyclic ITK 279

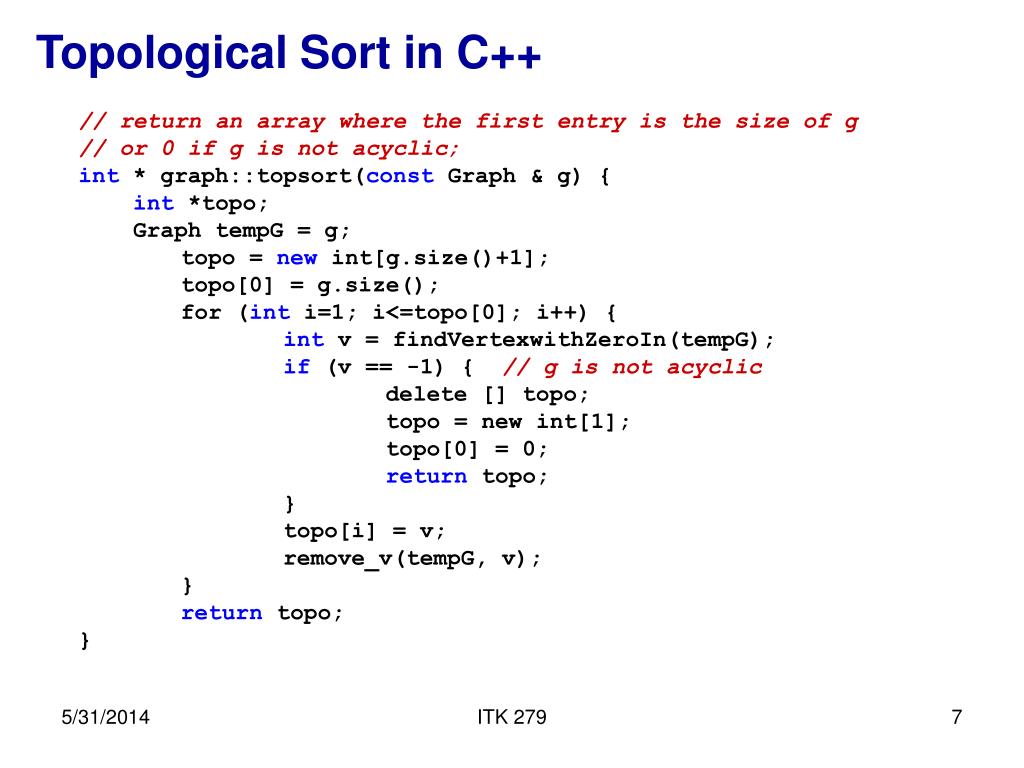

Topological Sort in C++ // return an array where the first entry is the size of g // or 0 if g is not acyclic; int * graph::topsort(const Graph & g) { int *topo; Graph tempG = g; topo = new int[g.size()+1]; topo[0] = g.size(); for (int i=1; i<=topo[0]; i++) { int v = findVertexwithZeroIn(tempG); if (v == -1) { // g is not acyclic delete [] topo; topo = new int[1]; topo[0] = 0; return topo; } topo[i] = v; remove_v(tempG, v); } return topo; } ITK 279

Edsger Wybe Dijkstra 1930-2002 • Algorithm design • Programming languages • Operating systems • Distributed processing • Formal specification and verification 1972 Turing Award Dijkstra Algorithm: To find the shortest path between two vertices in a weighted graph. ITK 279

Common Algorithm Techniques • Back Tracking.... • Greedy Algorithms: Algorithms that make decisions based on the current information; and once a decision is made, the decision will not be revised • Divide and Conquer.... • Dynamic Programming..... Problem: Minimized the number of coins for change. In real life, we can use a greedy algorithm to obtain the minimum number of coins. But in general, we need dynamic programming to do the job ITK 279

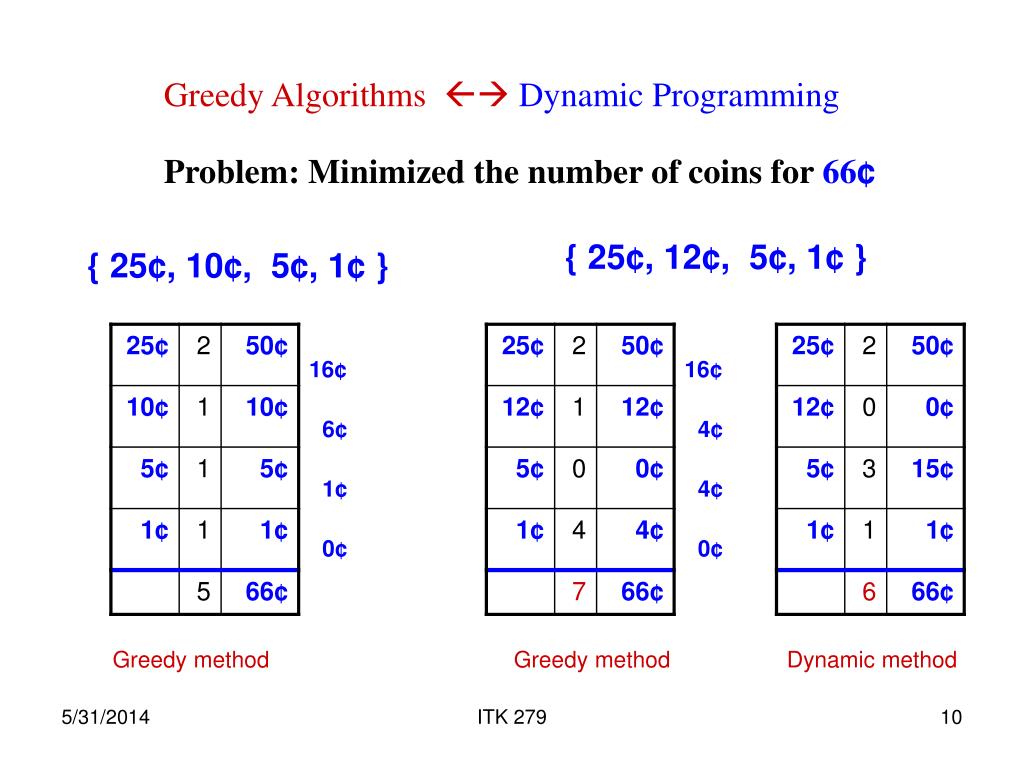

Greedy Algorithms  Dynamic Programming Problem: Minimized the number of coins for 66¢ { 25¢, 12¢, 5¢, 1¢ } { 25¢, 10¢, 5¢, 1¢ } 16¢ 16¢ 6¢ 4¢ 1¢ 4¢ 0¢ 0¢ Greedy method Greedy method Dynamic method ITK 279

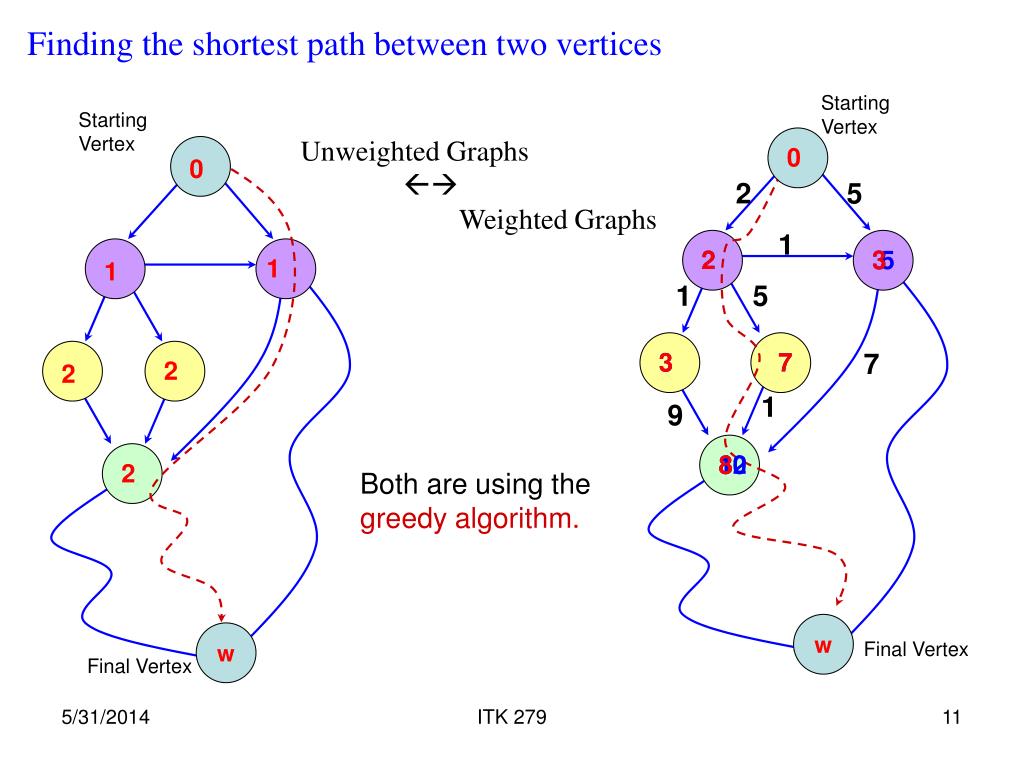

Finding the shortest path between two vertices Starting Vertex Starting Vertex Unweighted Graphs  Weighted Graphs 0 0 2 5 1 2 2 3 3 5 1 1 1 5 3 3 7 7 7 2 2 1 9 12 8 8 10 2 Both are using the greedy algorithm. w w Final Vertex Final Vertex ITK 279

Construct a shortest path Map Starting Vertex Starting Vertex 0 0,-1 1 2 1,0 1,0 3 4 2,1 2,1 5 2,2 x w-1,y n w,x Final Vertex Final Vertex ITK 279

Shortest paths of unweighted graphs // <vertex, <distance, previous vertex in the path>> typedef map<int,pair<double, int> > PathMap; PathMap graph::UnweightedShortestPath(Graph & g, int s) { PathMap SPMap; // create a bookkeeper; for (Graph::iterator itr = g.begin(); itr != g.end(); itr++) { SPMap[itr->first] = make_pair(inft,-1); // -1 mean no previous } SPMap[s] = make_pair(0,-1); // s is not done yet. deque<int> candidates; candidates.push_back(s); while (!candidates.empty()) { int v = candidates[0]; candidates.pop_front(); AdjacencyList ADJ = g[v]; for (AdjacencyList::iterator w=ADJ.begin(); w != ADJ.end(); w++) { if (SPMap[w->first].first == inft) { SPMap[w->first].first = SPMap[v].first+1; SPMap[w->first].second=v; candidates.push_back(w->first); } // end enqueue next v } // end ADJ interation; all nextvs's next into the queue. } return SPMap; } ITK 279

Construct a shortest path Map for weighted graph  Starting Vertex Starting Vertex  0 0,-1 2 5   1 1 2 2,0 3,1 5,0 1 5   3 4 7 3,1 7,1 1 9  5 10,2 8,4 w-1,y : decided n w,x Final Vertex Final Vertex ITK 279

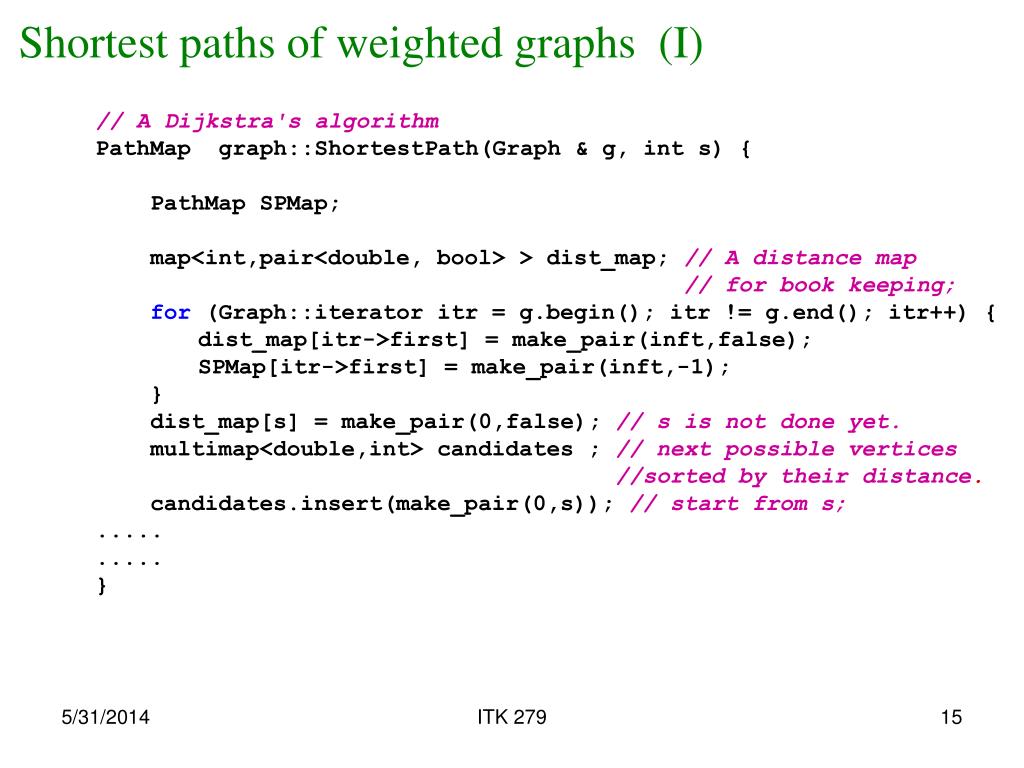

Shortest paths of weighted graphs (I) // A Dijkstra's algorithm PathMap graph::ShortestPath(Graph & g, int s) { PathMap SPMap; map<int,pair<double, bool> > dist_map; // A distance map // for book keeping; for (Graph::iterator itr = g.begin(); itr != g.end(); itr++) { dist_map[itr->first] = make_pair(inft,false); SPMap[itr->first] = make_pair(inft,-1); } dist_map[s] = make_pair(0,false); // s is not done yet. multimap<double,int> candidates ; // next possible vertices //sorted by theirdistance. candidates.insert(make_pair(0,s)); // start from s; ..... ..... } ITK 279

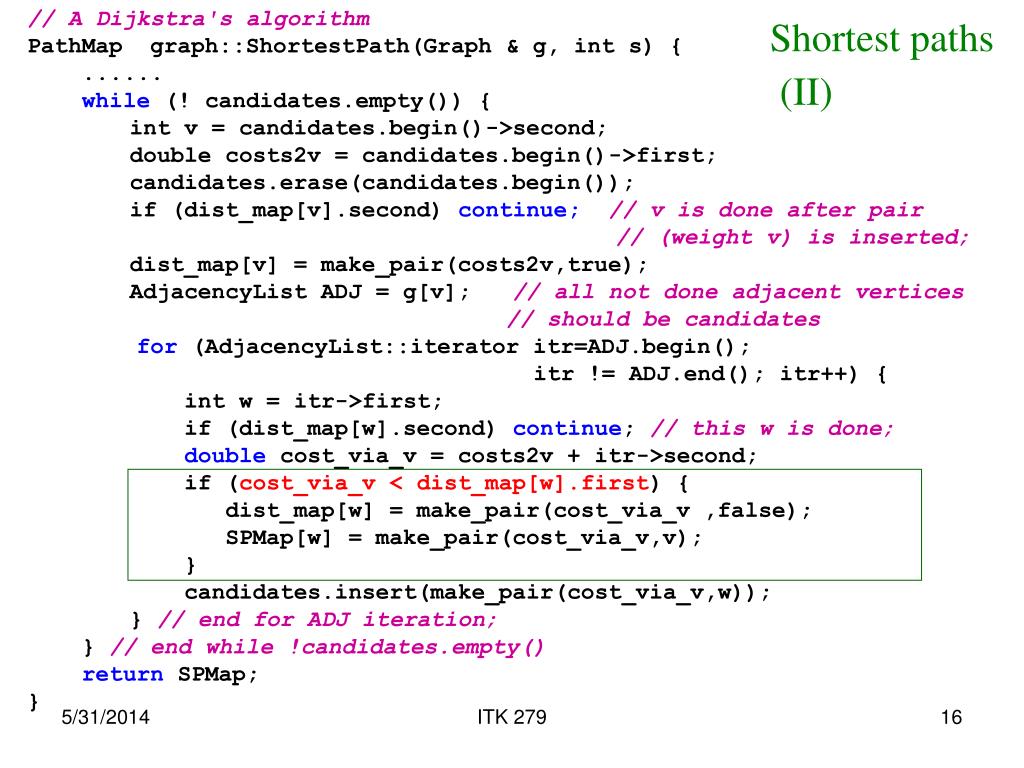

Shortest paths (II) // A Dijkstra's algorithm PathMap graph::ShortestPath(Graph & g, int s) { ...... while (! candidates.empty()) { int v = candidates.begin()->second; double costs2v = candidates.begin()->first; candidates.erase(candidates.begin()); if (dist_map[v].second) continue;// v is done after pair // (weight v) is inserted; dist_map[v] = make_pair(costs2v,true); AdjacencyList ADJ = g[v]; // all not done adjacent vertices // should be candidates for (AdjacencyList::iterator itr=ADJ.begin(); itr != ADJ.end(); itr++) { int w = itr->first; if (dist_map[w].second) continue; // this w is done; double cost_via_v = costs2v + itr->second; if (cost_via_v < dist_map[w].first) { dist_map[w] = make_pair(cost_via_v ,false); SPMap[w] = make_pair(cost_via_v,v); } candidates.insert(make_pair(cost_via_v,w)); } // end for ADJ iteration; } // end while !candidates.empty() return SPMap; } ITK 279
