  1. Pro/INTRALINK 9.1 Migration & Customizations Olaf Corten(Besi), PLM ManagerRik Schmale(USG Innotiv), Senior Consultant

  2. Introduction Besi Introduction USG Innotiv Goals for Besi Migrating issues Customizing Workflows Working with Asia Results Demo Workflow Agenda

  3. Who is Fico ? Fico is a product division of BE Semiconductor Industries N.V. Founded in 1956 In the nineties subsidiary of BE Semiconductor Industries Our Slogan “Good is not good enough” Introduction Besi (1)

  4. Besi: From Die Sorting up to Plating Introduction Besi (2)

  5. Where are we located ? Introduction Besi (3)

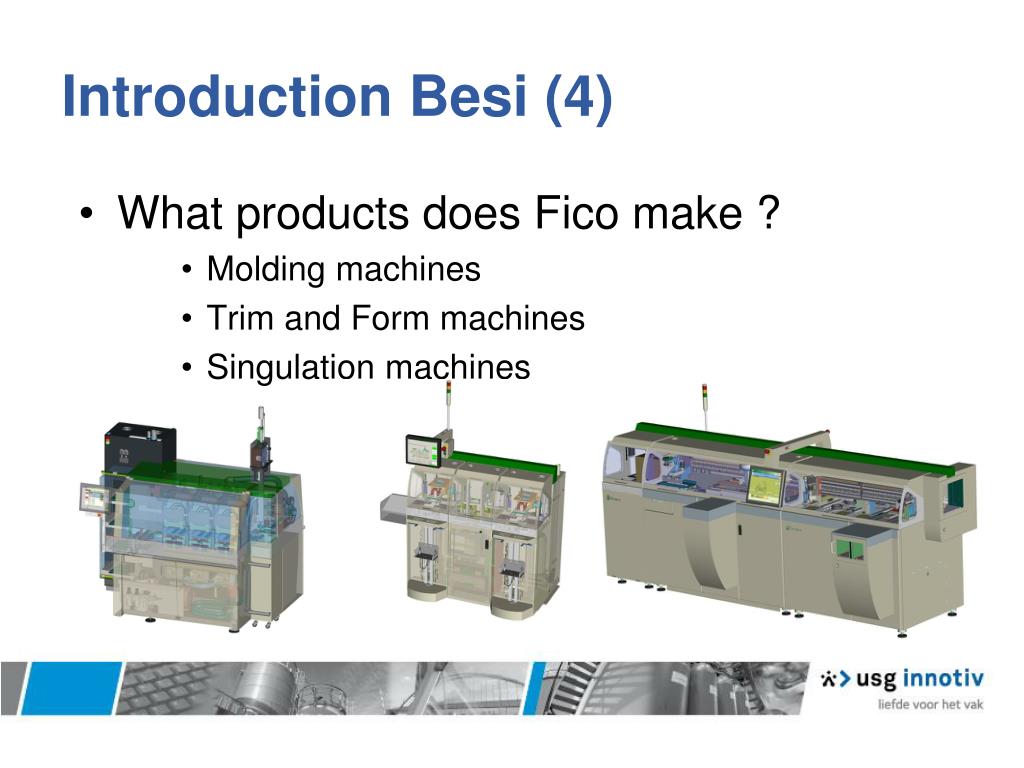

  6. What products does Fico make ? Molding machines Trim and Form machines Singulation machines Introduction Besi (4)

  7. How do we use PTC Software at Fico? Pro/ENGINEER Wildfire 4.0 Top down design (Layout, skeletons, etc) Module based configured machines Intralink 9.1 Datamanagement Integration to our PLM (matrix) Introduction Besi (4)

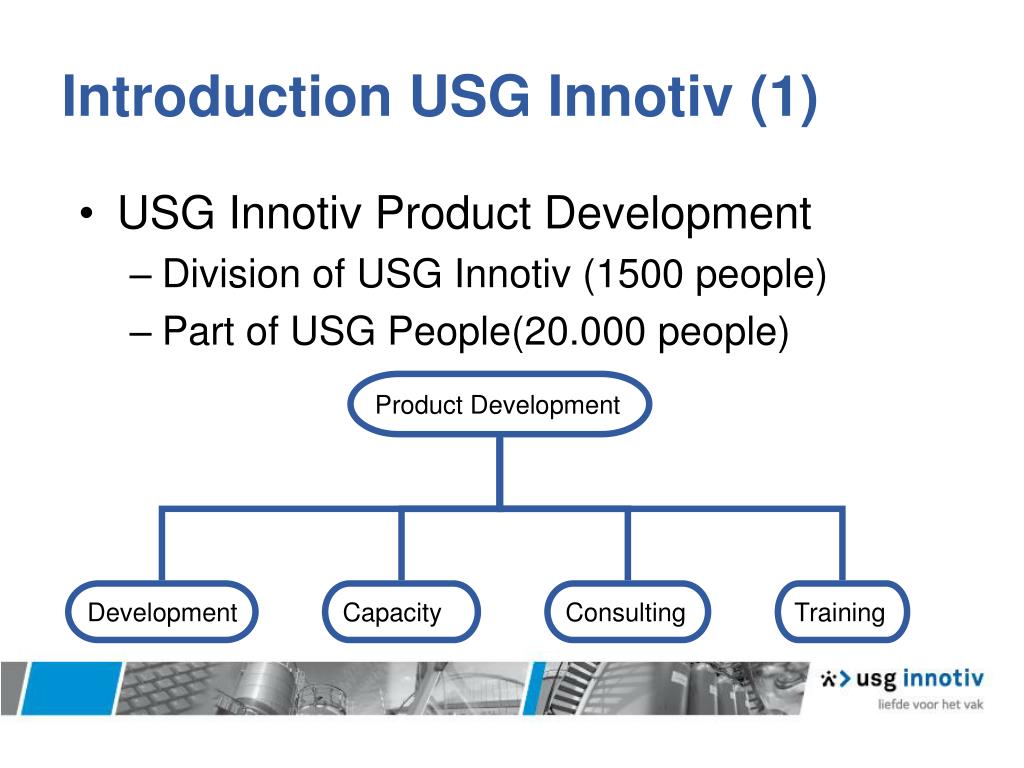

  8. USG Innotiv Product Development Division of USG Innotiv (1500 people) Part of USG People(20.000 people) Introduction USG Innotiv (1) Product Development Development Capacity Consulting Training

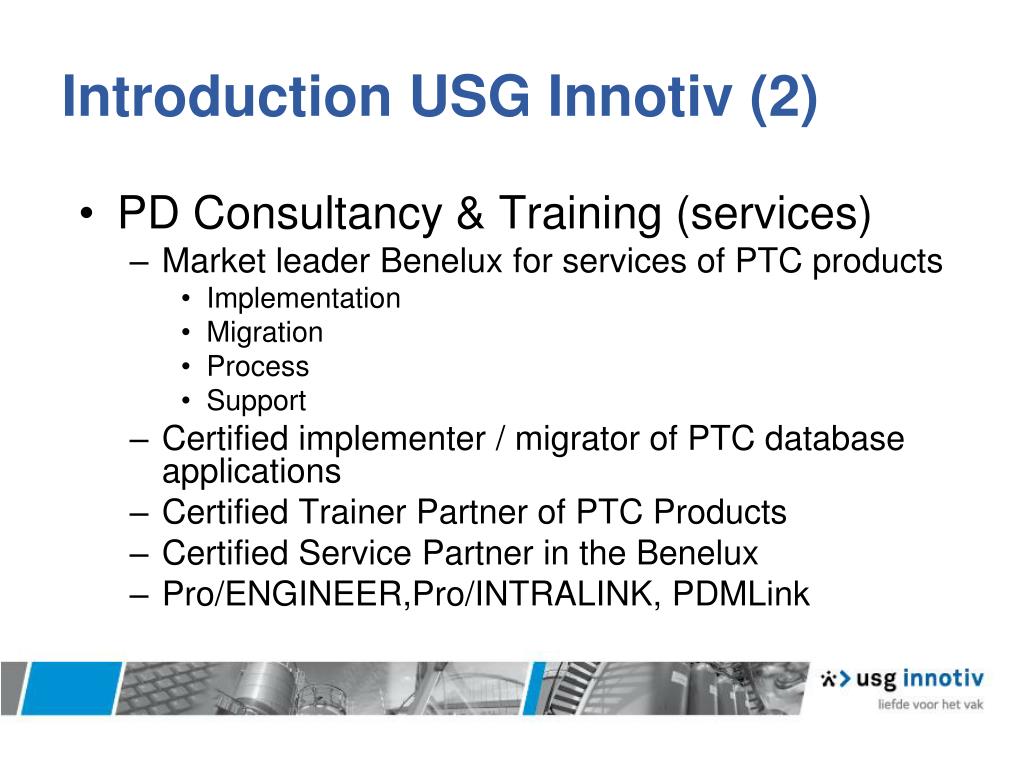

  9. PD Consultancy & Training (services) Market leader Benelux for services of PTC products Implementation Migration Process Support Certified implementer / migrator of PTC database applications Certified Trainer Partner of PTC Products Certified Service Partner in the Benelux Pro/ENGINEER,Pro/INTRALINK, PDMLink Introduction USG Innotiv (2)

  10. One Data Management environment Windchill platform Supporting remote sites(Asia) Sending data to Matrix(PLM) Working with Intralink 9.1 should be the same as with Intralink 3.4 Goals for Fico

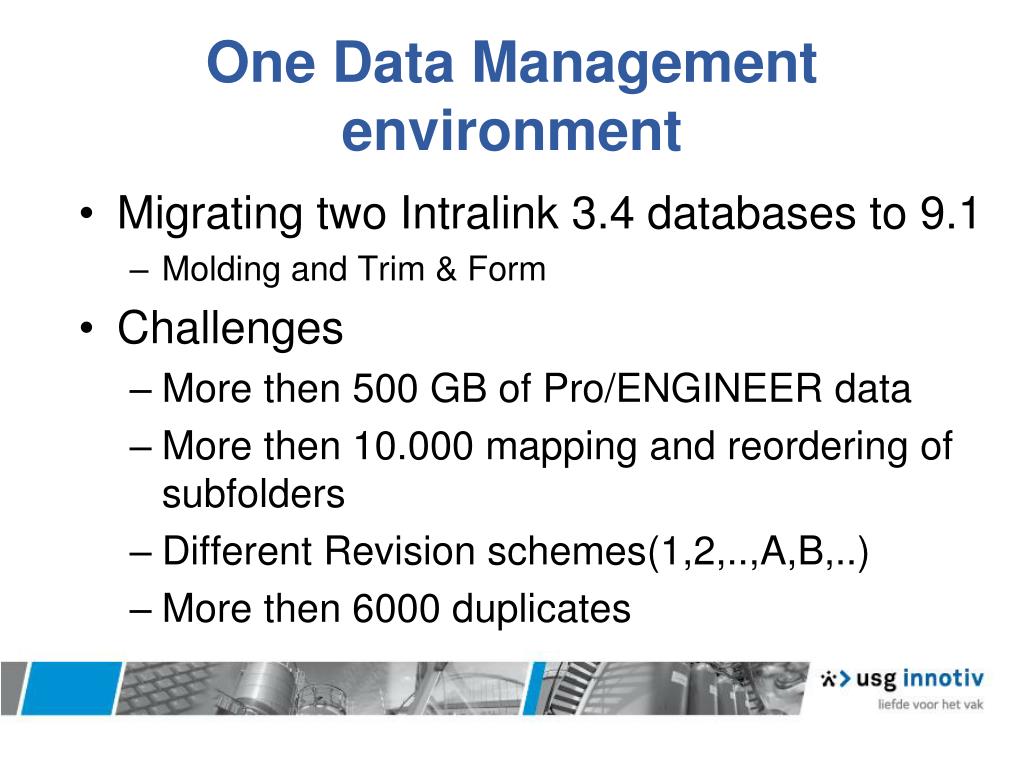

  11. Migrating two Intralink 3.4 databases to 9.1 Molding and Trim & Form Challenges More then 500 GB of Pro/ENGINEER data More then 10.000 mapping and reordering of subfolders Different Revision schemes(1,2,..,A,B,..) More then 6000 duplicates One Data Management environment

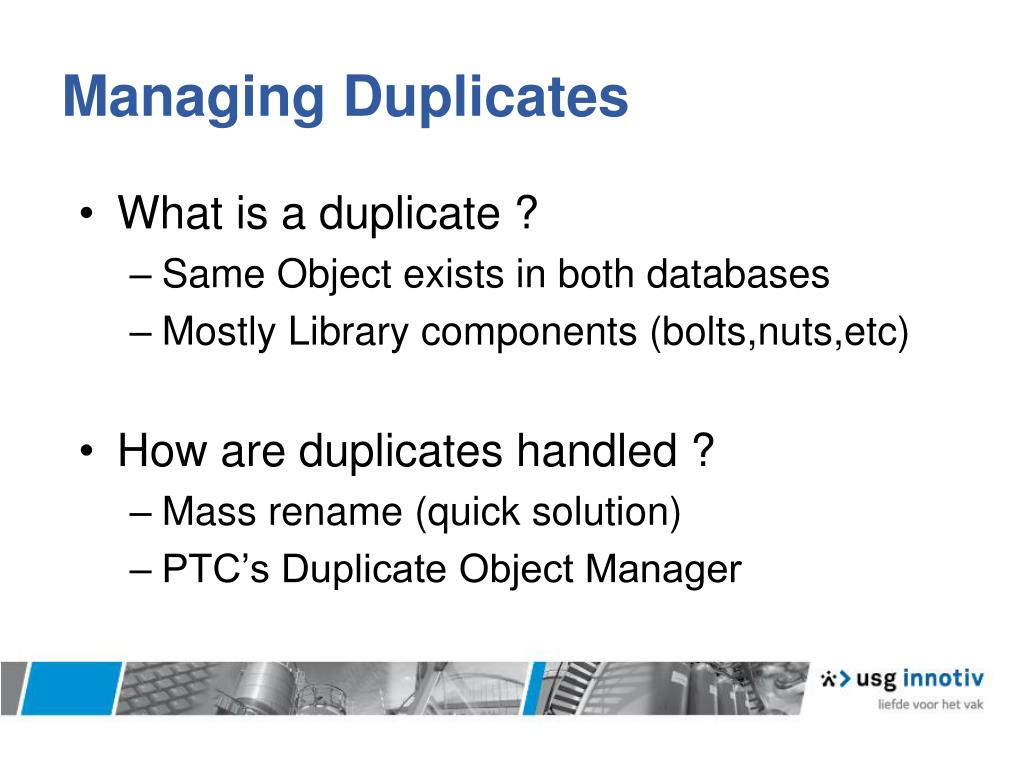

  12. What is a duplicate ? Same Object exists in both databases Mostly Library components (bolts,nuts,etc) How are duplicates handled ? Mass rename (quick solution) PTC’s Duplicate Object Manager Managing Duplicates

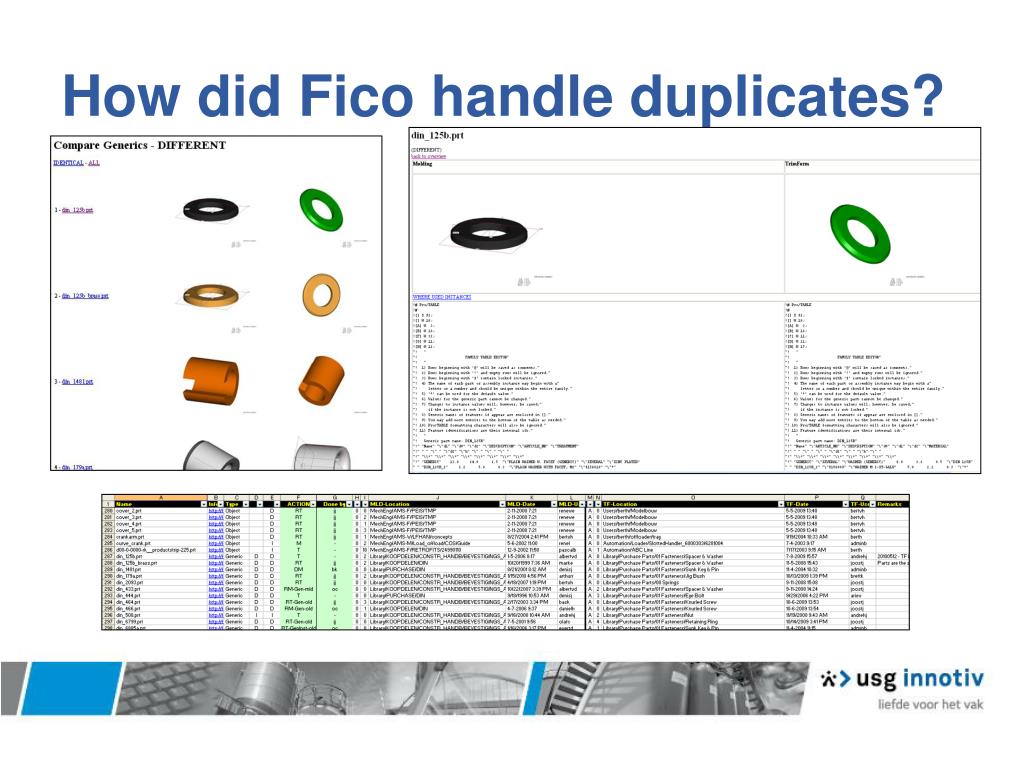

  13. How did Fico handle duplicates?

  14. Tool to merge duplicates(Equal or Unequal) DOM equality criteria Revisions and Criteria are the same Dependencies are the same Family Tables DOM unequality criteria If equality criteria is not met (ex. Extra Instance of a family table, more versions (A.2,B.1, etc) PTC’s Duplicate Object Manager

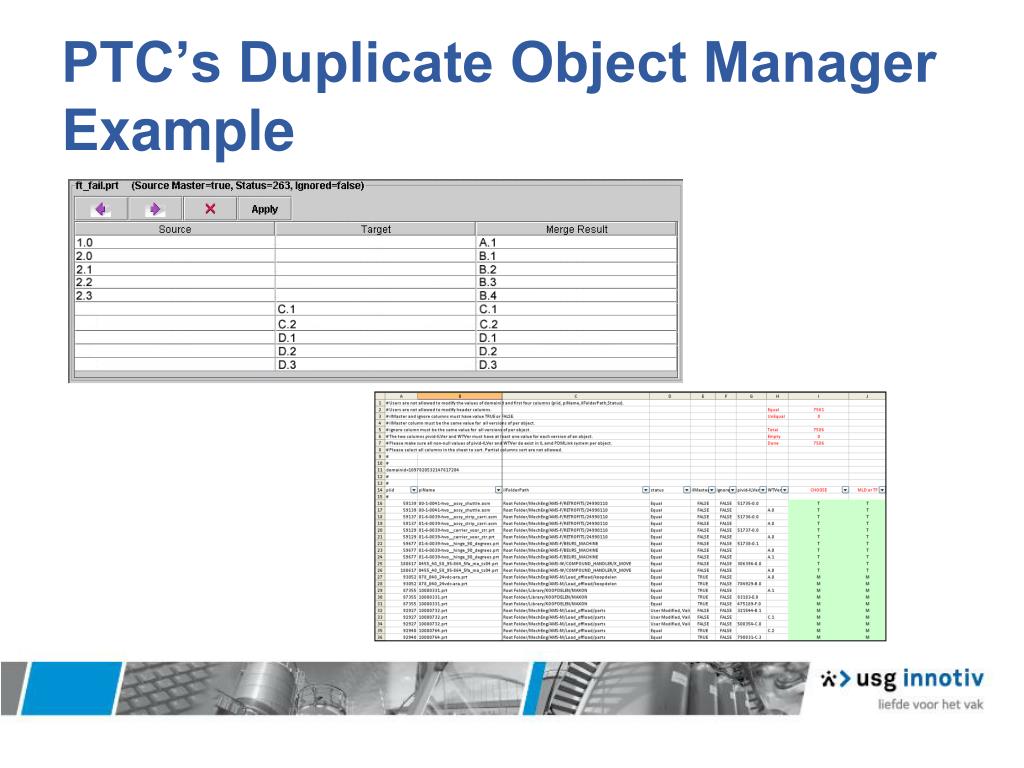

  15. PTC’s Duplicate Object Manager Example

  16. What is a Promotion Request workflow ? Why do we need more functionality ? Export Released data to xml format for Matrix Tool What does the Matrix Tool do ? Customized Promotion Request Adding extra steps Written in Java (Windchill J2EE complaint) Customizing Workflows

  17. Fico Tooling is moved here Performance issues over a WAN Replication solution Standard Windchill technology Remote File server Replicates Pro/E data to and back WAN optimizer (Riverbed) Working with Asia

  18. Based on rules Types(ex. Documents, Pro/ENGINEER files) Version (ex. Latest, all,etc) Scheduling replication How is the data produced on a replica send back ? Replication setup

  19. Performance results Replica • 15 timesfasterwithreplication • Big improvementswithbrowsing in folders/workspaces

  20. Succesful migration Single Intralink 9.1 environment All duplicated were merged Very good adoption by Fico (custom training) Customizations implemented Behaviour of Intralink 9.1 is very like the old Intralink 3.4 Sending the right info at the right time to Matrix Optimal performance for Asia Results

  21. How is custom workflow implemented ? Live Demo Workflow

  22. Questions ? Thank you for your attention !
