Emergency Communications

1. Emergency Communications Jane Brownley Chair TIA TR-45 Alcatel-Lucent

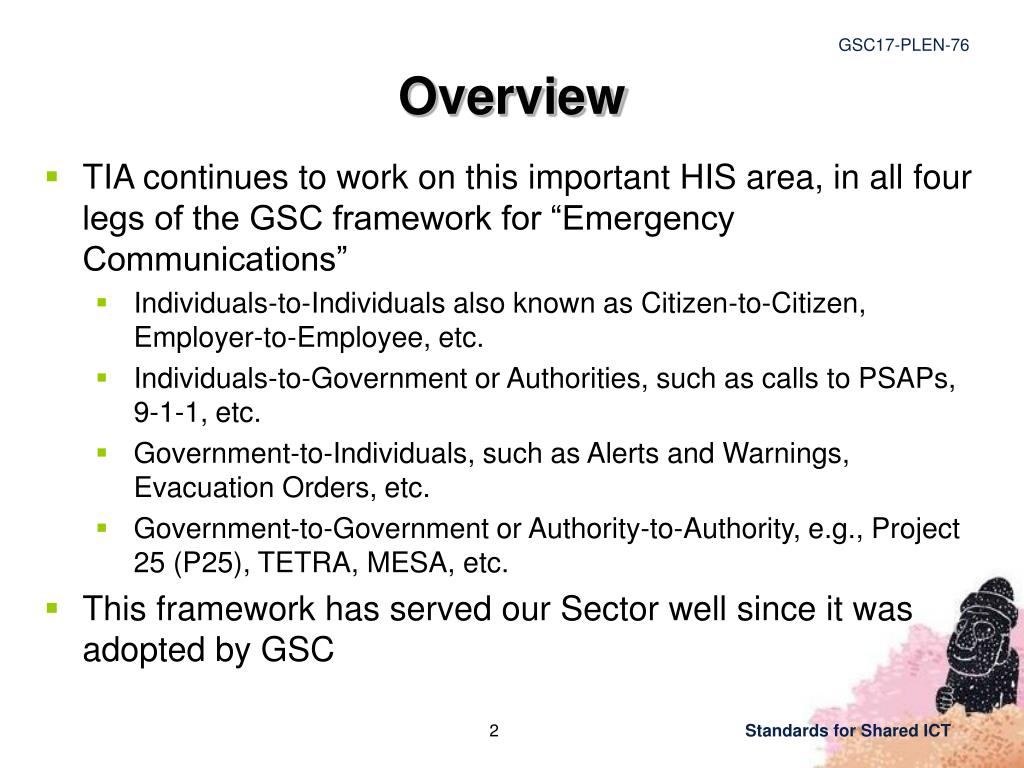

2. Overview • TIA continues to work on this important HIS area, in all four legs of the GSC framework for “Emergency Communications” • Individuals-to-Individuals also known as Citizen-to-Citizen, Employer-to-Employee, etc. • Individuals-to-Government or Authorities, such as calls to PSAPs, 9-1-1, etc. • Government-to-Individuals, such as Alerts and Warnings, Evacuation Orders, etc. • Government-to-Government or Authority-to-Authority, e.g., Project 25 (P25), TETRA, MESA, etc. • This framework has served our Sector well since it was adopted by GSC

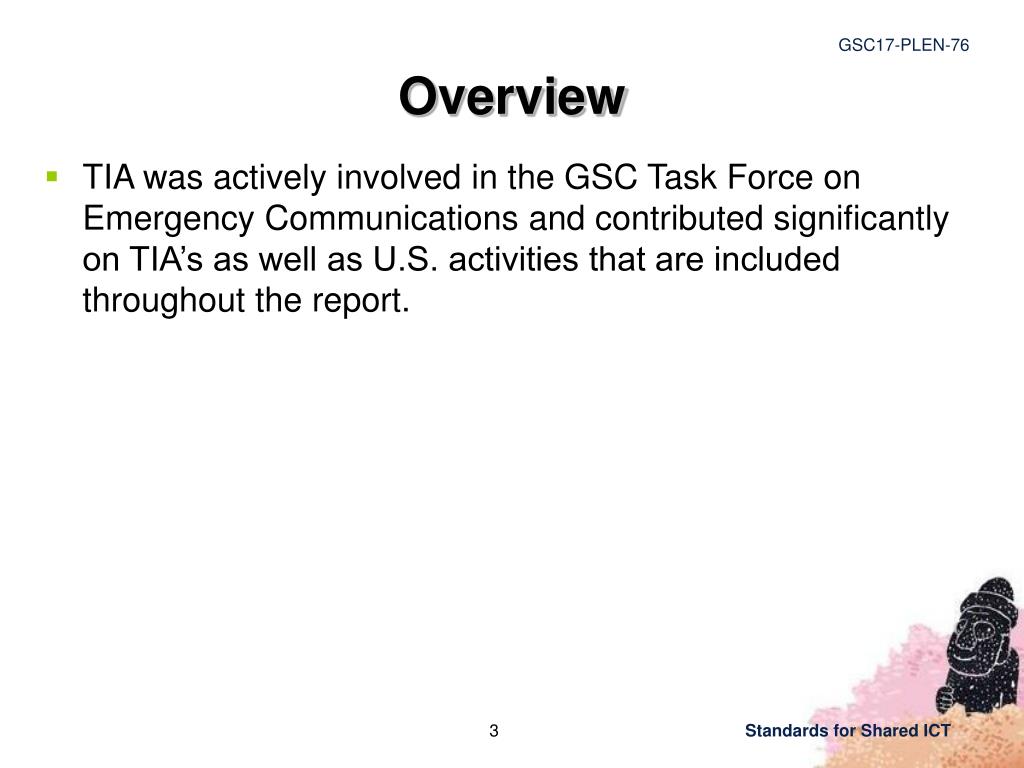

3. Overview • TIA was actively involved in the GSC Task Force on Emergency Communications and contributed significantly on TIA’s as well as U.S. activities that are included throughout the report.

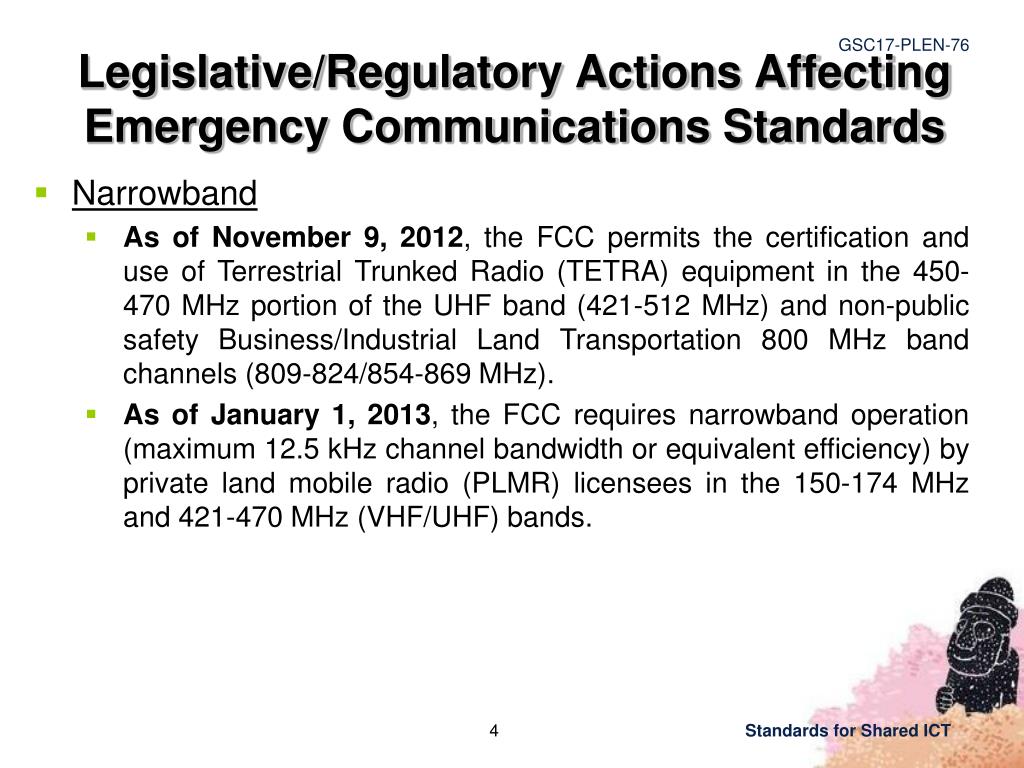

4. Legislative/Regulatory Actions Affecting Emergency Communications Standards • Narrowband • As of November 9, 2012, the FCC permits the certification and use of Terrestrial Trunked Radio (TETRA) equipment in the 450-470 MHz portion of the UHF band (421-512 MHz) and non-public safety Business/Industrial Land Transportation 800 MHz band channels (809-824/854-869 MHz). • As of January 1, 2013, the FCC requires narrowband operation (maximum 12.5 kHz channel bandwidth or equivalent efficiency) by private land mobile radio (PLMR) licensees in the 150-174 MHz and 421-470 MHz (VHF/UHF) bands.

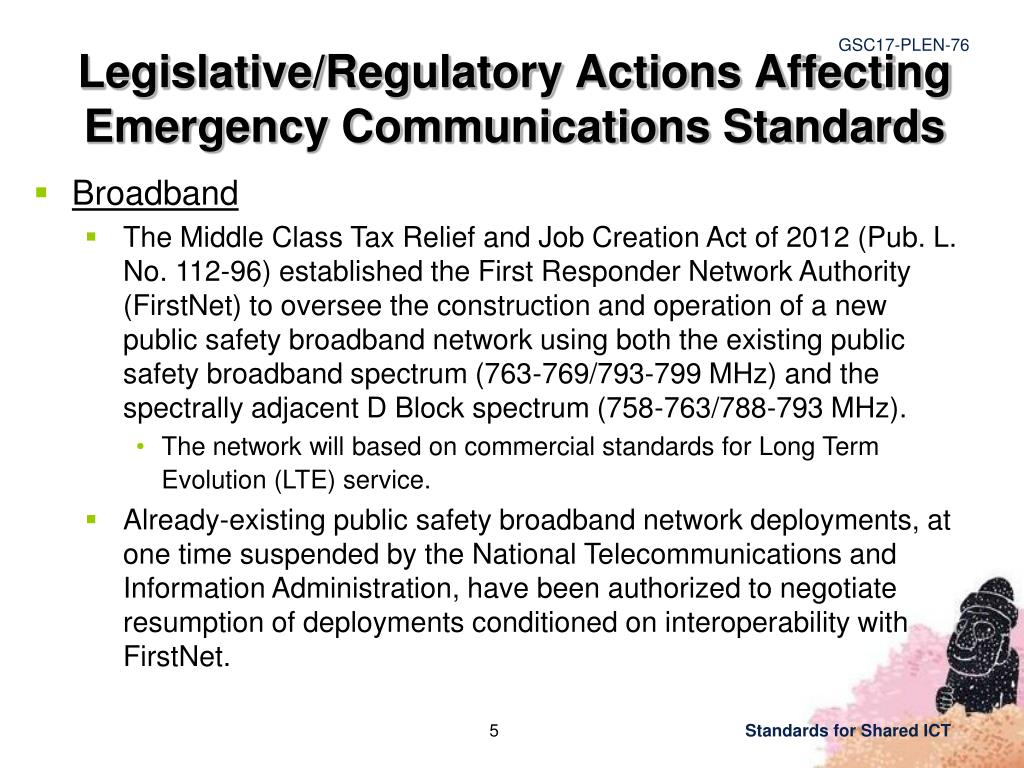

5. Legislative/Regulatory Actions Affecting Emergency Communications Standards • Broadband • The Middle Class Tax Relief and Job Creation Act of 2012 (Pub. L. No. 112-96) established the First Responder Network Authority (FirstNet) to oversee the construction and operation of a new public safety broadband network using both the existing public safety broadband spectrum (763-769/793-799 MHz) and the spectrally adjacent D Block spectrum (758-763/788-793 MHz). • The network will based on commercial standards for Long Term Evolution (LTE) service. • Already-existing public safety broadband network deployments, at one time suspended by the National Telecommunications and Information Administration, have been authorized to negotiate resumption of deployments conditioned on interoperability with FirstNet.

6. TIA Outreach/Advocacy Regarding Emergency Communications Standards • TIA very actively advocates for the use of industry-led, consensus-based standards to be used as safe harbors for legal compliance (but not as requirements). • TIA represents the ICT manufacturer and vendor community to the Congress, and at various Federal agencies including the FCC, NTIA, FirstNet, etc. – issues advocated on also include wireless 911 location accuracy, text-to-911, reliability of networks supporting emergency communications, and many others. • Please see TIA’s relevant web page (http://www.tiaonline.org/policy/public-safety) to learn more about our issues and filings. • TIA is a member of the FCC’s Communications Security, Reliability, and Interoperability Council (CSRIC) and Emergency Access Advisory Committee (EAAC), as well as private partnerships including the Land Mobile Communications Council (LMCC), the National Public Safety Telecommunications Council (NPSTC). • TIA regularly meets with public safety interests to coordinate and learn of their priorities.

7. Highlights of TR-8 Activities • TIA, through the TR-8 committee on Private Land Mobile Radio, develops standards for Emergency Communications in several areas: • Maintains standards for existing analog (Frequency Modulated) radio systems • Develops and maintains a suite of standards for Project 25, a digital radio system targeted at Public Safety and Disaster Relief • Develops and maintains standards and bulletins relating to radio propagation, interference, and frequency coordination • Develops standards and bulletins relating to wideband and broadband radio systems for Public Safety and Disaster Relief applications

8. Highlights of TR-8 Activities • TR-8 develops standards for Project 25 digital radio systems (TIA-102 series of standards) • Standards suite consists of 69 documents covering topics such as • Over-the-air interface • Services such as Trunking, Encryption, Data Transport, Over-the-Air Rekeying (OTAR) • Fixed network interfaces such as Inter-Sub-System Interface, Console Interface, Fixed Station Interface • Network Management • Telephone Interface • Key Management Facility (KMF) Interface • Compliance Assessment Testing • Phase II 2-slot TDMA trunking systems

9. Highlights of TR-8 Activities • Continued maintenance of analog FM standards • TIA-603-D Standard for analog FM or PM Transceivers • Standards for Wireless Communications Systems Propagation, Interference, and Frequency Coordination • TSB 88 series of bulletins • Consists of 3 bulletins on Performance Modeling, Propagation and Noise, and Performance Verification • Additional work focuses on Broadband Data Systems • Documents on Antenna Systems • Five standards published on Fixed, Vehicular, and Portable Antennas, along with standards for Digitized Performance Characterization • Documents relating to Electro-Magnetic Emission Safety (EME) measurement and reporting

10. Highlights of TR-45 Activities • TR-45 does work to support Government-to-Government, CMAS, and Wireless Priority Services • continues to actively partner with ATIS WTSC developing joint standards for CMAS, JSMS911, Emergency Services • working with 3GPP2 on the requirements and network support for Multimedia Priority Services • New work item on DRVCC (Dual Radio Voice Call Continuity) 10

11. Commercial Mobile Alert Service (CMAS) Background: The “Warning, Alert, and Response Network” Act Signed into law on October 13, 2006 Sets in motion the planning for “Commercial Mobile Service” Providers to “voluntarily” send emergency alerts to their subscribers “Commercial Mobile Service Providers” are considered to be cellular and paging companies. Only the service is discussed – technology choices are not specified Thus, Sub-Committees developing these standards have the option of choosing a specific technology This work is Regional [US based] Joint development activity between TR-45 [TR-45.5 and TR-45.8] and ATIS to develop CMAS-related specifications common to both groups Core Standards for 1x cdma2000®1 CMAS air interface documents have completed development and published. C Interface test specification has been published 1cdma2000® is the trademark for the technical nomenclature for certain specifications and standards of the Organizational Partners (OPs) of 3GPP2.Geographically (and as of the date of publication), cdma2000® is a registered trademark of the Telecommunications Industry Association (TIA-USA) in the United States. 11

12. Commercial Mobile Alert Service (CMAS) Recently Completed • CMAS C1 interface between PBS and the CMSP Gateway • Addenda to the base standards to address implementation issues Current Development: • Support for Spanish language alerts • J-STD-103 Joint ATIS/TIA Canadian Commercial Mobile Alerts Service (CMAS)

13. E911 and Priority Services • Support of granting priority access to cdma2000® services to a government related special class of users. • Support identification of emergency calls originated by the mobile station. This indication is passed to the network. • Support Multimedia Priority Services for 1x and HRPD • Support of enhanced Packet Data Emergency Services capabilities 13

14. Location • Continued evolution of location based services • Significant updates to Position Location documents, which enhances availability of location based services, e.g., E911. • Completing test specifications commences with major position location updates. • Improved protocols and procedures to enable mobile station based Advance Forward Link Trilateration (AFLT) for 1x, HRPD, and UMB technologies. 14

15. Strategic Direction Ongoing support of the development of a next generation 9-1-1 system (NG911), with native SMS to 9-1-1 being used as an interim enhancement to networks. Continued engagement with the FirstNet as it designs and deploys a nationwide public safety broadband network. Ongoing support of Commercial Mobile Alert System (CMAS) Appreciation for the transition from a copper-based communications infrastructure to all-IP. Inclusion of considerations related to accessibility for disabled communities. 15

16. Next Steps/Actions Continuing cooperation among all PSOs and groups working on Emergency Communications. 16

17. Supplementary Slides

18. Recent TR-45 Standards for Emergency Services • Recently Completed Standards • IOS for CECO • TIA-2001-C-1 ( 3G 1x-IOS v5.0.2) - These standards provide the interoperability for the new enhanced features on cdma2000 1x. They are bug fixes for v2.0 and support for callback of an emergency call. Publication was approved in September 2010 meeting. • TIA-2001-D-2 (3G 1x-IOS v5.1.2) - These standards provide the interoperability for the new enhanced features on cdma2000 1x. They are bug fixes for v2.0 and support for callback of an emergency call and EVRC-NW capacity operating point 0. The R&F was approved in January meeting. Publication was approved in May 2011 meeting.   • TIA-1163-A - E-UTRAN - eHRPD Connectivity and Interworking: Core Network Aspects

19. Commercial Mobile Alert Service (CMAS) CMAS Reference Architecture for CDMA

20. Commercial Mobile Alert Service (CMAS) CMAS Reference Architecture for CDMA The applicable network entities are represented by squares. The applicable reference points of the CDMA wireless network reference model are represented by circles and are defined in the TIA Wireless Network Reference Model; 2006. The ‘C’ and ‘E’ reference points are defined in the Commercial Mobile Alert Service Architecture and Requirements Version 1.0, FCC Commercial Mobile Service Alert Advisory Committee. The reference architecture, as defined herein, is intended to provide a level of abstraction that may facilitate the specification of messages and protocols within.

21. Location More general support for Global Navigation Satellite Systems in addition to GPS, including GLONASS Galileo Quazi-Zenith Satellite Systems (QZSS) Compass/BeiDou The protocols can also be extended to systems not yet defined. Support for Satellite Based Augmentation Systems American Wide Area Augmentation System (WAAS) European Geostationary 28 Navigation Overlay Service (EGNOS) Indian GPS Aided GEO Augmented Navigation Systems (GAGAN) 29 and Japanese Multi-functional Satellite Augmentation Systems (MSAS)
