LDAP on ACID Implementing LDAP Transactions in slapd (8)

LDAP on ACID Implementing LDAP Transactions in slapd (8). Kurt D. Zeilenga kurt@openldap.org. Title slide. Topics. LDAP and ACID Simple Extensions Assertion Control Read Entry Controls Modify/Increment Feature LDAP Mutually Exclusive (Update) Access LDAP (Simple) Transactions.

nigel-berry
Télécharger la présentation

LDAP on ACID Implementing LDAP Transactions in slapd (8)

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. LDAP on ACIDImplementing LDAP Transactions in slapd(8) Kurt D. Zeilenga kurt@openldap.org Title slide

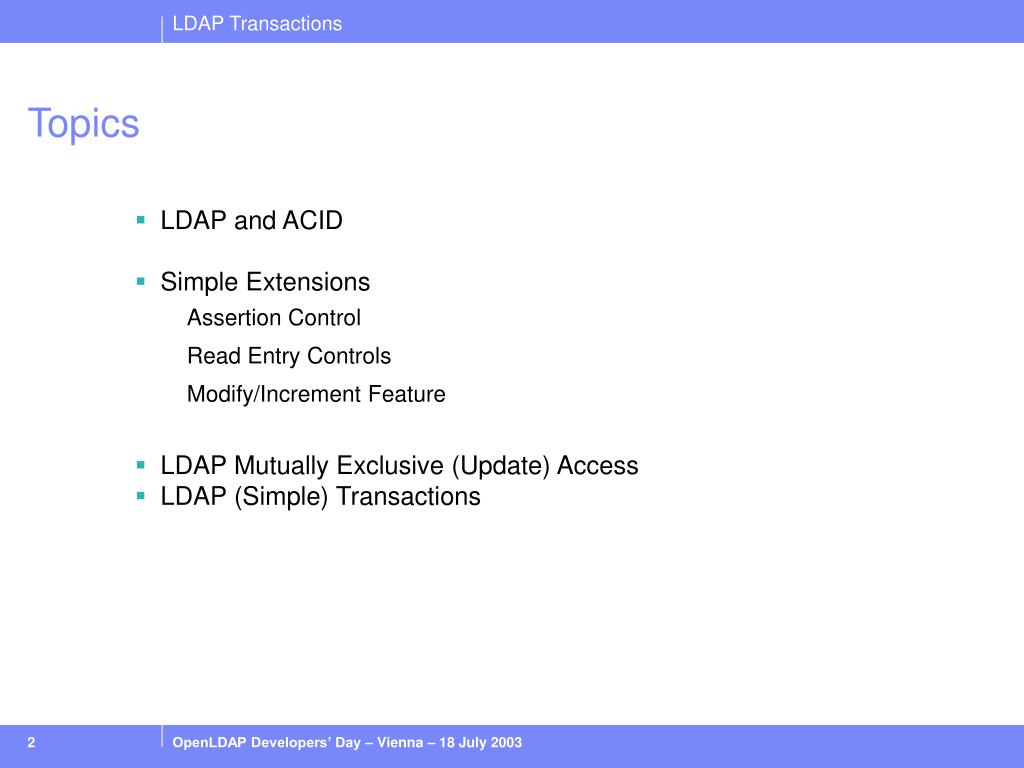

  2. Topics • LDAP and ACID • Simple Extensions • Assertion Control • Read Entry Controls • Modify/Increment Feature • LDAP Mutually Exclusive (Update) Access • LDAP (Simple) Transactions Basic text slide

  3. ACID • Atomicity. In a transaction involving two or more discrete pieces of information, either all of the pieces are committed or none are. • Consistency. A transaction either creates a new and valid state of data, or, if any failure occurs, returns all data to its state before the transaction was started. • Isolation. A transaction in process and not yet committed must remain isolated from any other transaction. • Durability. Committed data is saved by the system such that, even in the event of a failure and system restart, the data is available in its correct state. Source: whatis.com

  4. LDAP and ACID • LDAP Update operation are atomic, results are consistent, isolated (independent from other update operations) and Durable (its effects should be permanent). • LDAP Interrogation operations have, at the entry-level, ACID properties. • LDAP search operation may see whole affect of concurrently processed update operations.

  5. Simple LDAP Extensions • Assertion Control • Read Entry Controls • Modify/Increment Feature

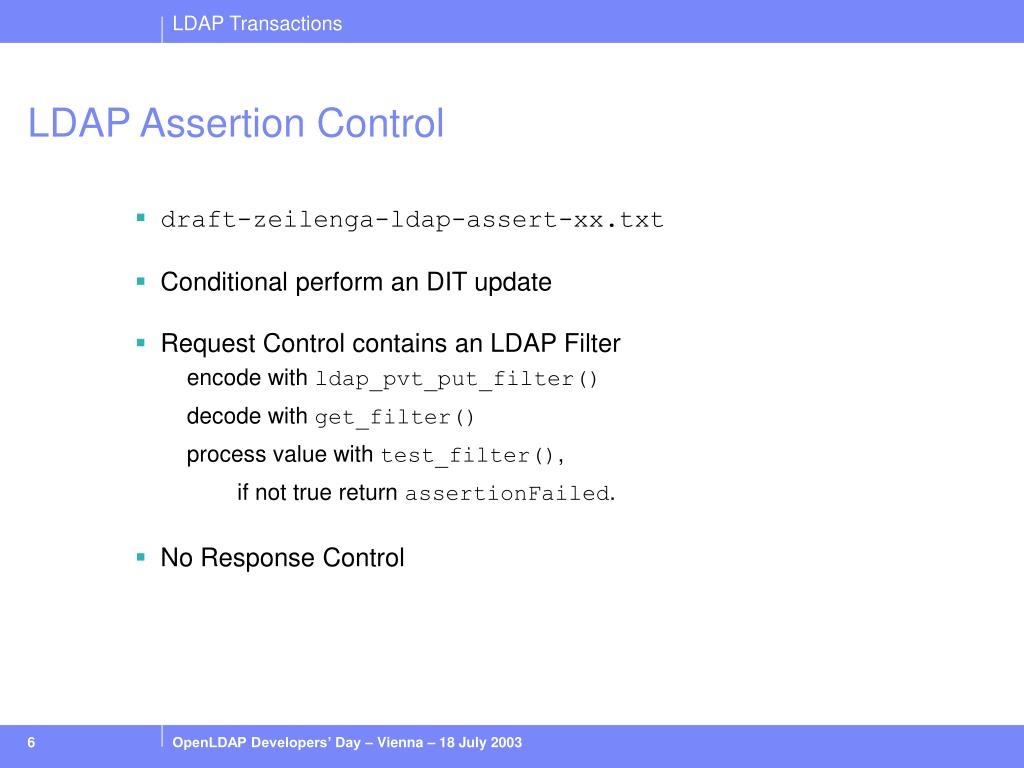

  6. LDAP Assertion Control • draft-zeilenga-ldap-assert-xx.txt • Conditional perform an DIT update • Request Control contains an LDAP Filter • encode with ldap_pvt_put_filter() • decode with get_filter() • process value with test_filter(), • if not true return assertionFailed. • No Response Control

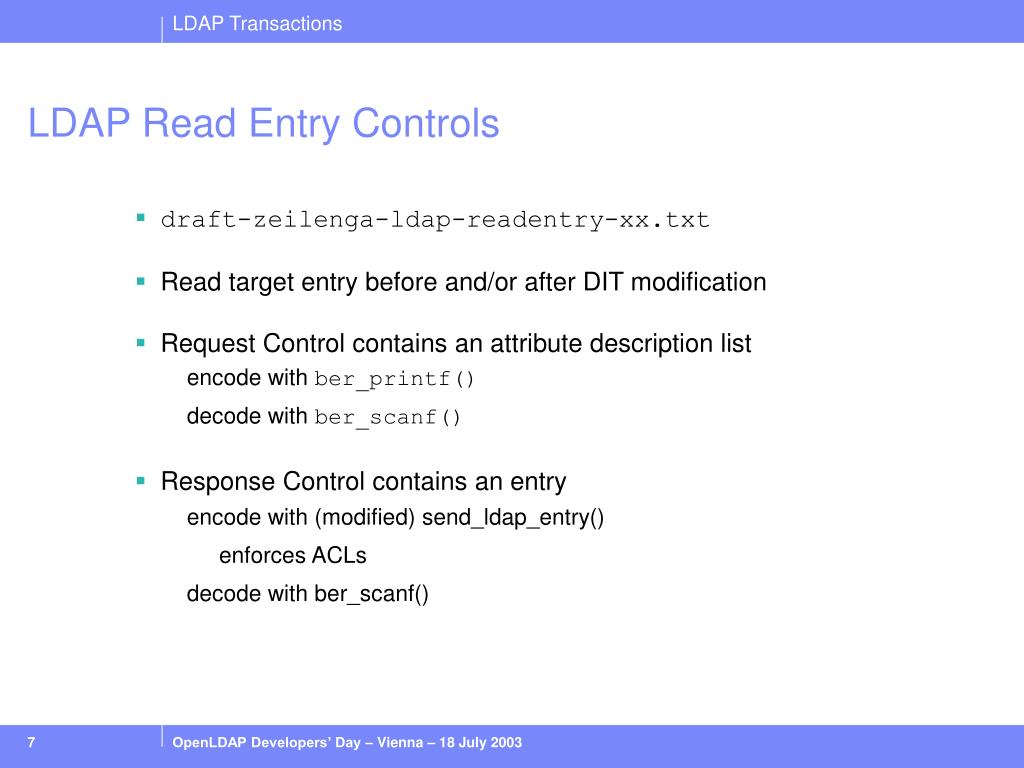

  7. LDAP Read Entry Controls • draft-zeilenga-ldap-readentry-xx.txt • Read target entry before and/or after DIT modification • Request Control contains an attribute description list • encode with ber_printf() • decode with ber_scanf() • Response Control contains an entry encode with (modified) send_ldap_entry() enforces ACLs decode with ber_scanf()

  8. LDAP Modify/Increment • draft-zeilenga-ldap-increment-xx.txt (not yet submitted) • Increment INTEGER and REAL values by provided value • Based on DAP functionality, LDAP ASN.1 Extension • Example: • Extend LDAPMod, LDIF routines, extend slapd frontend to verify backend support for extension, extend back-bdb/ldbm modify to support increment sub-op. • Issues: discovery, negotiation dn: cn=uid,dc=example,dc=com modify: increment increment: uidNumber uidNumber: 1

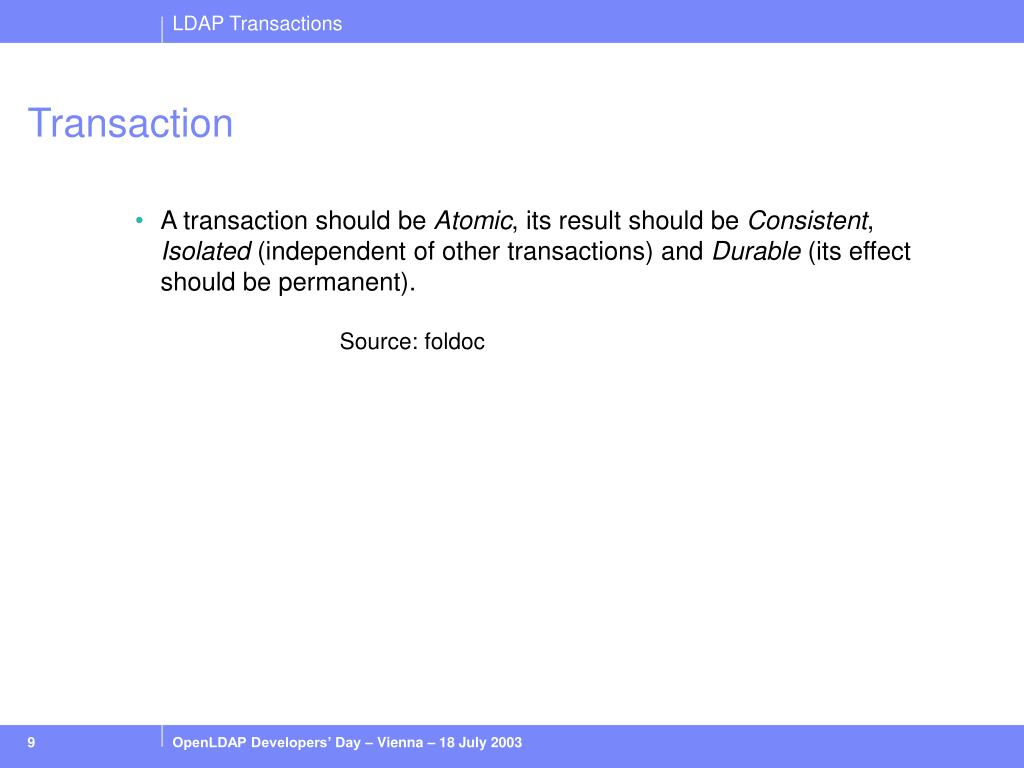

  9. Transaction • A transaction should be Atomic, its result should be Consistent, Isolated (independent of other transactions) and Durable (its effect should be permanent). Source: foldoc

  10. StartTxn Update Update EndTxn (Commit or Abort) Update Read Protocol Flow X

  11. Implementation Details • Group of Related Operations framework • Begin Transaction • Verify only active transaction on connection • Return cookie • Per operation • Verify cookie • Add operation to connection txn_ops list • Return txnOkay • End Transaction • On Commit: start DB txn, process each op, end txn, destroy txn_ops, return success • On Abort: destroy txn_ops
