  1. Sancharnet Account Creation to Authentication Email

  2. NIB Servers • Provisioning • Registration Server • Billing • Master Database Server • CDR Collection • Collection Server • Authentication, Authorization, Accounting • Radius Data Networks, BSNL, New Delhi

  3. NIB Servers • Directory • LDAP Server • Name Resolution • DNS Server • Sending Mail • SMTP Server (Mail Relay) • Receiving Mail • SMTP Server (Mail Exchange) • Mail Store • POP3 Server Data Networks, BSNL, New Delhi

  4. Offline-Acc Creation, Renewal, Verification ND MDIR DIR REG MDB DIR DIR ND ND BG MU ND CIM CLIENT Account Mgmt DB update - I LDAP update DB update - II LDAP replication Data Networks, BSNL, New Delhi

  5. Auth-Acc-Rating ND MDIR MDB RAD DIR CLC DIR DIR GZB MU BG MU ND ND MU RAS PC - DIALER Data Networks, BSNL, New Delhi

  6. Auth-Acc-Rating ND MDIR MDB RAD DIR CLC DIR DIR GZB MU BG MU ND ND MU RAS PC - DIALER Data Networks, BSNL, New Delhi

  7. PC  RAS  PC • PC (Dialer)  RAS • Dialup UserID • Password • RAS  PC (Dialer) • Acknowledgement of Authentication/Authorization • IP Address • DNS IP Address Data Networks, BSNL, New Delhi

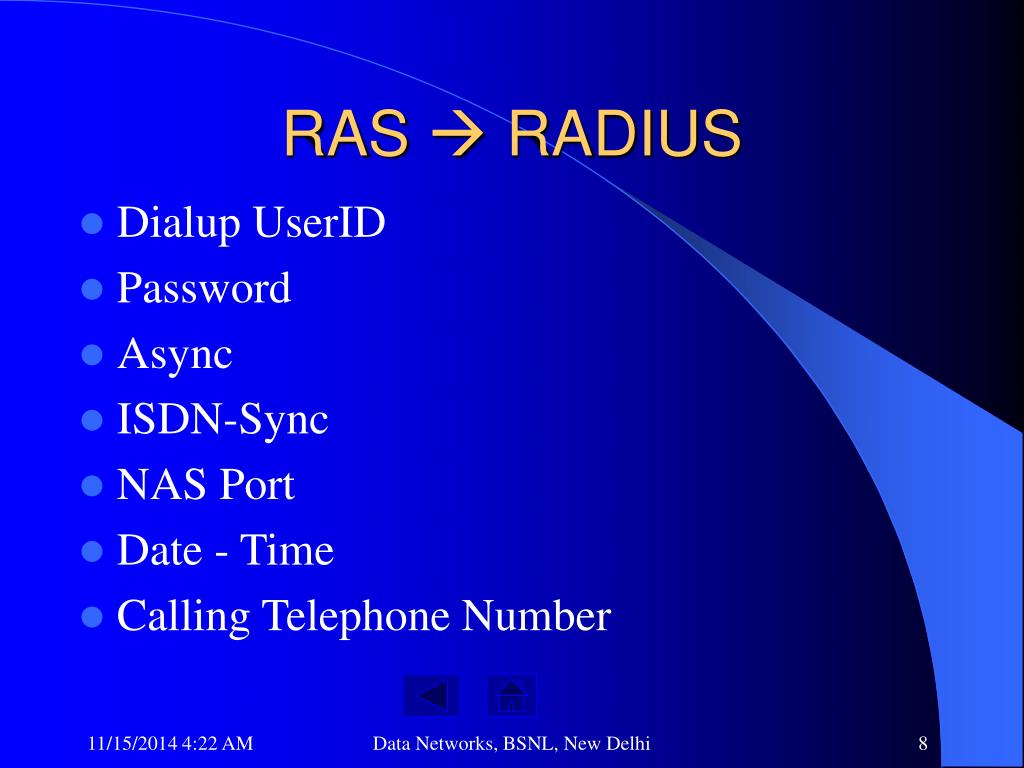

  8. RAS  RADIUS • Dialup UserID • Password • Async • ISDN-Sync • NAS Port • Date - Time • Calling Telephone Number Data Networks, BSNL, New Delhi

  9. RADIUS  LDAP • Dialup UserID • PSTN/ISDN • PPP or MultilinkPPP • Password • Begin Date and Time • End Date and Time • Calling Telephone Number • Balance • Access Time • Number of Simultaneous Accesses Permitted • Customer is Active or Inactive Data Networks, BSNL, New Delhi

  10. RADIUS • Validates Dialup UserID and Password • Validates Date and Time based on Begin and End Date and Access Time • Validates Balance • Validates CLI if available • Determines if the account is active • Determines type of access PSTN/ISDN • Determines number of times simultaneous access is permitted Data Networks, BSNL, New Delhi

  11. RADIUS  RAS • Acknowledges Validity • Session Time (max val 500 hrs) • In addition Radius can provide: • IP address • Info related to Dial VPN tunnel establishment Data Networks, BSNL, New Delhi

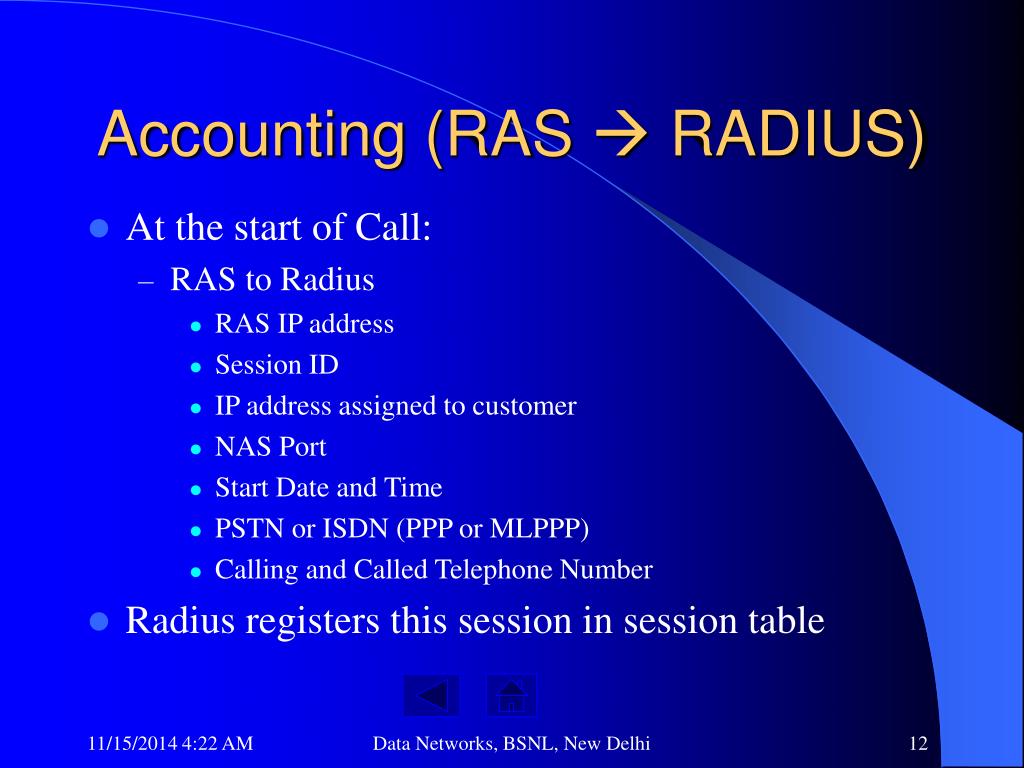

  12. Accounting (RAS  RADIUS) • At the start of Call: • RAS to Radius • RAS IP address • Session ID • IP address assigned to customer • NAS Port • Start Date and Time • PSTN or ISDN (PPP or MLPPP) • Calling and Called Telephone Number • Radius registers this session in session table Data Networks, BSNL, New Delhi

  13. Accounting (RAS  RADIUS) • At the end of Call: • RAS to Radius • RAS IP address • Session ID • IP address assigned to customer • NAS Port • Start Date and Time • PSTN or ISDN (PPP or MLPPP) • Calling and Called Telephone Number • Length of Call and Call End Time • Radius clears the session from session table Data Networks, BSNL, New Delhi

  14. Accounting (Radius  CLC ) • At the end of Call: • Radius converts the accounting information in a predefined format – CDR • Usage Mover Daemon on Radius Server moves it to Collector Station Database Data Networks, BSNL, New Delhi

  15. Rating • CDR Mover Daemon Pushes the CDR to MasterDB • Rater Daemon rates the CDR based on applicable policy, and reduces the balance • Account Balance Updation Daemon updates the balance on Master LDAP Data Networks, BSNL, New Delhi

  16. Internet 216.239.32.10 198.41.0.4 a.root-servers.net 2 3 .com google 216.239.33.101 Sancharnet NS NS WS DNS 5 US US ND US 1 www.google.com 4 61.0.0.65 Browsing http://www.google.com Data Networks, BSNL, New Delhi

  17. Internet 2 4 POP3 DIR MR Sancharnet 1 MU ND ND 3 5 nmra.sancharnet.in Sending Mailto Sancharnet user Data Networks, BSNL, New Delhi

  18. Internet 2 3 POP3 DIR MMP Sancharnet 1 MU ND ND nmma.sancharnet.in Retreiving MailFrom Mailbox Data Networks, BSNL, New Delhi

  19. Internet 5 4 2 Hotmail.com DNS MX POP3 DNS MR DIR Sancharnet 1 ND US ND US US ND 3 Hotmail.com nmra.sancharnet.in Sending Mailto hotmail.com Data Networks, BSNL, New Delhi

  20. Internet 1 2 Hotmail.com 4 3 5 MR POP3 DNS DNS DIR MX Sancharnet ND US ND ND ND US Hotmail.com nmra.sancharnet.in Receiving Mailfrom hotmail.com Data Networks, BSNL, New Delhi

  21. sancharnet.in preference = 10, mail exchanger = bgl1mx1-a-fixed.sancharnet.insancharnet.in preference = 10, mail exchanger = ndl1mx1-a-fixed.sancharnet.insancharnet.in nameserver = ndl1nms-a.sancharnet.insancharnet.in nameserver = bgl1dns-a.sancharnet.insancharnet.in nameserver = ndl1dns-a.sancharnet.inbgl1mx1-a-fixed.sancharnet.in internet address = 61.1.128.46ndl1mx1-a-fixed.sancharnet.in internet address = 61.0.0.46bgl1dns-a.sancharnet.in internet address = 61.1.128.5ndl1dns-a.sancharnet.in internet address = 61.0.0.5ndl1nms-a.sancharnet.in internet address = 61.0.0.9 Sancharnet MX Entry in DNS Data Networks, BSNL, New Delhi

  22. hotmail.com preference = 5, mail exchanger = mx4.hotmail.comhotmail.com preference = 5, mail exchanger = mx1.hotmail.comhotmail.com preference = 5, mail exchanger = mx2.hotmail.comhotmail.com preference = 5, mail exchanger = mx3.hotmail.com hotmail.com nameserver = ns4.hotmail.comhotmail.com nameserver = ns1.hotmail.comhotmail.com nameserver = ns2.hotmail.comhotmail.com nameserver = ns3.hotmail.com mx1.hotmail.com internet address = 65.54.254.129mx2.hotmail.com internet address = 65.54.254.145mx3.hotmail.com internet address = 65.54.253.99mx4.hotmail.com internet address = 65.54.253.230ns1.hotmail.com internet address = 216.200.206.140ns2.hotmail.com internet address = 216.200.206.139ns3.hotmail.com internet address = 209.185.130.68ns4.hotmail.com internet address = 64.4.29.24 Hotmail MX Entry in DNS Data Networks, BSNL, New Delhi

  23. dn: uid=ghimirekl, ou=people, o=sancharnet.in, o=dts.inuid: ghimirekluserpassword: *****************mailhost: nppa.sancharnet.inmail: ghimirekl@sancharnet.inmailquota: 4194304inetuserstatus: activemailuserstatus: activegivenname: Krishnasn: Lalghimirecn: Krishna Lalghimirebalance: 360000cosid: 1dialuppassword: *****************accesstime: 00:00-23:00begindate: 2002-11-28 17:30:38enddate: 2004-11-27 17:30:38radiusconfiguration: Simultaneous-Use=2,Service-Type=Framed,Framed-IPAddress=255.255.255.254webhost: cal1ww1-a.sancharnet.in LDAP Entry
