1 / 1

Note 1

2.50. 2.00. 0.20 (Note 1). 0.625. 0.125. 0.25. 0.59. 1.40. Note 1 f 0.18 REF thru-hole and f 0.32 REF, 0.20 REF depth counter bore for #8-32 hex socket screw (loose fit) on a f 2.00 circle, 90° apart (4). ¾-16 UNF internal thread. IceCube Project The University of Wisconsin-Madison.

nigel
Télécharger la présentation

Note 1

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

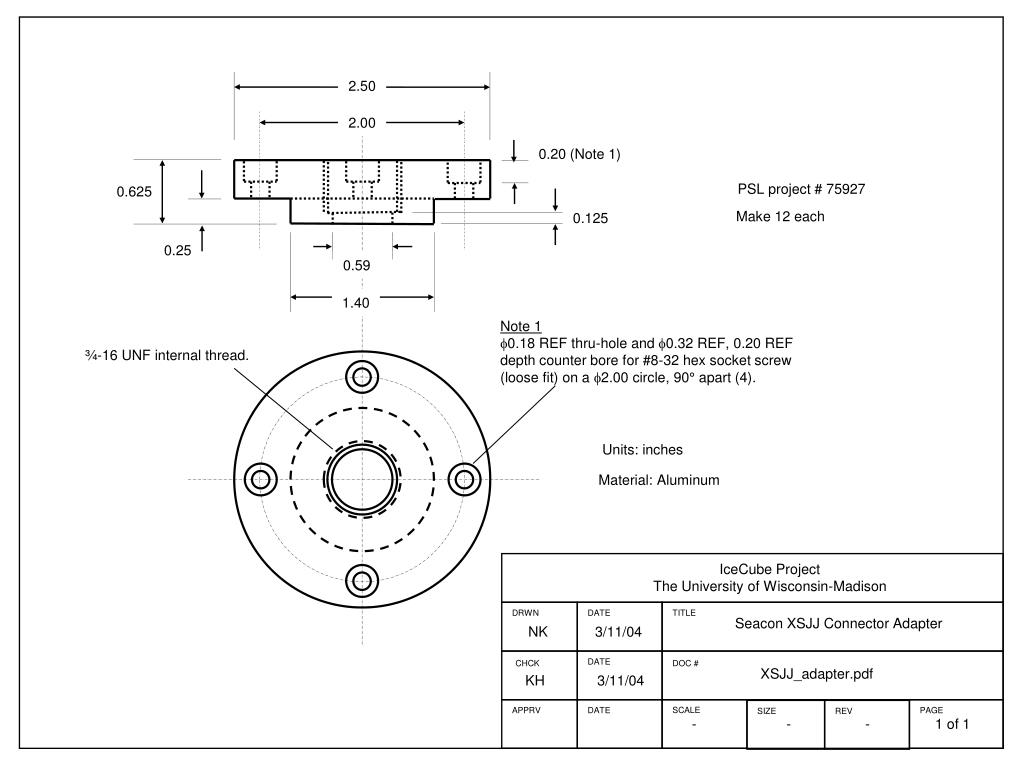

  1. 2.50 2.00 0.20 (Note 1) 0.625 0.125 0.25 0.59 1.40 Note 1 f0.18 REF thru-hole and f0.32 REF, 0.20 REF depth counter bore for #8-32 hex socket screw (loose fit) on a f2.00 circle, 90° apart (4). ¾-16 UNF internal thread. IceCube Project The University of Wisconsin-Madison DRWN DATE TITLE Seacon XSJJ Connector Adapter NK 3/11/04 DATE CHCK DOC # XSJJ_adapter.pdf KH 3/11/04 SCALE APPRV DATE PAGE SIZE REV - - 1 of 1 PSL project # 75927 Make 12 each Units: inches Material: Aluminum -
