Perceptron

Perceptron. f act (a 1 , . . ., a m ) = sig (a 1 , . . . , a m ) f learn (w 0j1,old , d, x 011 … x 0k , c) = w 0j1,old + c * (d – sig( x oi * w 0i )) * x oi c=0.2. Perceptron. Consider a perceptron with 3 input nodes x 01 , x 02 and x 03

nikki
Télécharger la présentation

Perceptron

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Perceptron • fact(a1, . . ., am) = sig (a1, . . . , am) • flearn(w0j1,old, d, x011 … x0k, c) = w0j1,old + c * (d – sig(xoi * w0i)) * xoi • c=0.2

  2. Perceptron • Consider a perceptron with 3 input nodes x01, x02 andx03 • w011 = 0.3, w021 = 0.4 and w031 = -0.3 • Input • (1,1,1)  1 • (3.2, 1.4, 9.1)  -1 • (8, 7.7, 3.1)  -1 • (1.5, 2.4, 5.5)  1

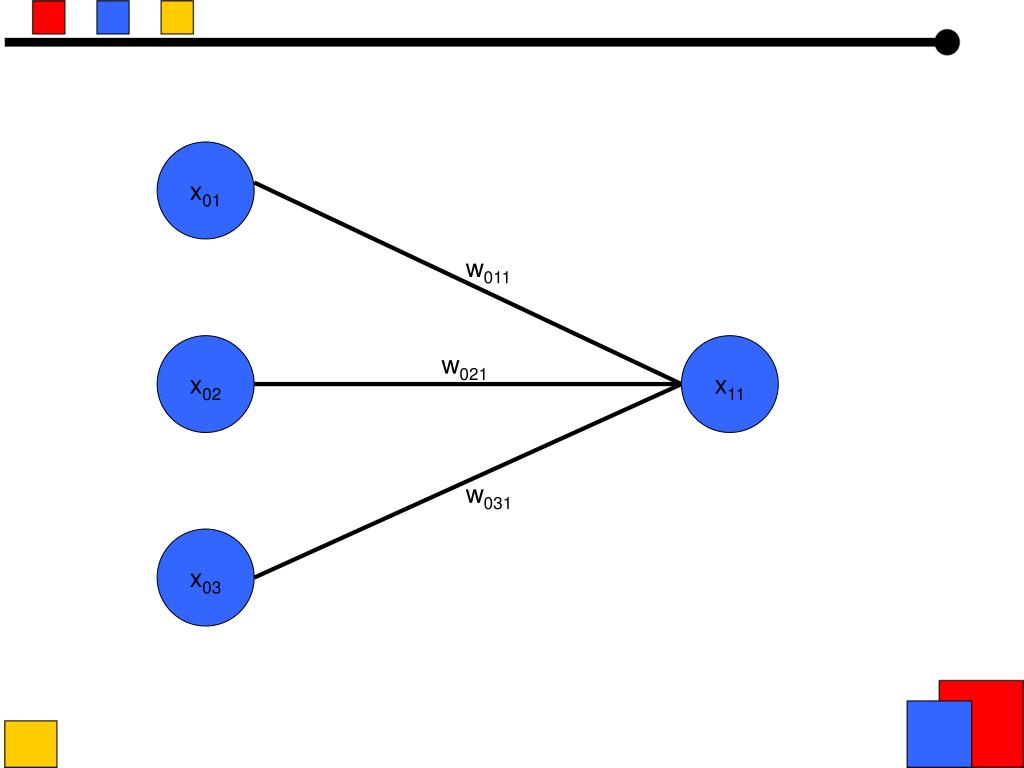

  3. x01 w011 x02 x11 w021 w031 x03

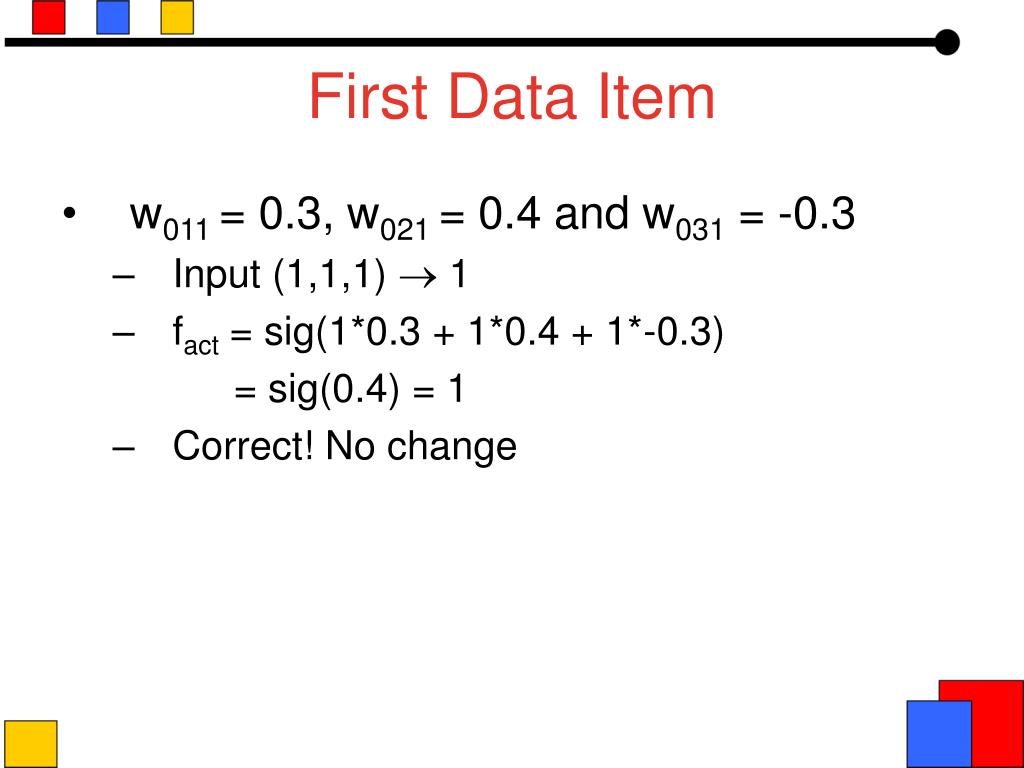

  4. First Data Item • w011 = 0.3, w021 = 0.4 and w031 = -0.3 • Input (1,1,1)  1 • fact = sig(1*0.3 + 1*0.4 + 1*-0.3) = sig(0.4) = 1 • Correct! No change

  5. Second Data Item • w011 = 0.3, w021 = 0.5 and w031 = -0.3 • Input (3.2, 1.4, 9.1)  -1 • fact = sig(3.2 * 0.3 + 1.4*0.4 + 9.1*-0.3) = sig(0.96 + 0.56 + -2.73) = sig(-1.85) = -1 • Correct! No change

  6. Third Data Item • w011 = 0.3, w021 = 0.4 and w031 = -0.3 • Input (8, 7.7, 3.1)  -1 • fact = sig(8 * 0.3 + 7.7 * 0.4 + 3.1 * -0.3) = sig(2.4 + 3.08 + -0.93) = sig(4.55) = 1 • Wrong! Change!

  7. Change the weights • w011,new = 0.3 + 0.2 * -2 * 8 = -2.9 • w021,new = 0.4 + 0.2 * -2 * 7.7 = -2.58 • w031,new = -0.3 + 0.2 * -2 * 3.1 = -1.54

  8. Fourth Data Item • w011 = -2.9, w021 = -2.58 and w031 = -1.54 • Input (1.5, 2.4, 5.5)  1 • fact = sig(1.5 * -2.9 + 2.4 * -2.58 + 5.5 * -1.54) = sig(-4.35 + -6.19 + -8.47) = sig(-19.01) = -1 • Wrong! Change!

  9. Change the weights • w011,new = -2.9 + 0.2 * 2 * 1.5 = -2.3 • w021,new = -2.58 + 0.2 * 2 * 2.4 = -1.62 • w031,new = -1.54 + 0.2 * 2 * 5.5 = 0.66

  10. Begin Again : First Data Item • w011 = -2.3, w021 = -1.62 and w031 = 0.66 • Input (1,1,1)  1 • fact = sig(1*-2.3 + 1*-1.62 + 1*0.66) = sig(-3.26) = -1 • Wrong! Change!

  11. Change the weights • w011,new = -2.3 + 0.2 * 2 * 1 = -1.9 • w021,new = -1.62 + 0.2 * 2 * 1 = -1.22 • w031,new = 0.66 + 0.2 * 2 * 1 = 1.06

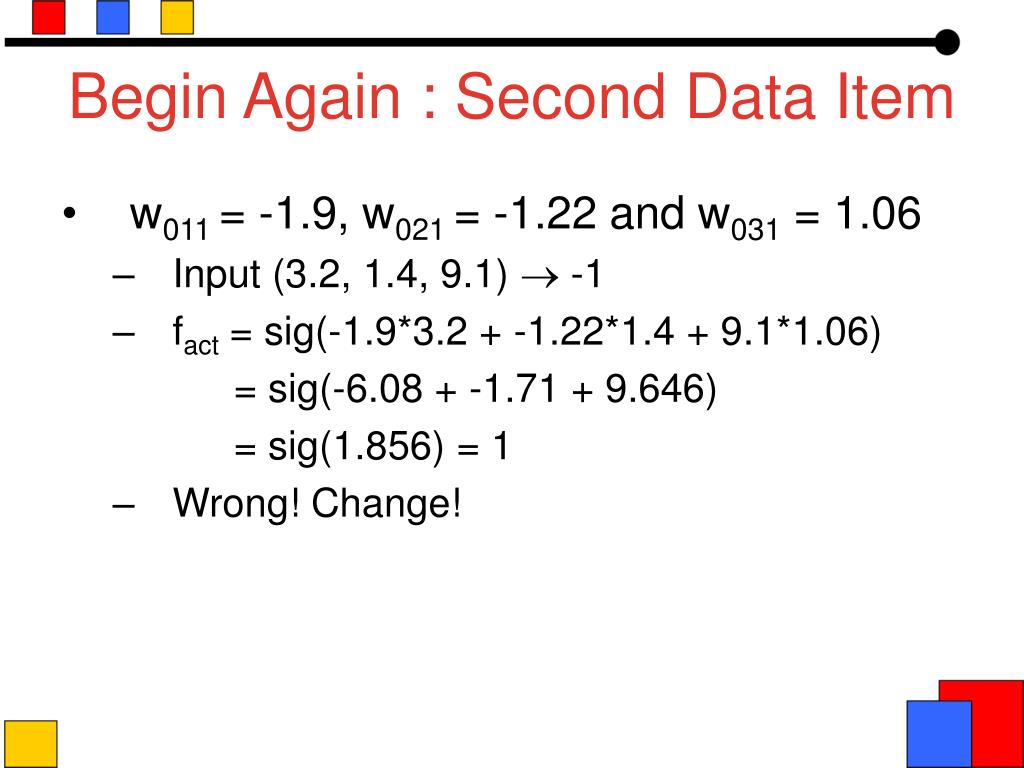

  12. Begin Again : Second Data Item • w011 = -1.9, w021 = -1.22 and w031 = 1.06 • Input (3.2, 1.4, 9.1)  -1 • fact = sig(-1.9*3.2 + -1.22*1.4 + 9.1*1.06) = sig(-6.08 + -1.71 + 9.646) = sig(1.856) = 1 • Wrong! Change!

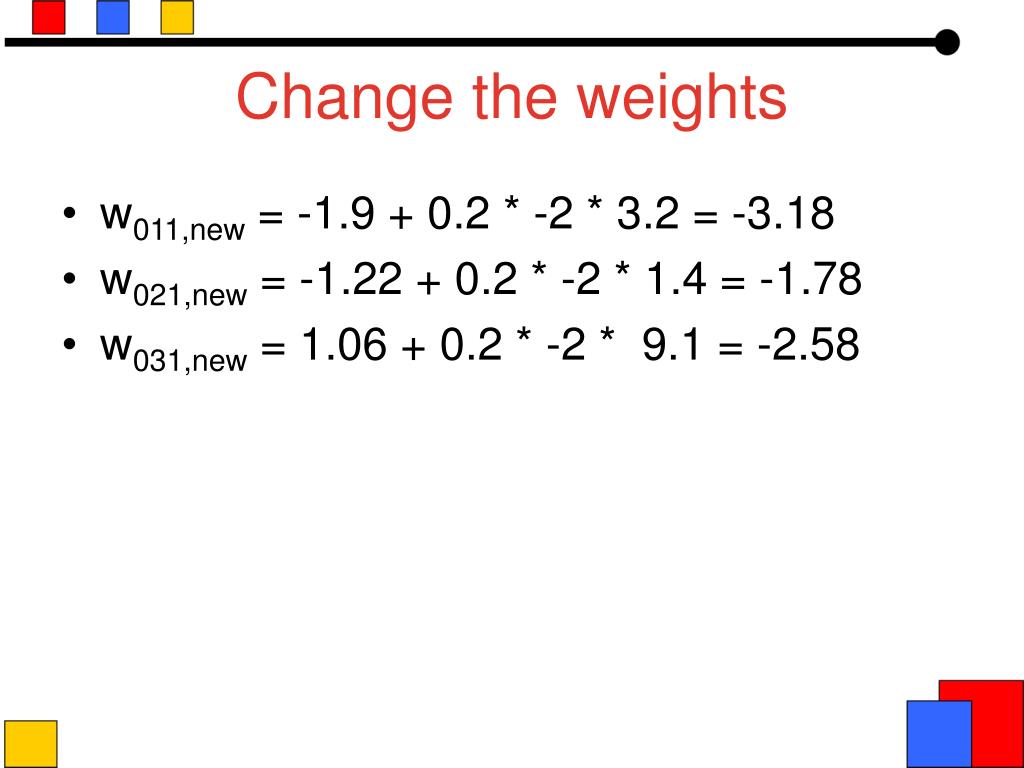

  13. Change the weights • w011,new = -1.9 + 0.2 * -2 * 3.2 = -3.18 • w021,new = -1.22 + 0.2 * -2 * 1.4 = -1.78 • w031,new = 1.06 + 0.2 * -2 * 9.1 = -2.58

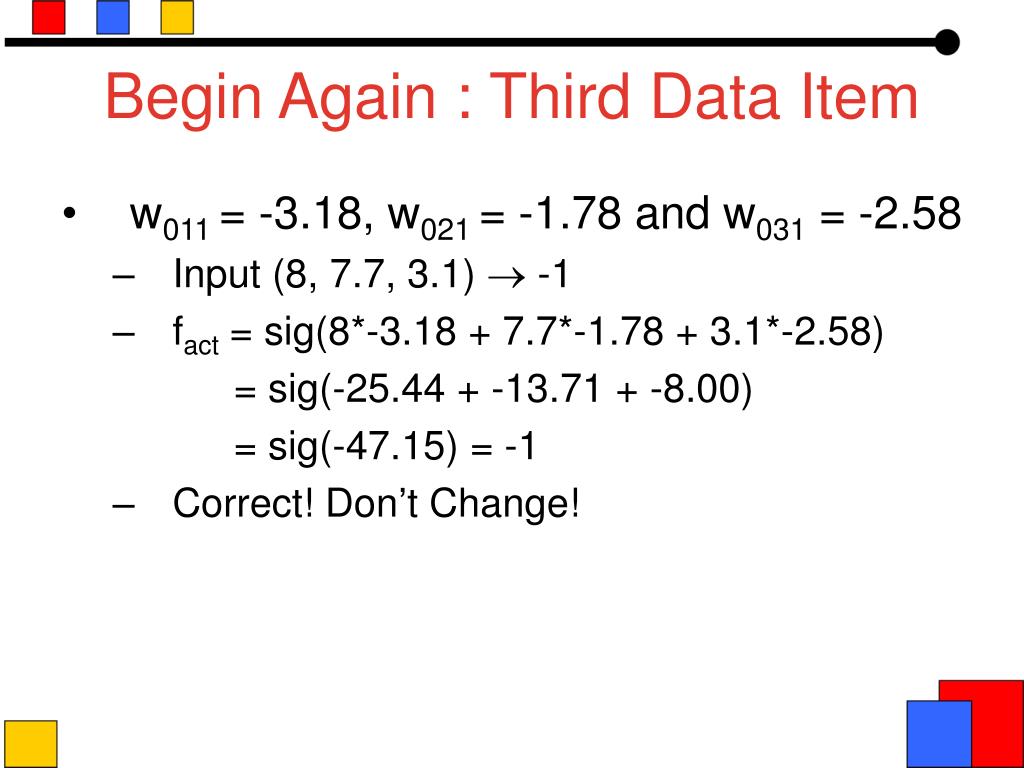

  14. Begin Again : Third Data Item • w011 = -3.18, w021 = -1.78 and w031 = -2.58 • Input (8, 7.7, 3.1)  -1 • fact = sig(8*-3.18 + 7.7*-1.78 + 3.1*-2.58) = sig(-25.44 + -13.71 + -8.00) = sig(-47.15) = -1 • Correct! Don’t Change!

  15. Begin Again : Fourth Data Item • w011 = -3.18, w021 = -1.78 and w031 = -2.58 • Input (1.5, 2.4, 5.5)  1 • fact = sig(1.5*-3.18 + 2.4*-1.78 + 5.5*-2.58) = sig(-4.77 + -4.27 + -14.19) = sig(-23.23) = -1 • Wrong! Change!

  16. Change the weights • w011,new = -3.18 + 0.2 * 2 * 1.5 = -2.58 • w021,new = -1.78 + 0.2 * 2 * 2.4 = -0.82 • w031,new = -2.58 + 0.2 * 2 * 5.5 = -0.38
