Innovative Design Review for Habitation Structures by Nick Czapla

Nick Czapla presents a comprehensive review of the Structures-Hab project, emphasizing its key features and benefits. The habitat boasts a total interior volume of approximately 430 m³, with a launch mass of 79.1 tonnes and a landing mass of 53.1 tonnes. Standing 8.26 meters tall and 8.75 meters in diameter, the design incorporates advanced landing legs made of thin cylindrical rods, enhancing efficiency during landing operations. The habitat includes two living levels, a crawlspace, a garage/lab, and an EVA preparation area, facilitating a multi-functional environment for research and habitation.

nile
Télécharger la présentation

Innovative Design Review for Habitation Structures by Nick Czapla

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

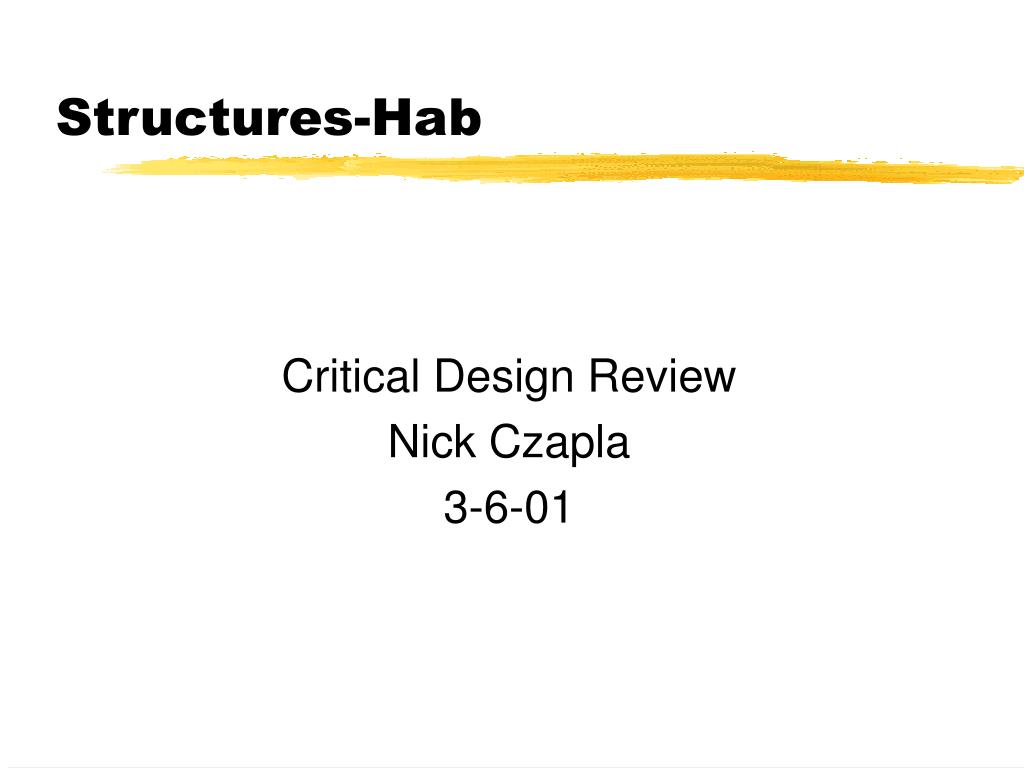

  1. Structures-Hab Critical Design Review Nick Czapla 3-6-01

  2. Nick CzaplaStructures-Hab • Total Interior Volume ~430m3 • Total Hab Mass(Launch) ~79.1 tonnes • Total Hab Mass(Landing) ~53.1 tonnes • Height ~8.26 m • Diameter ~8.75 m

  3. Nick CzaplaStructures-Hab

  4. Nick CzaplaStructures-Hab

  5. Nick CzaplaStructures-Hab • Landing legs – Matlab Code for sizing • 6 legs • Thin cylindrical rods • Length 5 m (unextended) • Length 9.5m (fully extended) • Outer Diameter 10.2 cm

  6. Nick CzaplaStructures-Hab • New design for HS • Lighter? • More Efficient • Better for landing

  7. Nick CzaplaStructures-Hab • Hab • 2 living levels • 1 crawlspace • 1 garage/lab • Airlock • Buggy • Science Equip. • EVA prep area

  8. Nick CzaplaStructures-Hab

  9. Nick CzaplaStructures-Hab
