Understanding Radians: Measurement of Angles and Their Conversion

Radians are a unit of angular measurement based on the radius of a circle. One radian is defined as the angle that produces an arc equal in length to the radius. This unit differs from degrees, where a full circle is divided into 360 parts. Understanding how to convert between degrees and radians is essential, especially in fields like mathematics and physics. This guide provides formulas for converting angles, such as radians to degrees and vice versa, as well as explaining their applications in calculating the circumference and area of a circle.

ninon
Télécharger la présentation

Understanding Radians: Measurement of Angles and Their Conversion

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Radian Measure

  2. Many things can be measured using different units.

  3. Many things can be measured using different units. Example: Temperature: Fahrenheit and Celsius

  4. Many things can be measured using different units. Example: Temperature: Fahrenheit and Celsius Other Examples?

  5. Angles can be measured with different units too.

  6. Angles can be measured with different units too. - Degrees - Radians:

  7. Angles can be measured with different units too. - Degrees: 1/360th of a circle - Radians:

  8. Angles can be measured with different units too. - Degrees: 1/360th of a circle - May be relate to the number of days in a year - Radians:

  9. Angles can be measured with different units too. - Degrees: 1/360th of a circle - May be relate to the number of days in a year - Radians: ratio between the arc created by the angle and the radius

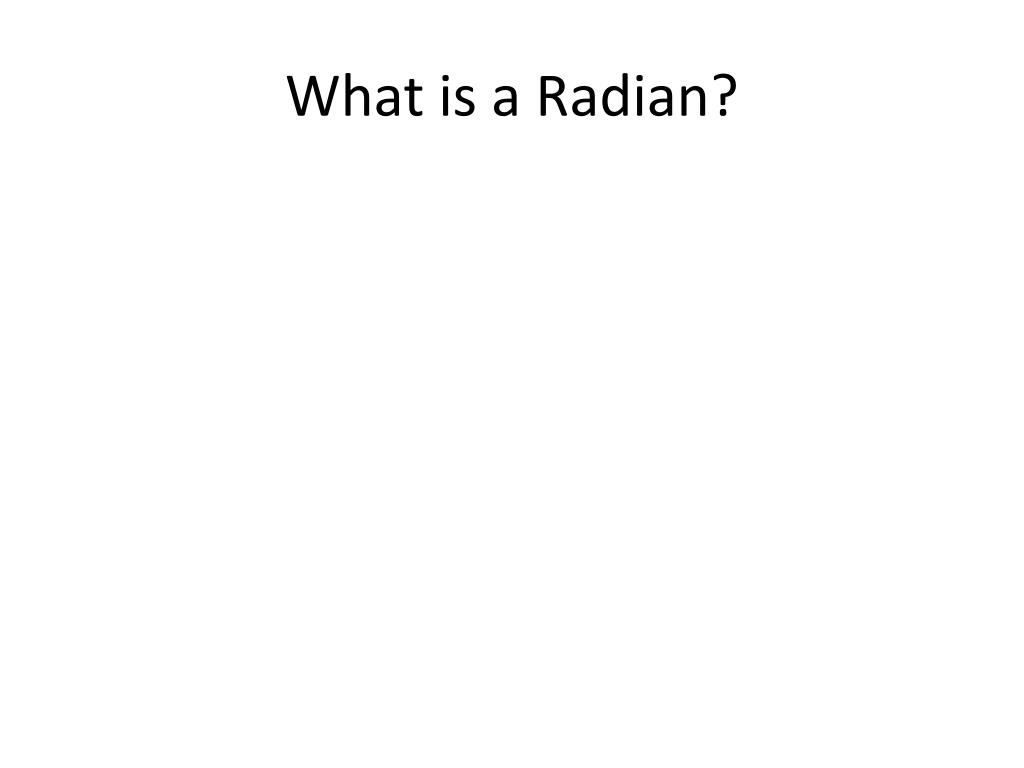

  10. What is a Radian?

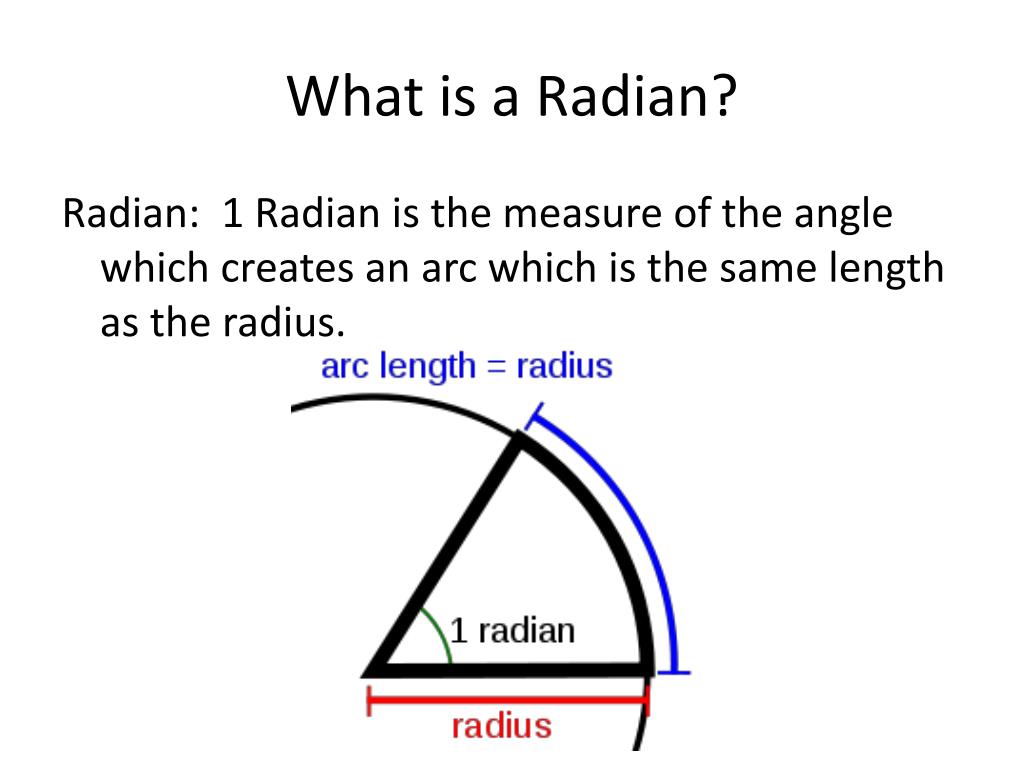

  11. What is a Radian? Radian: 1 Radian is the measure of the angle which creates an arc which is the same length as the radius.

  12. What is a Radian? Radian: 1 Radian is the measure of the angle which creates an arc which is the same length as the radius.

  13. Radians are typically reported in terms of π.

  14. Radians are typically reported in terms of π. - There are 2π radians in one full rotation around a circle

  15. You have used Radians before!!

  16. You have used Radians before!! Formula for circumference of a circle:

  17. You have used Radians before!! Formula for circumference of a circle: C = 2πr

  18. You have used Radians before!! Formula for circumference of a circle: C = 2πr Formula for area of a circle:

  19. You have used Radians before!! Formula for circumference of a circle: C = 2πr Formula for area of a circle: A = πr2

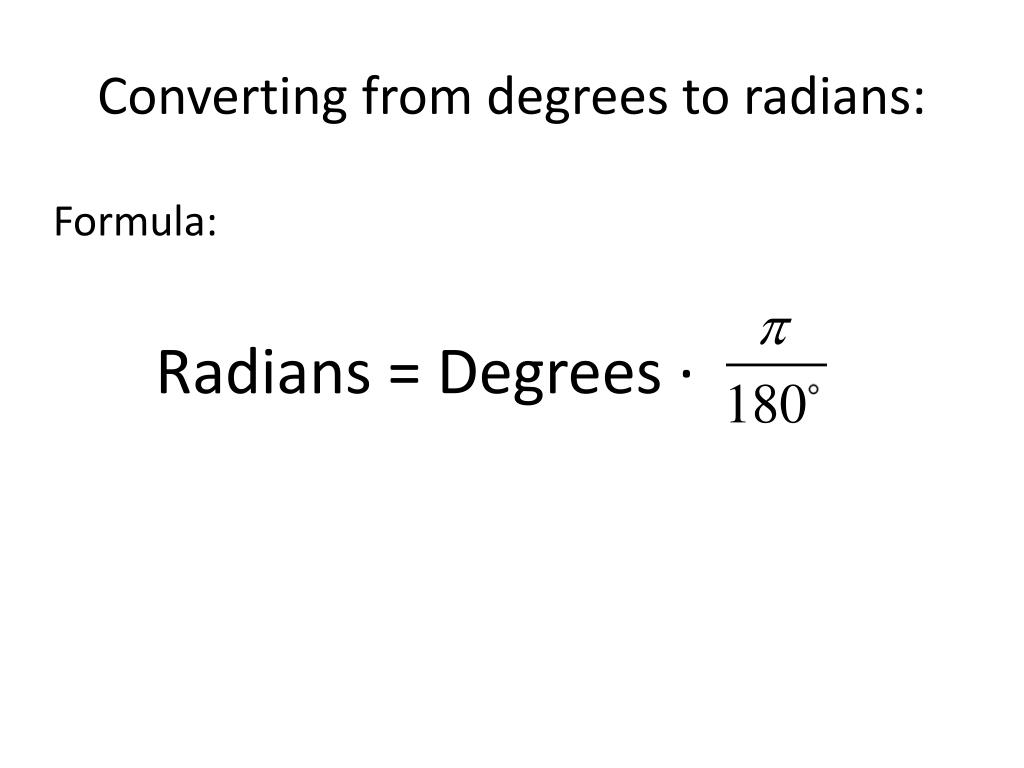

  20. Converting from degrees to radians: Formula: Radians = Degrees ∙

  21. Converting from degrees to radians: Formula: Radians = Degrees ∙ * Typically leave answer as a fraction in reduced form.

  22. Convert to Radians: 30°

  23. Convert to Radians: 90°

  24. Convert to Radians: 400°

  25. Convert to Radians: –45°

  26. Convert to Radians: 120°

  27. Convert to Radians: 225°

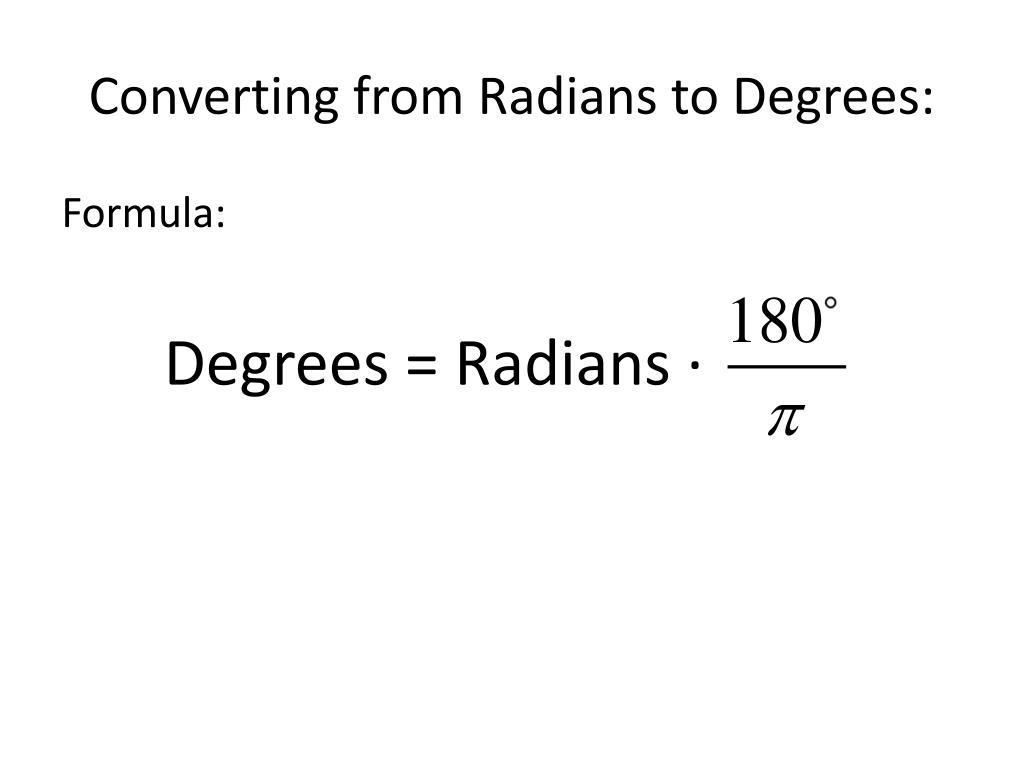

  28. Converting from Radians to Degrees: Formula: Degrees = Radians ∙

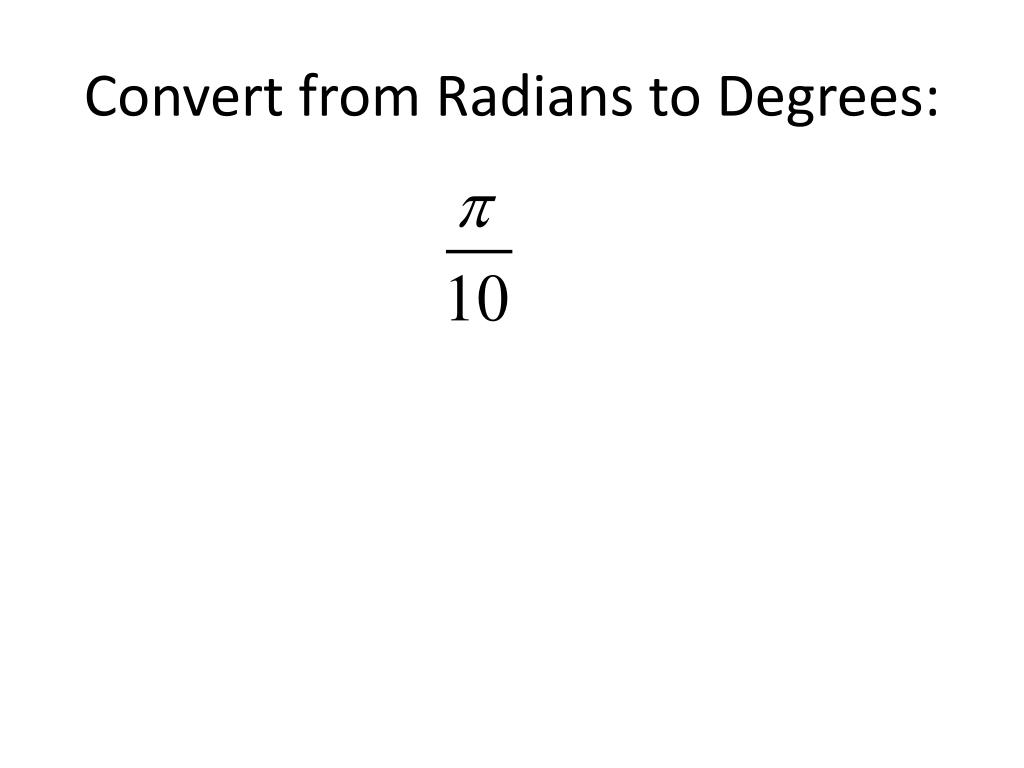

  29. Convert from Radians to Degrees:

  30. Convert from Radians to Degrees:

  31. Convert from Radians to Degrees:

  32. Convert from Radians to Degrees:

  33. Convert from Radians to Degrees:
