  1. Database Access and Integration Services on the Grid* N. Paton, M. Atkinson, V. Dialiani, D. Pearson, T. Storey, P. Watson Authors: Presented by: Ariel Cary Florida International University School of Computing and Information Sciences Summer 2006 * http://www.cs.man.ac.uk/grid-db/papers/dbtf.pdf DAIS Grid

  2. Agenda • Introduction • Scope and Context of Proposal • Proposed Database Services • DS in OGSA • Current DAIS Standards and Systems • Conclusion DAIS Grid

  3. Introduction • Grid research generally focus on applications where data is stored in files • DBMS systems have a central role in data organization for numerous applications, e-Science: particle physics (LHC@CERN), earth sciences, bio-informatics • There is a need to interconnect pre-existing and independently operated databases DAIS Grid

  4. Introduction (cont) • This work seeks to encourage the development of standards that can meet those needs. • A (preliminary) proposal is made for the staged development of a collection of Grid Database Services that allow access to existing, autonomous databases within Grid • Follows a service-based approach within OGSA framework for DBMS integration DAIS Grid

  5. Introduction (cont) • Services definitions essentially state what functionality is to be supported • How functionalities are supported may come to be implemented in different ways (performance characteristics, etc.) DAIS Grid

  6. Scope and Context of Proposal DAIS Grid

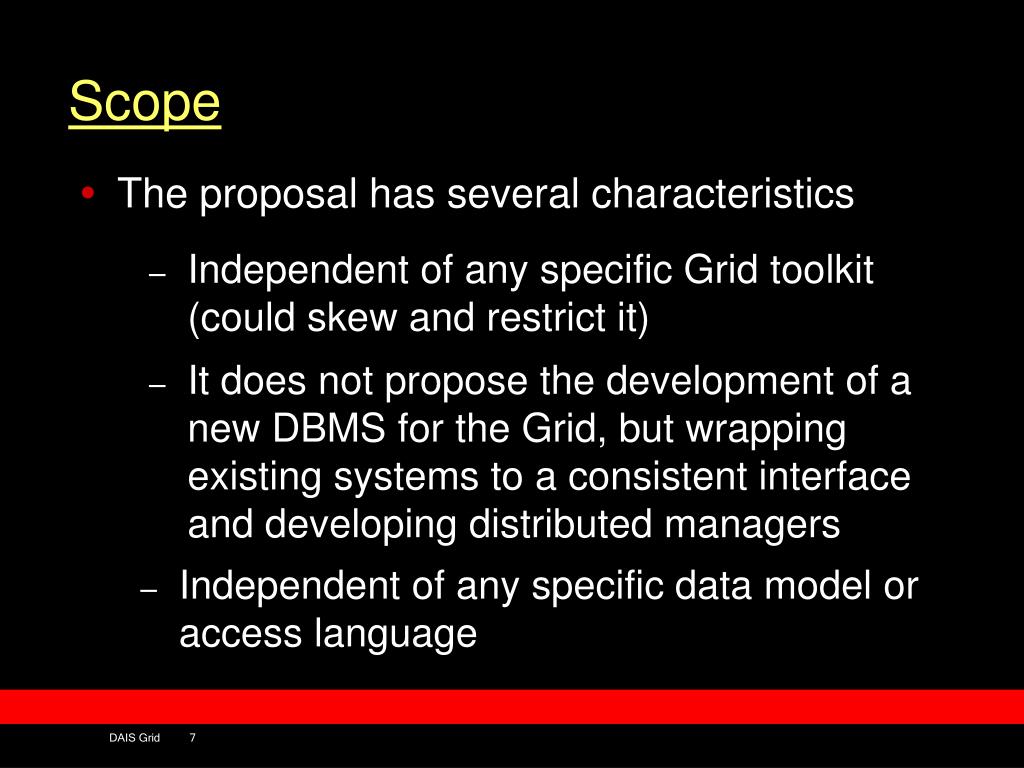

  7. Scope • The proposal has several characteristics • Independent of any specific Grid toolkit (could skew and restrict it) • It does not propose the development of a new DBMS for the Grid, but wrapping existing systems to a consistent interface and developing distributed managers • Independent of any specific data model or access language DAIS Grid

  8. Context • Relevant terms related to Databases • Database Service is any service that supports a database interface (WSDL) • Service interfaces are abstract and not prescriptive on how they are supported, or the data model that underpins a DBMS • Specific DBMS services could provide access to relational or object DBMS, XML repositories, specialist storage systems … DAIS Grid

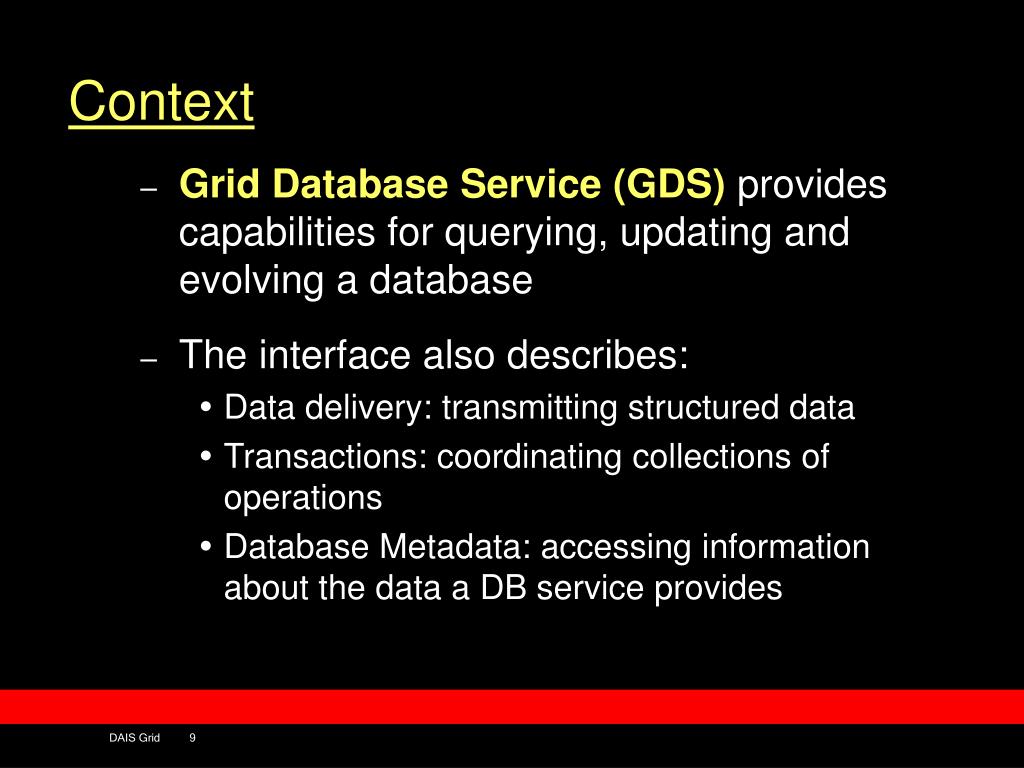

  9. Context • Grid Database Service (GDS) provides capabilities for querying, updating and evolving a database • The interface also describes: • Data delivery: transmitting structured data • Transactions: coordinating collections of operations • Database Metadata: accessing information about the data a DB service provides DAIS Grid

  10. Proposed Database Services DAIS Grid

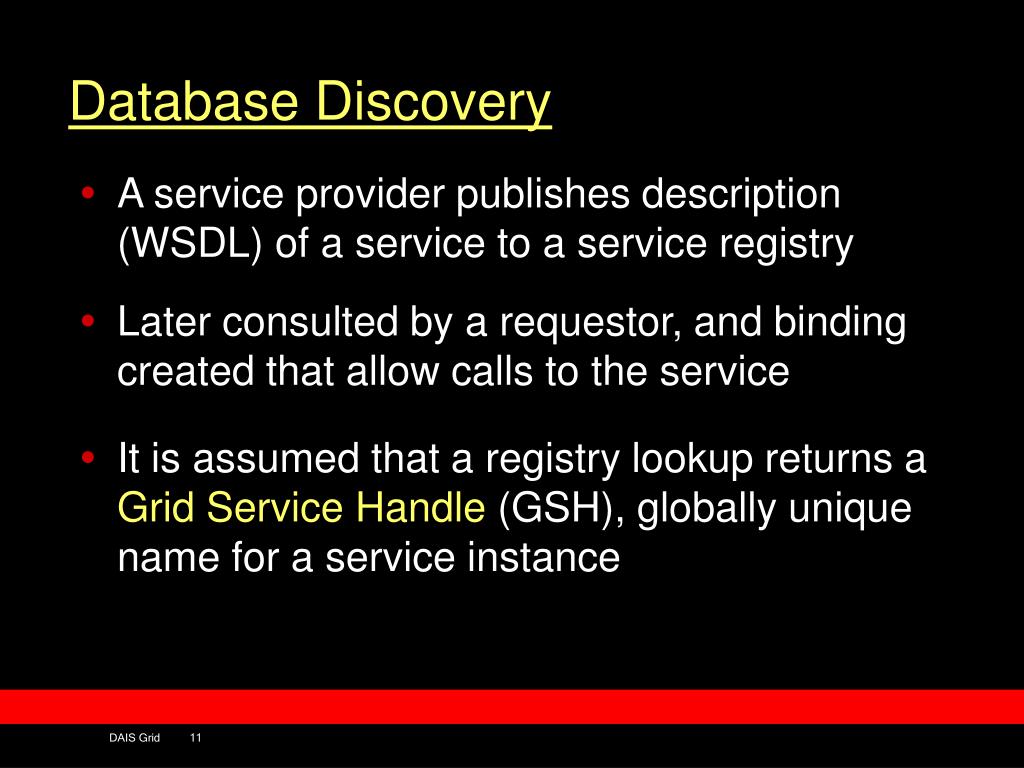

  11. Database Discovery • It is assumed that a registry lookup returns a Grid Service Handle (GSH), globally unique name for a service instance • A service provider publishes description (WSDL) of a service to a service registry • Later consulted by a requestor, and binding created that allow calls to the service DAIS Grid

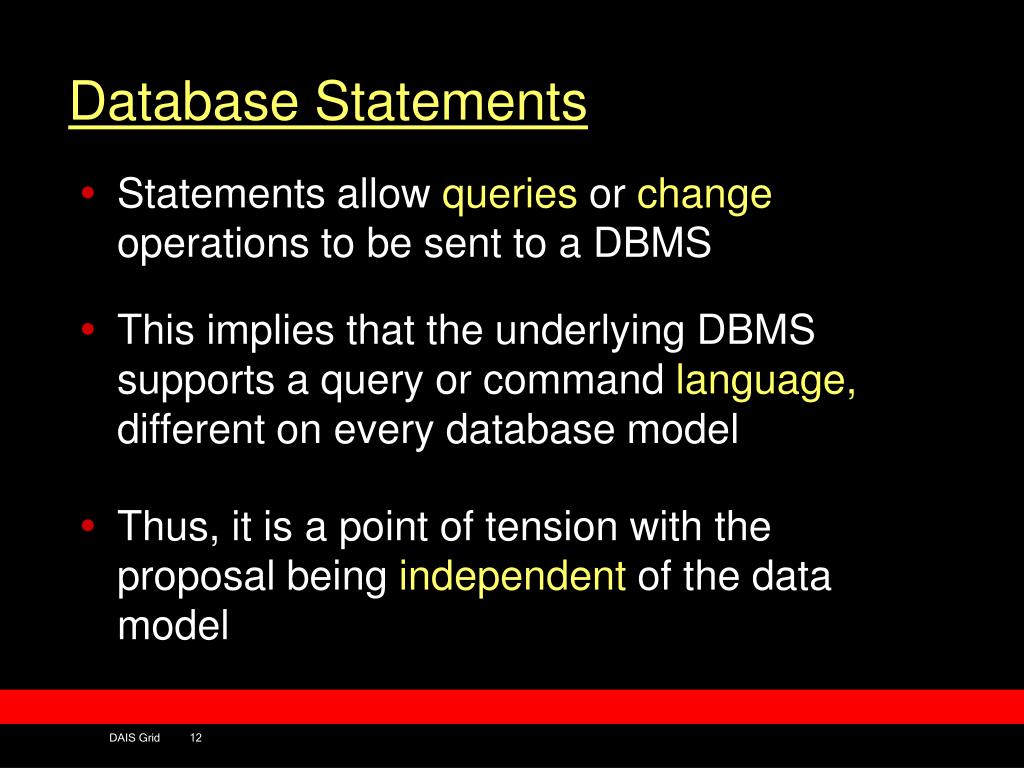

  12. Database Statements • Thus, it is a point of tension with the proposal being independent of the data model • Statements allow queries or change operations to be sent to a DBMS • This implies that the underlying DBMS supports a query or command language, different on every database model DAIS Grid

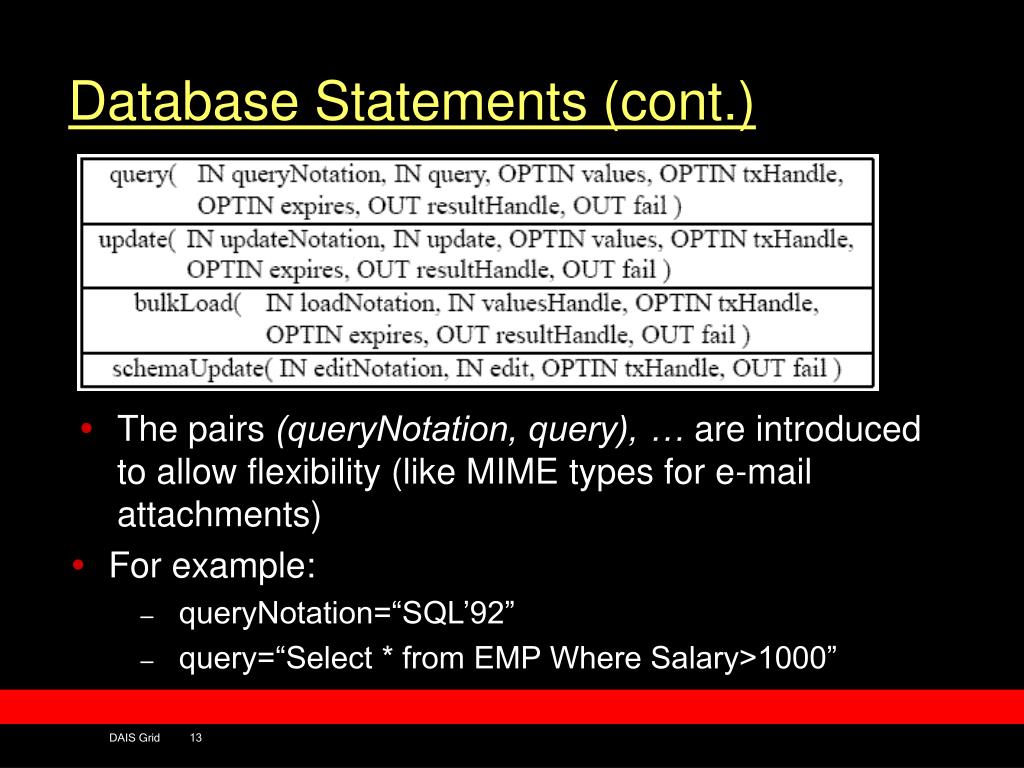

  13. Database Statements (cont.) • The pairs (queryNotation, query), … are introduced to allow flexibility (like MIME types for e-mail attachments) • For example: • queryNotation=“SQL’92” • query=“Select * from EMP Where Salary>1000” DAIS Grid

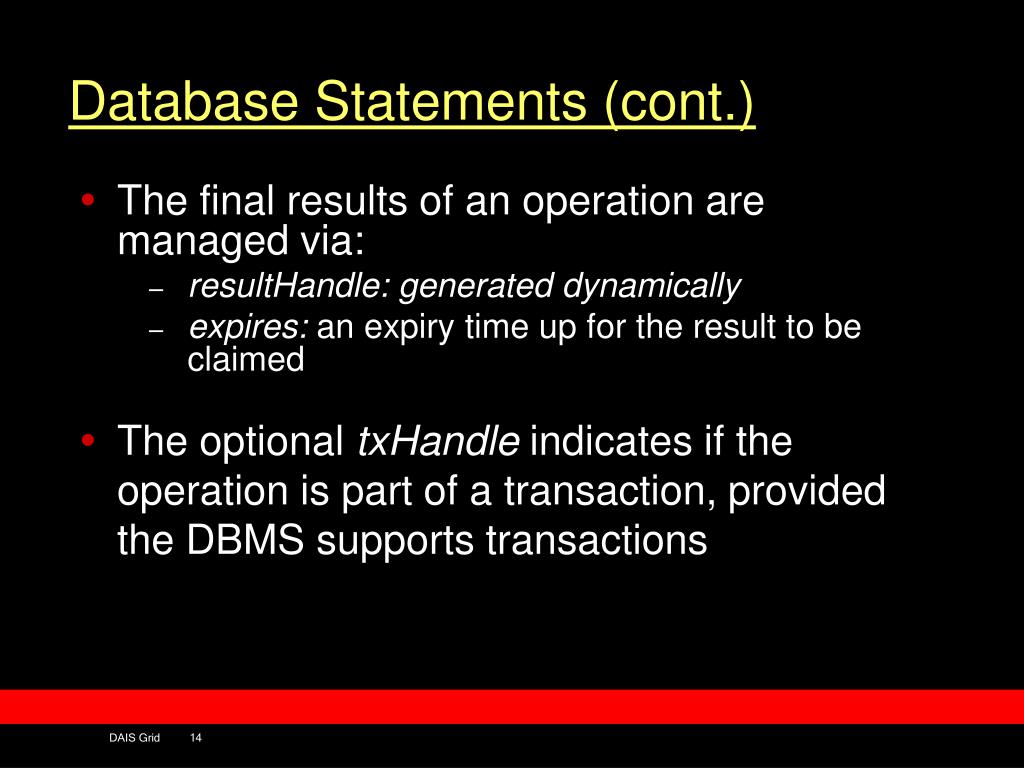

  14. Database Statements (cont.) • The final results of an operation are managed via: • resultHandle: generated dynamically • expires: an expiry time up for the result to be claimed • The optional txHandle indicates if the operation is part of a transaction, provided the DBMS supports transactions DAIS Grid

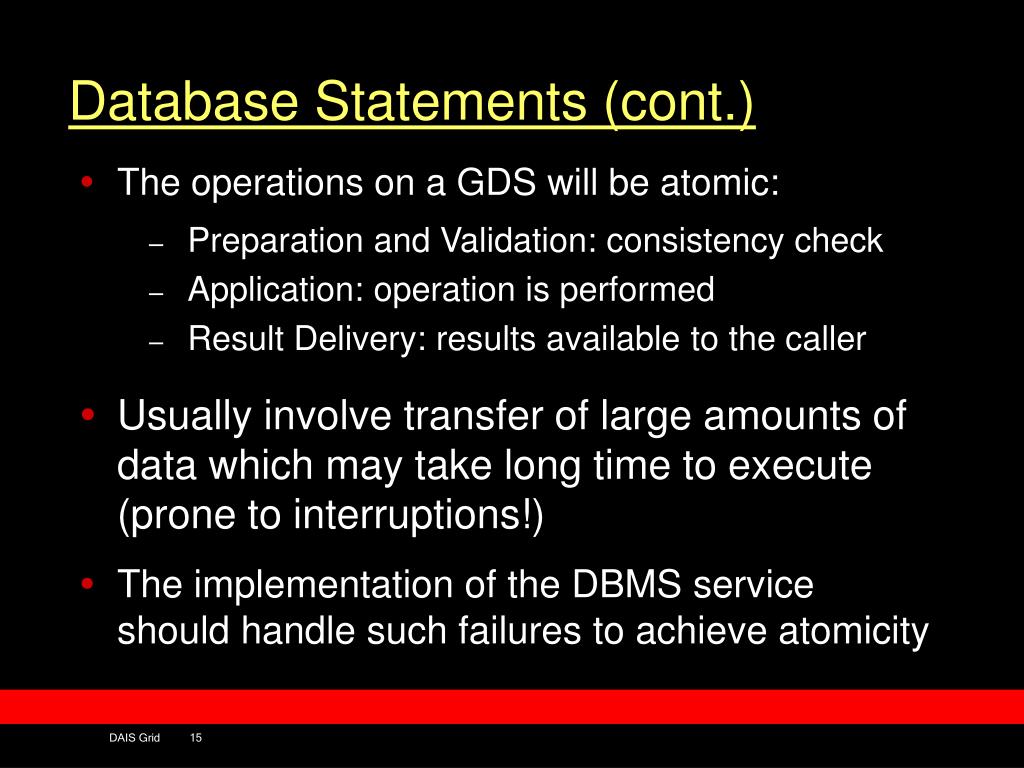

  15. Database Statements (cont.) • The operations on a GDS will be atomic: • Preparation and Validation: consistency check • Application: operation is performed • Result Delivery: results available to the caller • Usually involve transfer of large amounts of data which may take long time to execute (prone to interruptions!) • The implementation of the DBMS service should handle such failures to achieve atomicity DAIS Grid

  16. Delivery System • Means by which (potentially large amounts of) structured data is moved from one locations to one or more others • Should be considered complementary to protocols such as GridFTP, which could be used as a delivery mechanism DAIS Grid

  17. Delivery System (cont.) • Single data source to be delivered, represented as a URI • Several destinations represented by URI with delivery mechanisms associated • The deliver operation initiates delivery of the data from the single source to multiple destinations • A more elaborated delivery system would include encryption, progress monitoring, etc. DAIS Grid

  18. Distributed Transactions • A minimal transaction interface: performs the role of conferring a guaranteed unique identity on the transaction • Given a transaction handle, other operations over a database service can be put explicitly within the context of a transaction, using the txHandle parameter DAIS Grid

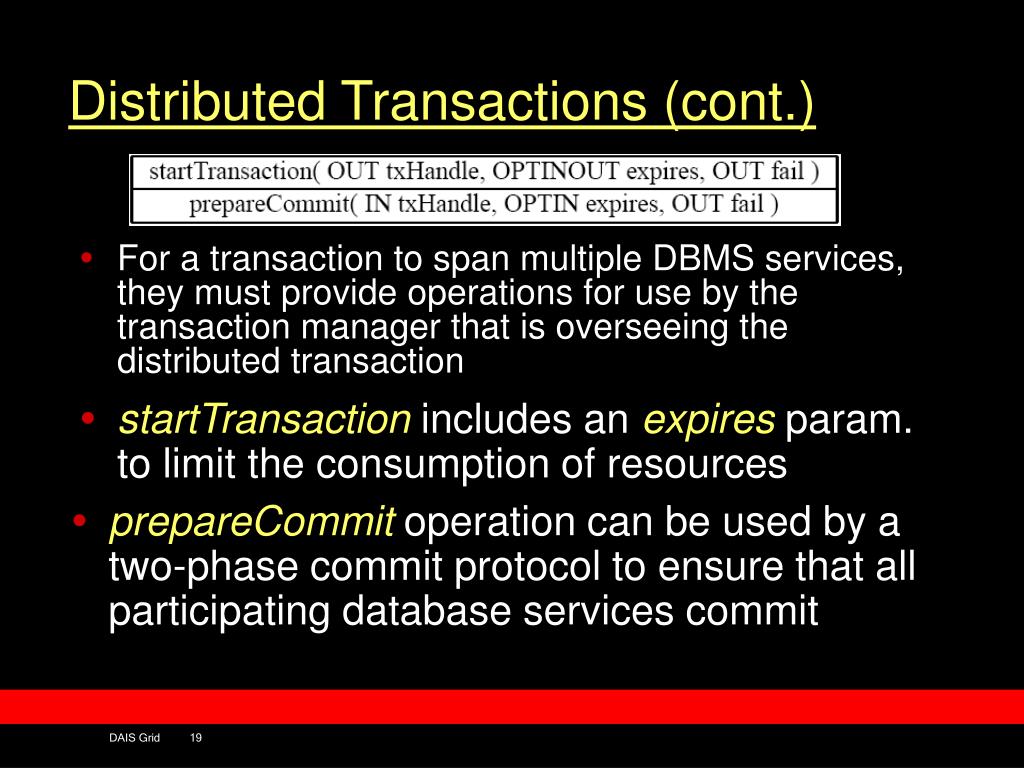

  19. Distributed Transactions (cont.) • For a transaction to span multiple DBMS services, they must provide operations for use by the transaction manager that is overseeing the distributed transaction • startTransaction includes an expires param. to limit the consumption of resources • prepareCommit operation can be used by a two-phase commit protocol to ensure that all participating database services commit DAIS Grid

  20. Database Metadata • Metadata that could be useful to have access to includes: • Content description: DB schema – data model, logical & physical structures, stats (could be obtained from the data dictionary) • Capability description: language (query /update operations supported), transactional capabilities, protocols supported • The metadata should be described in a standard representation, e.g. XML document given by the data service provider DAIS Grid

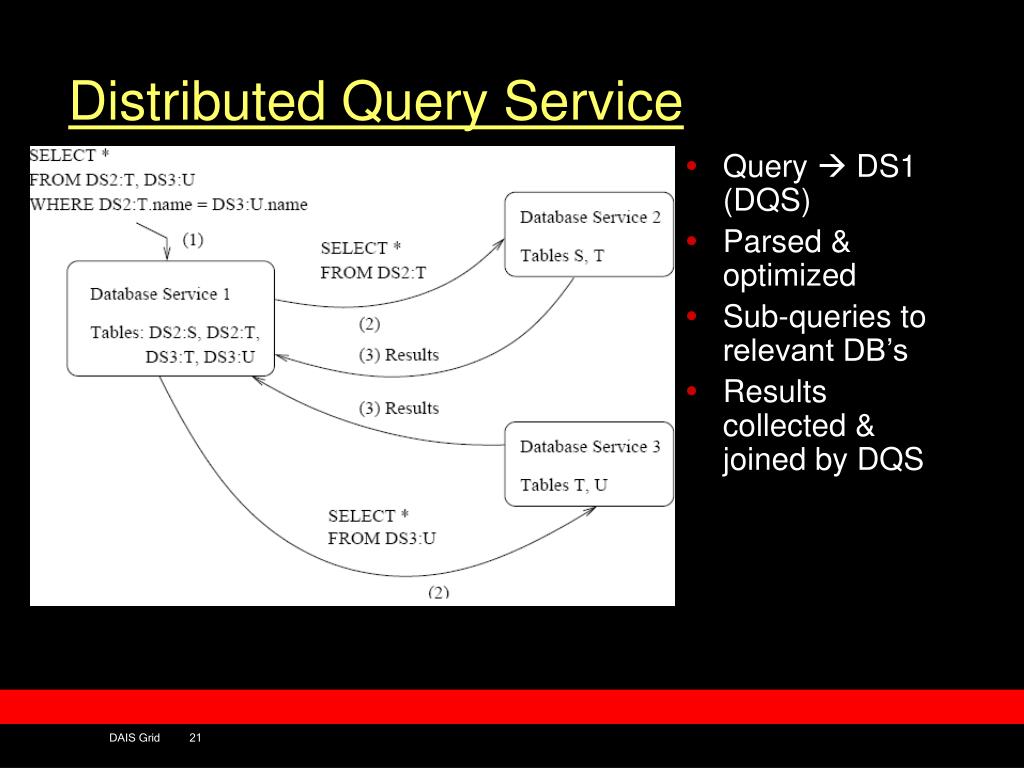

  21. Distributed Query Service • Query  DS1 (DQS) • Parsed & optimized • Sub-queries to relevant DB’s • Results collected & joined by DQS DAIS Grid

  22. Database Services in OGSA DAIS Grid

  23. DS in OGSA • The Open Grid Services Architecture (OGSA) represents an evolution towards a Grid system architecture based on Web services concepts and technologies* • The described interfaces can be used as the basis of database services through participation in the OGSA • Thus many features of this architectural framework can be obtained for service creation, authorization, notification, etc. * http://www.globus.org/ogsa DAIS Grid

  24. Requirements from OGSA • The secure connection and authentication mechanism underpins all GDS security and authentication • The lifetime management model carries over unchanged as the lifetime management model for GDS • The notification mechanism specified in OGSA appears to satisfy the GDS needs DAIS Grid

  25. Requirements from OGSA (cont.) • It is required information about the user authorization (potentially through many intermediate grid services) • User identification services, referenced from a certificate • Certification of the services themselves may be necessary. A discovery service could be tricked to mimic the intended GDS and get the data sent • Some databases charge for their use. It is necessary to support a digital payment process DAIS Grid

  26. Current DAIS Standards and Systems DAIS Grid

  27. DAIS Standards • Global Grid Forum • “The Global Grid Forum (GGF) is the community of users, developers, and vendors leading the global standardization effort for grid computing.” http://www.ggf.org/ • Part of the GGF: DAIS-WG • “The group seeks to promote standards for the development of grid database services, focusing principally on providing consistent access to existing, autonomously managed databases.” https://forge.gridforum.org/projects/dais-wg DAIS Grid

  28. OGSA-DAI System • “The aim of the OGSA-DAI project is to develop middleware to assist with access and integration of data from separate sources via the grid…and is working closely with the Global Grid Forum DAIS-WG...”http://www.ogsadai.org/ • OGSA-DAI Overview http://www.ggf.org/GGF17/materials/303/Overview.ppt • Architecture + Extensibility http://www.ggf.org/GGF17/materials/303/GGF17ArchitectureExtensibility.ppt • Supported Data Resources http://www.ggf.org/GGF17/materials/303/GGF17ArchitectureExtensibility.ppt DAIS Grid

  29. Conclusion DAIS Grid

  30. Conclusion • This document has made a preliminary, service-oriented proposal for integrating database functionality into a Grid setting • It is hoped that the document will provoke discussion on how best databases can be integrated with Grid middleware • There is an establish community dedicated to defining DBMS service standards, and emerging system are adopting them DAIS Grid
