Advanced Vehicle Monitoring System with Real-time Data Communication

This innovative vehicle monitoring system integrates multiple sensors and communication modules, including Xbee and SD card storage, for seamless data tracking and feedback. Key features include gear and display control, as well as inputs from pedal position, steering, and wheel speed sensors. It monitors critical engine parameters, such as water and oil temperatures, oil pressure, and supercharger pressure, ensuring optimal performance. The system also includes GPS integration and CAN-BUS communication for enhanced vehicle management, promoting safety and efficiency on the road.

niran
Télécharger la présentation

Advanced Vehicle Monitoring System with Real-time Data Communication

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

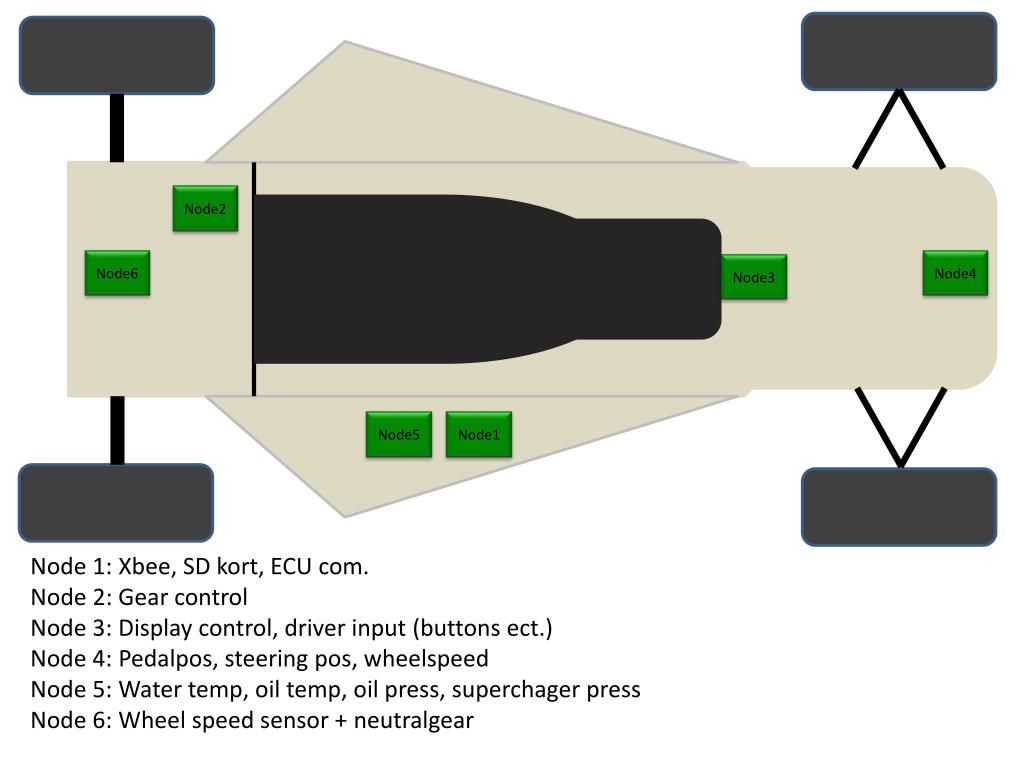

  1. Node2 Node6 Node4 Node3 Node5 Node1 Node 1: Xbee, SD kort, ECU com. Node 2: Gear control Node 3: Display control, driver input (buttons ect.) Node 4: Pedalpos, steering pos, wheelspeed Node 5: Water temp, oil temp, oil press, superchager press Node 6: Wheel speed sensor + neutralgear

  2. Wheel Speed Wheel Speed 2 Water-temp x2 Node5 2 2 2 3 Node2 Pedal pos x3 Gear Pos 3 2-3 Low-press x2 3x3 Node6 Node4 3 Yaw Sensor Node3 2 4 Wheel pos 2 GPS CAN-BUS Oil Press 2 ECU Node1 (SD, Xbee) Antenna Wheel Speed Wheel Speed
