PAPSA ODU FIRMWARE UPDATE

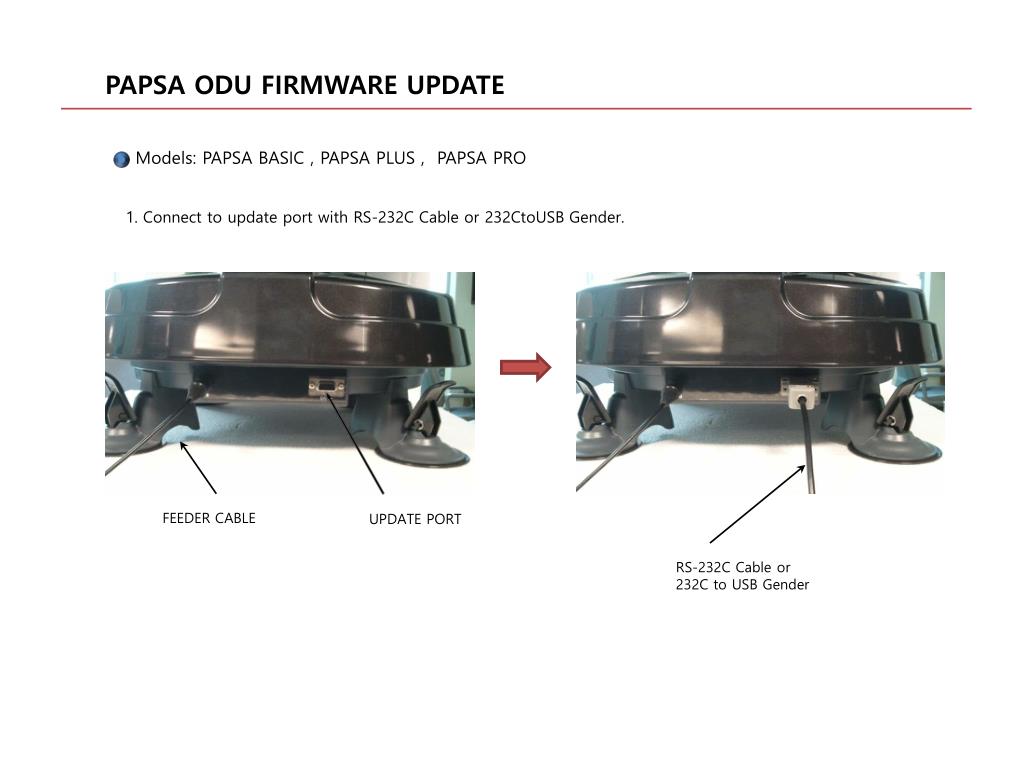

PAPSA ODU FIRMWARE UPDATE. Models : PAPSA BASIC , PAPSA PLUS , PAPSA PRO. 1. Connect to update port with RS-232C Cable or 232CtoUSB Gender. FEEDER CABLE. UPDATE PORT. RS-232C Cable or 232C to USB Gender. PAPSA ODU FIRMWARE UPDATE. 2 . Start Firmware Update Program.

nitesh
Télécharger la présentation

PAPSA ODU FIRMWARE UPDATE

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. PAPSA ODU FIRMWARE UPDATE Models: PAPSA BASIC , PAPSA PLUS , PAPSA PRO 1. Connect to update port with RS-232C Cable or 232CtoUSB Gender. FEEDER CABLE UPDATE PORT RS-232C Cable or 232C to USB Gender

  2. PAPSA ODU FIRMWARE UPDATE 2. Start Firmware Update Program. 4. ChooseCom Port. 5. ODU Power on will automatically rewrite the software. 3. Choose hex file for ODU and open.

  3. IDU FIRMWARE UPDATE Model: PAPSA PRO IDU , MOBILE IDU 1. Connect to update port with RS-232C Cable or 232CtoUSB Gender.. POWER CABLE UPDATE PORT RS-232C Cable or 232C to USB Gender

  4. IDU FIRMWARE UPDATE 2. Start Firmware Update Program. 4. ChooseCom Port. 5. ODU Power on will automatically rewrite the software. 3. Choose hex file for ODU and open.

  5. MOBILE ODU FIRMWARE UPDATE Model: MOBILE ODU 1. Connect withupdate port AVR ISP down loader. UPDATE PORT AVR ISP DOWNLOADER

  6. MOBILE ODU FIRMWARE UPDATE 3. Choose cancel. 2. Please disconnect with the motor cable and start AVR ISP Program.

  7. MOBILE ODU FIRMWARE UPDATE 5. Choose from main tab for DEVICE and choose ATMEGA128. 4. MOBILE POWER ONand clickAVR ICON.

  8. MOBILE ODU FIRMWARE UPDATE 6. Choose from program tab for your targetMobile ODU HEX FILE. 7. Please go to Auto TAB and check same set up as below picture and click start.
