  1. Design and Analysis of AlgorithmsQuicksort HaidongXue Summer 2012, at GSU

  2. Review of insertion sort and merge sort • Insertion sort • Algorithm • Worst case number of comparisons = O(?) • Merge sort • Algorithm • Worst case number of comparisons = O(?)

  3. Sorting Algorithms

  4. Quicksort Algorithm • Input: A[1, …, n] • Output: A[1, .., n], where A[1]<=A[2]…<=A[n] • Quicksort: • if(n<=1) return; • Choose the pivot p = A[n] • Put all elements less than p on the left; put all elements lager than p on the right; put p at the middle. (Partition) • Quicksort(the array on the left of p) • Quicksort(the array on the right of p)

  5. Quicksort Algorithm Current pivots • Quicksort example Previous pivots 2 8 7 1 3 5 6 4 Quicksort 2 1 3 4 8 5 7 6 Hi, I am nothing Nothing Jr. 7 5 2 3 4 6 8 1 Nothing 3rd 5 1 2 6 3 4 7 8 5 1 2 6 3 4 7 8 5 1 2 6 3 4 7 8

  6. Quicksort Algorithm • More detail about partition • Input: A[1, …, n] (p=A[n]) • Output: A[1,…k-1, k, k+1, … n], where A[1, …, k-1]<A[k] and A[k+1, … n] > A[k], A[k]=p • Partition: • t = the tail of smaller array • from i= 1 to n-1{ if(A[i]<p) { exchange A[t+1] with A[i]; update t to the new tail; } • exchange A[t+1] with A[n];

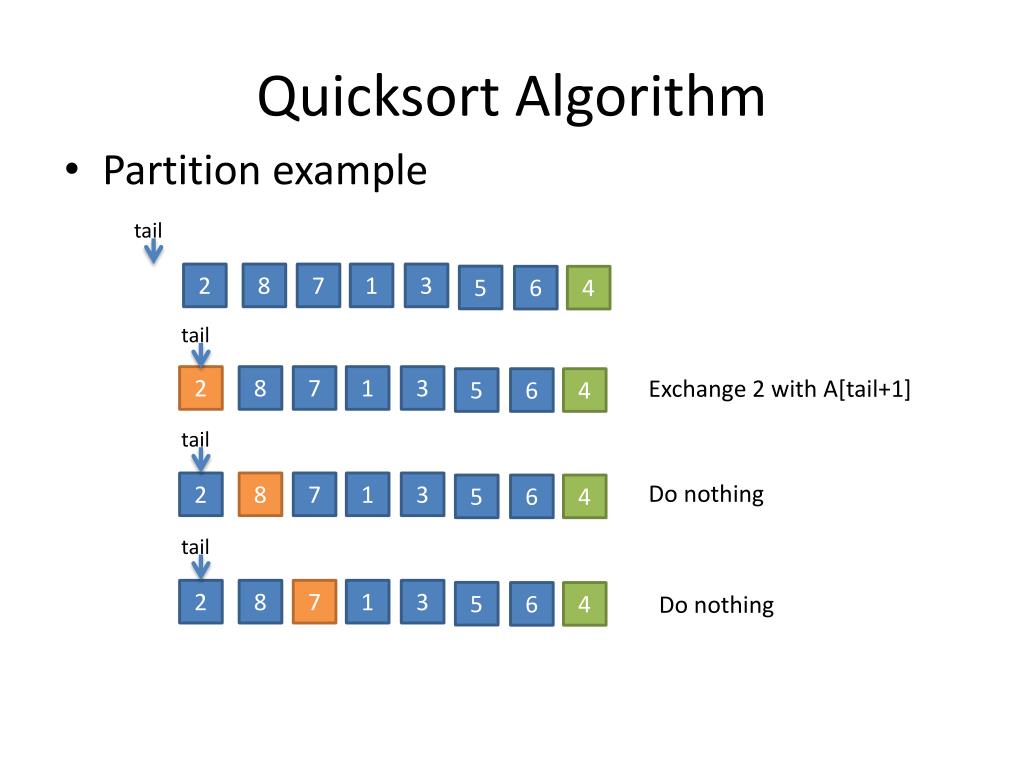

  7. Quicksort Algorithm • Partition example 2 8 7 1 3 5 6 4 2 8 7 1 3 Exchange 2 with A[tail+1] 5 6 4 tail tail tail tail 2 8 7 1 3 Do nothing 5 6 4 2 8 7 1 3 5 6 4 Do nothing

  8. Quicksort Algorithm • Partition example 2 8 7 1 3 Exchange 1 with A[tail+1] 5 6 4 2 1 7 3 5 6 4 8 Exchange 3 with A[tail+1] tail tail tail tail 8 Do nothing 3 2 5 6 4 1 7 Do nothing 3 2 1 8 5 6 4 7 8 4 1 Final step: exchange A[n] with A[tail+1] 3 2 5 6 7

  9. Quicksort Algorithm The final version of quick sort: Quicksort(A, p, r){ if(p<r){ //if(n<=1) return; q = partition(A, p, r); //small ones on left; //lager ones on right Quicksort(A, p, q-1); Quicksort(A, q+1, r); } }

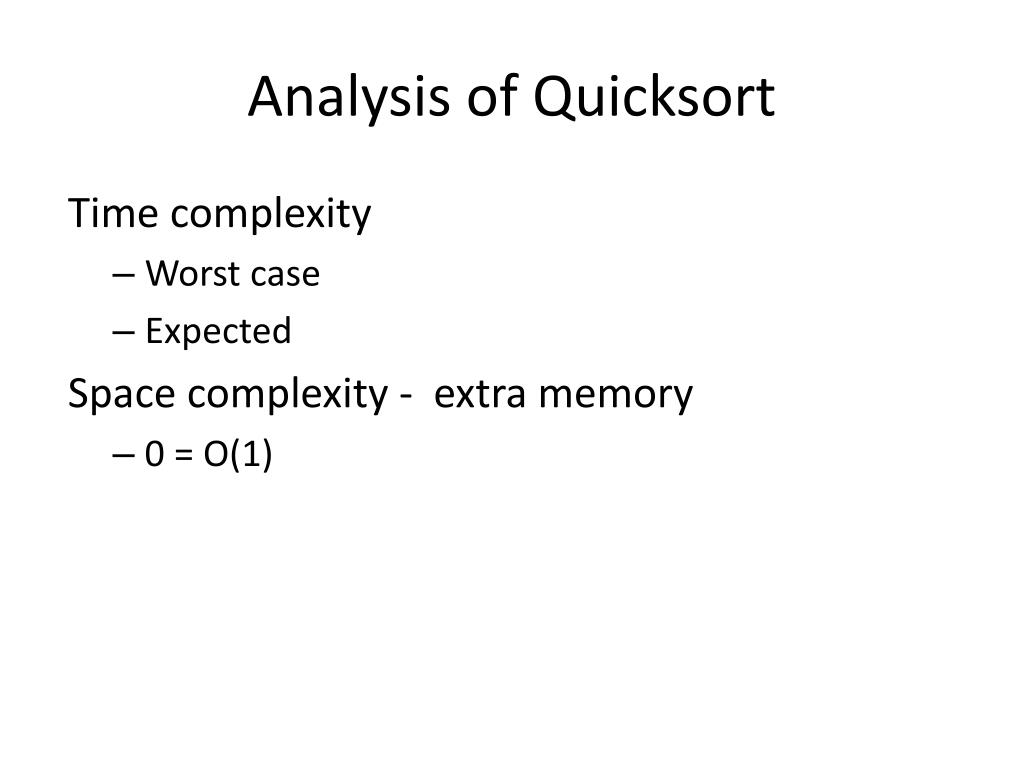

  10. Analysis of Quicksort Time complexity • Worst case • Expected Space complexity - extra memory • 0 = O(1)

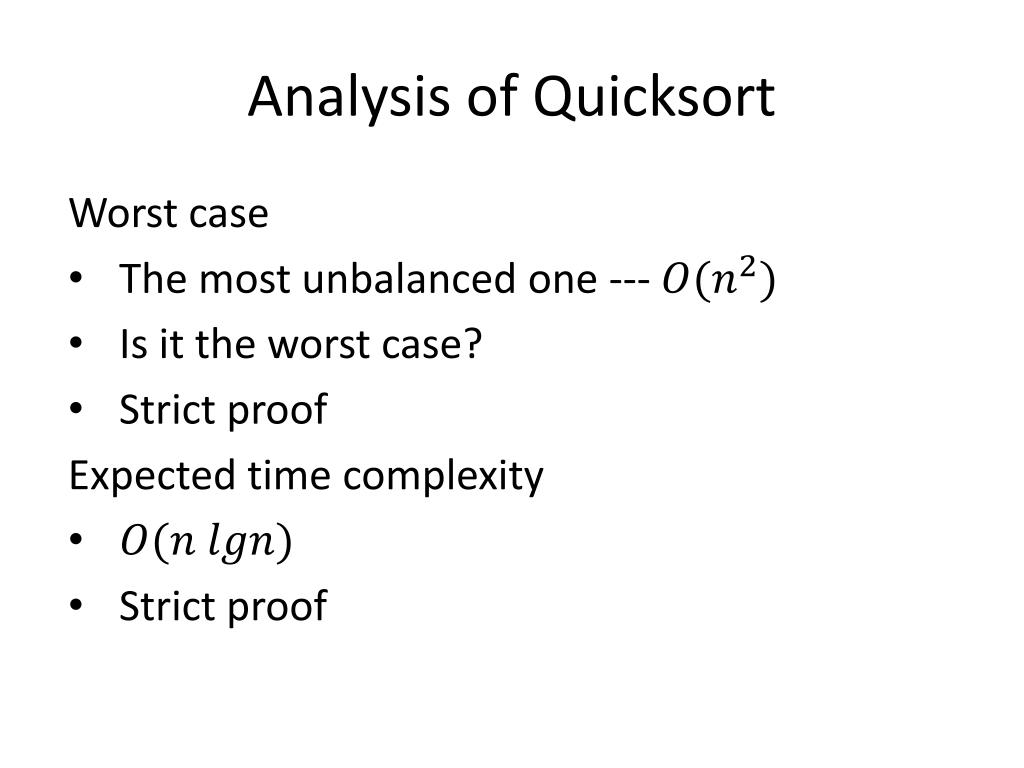

  11. Analysis of Quicksort Worst case • The most unbalanced one --- • Is it the worst case? • Strict proof Expected time complexity • Strict proof

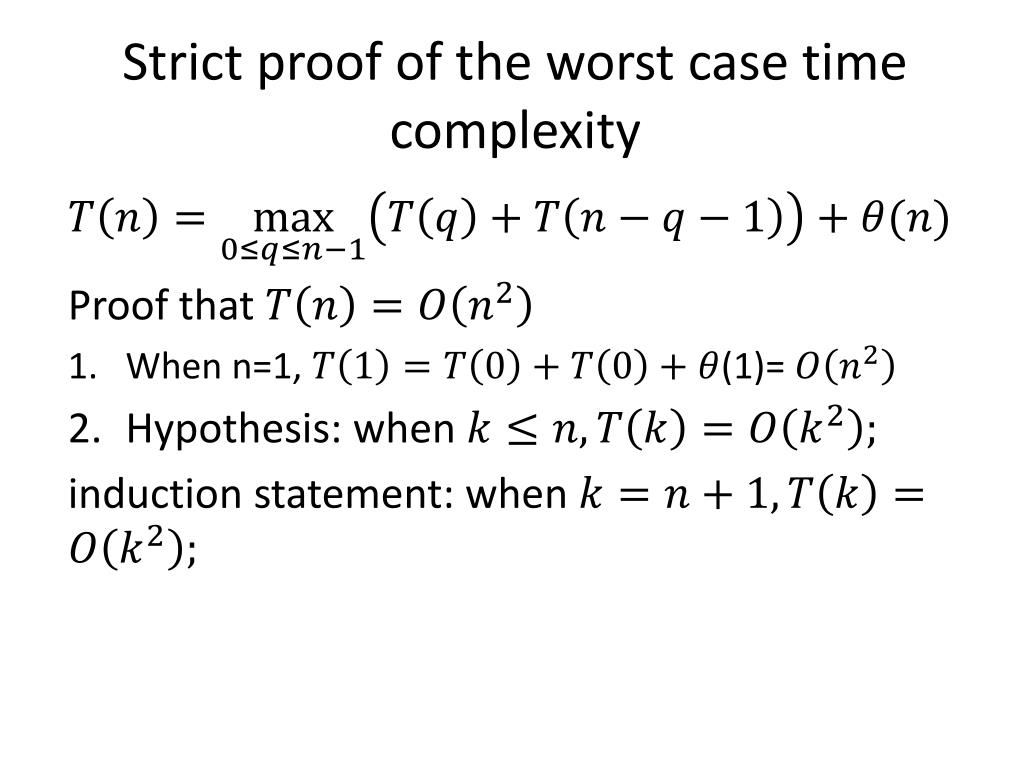

  12. Strict proof of the worst case time complexity Proof that • When n=1, (1)= • Hypothesis: when induction statement: when

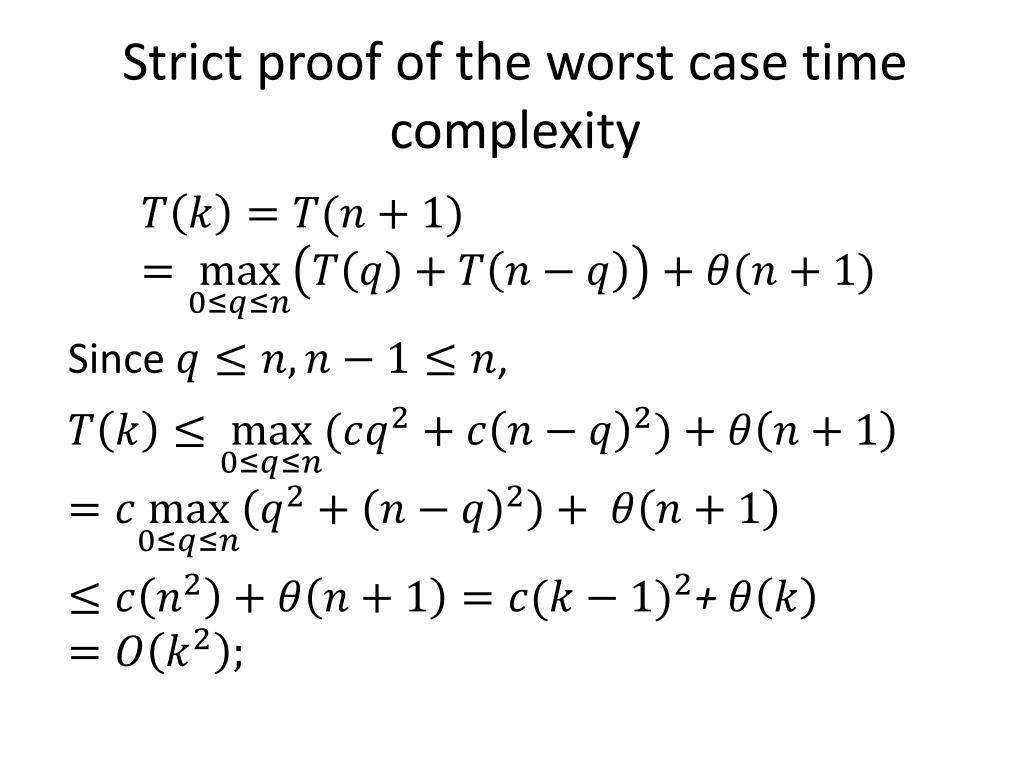

  13. Strict proof of the worst case time complexity Since , +

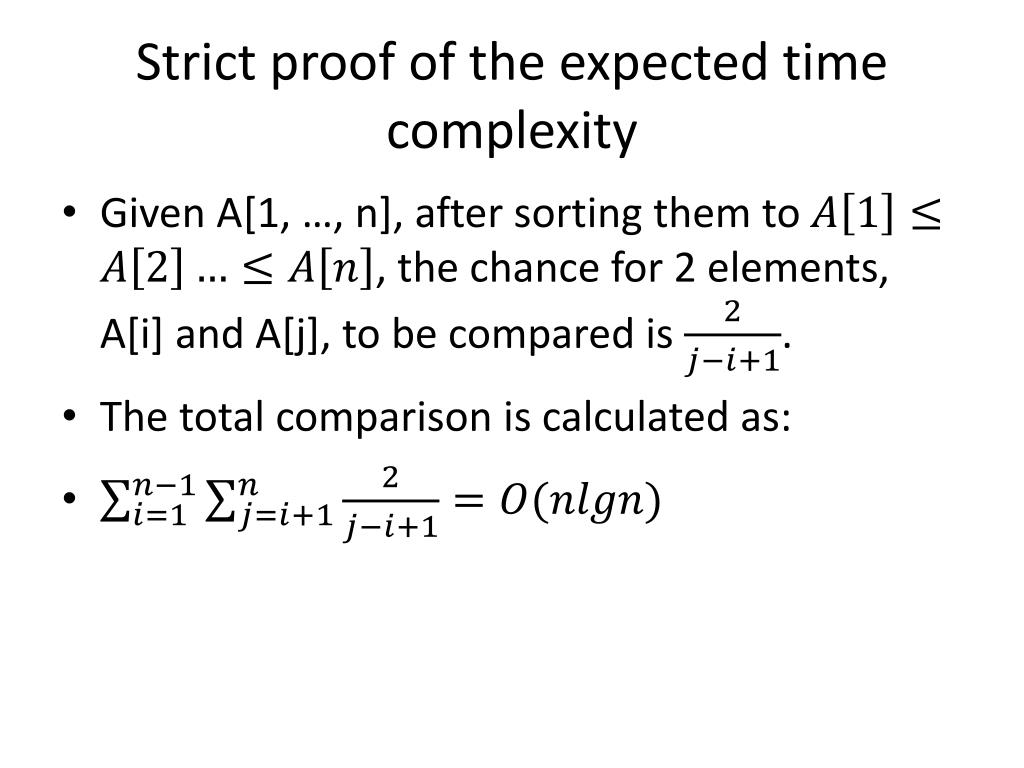

  14. Strict proof of the expected time complexity • Given A[1, …, n], after sorting them to , the chance for 2 elements, A[i] and A[j], to be compared is . • The total comparison is calculated as:

  15. Java implementation of Quicksort • Professional programmers DO NOT implement sorting algorithms by themselves • We do it for practicing algorithm implementation techniques and understanding those algorithms • Code quicksort • Sort.java // the abstract class • Quicksort_Haydon.java // my quicksort implementation • SortingTester.java // correctness tester

  16. Design and Analysis of Algorithms Review on time complexity, “in place”, “stable” HaidongXue Summer 2012, at GSU

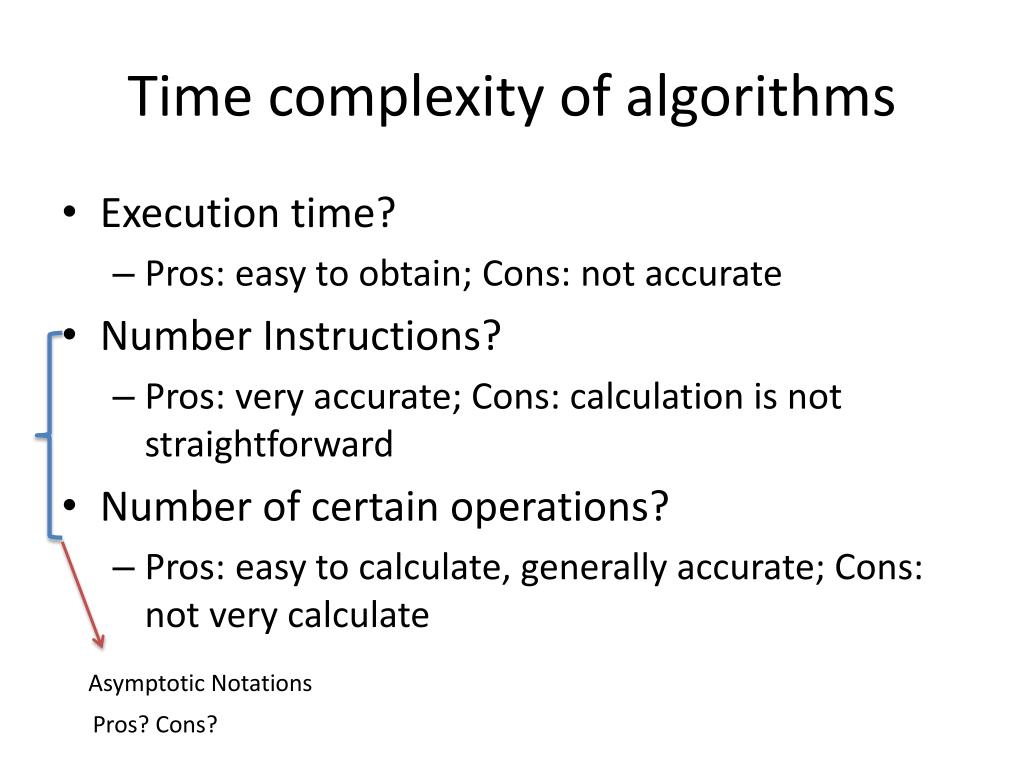

  17. Time complexity of algorithms • Execution time? • Pros: easy to obtain; Cons: not accurate • Number Instructions? • Pros: very accurate; Cons: calculation is not straightforward • Number of certain operations? • Pros: easy to calculate, generally accurate; Cons: not very calculate Asymptotic Notations Pros? Cons?

  18. Time complexity of algorithms In the worst case for(inti=0; i<A.length; i++) C1 + (length+1)*C2+ length*C3 length*C4 0*C5 C5 Assuming C4 >> C1, C2, C3, C5 C1: cost of “assign a value ” C2: cost of “<” C3: cost of “increment by 1” C4: cost of “==” C5: cost of “return” Worst case T(n) = n*C4 = (n) Worst case T(n) = C1+C2+ C5 + n(C2+C3+C4)+ = (n)

  19. “in place” and “stable” in sorting algorithms 2 3 3 1 3 5 Stable 1 2 3 3 3 5 1 2 3 Not stable 3 3 5

  20. Design and Analysis of AlgorithmsHeapsort HaidongXue Summer 2012, at GSU

  21. Max-Heap • A complete binary tree, and … every level is completely filled,except possibly the last, which is filled from left to right Yes No Yes

  22. Max-Heap • Satisfy max-heap property: parent >= children 16 14 10 8 7 9 3 2 Since it is a complete tree, it can be put into an array without lose its structure information.

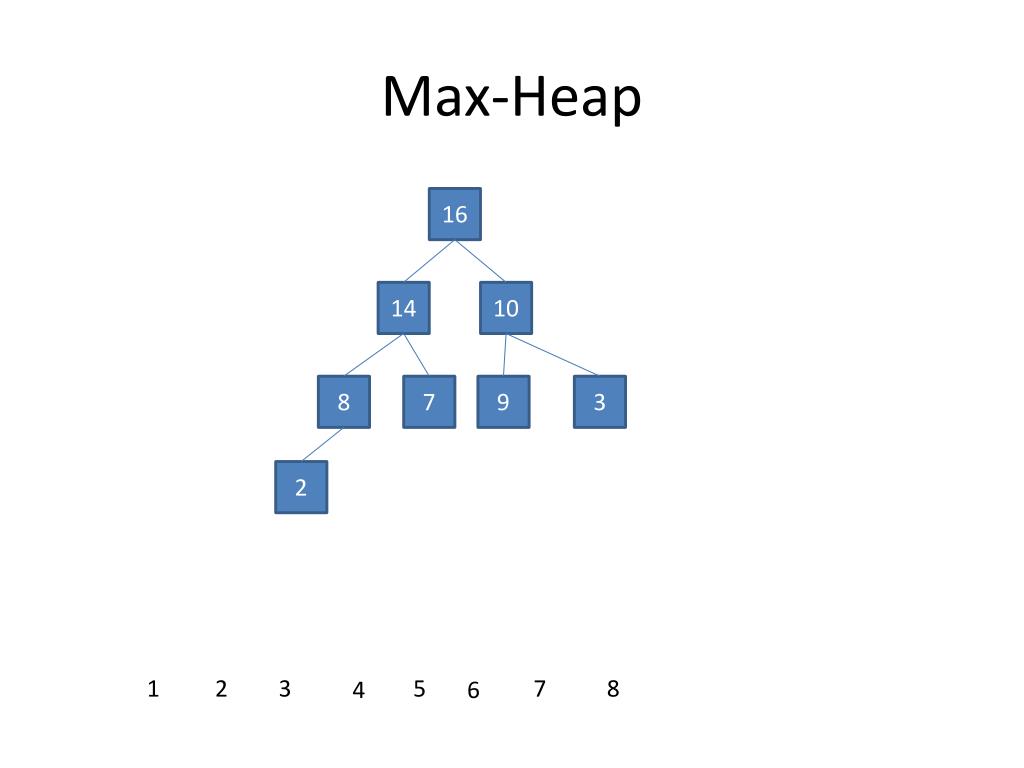

  23. Max-Heap 16 14 10 8 7 9 3 2 1 2 3 5 7 8 4 6

  24. Max-Heap For element at i: Parent index =parent(i)= floor(i/2); Left child index = left(i)=2*i; Right child index =right(i)=2*i +1 Last non-leaf node = floor(length/2) • Use an array as a heap 1 16 2 3 14 10 4 5 6 7 8 7 9 3 8 i=3 2 floor(i/2)=floor(1.5)=1 2*i = 6 2*i+1=7 floor(length/2)=4 7 9 3 2 14 16 10 8 1 2 3 5 7 8 4 6

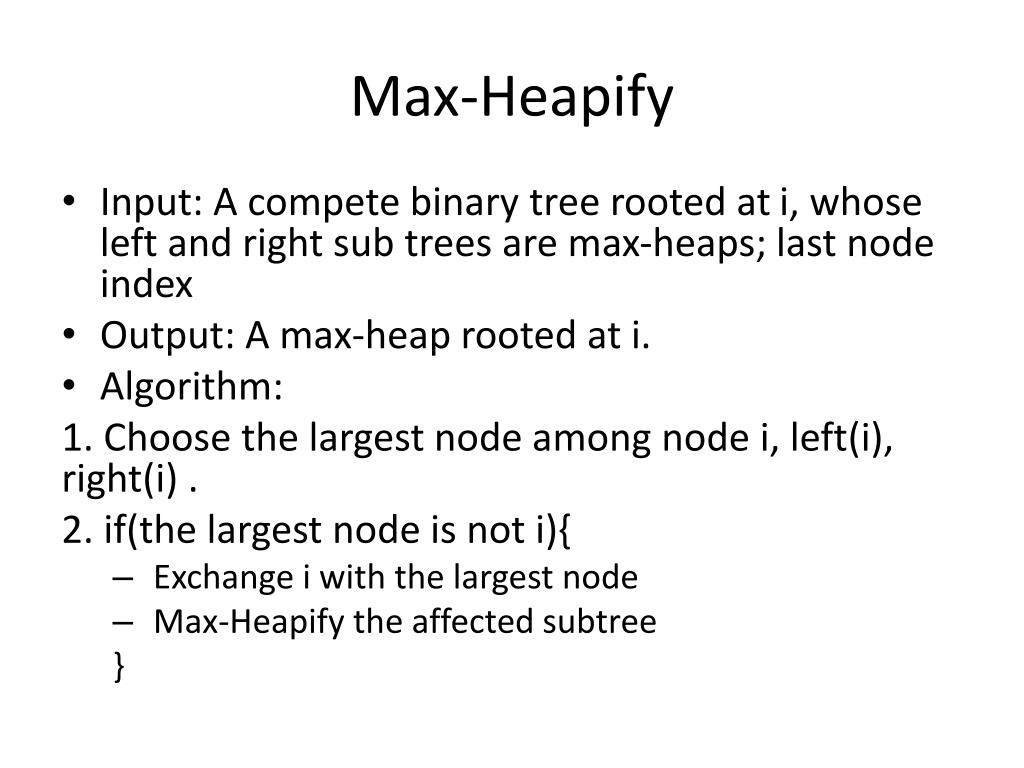

  25. Max-Heapify • Input: A compete binary tree rooted at i, whose left and right sub trees are max-heaps; last node index • Output: A max-heap rooted at i. • Algorithm: 1. Choose the largest node among node i, left(i), right(i) . 2. if(the largest node is not i){ • Exchange i with the largest node • Max-Heapify the affected subtree }

  26. Max-Heapify Example 2 16 10 14 7 9 3 8

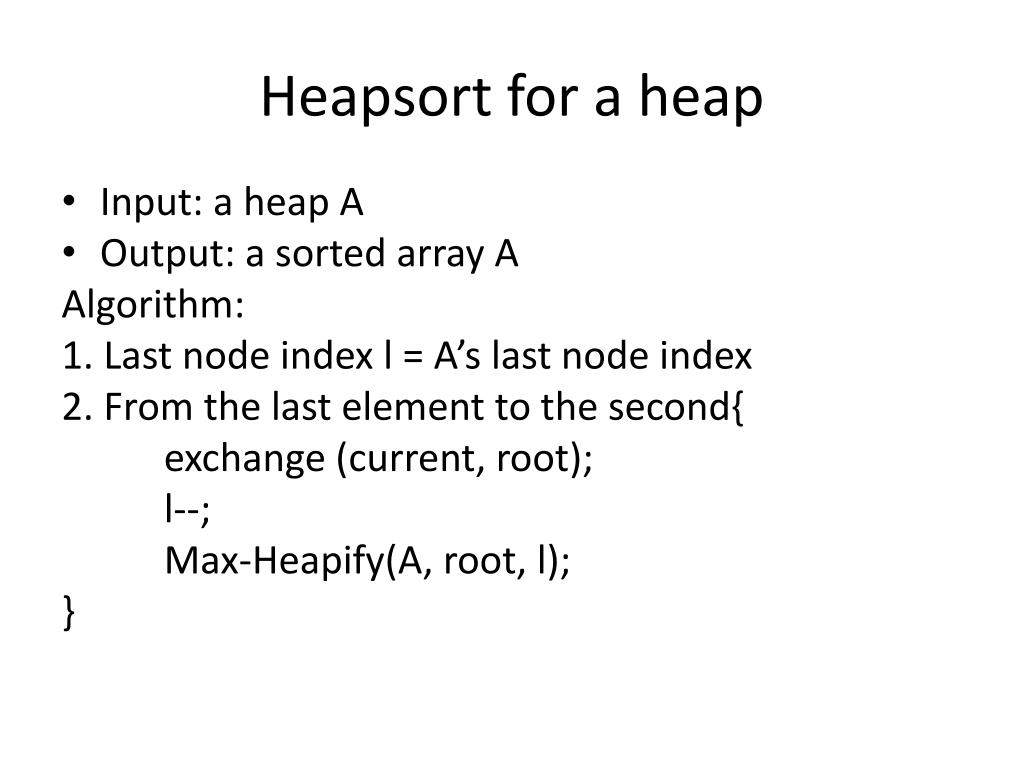

  27. Heapsort for a heap • Input: a heap A • Output: a sorted array A Algorithm: 1. Last node index l = A’s last node index 2. From the last element to the second{ exchange (current, root); l--; Max-Heapify(A, root, l); }

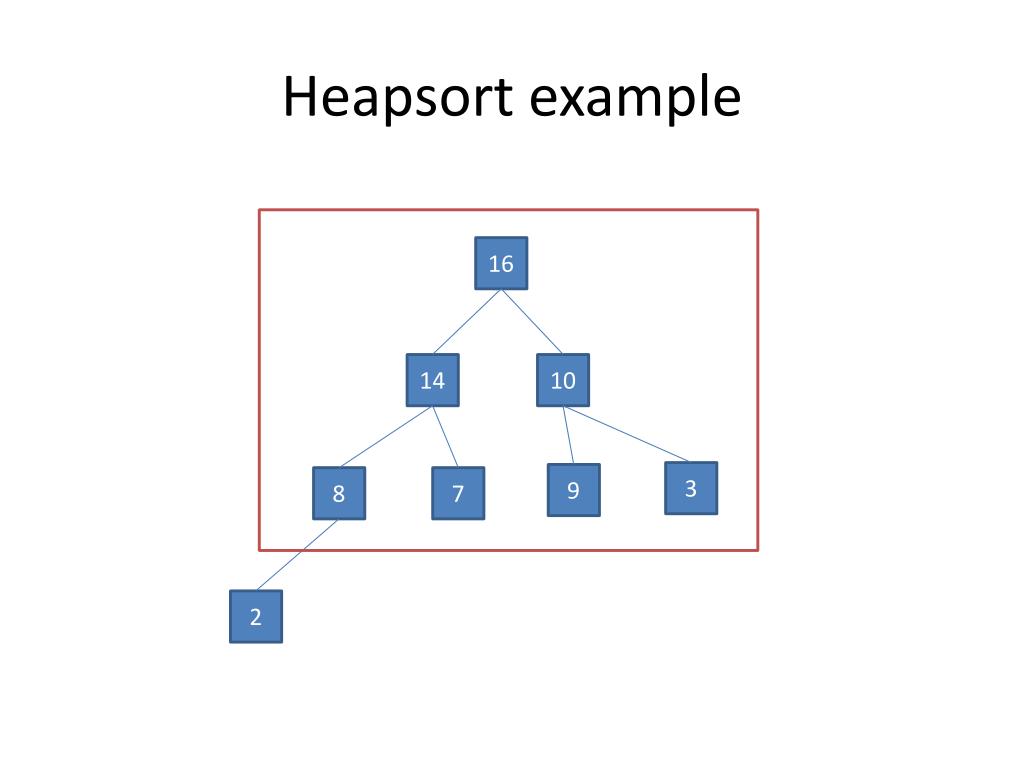

  28. Heapsort example 16 14 10 3 9 8 7 2

  29. Heapsort example 14 8 10 3 9 2 7 16

  30. Heapsort example 10 8 9 14 3 2 7 16

  31. Heapsort example 9 8 3 14 10 2 7 16

  32. Heapsort example 8 7 3 14 10 2 9 16

  33. Heapsort example 7 2 3 14 10 8 9 16

  34. Heapsort example 3 2 7 14 10 8 9 16

  35. Array -> Max-Heap • Input: a array A • Output: a Max-Heap A Algorithm: Considering A as a complete binary tree, from the last non-leaf node to the first one{ Max-Heapify(A, current index, last index); }

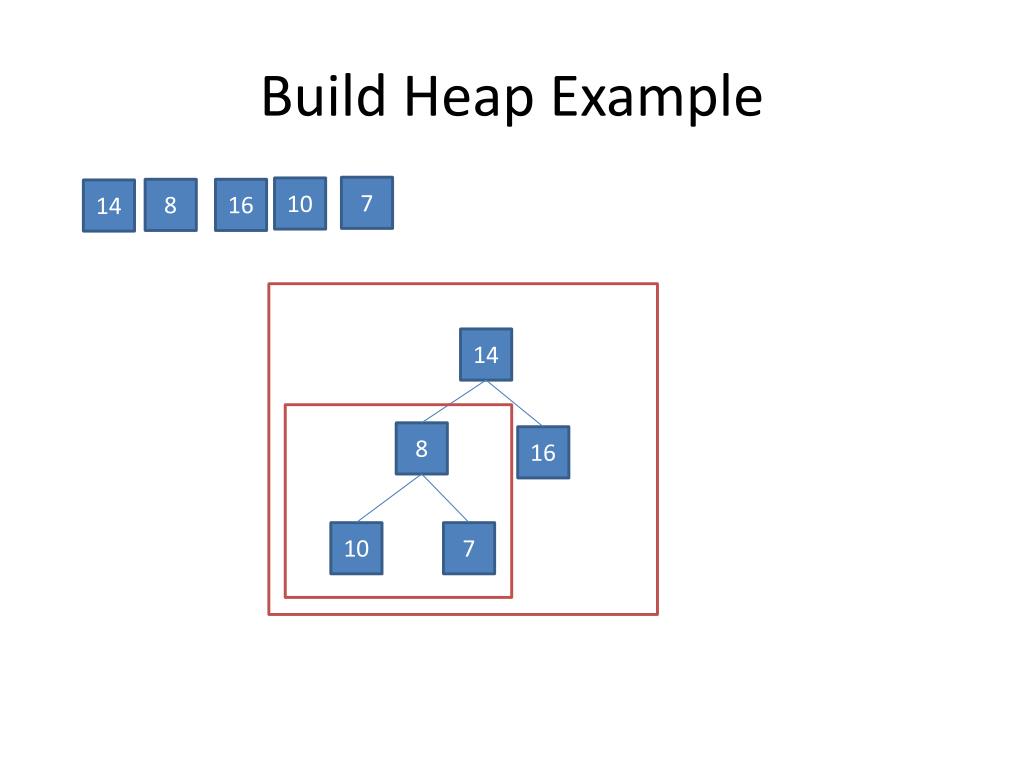

  36. Build Heap Example 7 10 8 16 14 14 8 16 10 7

  37. Heapsort • Input: array A • Output: sorted array A Algorithm: 1. Build-Max-Heap(A) 2. Last node index l = A’s last node index 3. From the last element to the second{ exchange (current, root); l--; Max-Heapify(A, root, l); } Let’s try it

  38. Analysis of Heapsort • Input: array A • Output: sorted array A Algorithm: 1. Build-Max-Heap(A) 2. Last node index l = A’s last node index 3. From the last element to the second{ exchange (current, root); l--; Max-Heapify(A, root, l); } O(n) or O(nlgn) O(n) O(nlgn)

  39. Design and Analysis of AlgorithmsNon-comparison sort (sorting in linear time) HaidongXue Summer 2012, at GSU

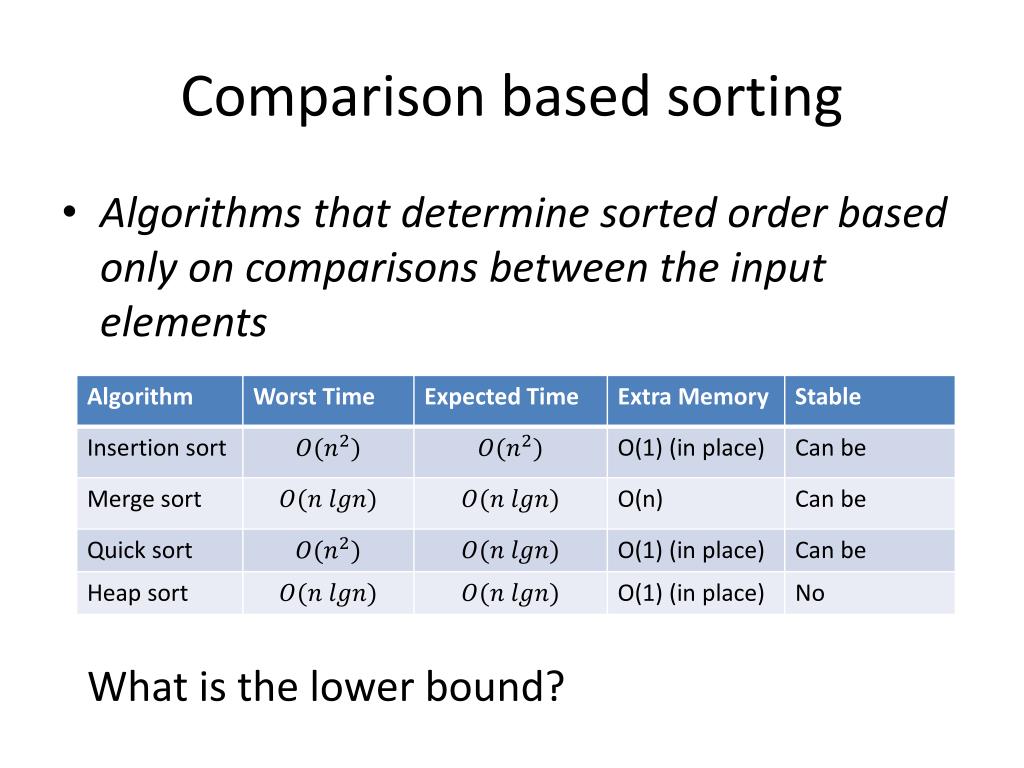

  40. Comparison based sorting • Algorithms that determine sorted order based only on comparisons between the input elements What is the lower bound?

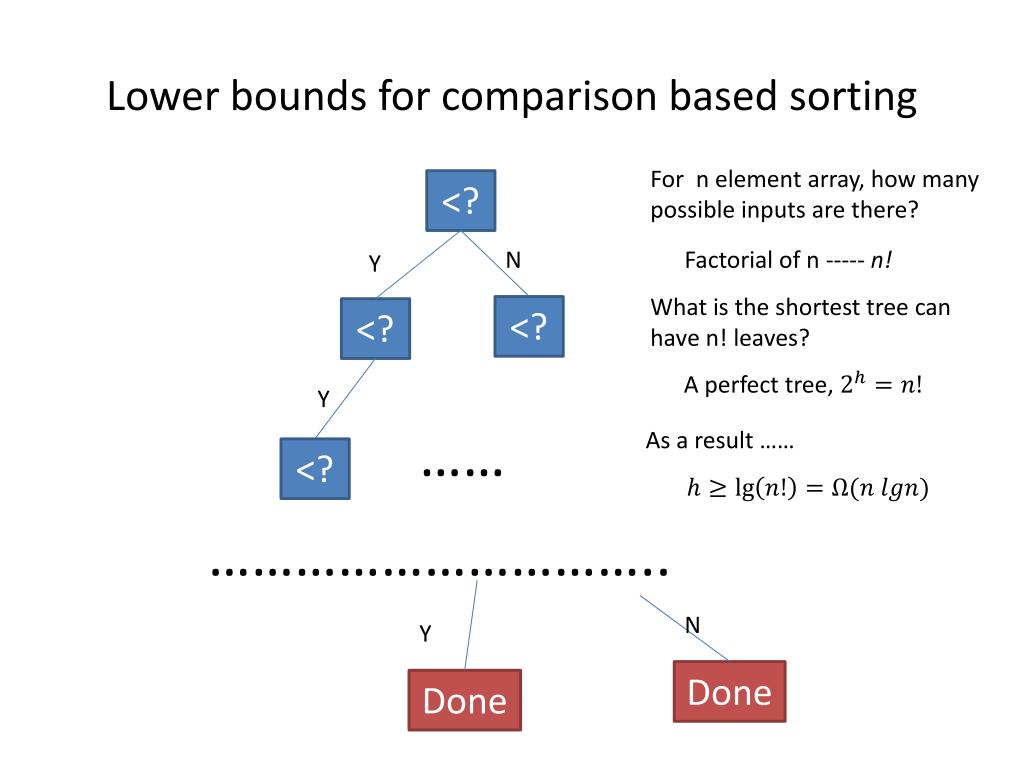

  41. Lower bounds for comparison based sorting For n element array, how many possible inputs are there? <? N Factorial of n ----- n! Y What is the shortest tree can have n! leaves? <? <? A perfect tree, Y …… As a result …… <? ………………………….. N Y Done Done

  42. Sorting in linear time • Can we sort an array in linear time? • Yes, but not for free • E.g. sort cards with 13 slots • What if there are more than one elements in the same slot?

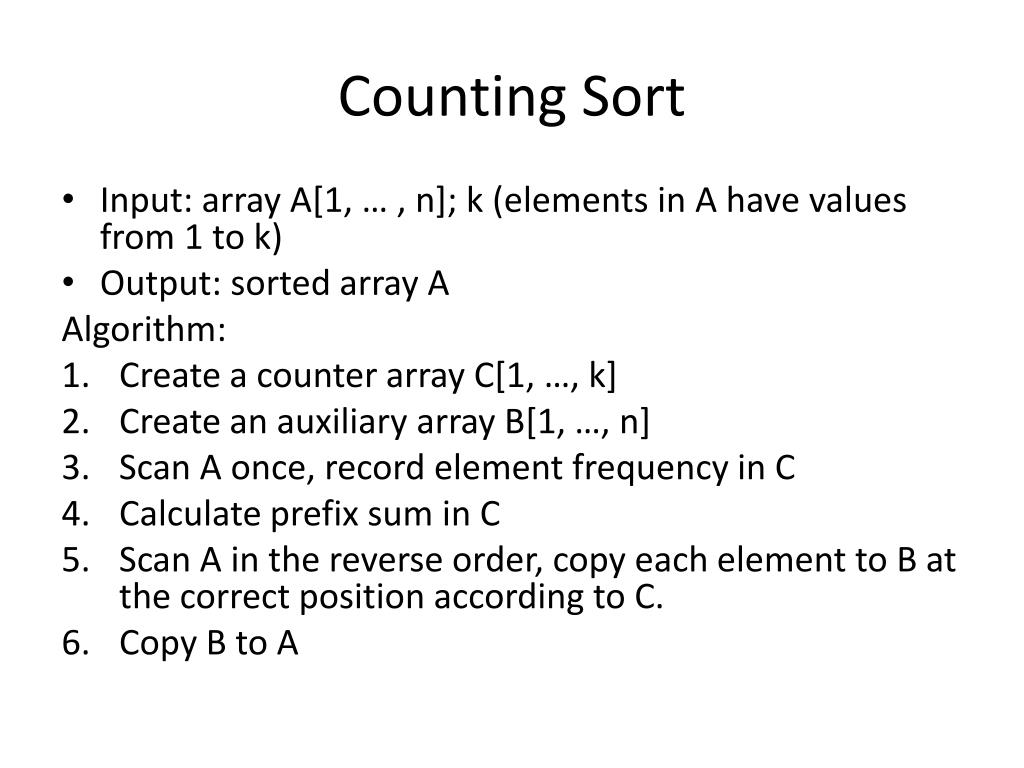

  43. Counting Sort • Input: array A[1, … , n]; k (elements in A have values from 1 to k) • Output: sorted array A Algorithm: • Create a counter array C[1, …, k] • Create an auxiliary array B[1, …, n] • Scan A once, record element frequency in C • Calculate prefix sum in C • Scan A in the reverse order, copy each element to B at the correct position according to C. • Copy B to A

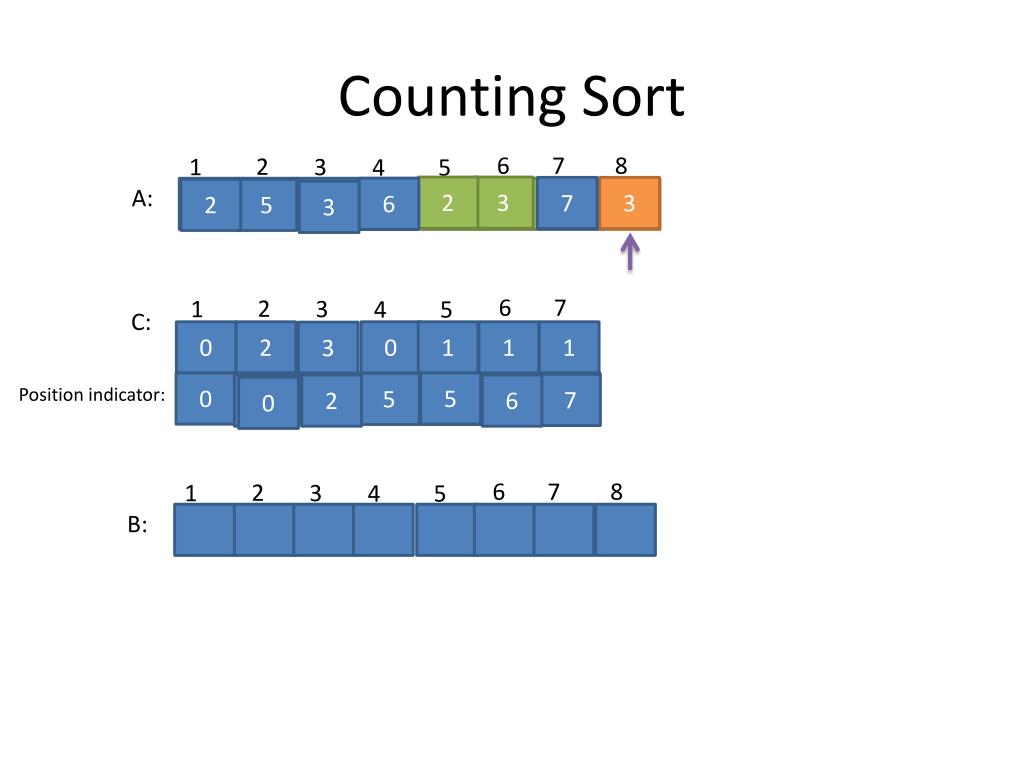

  44. Counting Sort 6 7 8 2 1 3 4 5 2 3 A: 7 3 2 5 3 6 6 2 3 7 3 2 5 3 6 7 2 1 3 4 5 C: 0 2 0 1 1 1 3 0 2 3 5 8 5 6 7 4 5 7 1 2 6 Position indicator: 0 6 7 8 2 1 3 4 5 B:

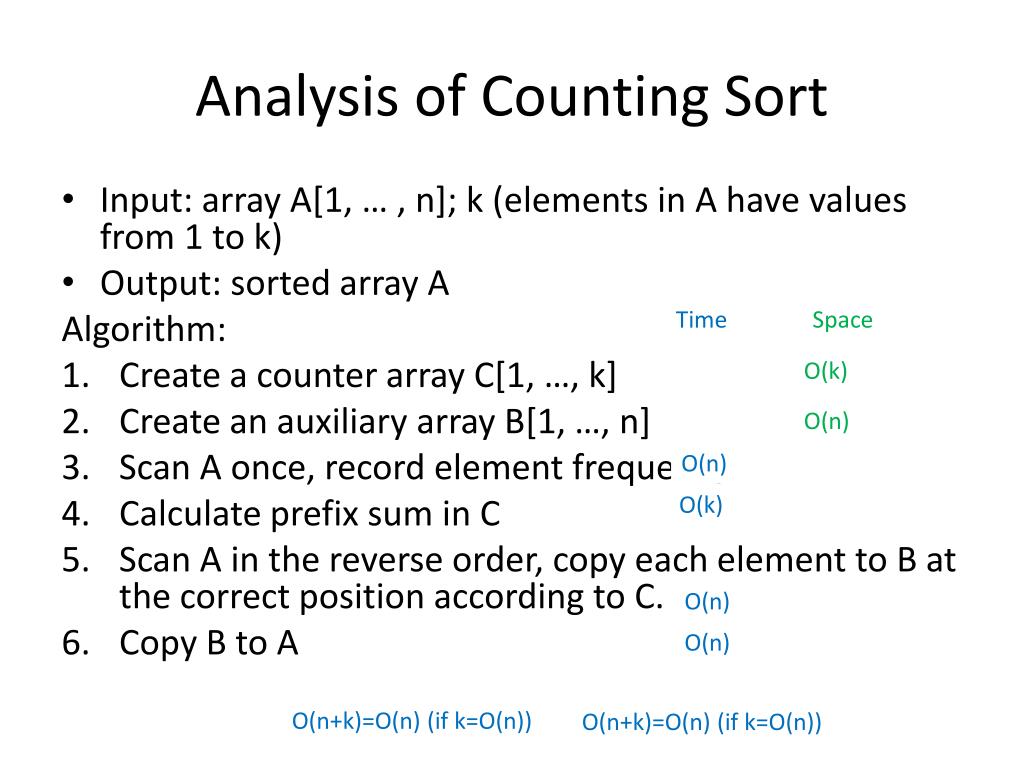

  45. Analysis of Counting Sort • Input: array A[1, … , n]; k (elements in A have values from 1 to k) • Output: sorted array A Algorithm: • Create a counter array C[1, …, k] • Create an auxiliary array B[1, …, n] • Scan A once, record element frequency in C • Calculate prefix sum in C • Scan A in the reverse order, copy each element to B at the correct position according to C. • Copy B to A Time Space O(k) O(n) O(n) O(k) O(n) O(n) O(n+k)=O(n) (if k=O(n)) O(n+k)=O(n) (if k=O(n))

  46. Radix-Sort • Input: array A[1, … , n]; d (number of digit a element has) • Output: sorted array A Algorithm: for each digit{ use a stable sort to sort A on a digit } T(n)=O(d(n+k))

  47. Summary Design strategies: Divide and conquer Employ certain special data structure Tradeoff between time and space

  48. Knowledge tree Algorithms Classic data structure Analysis Algorithms for classic problems Design … Sorting Shortest path Matrix multiplication Asymptotic notations Probabilistic analysis Heap, Hashing, Binary Tree, RBT, …. Dynamic Programming Greedy Divide & Conquer O(), o(), (), (), () Quicksort, Heapsort, Mergesort, … … … … … … … … … … … … … … … … … … … …
