Presentation Transcript

  1. ASTA Proposal and Sender Authentication Overview Spam Industry Initiative Miles Libbey Antispam Product Manager, Yahoo! Mail September 13, 2004 http://antispam.yahoo.com/domainkeys

  2. What’s ASTA? • Anti-Spam Technical Alliance • Yahoo!, Microsoft, Earthlink, Comcast, Bristish Telecom, AOL • Common experience and problems with spam and scale • Worked with others in the community • IETF • ASRG • Bulk Mailers 2 http://antispam.yahoo.com/domainkeys

  3. Best Practice Recommendations • Not every solution to spam • If recommendations are implemented on a wide scale, expect radical reduction in spam • Asked for feedback and discussion from community 3 http://antispam.yahoo.com/domainkeys

  4. Good neighbor policy • All abusive email coming out of ISP/Network provider is ISP’s responsibility • If not reasonably controlled, blocking is likely result • Perhaps first time industry has said that ISP’s are responsible for email sent from network, even if not through their email servers 4 http://antispam.yahoo.com/domainkeys

  5. Insecure services should be secured • Open Relays • Insecure Web services • Open Proxies • Zombies • Insecure consumer equipment 5 http://antispam.yahoo.com/domainkeys

  6. X Other SMTP server 587 X X Zombie/ open proxy (587) Port 25 and 587 explained ISP network Zombie/ open proxy (25) 25 25 ISP’s SMTPserver Recipient MTA server & User Mailbox 25 6 http://antispam.yahoo.com/domainkeys

  7. Port 25 and 587 recommendations • Port 25 is currently used for all email traffic • Port 587 attempts to break up the submission from receiving • Blocking port 25 can be problematic, but is easiest way to control abuse • Do NOT block port 587 7 http://antispam.yahoo.com/domainkeys

  8. SMTP AUTH • To have real control over SMTP servers, ISPs need to implement authenticated SMTP • Mail client required to send username and password before sending mail • Needed to allow connections from outside the network 8 http://antispam.yahoo.com/domainkeys

  9. Rate limits • Limit the number of mails that can be sent per hour and/or day • Ideally, coordinate limit with spam complaints received • Ensure the actual user sending is the actual user (not a zombie on their computer) 9 http://antispam.yahoo.com/domainkeys

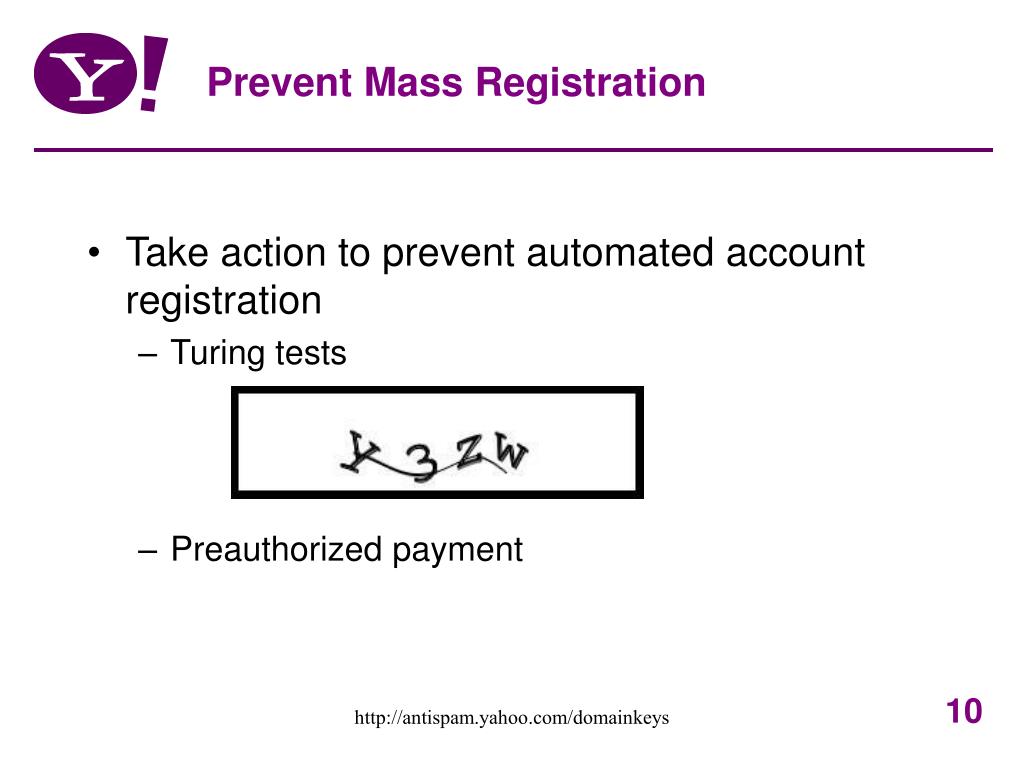

  10. Prevent Mass Registration • Take action to prevent automated account registration • Turing tests • Preauthorized payment 10 http://antispam.yahoo.com/domainkeys

  11. Secure Redirector services • Sites frequently use redirect URLs to track clicks http://rd.yahoo.com/*http://ftc.gov • Spammers use such URLs • Fool users to think URL is legitimate • Prevent filters from finding real target URL • Ensure these sites can only be used by authorized users http://us.rd.yahoo.com/SIG=10nc0k8a5/**http%3A%2F%2Fftc.gov 11 http://antispam.yahoo.com/domainkeys

  12. Complaint Reporting systems • Recipient feedback on what is spam and not spam dramatically helps system • Receiving complaints originating from network gives good neighbor visibility • Analyzing complaints about delivered mail helps improve spam filters and reputation engines 12 http://antispam.yahoo.com/domainkeys

  13. Bulk Mailers • No address harvesting • Clear and conspicuous opt-out that works • No forged headers • No obscuring content • No misleading content or subject lines • Maintain clean lists • Segregate sending IPs to help reputation engines 13 http://antispam.yahoo.com/domainkeys

  14. Consumers – education and awareness • Install and use personal firewalls • Anti-virus software with automated frequent updates • Use the "This is spam" button to report spam if your ISP offers it as an option • Don't use the "This is spam" button to unsubscribe from things you requested • Don't respond to spam at all 14 http://antispam.yahoo.com/domainkeys

  15. Sender Authentication 15

  16. What is sender authentication in email? • Not a person’s identity • “Prove” authority to use a domain • 2 general strategies • IP based • Digital Signatures 16 http://antispam.yahoo.com/domainkeys

  17. ~ Sender ID’s authorization proof Mapping email to postal mail- the envelope Mail From /Envelope From / Return Path Recipient To 17 http://antispam.yahoo.com/domainkeys

  18. DomainKey’s authorization proof Mapping email to postal mail- the letter To: From: 18 http://antispam.yahoo.com/domainkeys

  19. IP based (Sender ID) Find outbound IPs, publish in DNS Receiver verifies mail from authorized IP Sender is not authenticated -- Last IP to touch mail is Forwarders & mail lists must change before technology can be fully used Digital Signature (DomainKeys) Generate public/private keys, publish public-key in DNS Sign mail with private-key Receiver verifies signature Original Sender is authenticated In transit modifications may invalidate signature Two authentication strategies compared 19 http://antispam.yahoo.com/domainkeys

  20. Authentication alone won’t solve spam • Authentication won’t solve spam • Spammers can trivially authenticate • Y! Mail’s most wanted spammers buy 1000s of domains each week • >500 known spammers publishing SPF 20 http://antispam.yahoo.com/domainkeys

  21. Authentication is basis for reputation • Negative and neutral reputation can help reduce spam • Blacklists • Rate limits for newbies until established reputation • Positive reputation helps reduce false positives • Make zombies/trojans/open proxies use ISP’s servers where they may be more controlled • If Domain registration not forged, makes finding spammers easier • Push phishers into corners – can’t use phishing target’s domain; become more traceable • Makes legislation/litigation more effective 21 http://antispam.yahoo.com/domainkeys

  22. IP address is poor basis for email identity and reputation today • Yahoo! Mail’s 5 year old reputation engine built on IP addresses • Doesn’t work well with ESPs • Receiver applies ESP’s reputation instead of client’s reputation • Many ESPs use 1 IP address for all their clients – reputation of 1 client can ruin reputation for others • Doesn’t survive forwarding (Goodguy  Forwarder  Recipient) • Forwarding system spam reputation probably mixed – in most cases blindly forwarding on spam • We need to apply Goodguy reputation – users want that mail in their inbox • How does recipient system know if they can trust forwarding system to validate header or message integrity? • Invisible to the user – they don’t know or care about IP addresses 22 http://antispam.yahoo.com/domainkeys

  23. DomainKeys technology summary: Design Goals • Sufficiently secure for email authentication • Unobtrusive format • Minimize hurdles to initial deployment • No financial cost • Deployable at the border • Use existing infrastructure where possible • Provide migration path to more robust solutions 23 http://antispam.yahoo.com/domainkeys

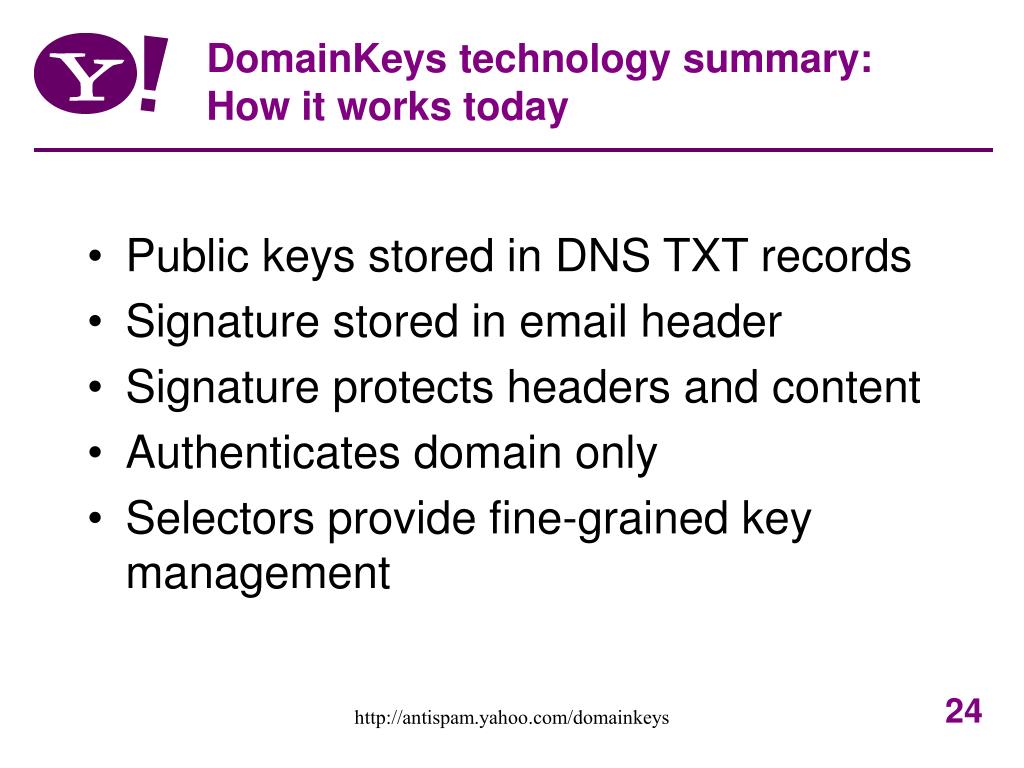

  24. DomainKeys technology summary: How it works today • Public keys stored in DNS TXT records • Signature stored in email header • Signature protects headers and content • Authenticates domain only • Selectors provide fine-grained key management 24 http://antispam.yahoo.com/domainkeys

  25. Dedicated namespace Public Keys in the DNS 200401._domainkey.example.net IN TXT "g=; k=rsa; p=MHww ... IDAQAB” 25 http://antispam.yahoo.com/domainkeys

  26. Selectors allow multiple keys 200401._domainkey.example.net IN TXT "g=; k=rsa; p=MHww ... IDAQAB” 26 http://antispam.yahoo.com/domainkeys

  27. Simple tag=values syntax 200401._domainkey.example.net IN TXT "g=; k=rsa; p=MHww ... IDAQAB” 27 http://antispam.yahoo.com/domainkeys

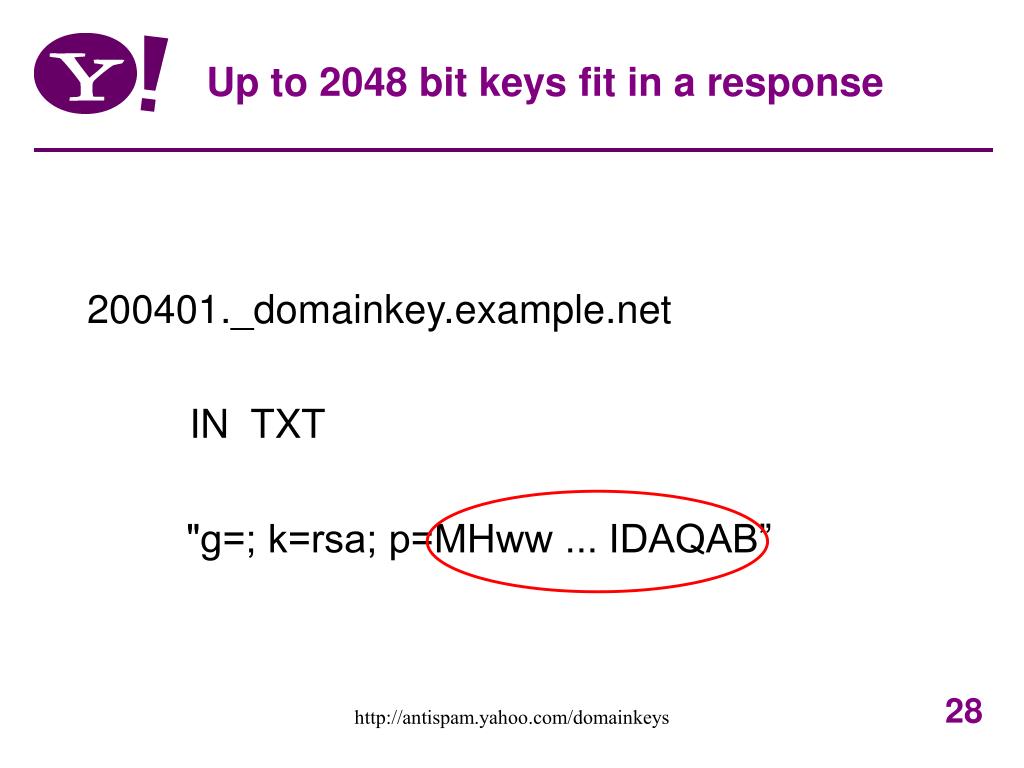

  28. Up to 2048 bit keys fit in a response 200401._domainkey.example.net IN TXT "g=; k=rsa; p=MHww ... IDAQAB” 28 http://antispam.yahoo.com/domainkeys

  29. Signature is stored as a header DomainKey-Signature: a=rsa-sha1; q=dns; c=simple; s=snake; d=yahoo-inc.com; b=tU0…QrB; Date: Tue, 03 Aug 2004 13:23:39 -0700 Message-ID:<4104B.405@yahoo-inc.com> From: <miles@sunnyvale.yahoo-inc.com> To: …. 29 http://antispam.yahoo.com/domainkeys

  30. Selector and Domain form the query DomainKey-Signature: a=rsa-sha1; q=dns; c=simple; s=snake; d=yahoo-inc.com; b=tU0…QrB; Date: Tue, 03 Aug 2004 13:23:39 -0700 Message-ID:<4104B.405@yahoo-inc.com> From: <miles@sunnyvale.yahoo-inc.com> To: …. 30 http://antispam.yahoo.com/domainkeys

  31. Query the DNS for the Public Key DomainKey-Signature: a=rsa-sha1; q=dns; c=simple; s=snake; d=yahoo-inc.com; b=tU0…QrB; Date: Tue, 03 Aug 2004 13:23:39 -0700 Message-ID:<4104B.405@yahoo-inc.com> From: <miles@sunnyvale.yahoo-inc.com> To: …. 31 http://antispam.yahoo.com/domainkeys

  32. Signature covers all headers and body DomainKey-Signature: a=rsa-sha1; q=dns; c=simple; s=snake; d=yahoo-inc.com; b=tU0…QrB; Date: Tue, 03 Aug 2004 13:23:39 -0700 Message-ID:<4104B.405@yahoo-inc.com> From: <miles@sunnyvale.yahoo-inc.com> To: …. 32 http://antispam.yahoo.com/domainkeys

  33. Survive folding DomainKey-Signature: a=rsa-sha1; q=dns; c=isfws; s=snake; d=yahoo-inc.com; b=tU0…QrB; Date: Tue, 03 Aug 2004 13:23:39 -0700 Message-ID:<4104B.405@yahoo-inc.com> From: <miles@sunnyvale.yahoo-inc.com> To: …. 33 http://antispam.yahoo.com/domainkeys

  34. Survive re-ordering and insertion DomainKey-Signature: a=rsa-sha1; q=dns; c=isfws; s=snake; d=yahoo-inc.com; b=tU0…QrB; h=Message-ID:To:Date: Date: Tue, 03 Aug 2004 13:23:39 -0700 Message-ID:<4104B.405@yahoo-inc.com> From: <miles@sunnyvale.yahoo-inc.com> To: …. 34 http://antispam.yahoo.com/domainkeys

  35. DomainKeys technology summary: Migration Path • DNS is just one query-type, other key servers allowed • Support for alternate queries allows for per-user keys • Canonicalization accepts reality but provides for preferred outcome • Deflect some controversy by offering sender choice at the cost of complexity 35 http://antispam.yahoo.com/domainkeys

  36. Changes for DomainKeys-base-01 • Responsible domain – Sender: then From: • Responsible domain – email hostname a substring of “d=“ • Canonicalization – 2-3 types, one contender is the Cisco ID-Mail form • Possible inclusion of a different key server as a key query type 36 http://antispam.yahoo.com/domainkeys

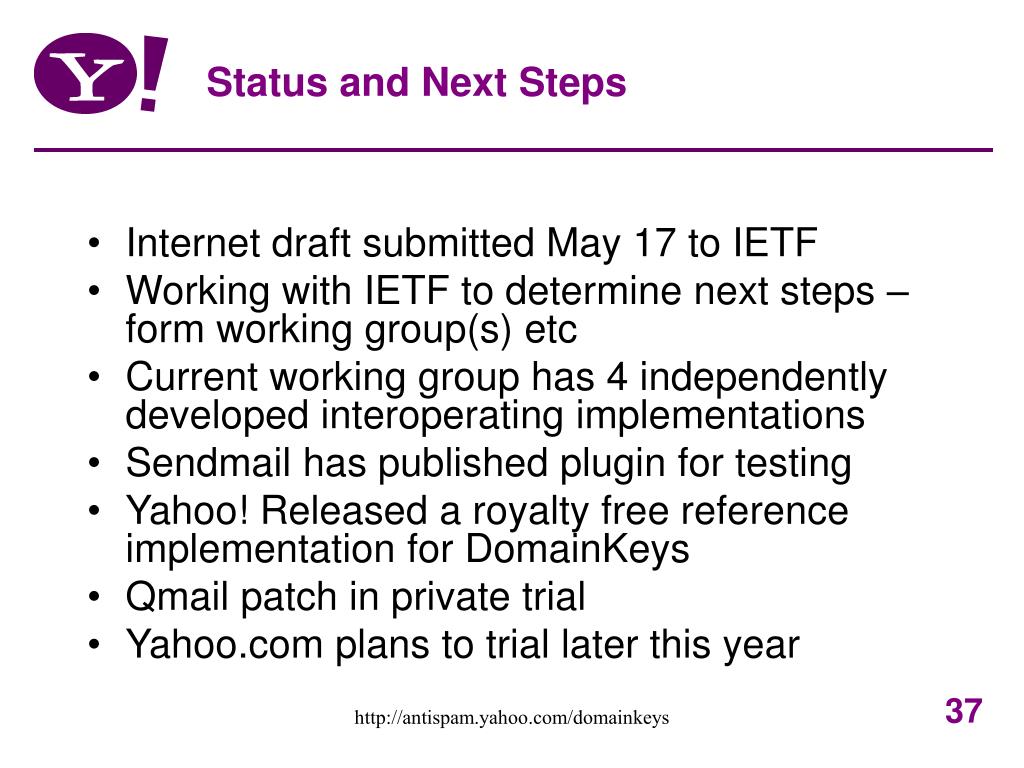

  37. Status and Next Steps • Internet draft submitted May 17 to IETF • Working with IETF to determine next steps – form working group(s) etc • Current working group has 4 independently developed interoperating implementations • Sendmail has published plugin for testing • Yahoo! Released a royalty free reference implementation for DomainKeys • Qmail patch in private trial • Yahoo.com plans to trial later this year 37 http://antispam.yahoo.com/domainkeys

  38. More information and specification: http://antispam.yahoo.com/domainkeys 38

  39. List/Forwarding MTA server Mail Path 25 25 ISP’s SMTPserver Recipient MTA server & User Mailbox X Zombie/ open proxy (25) 39 http://antispam.yahoo.com/domainkeys
