  1. Riley Technologies Track Day Car

  2. Permanent Road Courses all across the US: Atlanta Birmingham Charlotte Chicago Connecticut Dallas Fort Worth Houston Indianapolis Iowa Los Angeles Miami Mont-Tremblant New Jersey Ohio Orlando Philadelphia Phoenix Portland Salt Lake City San Francisco San Jose Sebring Virginia Watkins Glen Wisconsin & Worldwide Venues Riley Technologies has designed and built a purpose built race car for the weekend racer. This car allows the weekend racer to have one of the fastest and safest track day cars on the market. The car is designed to be fast, safe, easy to drive, and to be maintenance friendly. This car will carry on the Riley Technologies winning Sportscar Lineage. Track Day Car Riley Mk XXII Introduction

  3. “A Bob Riley designed car” is as strong a statement as can be made in race car manufacturing. Many cars claim to be High Performance, few can match the performance and history that comes with owning a Riley Design. Car & Driver magazine describes Bob Riley as, “America’s most prolific and most successful designer of race cars.” Bob’s proven design history lives up to this praise on the track, with wins and championships. Bob Riley Designed Car The Legendary History “I designed the Track Day Car to be a one of a kind racing experience. It is a race car that many levels of drivers will enjoy, and a project I am proud to be a part of. Every car I design incorporates winning elements from past cars. This car exceeds my goals for a great race car; Fast, Safe, and as important easy to maintain and drive. I Know this car will soon be part of our successful design history.” Bob Riley, President Riley Technologies

  4. The Riley Track Day Car provides the recreational racer with a fast, safe, and reliable car. The Riley MKXXII performs at the same level as today’s most advanced purebred sportscars. The car comes equipped with numerous standard racing features normally found only on Pure Breed race cars Time to channel your inner race driver! Specifications 177.3 inches / 4503 mm 78.6 inches / 1997 mm 43.7 inches / 1110 mm 112.0 inches / 2845 mm 36.2 inches / 921 mm 29.0 inches / 737 mm GM Aluminum LS Crate Motor / 500 HP Steel Chassis / Replaceable steel safety structures Composite bodywork Two racing seats / driver adjustable Rack and Pinion with hydraulic power assist Six Speed EMCO Sequential Dog Ring Transaxle Front double wishbone / rear five link Adjustable with coil-over springs 6 piston frt / 4 piston rear calipers, adjustable bias, 14” frt 13” rear rotors Fikse Front 18” * 11.5” / Rear 18” * 13”, 5 lug Slicks & Rains Available 24 Gallons / 90 Liters Stainless Steel with Mufflers Complete data system with digital display Length Width Height Wheelbase Front Overhand Rear Overhand Engine Chassis Body Cockpit Steering Gearbox Suspension Shocks Brakes Wheels Tires Fuel Capacity Exhaust Data

  5. Riley Designs have Won Races and Championships all Across the world. Our Designs have won Championships: Grand Am Indy Car ALMS WSC Trans Am Our Designs have won Races across the world: Daytona 24 hrs Le Mans 24 hrs Sebring 12 hrs Indianapolis 500 Daytona 500 Indy Car NASCAR ALMS WSC USAC Trans Am Riley Technologies has one of the most impressive resumes in sportscar racing. Riley built cars have been a dominate force in North American sportscar Racing for the over a decade. The same design principles that made our purpose built race cars so successful are being transferred to a car available to the Recreational Racer. Racing Heritage

  6. Winners Overall Rolex 24 Hours of Daytona: 1996 1997 1999 2005 2006 2007 2008 The Mk XXII utilizes many of the components that have made our Sportscar winners all across the Globe. We started the design process by building upon proven components from our Ultra successful Daytona Prototype and Mk IIIc Le Mans Racer. Our design philosophy puts racing heritage in your hands! Racing Pedigree

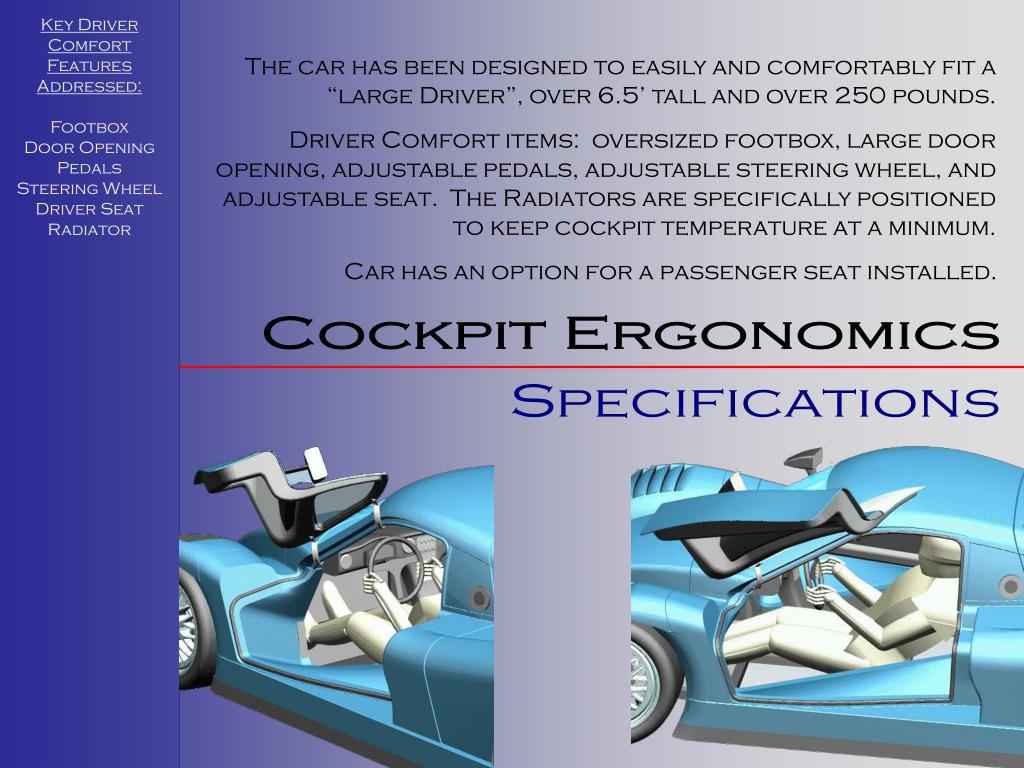

  7. Key Driver Comfort Features Addressed: Footbox Door Opening Pedals Steering Wheel Driver Seat Radiator The car has been designed to easily and comfortably fit a “large Driver”, over 6.5’ tall and over 250 pounds. Driver Comfort items: oversized footbox, large door opening, adjustable pedals, adjustable steering wheel, and adjustable seat. The Radiators are specifically positioned to keep cockpit temperature at a minimum. Car has an option for a passenger seat installed. Cockpit Ergonomics Specifications

  8. Car will be powered by General Motors V8 “crate engine”, capable of producing over 500 hp. There is an optional engine upgrade that increases horsepower output to 600 HP +. Engine / Gearbox Specifications Car utilizes a GA46 “sequential shift” race transmission from EMCO Gears, a leader in the design and manufacture of racing gearboxes.

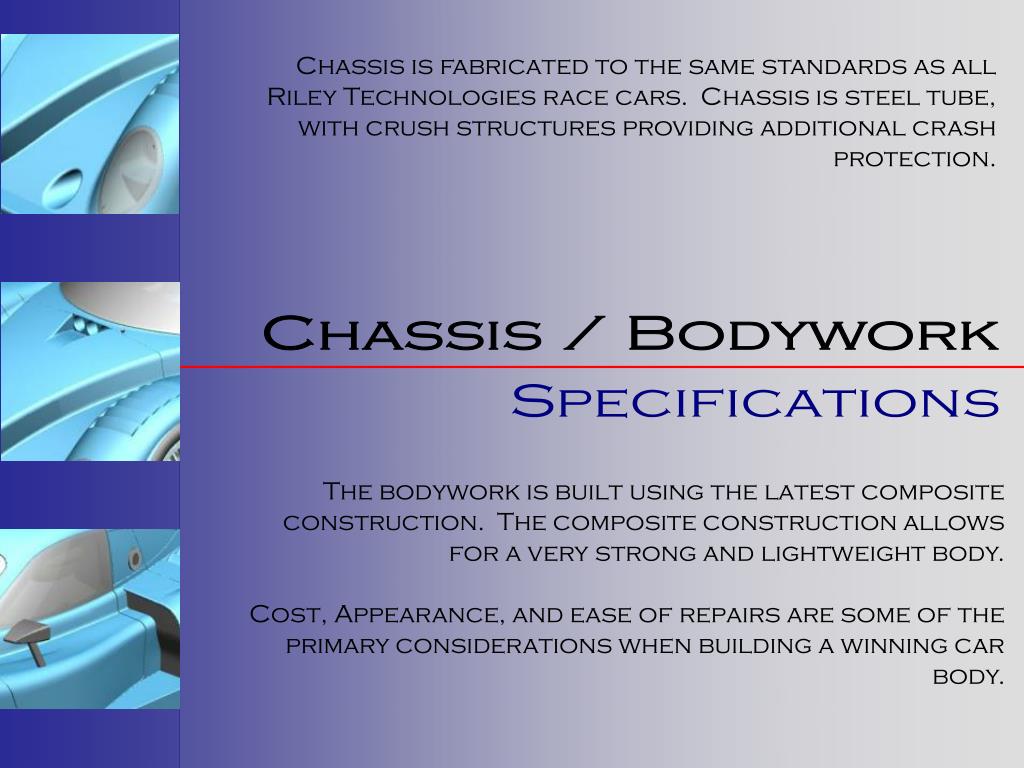

  9. Chassis is fabricated to the same standards as all Riley Technologies race cars. Chassis is steel tube, with crush structures providing additional crash protection. Chassis / Bodywork Specifications The bodywork is built using the latest composite construction. The composite construction allows for a very strong and lightweight body. Cost, Appearance, and ease of repairs are some of the primary considerations when building a winning car body.

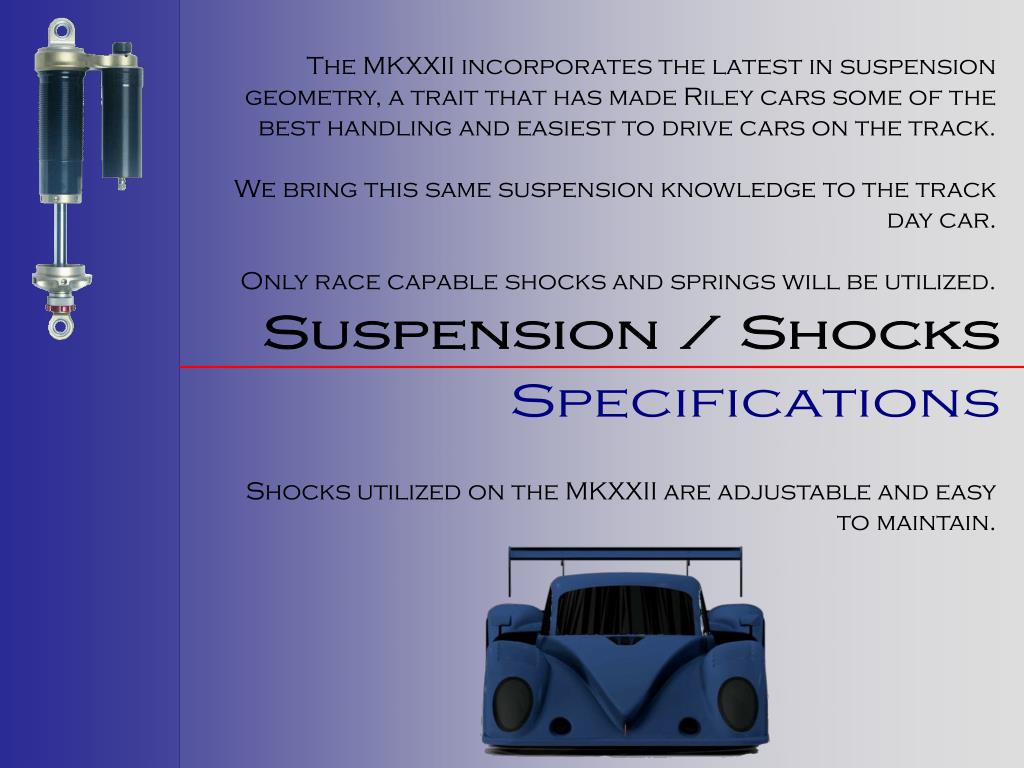

  10. The MKXXII incorporates the latest in suspension geometry, a trait that has made Riley cars some of the best handling and easiest to drive cars on the track. We bring this same suspension knowledge to the track day car. Only race capable shocks and springs will be utilized. Suspension / Shocks Specifications Shocks utilized on the MKXXII are adjustable and easy to maintain.

  11. One of the hallmarks of a successful race car is its ability to get power on the road and its stopping ability. Riley Technologies was able to go to all their technical partners to choose those items that best fit our design parameters. Brakes / Wheels / Tires Specifications Car will be outfitted with Alcon Racing braking components and Fikse Racing wheels. Both will give the driver the confidence to put the power down on the road and the legendary stopping ability of Alcon.

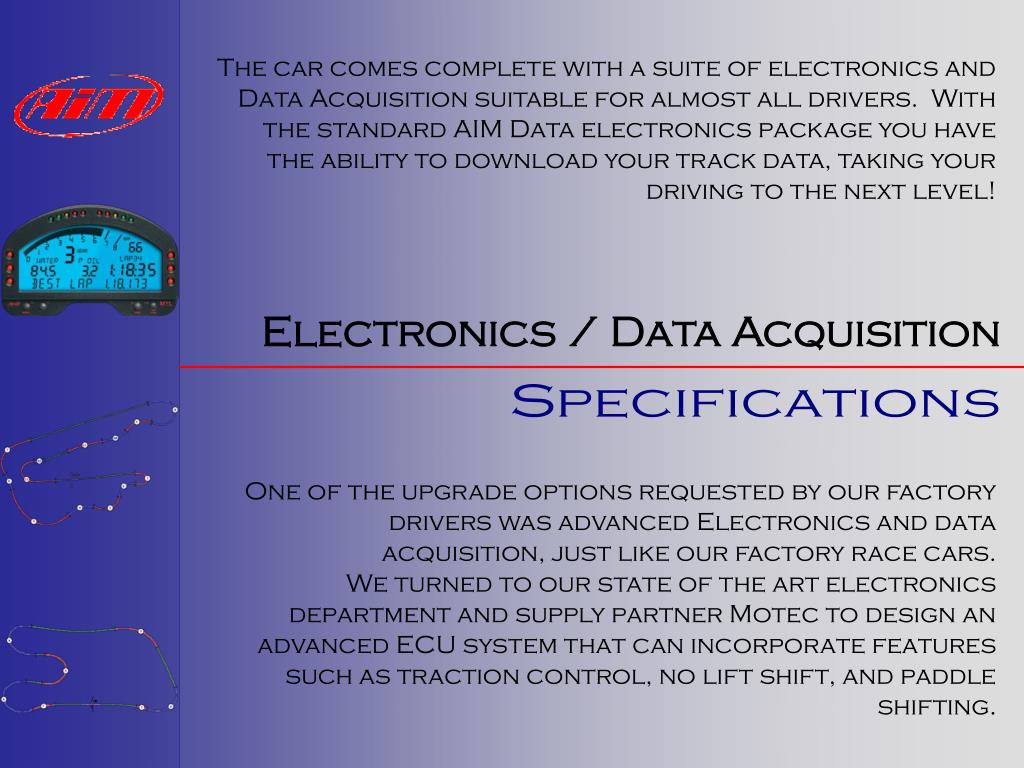

  12. The car comes complete with a suite of electronics and Data Acquisition suitable for almost all drivers. With the standard AIM Data electronics package you have the ability to download your track data, taking your driving to the next level! Electronics / Data Acquisition Specifications One of the upgrade options requested by our factory drivers was advanced Electronics and data acquisition, just like our factory race cars. We turned to our state of the art electronics department and supply partner Motec to design an advanced ECU system that can incorporate features such as traction control, no lift shift, and paddle shifting.

  13. The Stock Riley Track Day Car provides nearly all drivers with perfect combination of speed and safety. For those driver’s that are looking to further enhance their driving experience, we are please to offer the following upgrade packages. “Even with all the standard features in the car some of our factory race drivers have asked that we include additional upgrades for the true racer. We have a full suite of options available to the racer to tailor the car to their specific needs.” Bill Riley, Vice-President Riley Technologies Upgrade Options • Engine Horsepower upgrade from 500 HP to 600HP • Motec ECU with Traction Control • Paddle Shift, For Motec ECU • Fully Air Conditioned Driver Cockpit • FAST Driver Cooling System, Cool shirt & Helmet Cooling • FAST Driver & Passenger Cooling System, Cool shirts & Driver Helmet • Center Lock Hubs and Wheels • Driver Drink System • Spare Body Part Bags • Headlights • Integral Air jack System • DOT Street Wheel & Tires • Passenger seat • Instruction by a Factory Riley Technologies Driver

  14. Riley Technologies is pleased to offer this state of the art car for a starting price of $185,000. There is no other car on the market that for the price can compare with the speed, performance, agility, and ease of Maintenance. Availability / Pricing Chassis 001 & 002 are pre-sold. Riley Technologies is taking order for all other cars. Bill Riley 170 Overhill Dr. Mooresville, NC 28117 704.663.6319 bill.riley@rileytech.com
