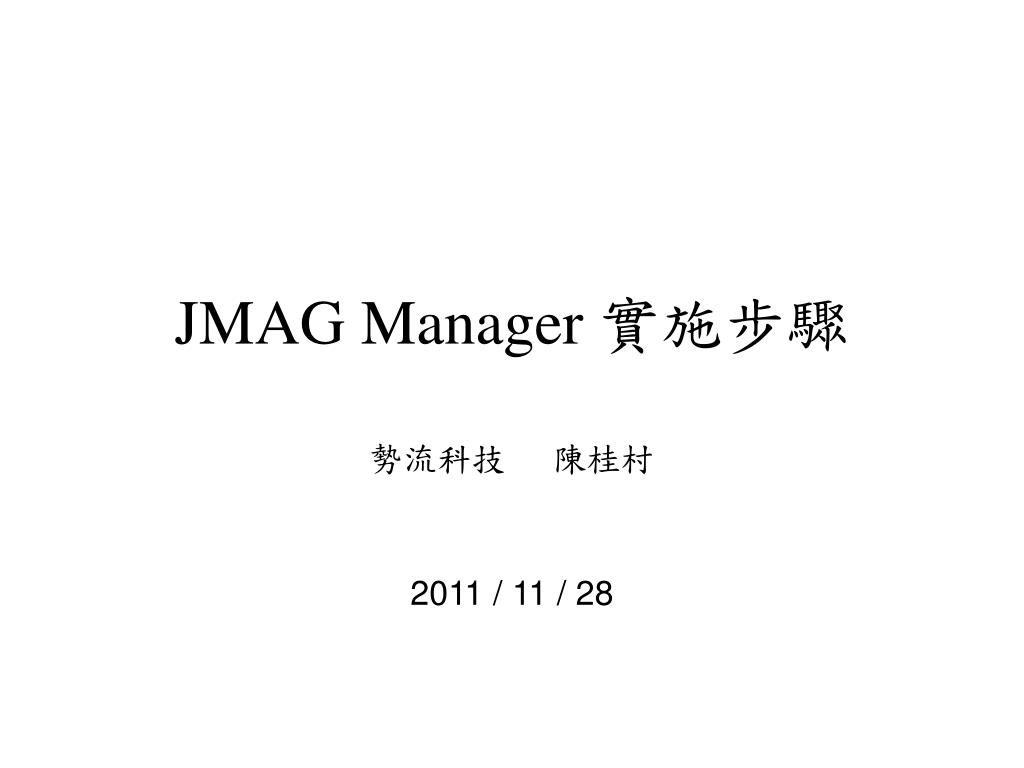

  1. JMAG Manager 實施步驟 勢流科技 陳桂村 2011 / 11 / 28

  2. 開啟 [JMAG Manager] • 開啟 [Direct_b_20.acs] 檔案 • 按 便捷鈕  開啟 [JMAG Manager] 對話框

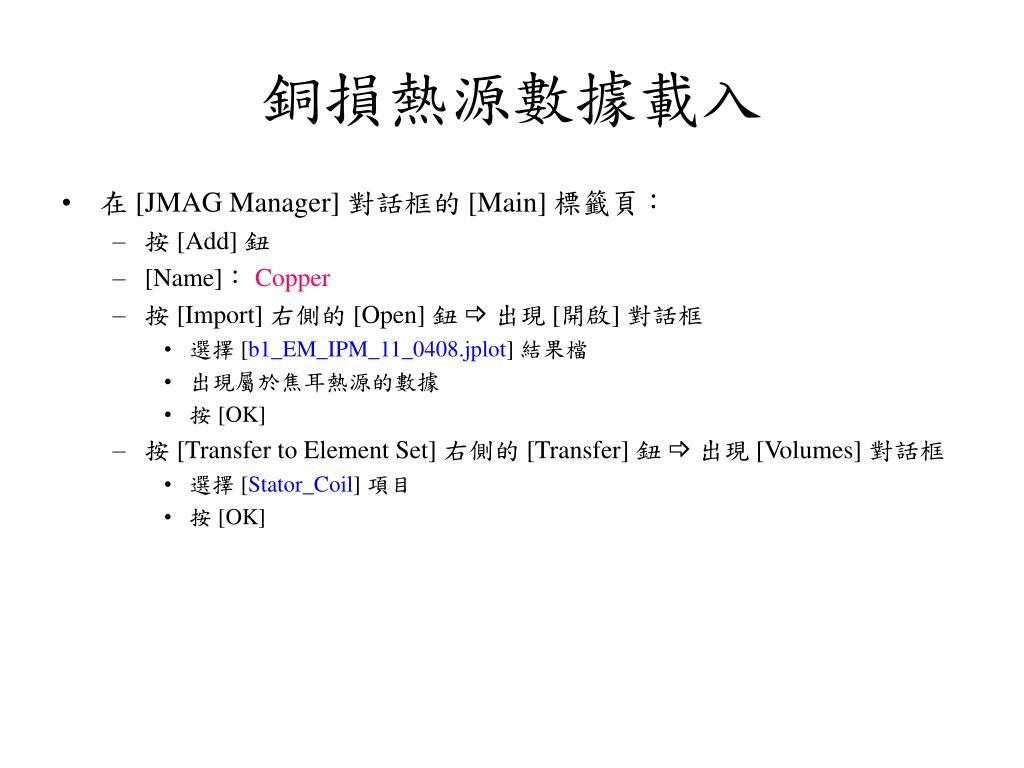

  3. 銅損熱源數據載入 • 在 [JMAG Manager] 對話框的 [Main] 標籤頁： • 按 [Add] 鈕 • [Name]： Copper • 按 [Import] 右側的 [Open] 鈕  出現 [開啟] 對話框 • 選擇 [b1_EM_IPM_11_0408.jplot] 結果檔 • 出現屬於焦耳熱源的數據 • 按 [OK] • 按 [Transfer to Element Set] 右側的 [Transfer] 鈕  出現 [Volumes] 對話框 • 選擇 [Stator_Coil] 項目 • 按 [OK]

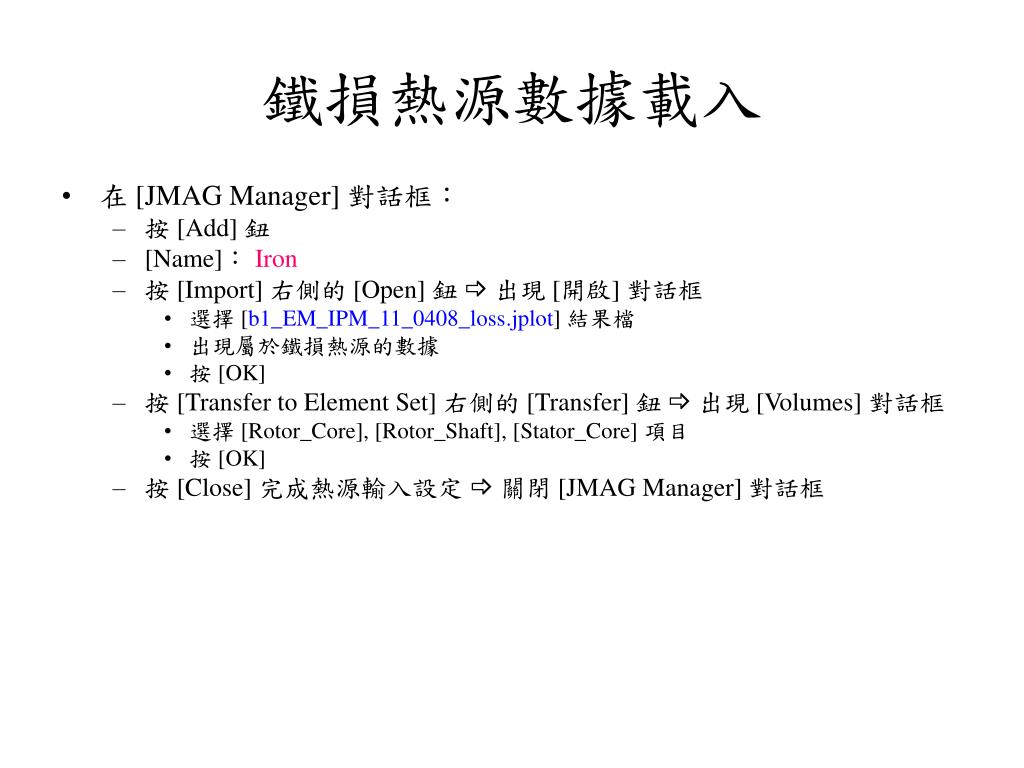

  4. 鐵損熱源數據載入 • 在 [JMAG Manager] 對話框： • 按 [Add] 鈕 • [Name]： Iron • 按 [Import] 右側的 [Open] 鈕  出現 [開啟] 對話框 • 選擇 [b1_EM_IPM_11_0408_loss.jplot] 結果檔 • 出現屬於鐵損熱源的數據 • 按 [OK] • 按 [Transfer to Element Set] 右側的 [Transfer] 鈕  出現 [Volumes] 對話框 • 選擇 [Rotor_Core], [Rotor_Shaft], [Stator_Core] 項目 • 按 [OK] • 按 [Close] 完成熱源輸入設定  關閉 [JMAG Manager] 對話框
