Pneumatic Actuated Trunnion Mounted Ball Valve

Yongjia South Trading Co.,Ltd is joint venture company of Zhejiang Chaolian Valve Co.,Ltd(http://www.sl-v.cn) which was established in 2016 with the target to prompt industry stainers and all type of valves business worldwide easily and effectively.

nlvalve
Télécharger la présentation

Pneumatic Actuated Trunnion Mounted Ball Valve

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Pneumatic Actuated Trunnion Mounted Ball Valve www.n-lvalve.com

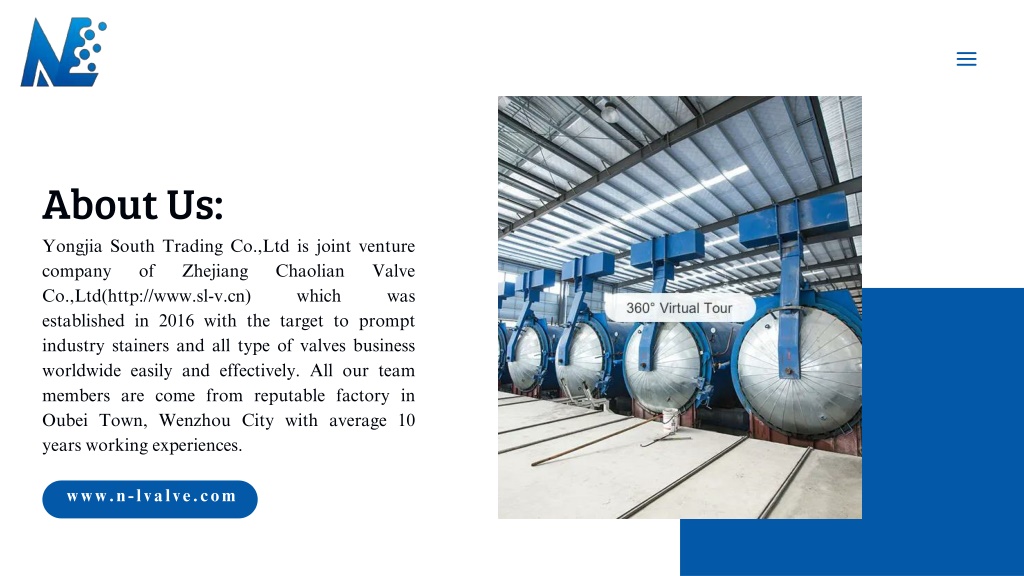

  2. About Us: Yongjia South Trading Co.,Ltd is joint venture company of Zhejiang Chaolian Valve Co.,Ltd(http://www.sl-v.cn) which was established in 2016 with the target to prompt industry stainers and all type of valves business worldwide easily and effectively. All our team members are come from reputable factory in Oubei Town, Wenzhou City with average 10 years working experiences. www.n-lvalve.com

  3. Pneumatic Actuated Trunnion Mounted Ball Valve Pneumatic actuated trunnion mounted ball are 2 pieces construction type, split body, side entry, in bolted execution, self relieving spring energized seats and suitable for double block and bleed performance. Valve seats abaiable inlubricated or non lubricated execution with differnet solutions of sealing and fire safe back up gaskets(soft and metal seated). The stem of trunnion mounted Ball Valve is blowout proof and provided with emergency sealant injectors to aboid leakage in case of sealing interruption. Trunnion Ball Valve can be complete with lifting lugs and ground feet to facilitate transportation and in line installation. www.n-lvalve.com

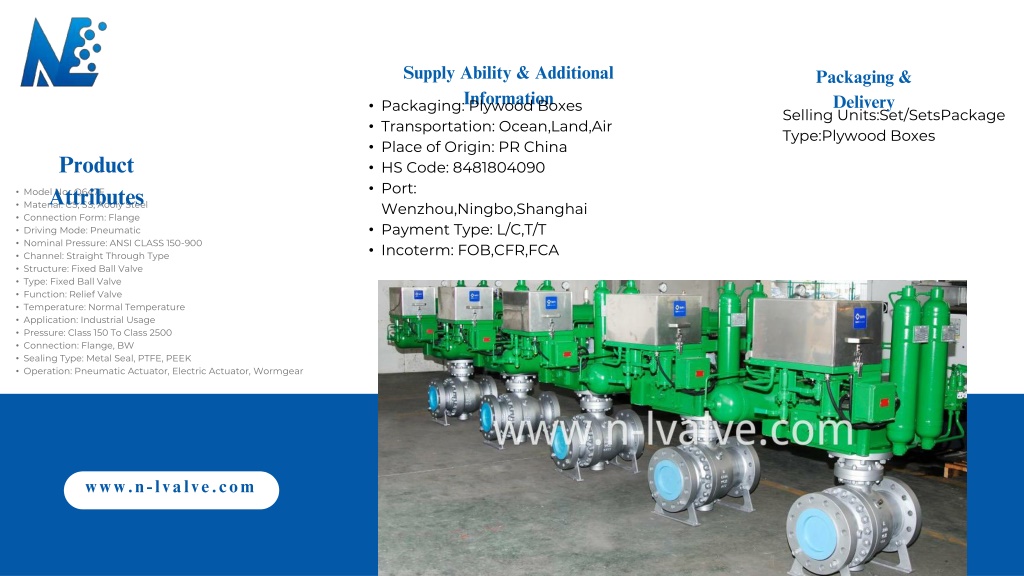

  4. Supply Ability & Additional Information Packaging & Delivery • Packaging: Plywood Boxes • Transportation: Ocean,Land,Air • Place of Origin: PR China • HS Code: 8481804090 • Port: Wenzhou,Ningbo,Shanghai • Payment Type: L/C,T/T • Incoterm: FOB,CFR,FCA Selling Units:Set/SetsPackage Type:Plywood Boxes Product Attributes • Model No.: Q647F • Material: CS, SS, Aooly Steel • Connection Form: Flange • Driving Mode: Pneumatic • Nominal Pressure: ANSI CLASS 150-900 • Channel: Straight Through Type • Structure: Fixed Ball Valve • Type: Fixed Ball Valve • Function: Relief Valve • Temperature: Normal Temperature • Application: Industrial Usage • Pressure: Class 150 To Class 2500 • Connection: Flange, BW • Sealing Type: Metal Seal, PTFE, PEEK • Operation: Pneumatic Actuator, Electric Actuator, Wormgear www.n-lvalve.com

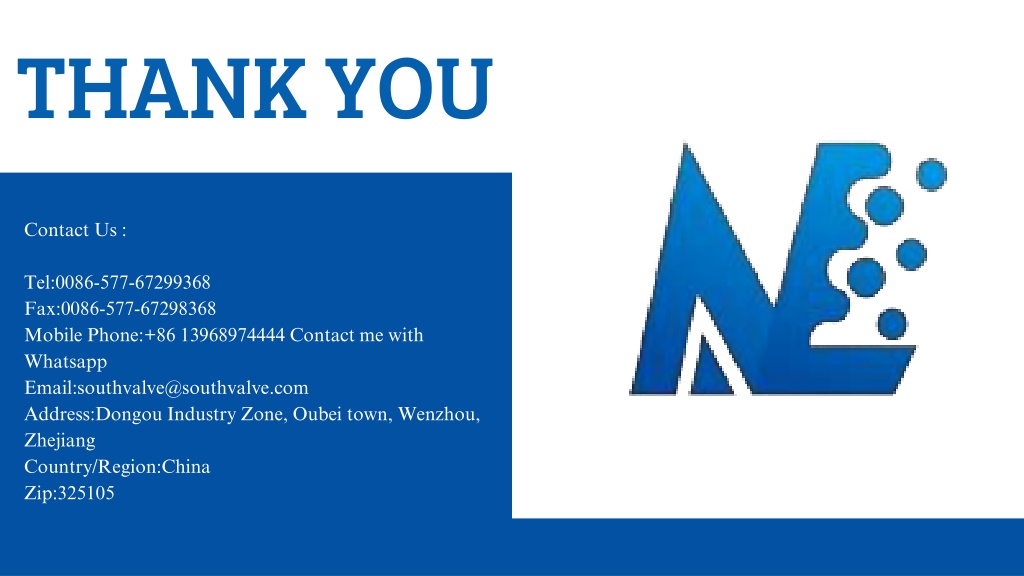

  5. THANK YOU Contact Us : Tel:0086-577-67299368 Fax:0086-577-67298368 Mobile Phone:+86 13968974444 Contact me with Whatsapp Email:southvalve@southvalve.com Address:Dongou Industry Zone, Oubei town, Wenzhou, Zhejiang Country/Region:China Zip:325105
