Detection of NASH in Obese Patients via Contrast-Enhanced US

Initial experience using CEUS-TIS to differentiate between simple steatosis and NASH in obese patients undergoing bariatric surgery. Clinical data, blood tests, and imaging techniques were compared to liver biopsy results for diagnostic accuracy.

noe
Télécharger la présentation

Detection of NASH in Obese Patients via Contrast-Enhanced US

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

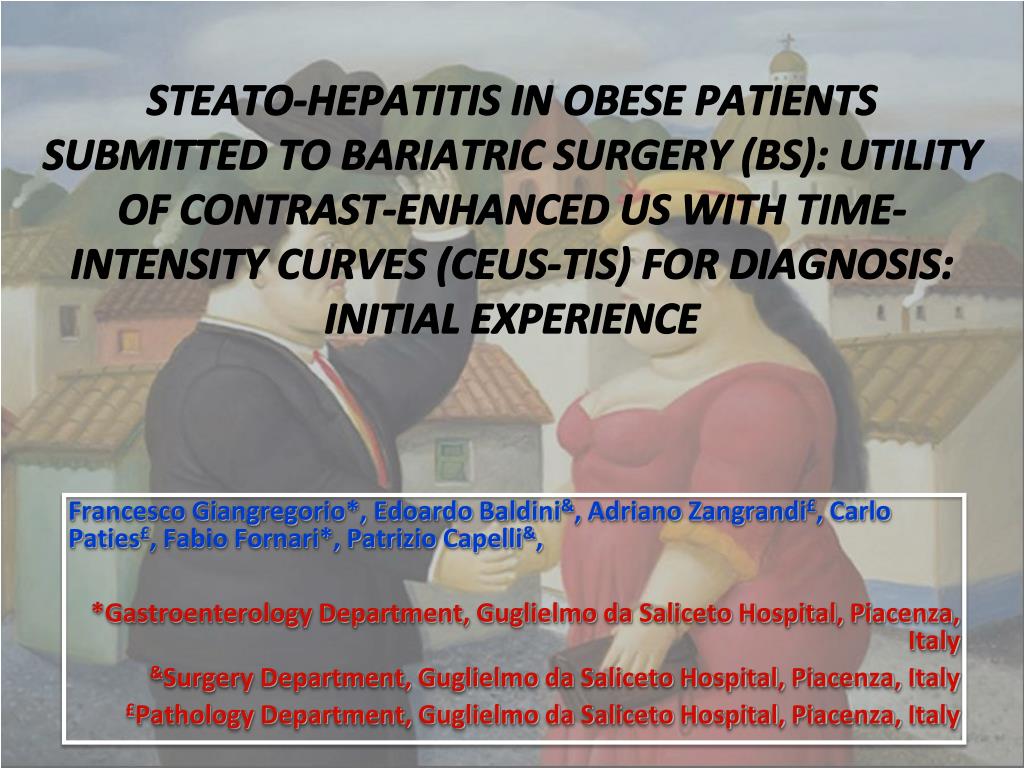

  1. STEATO-HEPATITIS IN OBESE PATIENTS SUBMITTED TO BARIATRIC SURGERY (BS): UTILITY OF CONTRAST-ENHANCED US WITH TIME-INTENSITY CURVES (CEUS-TIS) FOR DIAGNOSIS: INITIAL EXPERIENCE • Francesco Giangregorio*, Edoardo Baldini&, Adriano Zangrandi£, Carlo Paties£, Fabio Fornari*, Patrizio Capelli&, • *Gastroenterology Department, Guglielmo da Saliceto Hospital, Piacenza, Italy • &Surgery Department, Guglielmo da Saliceto Hospital, Piacenza, Italy • £Pathology Department, Guglielmo da Saliceto Hospital, Piacenza, Italy

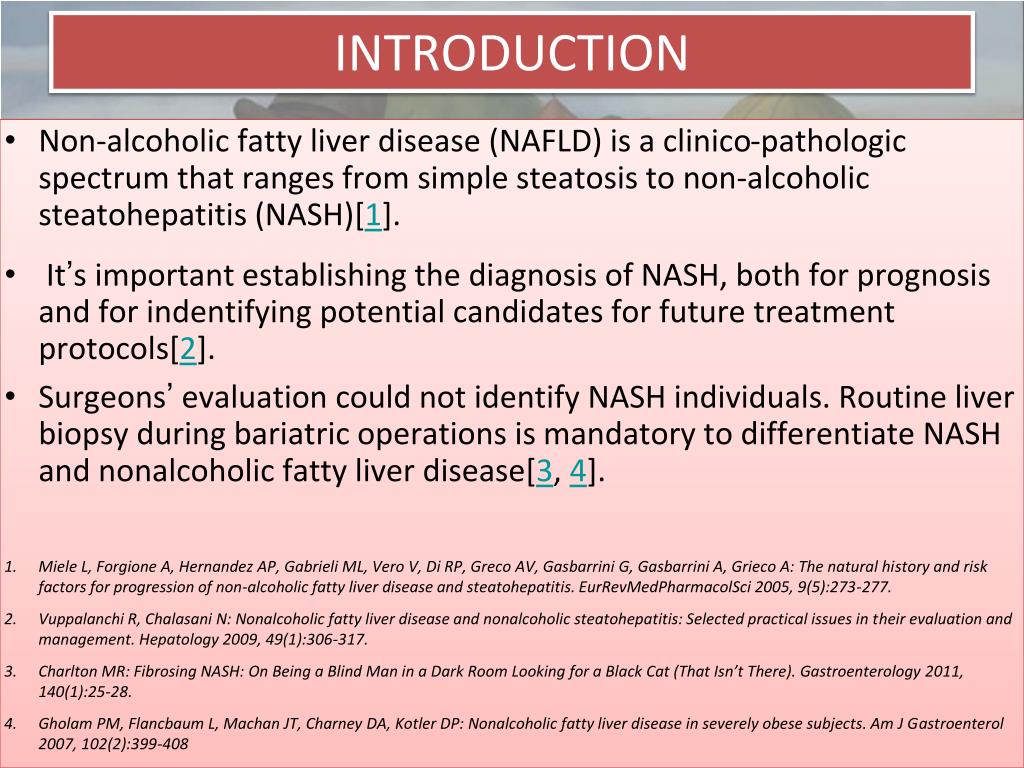

  2. INTRODUCTION • Non-alcoholic fatty liver disease (NAFLD) is a clinico-pathologic spectrum that ranges from simple steatosis to non-alcoholic steatohepatitis (NASH)[1]. • It’s important establishing the diagnosis of NASH, both for prognosis and for indentifying potential candidates for future treatment protocols[2]. • Surgeons’ evaluation could not identify NASH individuals. Routine liver biopsy during bariatric operations is mandatory to differentiate NASH and nonalcoholic fatty liver disease[3, 4]. • Miele L, Forgione A, Hernandez AP, Gabrieli ML, Vero V, Di RP, Greco AV, Gasbarrini G, Gasbarrini A, Grieco A: The natural history and risk factors for progression of non-alcoholic fatty liver disease and steatohepatitis. EurRevMedPharmacolSci 2005, 9(5):273-277. • Vuppalanchi R, Chalasani N: Nonalcoholic fatty liver disease and nonalcoholic steatohepatitis: Selected practical issues in their evaluation and management. Hepatology 2009, 49(1):306-317. • Charlton MR: Fibrosing NASH: On Being a Blind Man in a Dark Room Looking for a Black Cat (That Isn’t There). Gastroenterology 2011, 140(1):25-28. • Gholam PM, Flancbaum L, Machan JT, Charney DA, Kotler DP: Nonalcoholic fatty liver disease in severely obese subjects. Am J Gastroenterol 2007, 102(2):399-408

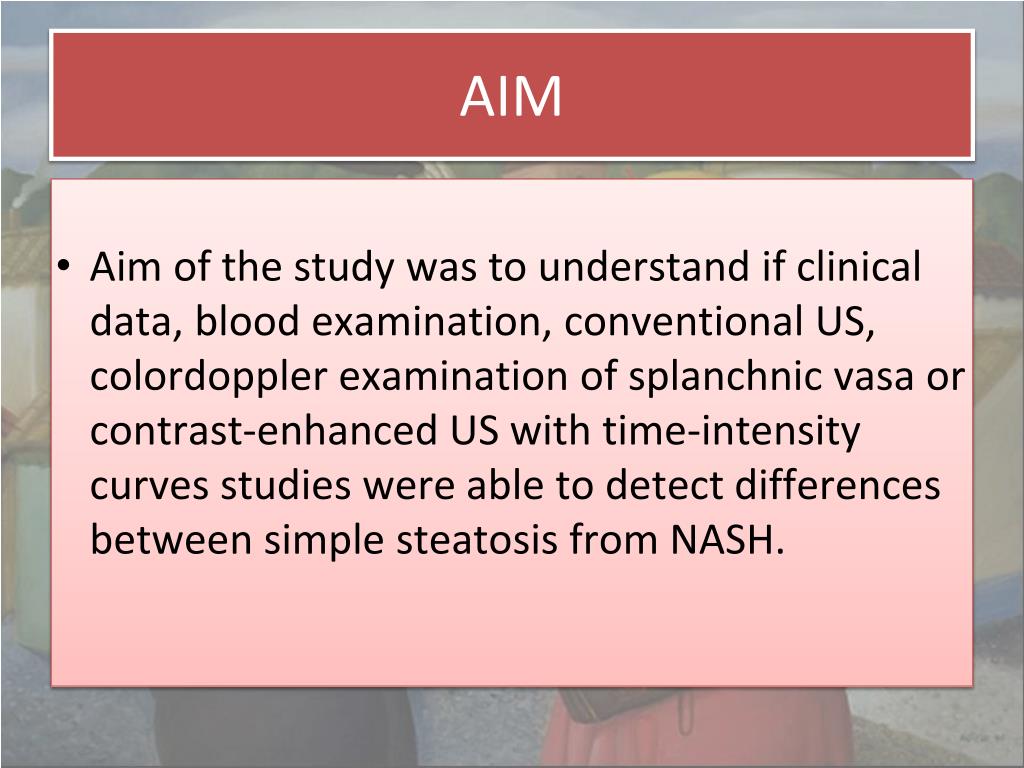

  3. AIM • Aim of the study was to understand if clinical data, blood examination, conventional US, colordoppler examination of splanchnic vasa or contrast-enhanced US with time-intensity curves studies were able to detect differences between simple steatosis from NASH.

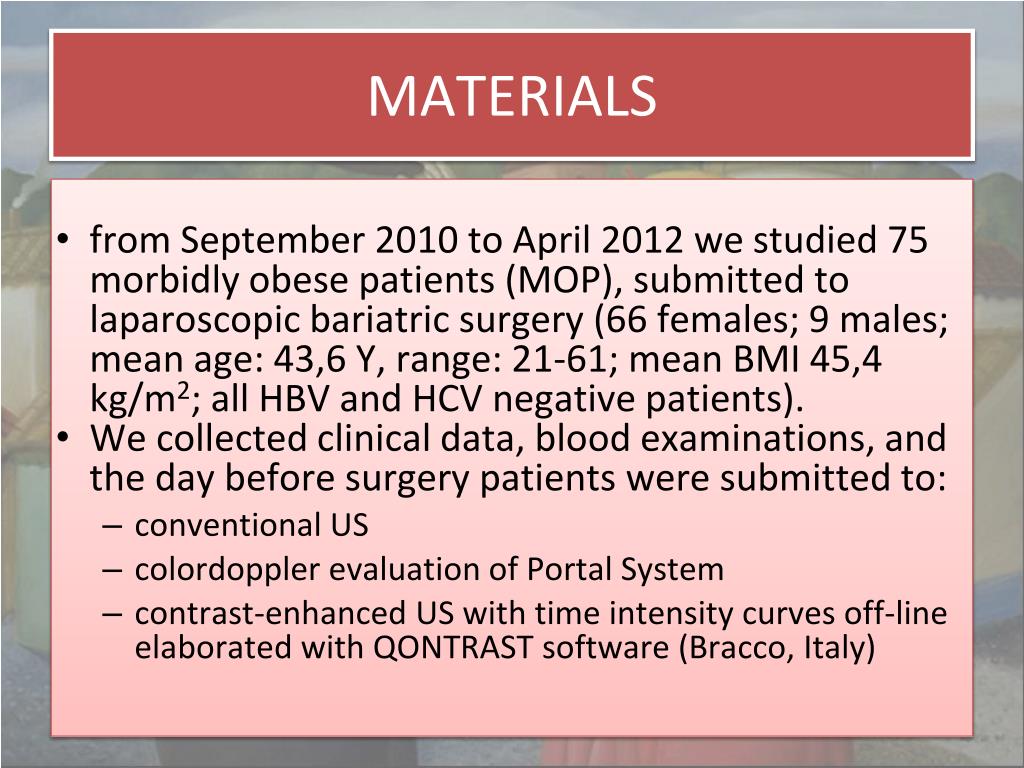

  4. MATERIALS • from September 2010 to April 2012 we studied 75 morbidly obese patients (MOP), submitted to laparoscopic bariatric surgery (66 females; 9 males; mean age: 43,6 Y, range: 21-61; mean BMI 45,4 kg/m2; all HBV and HCV negative patients). • We collected clinical data, blood examinations, and the day before surgery patients were submitted to: • conventional US • colordoppler evaluation of Portal System • contrast-enhanced US with time intensity curves off-line elaborated with QONTRAST software (Bracco, Italy)

  5. MATERIALS Clinical data: hepatomegaly Biochemical data: SGOT, SGPT, cholesterol, triglycerides, TSH

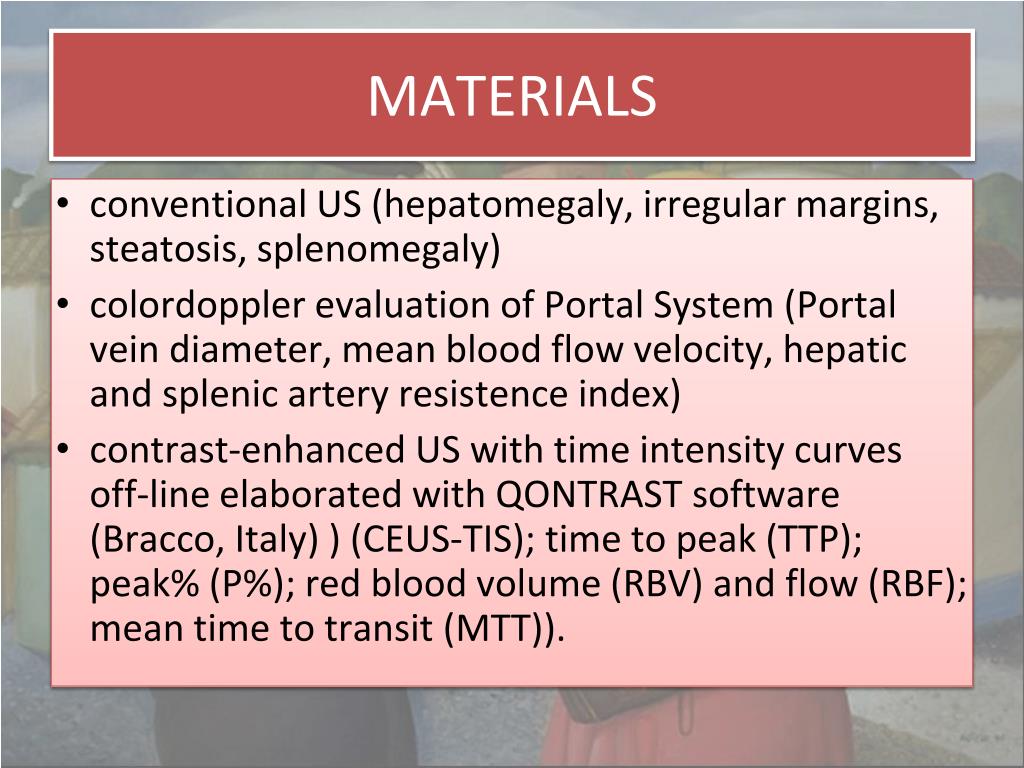

  6. MATERIALS • conventional US (hepatomegaly, irregular margins, steatosis, splenomegaly) • colordoppler evaluation of Portal System (Portal vein diameter, mean blood flow velocity, hepatic and splenic artery resistence index) • contrast-enhanced US with time intensity curves off-line elaborated with QONTRAST software (Bracco, Italy) ) (CEUS-TIS); time to peak (TTP); peak% (P%); red blood volume (RBV) and flow (RBF); mean time to transit (MTT)).

  7. 7

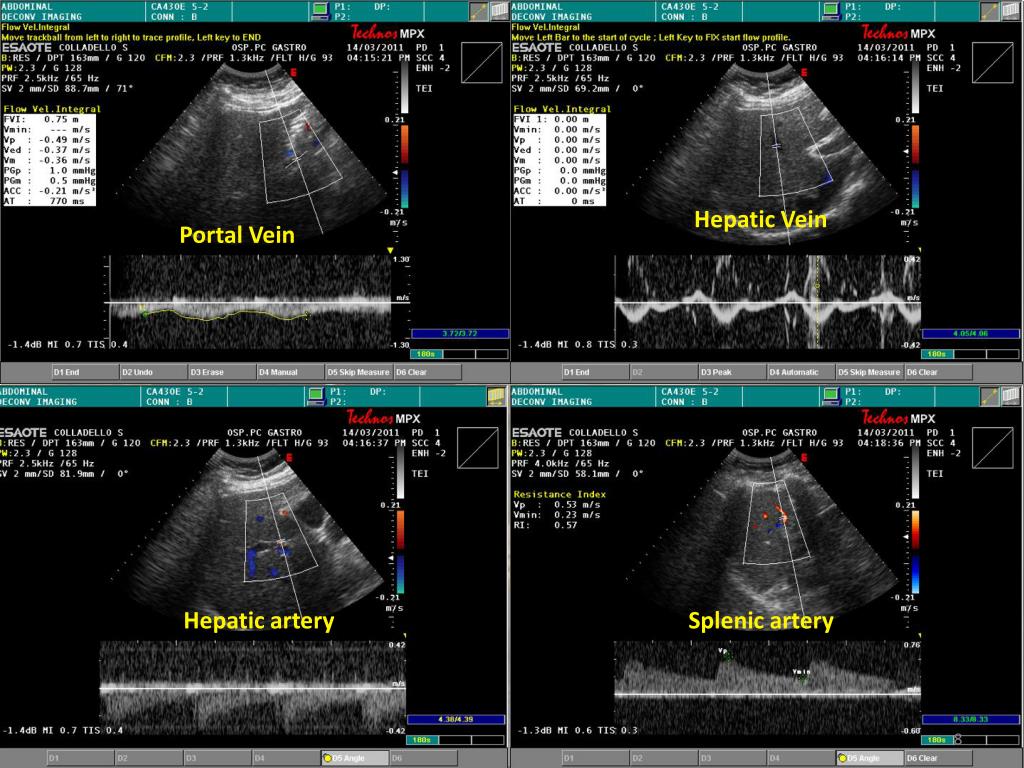

  8. Hepatic Vein Portal Vein Hepatic artery Splenic artery 8

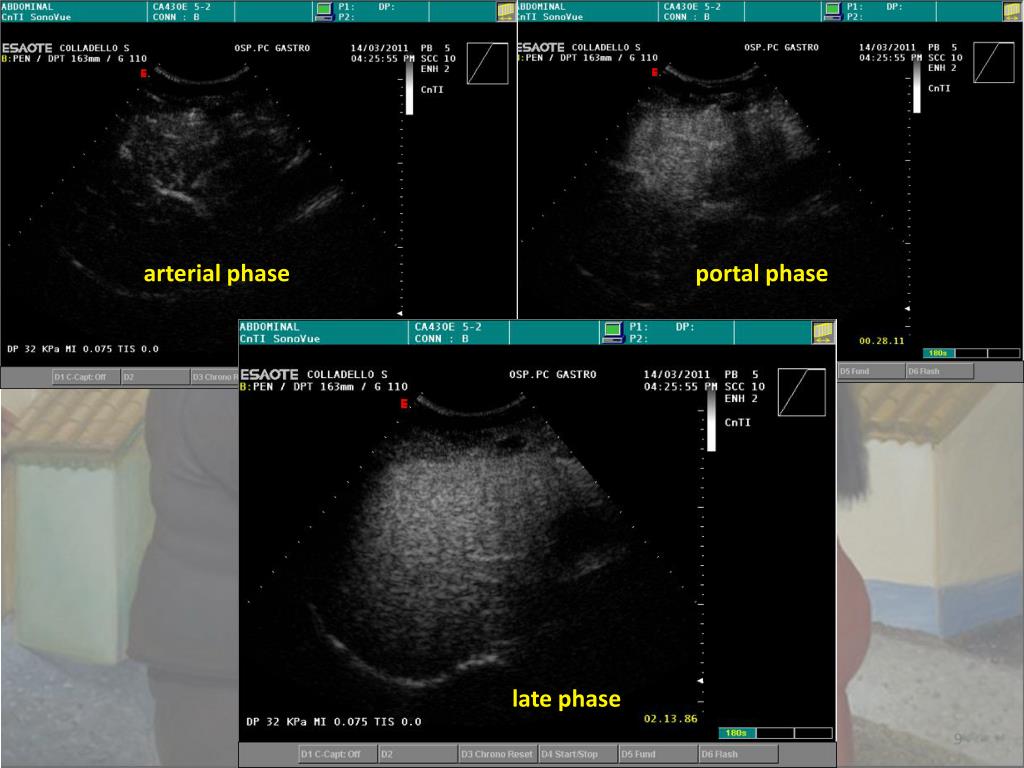

  9. arterial phase portal phase late phase

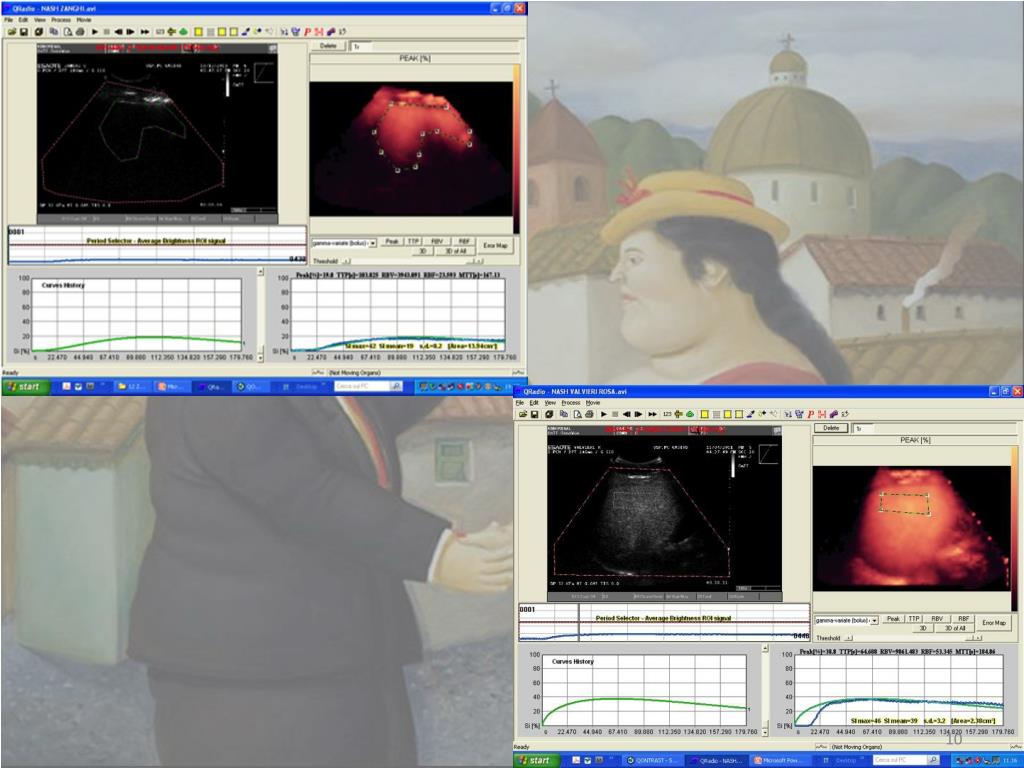

  10. 10

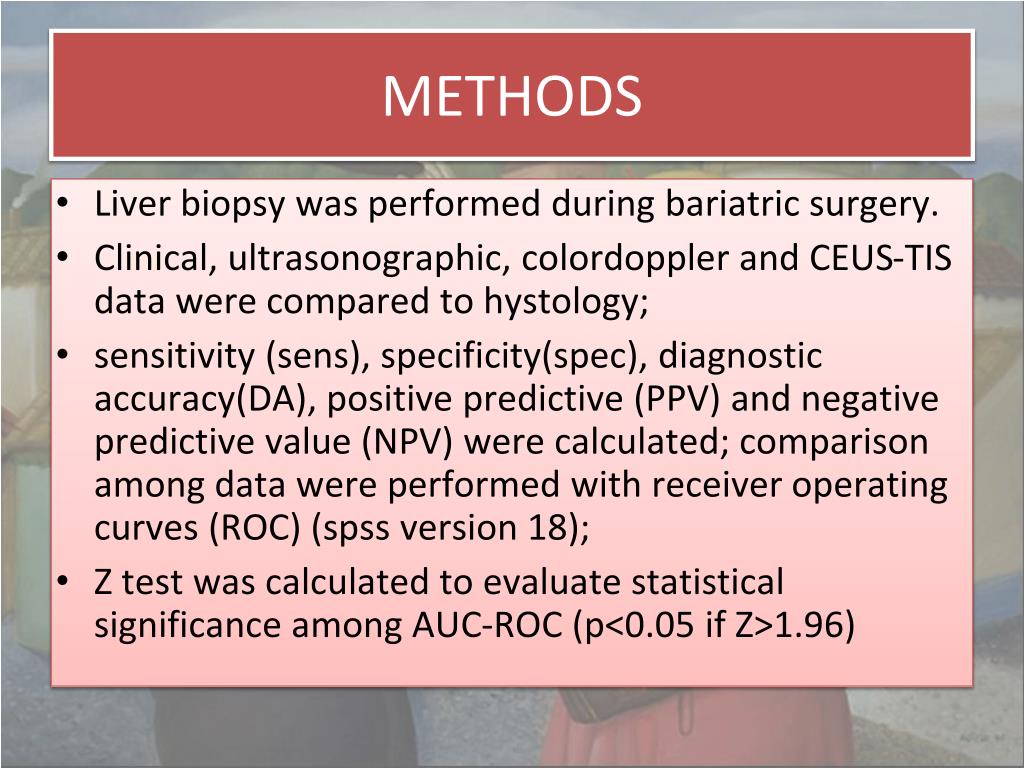

  11. METHODS • Liver biopsy was performed during bariatric surgery. • Clinical, ultrasonographic, colordoppler and CEUS-TIS data were compared to hystology; • sensitivity (sens), specificity(spec), diagnostic accuracy(DA), positive predictive (PPV) and negative predictive value (NPV) were calculated; comparison among data were performed with receiver operating curves (ROC) (spss version 18); • Z test was calculated to evaluate statistical significance among AUC-ROC (p<0.05 if Z>1.96)

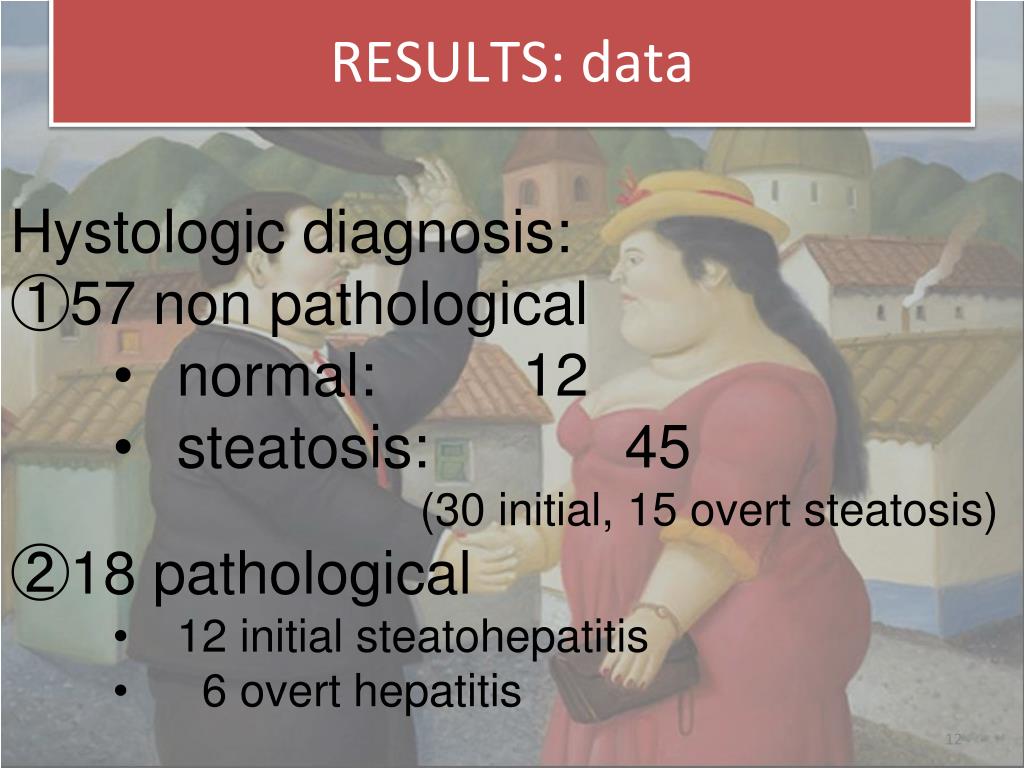

  12. RESULTS: data • Hystologic diagnosis: • 57 non pathological • normal: 12 • steatosis: 45 • (30 initial, 15 overt steatosis) • 18 pathological • 12 initial steatohepatitis • 6 overt hepatitis 12

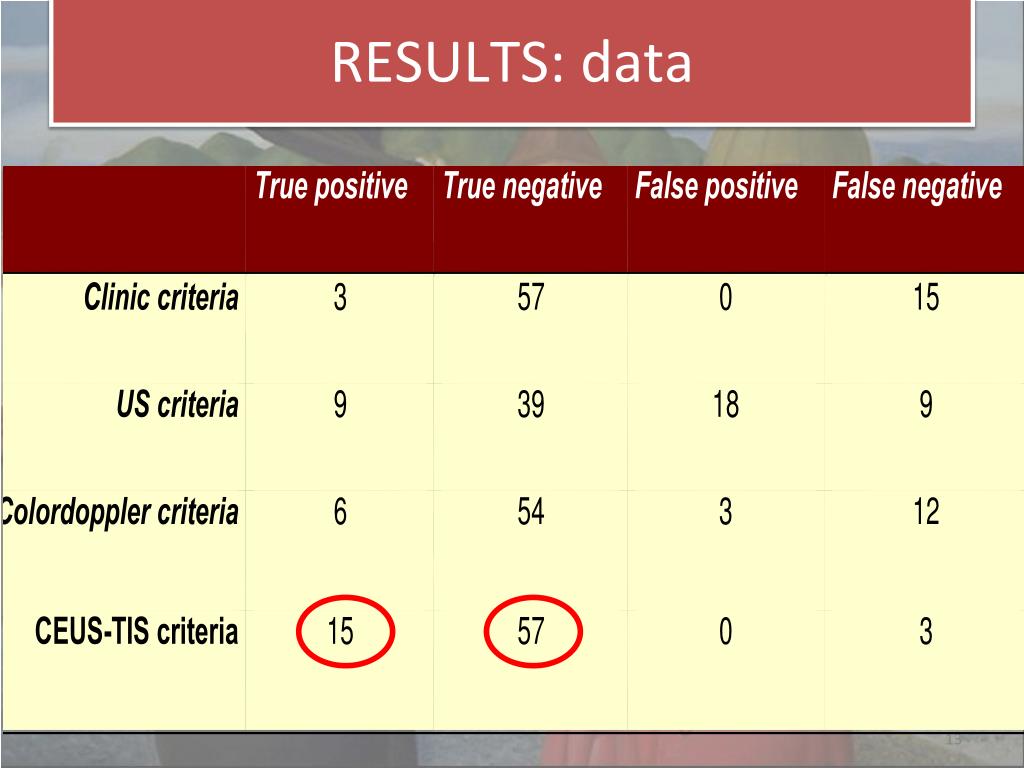

  13. RESULTS: data 13

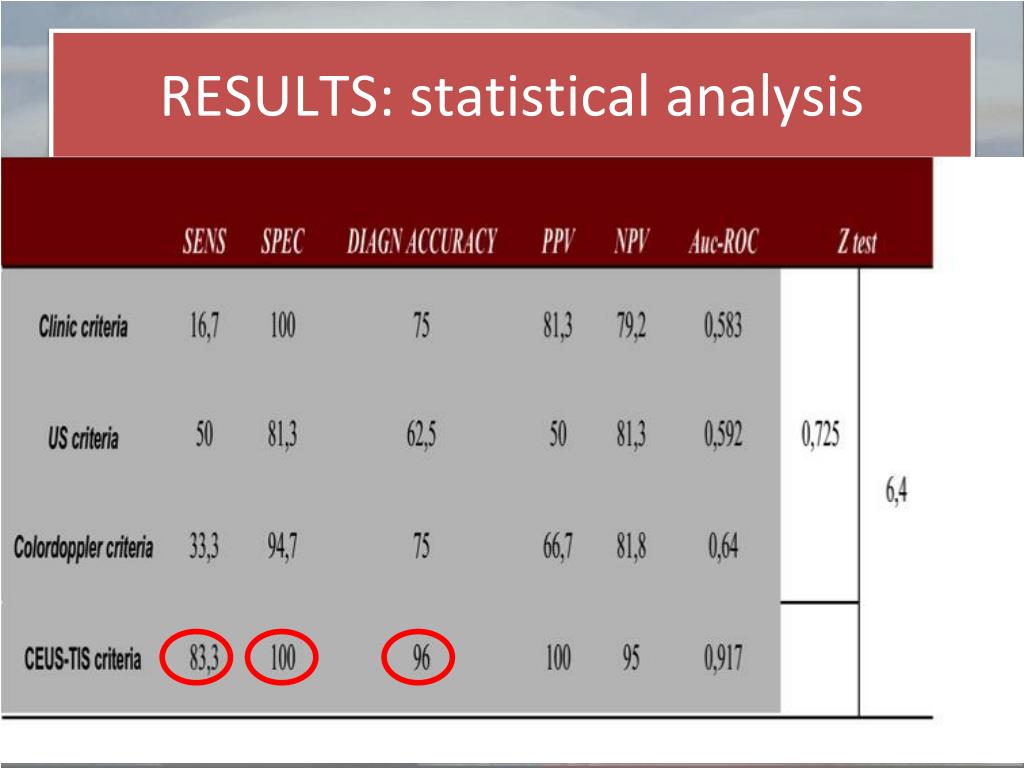

  14. RESULTS: statistical analysis

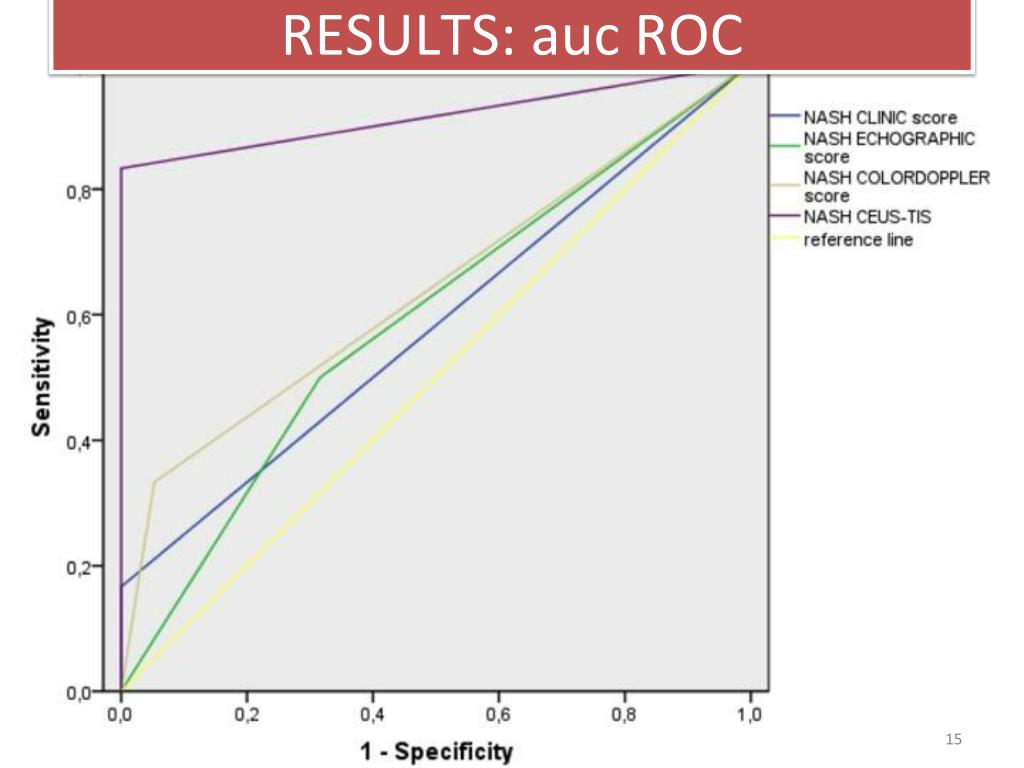

  15. RESULTS: auc ROC 15

  16. SUMMARY • Clinical and ultrasonographic criteria are not useful for discriminating simple steatosis from steato-hepatitis in obese patients. • Only CEUS –TIS may help to establishing the diagnosis of NASH in a non-invasive way

  17. Grazie dell’attenzione!!! e.baldini@ausl.pc.it
