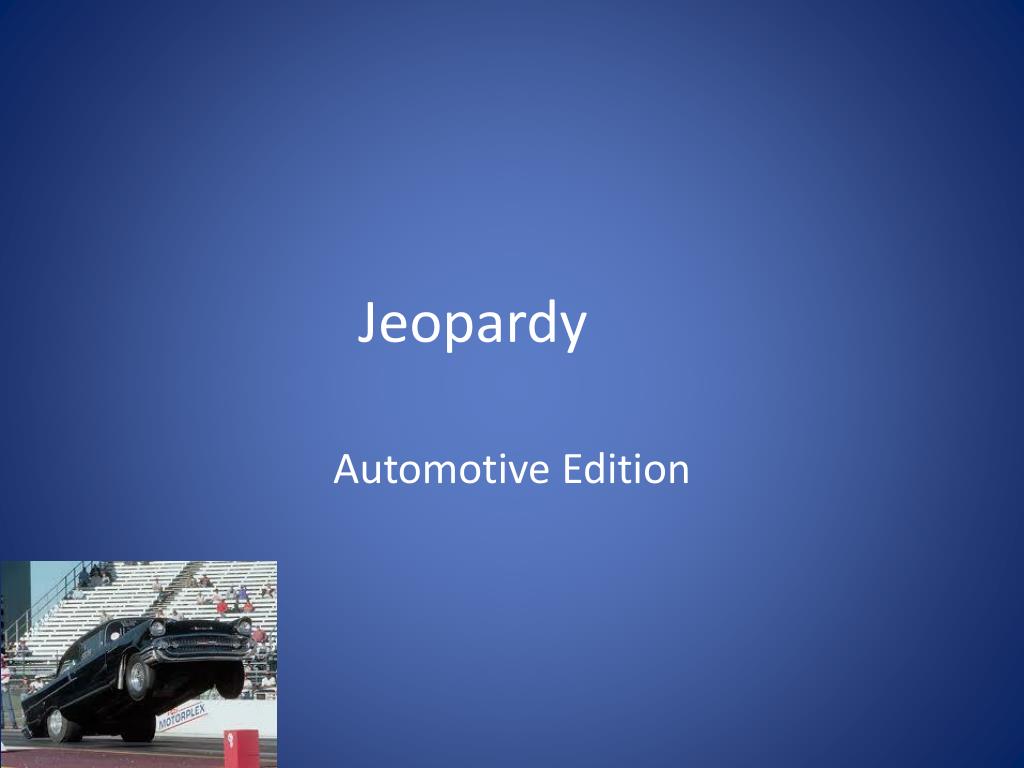

  1. Jeopardy Automotive Edition

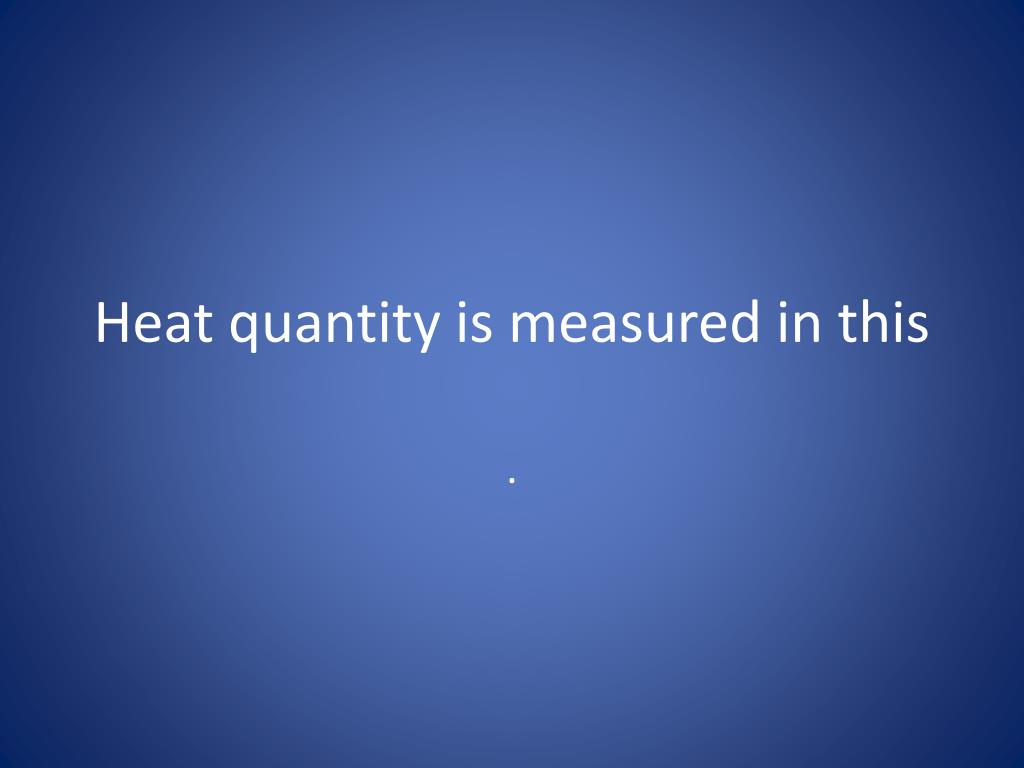

  2. Heat quantity is measured in this .

  3. British thermal unit (BTU) .

  4. The refrigerant changes from a vapor to a liquid in this component .

  5. Condenser .

  6. The storage tank for R-134A is this color .

  7. Blue/light blue .

  8. This valve opens and closes to meter a small amount of refrigerant into the evaporator .

  9. Thermostatic expansion valve (TXV)

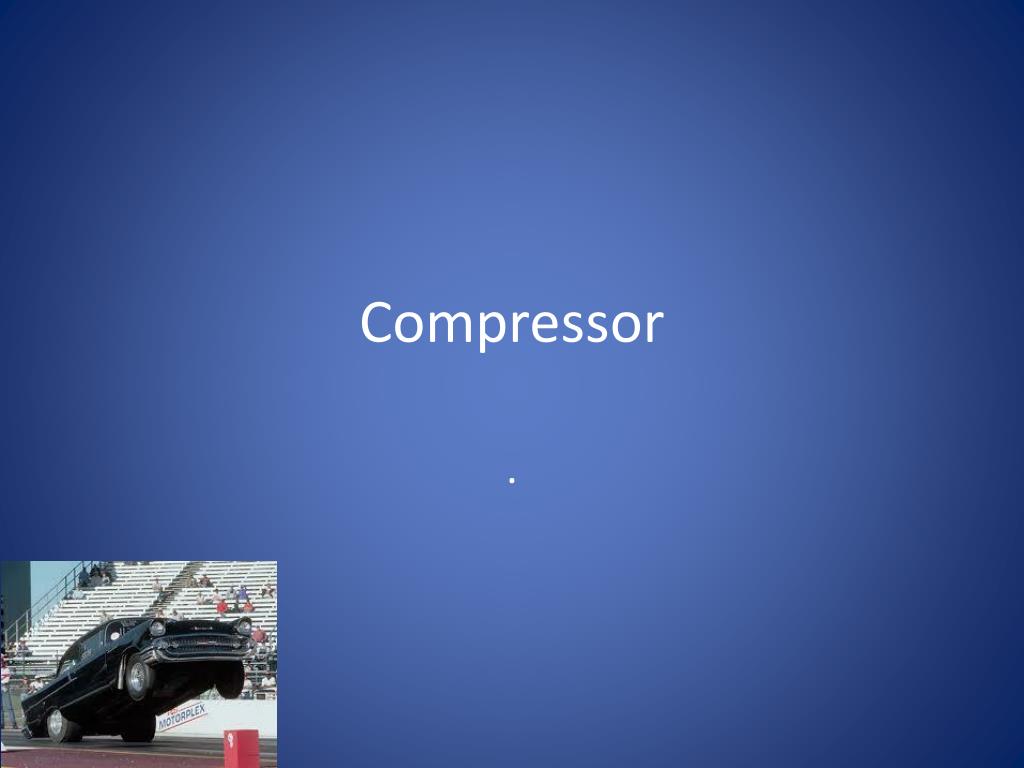

  10. The refrigerant enters this component as a low pressure vapor and exits as a high pressure vapor .

  11. Compressor .

  12. This agency was created in 1971 to deal with hazards in the workplace .

  13. OSHA .

  14. A pneumatic tool is powered by what .

  15. Compressed air .

  16. The majority of injuries in an automotive shop are caused by what .

  17. Slips/falls .

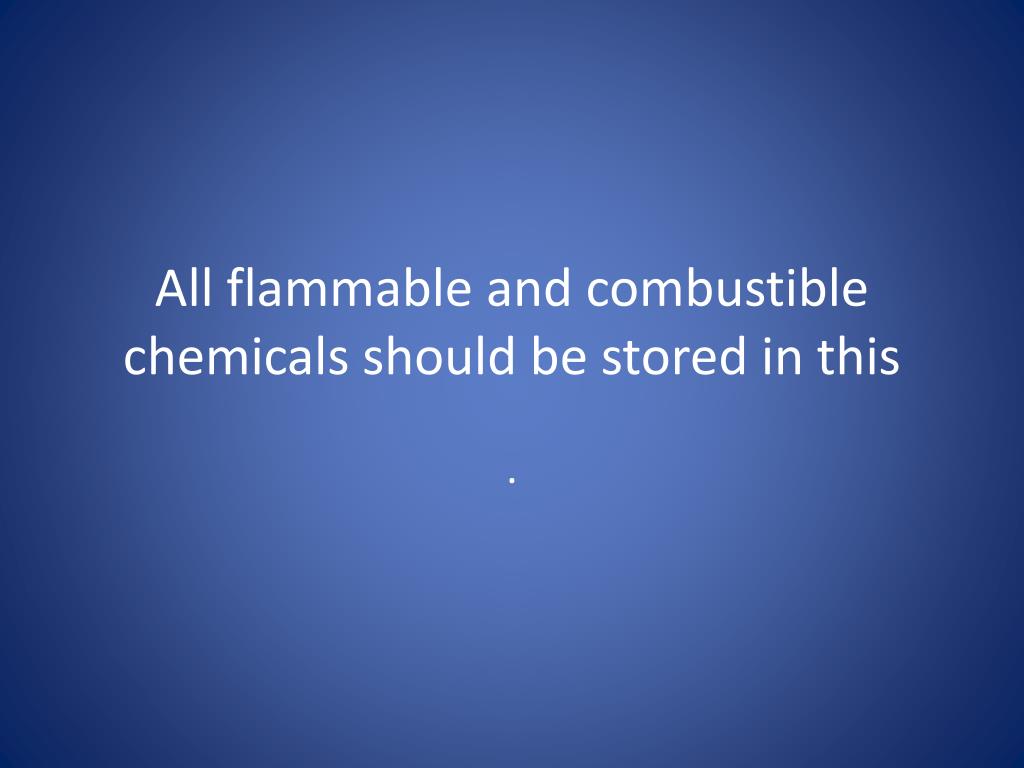

  18. All flammable and combustible chemicals should be stored in this .

  19. Fire resistant cabinet .

  20. Shops must be properly ventilated because exhaust gas contains this poisonous material .

  21. Carbon monoxide .

  22. This is a 50/50 mixture of water and anti-freeze .

  23. Coolant .

  24. These components are designed to move air through the radiator .

  25. Cooling fans .

  26. This component is the primary heat transfer device for the engine

  27. radiator .

  28. This part controls the flow of coolant between the engine and radiator

  29. thermostat .

  30. This part maintains a specified pressure in the cooling system .

  31. Pressure/radiator cap .

  32. This design engine has 4 cylinders side by side .

  33. Inline 4 .

  34. This person in the shop is responsible for the day to day operations of the shop .

  35. Service manager .

  36. This is what is used to document customer/vehicle information .

  37. Work/repair order .

  38. This is what is used to check the oil level of the engine .

  39. Dipstick .

  40. Daily Double .

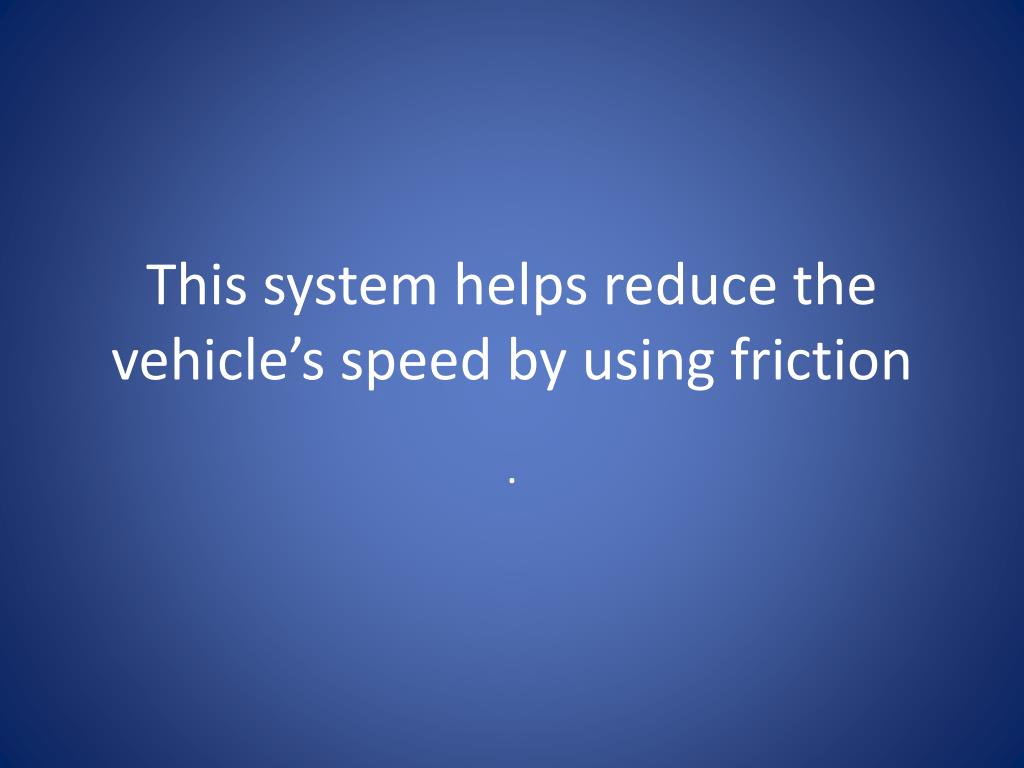

  41. This system helps reduce the vehicle’s speed by using friction .

  42. Braking system .

  43. This type of system has one injector per bank of cylinders .

  44. Throttle body injection (TBI) .

  45. This type of MFI system pulses the injectors in separate sets .

  46. Banked multiport fuel injection .

  47. This test evaluates the injector’s ability to deliver a uniform amount of fuel .

  48. Injector balance test .

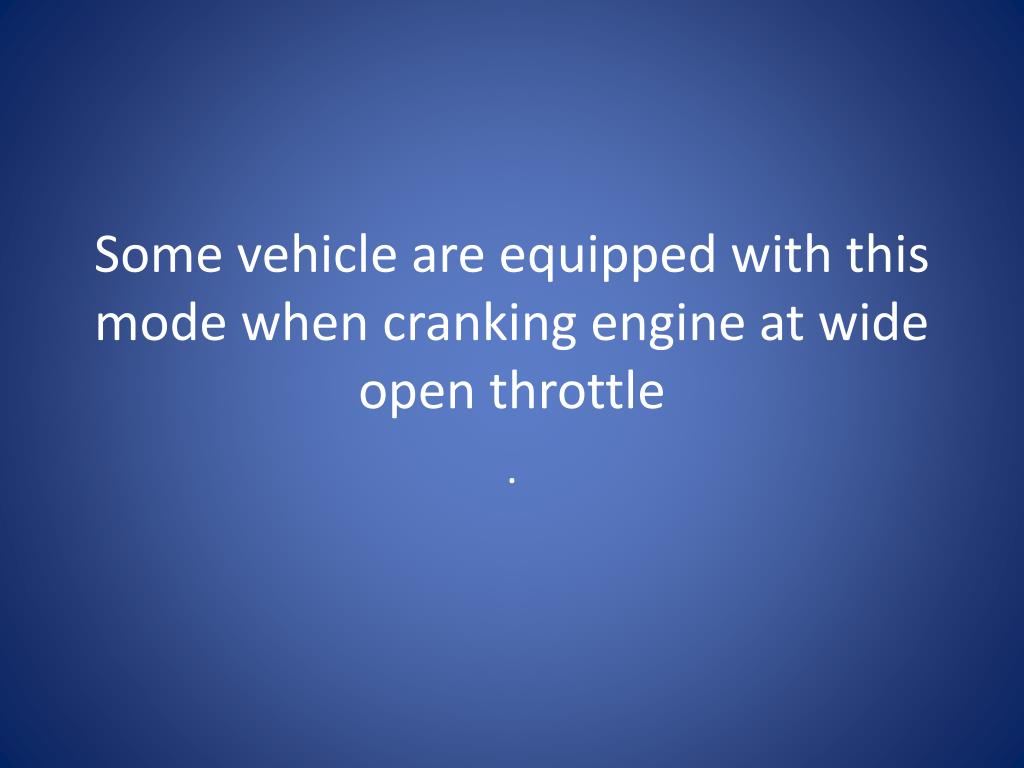

  49. Some vehicle are equipped with this mode when cranking engine at wide open throttle .
