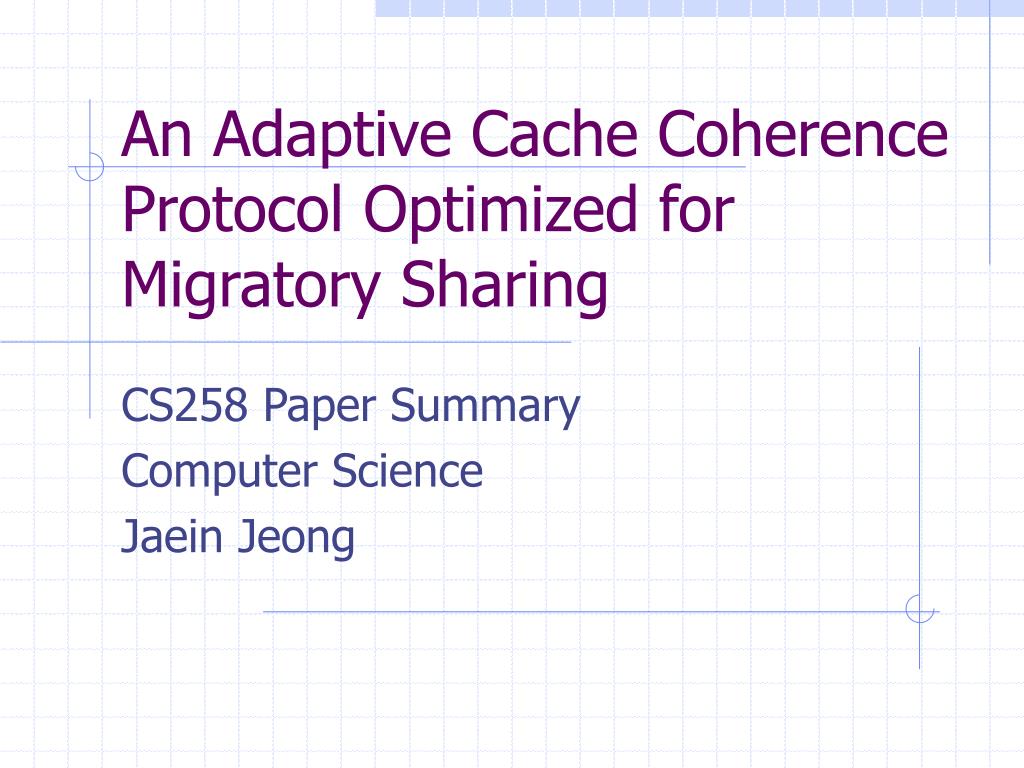

  1. An Adaptive Cache Coherence Protocol Optimized for Migratory Sharing CS258 Paper Summary Computer Science Jaein Jeong

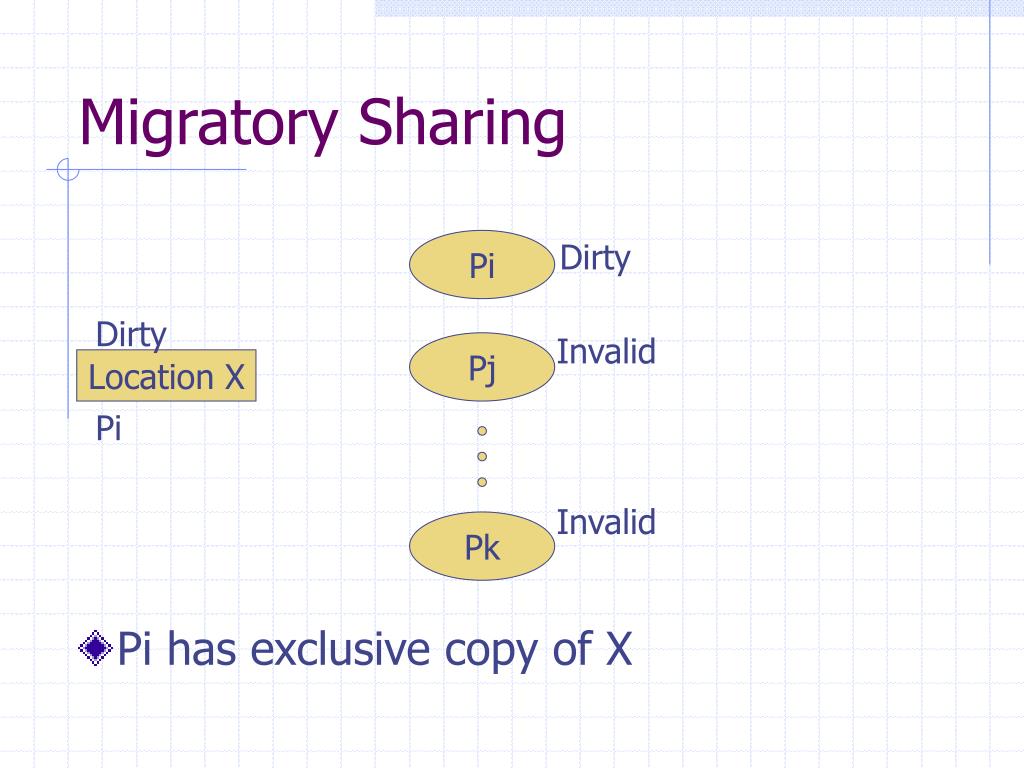

  2. Migratory Sharing • Pi has exclusive copy of X Pi Dirty Dirty Invalid Pj Location X Pi Invalid Pk

  3. Migratory Sharing • Pj sends read request to X Pi Dirty Dirty Rd Invalid Pj Location X Pi Invalid Pk

  4. Migratory Sharing • D.C. sends flush to the exclusive sharer Pi Pi Dirty Rd Dirty Invalid Pj Location X Pi Invalid Pk

  5. Migratory Sharing • Pi sends data to Pj and main memory • State changes to shared, with sharer Pi and Pj Pi Shared WB WB Shared Shared Pj Location X Pi, Pj Invalid Pk

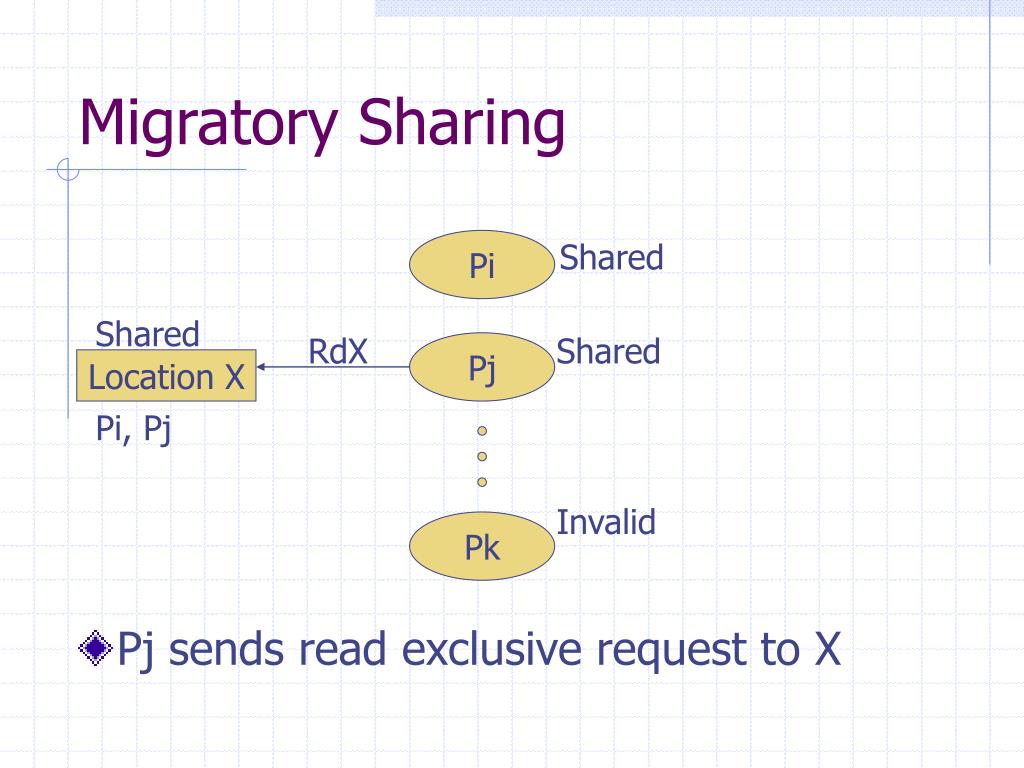

  6. Migratory Sharing • Pj sends read exclusive request to X Pi Shared Shared RdX Shared Pj Location X Pi, Pj Invalid Pk

  7. Migratory Sharing • D.C. invalidates Pi Pi Shared Inv. Shared Shared Pj Location X Pi, Pj Invalid Pk

  8. Migratory Sharing • Pi is invalidated • State for memory and Pj changes to dirtywith sharer Pj Pi Invalid Dirty Dirty Pj Location X Pj Invalid Pk

  9. Transaction Cost under W.I. • Two separate requests from Pj: • Read and Read Exclusive requests • One flush and one invalidation to Pi • Idea for improvement • One request from Pj • After Pi sends data, its state becomes invalid

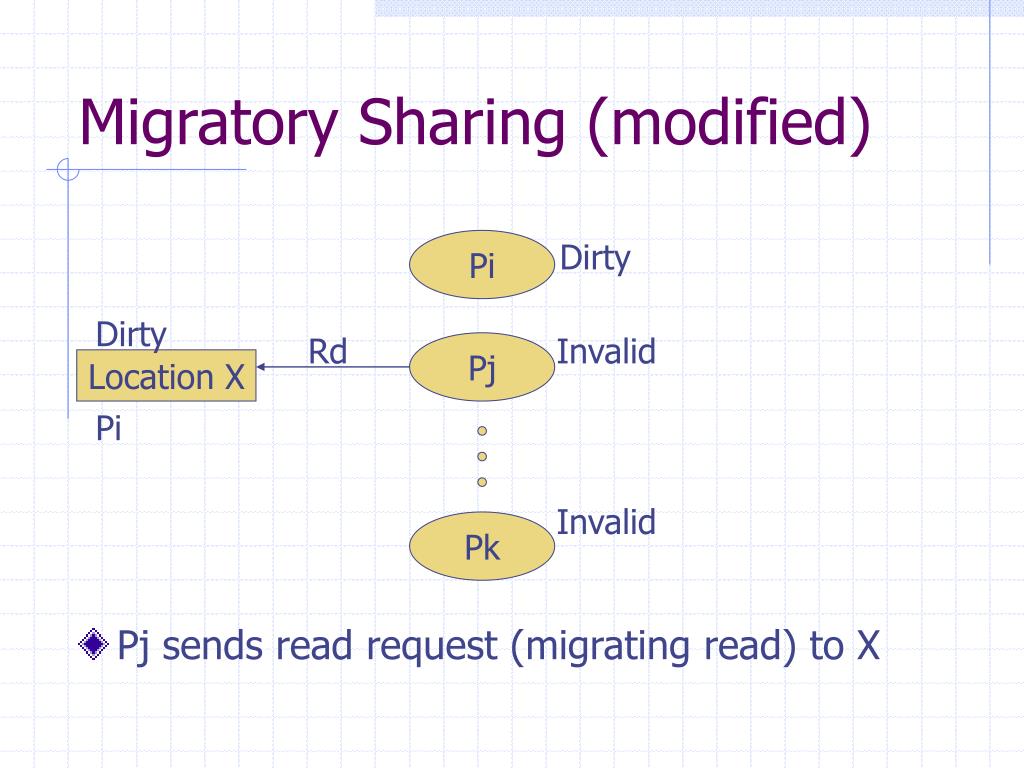

  10. Migratory Sharing (modified) • Pj sends read request (migrating read) to X Pi Dirty Dirty Rd Invalid Pj Location X Pi Invalid Pk

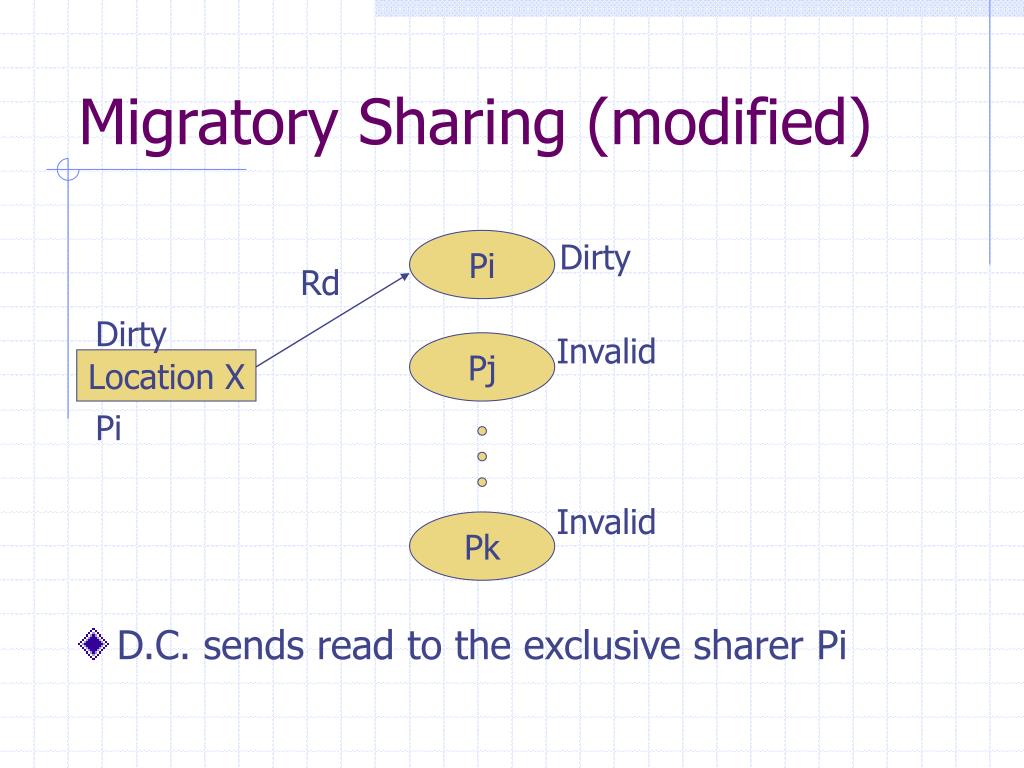

  11. Migratory Sharing (modified) • D.C. sends read to the exclusive sharer Pi Pi Dirty Rd Dirty Invalid Pj Location X Pi Invalid Pk

  12. Migratory Sharing (modified) • Pi sends data to Pj and main memoryand invalidates its copy Pi Invalid WB WB Dirty Invalid Pj Location X Pi Invalid Pk

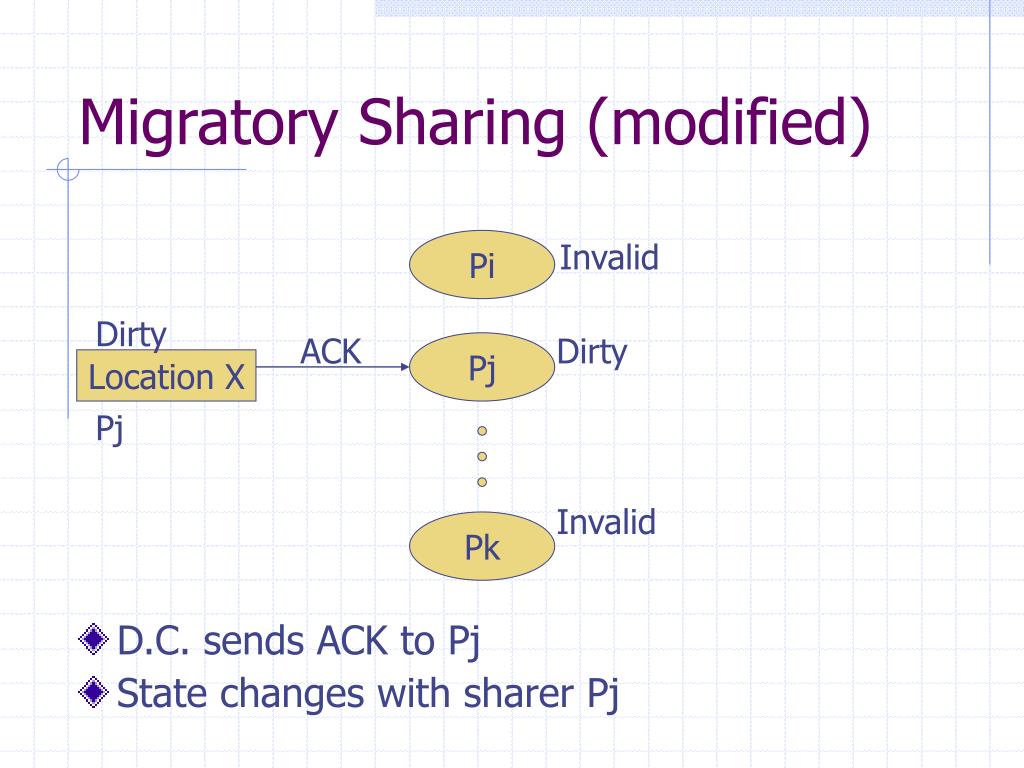

  13. Migratory Sharing (modified) • D.C. sends ACK to Pj • State changes with sharer Pj Pi Invalid Dirty ACK Dirty Pj Location X Pj Invalid Pk

  14. Invalid Shared Dirty Migrating Extensions to support migratory sharing • Switches b/w W.I. And migratory protocol • Extensions are needed: • LW (last writer), N (num sharer) • 2 states for home, 1 state for local

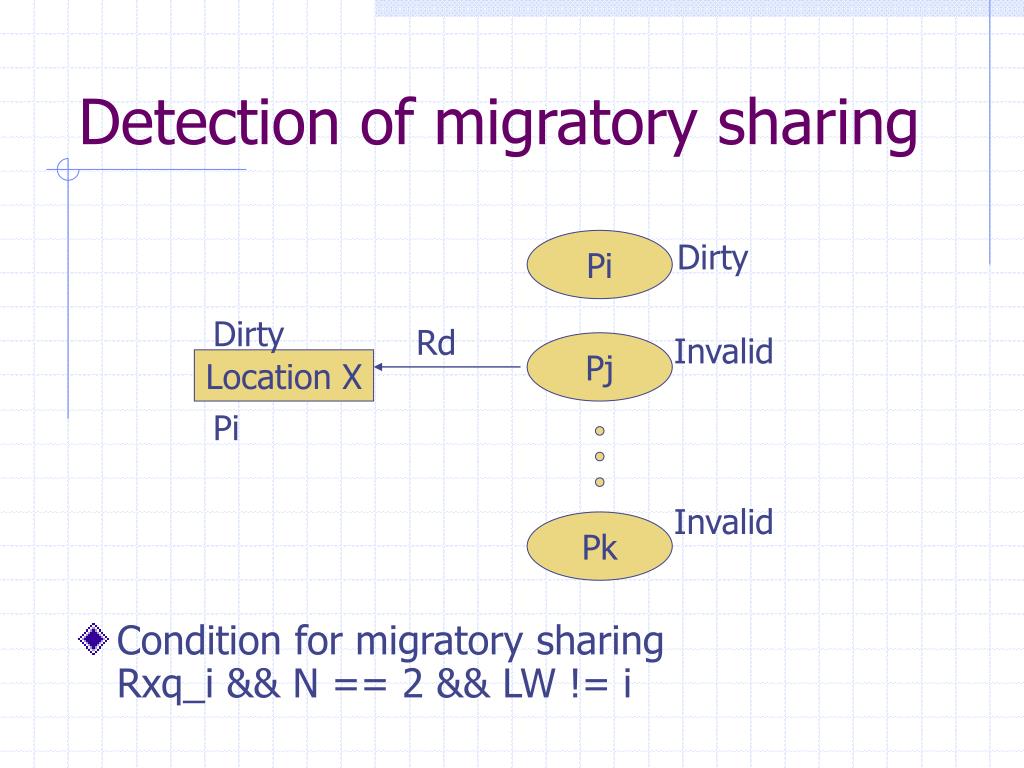

  15. Detection of migratory sharing • Condition for migratory sharingRxq_i && N == 2 && LW != i Pi Dirty Dirty Rd Invalid Pj Location X Pi Invalid Pk

  16. Pi Migrating Rd_j Dirty Invalid Pj Location X Pi Invalid Pk Detection of non-migratory sharing <States of Processor Pi> • Condition for W-IRr && local state == migrating

  17. Experimental Results(Execution Time) • Effective for read-and-modifiy accesses • Reduces number of writes • No negative effect for non-migratory apps

  18. Experimental Results(Network Traffic) • Same trend with the execution time

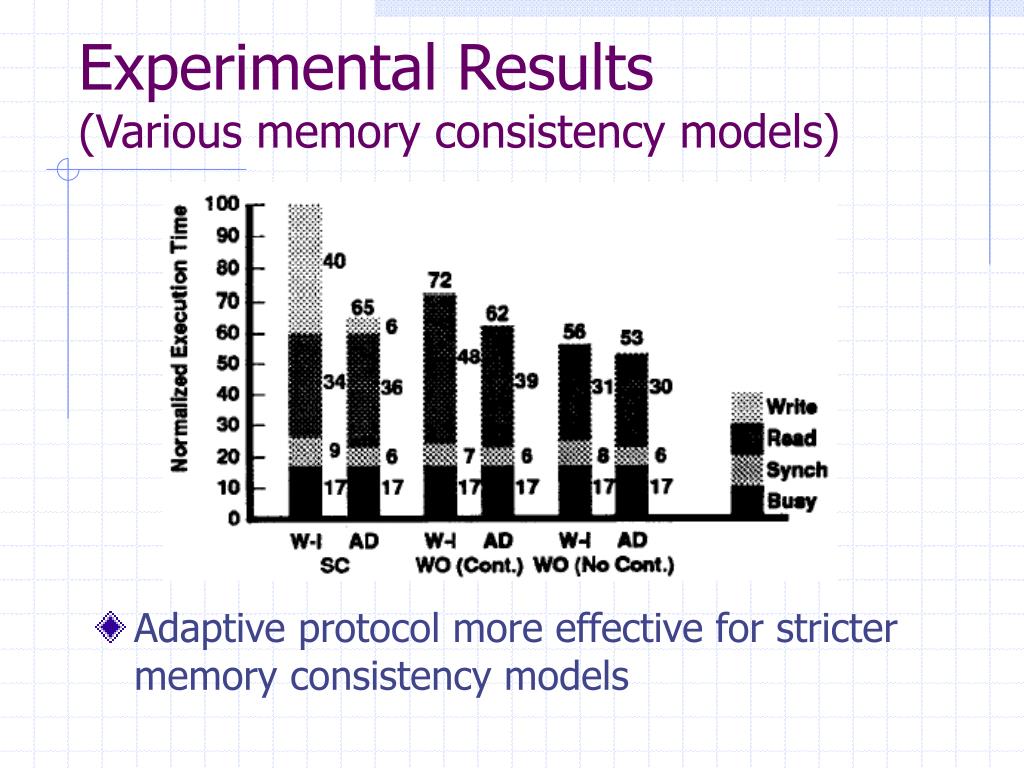

  19. Experimental Results(Various memory consistency models) • Adaptive protocol more effective for stricter memory consistency models

  20. Experimental Results(Smaller cache size) • Adaptive protocol more effective when capacity and conflict misses are reduced with larger cache

  21. Discussion • Is the adaptive protocol worthwhile? • The effectiveness varies depending on applications (1% to 54%). Benefits on migratory sharing • Added complexity • Increased number of states • More complex transition
